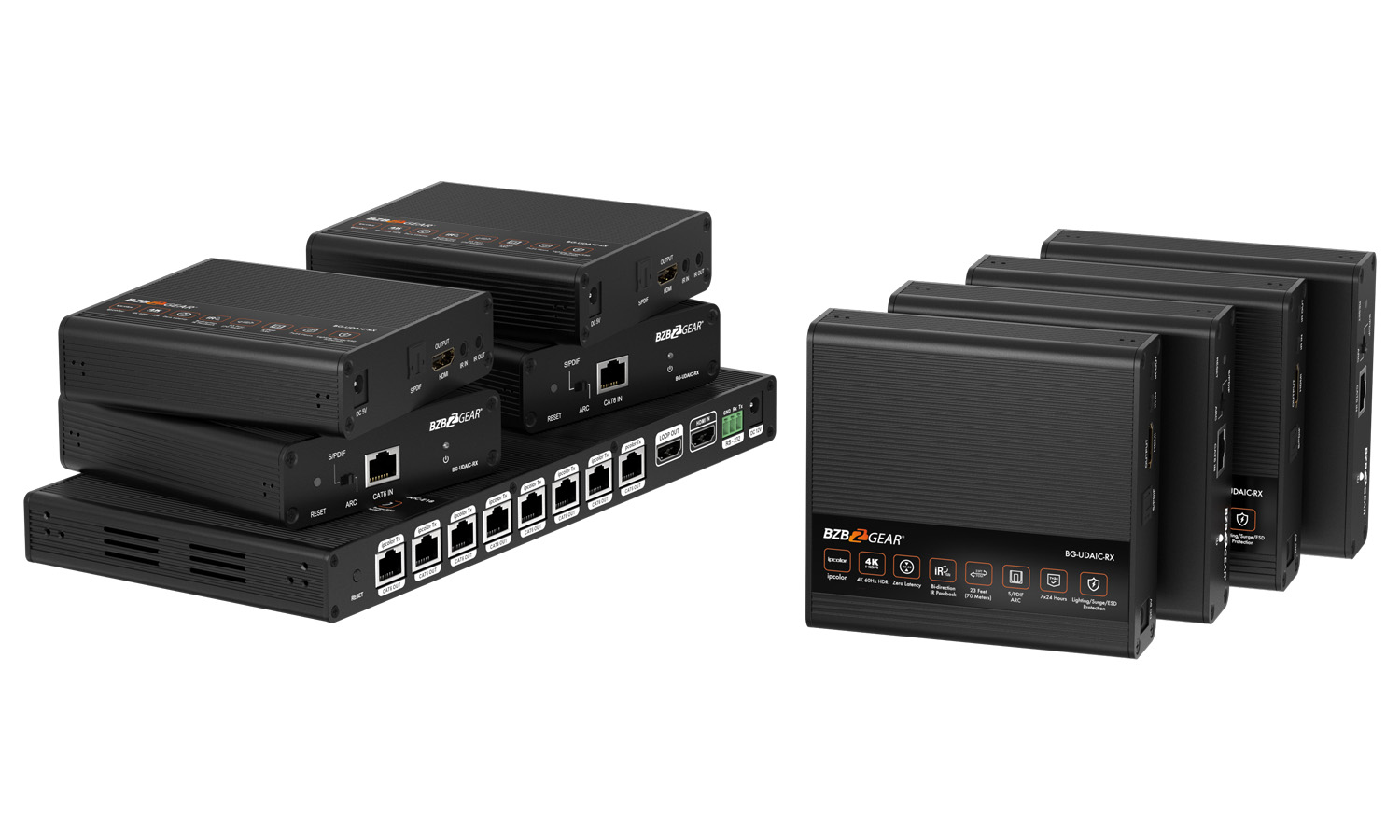

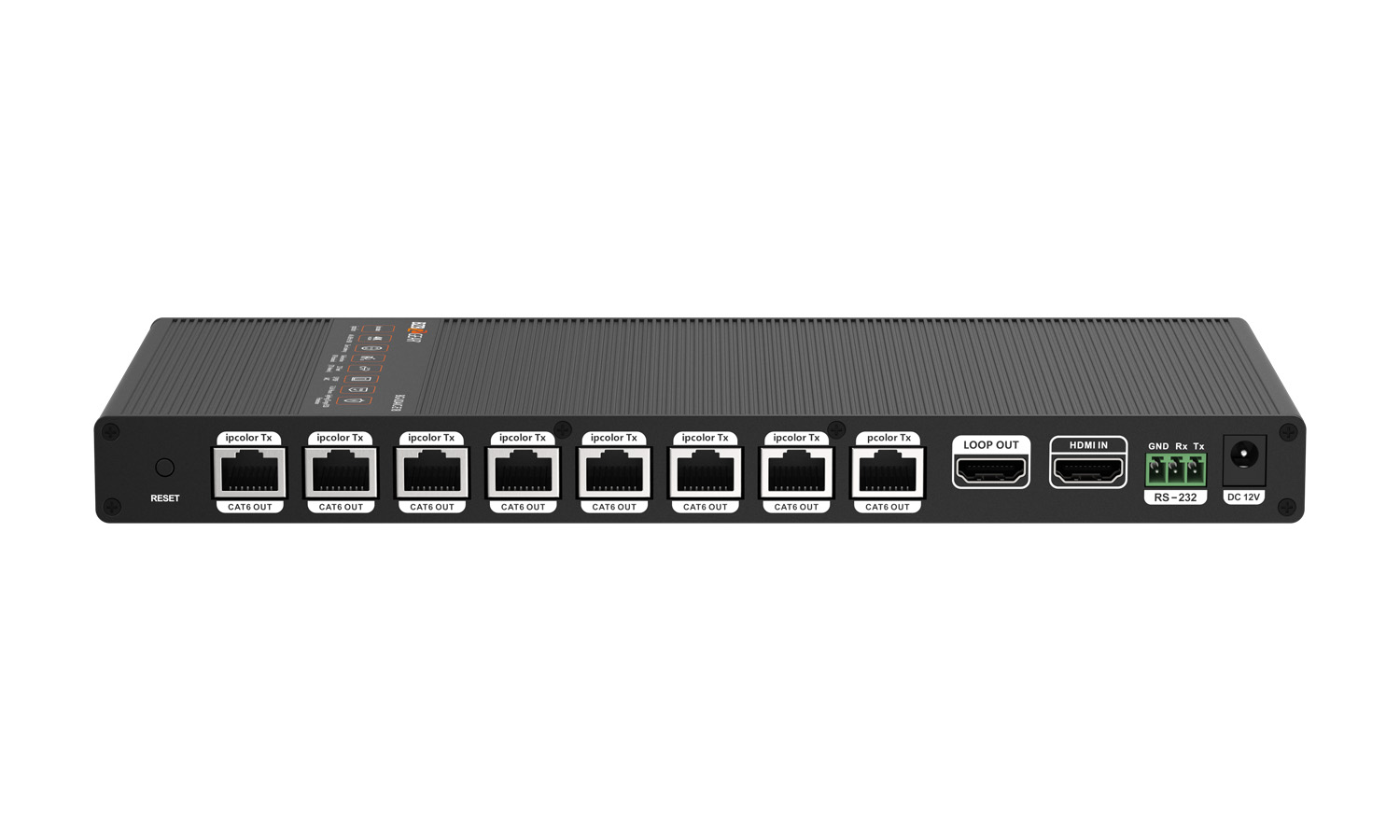

BZBGEAR BG-UDAIC-E18 1x8 4K UHD HDMI Splitter/Distribution Amplifier Kit with 8 Receivers and IR/RS-232/Audio De-embedding up to 230ft over Category Cable

Description

}

The BG-UDAIC-E18 by BZBGEAR is a high-performance extender/splitter kit that enables users to distribute one HDMI input to up to eight extender outputs and extend signals up to 70 meters (230 feet) with CAT 6/6A/7 network cables. This solution is ideal for transmitting audio and video signals from a source located at a remote distance, providing reliable and zero-latency connectivity without compromising on quality.

The BG-UDAIC-E18 supports resolutions up to 4K @ 60Hz, delivering stunning visuals with uncompromising clarity and precision. The extender/splitter kit offers zero-latency transmission, ensuring that audio and video sync perfectly without any noticeable delay. Using a wired connection for this purpose guarantees higher and more consistent image quality, making it ideal for professional applications where quality is paramount.

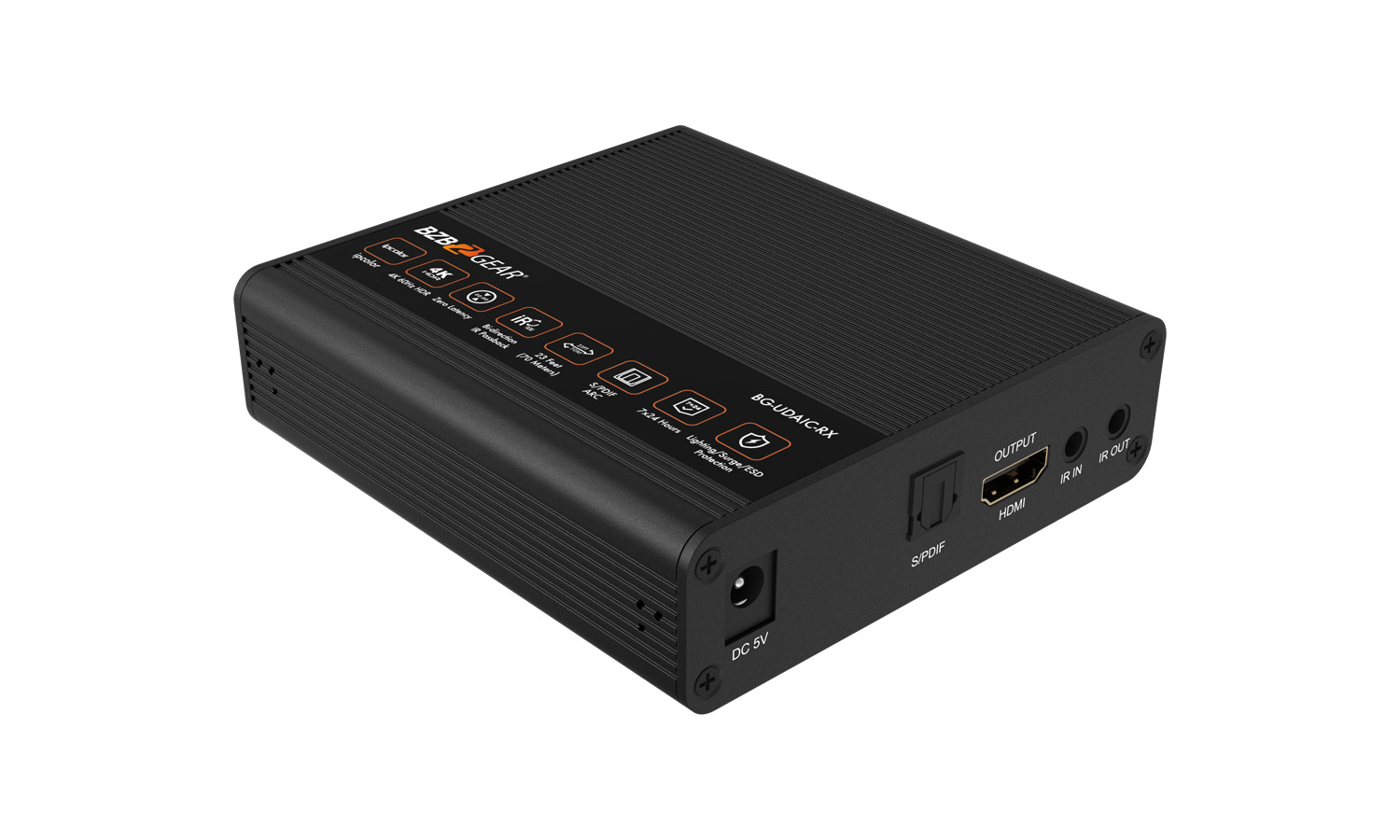

Moreover, the receivers can output digital audio from the display (ARC) or from the source device via the S/PDIF port. HDMI loop out is also available, allowing users to connect local displays or scale the system effortlessly and conveniently.

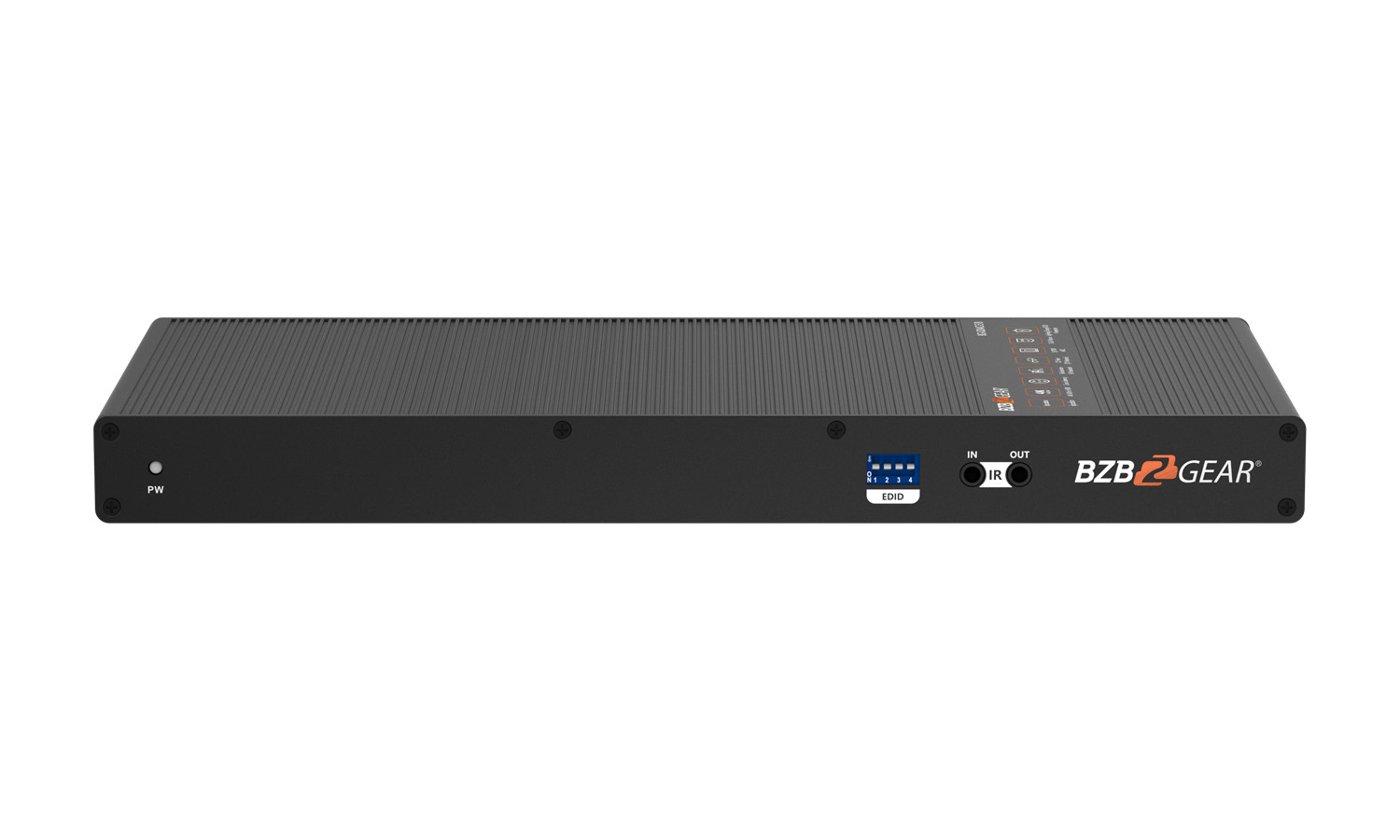

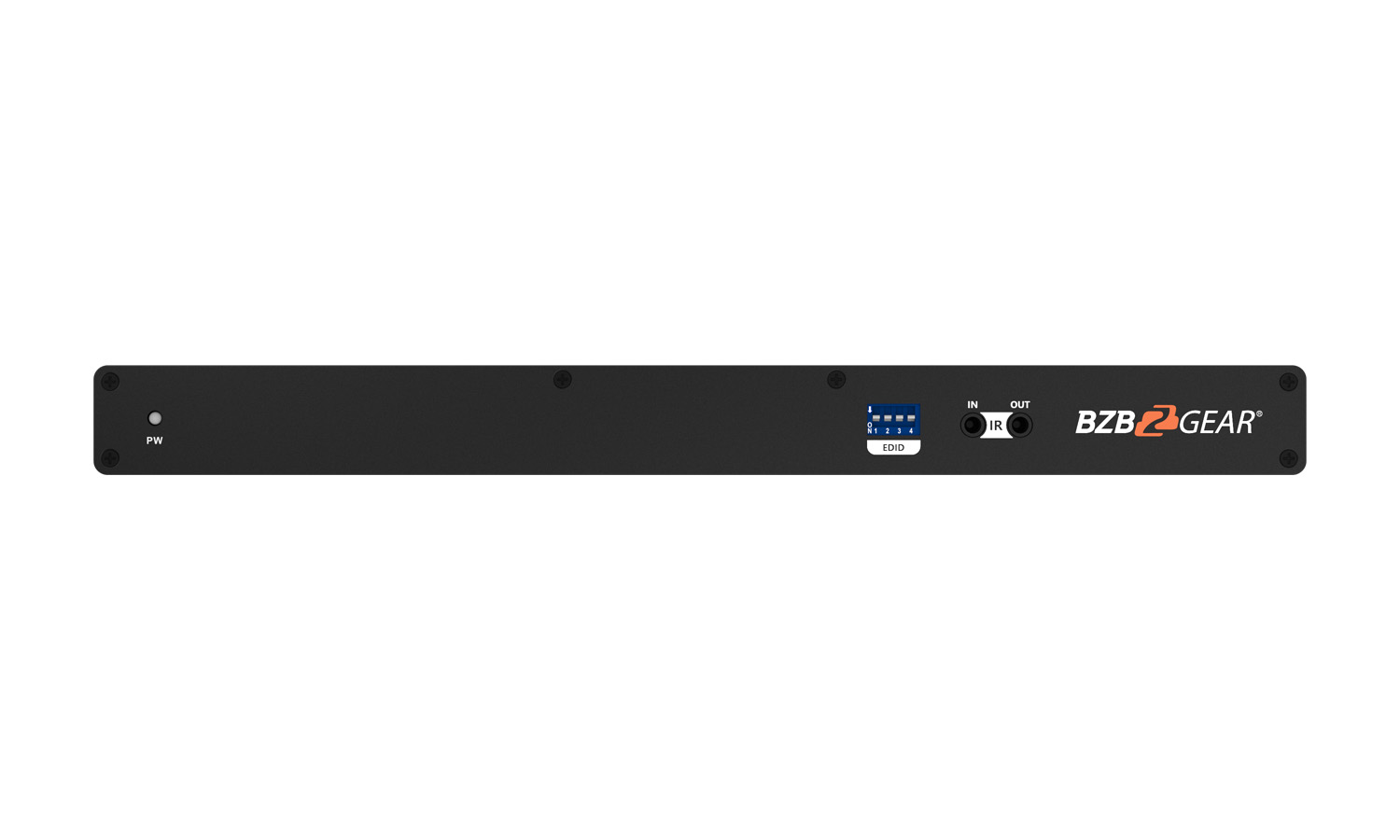

The extender/splitter kit offers bi-directional IR passthrough via IR blaster and IR receivers, enabling users to control equipment regardless of distances or obstacles. EDID passthrough and manual EDID setup with a dip-switches is available ensuring correct image resolutions. RS-232 passthrough is also supported, providing easy integration with automation and control systems.

Overall, the BG-UDAIC-E18 is a robust and reliable extender/splitter kit that delivers outstanding performance and flexibility for distributing high-quality HDMI signals over long distances. It is an ideal solution for a wide range of applications, including home entertainment, digital signage, hospitality, and education.

Crystal Clear Images:
Supports resolutions up to 4K @ 60Hz

Control:
Bi-Directional IR Passthrough

HDCP 2.2:
High-Bandwidth digital content protection supported

ARC:
Audio Return Channel support

Long Range:
Transmit HDMI signals up to 70m

Audio De-Embedding:
Digital audio provided via TOSLINK connector on receiver

Zero latency transmission

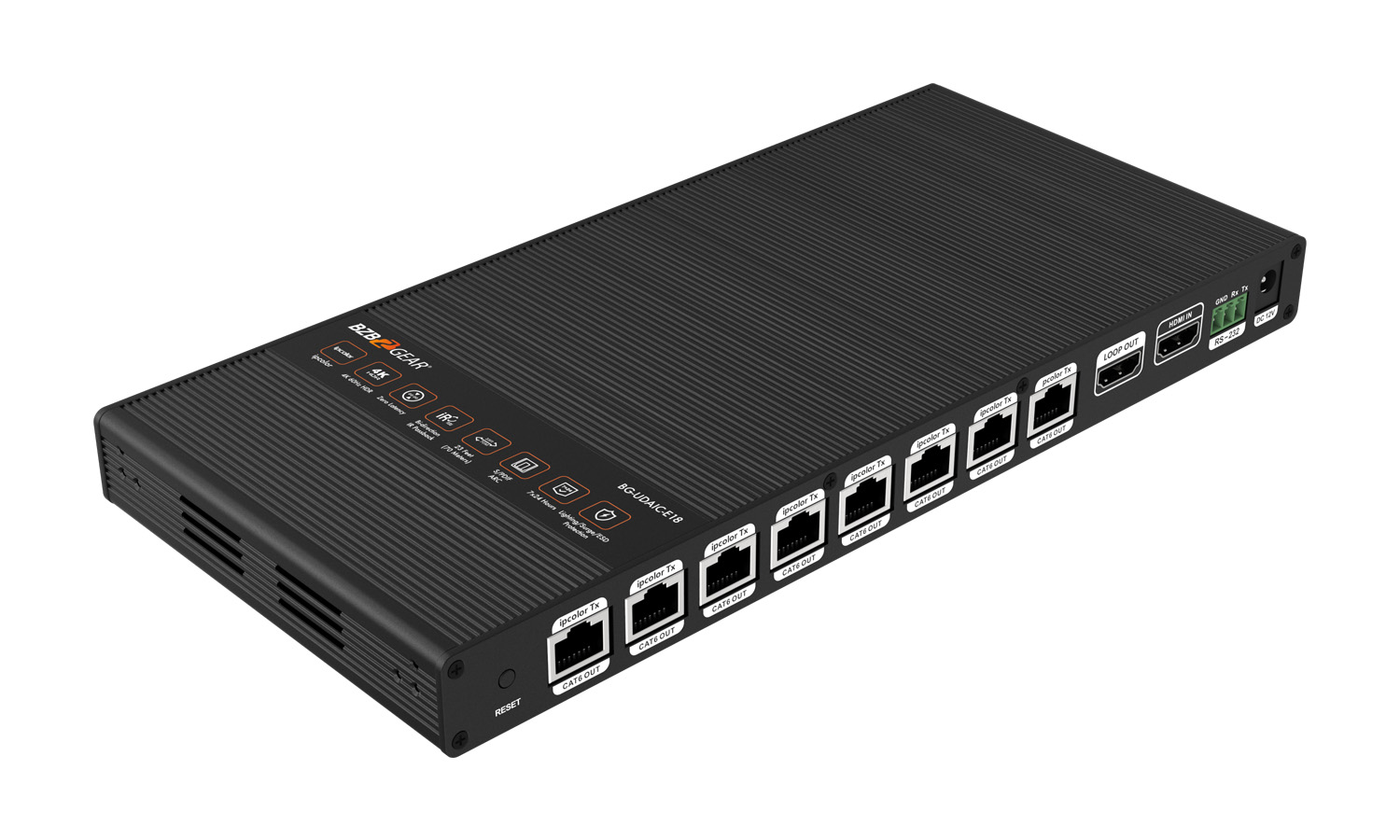

Split and extend 1 HDMI input signal to 8 HDMI outputs

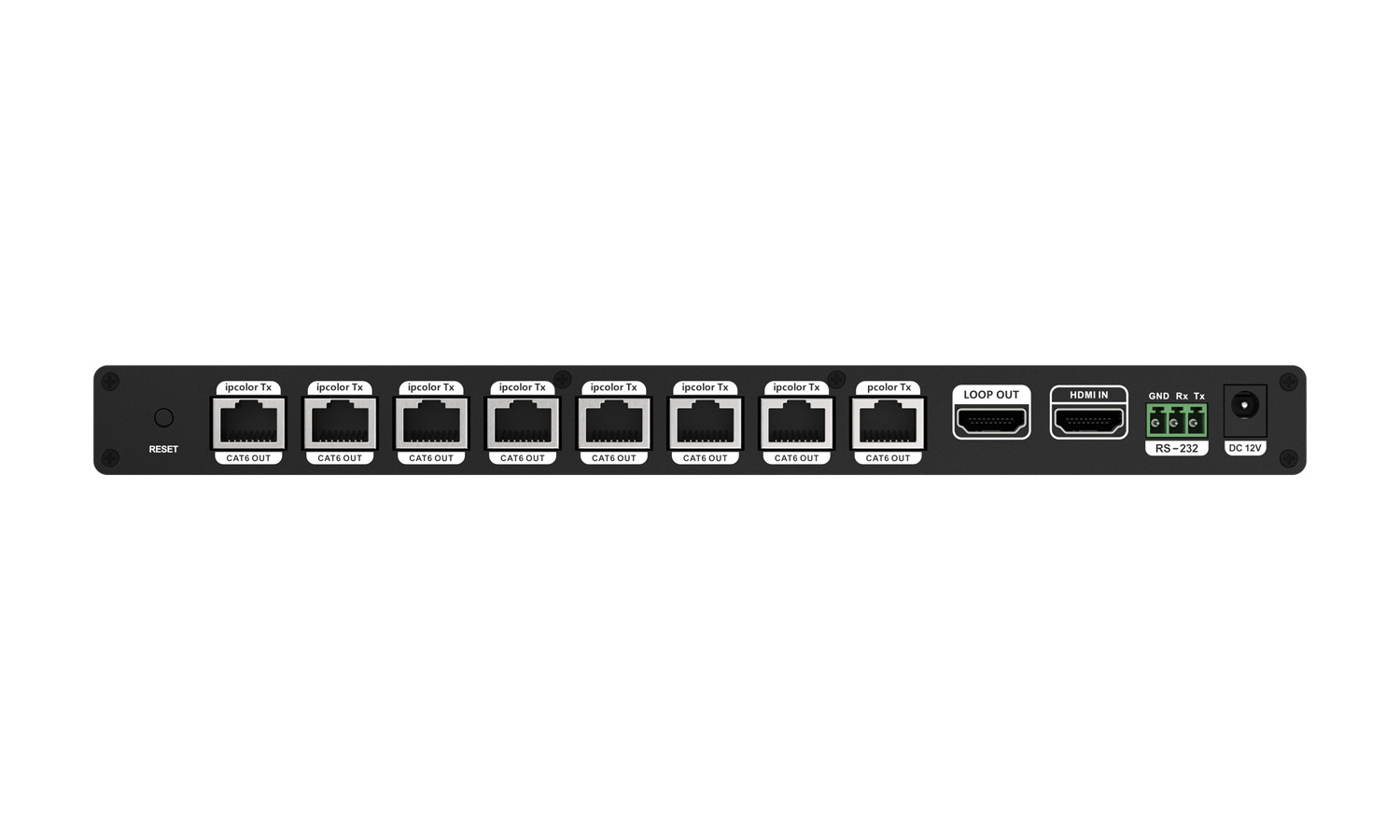

The transmitter supports HDMI loop out
Supports EDID passthrough or manually set the EDID of the product
Supports RS-232 command control
Surge Protection, Lightning Protection, ESD Protection

Video

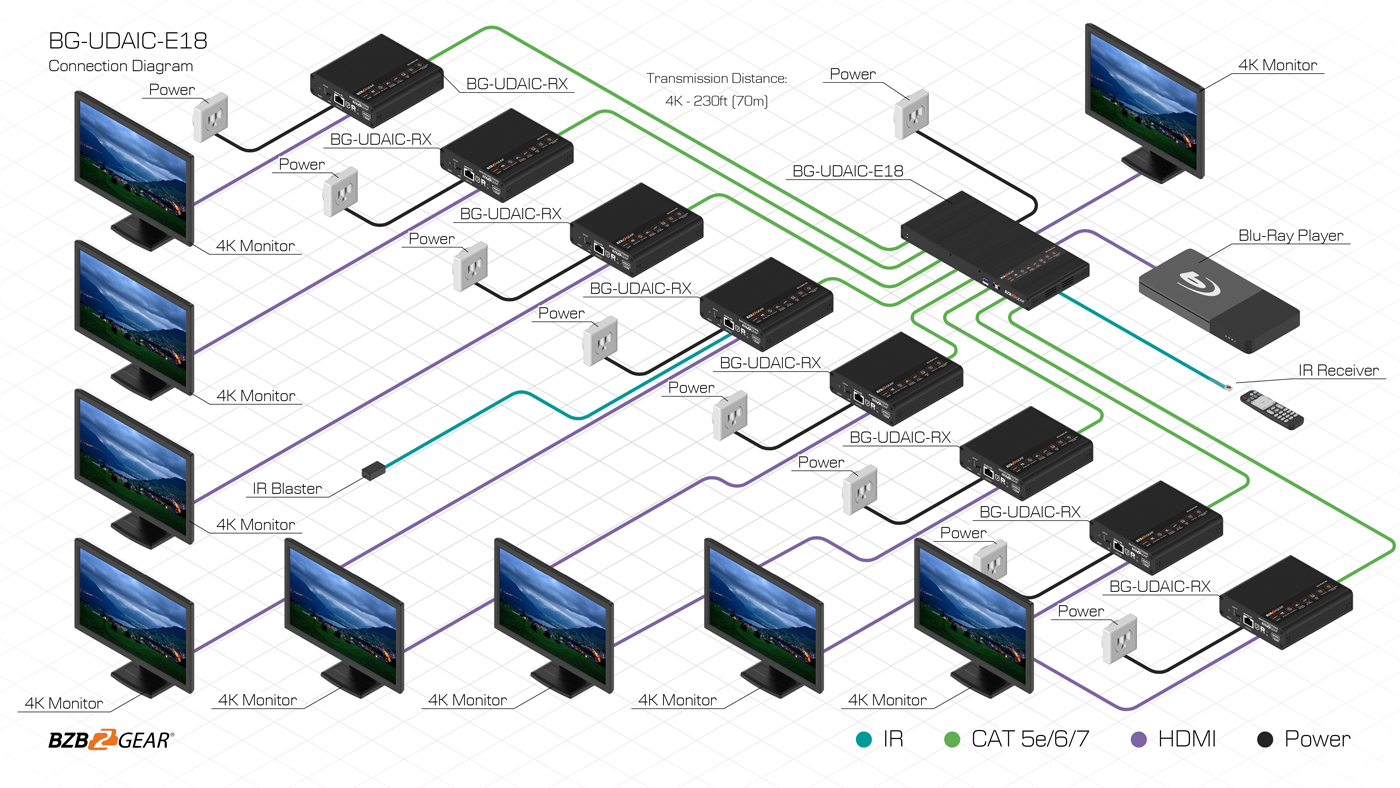

Product Diagrams

View Diagrams

Specifications

Transmission protocol	ipcolor
Distribution mode	1 IN 8 OUT
Transmission distance	CAT6/6A/7 ≤ 70m
HDMI signal	HDMI 2.0, HDCP 2.2
HDMI Resolution	480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50/60Hz, 1080i @ 50/60Hz, 1080p @ 50/60Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600, 3840x2160 @ 24/25/30/50/60Hz, 4096x2160 @ 24/25Hz
Audio formats	LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1
IR	Bi-directional IR passback (20-60 kHz)
RS-232	3 pin: TxD-RxD-GND, follows RS-232 levels
Working temperature	-4~140°F / -20~60°C
Storage temperature	-22~158°F / -30~70°C
Humidity(no condensation)	0~90% RH
Protection	ESD protection 1a Contact discharge level 3 1b Air discharge level 3 Implementation of the standard: IEC61000-4-2
	Lightning protection
	Surge protection
Power supply	TX: DC 12V/3A RX: DC 5V/2A
Power consumption	TX<24W RX<4W
Material	Aluminum alloy material + crystal panel
Color	Black
Weight	TX: 1.6 lbs [724g] RX: 0.46 lbs [210g]
Dimension	TX: 10.2"(L) x 4.7"(W) x 0.9"(H) [260(L) x 120(W) x 23.5(H)mm] RX: 4.2"(L) x 3.9"(W) x 1.0"(H) [106(L) x 99(W) x 26.2(H)mm]
