Description

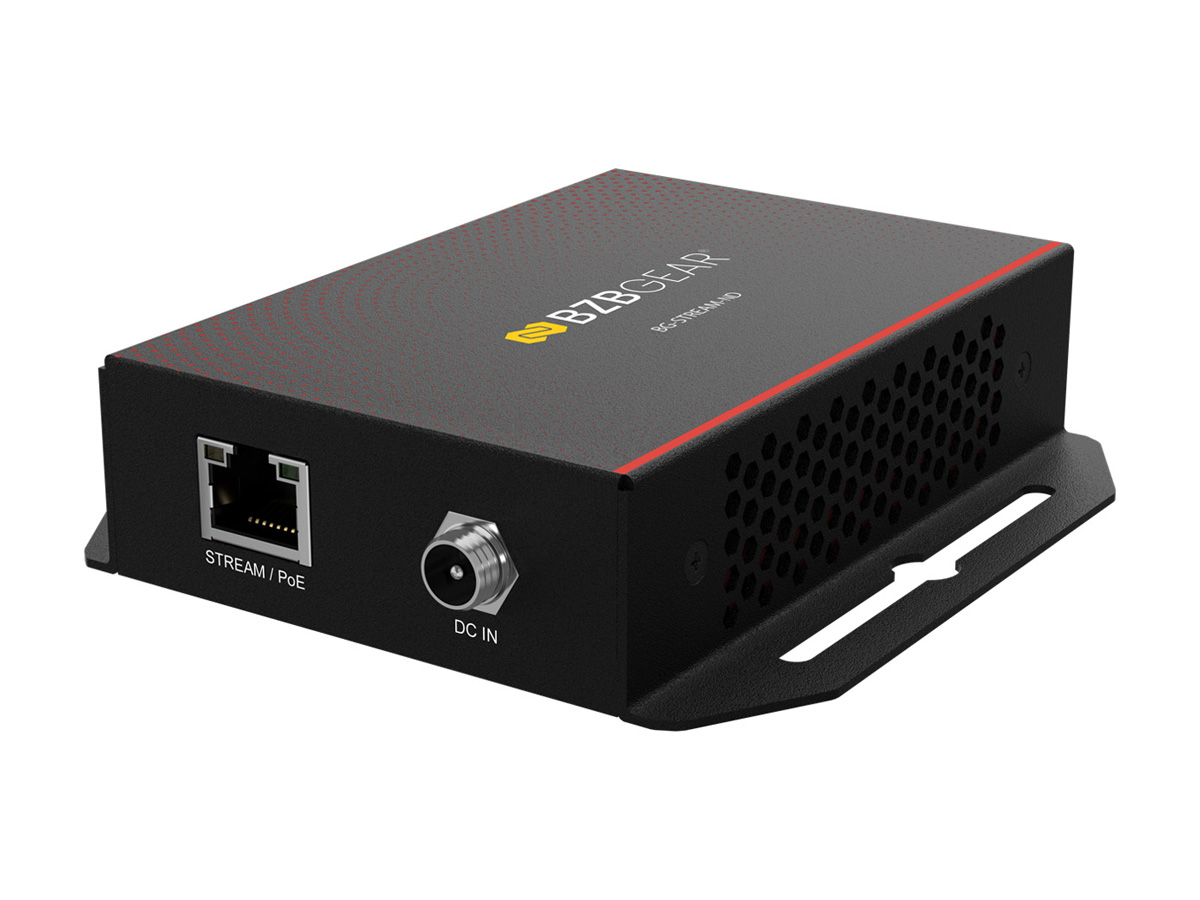

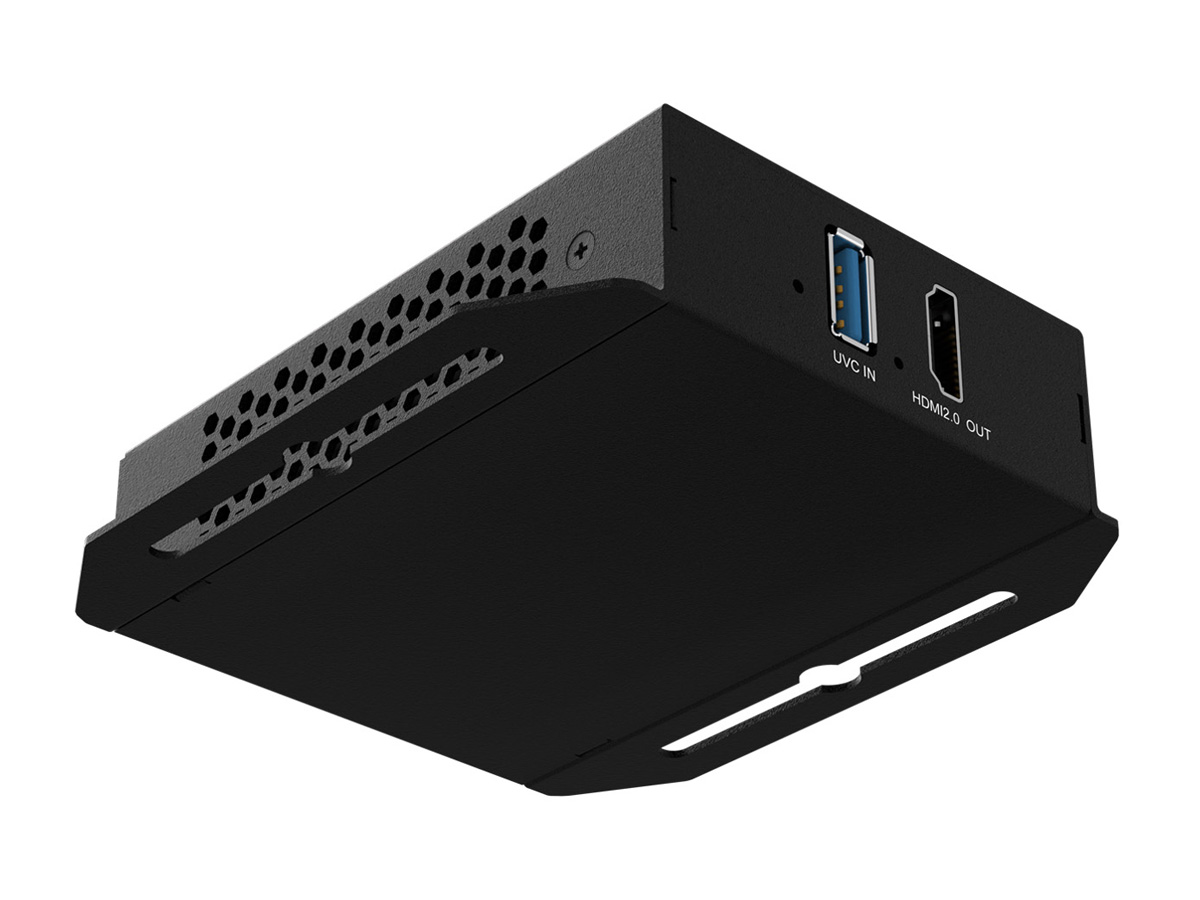

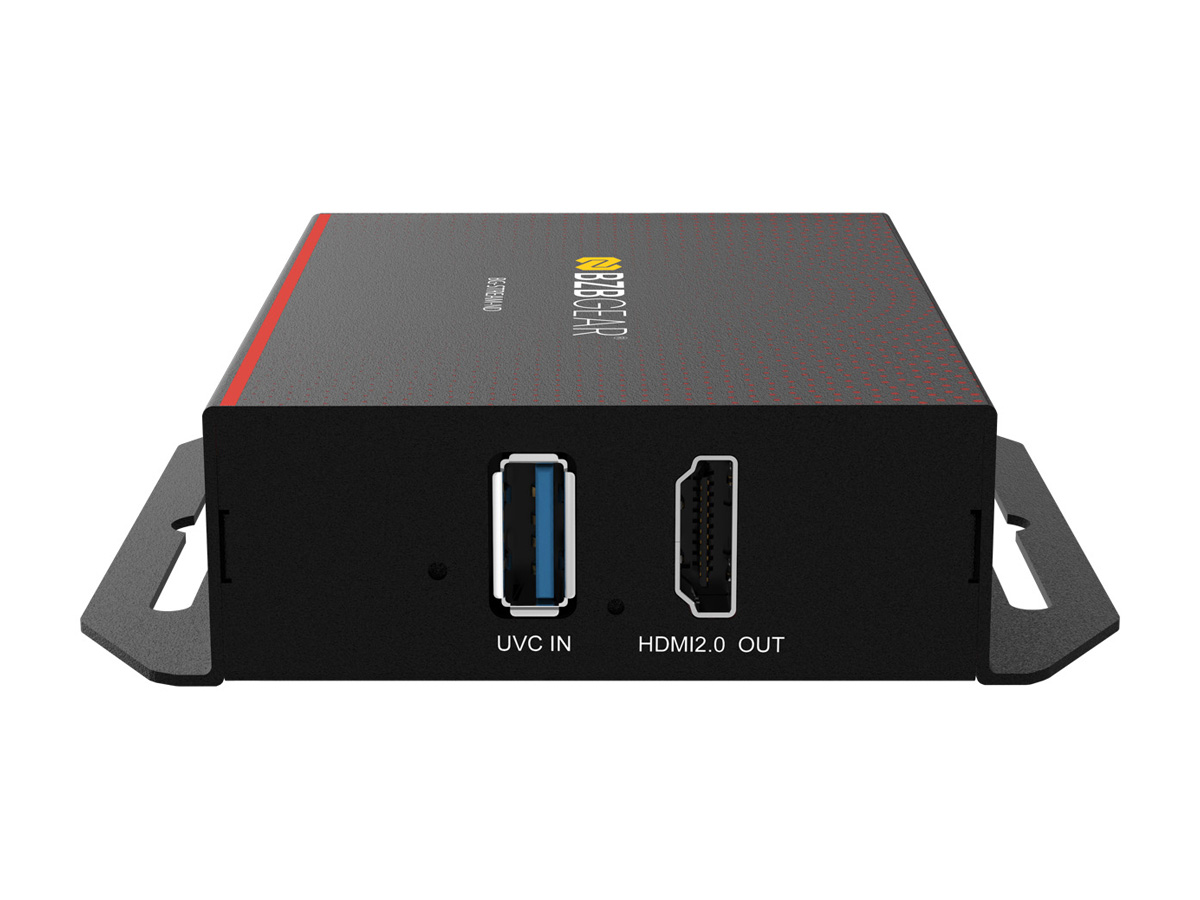

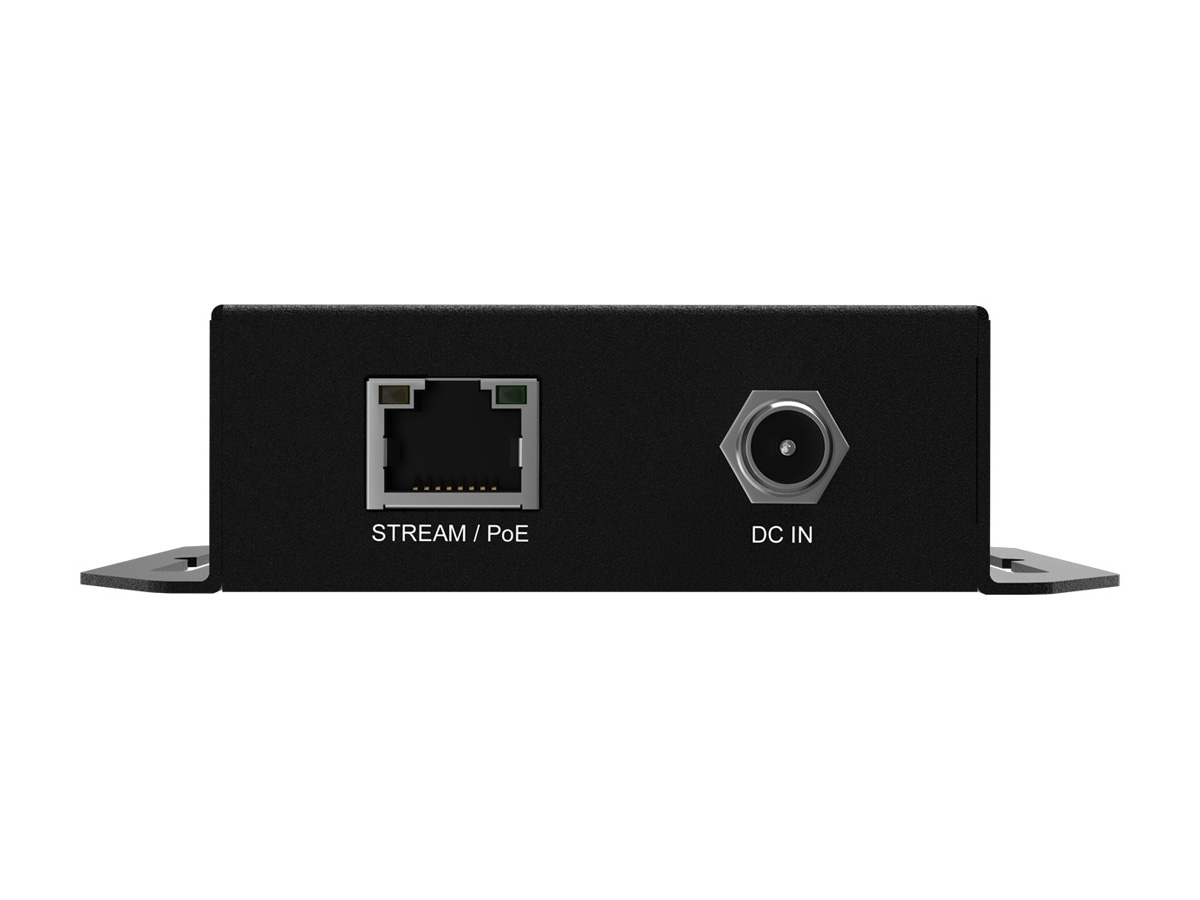

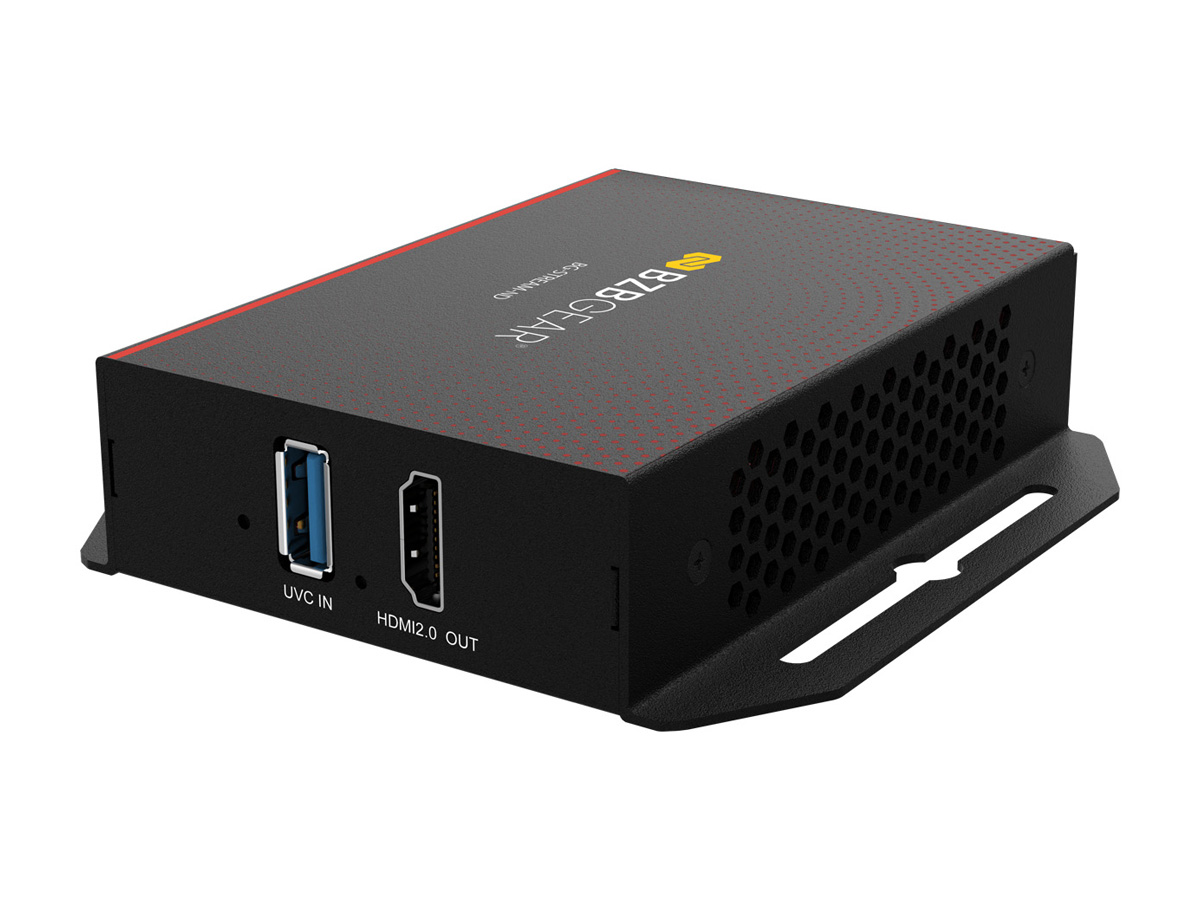

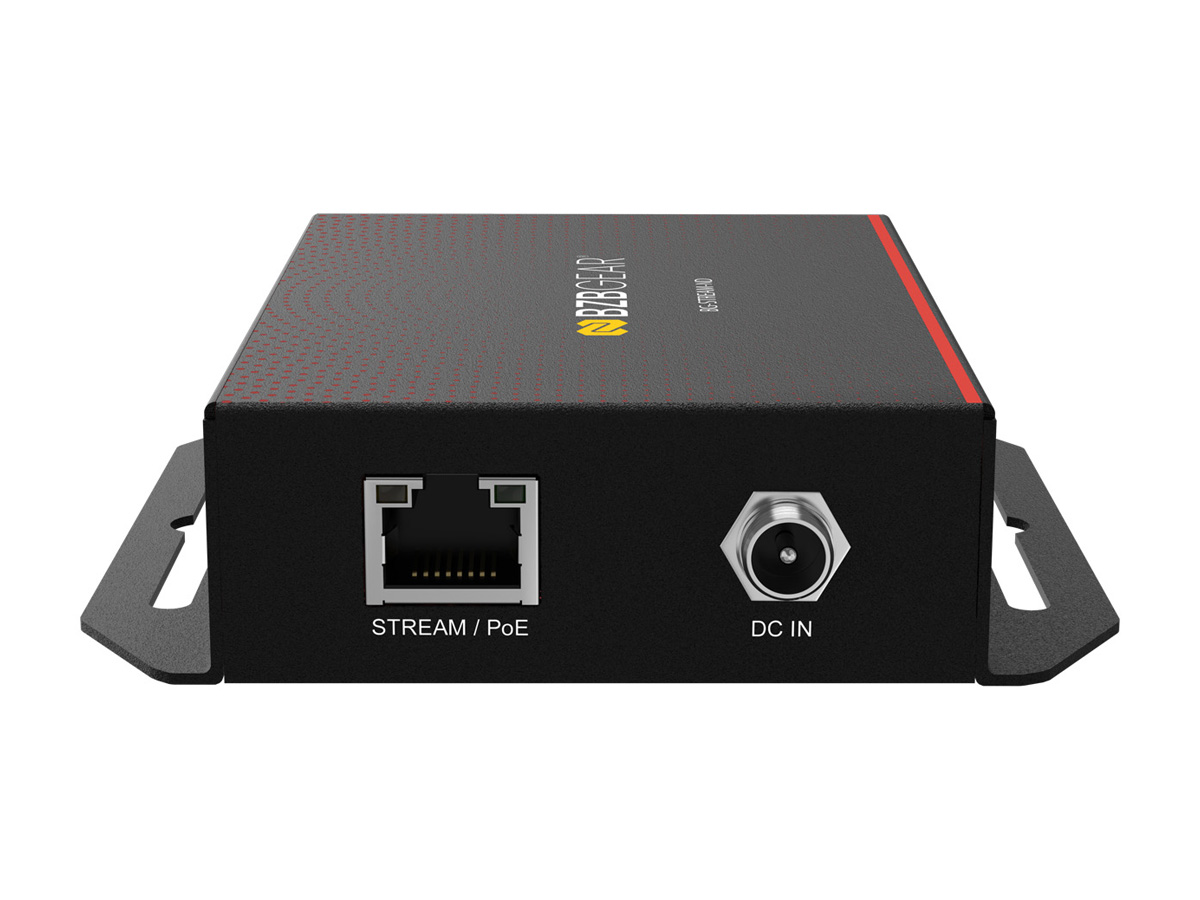

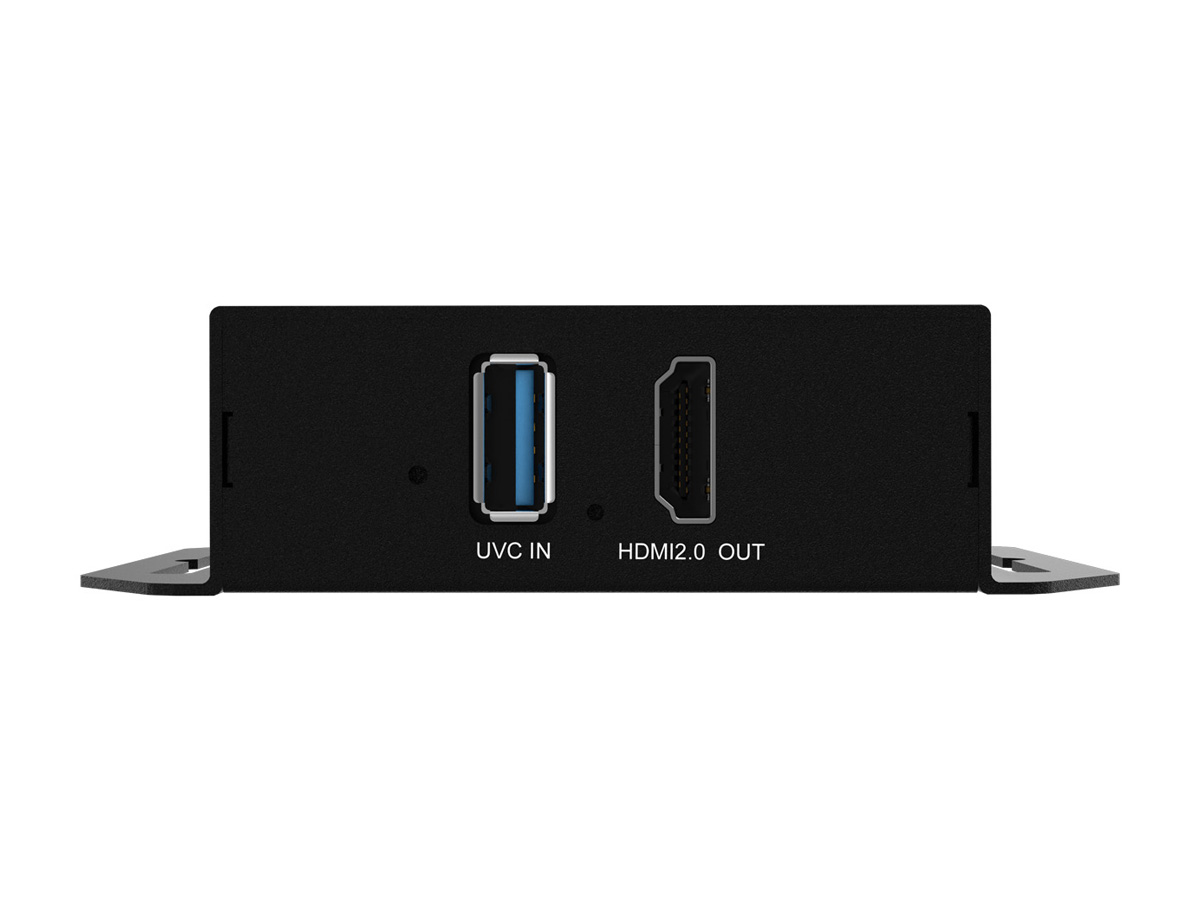

Download Manual The BG-STREAM-ND IP/UVC to HDMI 2.0 is a versatile and compact video decoder that bridges the gap between various video input sources and HDMI output. Featuring a single RJ45 input, USB 3.0 Type A (UVC) input, and HDMI 2.0 output, this device is ideal for high-definition video processing and streaming. It is powered through a secure locking DC jack, ensuring stable and reliable operation.
Features In-DepthThe BG-STREAM-ND IP/UVC to HDMI 2.0 is an advanced video processing unit that supports multiple video and audio formats. It provides seamless connectivity options through its RJ45 and USB 3.0 inputs, delivering output via HDMI 2.0. This device is designed to handle high-resolution video up to 4096×2160p at 60/50fps, making it suitable for professional AV setups, live streaming, and broadcasting applications.
The device supports a wide range of streaming protocols, including RTSP, RTMP, HLS, TS, SRT, and NDI HX providing flexibility and compatibility with various streaming platforms. The integrated web UI offers an intuitive interface for system configuration, ensuring user-friendly operation and easy setup.
With advanced features like hardware compression, real-time recording, and firmware upgradability, the BG-STREAM-ND IP/UVC to HDMI2.0 decoder is designed to meet the demanding requirements of modern video production environments. Its compact design, measuring 103.8mm x 71.2mm x 26mm, allows for easy integration into existing AV infrastructures.
What is NDI?Network Device Interface (NDI) is a high performance AV over IP standard that allows anyone to use real time, ultra low latency video on existing IP video networks. The NDI open protocol enables professionals to share video through a local area network (LAN) with video-compatible devices. With a single ethernet cable connection, professionals can merge all stages of production from start to finish. That way, all production tasks and processes will be united, so accomplishing a creative vision will be simple. With the NDI 5.5 tool-kit, users will also be able to connect any audio device as an NDI source with NDI’s Audio Direct tool. This adds audio over IP to NDI’s revolution.
What is NDI|HX3?NDI|HX3 is an updated version of the HX2 standard. The difference is, HX3 provides a better image quality and lower latency than HX2. NDI|HX3 also uses slightly more bandwidth than NDI|HX2, but the increase in bandwidth is not significant enough to be an issue. There are a limited amount of NDI|HX3 compliant devices due to a hardware limitation most NDI|HX2 compliant devices have. Overall, NDI|HX3 is the latest update to the standard and offers the best features.
Features- Versatile Connection Options – Supports IP, USB-A 3.0, and HDMI 2.0 connections
- High-Quality Video Processing – Capable of resolutions up to 4K@60Hz with downscaling ability
- Comprehensive Audio Support – Utilizes AAC-LC codec with a configurable bit rate range from 32Kbps to 384Kbps
- Advanced Network Capabilities – Includes DHCP support and Power over Ethernet (PoE) functionality
- Extensive Protocol Support – Covers RTSP over UDP/TCP/Multicast/HTTP, RTMP, TS over IP, HLS, NDI
- User-Friendly Interface – Features an accessible web UI for easy system configuration
- UVC Device Support – Ensures compatibility with a wide range of devices
- Real-Time Mode Recording – Enables immediate recording functionality
- Compact and Durable Design – Includes a secure locking DC jack power input
- Efficient Hardware Compression – Supports H.265/H.264/AVC encoding
- Firmware Upgradeable – Allows for easy updates to enhance functionality
