BZBGEAR BG-STREAM-D IP/UVC to HDMI 2.0 POE Decoder Supports H.264/H.265/AVC (Dante AV-H Ready)

Description

Download Manual

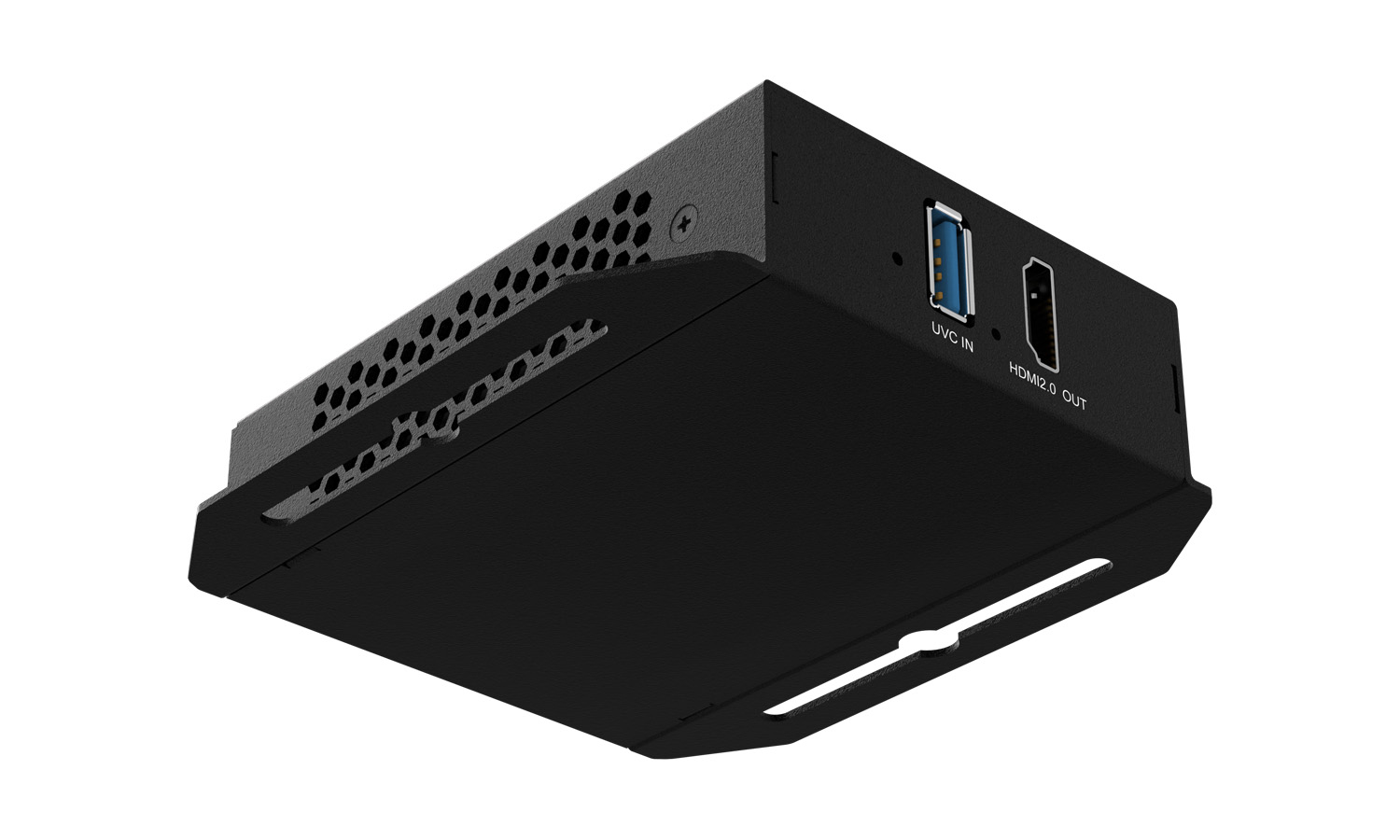

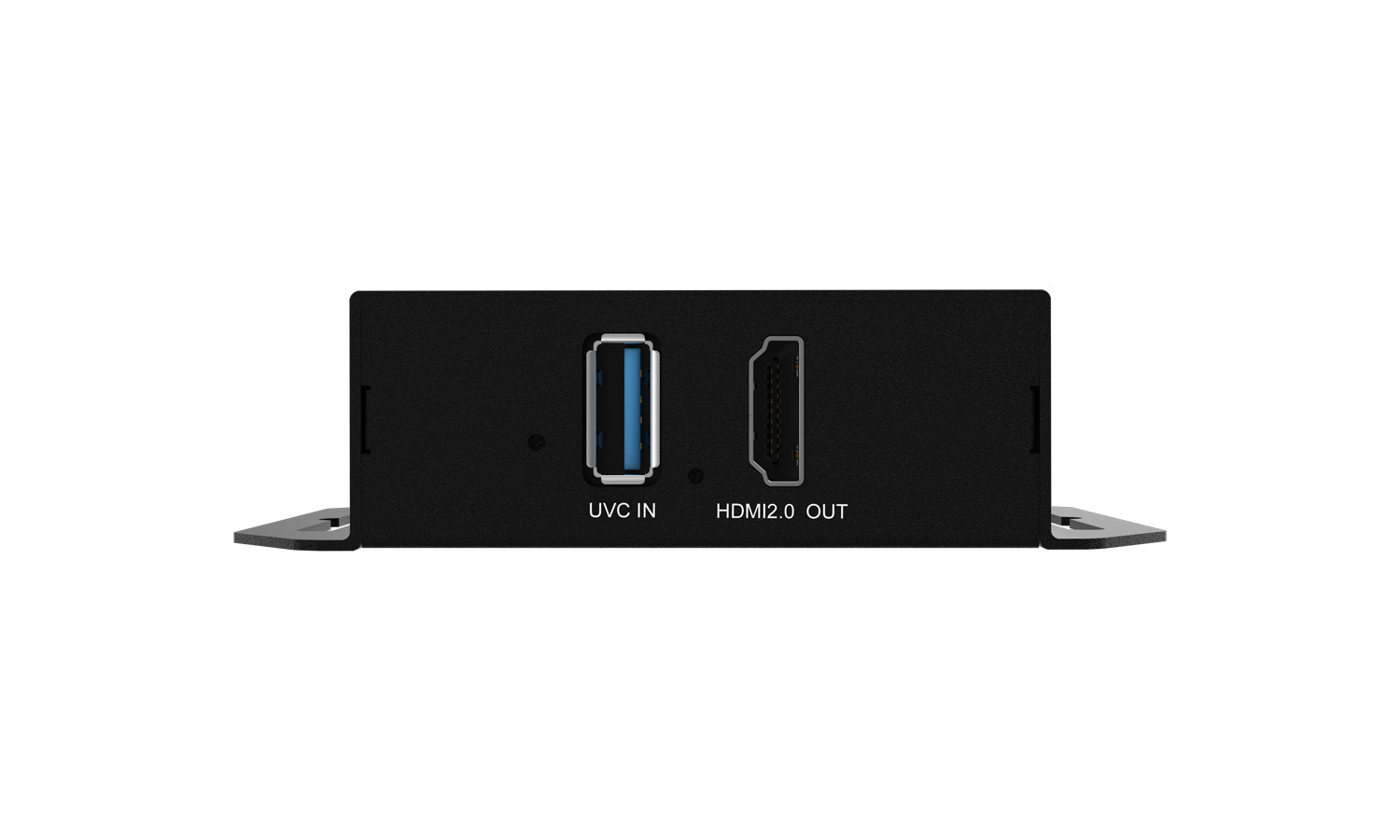

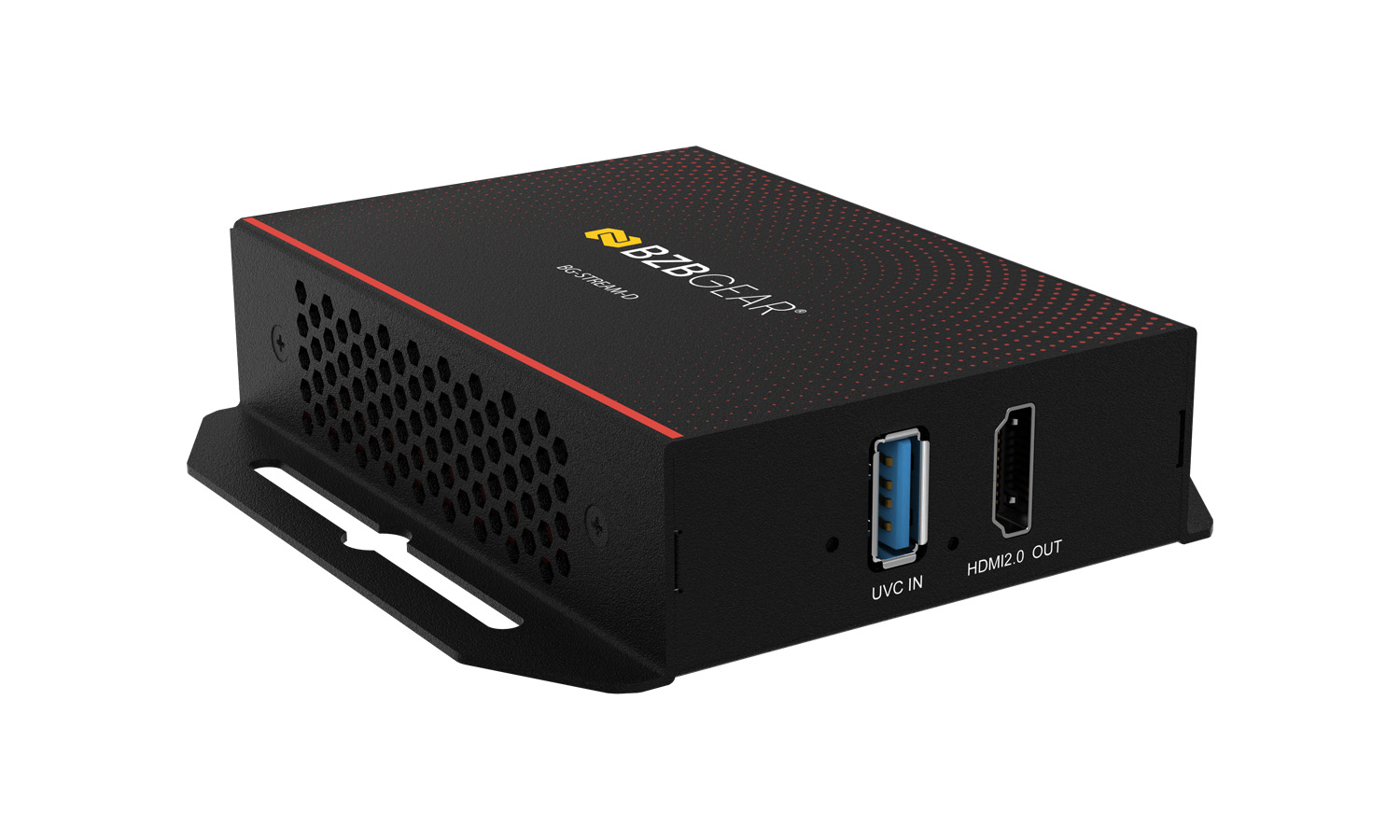

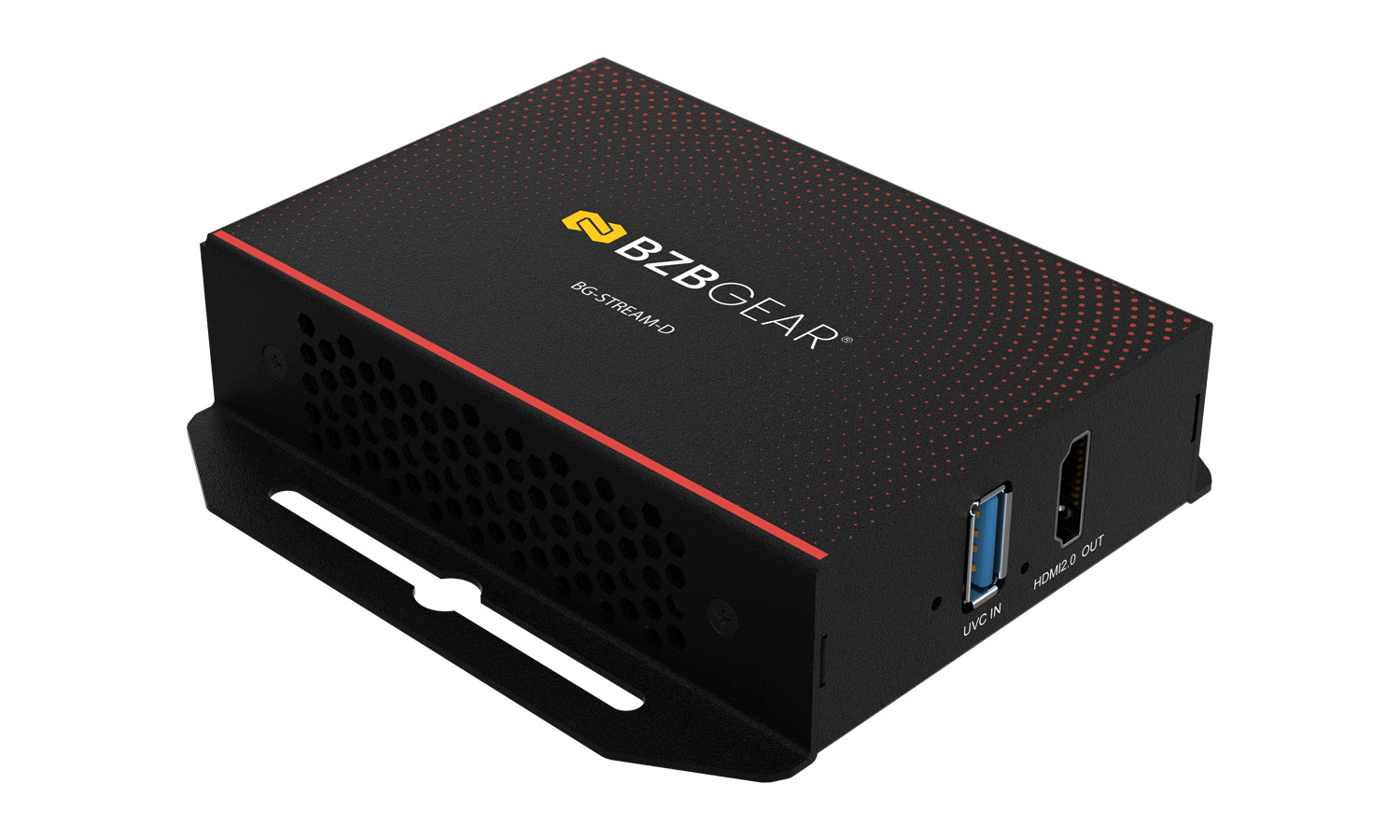

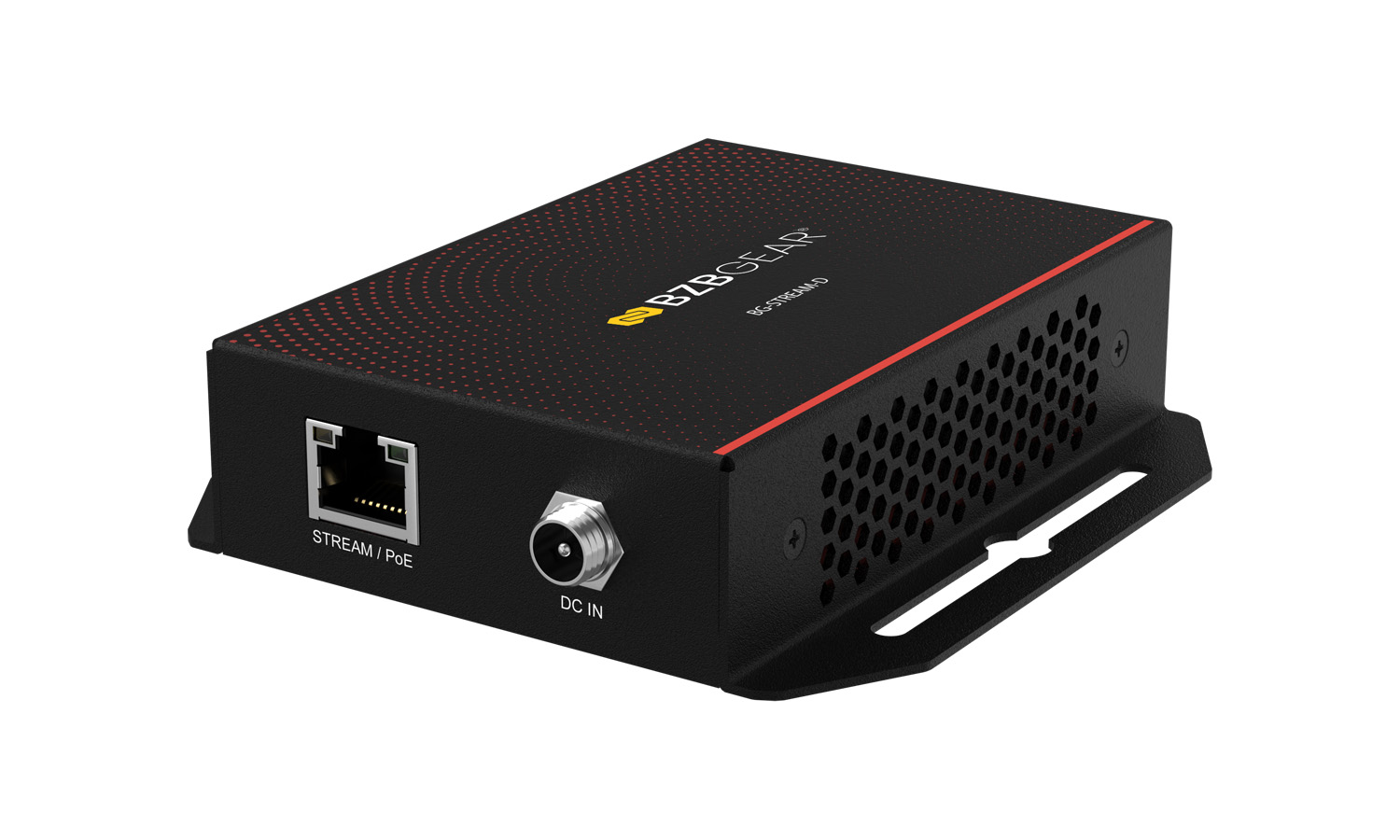

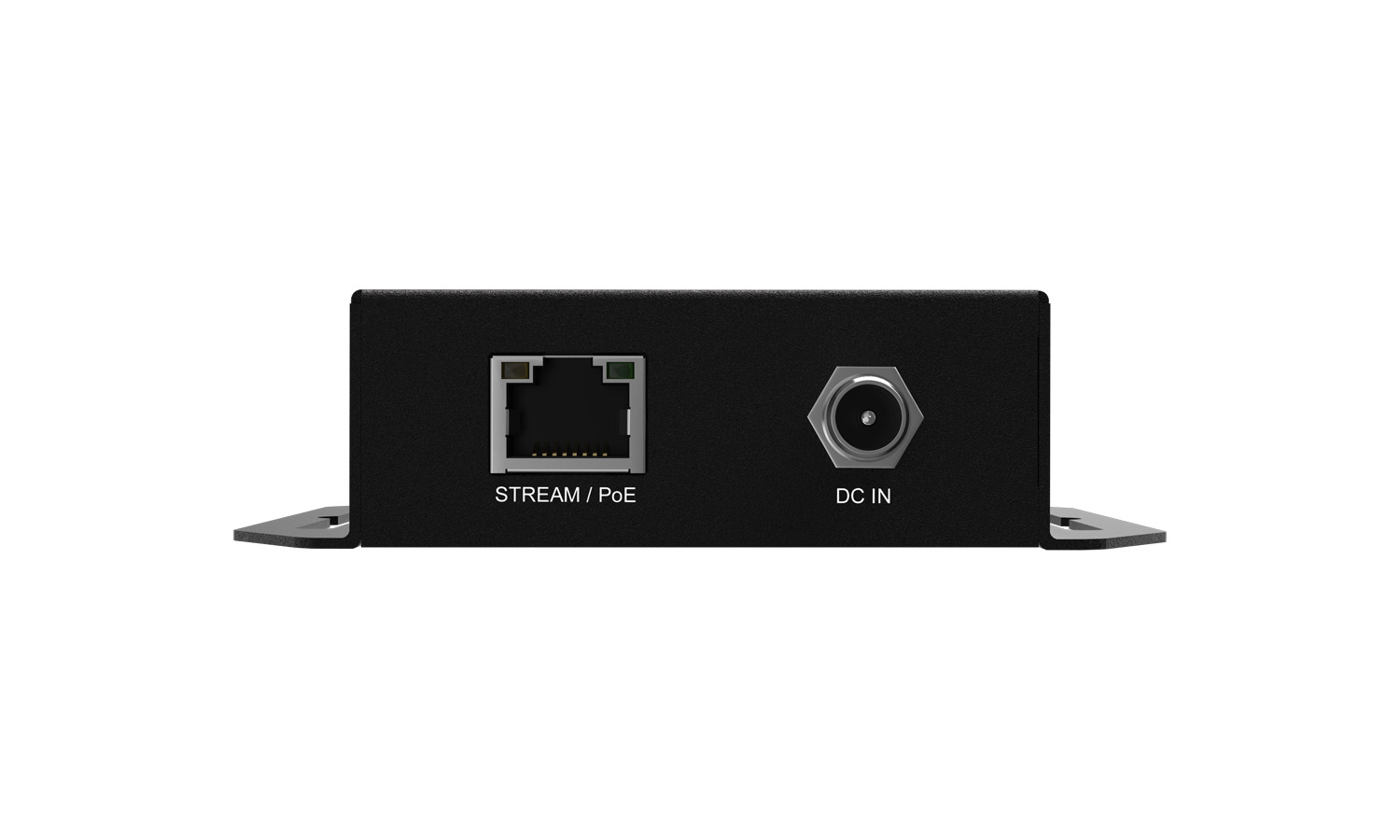

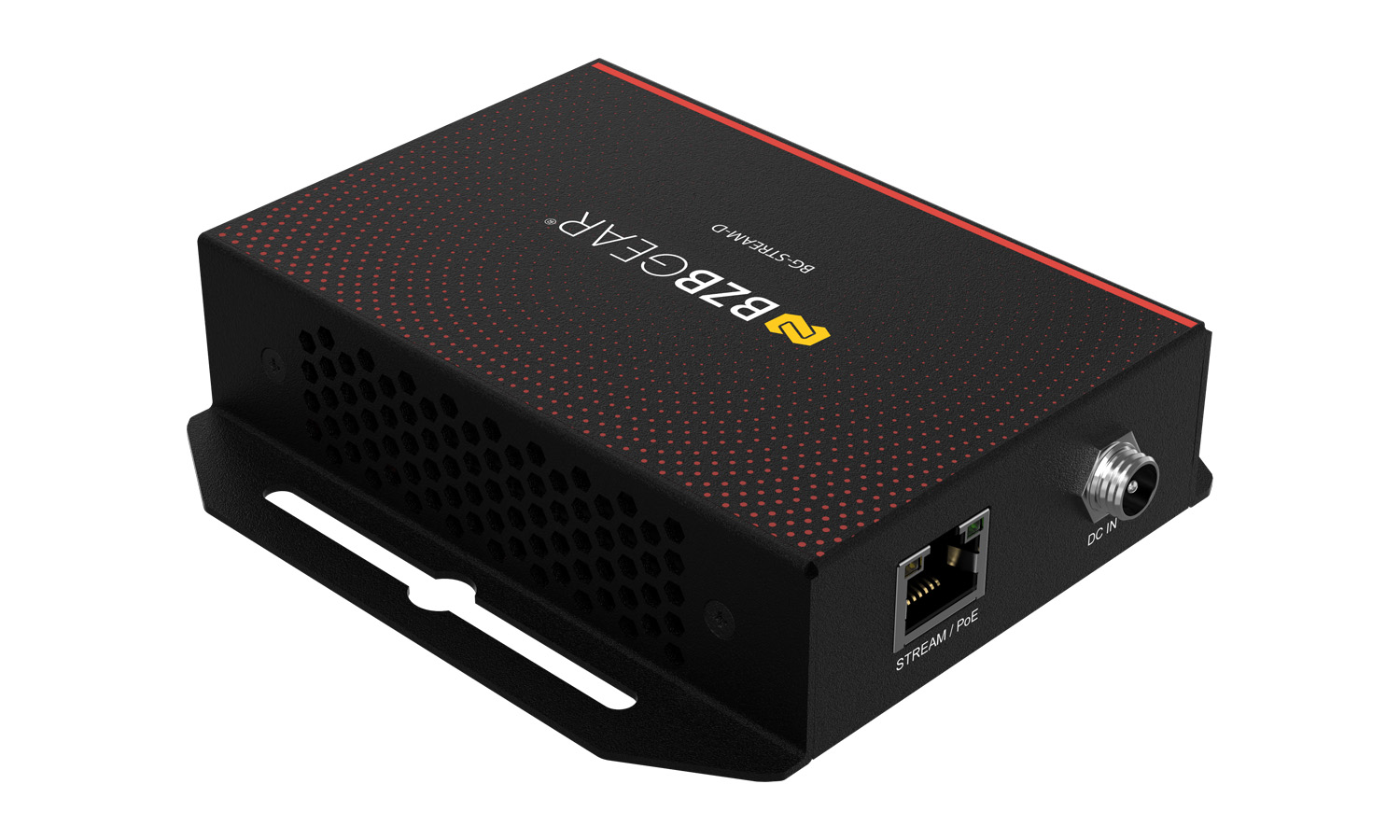

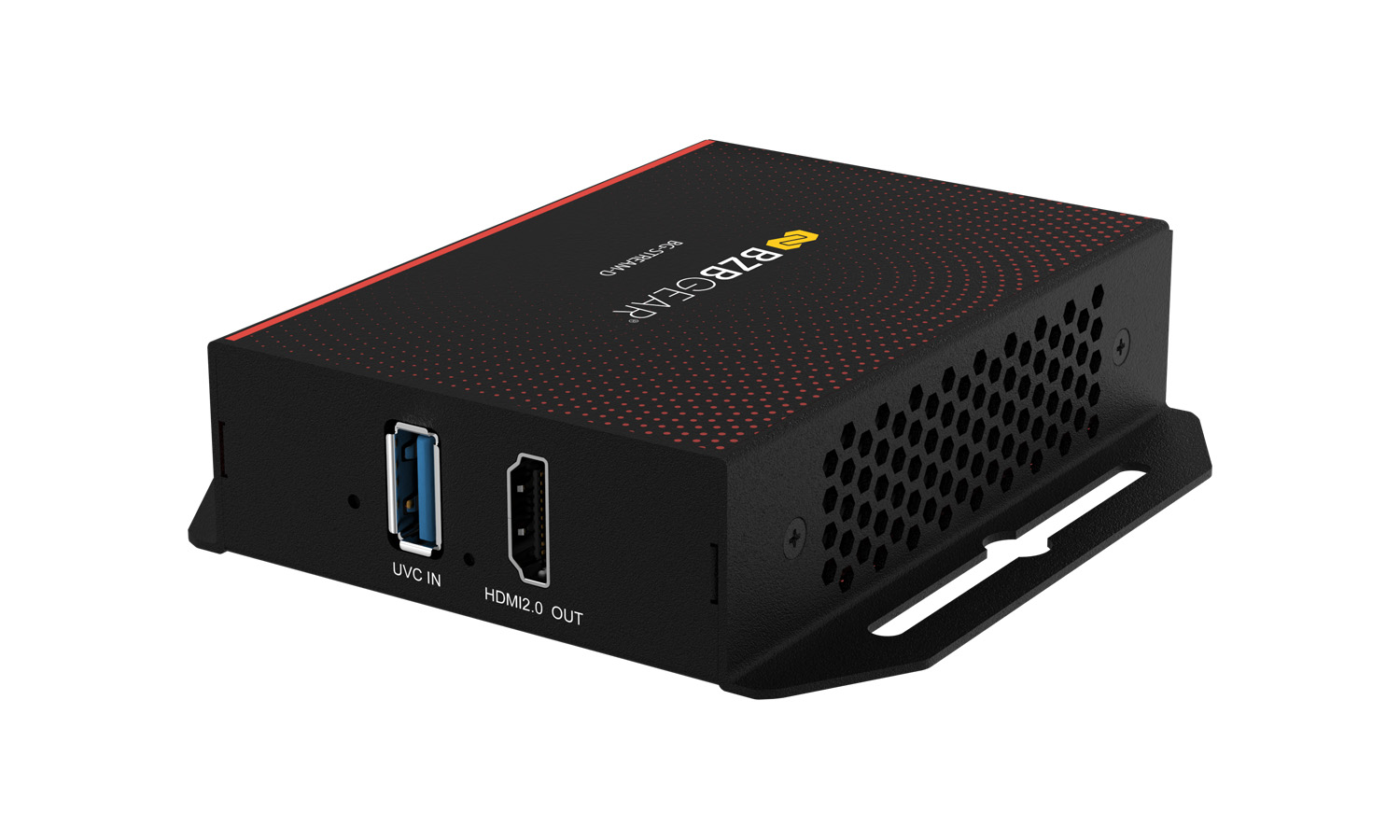

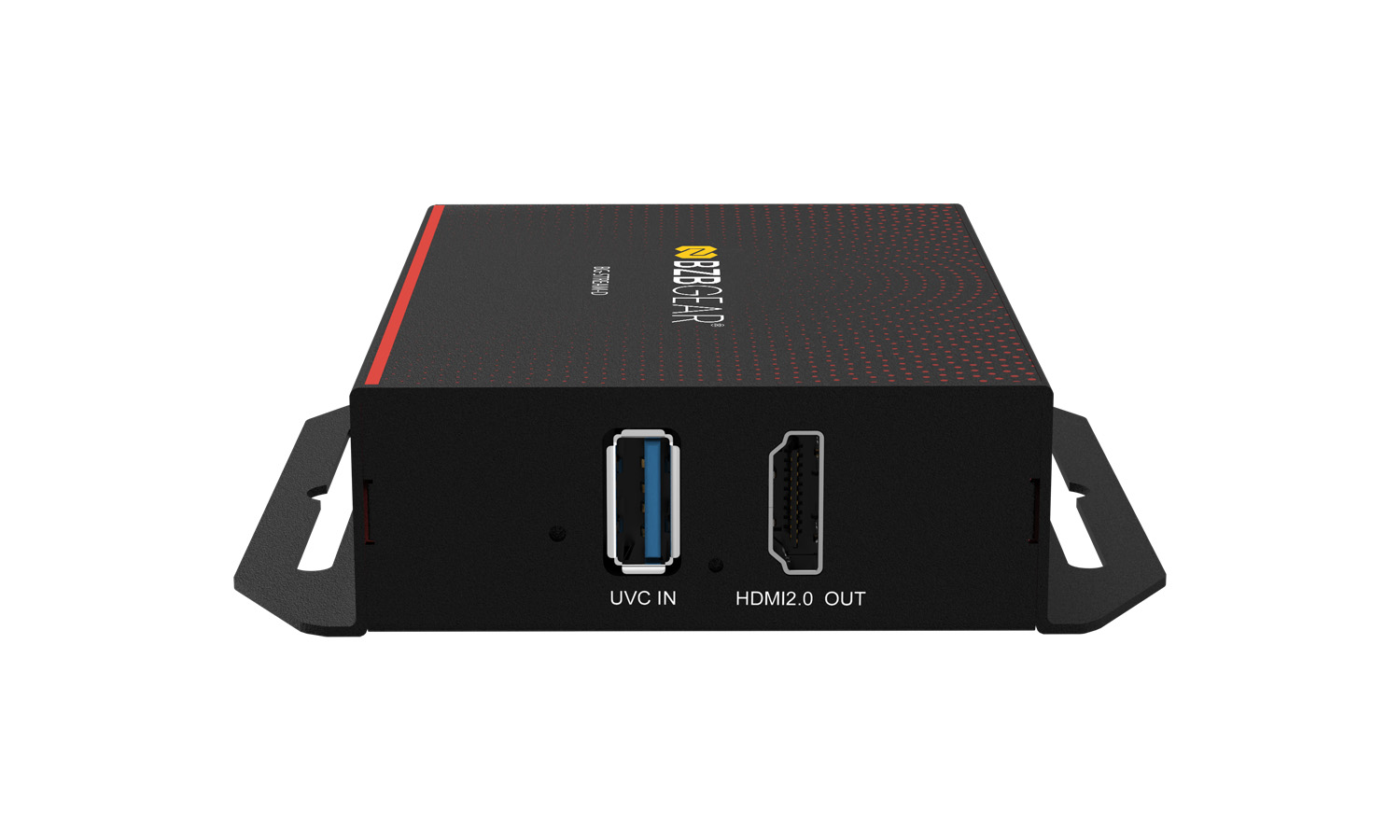

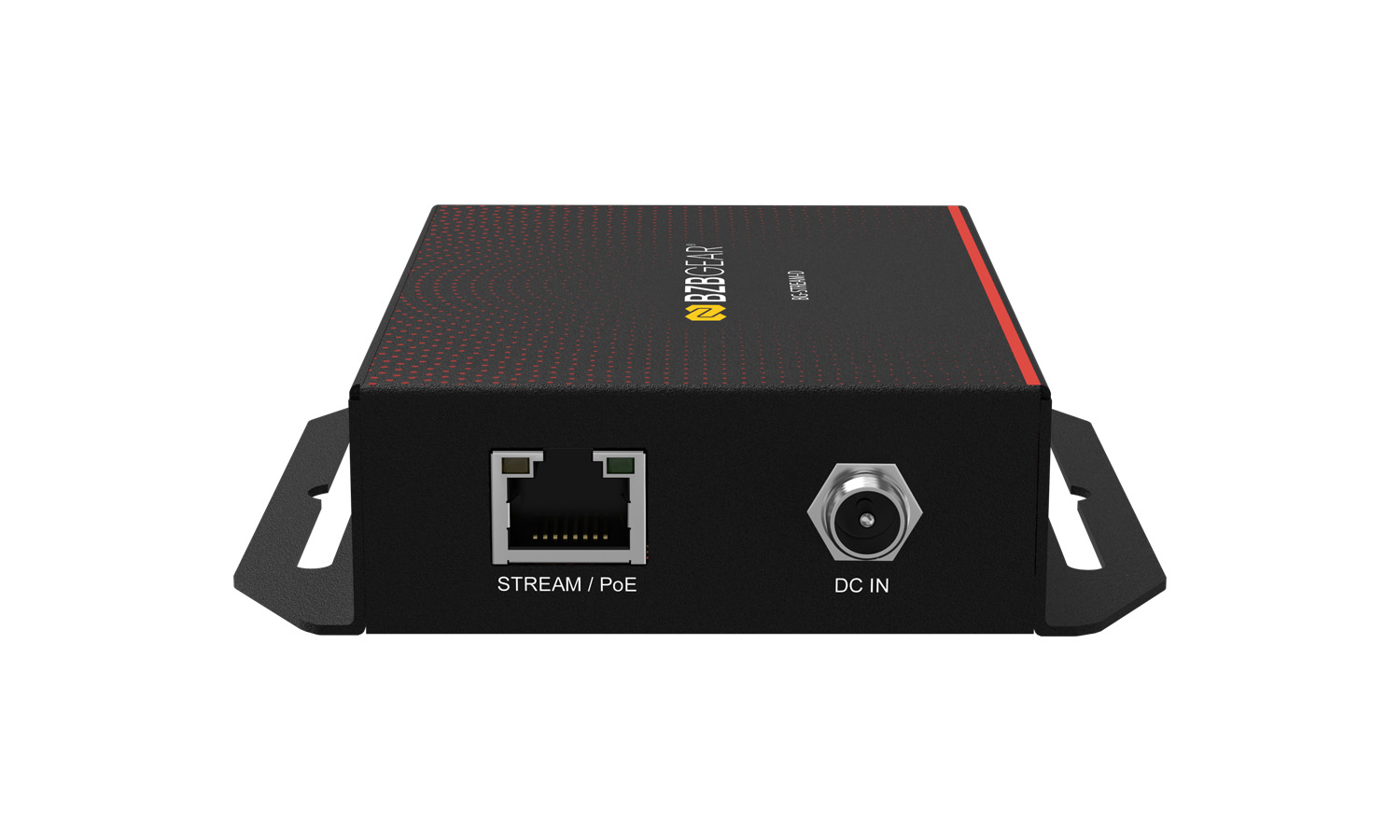

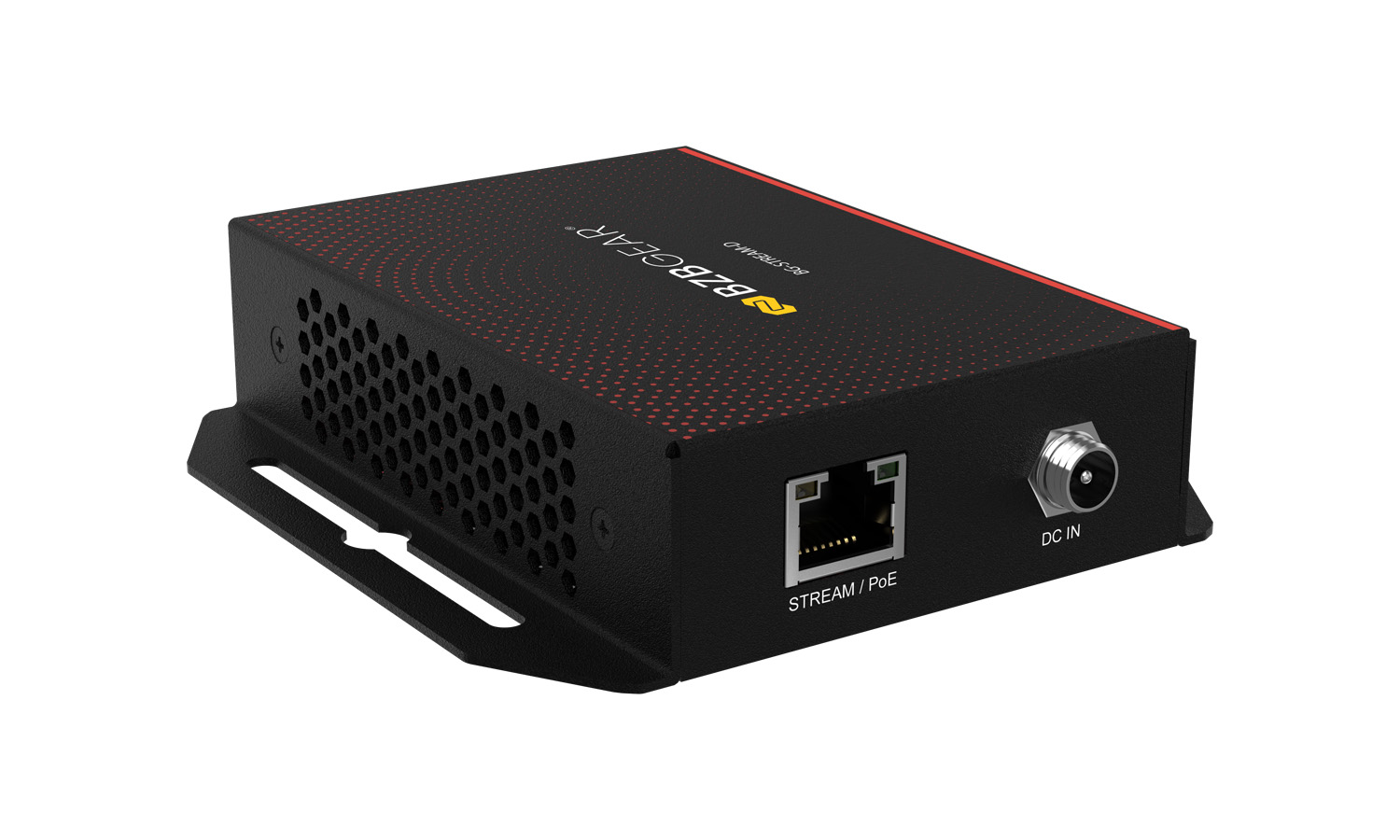

The BG-STREAM-D IP/UVC to HDMI 2.0 is a versatile and compact video decoder that bridges the gap between various video input sources and HDMI output. Featuring a single RJ45 input, USB 3.0 Type A (UVC) input, and HDMI 2.0 output, this device is ideal for high-definition video processing and streaming. It is powered through a secure locking DC jack, ensuring stable and reliable operation.

The BG-STREAM-D IP/UVC to HDMI 2.0 is an advanced video processing unit that supports multiple video and audio formats. It provides seamless connectivity options through its RJ45 and USB 3.0 inputs, delivering output via HDMI 2.0. This device is designed to handle high-resolution video up to 4096×2160p at 60/50fps, making it suitable for professional AV setups, live streaming, and broadcasting applications.

The device supports a wide range of streaming protocols, including RTSP, RTMP, HLS, TS, SRT, and Dante AV-H, providing flexibility and compatibility with various streaming platforms. The integrated web UI offers an intuitive interface for system configuration, ensuring user-friendly operation and easy setup.

With advanced features like hardware compression, real-time recording, and firmware upgradability, the BG-STREAM-D IP/UVC to HDMI2.0 decoder is designed to meet the demanding requirements of modern video production environments. Its compact design, measuring 103.8mm x 71.2mm x 26mm, allows for easy integration into existing AV infrastructures.

Dante stands for digital audio network through ethernet. Dante AV-H by Audinate is one of the leading network based production standards in the AV over IP space. Dante AV-H technology will enable users to stream their camera footage over a local area network with a single ethernet cable. Dante AV-H uses H.26x compression to compress the bandwidth of a camera’s video feed to allow it to stream over a local area network with near zero latency. The H.26x compression standard also provides a high image quality up to YUV 4:4:4 and low latency with 100% audio/visual synchronization. For protection of the user’s content, Dante AV-H is HDCP compliant.

With Dante AV-H, users will also be able to transmit and receive audio and video over their network. Furthermore, with the Dante controller, control for both audio and video will be unified. Users will then be able to control all sources from one screen.

The integration of Dante AV-H technology in the BG-STREAM-D offers a range of remarkable advantages. Developed by Audinate, Dante AV-H facilitates seamless video streaming over a single Ethernet cable, ensuring high-quality, low-latency transmission with H.26x compression for exceptional image quality and synchronized audiovisual experience. Its capability to transmit and receive both audio and video over the network simplifies workflows, further enhanced by the unified control provided by the Dante controller. With HDCP compliance for content protection, the BG-STREAM-D maximizes the potential of Dante AV-H, delivering unparalleled user convenience, top-notch image quality, and streamlined control in a cutting-edge AV solution.

This device is Dante AV-H ready, meaning it includes the necessary integration to support Audinate’s Dante AV-H software-based video-over-IP protocol.

Activation is completed via a license purchased through the Audinate website, after which Dante AV-H functionality becomes fully available. Once enabled, the unit can transmit and receive H.264/H.265 video streams with precise Dante clock synchronization, ensuring audio and video remain perfectly aligned across the network. This allows the product to operate as part of a standard Dante environment, delivering scalable, low-latency AV-over-IP without requiring dedicated hardware codecs.

• Versatile Connection Options – Supports IP, USB-A 3.0, and HDMI 2.0 connections
• High-Quality Video Processing – Capable of resolutions up to 4K@60Hz with downscaling ability
• Comprehensive Audio Support – Utilizes AAC-LC codec with a configurable bit rate range from 32Kbps to 384Kbps
• Advanced Network Capabilities – Includes DHCP support and Power over Ethernet (PoE) functionality
• Extensive Protocol Support – Covers RTSP over UDP/TCP/Multicast/HTTP, RTMP, TS over IP, HLS and Dante AV-H
• User-Friendly Interface – Features an accessible web UI for easy system configuration
• UVC Device Support: Ensures compatibility with a wide range of devices
• Real-Time Mode Recording: Enables immediate recording functionality
• Compact and Durable Design: Includes a secure locking DC jack power input
• Efficient Hardware Compression: Supports H.265/H.264/AVC encoding
• Firmware Upgradeable: Allows for easy updates to enhance functionality
