Description

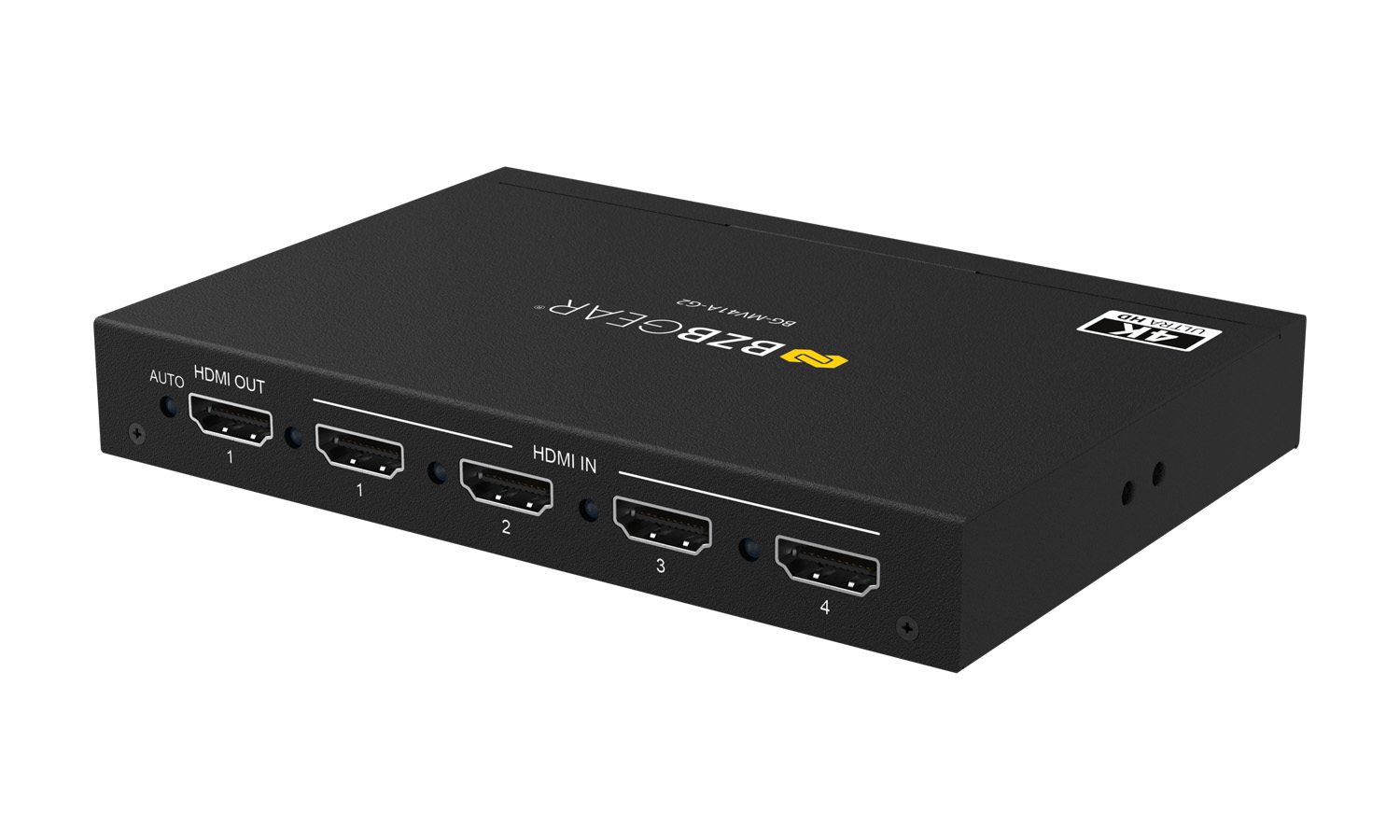

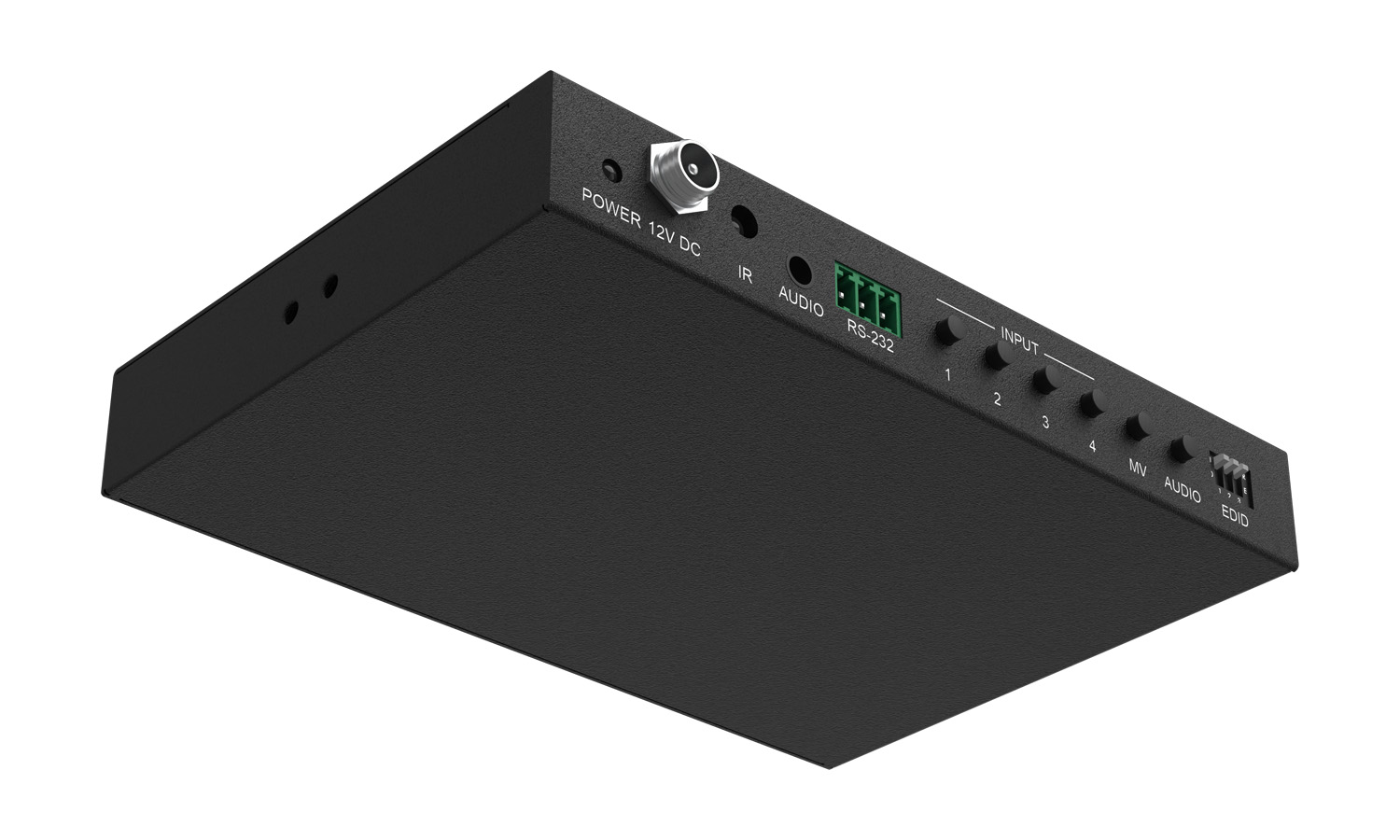

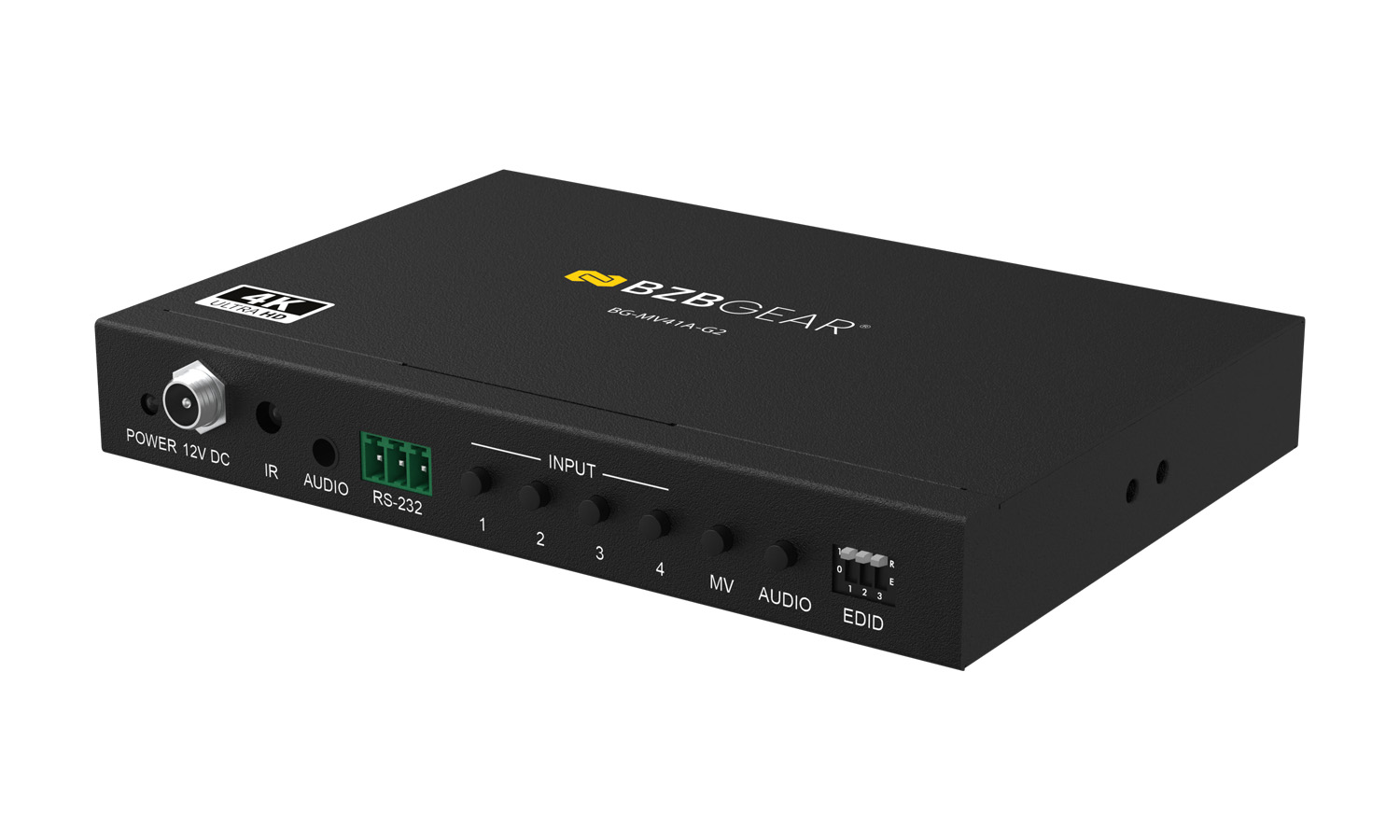

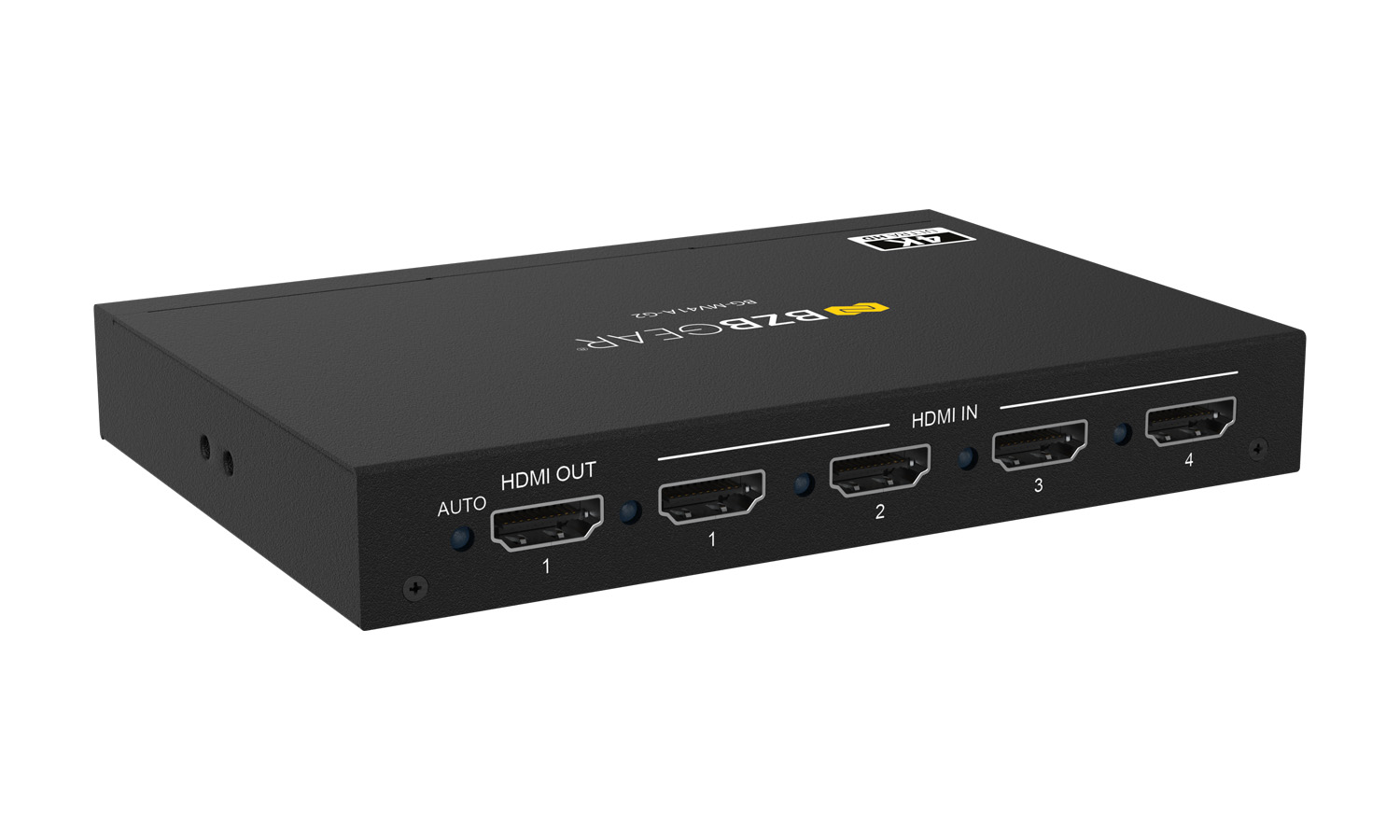

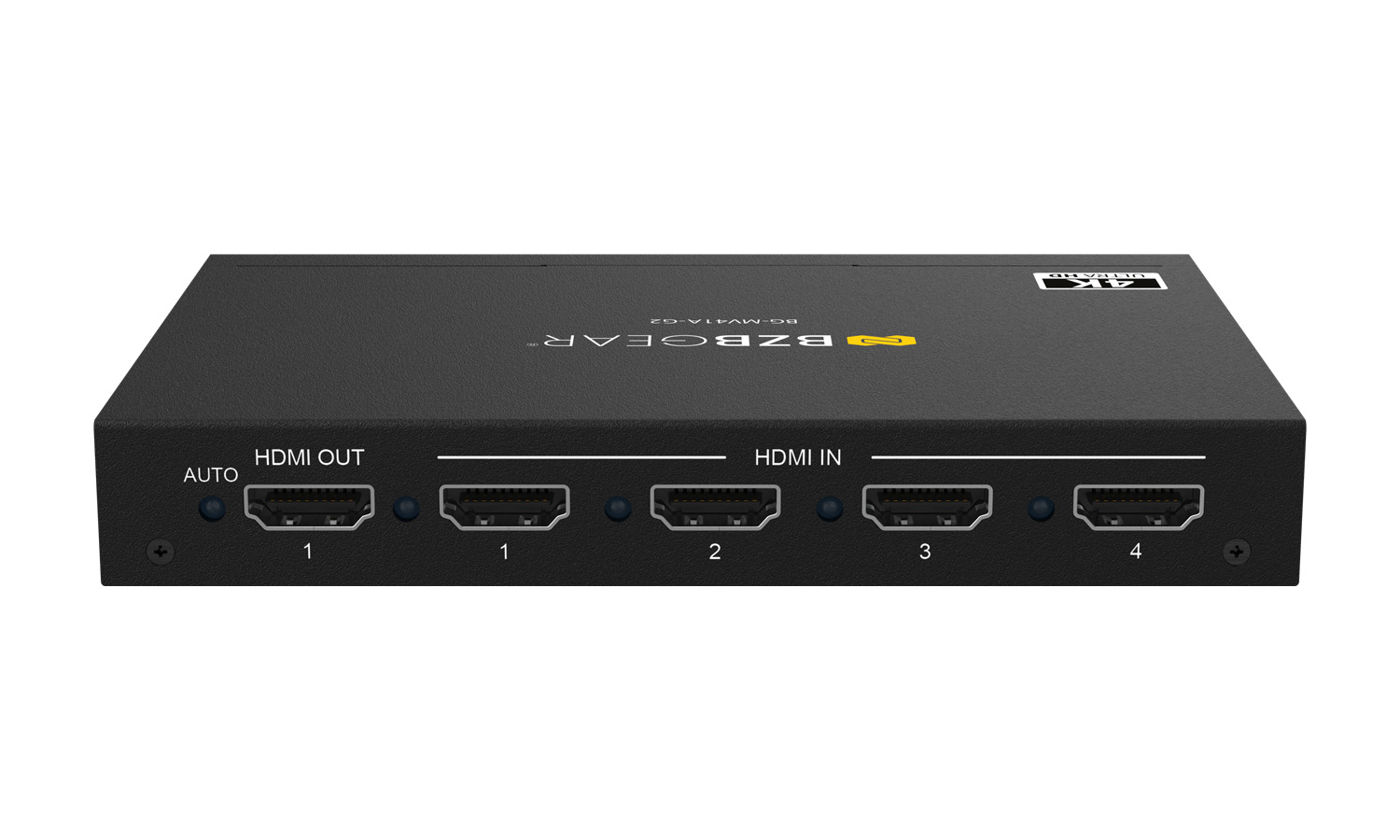

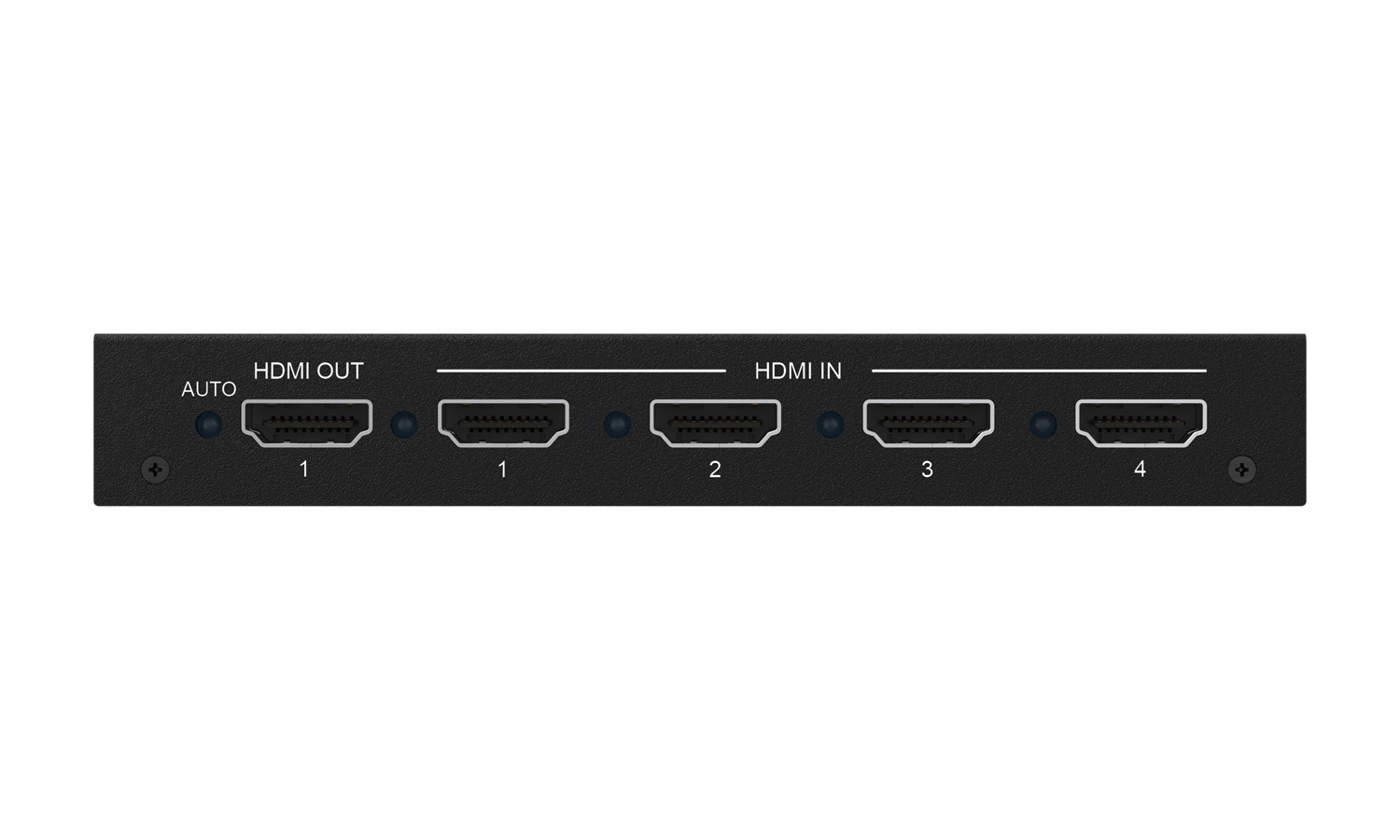

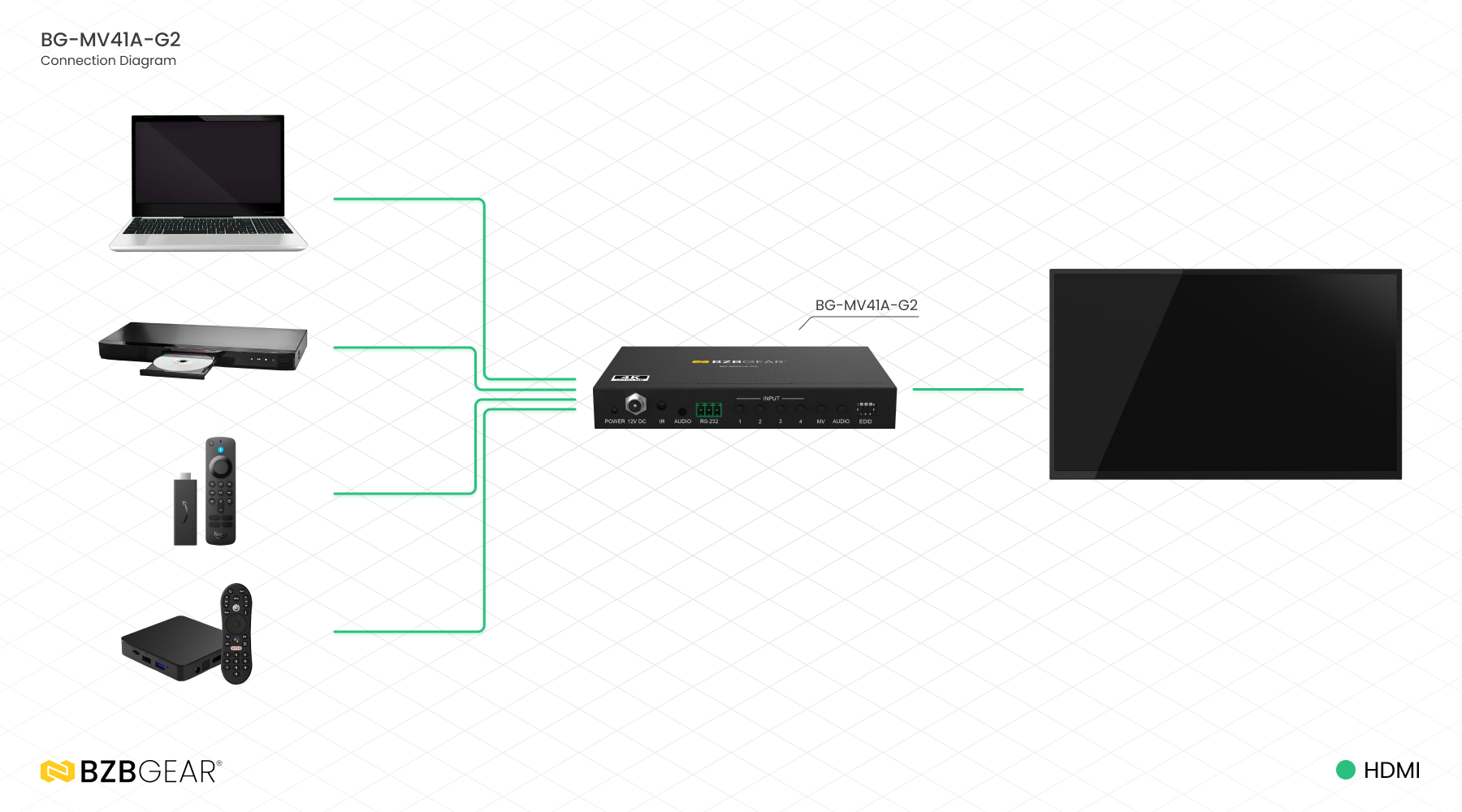

Download Manual The BG-MV41A-G2 is a high-performance 4×1 HDMI quad multi-viewer designed to display up to four HDMI sources on a single screen with seamless switching and flexible layouts. Supporting resolutions up to 4K@30Hz with 10.2Gbps bandwidth, it complies with HDMI 1.4b and HDCP 1.4 standards. Users can select from eight versatile viewing modes, including single view, picture-in-picture (PIP), picture-by-picture (PBP), triple-view, and quad-view – making it ideal for monitoring, control rooms, and content presentations.
Audio can be independently selected and output through the analog port with support for LPCM, Dolby Digital, Dolby Digital Plus, and DTS. Featuring auto/manual input switching, smooth transitions between views, and an on-screen display (OSD), the BG-MV41A-G2 offers both performance and control flexibility. Management is simple via front panel buttons, IR remote, or RS-232 commands, while advanced EDID management ensures reliable compatibility – all in a compact form factor built for professional AV installations.
Features
- 4K Resolution – Handles input and output resolutions up to 4K@30Hz
- Seamless & Flexible Switching – Smooth transitions with both automatic and manual input selection in single-view or multi-view modes
- Multiview Modes – Offers 8 layouts including SINGLE, PIP, PBP (1/2), Triple (1/2), and Quad (1/2)
- Audio De-Embedding – Outputs audio via analog stereo connection
- Independent Audio Routing – Select audio sources separately from video

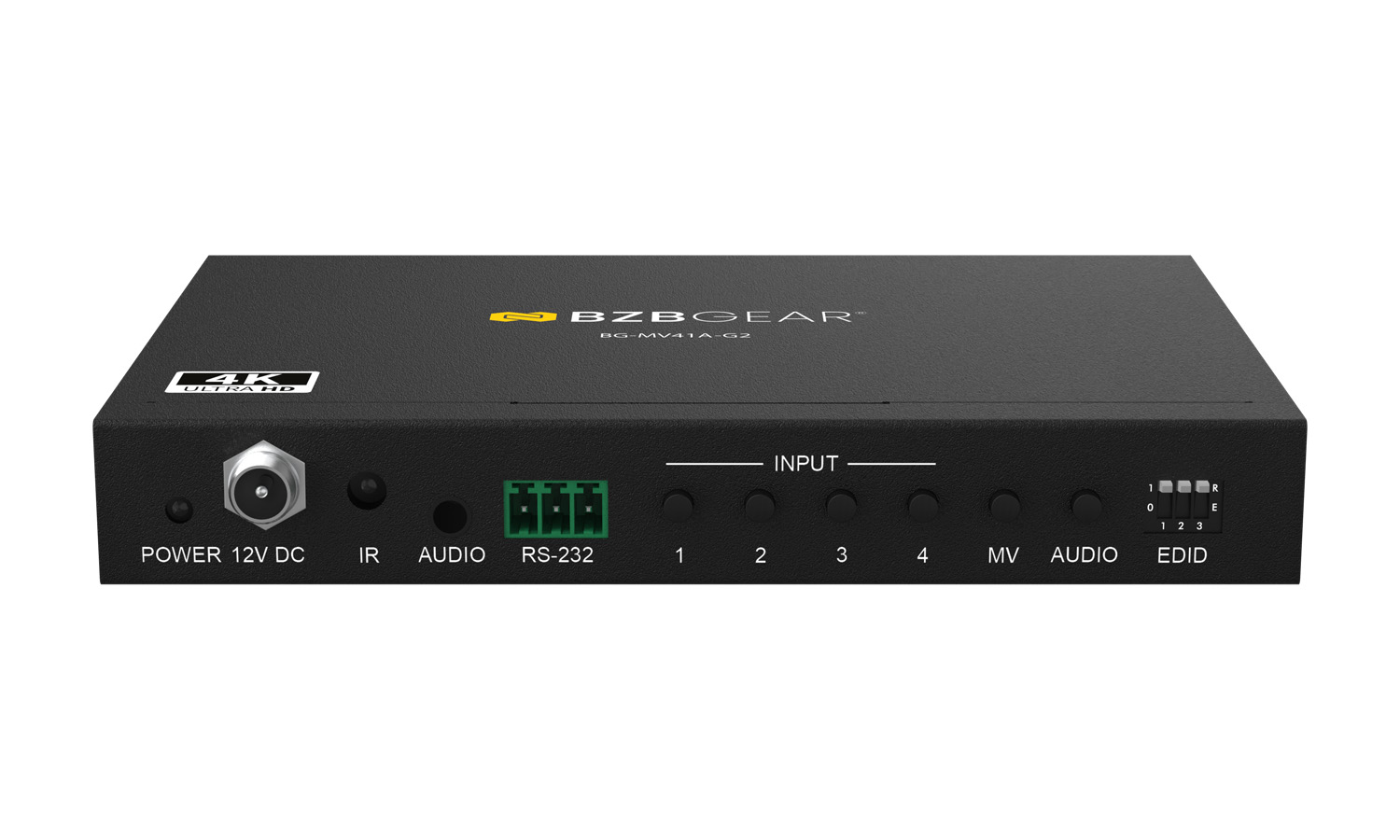

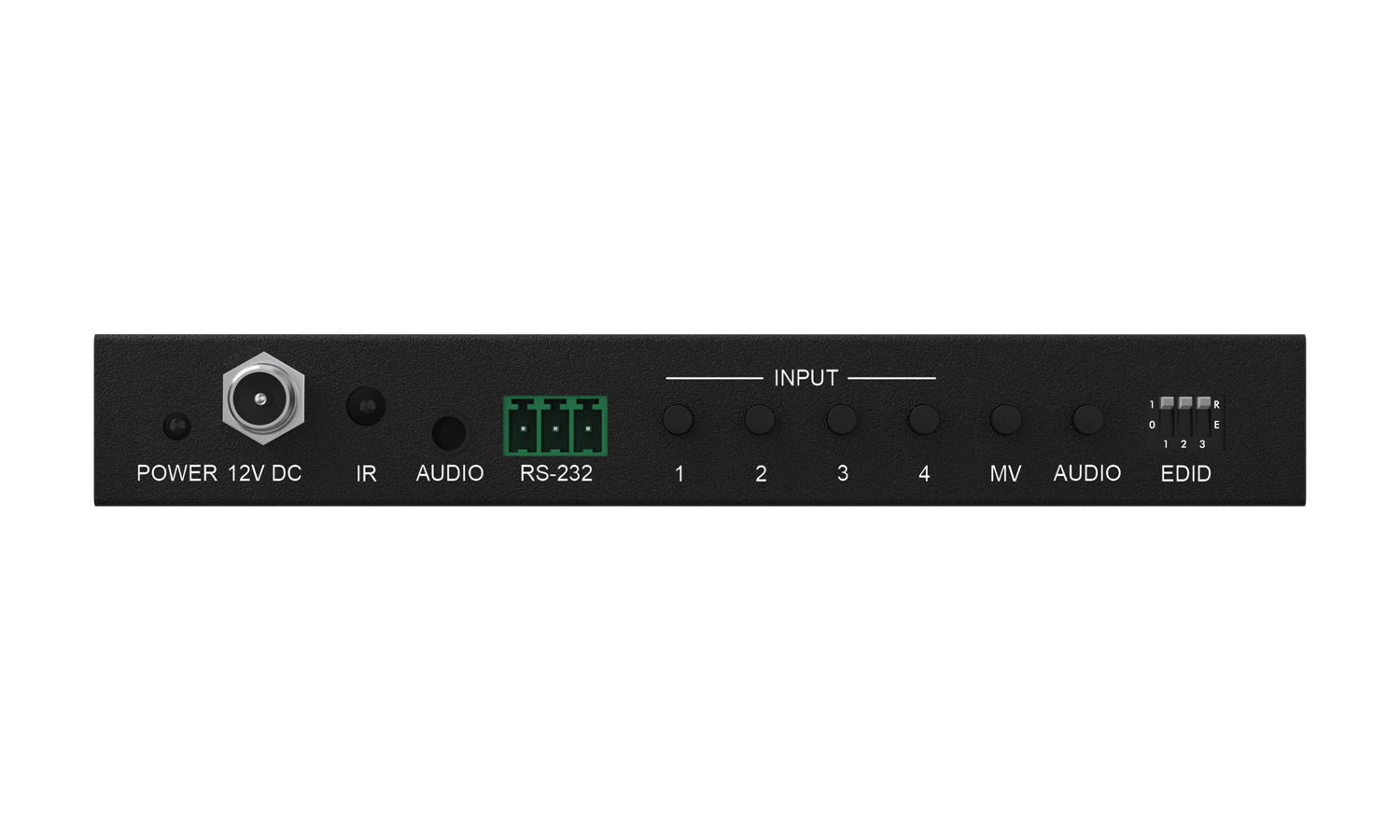

- Control Options – Operate via front panel buttons, IR remote, or RS-232 commands
- Compact, space-saving design for flexible integration
- On-screen display (OSD) for multi-view layouts
- High Bandwidth: Supports up to 10.2Gbps video bandwidth
- HDMI & HDCP Compliance: Fully compliant with HDMI 1.4b and HDCP 1.4 standards
- Advanced EDID Management: Ensures compatibility with connected devices
- Audio Format Support: Works with LPCM, Dolby Digital (DD), Dolby Digital Plus (DD+), and DTS
