BZBGEAR’s LVPTZ 12X Optical Zoom camera provides amazing imaging, flexibility and reliability through a variety of High Definition 1080P output connections including HDMI, SDI and LAN.
2-Channel audio is available using the 3.5mm audio port located on the back of the camera ideal for microphone systems including wireless and wired devices.
Meet bandwidth requirements using H.264/H.265 encoding technology. Power the camera with the included power supply or over a CAT5/6/7 cable when connected or a PoE Network switch or PoE injector simplifying installation.
Utilize the WEBGUI via Chrome or Firefox Web browsers by typing in the camera’s IP address to access a multitude of settings including Ethernet Settings, Live Streaming URL/Stream Key input boxes, PTZ functions, Video adjustments and Audio formats. Alternatively modify settings using the included IR remote via a Display for onscreen menu operations for quick and easy access.
Control the camera’s Pan, Tilt and Zoom functions with a Joystick controller compatible with RS-232, RS485, ONVIF and or Visca IP protocols. With all the inclusive options, this camera fits an array of applications including houses of worship, educational and government facilities.
Delivers power directly over an ethernet cable from your PoE enabled network switch
Supports H.264/265 video compression and RTMP(S) network protocol for Youtube/Facebook Streaming
Available with 10/12/20/30x Zoom Lens
Latest auto focusing algorithms resulting in quick, accurate, and stable focus
Simultaneous HDMI, 3G-SDI, and IP Streaming
IP, IR, and cascadable RS232/485 (VISCA/Pelco) + 255 preset positions
- Network protocols: ONVIF, RTSP, RTMP protocols and RTMP push mode, easy to link streaming media server (Wowza, FMS)
- Audio/Video Compression: Supports H.264/H.265 video compression: Supporting resolutions up to 1920×1080 with frame up to 60 fps and 1920x1080p with 30 fps compression. 2-Channel AAC, MP3 and PCM audio compression;
- Audio Input Interface: Supports 16000, 32000, 44100, 48000 sampling frequency and AAC, MP3, PCM audio coding.
- Wide Application: Remote learning, Lectures, Webcasting, Video Conferencing, remote training, remote medicine, Interrogation and Emergency command systems.
- 255 Presets Positions: Up to 255 presets (10 presets by remote).
- RS-232 Cascade Function: ST series supports RS-232 cascade functionfor convenient installation.
- Multiple Control Protocols: VISCA, VISCA IP, PELCO-D, PELCO-P protocols, automatically recognizable.
- Low-power Sleep Function: Supports low-power sleep/wake up, the consumption is lower than 500mW in sleep mode
- Control Options: IR Remote, WebGUI and RS232/RS485.
- 3G-SDI: Extends signal transmissions up to 100m supporting 1080p@60Hz Resolutions.
- Multi-Format Video Outputs: HDMI, 3G-SDI, Wired LAN.
- Silent PTZ: An adaptive high-accuracy step-driving motor mechanism provides extremely quiet and smooth operation to designated positions.
- Advanced 2D/3D noise reduction technology: Used to further reduce the noise, while ensuring image sharpness.
- Low Noise and High SNR: Low Noise CMOS ensures high SNR of camera video.
- Power over Ethernet Functionality: Eliminates the need for a A/C Power Supply
- Leading Auto Focus Technology: Auto focus algorithm ensures a smooth adjusting lens, accuracy, and stable auto-focusing.
- Superb High-definition Image: High-Quality 1/2.8 inch CMOS sensor. Resolution up to 1920×1080 with frame rate up to 60 fps.
– Sport Events
– House of Worship
– Remote Education and healthcare
– Studio Recordings
– Doctors
– Event Businesses

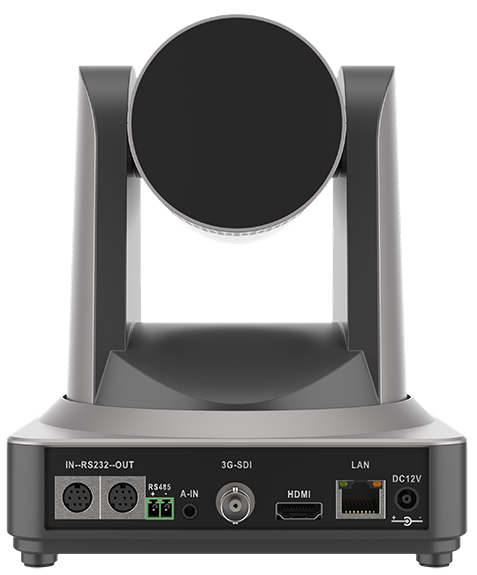

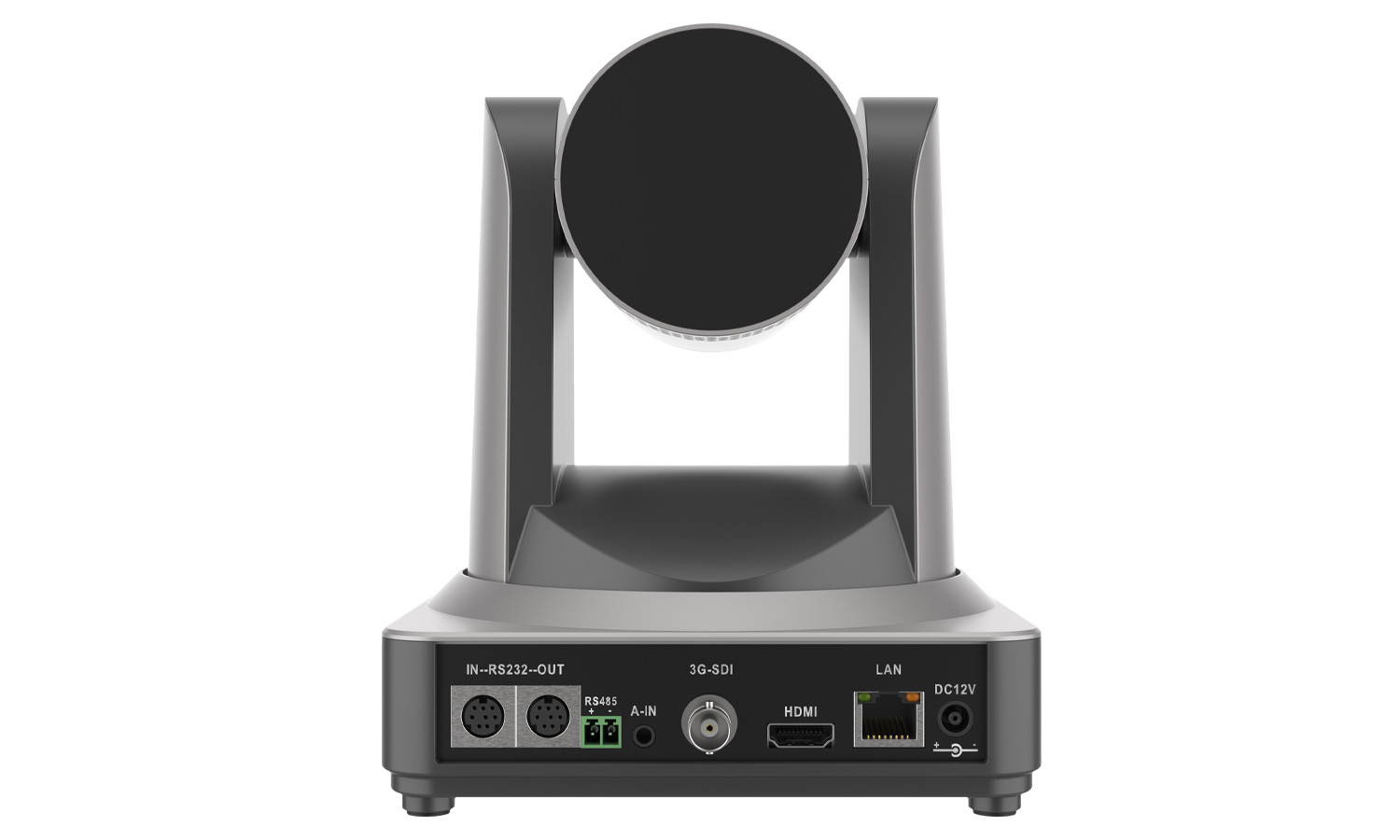

Power
Flexible power options for easy installation. Use supplied Power Adapter or POE (Power Over Ethernet) function.
LAN
Power over Ethernet, IP Control, and streaming interface.
3G-SDI
1080p @ 60 fps for distances up to 300 ft.
Audio In
Stereo audio input for connecting mics and embedding local audio for Direct Streaming over the LAN.
Control I/O
8 pin Mini-DIN input for RS-232 control and output for cascadable connections. RS-422/485 interface.
HDMI
Crystal clear image with resolutions up to 1080p @ 60 fps.
