Download Manual BZBGEAR BG-KIT3Podcast-3CAM-10XWM live streaming and broadcasting package is expertly crafted to deliver exceptional video quality for any indoor activity. It includes three 10x Zoom PTZ cameras for dynamic, detailed multi-angle coverage, a 4-Channel HDMI Mixer for smooth video management, and a POE Switcher for streamlined power and control. The kit also comes with wall mounts and a 50ft HDMI cable for flexible installation options.
Perfect for a range of applications from podcasting and corporate events to ceremonies in houses of worship, this package is fully compatible with all major streaming platforms. Whether you’re broadcasting on Facebook Live, YouTube Live, Twitch, or distributing content through Akamai and AWS, or conducting meetings on Zoom and Teams, this setup ensures seamless integration and easy operation. Elevate your video production capabilities with this comprehensive package, designed to capture every moment with clarity and precision across a variety of platforms.
BZBGEAR provides a free Advanced Control App and software, loaded with sophisticated features to elevate your camera control experience. This versatile app is available for a variety of platforms; you can download it from the App Store for iPhone, iPad, and MacOS devices, from Google Play for Android users, and from the Microsoft Store for those on Windows.
This Kit combines following items:
- 3x BG-VPTZ-10HSU3: Compact PTZ 1080P FHD 10X Zoom Camera with HDMI/SDI/USB 3.0/POE
- 1x BG-HDVS42U: 4-Channel 1080P FHD Live Streaming HDMI Mini Switcher Mixer with HDMI/USB-C Output
- 3x BG-VPTZ-WM: Metal Wall Mount Bracket for BZBGEAR VPTZ Series Cameras
- 3x BG-CAB-HD50: 1080P/4K HDMI Cable – 50ft/15m

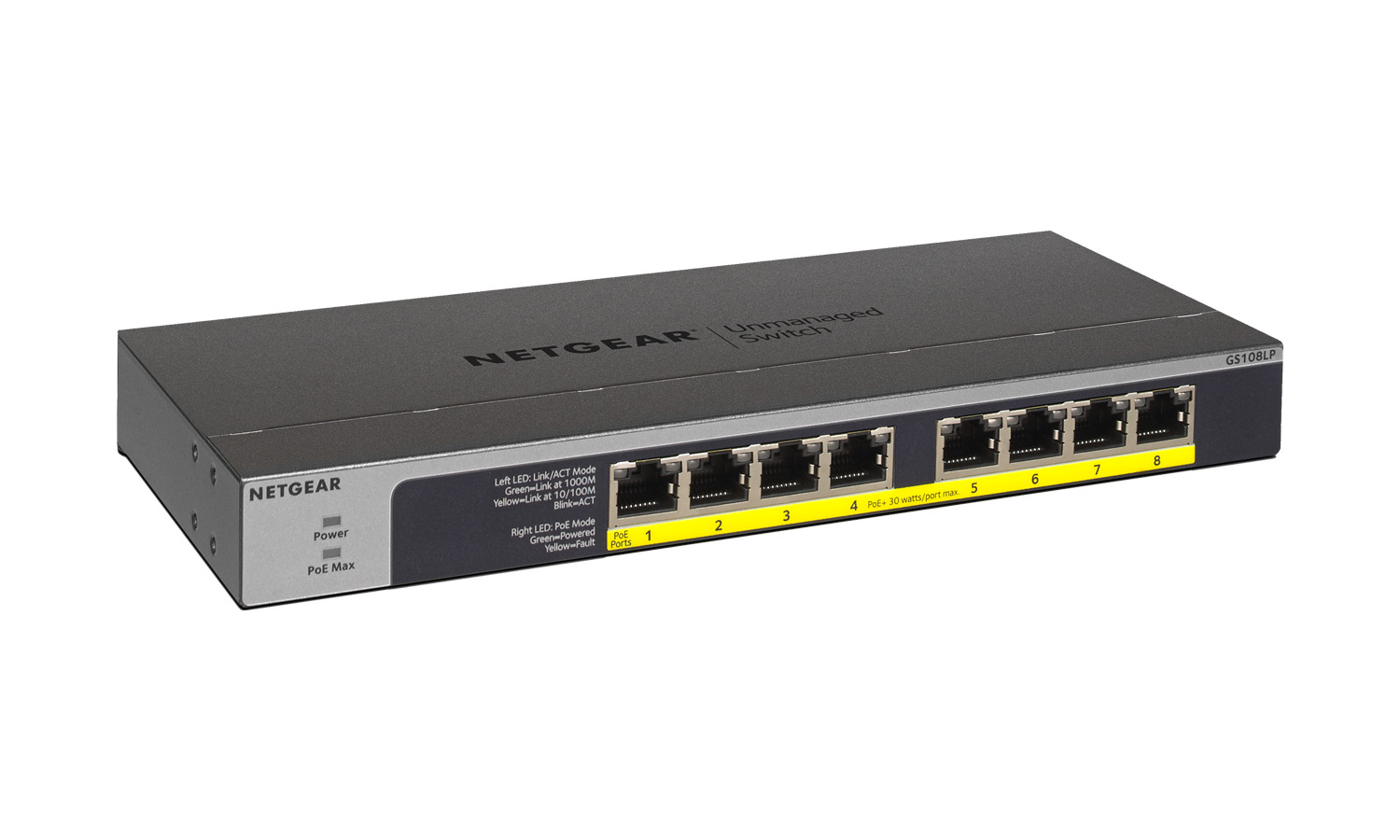

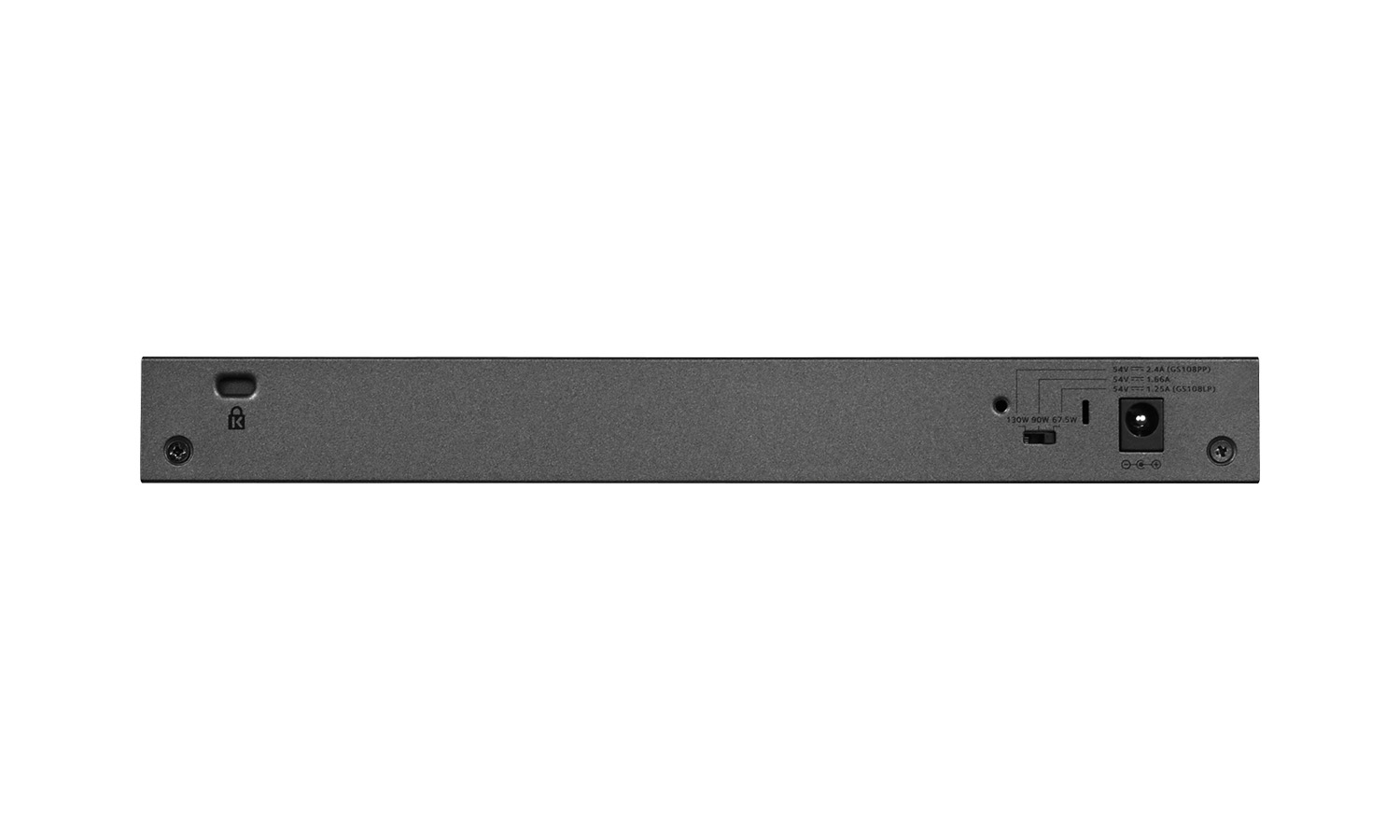

- 1x NET-5DP433: Netgear 8-Port PoE/PoE+ Gigabit Ethernet Unmanaged Switch 67.5W PoE Budget
- 3x BG-CAB-CAT6-50: 50ft CAT6 Cable

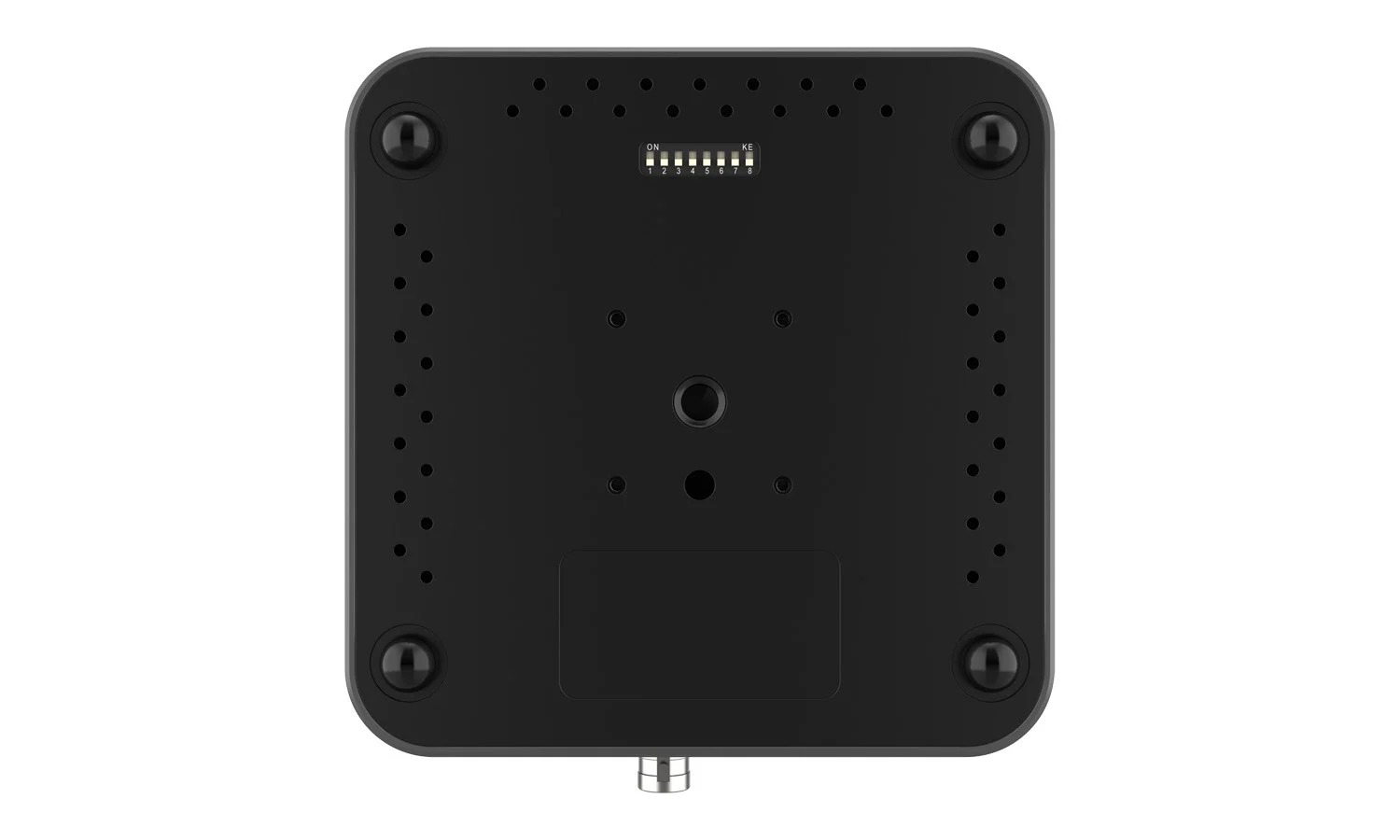

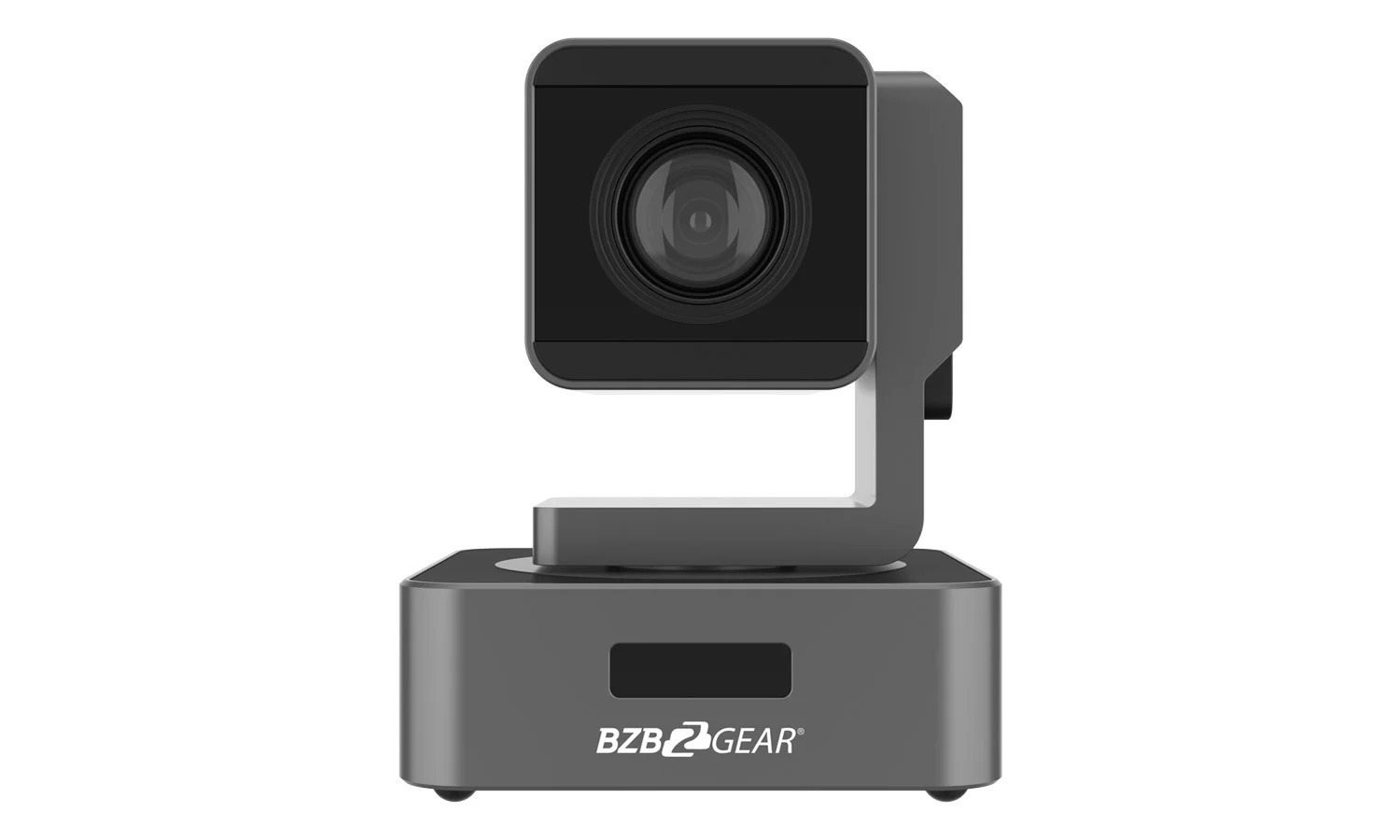

BG-VPTZ-10HSU3
Introducing the BG-VPTZ-HSU3, a versatile COMPACT PTZ 1080P FHD camera with 10X/20X/30X zoom options, multiple output interfaces (HDMI, 3G-SDI, USB 3.0, IP streaming), and a compact design perfect for offices and classrooms. With the ability to capture 1080p@60Hz video, this camera delivers exceptional image quality and supports H.264/H.265 video compression and RTMP(S) for live streaming. Offering flexible control via RS-232, RS-485, LAN, or IR remote, it also boasts 255 preset positions. Additional features include Power over Ethernet (PoE), audio embedding, and a sturdy all-aluminum chassis, making it a top choice for high-quality video capture and streaming in various settings.
The BG-VPTZ-HSU3 camera finds applications in video conferencing, live streaming, content creation, surveillance, and large venue settings. Its high-resolution imaging, audio integration, and multiple output options enhance professional video conferences and engaging webinars.

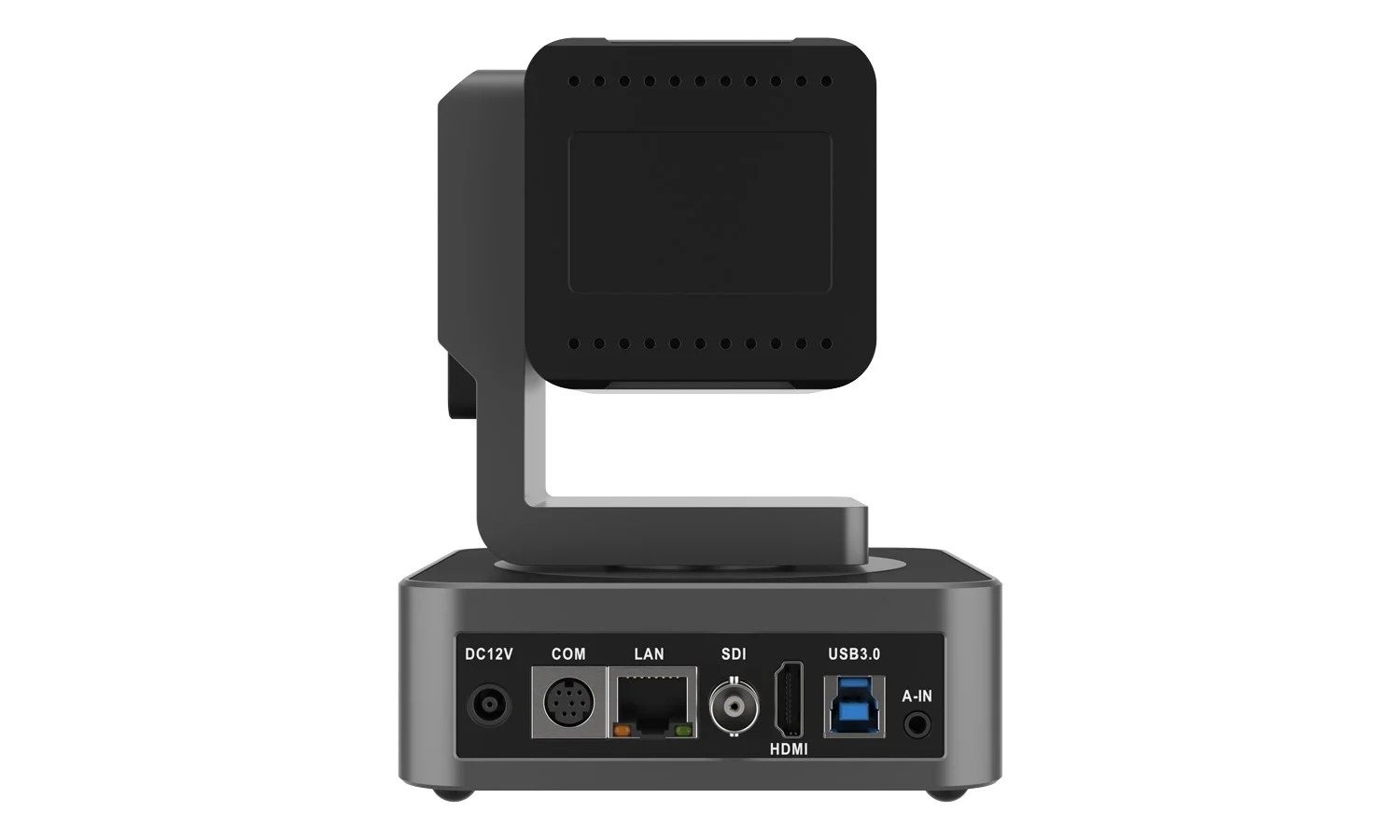

Connectivity and Features:
The BG-VPTZ-HSU3 camera boasts impressive capabilities. It can capture images at resolutions of up to 1080p at 60Hz, ensuring that you get high-definition, sharp visuals for your applications. What sets it apart is its versatility in output options, with simultaneous HDMI, 3G-SDI, USB 3.0, and IP streaming outputs. This flexibility enables seamless integration into various workflows, making it adaptable for a wide range of settings and purposes.
Additionally, it offers 10X, 20X, or 30X optical zoom lenses, which is invaluable for capturing detailed close-ups, even in large venues. For applications where synchronized audio and video are crucial, the camera features a 3.5mm audio input jack to embed audio directly into the video stream. It supports H.264 and H.265 video compression formats and can broadcast using ONVIF, RTSP, and RTMP IP streaming protocols.
Control Options:
The BG-VPTZ-HSU3 camera provides a wealth of control options to suit your specific needs. It can be controlled using RS-232, RS-485, LAN (local area network), or the included IR remote control. This diverse range of control methods ensures that you can choose the most convenient one for your particular use case. Moreover, the camera supports various control protocols, including IP VISCA, ONVIF, and PELCO-P/D, which simplifies integration into existing setups and control systems. When it comes to configuring and managing camera angles and settings, you have the luxury of storing up to 255 preset positions internally.
Furthermore, nine of these presets are easily accessible via the included IR remote control, streamlining camera operation and enhancing user-friendliness. In conclusion, the BG-VPTZ-HSU3 camera is a versatile and adaptable solution, offering high-resolution imaging, diverse output options, audio integration, and a comprehensive array of control methods and protocols to cater to the unique needs of a wide range of professional applications.
Features:
- Broadcast Quality Video – Fluid motion, clear image, and accurate colors
- Latest Streaming Tech – Supports H.264/H.265 video compression and RTMP(S) network protocol for Youtube/Facebook live streaming
- Simultaneous Video Outputs – 3G-SDI / HDMI / USB3.0 / IP Streaming
- Power over Ethernet – Delivers power directly over an ethernet cable from your PoE enabled network switch
- Audio Embedding – Connect audio mixer output or powered mic and embed audio into your live stream
- Flexible installation Options – Supports ceiling, wall, tripod, or desk mount installations
- Multiple control options
- All-aluminum high-stability chassis
- AAC audio encoding support
- Smart menu & WebGUI Interface
- Resolutions up to 1080p@60Hz
- Advanced video image processing
- Includes 2D/3D noise reduction functions
- Small form factor for tight installs
- Main and sub streams available

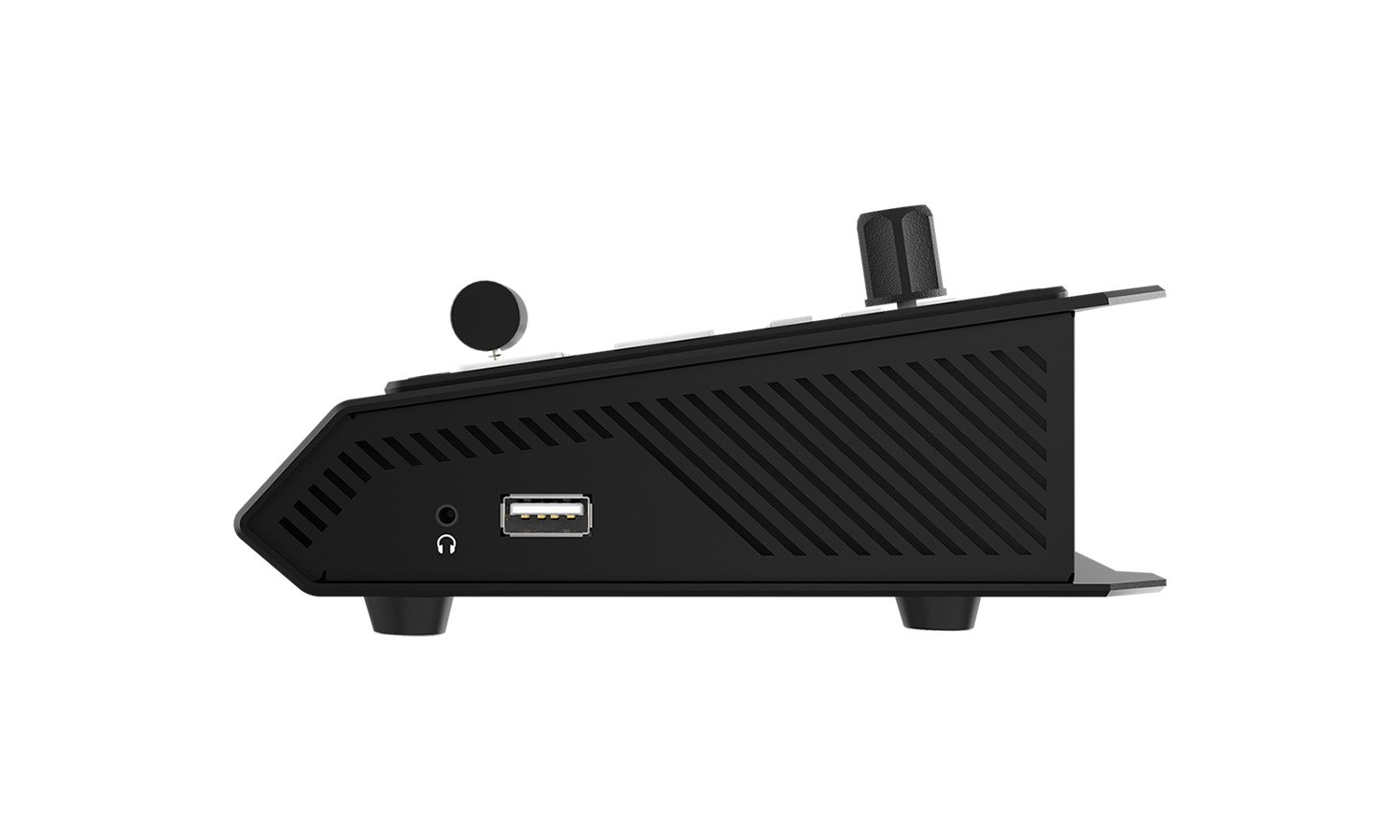

BG-HDVS42U

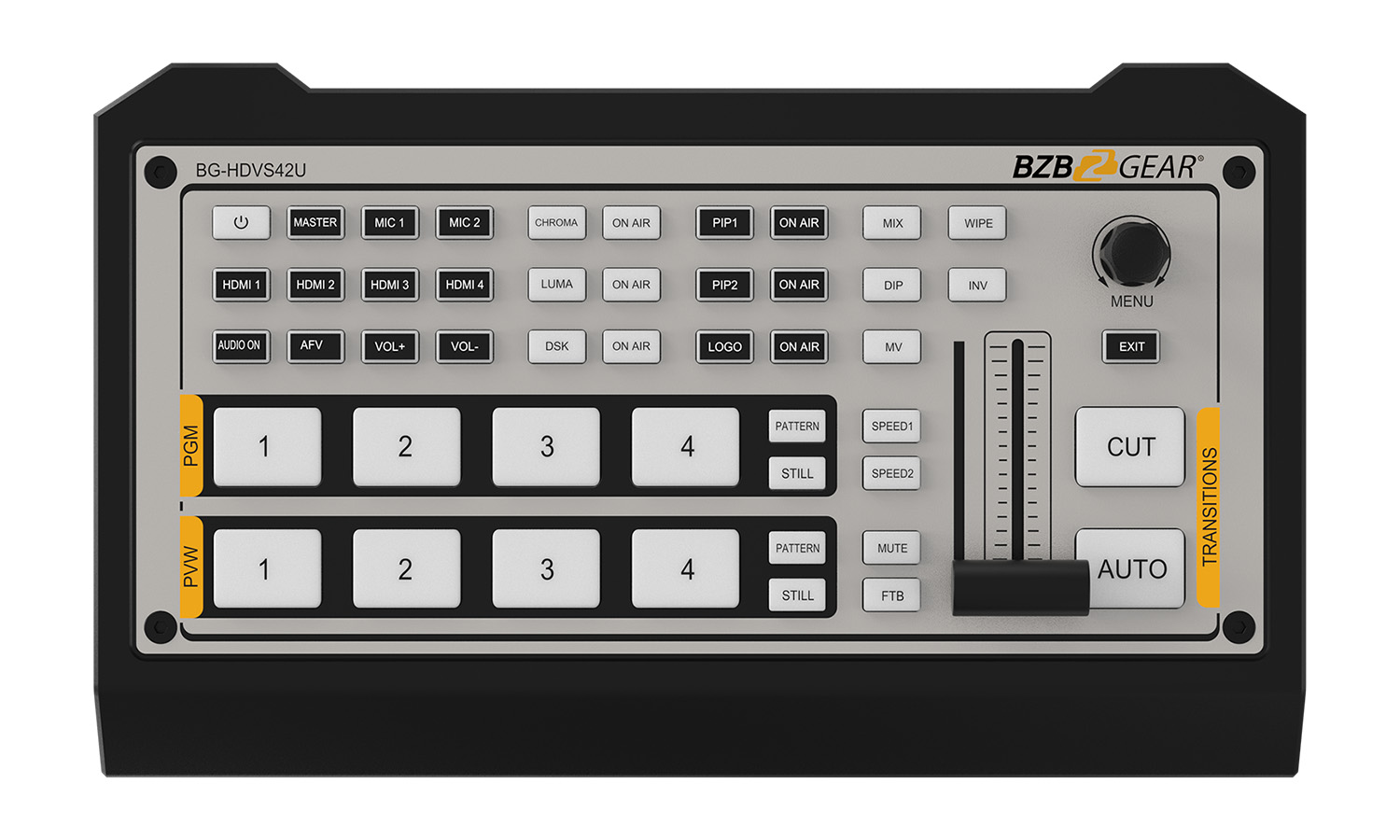

Compact and versatile, the BG-HDVS42U HDMI production switcher provides users with a powerful set of features designed to deliver professional-quality results. With full audio mixing capabilities, multiple transition options, graphic overlays, PC software utility, and USB-C program output, the BG-HDVS42U provides high-performance and tremendous value.
Connectivity and Features

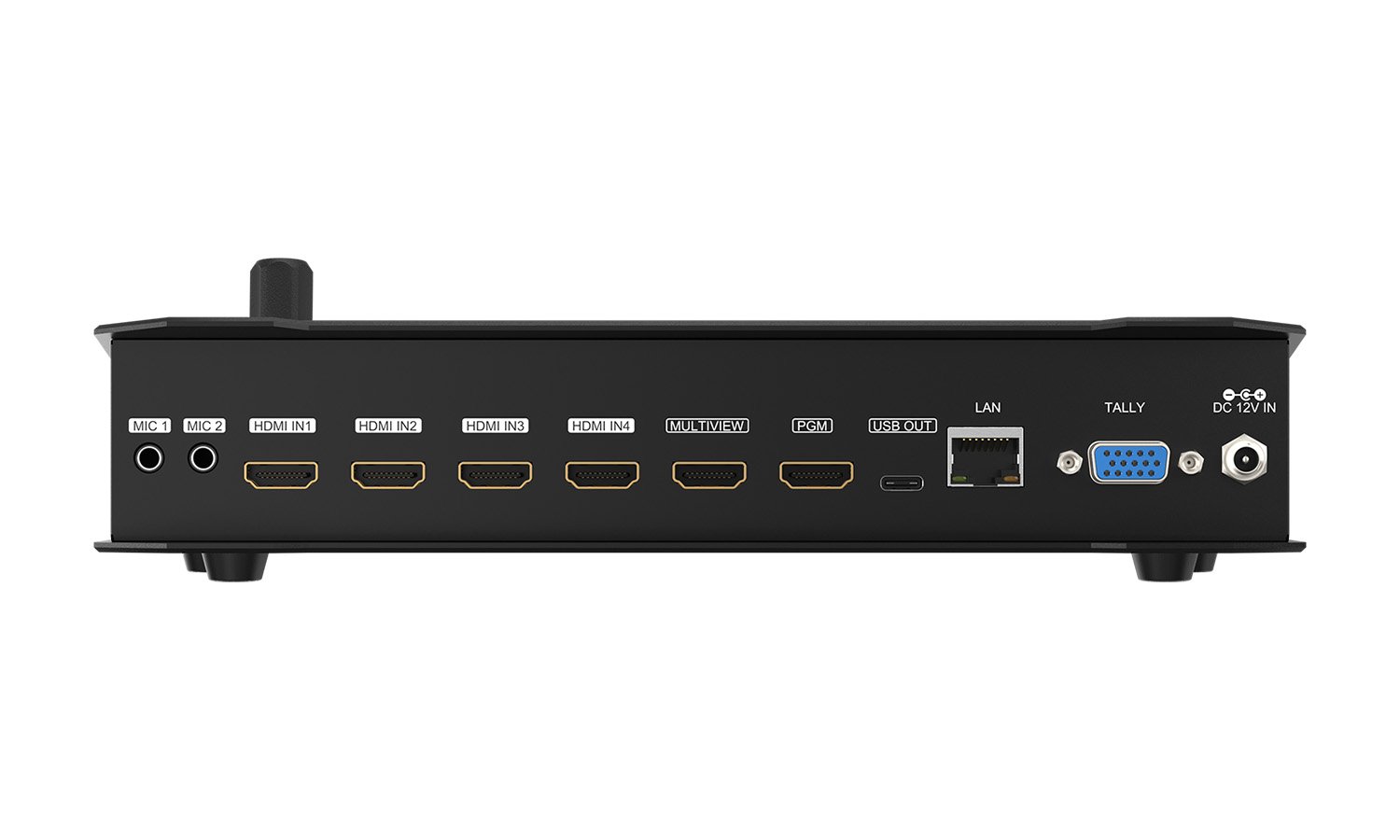

The BG-HDVS42U’s four HDMI inputs support resolutions up to 1080p@60Hz. Video outputs include one HDMI program output, one HDMI multiview output, and one USB type-C output. Audio can be de-embedded from all four HDMI sources and mixed with the two 3.5mm analog inputs. Each audio channel can be delayed to ensure proper sync with the video signal. The mixed audio is embedded to the HDMI and USB-C program outputs. The DB-15 Tally connection provides support for compatible systems.
Control
The BG-HDVS42U includes a full-featured PC control utility, offering enhanced access to all functions including switching, mixing, luma and chroma key, PIP, and POP. DSK and Logo overlays can also be controlled.
A variety of transition effects include such as wipe, mix, and dip. The integrated media library comes with 49 default patterns, 16 imported images, 16 captured images, and two-color generators. Graphics can be imported and overlayed using this library, enabling operators to utilize their own custom logos and overlays for video output.
Features:
- HDMI – 4 inputs, 1 PGM out, 1 multiview out
- Integrated Capture – USB-C output for recording or streaming via PC
- Media Library – Import graphics for custom logos and overlays
- Audio Inputs – 2 x 3.5mm inputs for microphones or external audio feeds
- Audio Mixer – Mix HDMI embedded audio, analog inputs, supports audio delay function
- T-bar/Auto/Cut – T-bar/Auto/Cut transitions; various effects: WIPE (9×2 patterns)/MIX/DIP
- Media library: 49 default patterns, 16 imported images, 16 captured images, 2 color generators
- LAN port for PC software remote control
- FTB/ MUTE/ STILL/ GPIO for tally customer configuration import and export
BG-VPTZ-WM

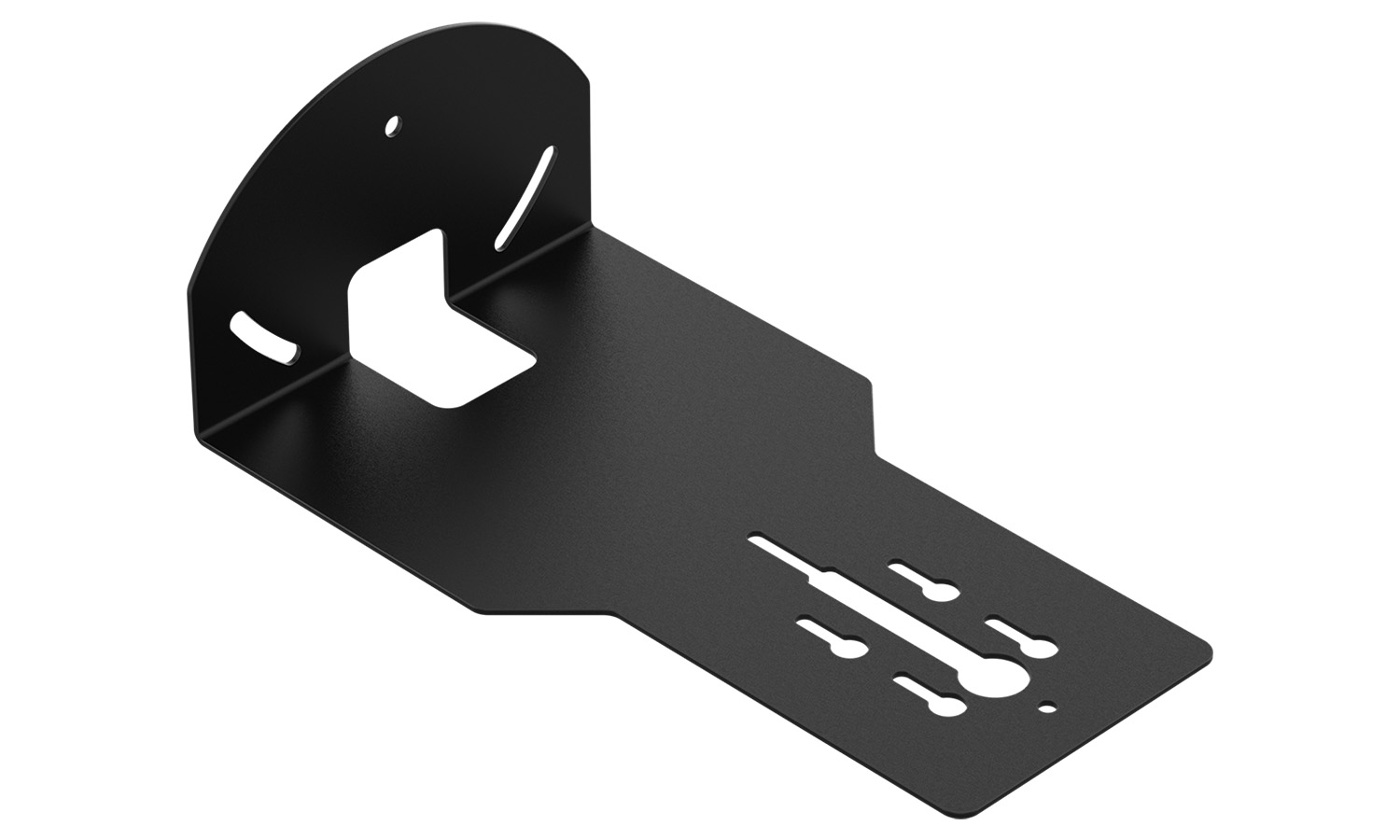

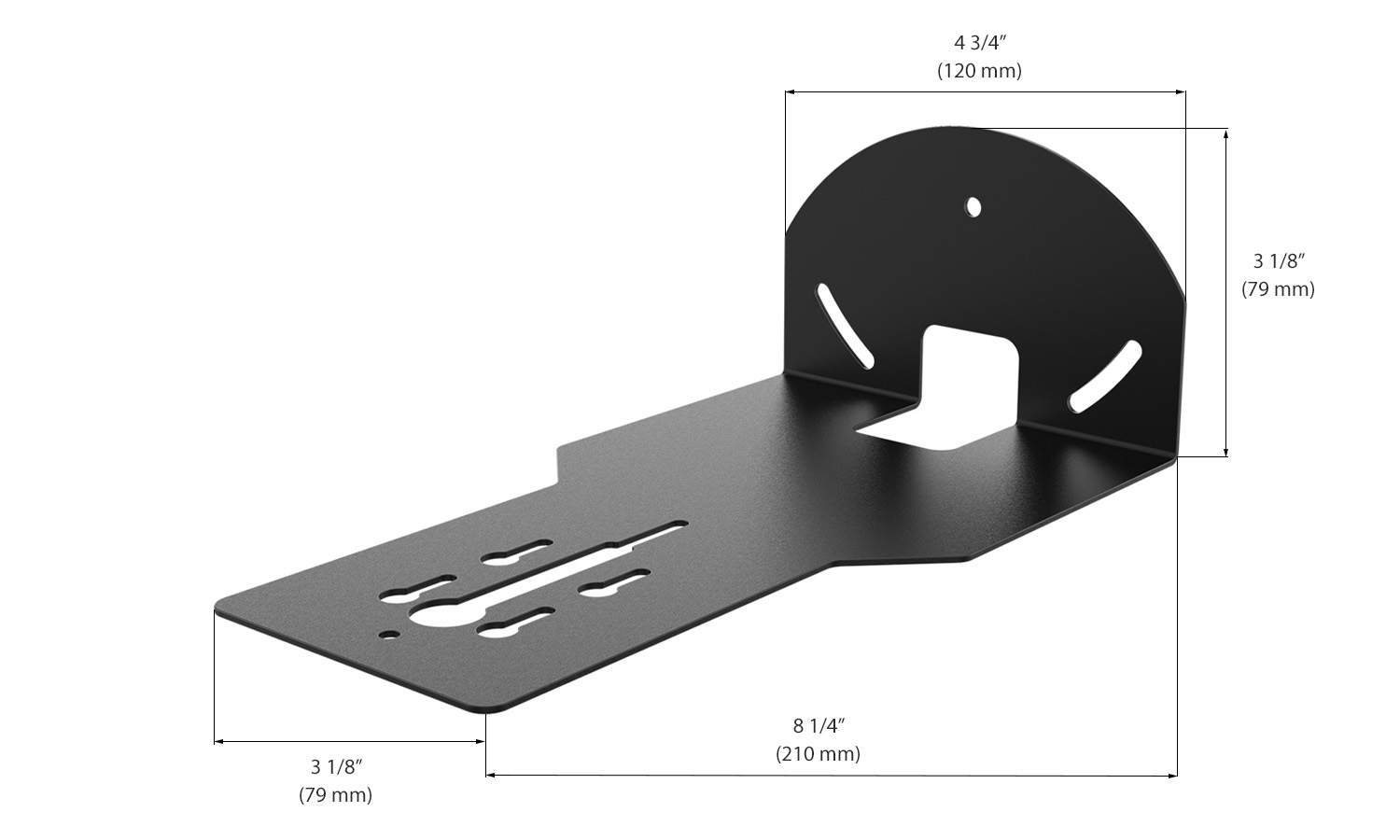

The BG-VPTZ-WM is a wall mount bracket for the VPTZ camera series. Multiple cut-outs allow versatile mounting and cable pass-through options. This bracket is constructed from durable heavy-gauge steel with a powder-coat finish and is designed to provide a secure and stable base for your PTZ camera. It can be mounted directly to drywall, wood, or masonry.
BG-CAB-HD

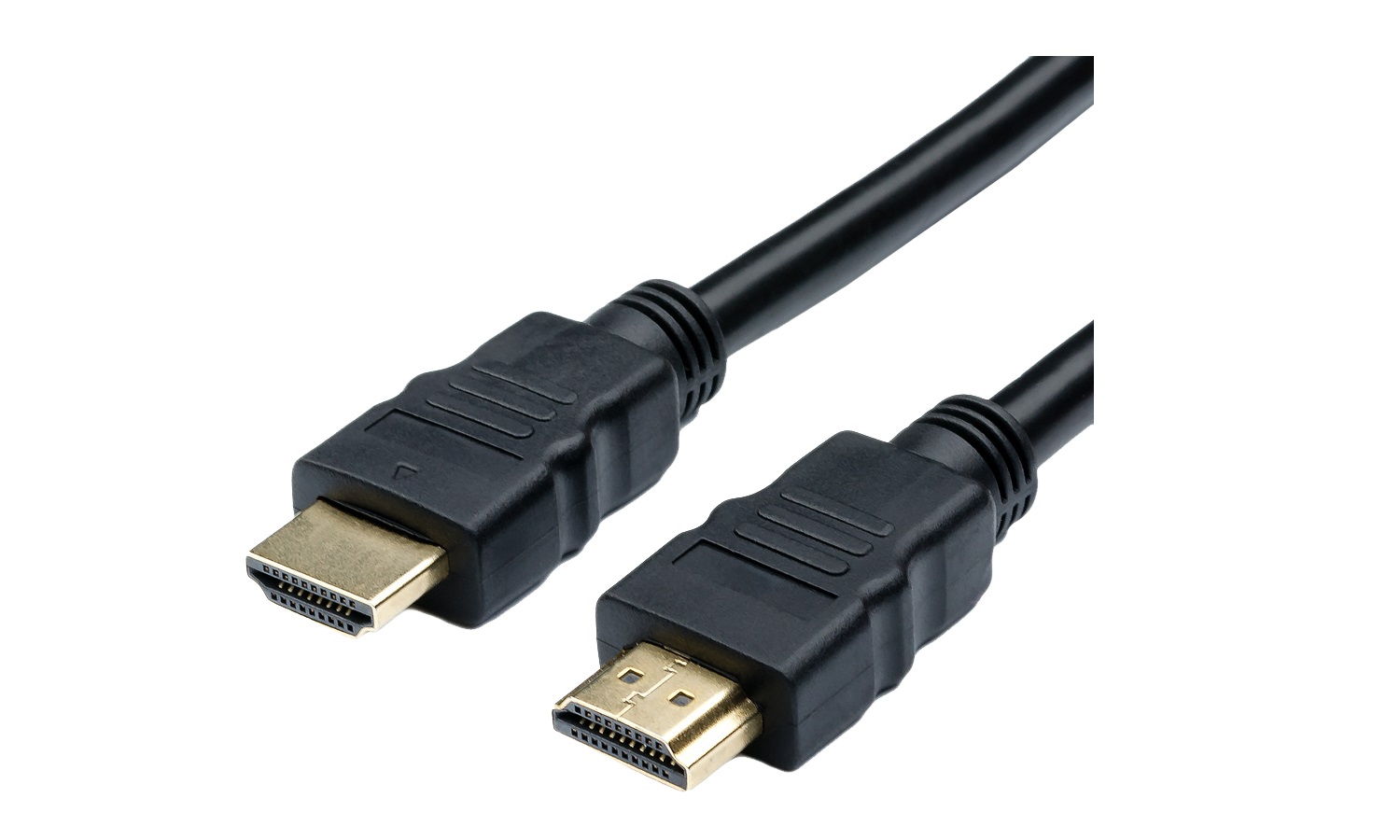

Reliably distribute HDMI video signals are resolutions up to 4K@60Hz with this high-speed HDMI cable from BZBGEAR. Featuring 18Gbps data throughput and gold-plated connectors, this HDMI cable supports HDR/HDR10, Dolby Vision, and full 4:4:4 Chroma sampling at 4K.
BG-CAB-CAT6

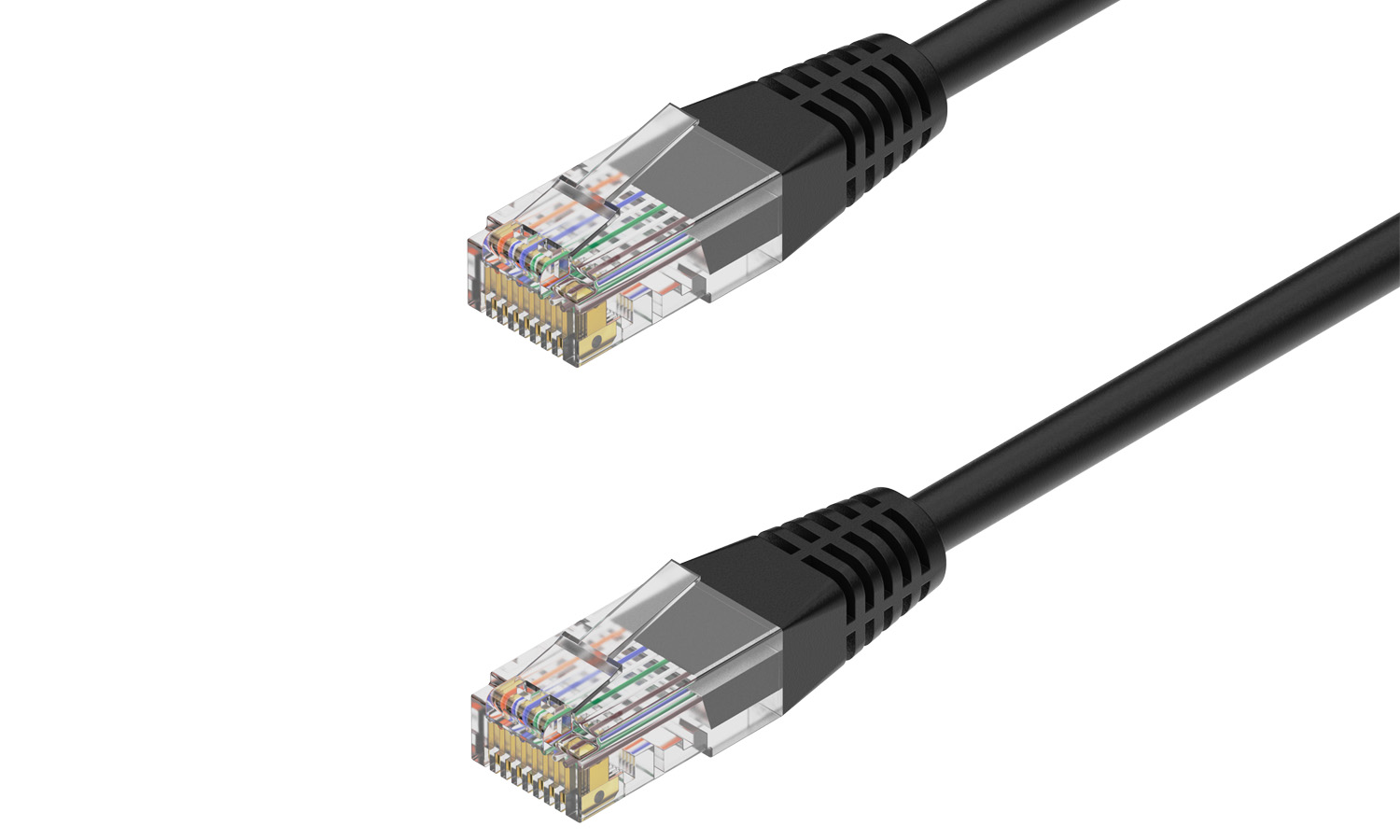

Our Cat6-rated high-performance cables are made with 24 AWG solid copper wire for universal connectivity with PC’s, routers, PoE devices, switches, and any other type of networked device. Supporting data transfer rates up to 1000 Mbps these cables can maximize the available bandwidth of a Gigabit sped network. Full PoE support provides connectivity and power for devices like PTZ cameras, controllers, or wireless access points. The connectors feature gold-plated contacts for long-lasting performance.
