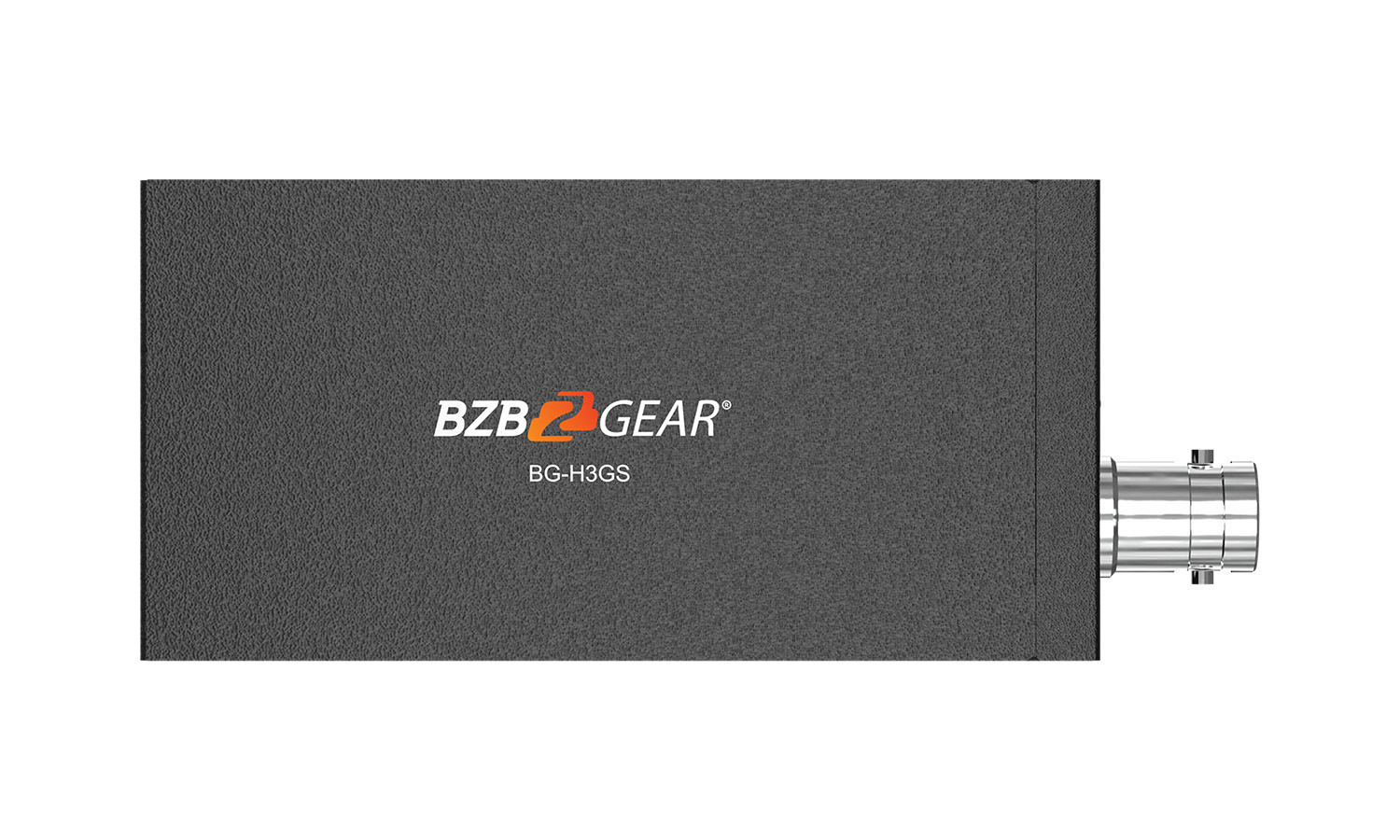

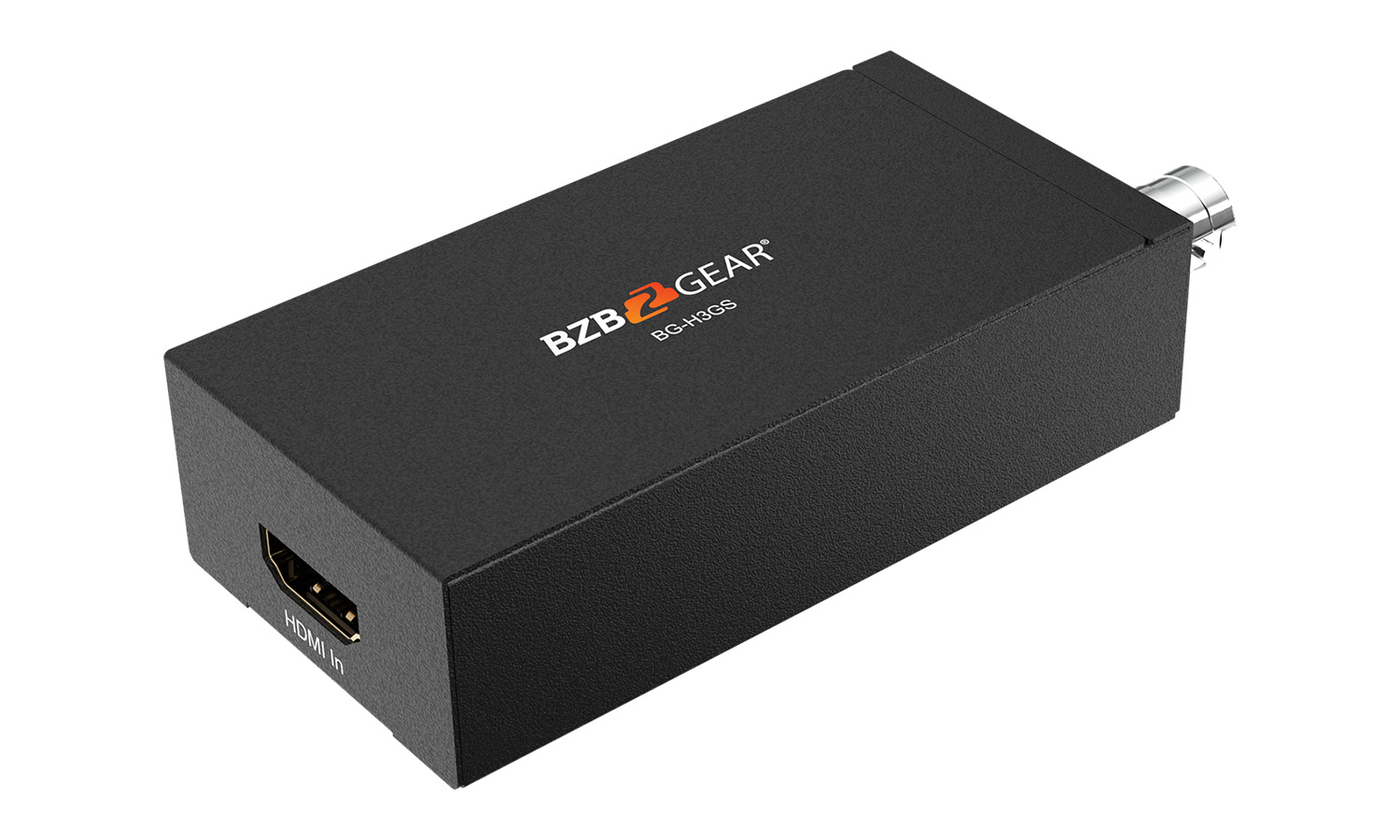

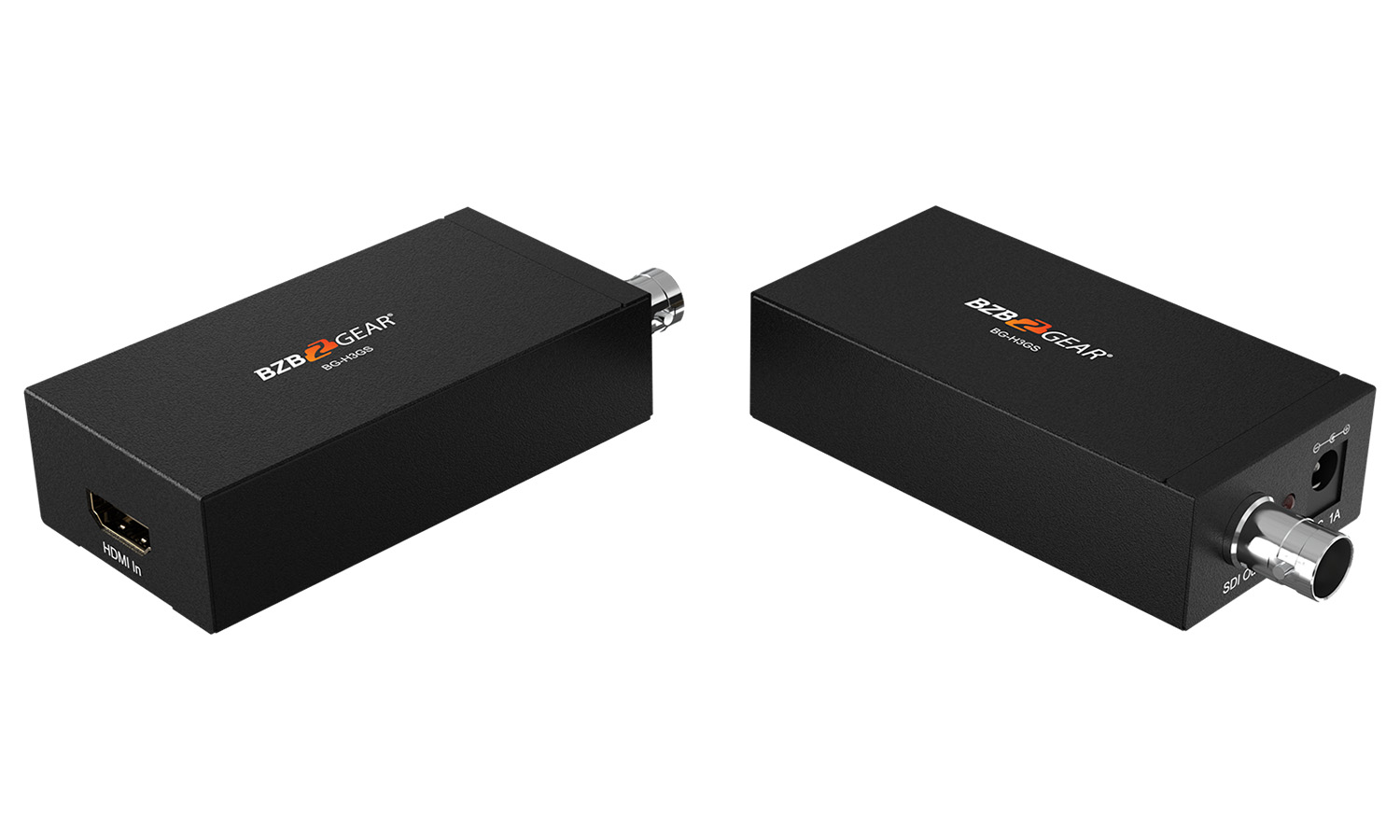

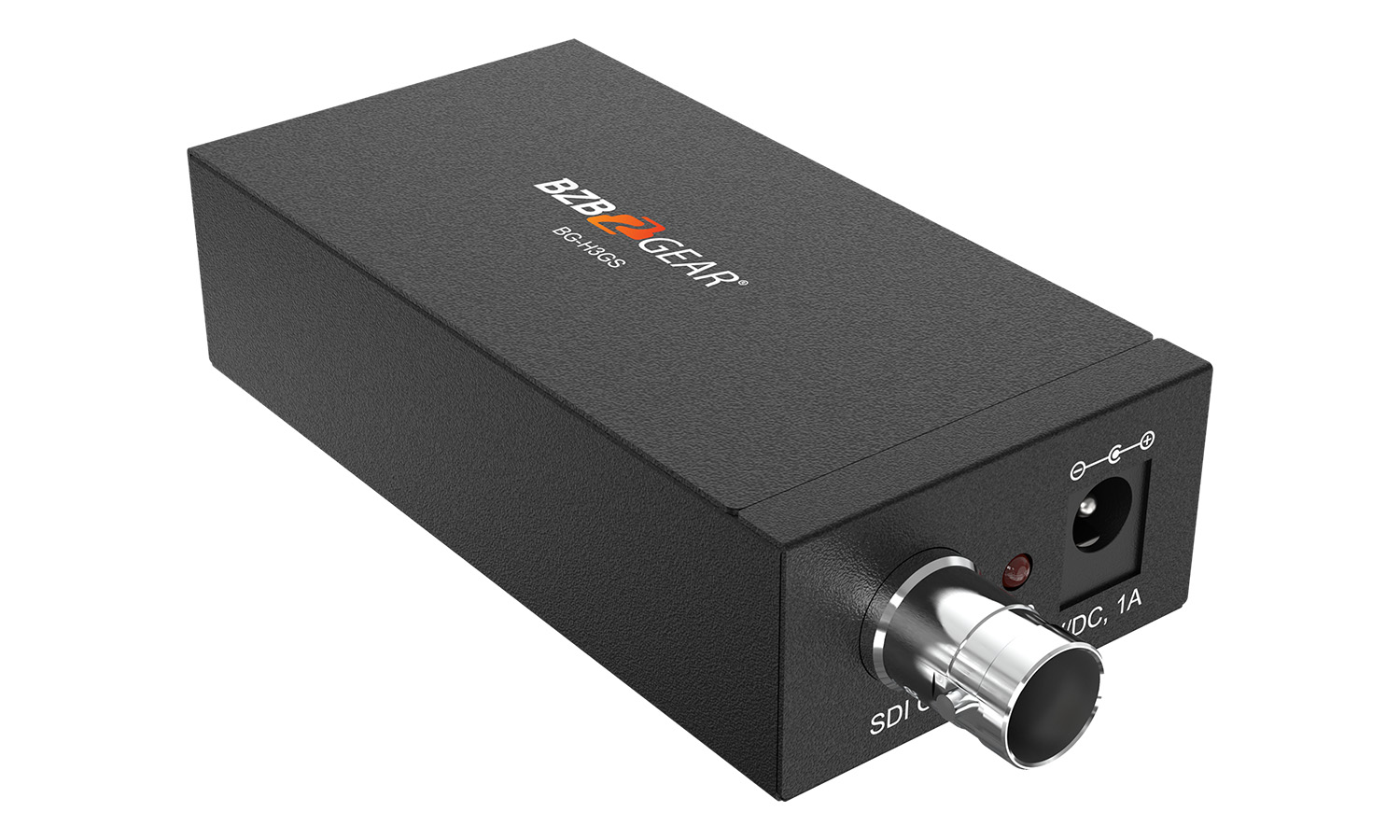

BZBGEAR BG-H3GS 1080P FHD HDMI to 3G-SDI Long Distance Converter/Amplifier

Description

}

The BG-H3GS allows HDMI signals to be shown on SDI displays while ensuring a high bit rate of 2.970 Gbit/s to provide a high-resolution signal without any loss. For professionals this means that it is now easier to convert your high-definition HDMI signal with audio to SDI for long distance transmissions and display your work on SDI displays.

The BG-H3GS supports multiple input resolutions such as 480i, 720p, 1080i, and up to 1080p60. A 1080p @ 60 HDMI signal will convert to 3G-SDI for transmission up to 100m (328ft). For even longer range transmissions 480i will convert to SD-SDI and can be transmitted up to 300m (984ft).

1080p/60 Support:
Crystal clear images with resolutions up to 1080p @ 60Hz

Portable:
Ideal for any on-the-go kit

Easy to Use:
Simple for anyone to learn

Rigid Design:
Durable metal structure built to withstand years of operation

SDI Transmission Rate – 2.970 Gbit/s and 2.970/1.001 Gbit/s
HDMI input timings: 480i @ 59.94, 576i, 720p @ 50/59.94/60, 1080i @ 50/59.94/60, 1080p @ 23.98/24/25/29.97/30/50/59.94/60
3G-SDI – Up to 100 meters, HD-SDI – Up to 200 meters, SD-SDI – Up to 300 meters

Video

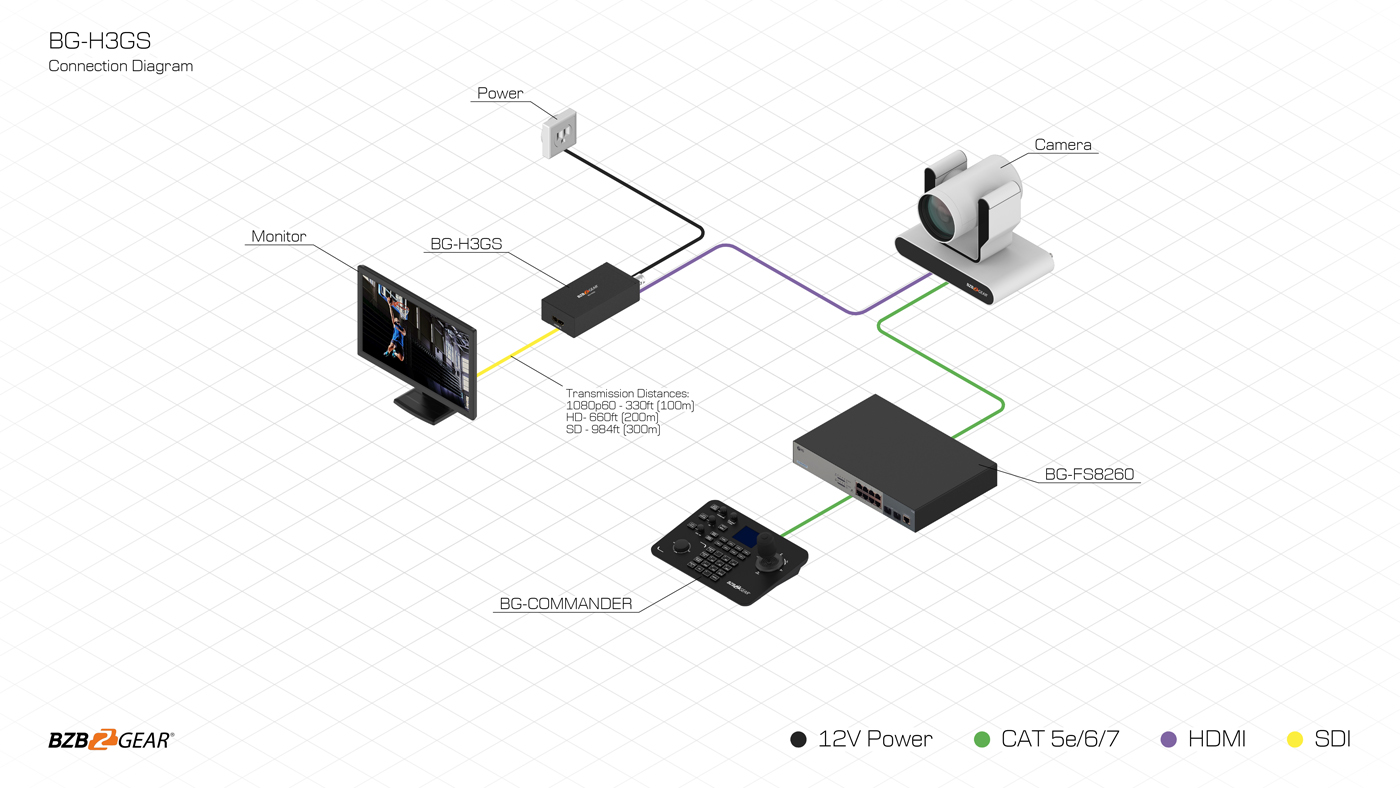

Product Diagrams

View Diagrams

Specifications

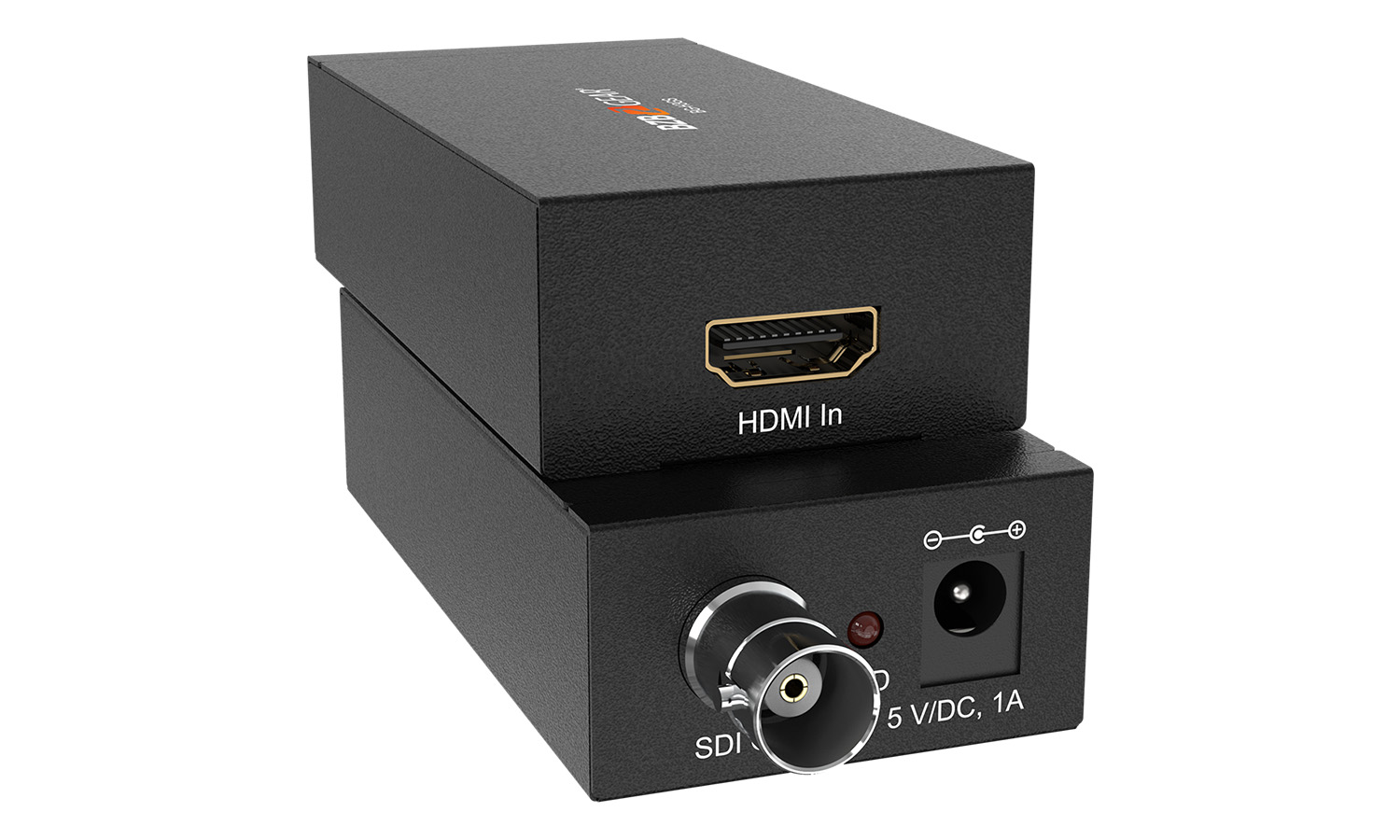

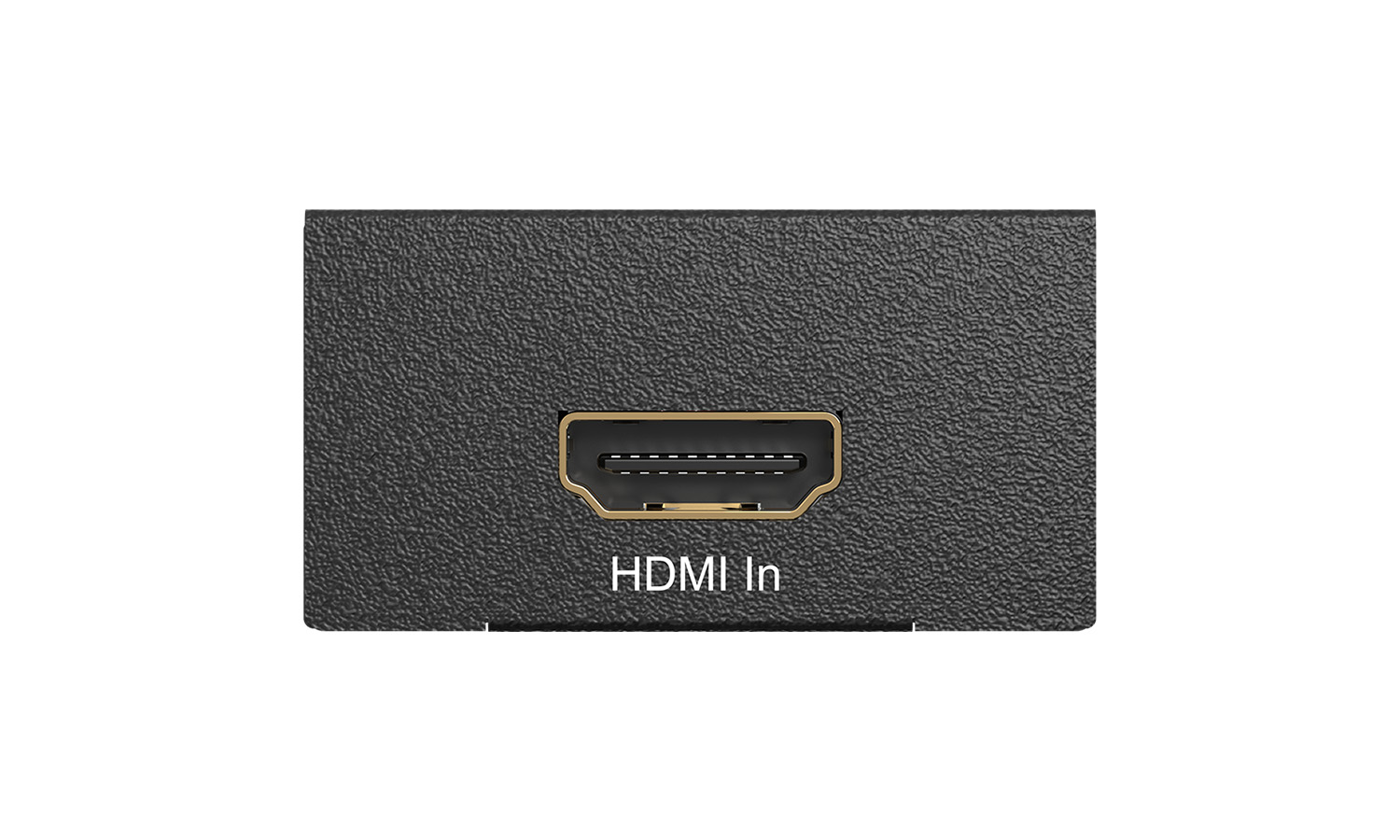

Input Port	1 x HDMI

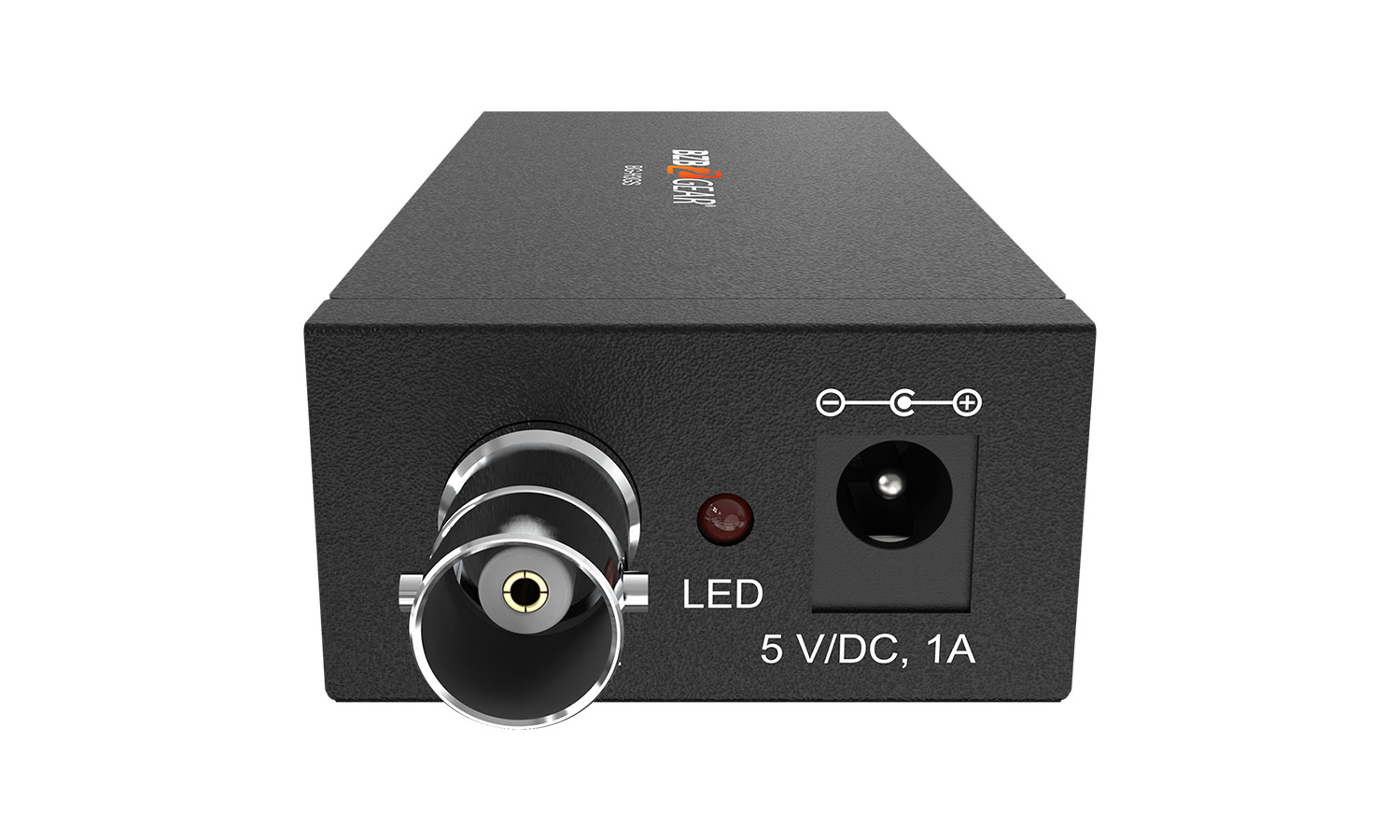

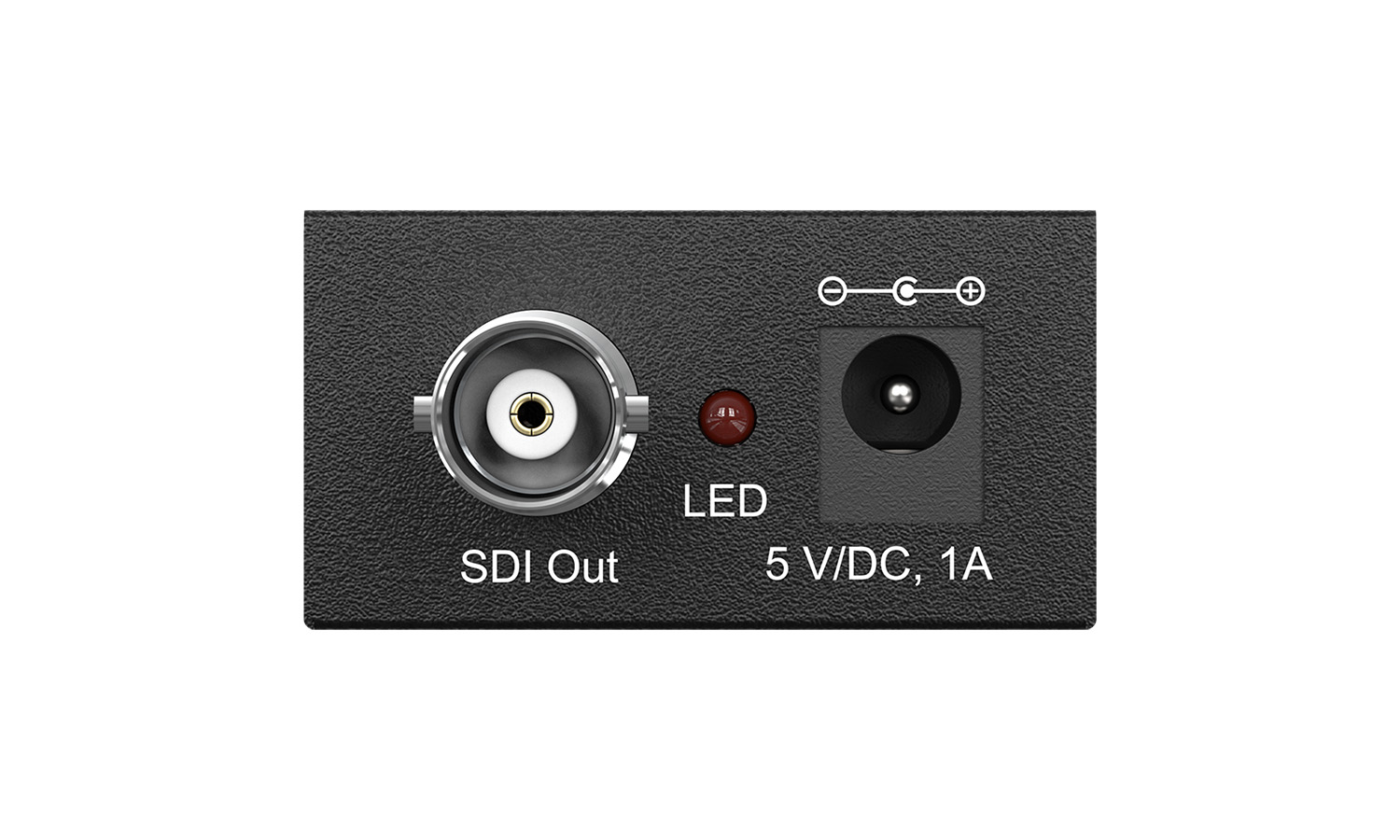

Output Port	1 x BNC (SDI/HD-SDI/3G-SDI)
SDI Transmission Rates	2.970 Gbit/s and 2.970/1.001 Gbit/s
In/Output Resolution	480i, 576i, 720p @ 50/59.94,60,1080i @ 50/59.94/60, 1080p @ 23.97/24/25/29.97/30/50/59.94/60
Power Supply	DC 5V -12V
ESD Protection Human body model	±8kV (air-gap discharge), ±4kV (contact discharge)
Dimension	3.1in x 1.6in x 0.98in [80mm x 41mm x 25mm]
Weight	0.33 lbs [150g]
Operating Temperature	32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature	-4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity	20 ~ 90% RH (Non-condensing)
Power Consumption (Max)	5W
