BZBGEAR BG-EXT-H70P 4K UHD HDMI Extender Over Cat5e/6 with PoC/IR/HDMI Loop Out up to 131ft for 4K30

Description

The BG-EXT-H70P is a high-performance HDMI extender designed to deliver uncompressed, zero-latency video and audio signals over long distances using a single CAT6/5e cable. Supporting resolutions up to 4K@30Hz (YUV 4:4:4) and fully compliant with HDMI 1.4, HDCP 1.4, and DVI 1.0 standards, this extender is an ideal solution for professional AV installations in conference rooms, classrooms, and large-scale display setups.

With transmission distances up to 230 feet (70 meters) for 1080p and 131 feet (40 meters) for 4K@30Hz over CAT6, the BG-EXT-H70P ensures reliable signal extension without compromising quality. It features an HDMI loop-out for local monitoring or cascading to additional extenders, EDID copy functionality for flexible compatibility, and one-way IR pass-through for convenient remote control. Power is delivered from transmitter to receiver via PoC (Power over Cable), simplifying installation with fewer cables.

Features

HDCP & DVI Compliance – Fully compliant with HDCP 1.4 and DVI 1.0 standards
4K Video Support – Supports resolutions up to 4K@30Hz (YUV 4:4:4)
Extended Transmission Distance – Up to 230 ft (1080p) / 131 ft (4K30) over CAT6, and 197 ft (1080p) / 115 ft (4K30) over CAT5e
EDID Management – Supports EDID copy from the receiver’s display or the HDMI loop-out display for reliable signal negotiation
Power over Cable (PoC) – One-way PoC delivers power from the transmitter to the receiver, simplifying installation
IR Pass-Through – Supports one-way IR signal transmission
Compact Design: Space-saving form factor for clean, flexible, and easy installation in tight spaces
Cascading Capability: HDMI loop-out port enables cascading to additional extenders or displays

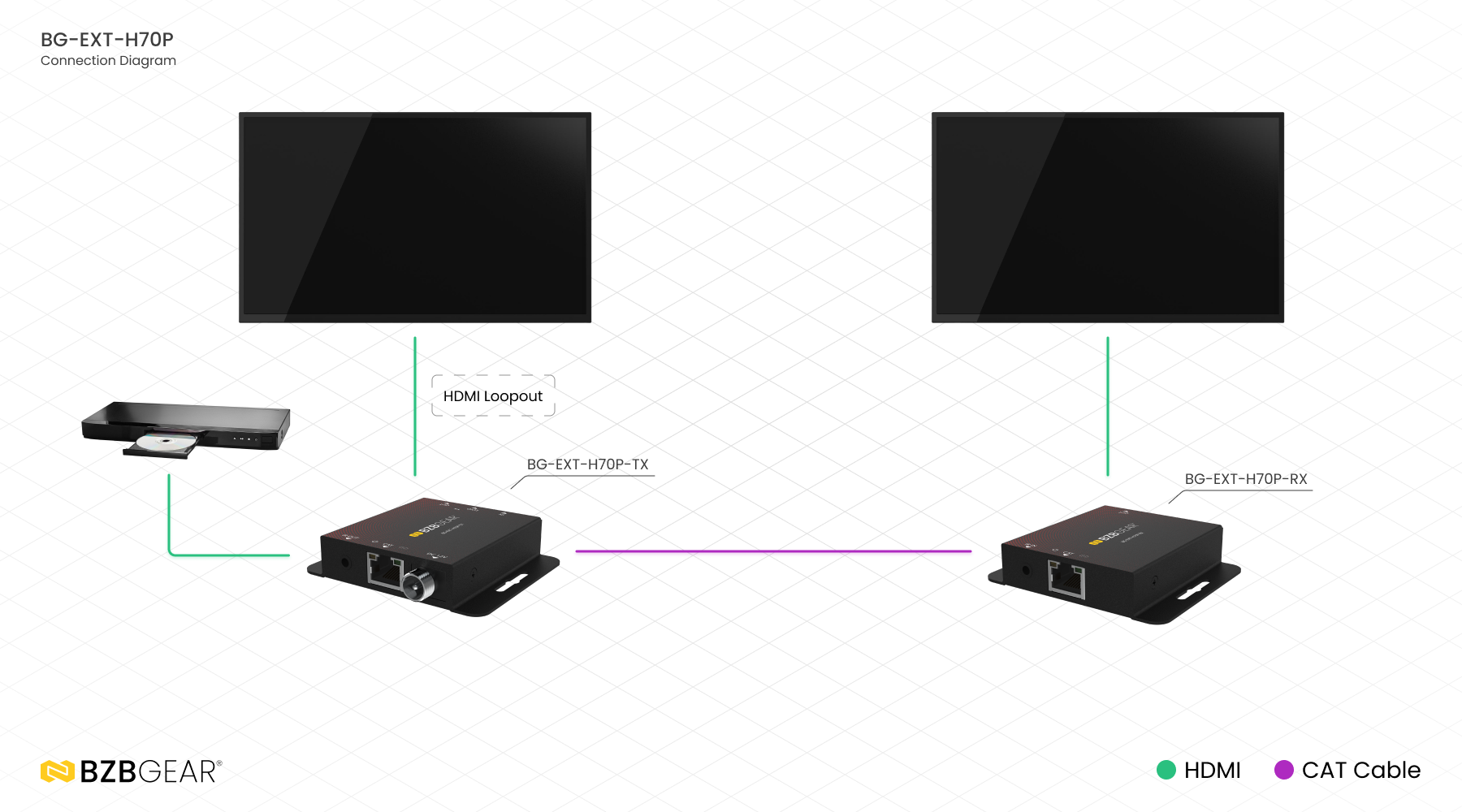

Product Diagrams

View Diagrams

Specifications

Technical
HDMI Compliance	HDMI 1.4
HDCP Compliance	HDCP 1.4
Video Bandwidth	10.2 Gbps
Video Resolution	Up to 4K @ 30Hz
Audio Support	Up to 7.1 CH HD audio
Input TMDS Signal	3.3 V
Input DDC Signal	5.0 V P-P
ESD Protection	IEC 61000-4-2: ±8 kV (air-gap discharge), ±4 kV (contact discharge)
Connection

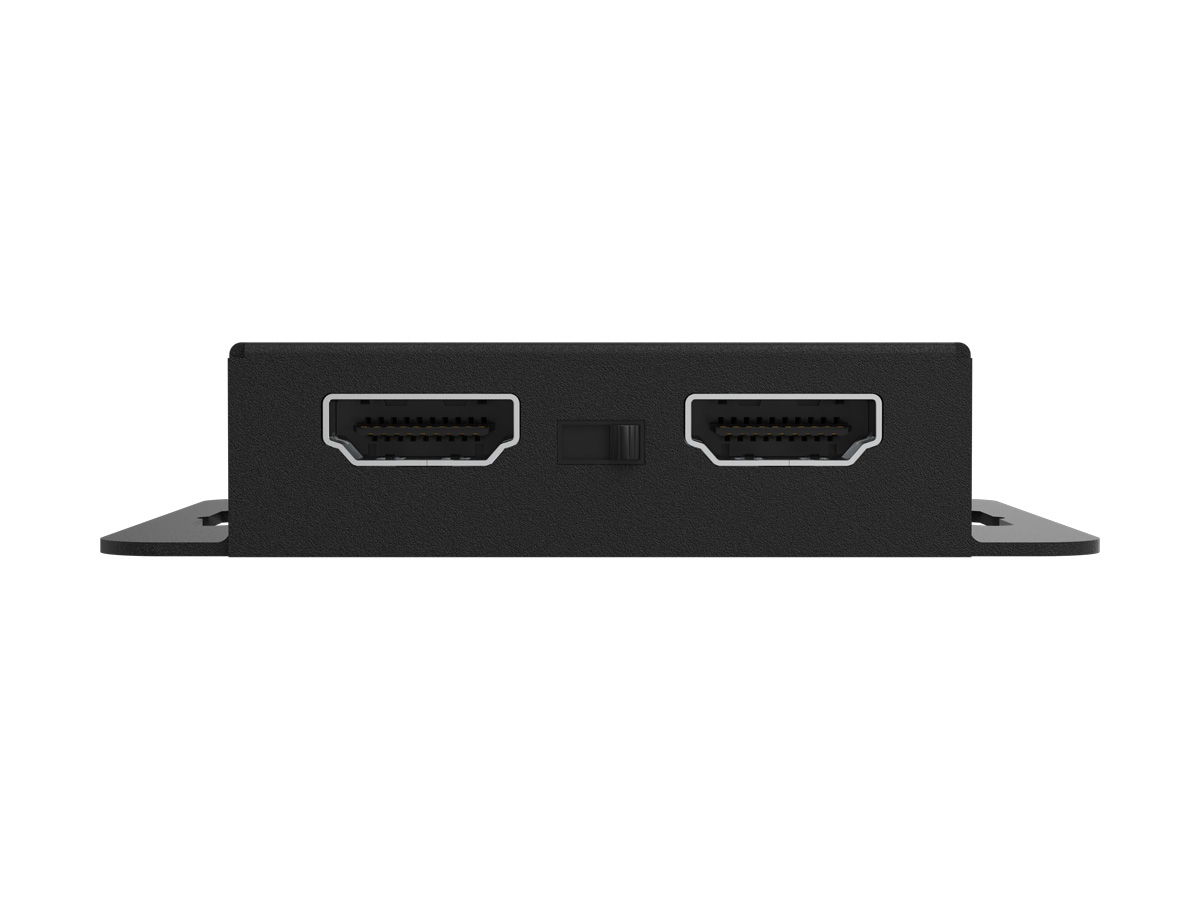

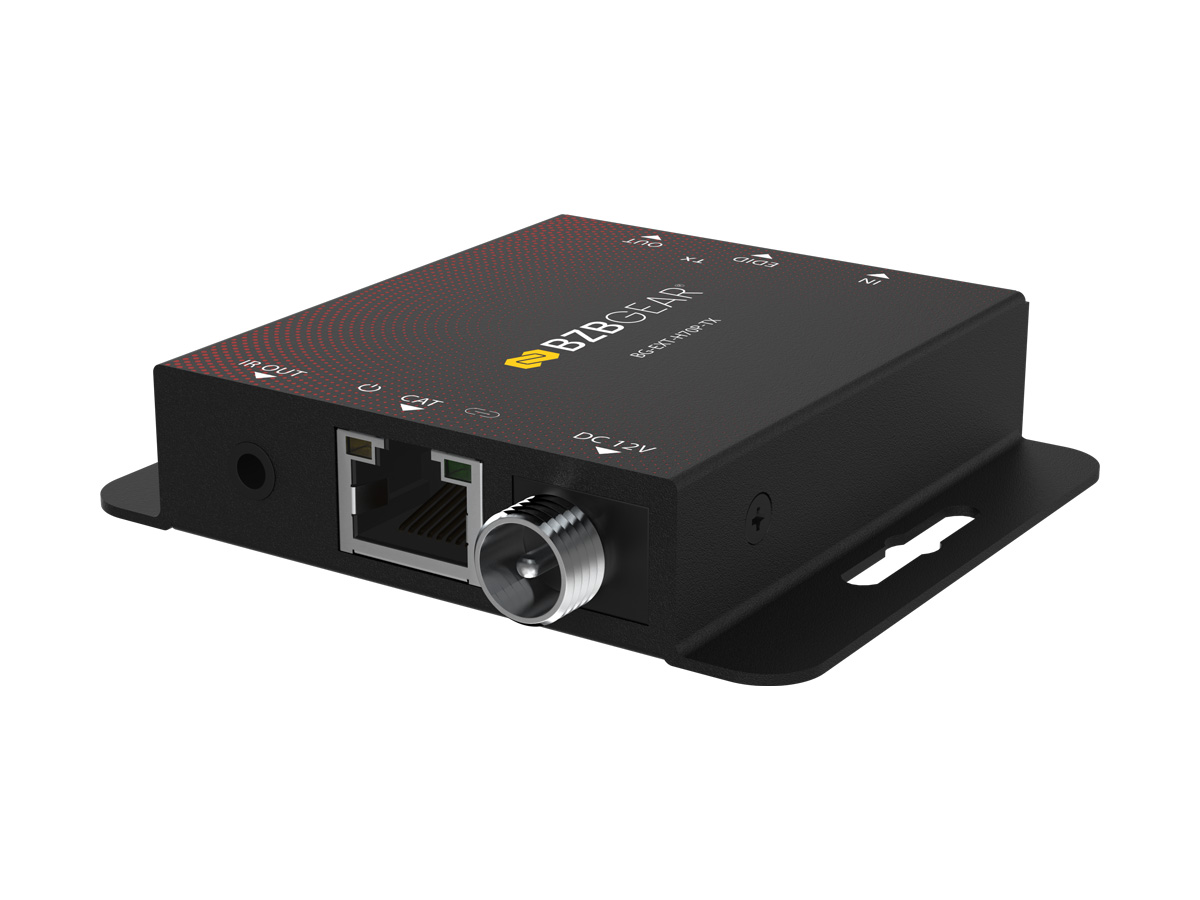

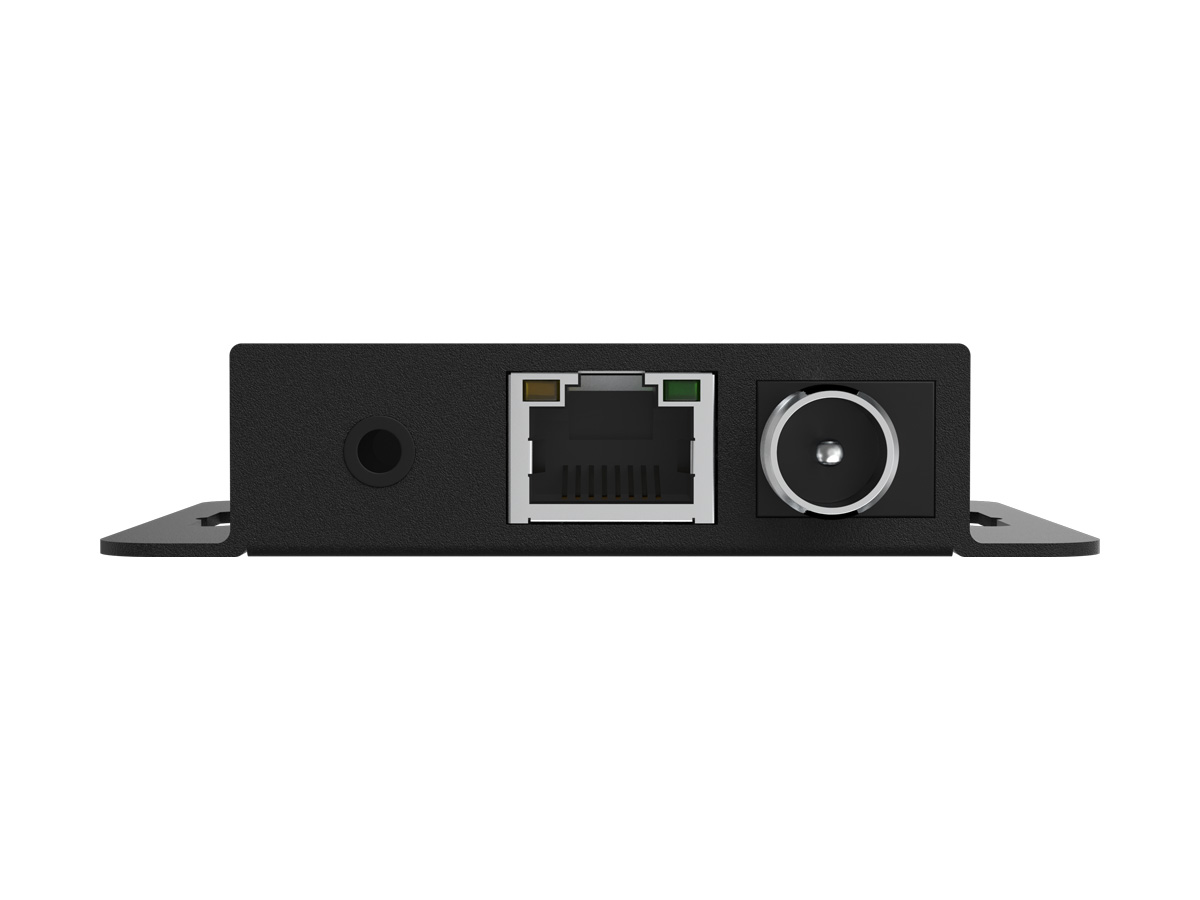

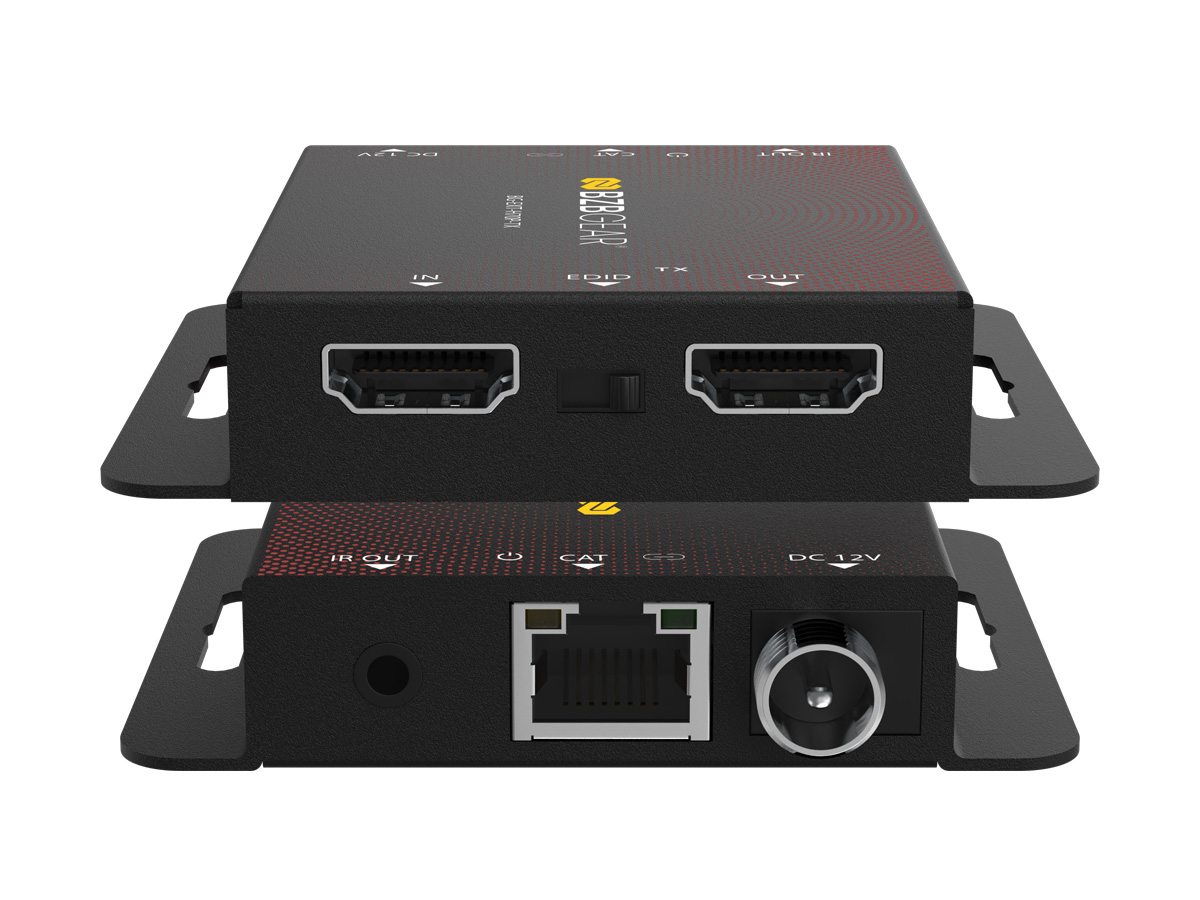

Transmitter	Input: 1 × HDMI IN (Type A, 19-pin, female) Output: 1 × HDMI OUT (Type A, 19-pin, female) 1 × IR OUT (3.5 mm stereo mini-jack) 1 × CAT OUT (RJ45, 8-pin, female)

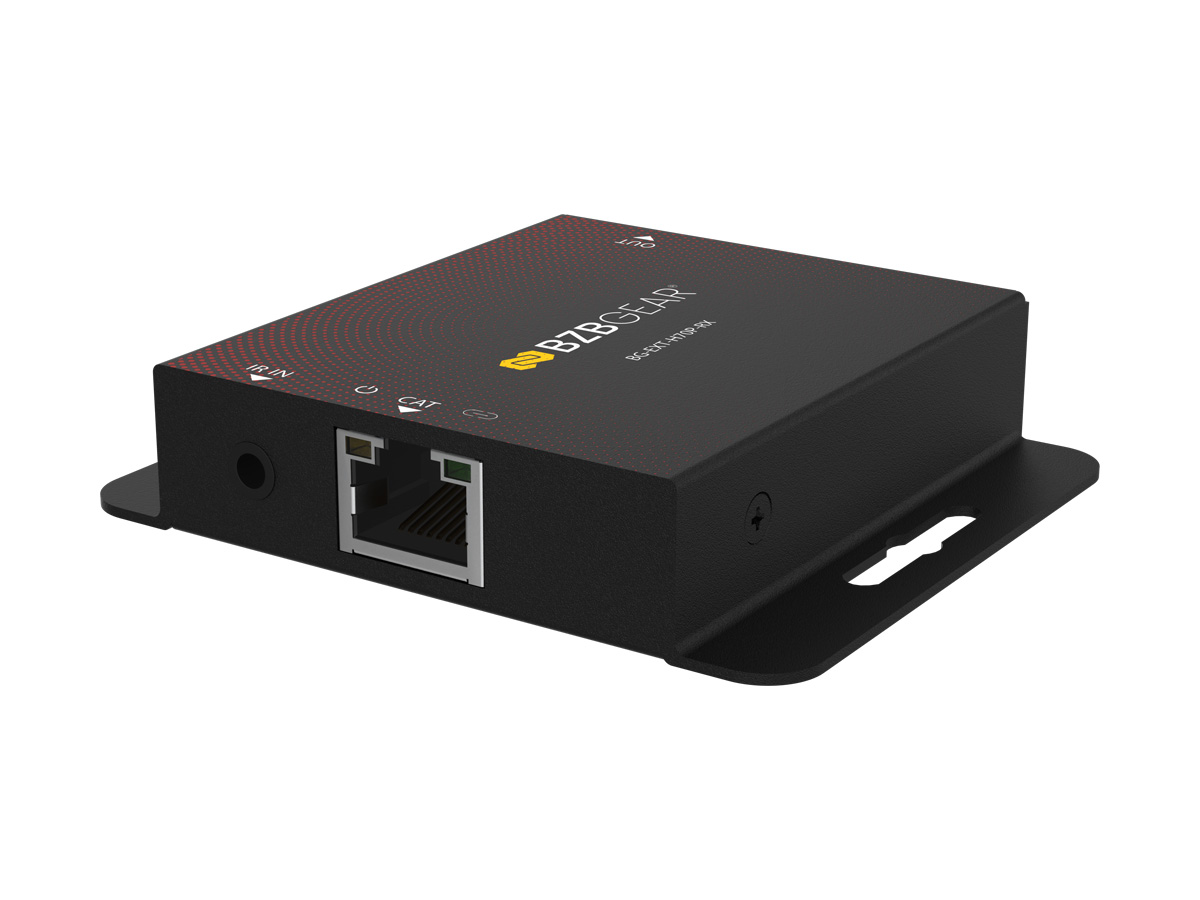

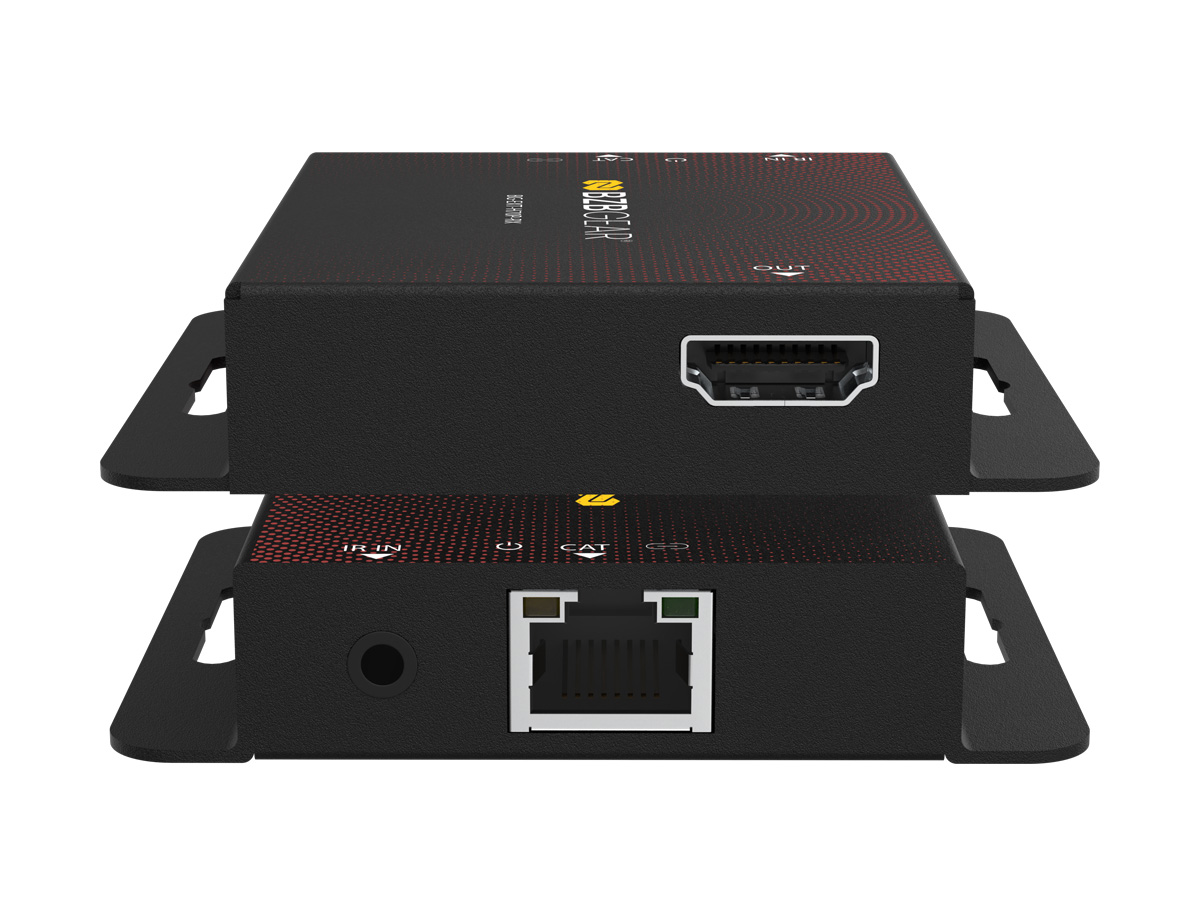

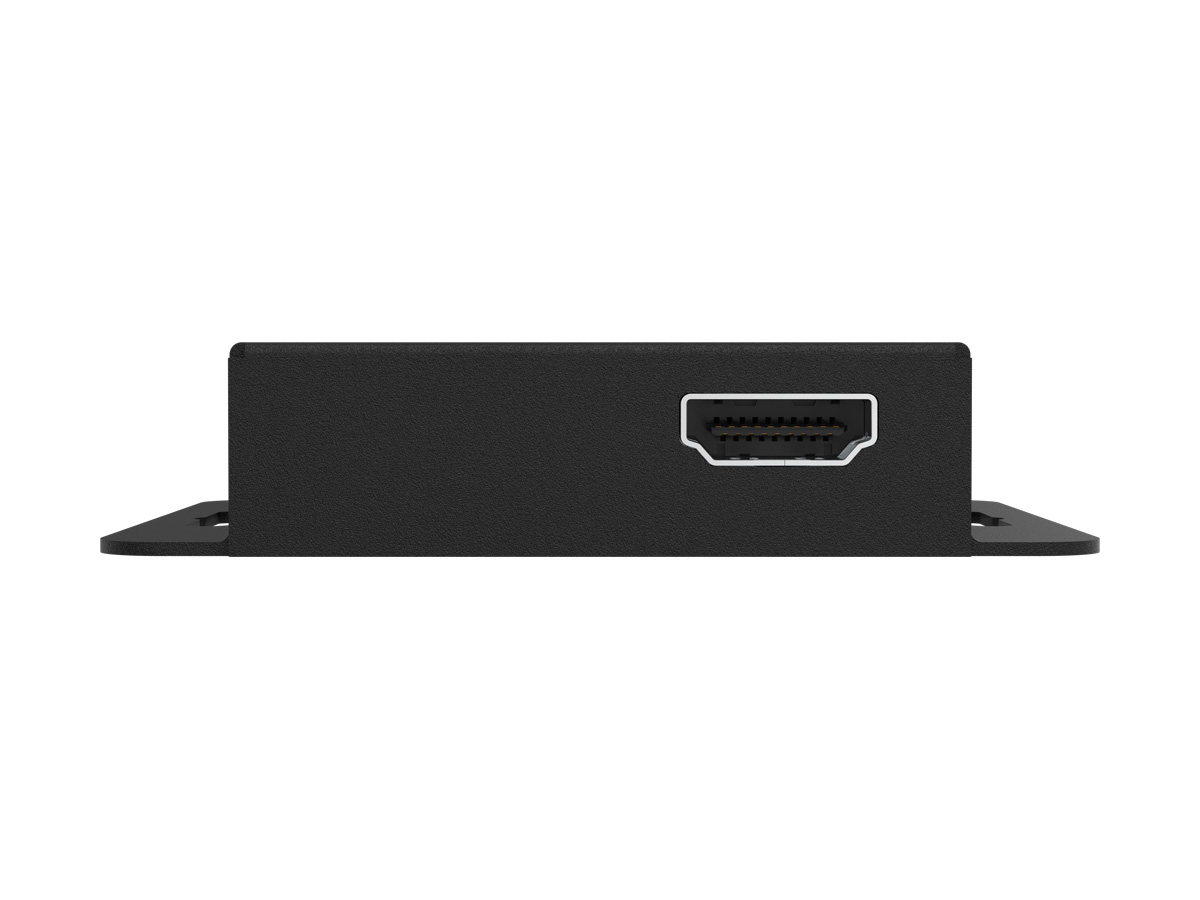

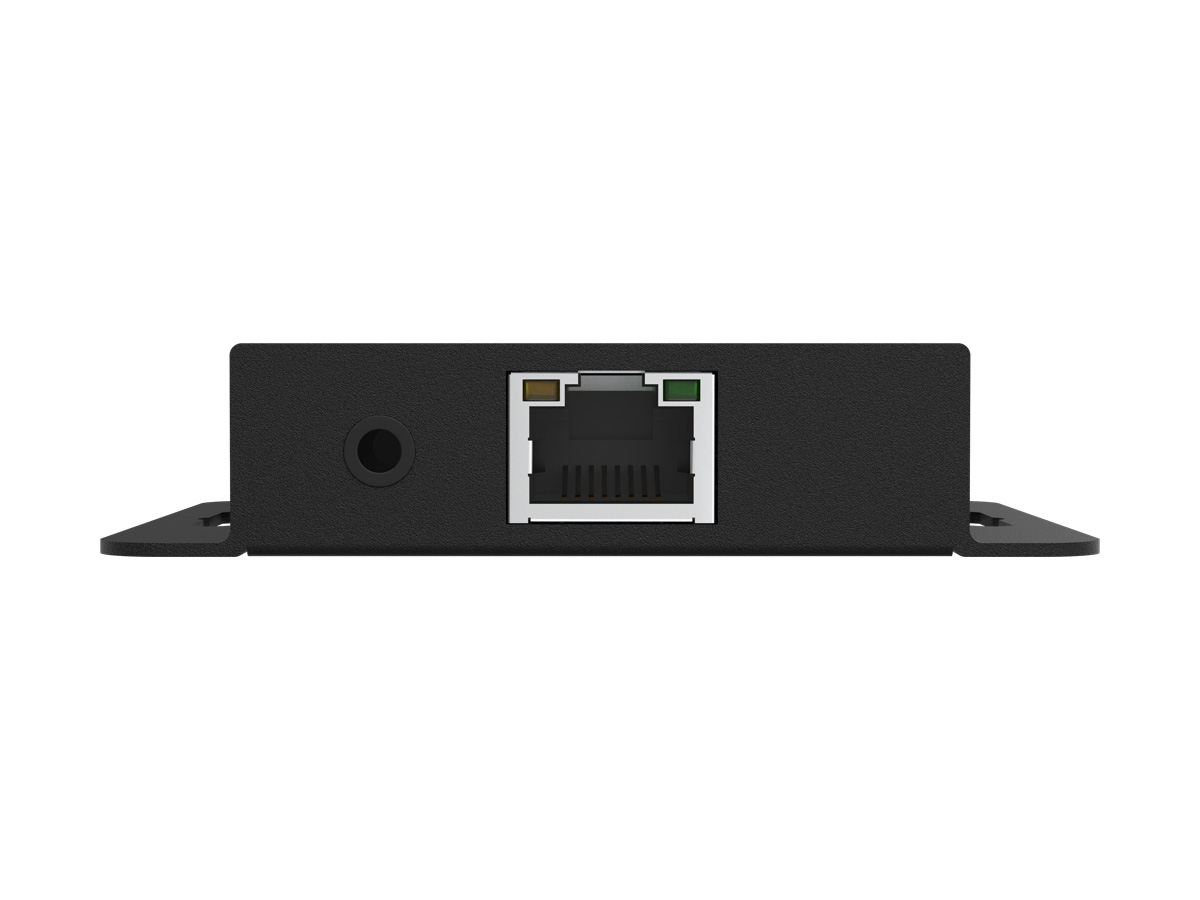

Receiver	Input: 1 × IR IN (3.5 mm stereo mini-jack) 1 × CAT IN (RJ45, 8-pin, female) Output: 1 × HDMI OUT (Type A, 19-pin, female)
Mechanical
Housing	Metal enclosure
Color	Black
Dimensions (W × D × H)	3.1 × 2.7 × 0.65 in (79.5 × 69 × 16.5 mm)
Weight	Transmitter: 0.29 lb (132 g), Receiver: 0.29 lb (130 g)
Power Supply	12 V DC, 1 A
Power Consumption	Transmitter: 1.86 W, Receiver: 0.87 W
Operating Temperature	32 – 104 °F (0 – 40 °C)
Storage Temperature	-4 – 140 °F (-20 – 60 °C)
Operating Humidity	20% – 80% RH (non-condensing)
Storage Humidity	10% – 90% RH (non-condensing)
