Description

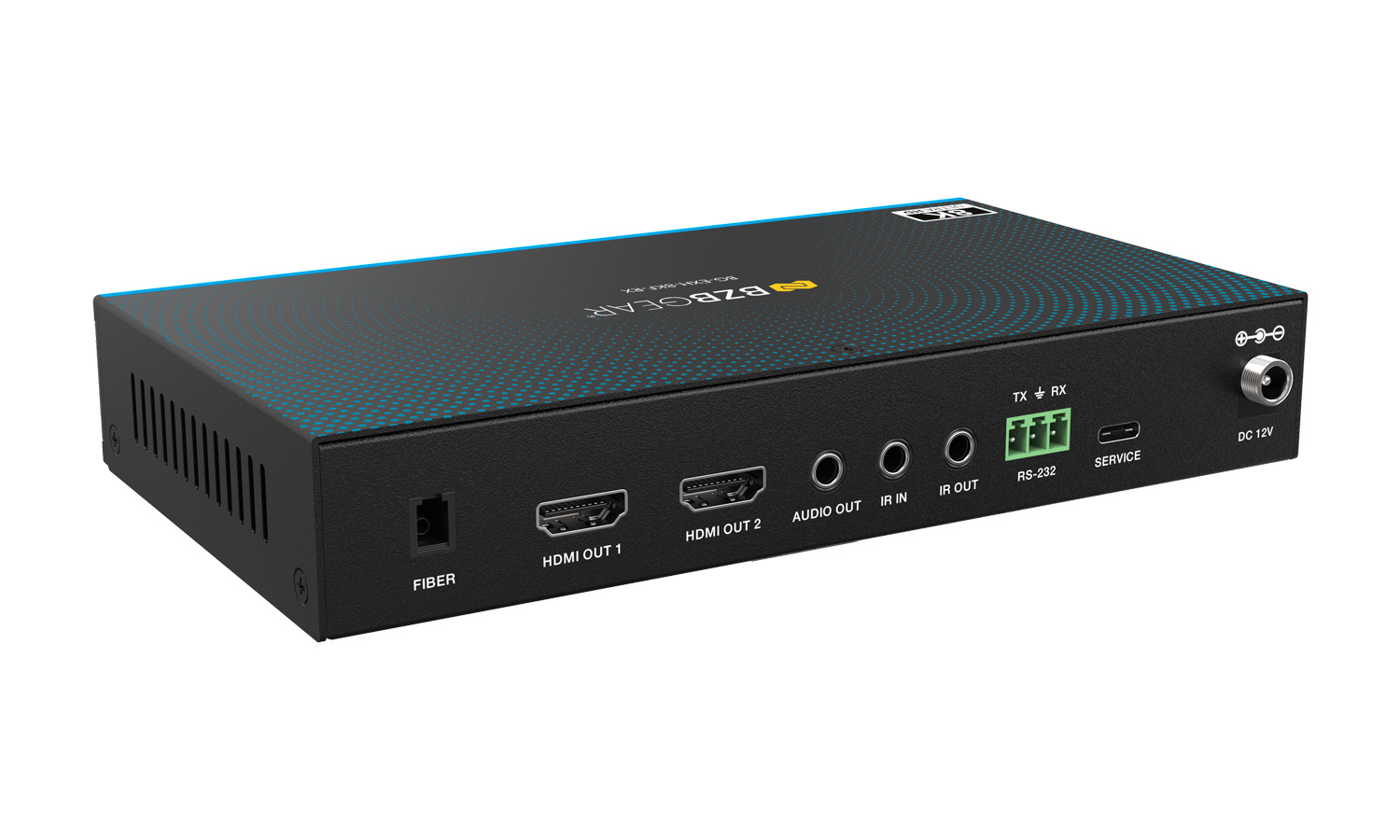

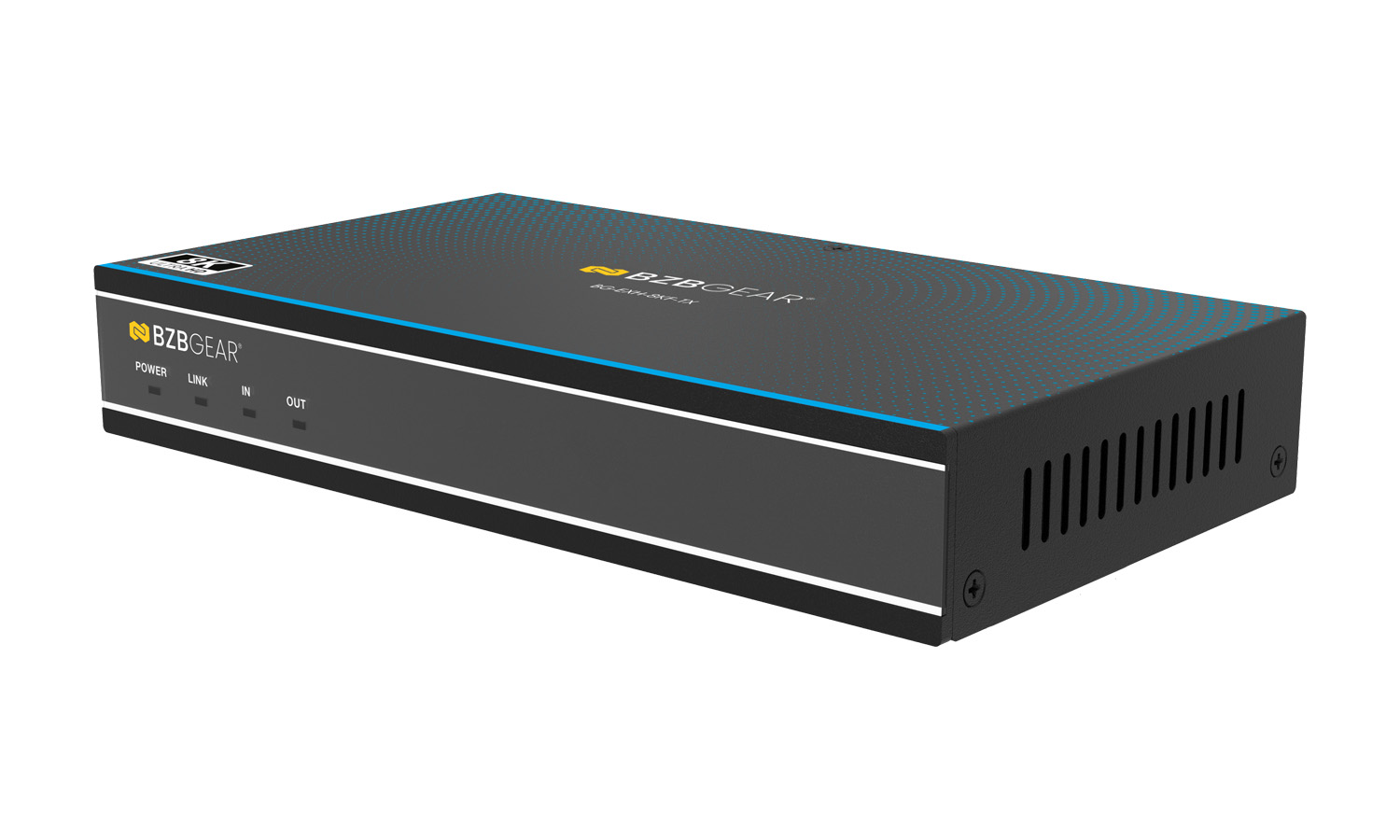

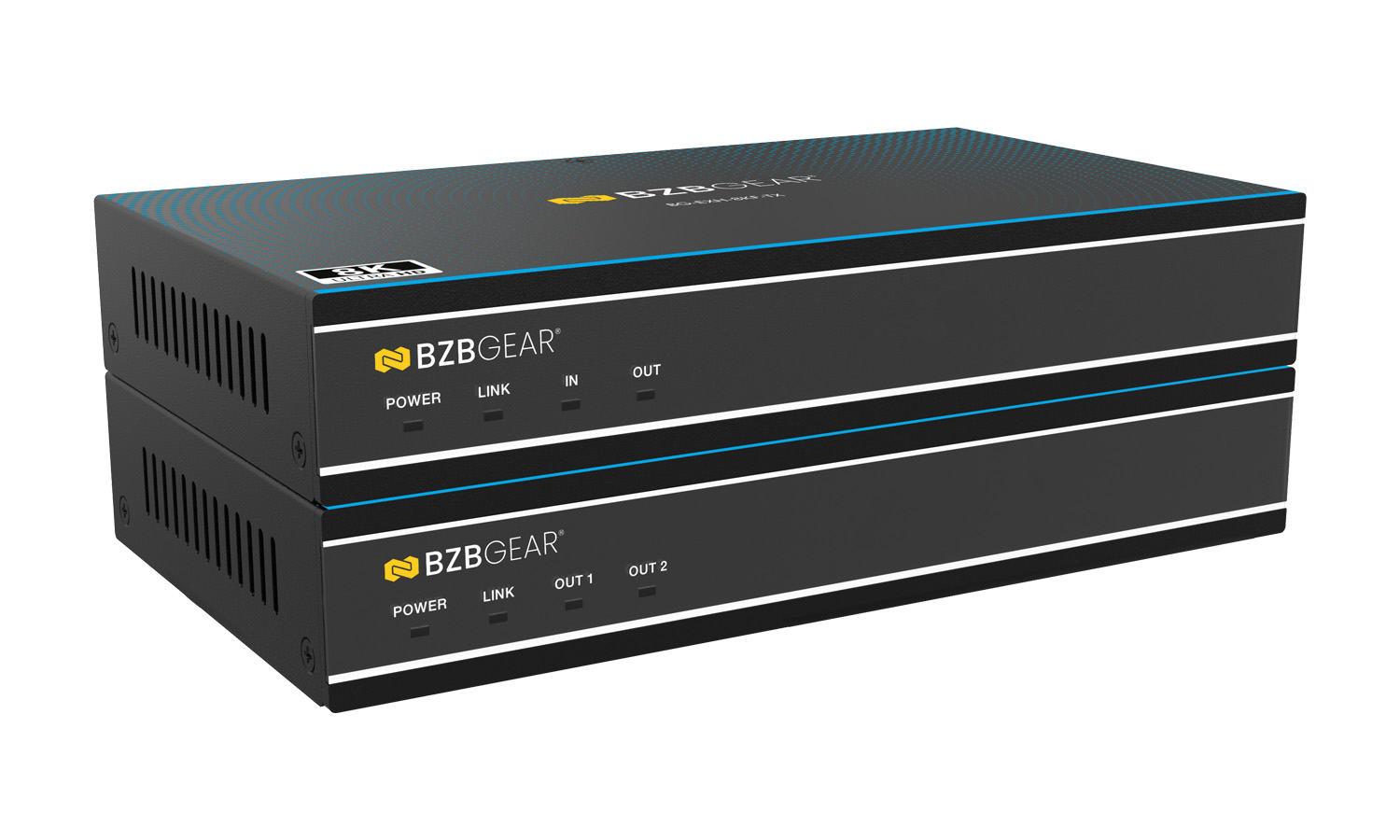

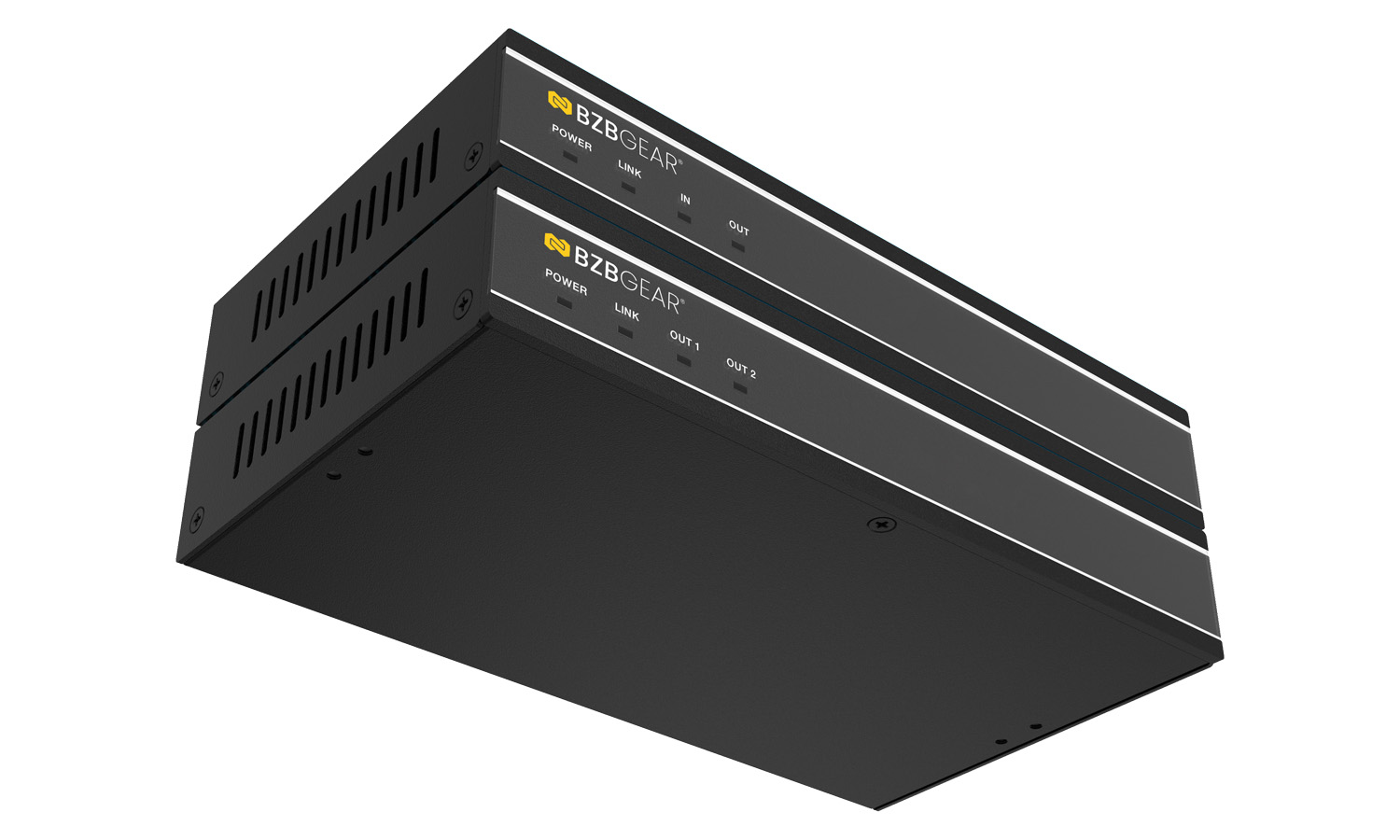

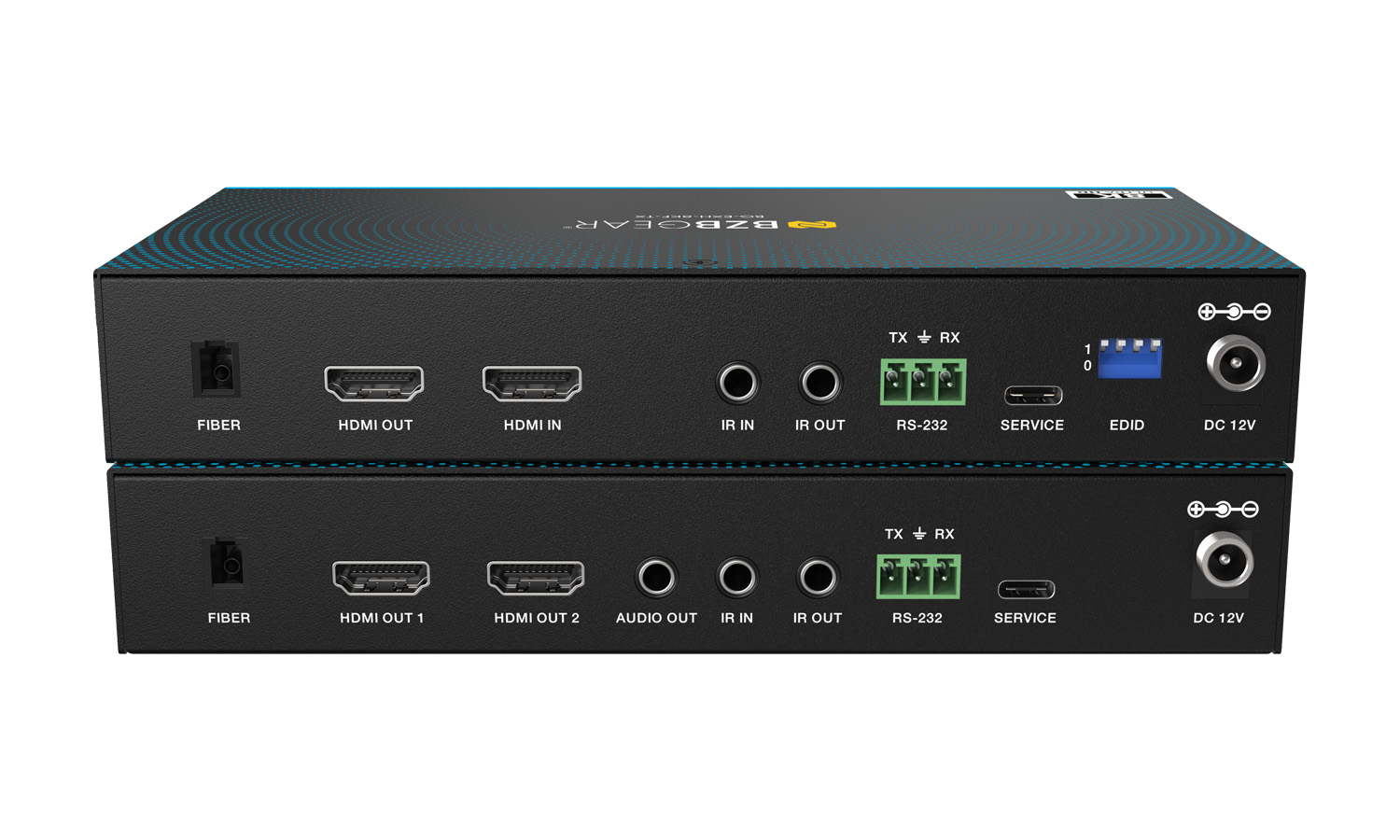

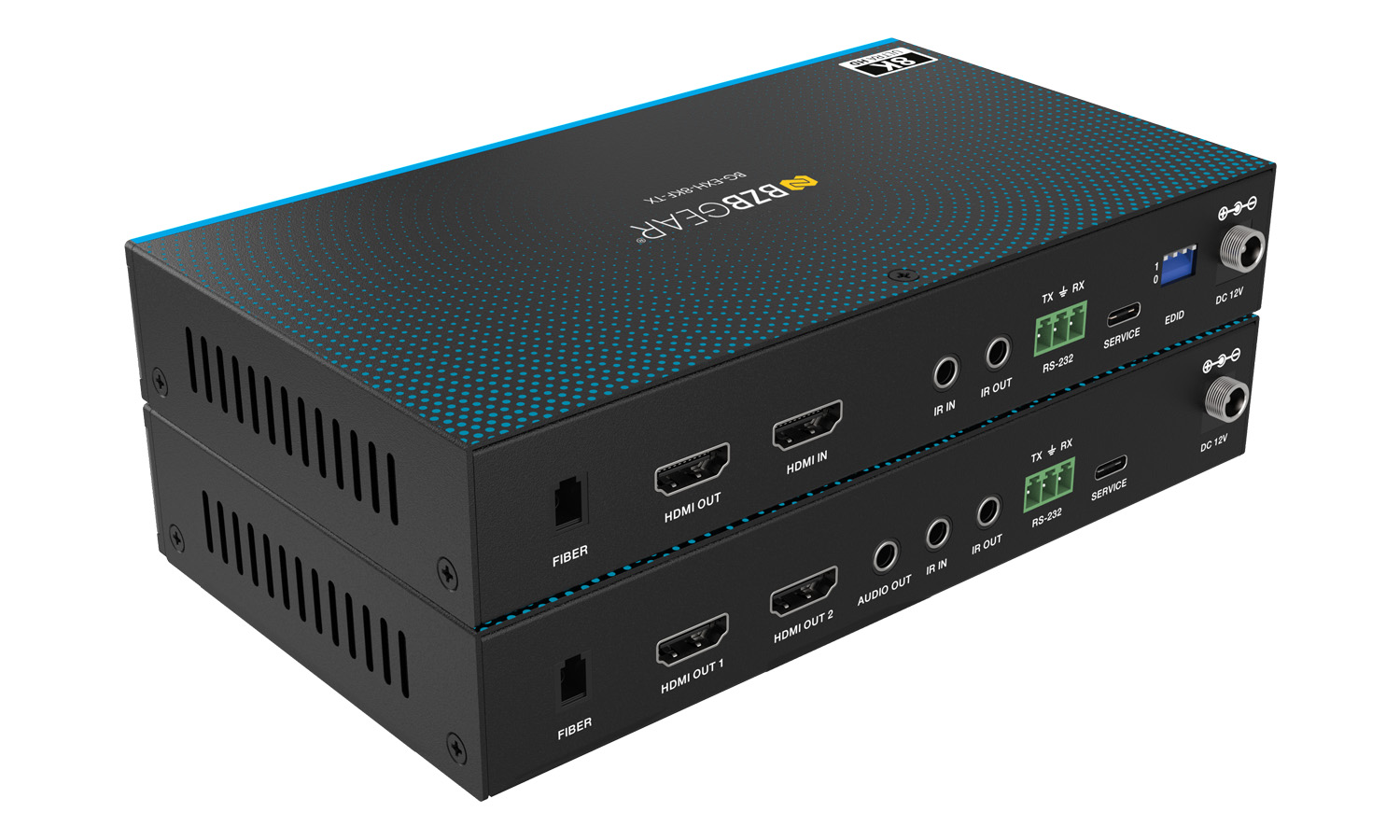

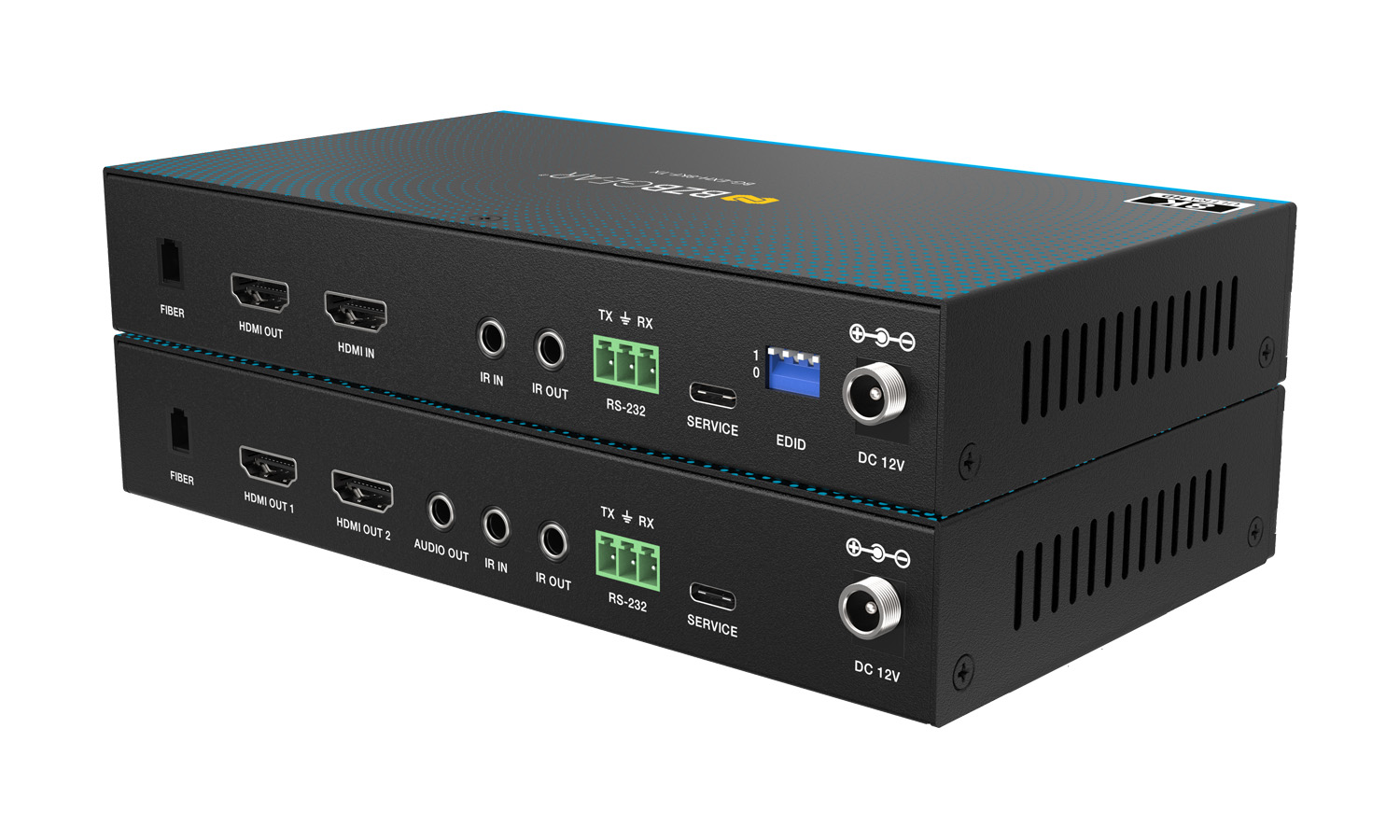

Download Manual Introducing the BG-EXH-8KF, a cutting-edge HDMI over Fiber extender that redefines your audiovisual experience. This advanced extender is HDMI 2.1 and HDCP 2.3 compliant, ensuring seamless connectivity and support for the latest technologies.
The BG-EXH-8KF HDMI over Fiber extender is a cutting-edge solution that caters to gamers, home theater enthusiasts, and professional integrators alike. With support for advanced gaming features like VRR, ALLM, QMS, QFT, and SBTM, gamers can enjoy a seamless and immersive experience. Home theater enthusiasts benefit from unparalleled video quality, including 8K@60 4:2:0 12bit and 4K@120Hz 4:4:4 12bit video transmission, along with comprehensive HDR support for vivid visuals.

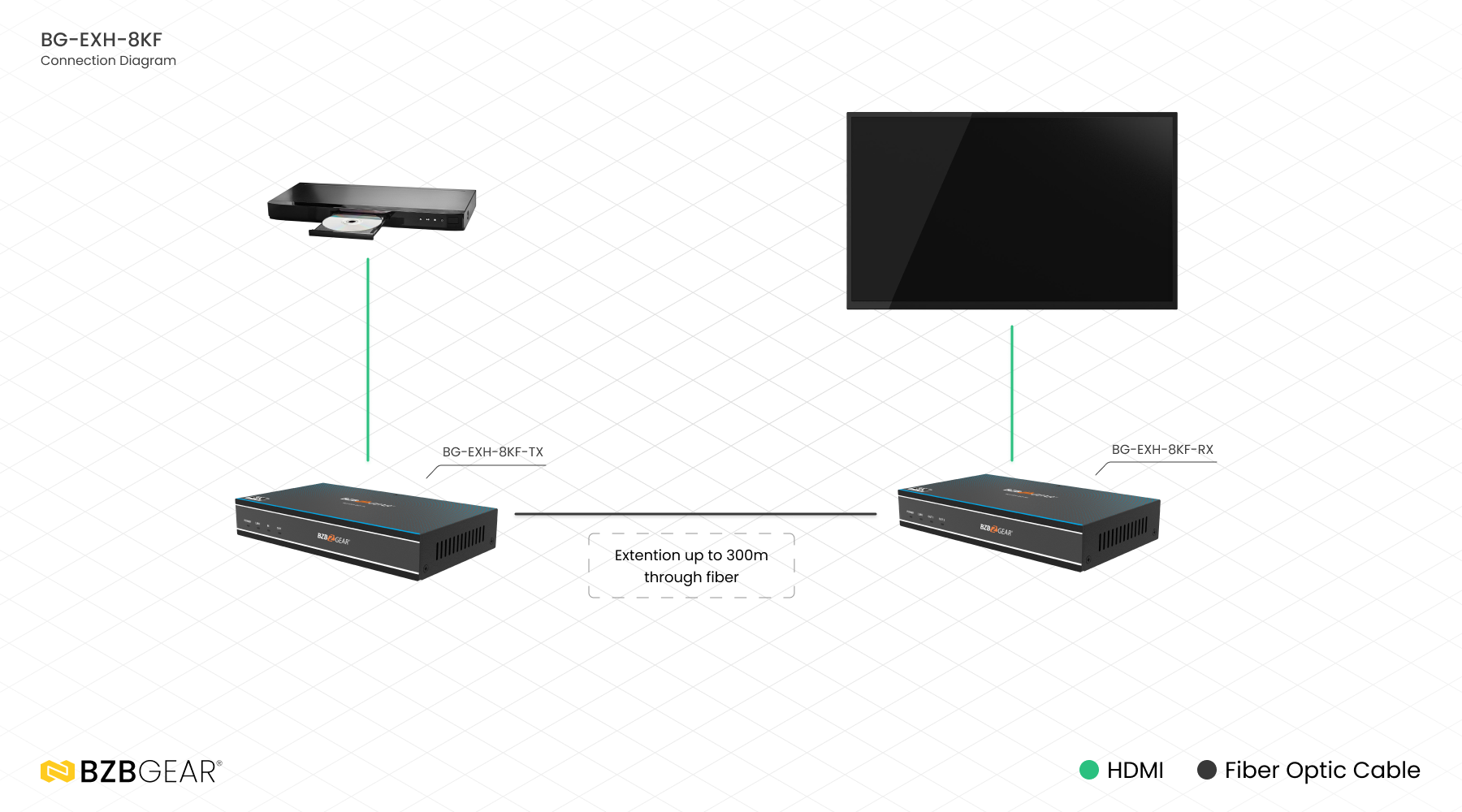

Professional integrators appreciate its flexibility with compatibility across multimode fiber grades, auto-downscaling features, and versatile audio format support. Designed for hassle-free installation, the extender allows HDMI signal extension up to 300 meters, ensuring uncompromised quality and reliability.
Features in Depth
Experience unparalleled video quality with up to 48Gbps FRL and 18Gbps TMDS support, enabling 8K@60 4:2:0 12bit and 4K@120Hz 4:4:4 12bit video transmission. Take advantage of VRR, ALLM, QMS, QFT, and SBTM support for a smoother gaming experience. The extender also boasts comprehensive HDR support, including HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through, delivering vivid and lifelike visuals.
Designed for flexibility, the BG-EXH-8KF is compatible with multimode fiber grades OM2/3/4 and offers HDMI audio format support, including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmission.
Enjoy hassle-free installation with features such as 8K to 4K or 8K/4K to 1080P auto downscaling on TX loop out and RX OUT2. The extender supports LINE IN audio embedded on TX and provides analog audio breakout on RX. With bi-directional IR and RS-232 pass-through, as well as EDID management, control your devices with ease.
Whether you’re a gaming enthusiast, home theater buff, or professional integrator, the BG-EXH-8KF HDMI over Fiber extender offers a versatile and high-performance solution, extending your HDMI signals up to 300 meters with uncompromised quality and reliability. Elevate your audiovisual setup with the BG-EXH-8KF for an immersive and seamless multimedia experience.
Features
- Compliant – HDMI 2.1, HDCP 2.3 compliant
- 8K and 4K @ 120Hz – Supports 8K @ 60 4:2:0 12bit, 4K @ 120Hz 4:4:4 12bit
- Multiple Audio Formats – Supports HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby
- HDMI 2.1 Exclusive Features – VRR, ALLM, QMS, QFT, and SBTM are supported
- Control Options – Bi-directional IR & RS-232 pass-through, EDID management
- Long Distance – Extend your 8K or 4K @ 120Hz signal up to 300M
- Up to 48Gbps FRL and 18Gbps TMDS support
- HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
- Multimode fiber grade OM2/3/4 compatible
- 8K to 4K or 8K/4K to 1080P auto downscaling on TX loop out and RX OUT2
- Supports LINE IN audio embedded on TX and analog audio break out on RX
