Description

The BG-EXH-8KC6 is an 8K HDMI and USB over HDBaseT Extender designed to extend the range of uncompressed HD/UHD video and audio signals, including eARC/ARC, RS-232, bi-directional IR, 1GbE Ethernet, and USB 2.0 signals, up to 295ft (90m) using a single CAT6A/7 cable.

This extender supports video resolutions up to 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit, and 4K@60Hz 4:4:4. Additionally, it incorporates eARC/ARC functionality, allowing the transmission of audio signals from the receiver HDMI output pass-through to the transmitter’s HDMI input or audio de-embedding to the transmitter’s output port.

The device also facilitates USB 2.0 signal transmission with configurable Host/Device settings per device and bi-directional Power over Cable (POC) functionality. For home or commercial applications requiring long-distance signal transmission, the BG-EXH-8KC6 stands out as the ideal 8K signal solution.

Features

Compliant – HDMI 2.1, HDCP 2.3, and HDBaseT 3.0 compliant
8K @ 30Hz and 4K @ 120Hz – Video resolution is up to 8K @ 30Hz 4:4:4 10bit, 4K @ 120Hz 4:4:4 10bit
8K Exclusive Features – Variable Refresh Rate (VRR), Fast as Possible V-active (FVA), Auto Low Latency Mode (ALLM) support
Smooth Image Processing – HDR, HDR10, HDR10+, Dolby Vision and HLG pass-through
HDMI Audio Formats – Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
Advanced EDID – Management through EDID DIP switches
Signal transmission distance up to 295ft (90m) via a single CAT 6A/7 cable
HDMI re-clocking on the HDBaseT Receiver to help resolve HDMI HDCP compatibility and handshaking issues with displays
Up to 40 Gbps Fixed Rate Link (FRL) and 18Gbps Transition-Minimized Differential Signaling (TMDS) video bandwidth
CONFIG DIP switches allow for RS-232 serial port feature control
Bi-directional support for Ethernet (1Gb), analog audio, IR, RS-232 signal pass-through, and 24V POC
Support for all industry-standard video resolutions including VGA-WUXGA and 480i – 8K30
USB 2.0 transmission (with speeds up to 350Mbps)
The transmitter or receiver can be configured as either a Host or a Device
Support for eARC/ARC (from RX to TX) sound systems

Specifications

Technical Specifications
HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	Up to 40Gbps FRL and 18Gbps TMDS
Video Resolution	Up to 8K @ 30 4:4:4 10bit, 4K @ 120Hz 4:4:4 10bit
USB Bandwidth	Up to 350Mbps
HDR	HDR, HDR10, HDR10+, Dolby Vision, HLG
Color Space	RGB 4:4:4, YCbCr 4:4:4 / 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12-bit
Audio Formats	HDMI: PCM 2.0, LPCM 5.1, LPCM 7.1, (32K/44.1K/48K/88.2K/96K/176.4K/192K) (16/20/24); Dolby Digital, Dolby Digital plus, Dolby TrueHD, Dolby Atmos; DTS Surround, 96/24, ES, DTS Express, DTS-HD HRA, DTS HD Master, DTS:X Analog: PCM 2.0 48K
IR Level	5Vp-p/12Vp-p
IR Bandwidth	20K - 60KHz
Transmission Distance	MAX: CAT6 = 197ft (60m) / CAT6A/7 = 295ft (90m)
ESD Protection	Human body model: ± 8kV (Air-gap discharge) & ± 4kV (Contact discharge)
Connections

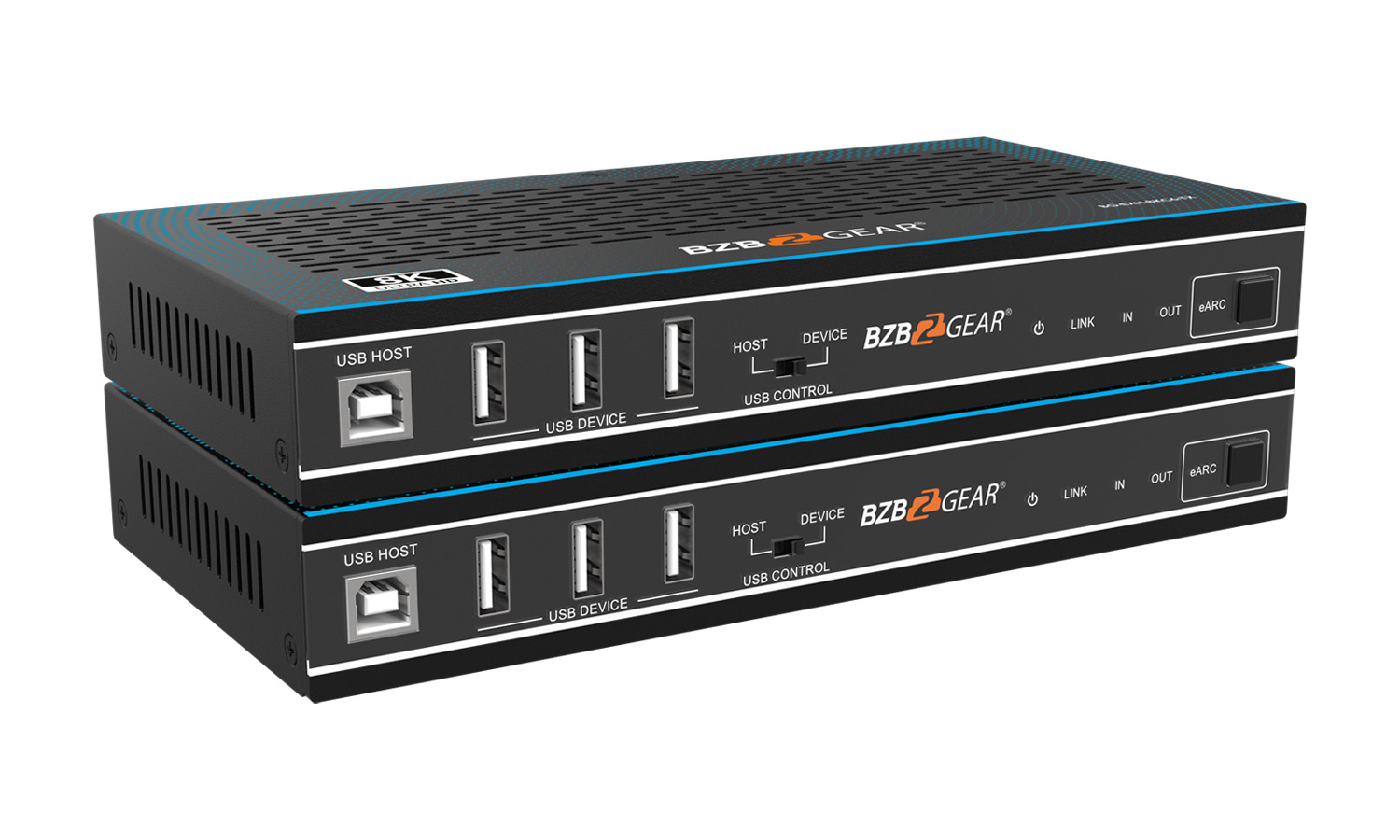

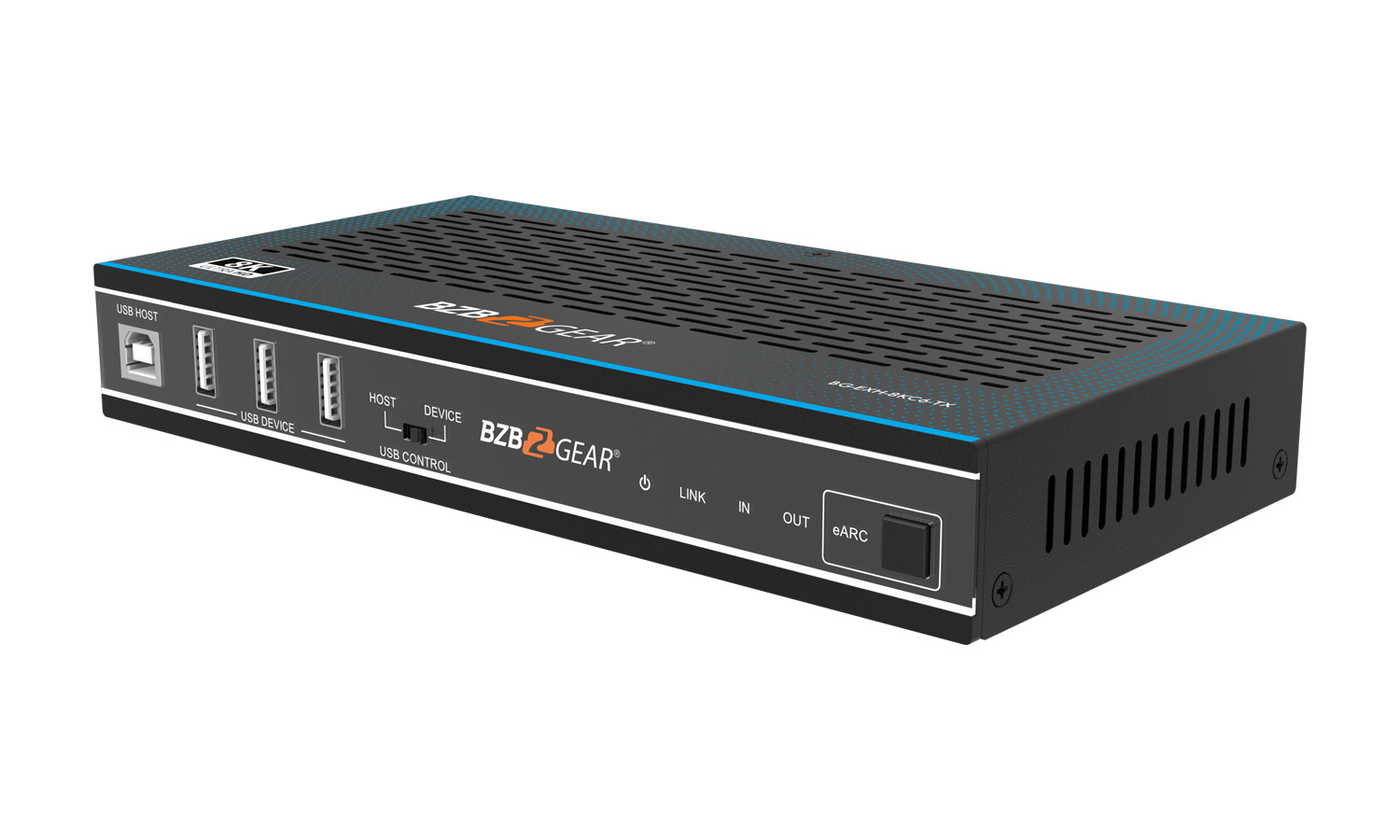

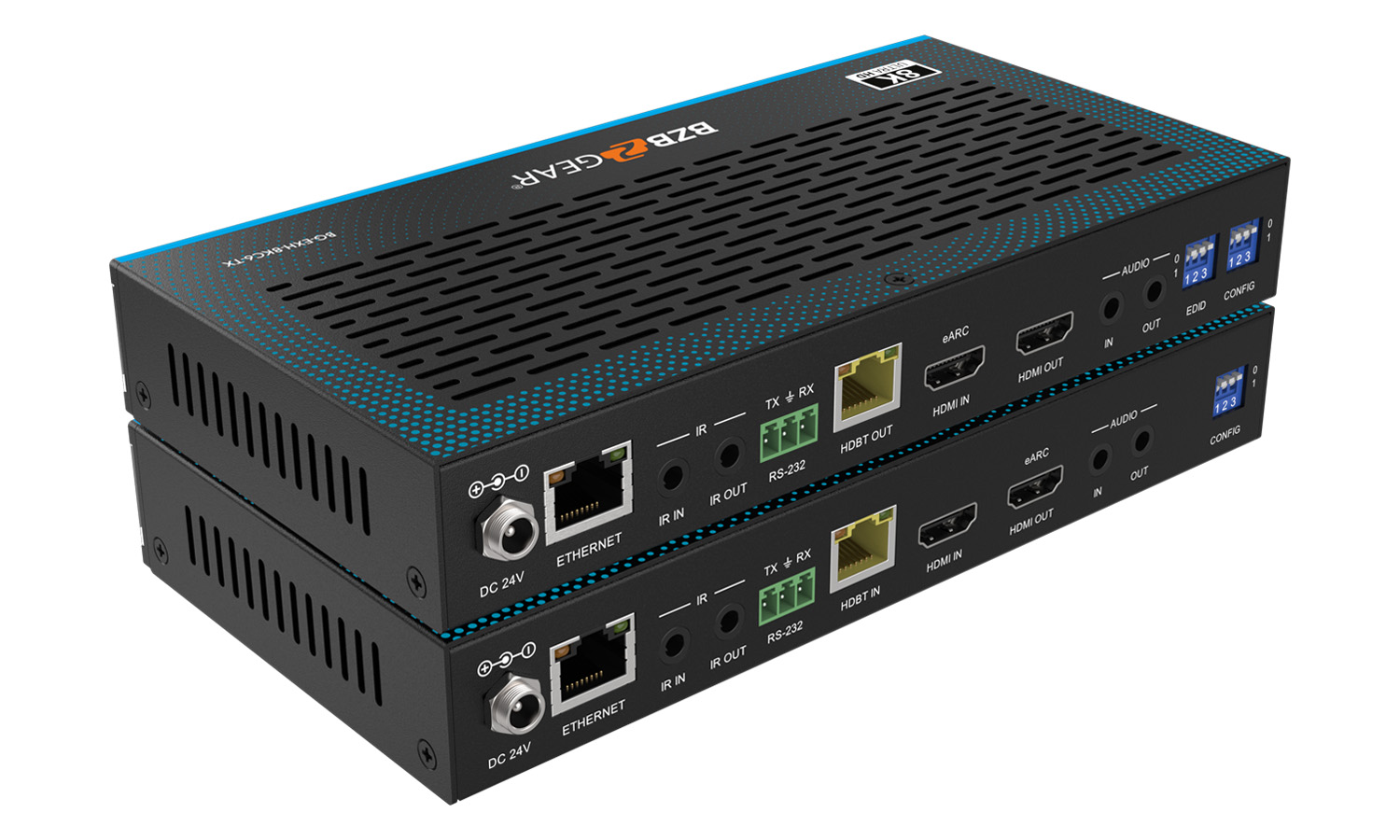

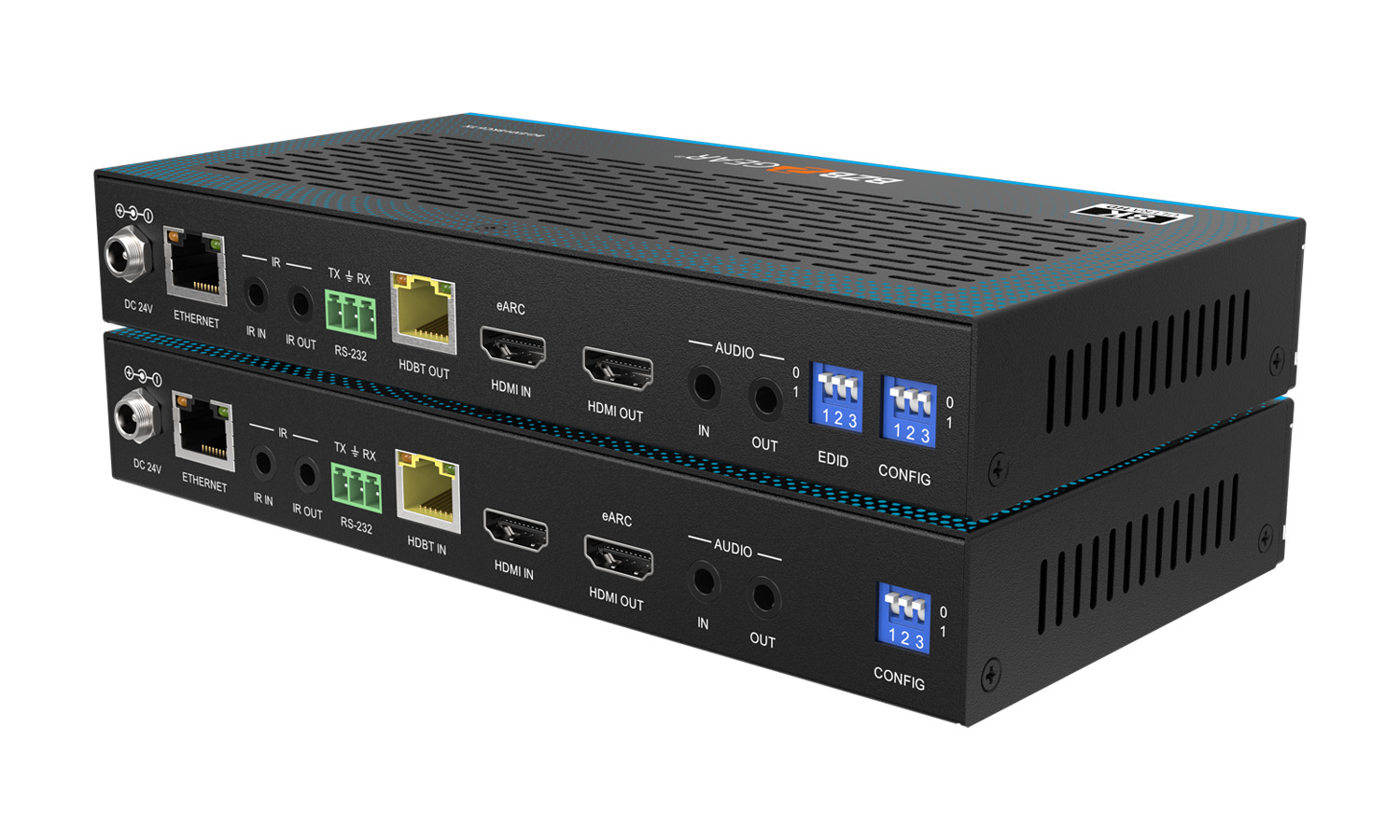

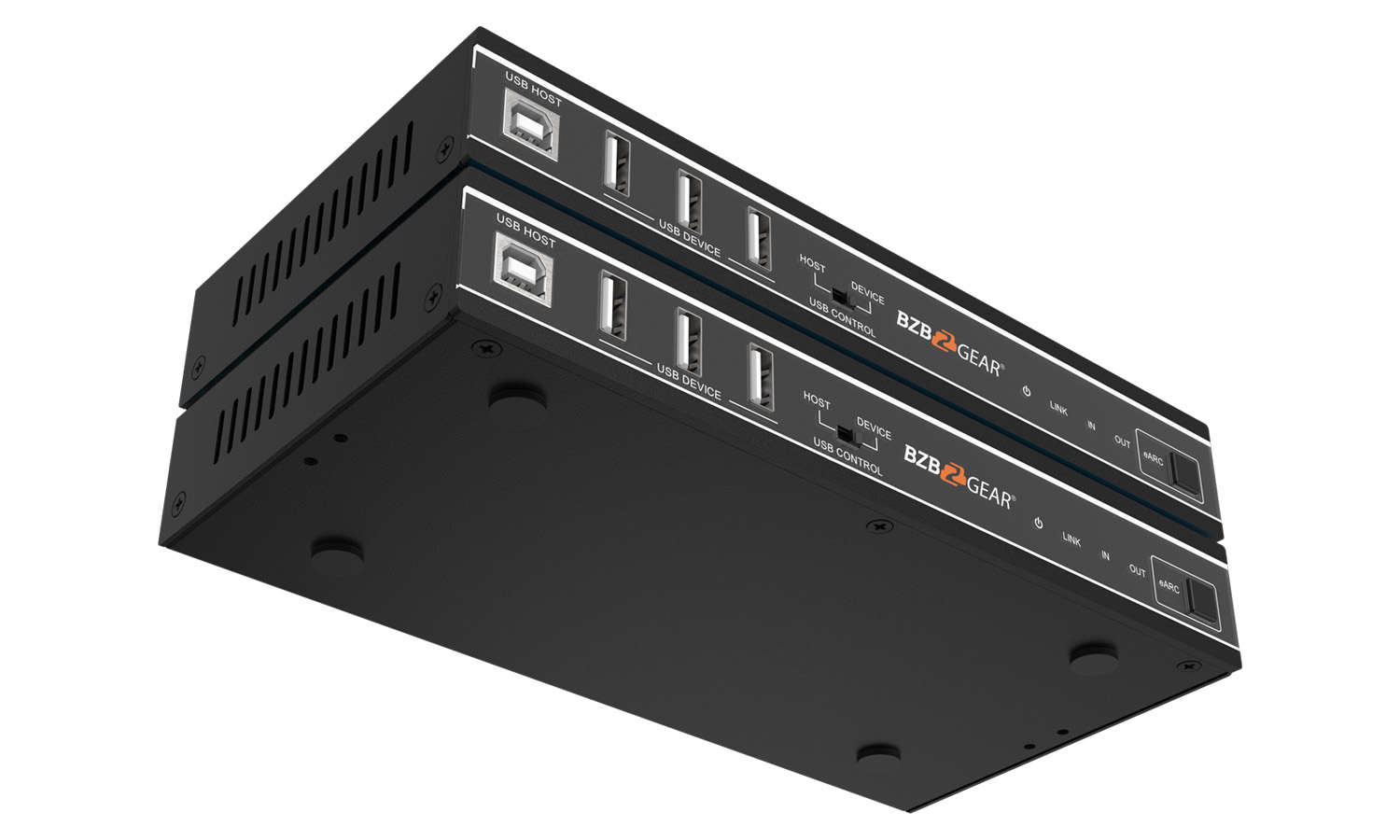

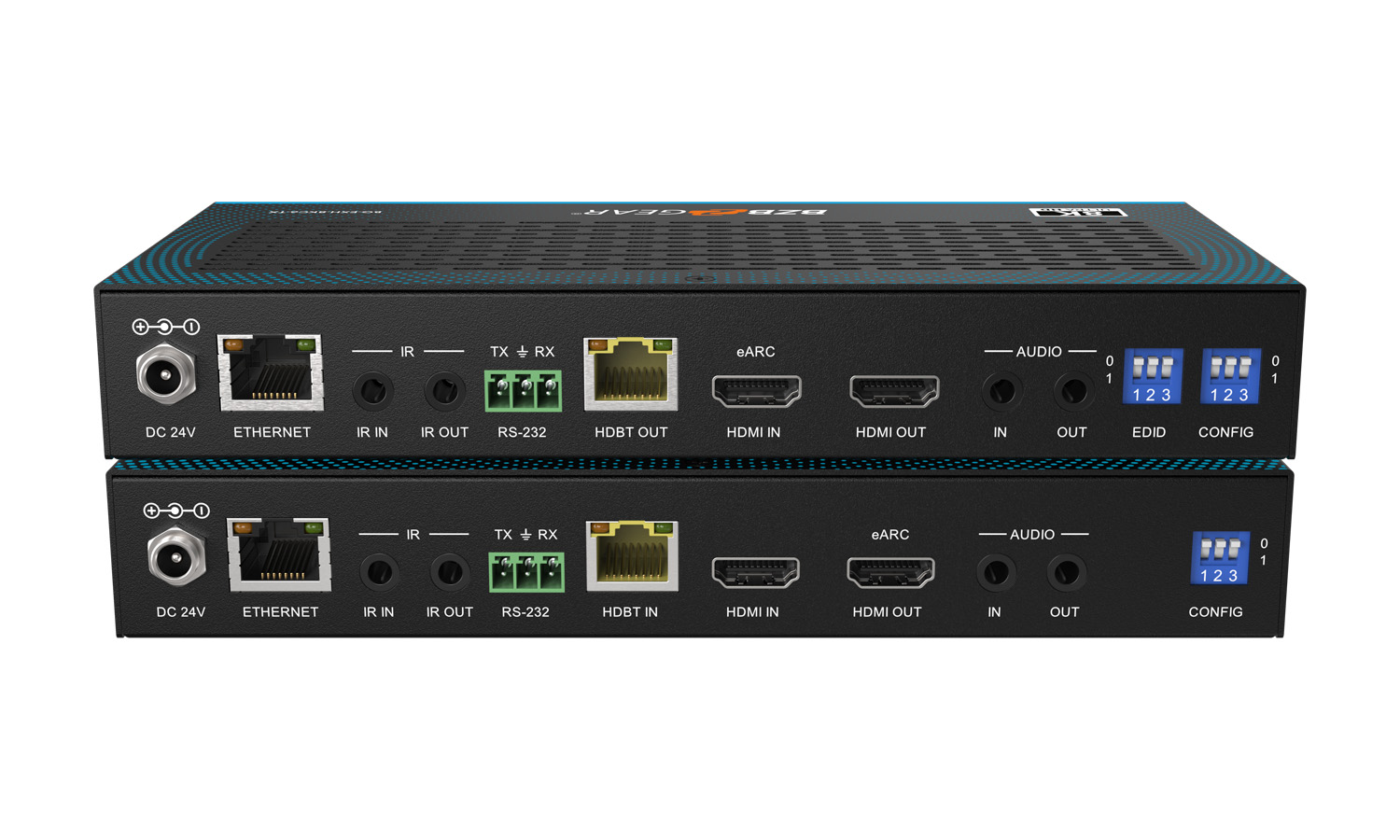

Transmitter	Input: 1 x HDMI IN [Type A, 19-pin female] 1 x AUDIO IN [3.5mm Stereo Mini-jack] Output: 1 x HDMI OUT [Type A, 19-pin female] 1 x HDBT OUT [RJ45, 8-pin female] 1 x AUDIO OUT [3.5mm Stereo Mini-jack] Control: 1 x IR IN [3.5mm Stereo Mini-jack] 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x RS-232 [3 pin-3.81mm Phoenix jack] 1 x USB HOST [USB Type B] 3 x USB DEVICE [USB Type A] 1 x ETHERNET [RJ45]

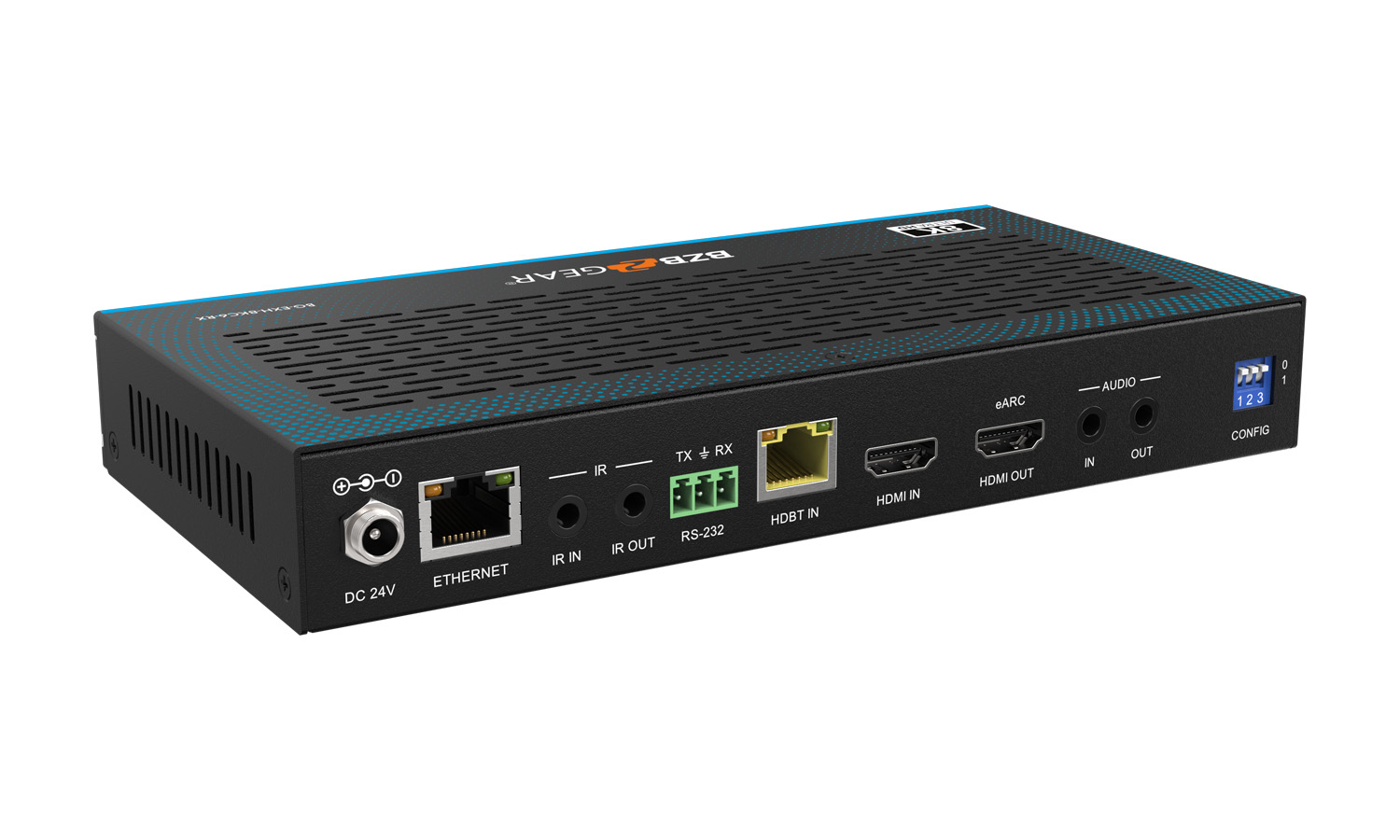

Receiver	Input: 1 x HDMI IN [Type A, 19-pin female] 1 x HDBT IN [RJ45, 8-pin female] 1 x AUDIO IN [3.5mm Stereo Mini-jack] Output: 1 x HDMI OUT [Type A, 19-pin female] 1 x AUDIO OUT [3.5mm Stereo Mini-jack] Control: 1 x IR IN [3.5mm Stereo Mini-jack] 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x RS-232 [3 pin-3.81mm Phoenix jack] 1 x USB HOST [USB Type B] 3 x USB DEVICE [USB Type A] 1 x ETHERNET [RJ45]
Mechanical
Housing	Front Panel - Aluminium / Enclosure - Metal Composite
Color	Black
Dimensions (L x W x H)	7.9in x 3.9in x 1.2in [200mm x 100mm x 30mm]
Weight	1.25 lbs (20oz) [1.1kg]
Power Supply	Input: AC 100 - 240V 50/60Hz Output: DC 24V/2.7A (US/EU standard, CE/FCC/UL certified)
Power Consumption	Total power consumption: 20.4w (POC) TX/RX Full Load: 9.36w/9.84w; TX/RX No Load: 2.46w/3.36w
Operating Temperature	32° - 104°F / 0° - 40°C
Storage Temperature	-4° - 140°F / -20° - 60°C
Relative Humidity	20 - 90% RH (no condensation)
Resolution	8K30	4K60	4K24	1080P60
Cable Length	9.8ft / 3m	16ft / 5m	32ft / 10m	66ft / 20m
NOTE: The use of “Premium High Speed” HDMI 2.1 cables is highly recommended.
