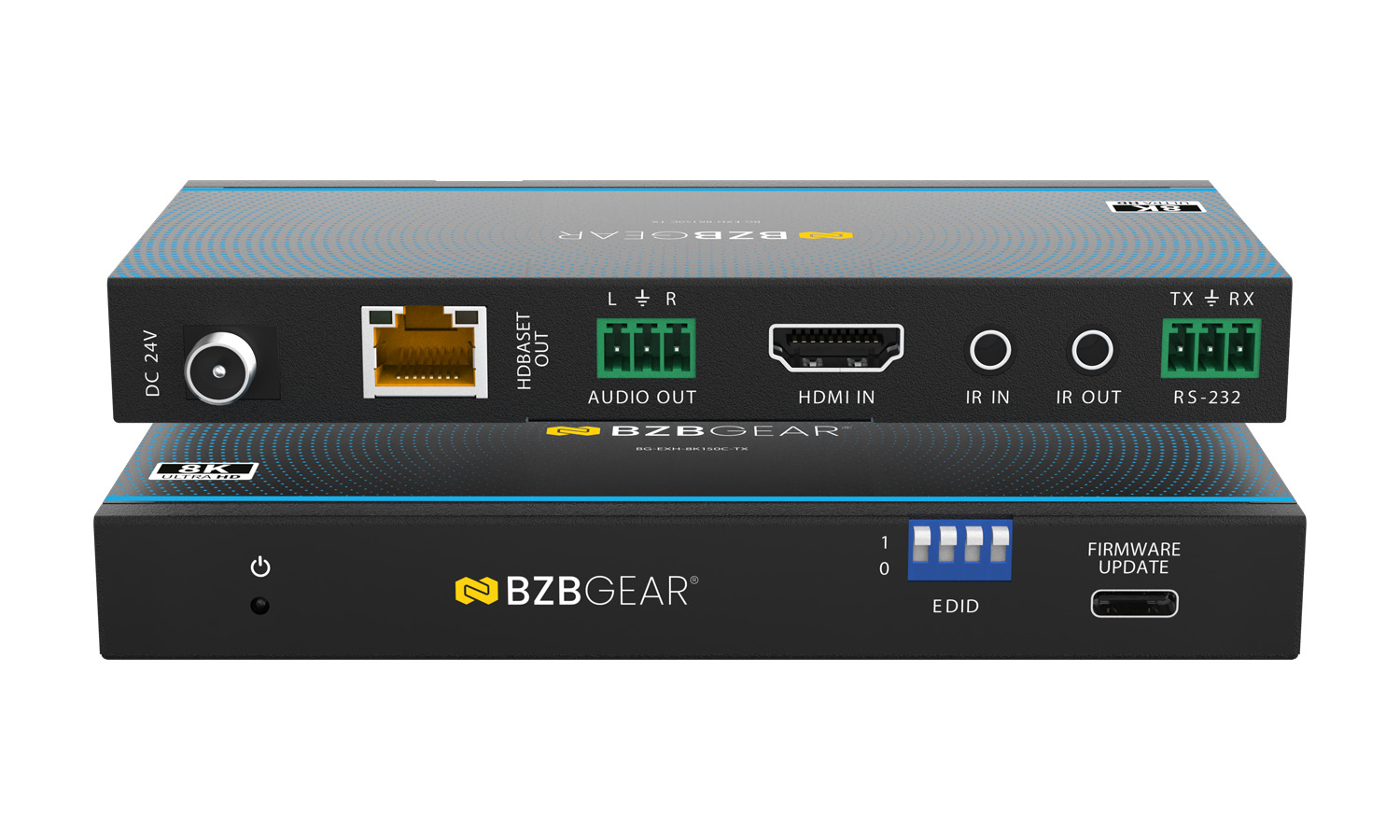

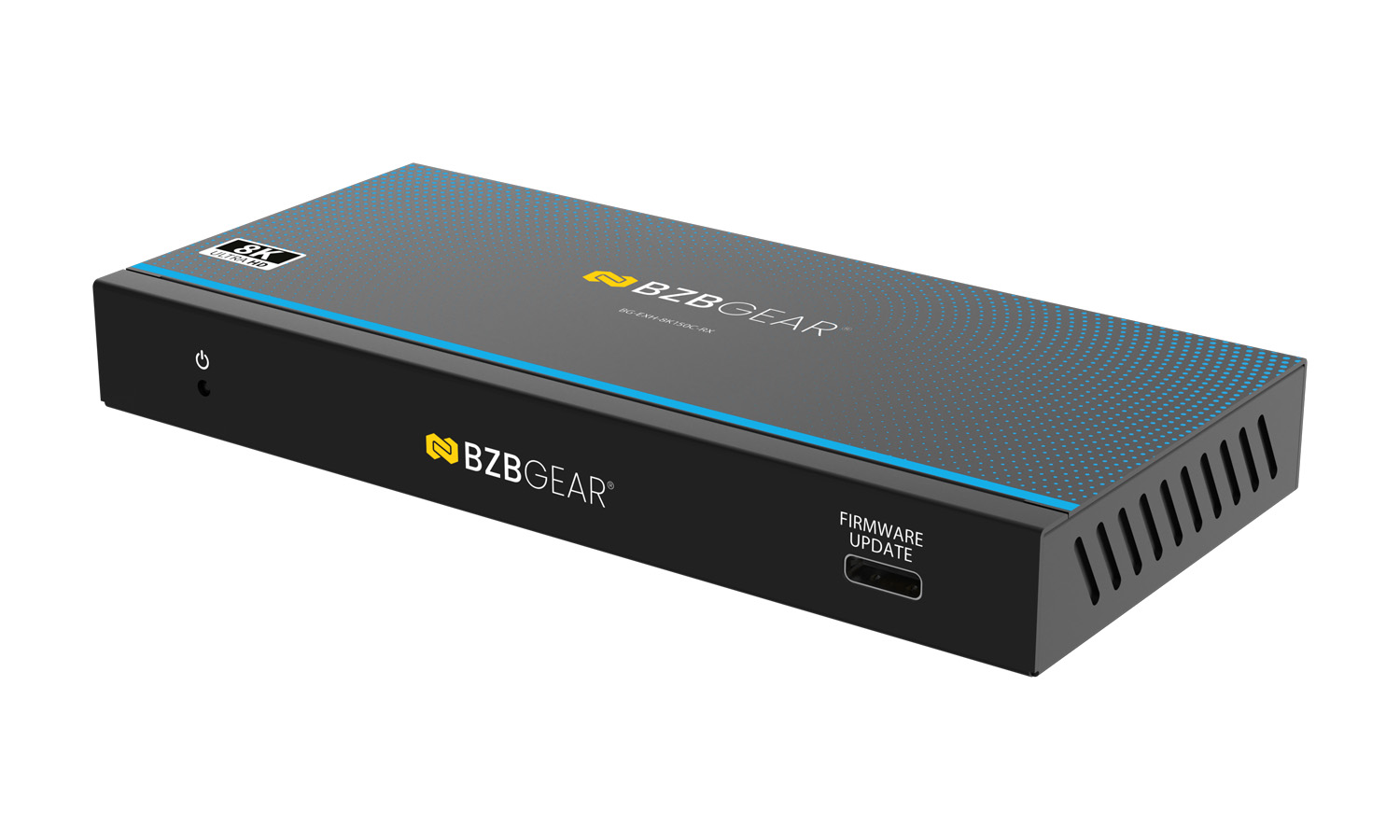

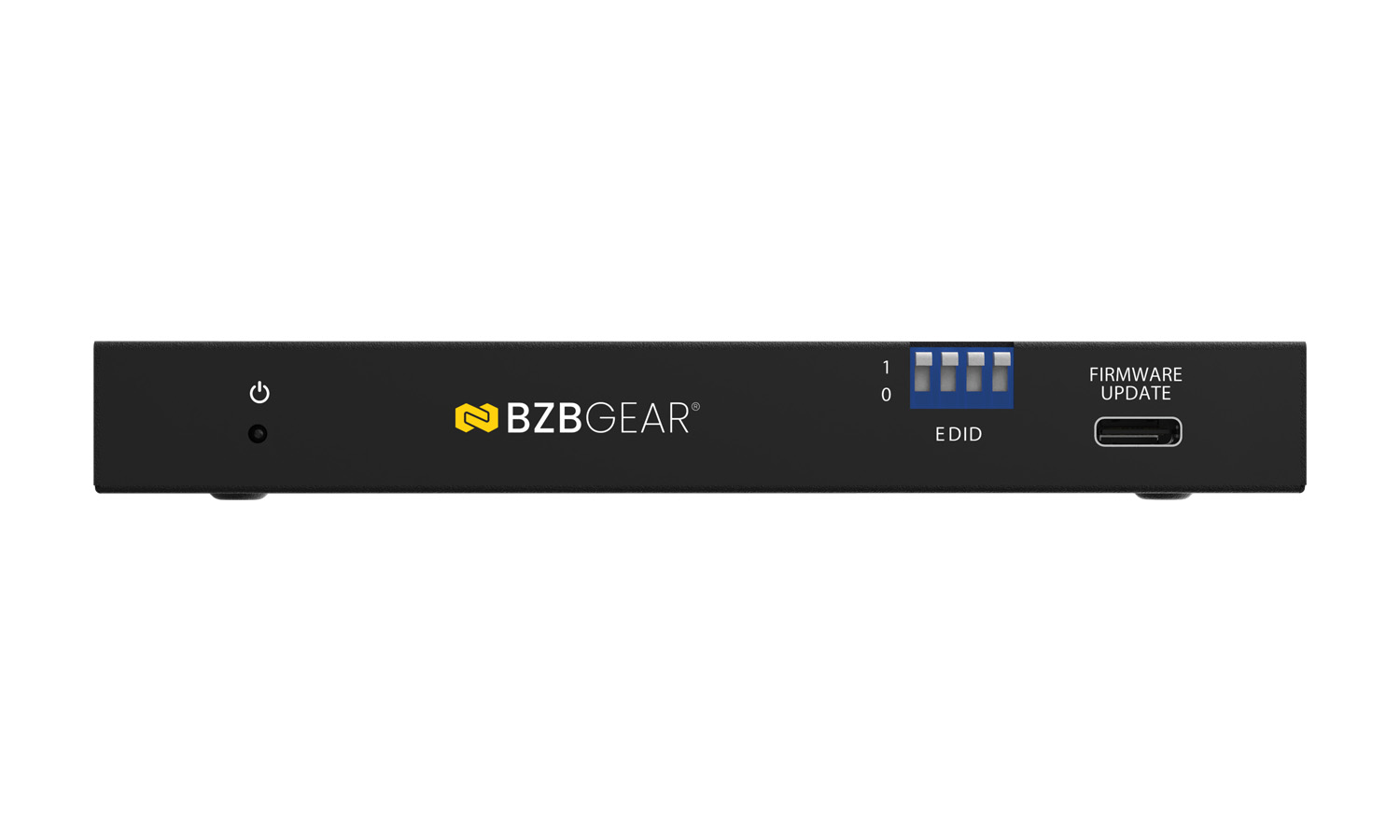

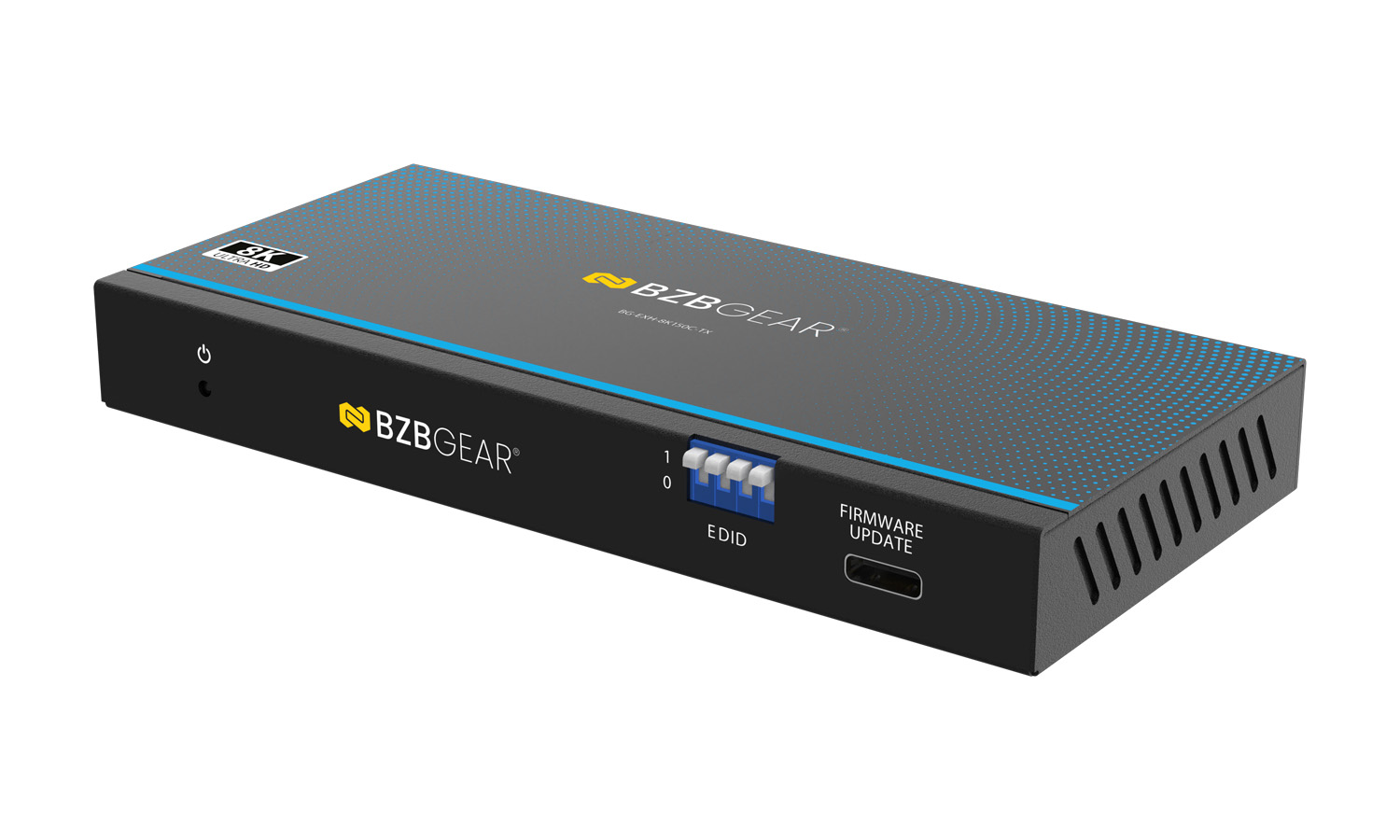

BZBGEAR BG-EXH-8K150C 8K UHD HDMI HDBaseT Long Range Extender with Bi-directional IR/RS-232/CEC up to 490ft

Description

Experience superior long-distance AV performance with this high-performance 8K HDBaseT extender, engineered to transmit HDMI, RS-232, and IR signals over a single twisted pair cable. With support for up to 8K@30Hz (4:4:4) and 4K@120Hz (4:4:4) video formats, this extender ensures uncompromised signal integrity and crystal-clear visuals across professional AV setups, control rooms, and home theater installations.

Built for reliability and versatility, the system seamlessly converts HDMI and control signals for efficient HDBaseT transmission, restoring them at the receiver end with zero quality loss. Offering flexible control options, robust audio support, and advanced gaming and HDR compatibility, this extender is the perfect solution for high-performance, long-distance AV distribution.

Features in Depth

The BG-EXH-8K150C 8K HDBaseT extender is designed to deliver exceptional signal fidelity across extended distances while maintaining full compliance with HDMI 2.1 and HDCP 2.3 standards. It provides transmission ranges of up to 90m (295ft) for 8K@30Hz (4:4:4) and 4K@120Hz (4:4:4), 120m (394ft) for 4K@60Hz (4:4:4), and 150m (492ft) for 1080p resolutions using a single CAT cable. With video bandwidth up to 40Gbps FRL and 18Gbps TMDS, users can expect smooth, artifact-free playback even in demanding high-resolution environments.

Engineered for flexible integration, this extender supports bi-directional IR, RS-232, and CEC control pass-through, enabling seamless communication between connected devices. Advanced re-clocking technology ensures stable HDMI performance by correcting signal degradation, improving compatibility, and resolving HDCP handshake issues. Both the transmitter and receiver also support analog audio de-embedding, allowing users to extract and route audio independently to external sound systems.

For modern AV environments, the extender supports an extensive range of video and audio standards – including HDR10, HDR10+, Dolby Vision, and HLG – as well as immersive sound formats such as Dolby Atmos, TrueHD, and DTS-HD Master Audio. Additionally, Power over Cable (PoC) simplifies installation by powering both the transmitter and receiver from a single power source, minimizing cable clutter and enhancing deployment flexibility.

Features

8K & 4K Long-Distance Transmission – Transmits 8K@30Hz (4:4:4) and 4K@120Hz (4:4:4) signals up to 90m (295ft), 4K@60Hz up to 120m (394ft), and 1080p up to 150m (492ft) via CAT cable for reliable, long-range performance
HDMI 2.1 & HDCP 2.3 Compliance – Fully compliant with the latest HDMI and content protection standards, ensuring secure and consistent transmission across all compatible devices
Ultra-High Bandwidth Support – Delivers up to 40Gbps FRL and 18Gbps TMDS, supporting next-generation 8K and high-frame-rate 4K video without signal loss or latency
Comprehensive Control Integration – Supports bi-directional IR, RS-232, and CEC pass-through, enabling full device control and automation through a single cable connection
Advanced Audio & HDR Support – Handles top-tier audio formats like Dolby Atmos, DTS-HD Master Audio, and TrueHD, plus HDR formats including HDR10, HDR10+, Dolby Vision, and HLG for vivid, lifelike visuals
Power over Cable (PoC) – Simplifies installation by providing bi-directional PoC, allowing both units to be powered through one connection, reducing setup time and power supply requirements

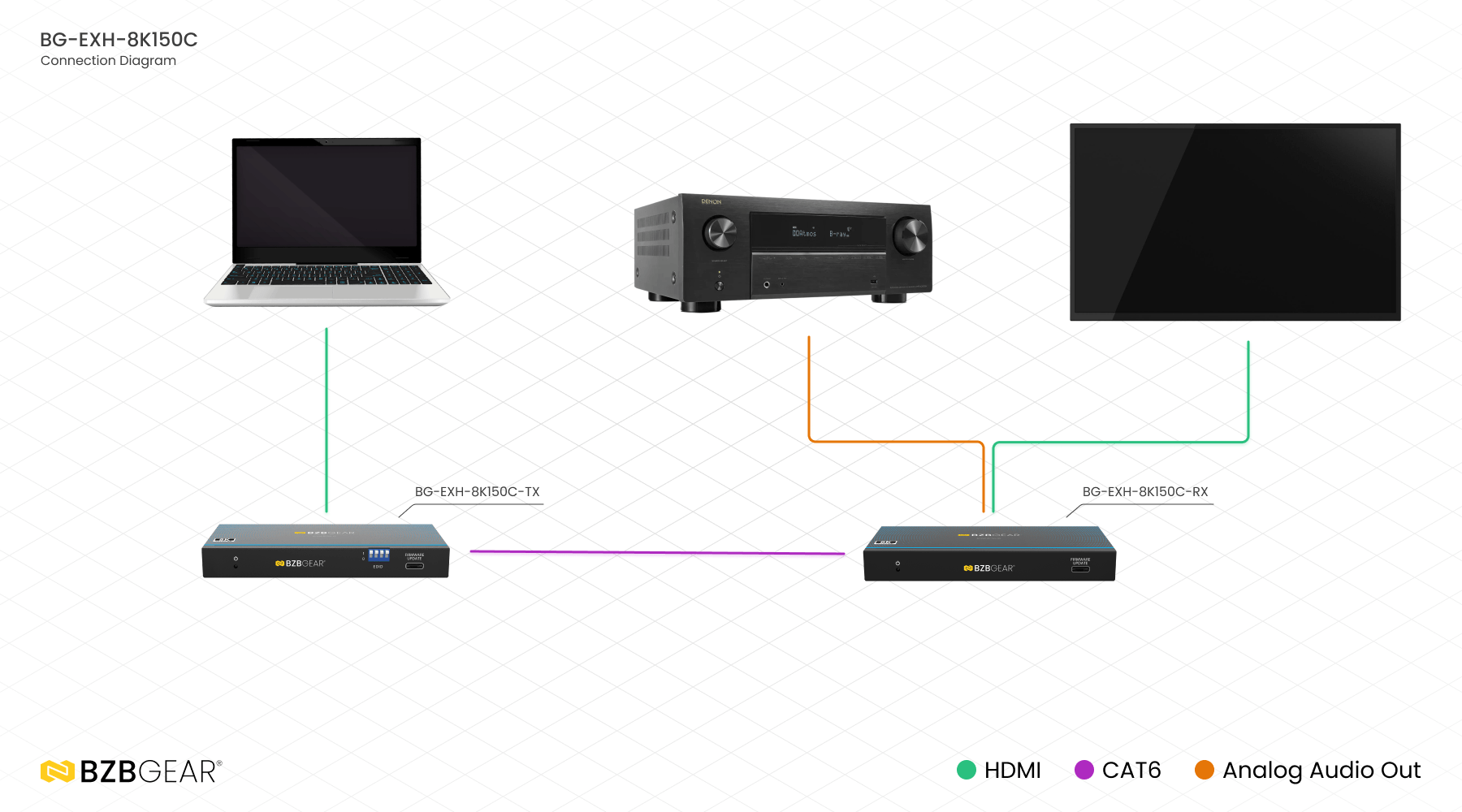

Product Diagrams

View Diagrams

Specifications

Technical
HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	40Gbps FRL and 18Gbps TMDS
Video Resolution (Input & Output)	Up to 8K@30Hz (4:4:4) All available resolutions are shown as follow
IR Level	5Vp-p
IR Frequency	Wideband 20K-60KHz
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12-bit
HDR Formats	HDR, HDR10, HDR10+, Dolby Vision, HLG
HDMI Audio Formats	LPCM 2.0 / 5.1 / 7.1 (32K–192KHz, 16/20/24-bit); Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos; DTS Surround, 96/24, ES, DTS Express, DTS-HD HRA, DTS HD Master, DTS:X
Transmission Distance	150m/492ft for 1080p; 120m/394ft for 4K@60Hz; 90m/295ft for 8K@30Hz over CAT6 cable
ESD Protection	IEC 61000-4-2: ±8kV (Air-gap) & ±4kV (Contact)

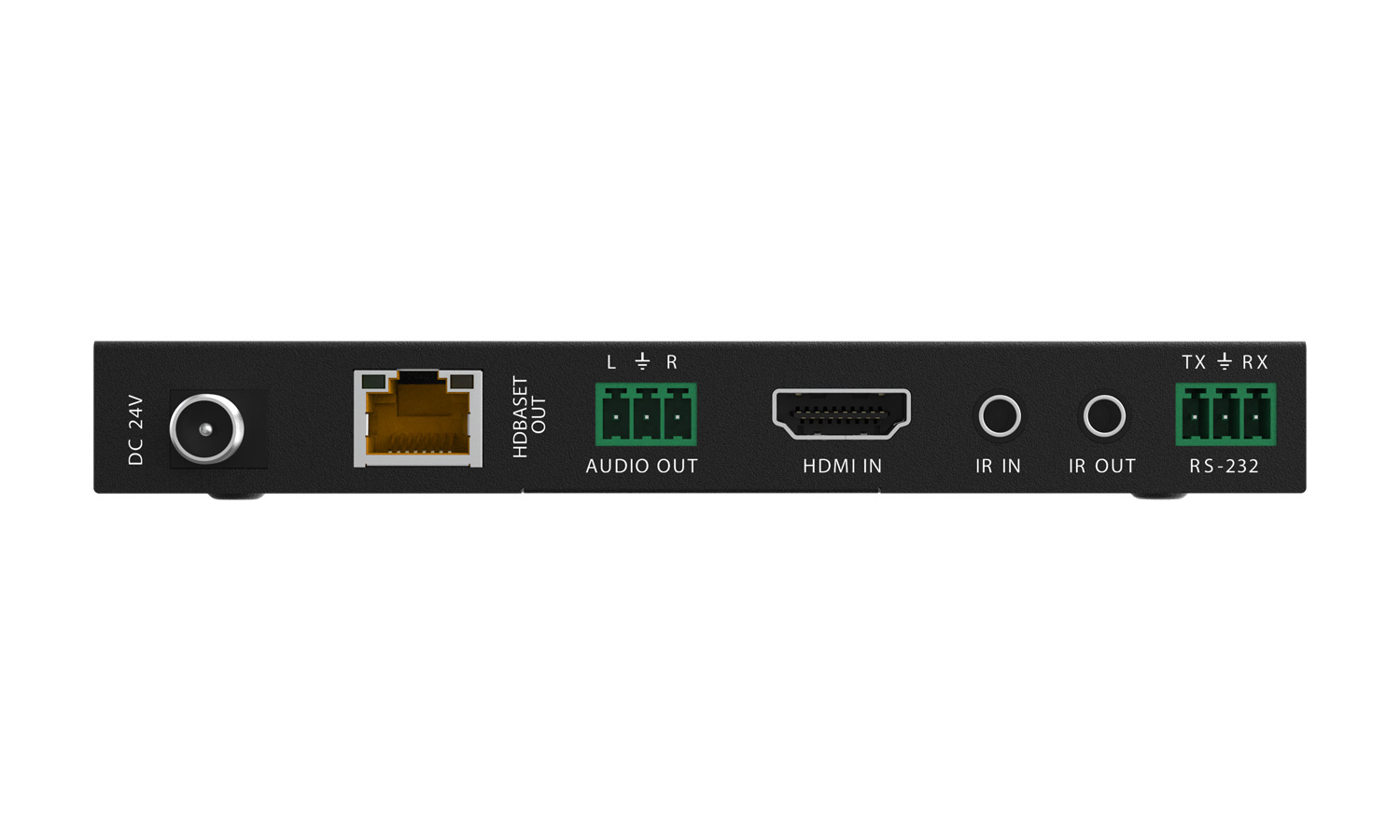

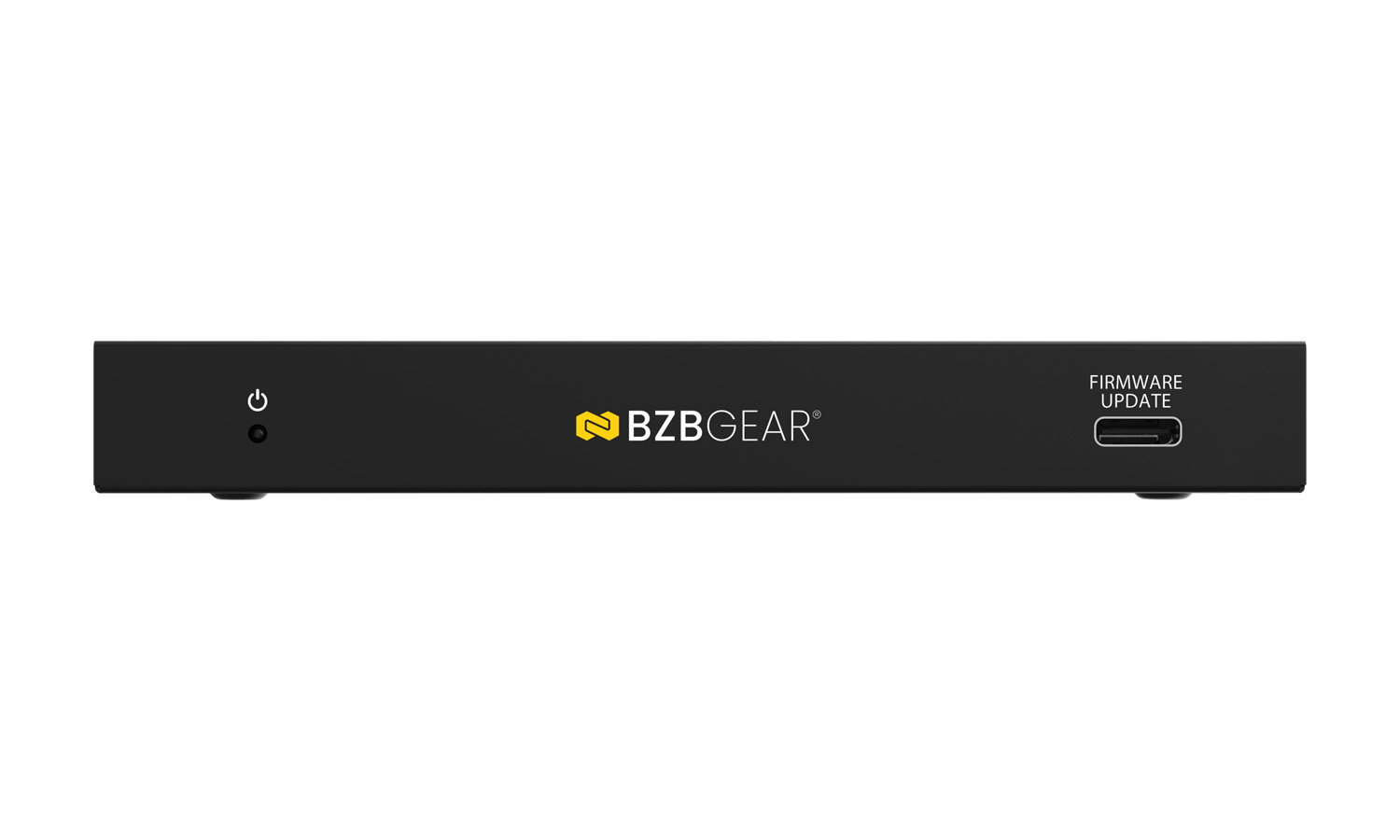

Connections (Transmitter)	1x HDMI IN (Type A, 19-pin), 1x HDBT OUT (RJ45, 8-pin), 1x IR IN, 1x IR OUT (3.5mm stereo), 1x RS-232 (3-pin phoenix), 1x SERVICE (USB Type C)

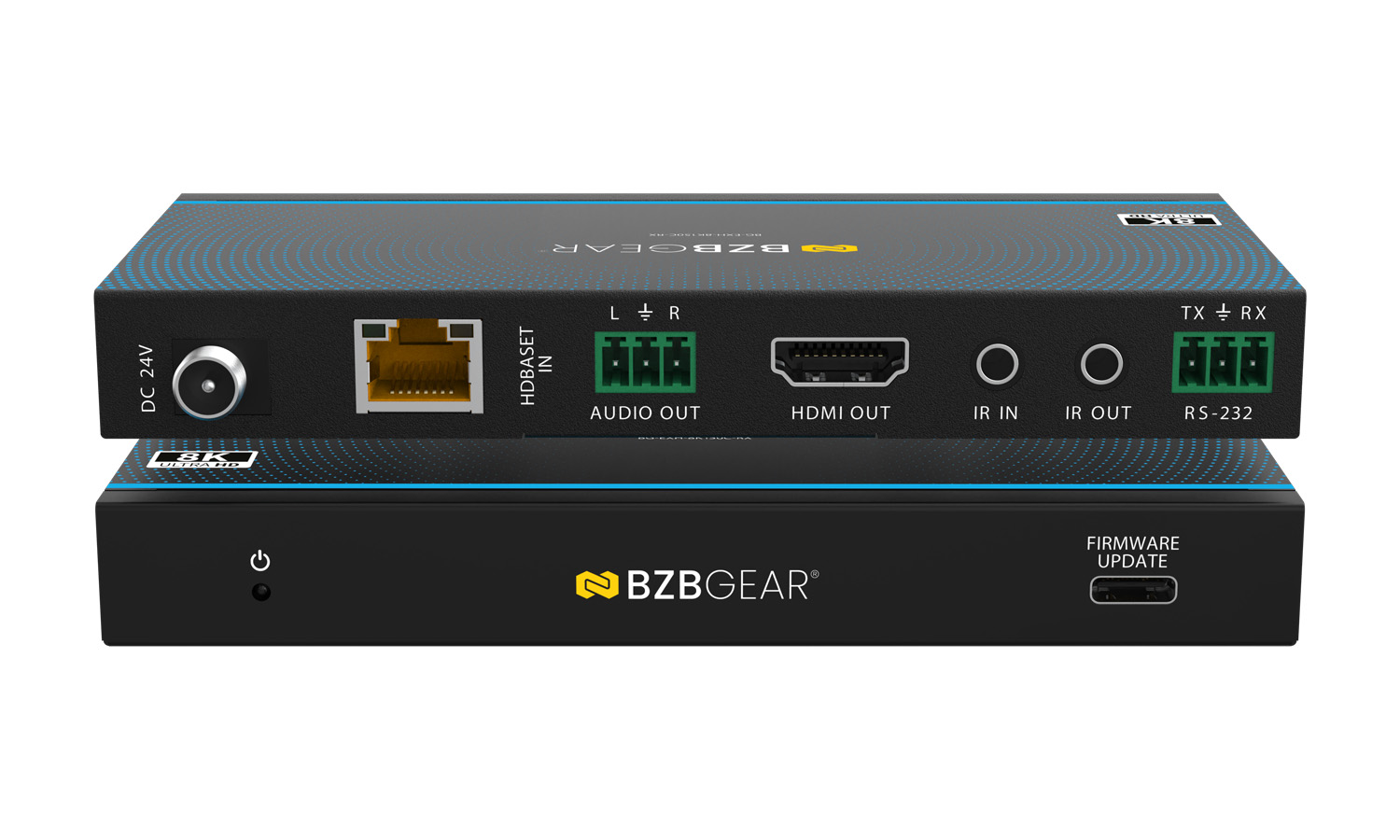

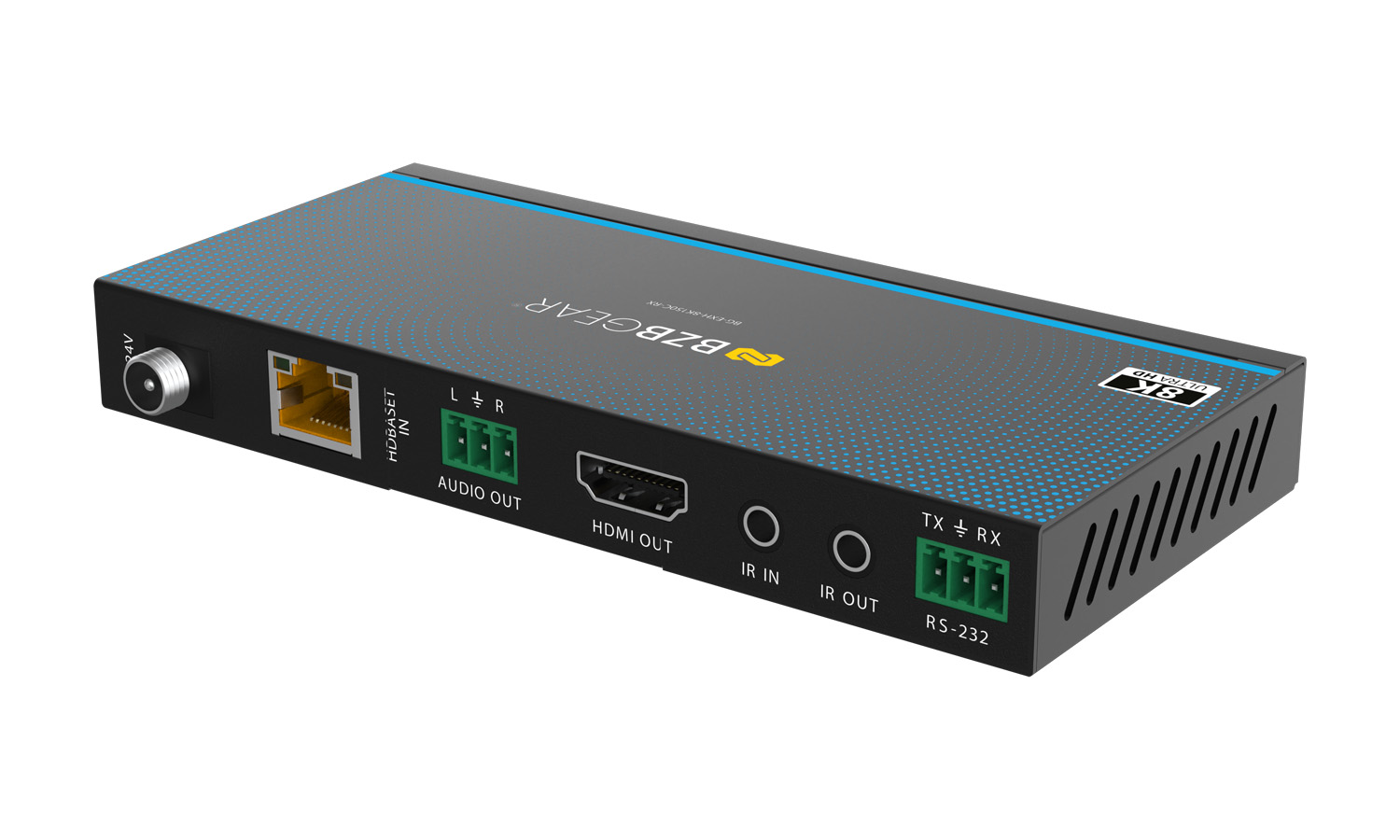

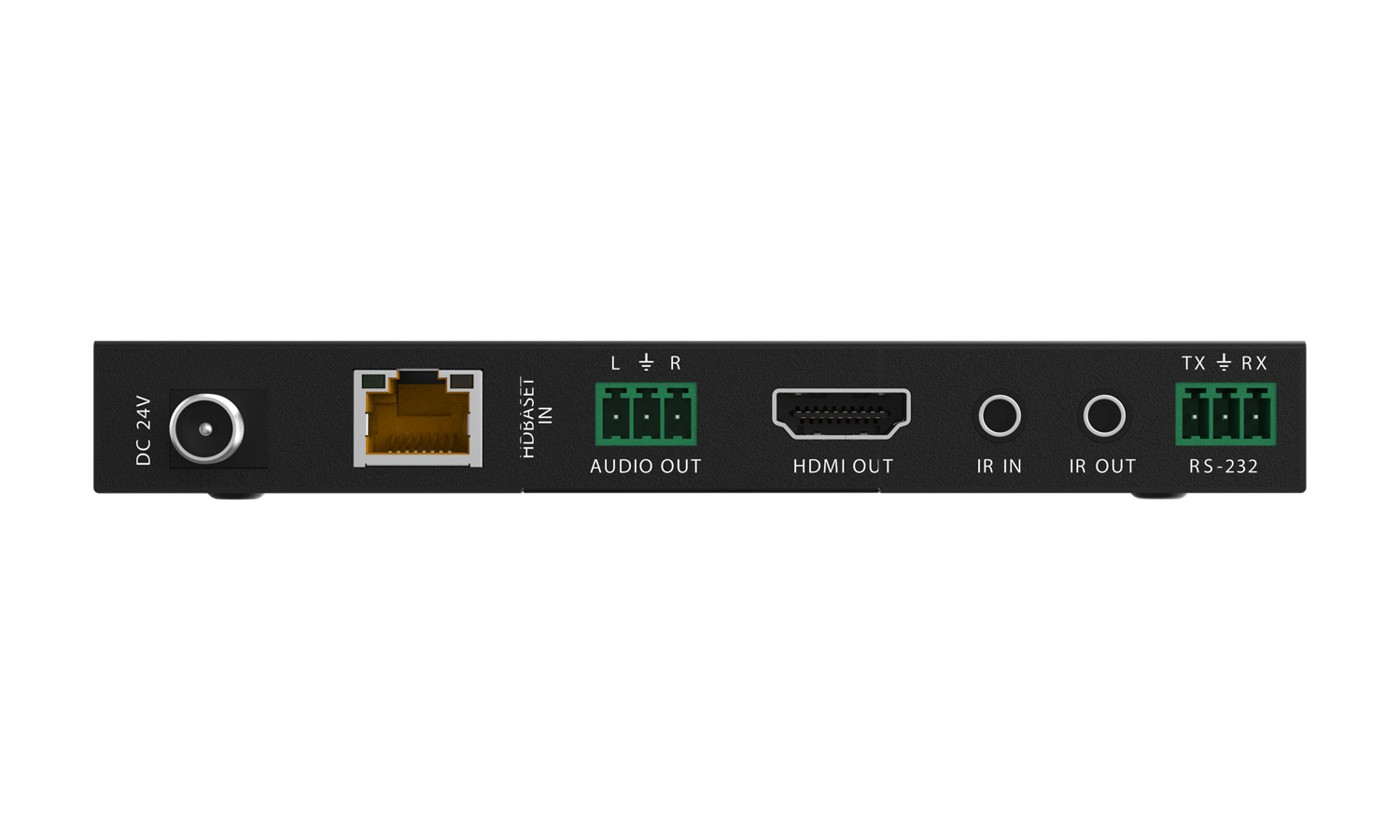

Connections (Receiver)	1x HDBT IN (RJ45, 8-pin), 1x HDMI OUT (Type A, 19-pin), 1x IR IN, 1x IR OUT (3.5mm stereo), 1x RS-232 (3-pin phoenix), 1x SERVICE (USB Type C)
Mechanical
Housing	Metal enclosure
Color	Black
Dimensions (LxWxH)	5.5in x 2.6in x 0.71in [140mm x 65mm x 18mm]
Weight	0.53 lbs [240g] (Transmitter/Receiver)
Power Supply	DC 24V/1A; Supports bi-directional PoC
Power Consumption	Transmitter: 11.28W; Receiver: 10.8W
Operating Temperature	32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature	-4°F ~ 140°F / -20°C ~ 60°C
Operating Humidity	20%~80% (non-condensing)
Storage Humidity	10%~90% (non-condensing)
