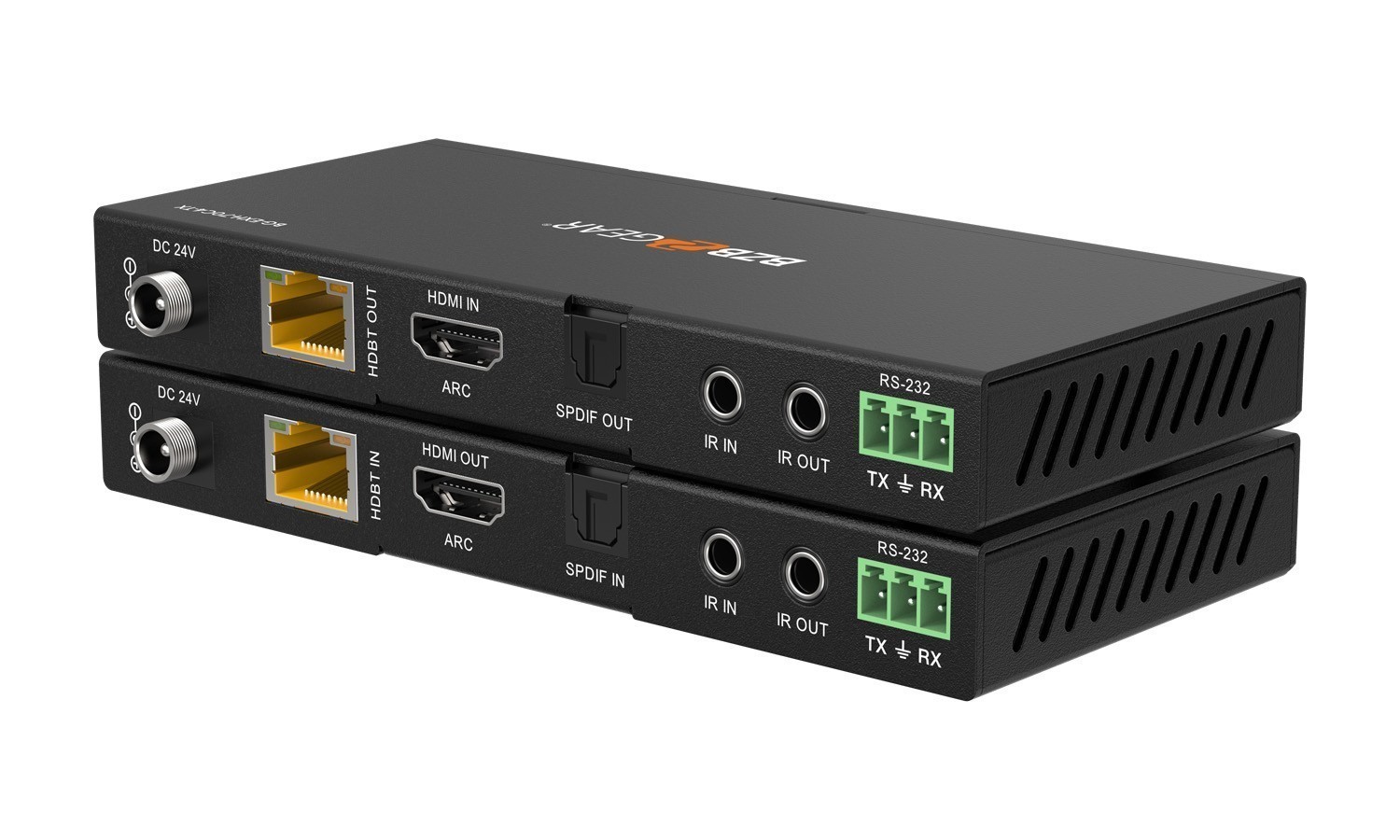

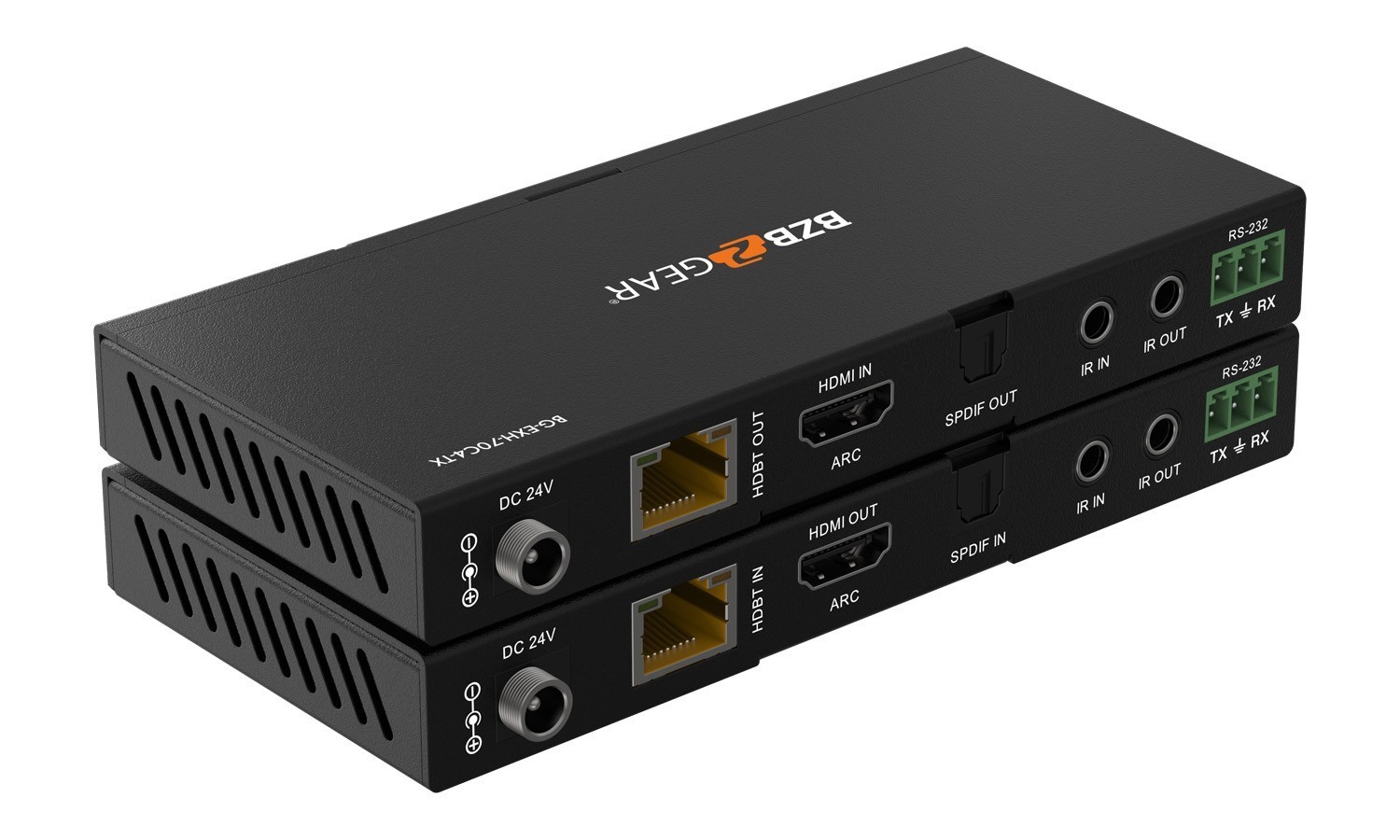

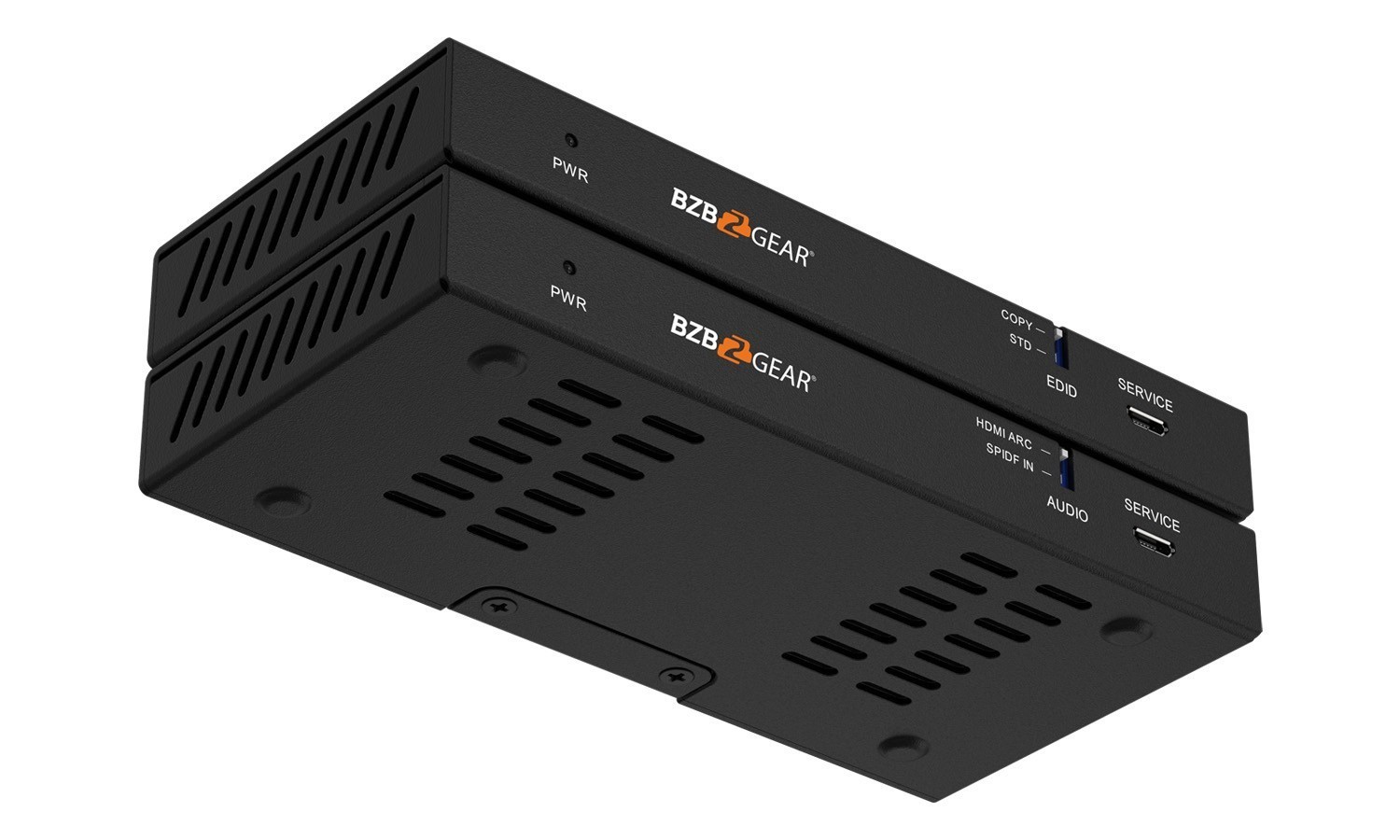

BZBGEAR BG-EXH-70C4 4K UHD HDMI HDBaseT Extender with IR/ARC/PoC/RS-232 and Audio Embedding/De-embedding up to 230ft

Description

}

Introducing the BG-EXH-70C4, the ultimate solution for extending your HDMI signals over a long distance of up to 70m / 230ft. This extender is a highly efficient device that converts your HDMI signal to standard HDBaseT and transmits it via single CAT5e/6 ethernet cable.

With a bandwidth of 18Gbps, the device is compliant with HDMI 2.0b and HDCP 2.2 standards. The video resolution that can be achieved using this extender is up to 4K2K @ 60Hz RGB/YCBCR 4:4:4, which ensures that you enjoy crystal clear images and vibrant colors.

The BG-EXH-70C4 also supports bi-directional IR and RS-232 control signal pass-through, which enables you to easily control signal source or display devices from a remote location. Additionally, the device supports ARC functionality, which makes it possible to transmit audio signals from your TV back to your home theater system without the need for an extra cable.

This extender also supports PoC (Power over Cable) functionality, which means that you need to plug the power source only from one side for the extender kit to work. Moreover, the BG-EXH-70C4 comes equipped with advanced EDID management, which ensures that your video source always communicates with your display device seamlessly.

In terms of audio support, the device can handle various formats, including Dolby 5.1, DTS 5.1, and PCM2.0, etc. Lastly, the compact design of this device ensures that it can be easily and flexibly installed, making it an ideal solution for any home or office.

Long Distance:
Supports a transmission extension distance of up to 230ft/70m via a CAT5e/6 cable

Audio Formats:
Supports Dolby 5.1, DTS 5.1, PCM 2.0, etc.

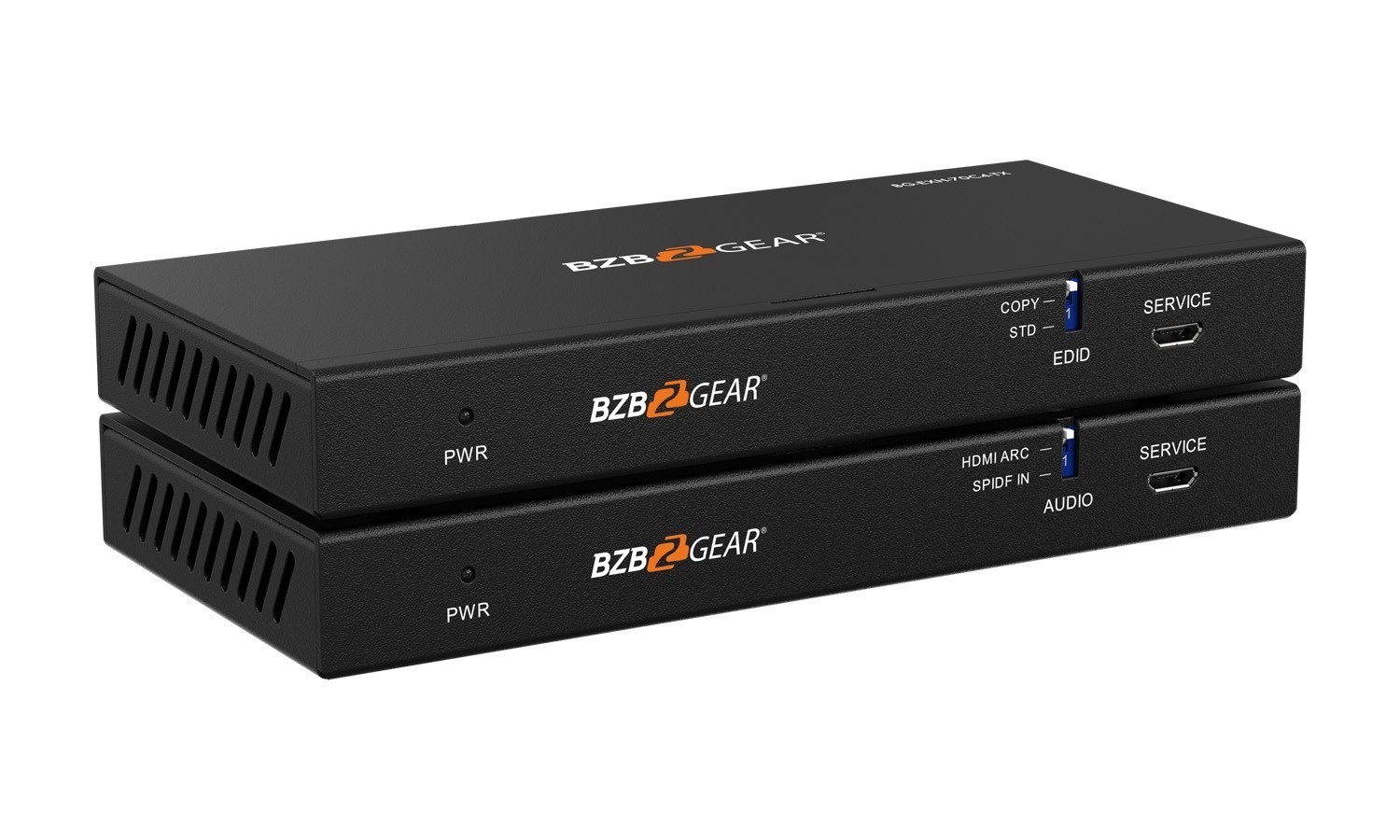

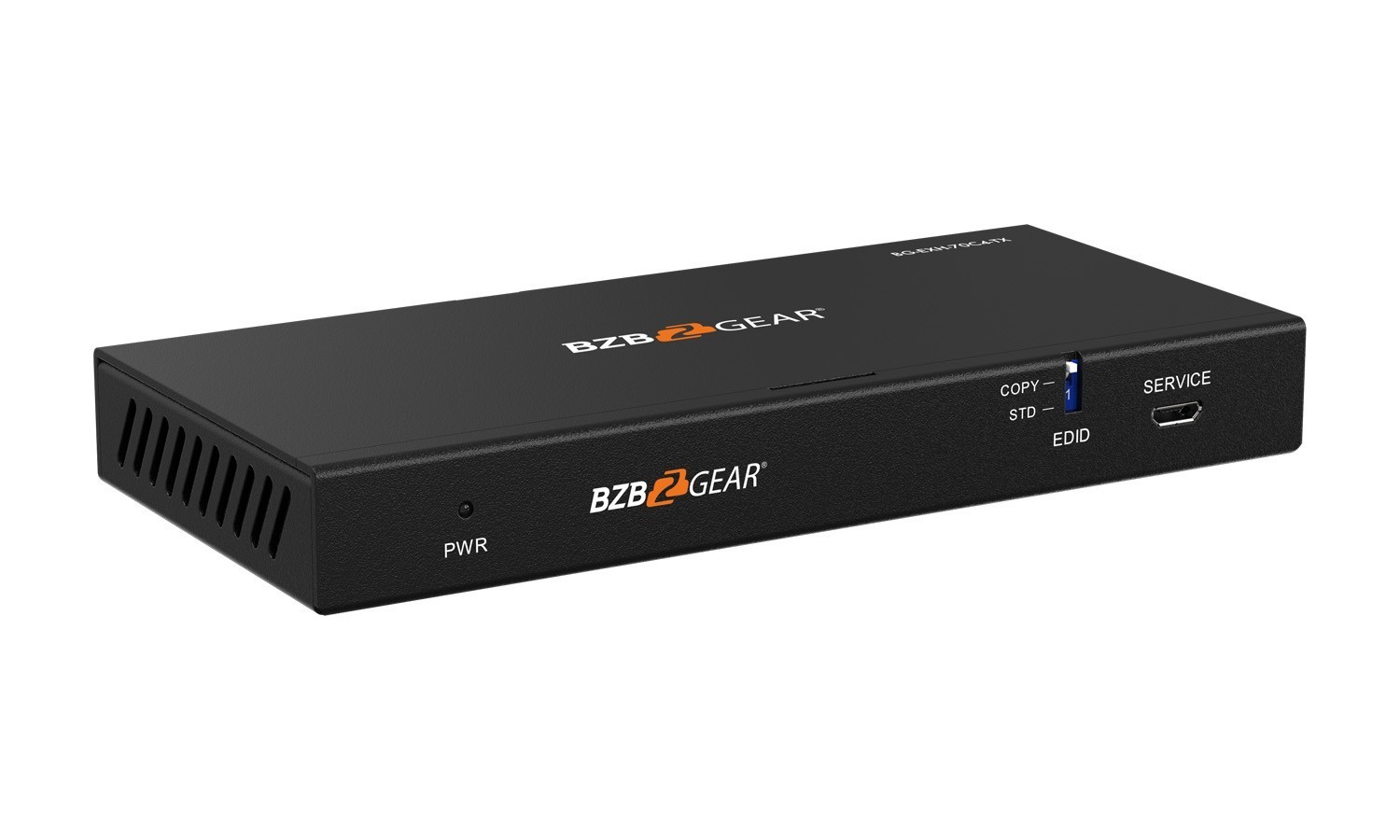

Advanced EDID Management:
Includes advanced EDID management for more control over the communication between source and display devices

Control Signal Pass-Through:
Supports bi-directional IR and RS-232 control signal pass-through

ARC Functionality:
Features Audio Return Channel (ARC) functionality

HDBaseT Technology:
The HDMI signal is converted to standard HDBaseT, and transmitted using a LAN cable

Audio Formats HDMI: LPCM 7.1CH, Dolby True HD, and DTS-HD Master
Audio Formats Optical: Dolby 5.1, DTS 5.1, PCM 2.0
Rich Colors with HDR, HDR10, HDR10+, Dolby Vision, HLG
ARC and audio de-embedding through S/PDIF optical port on the receiver

Video

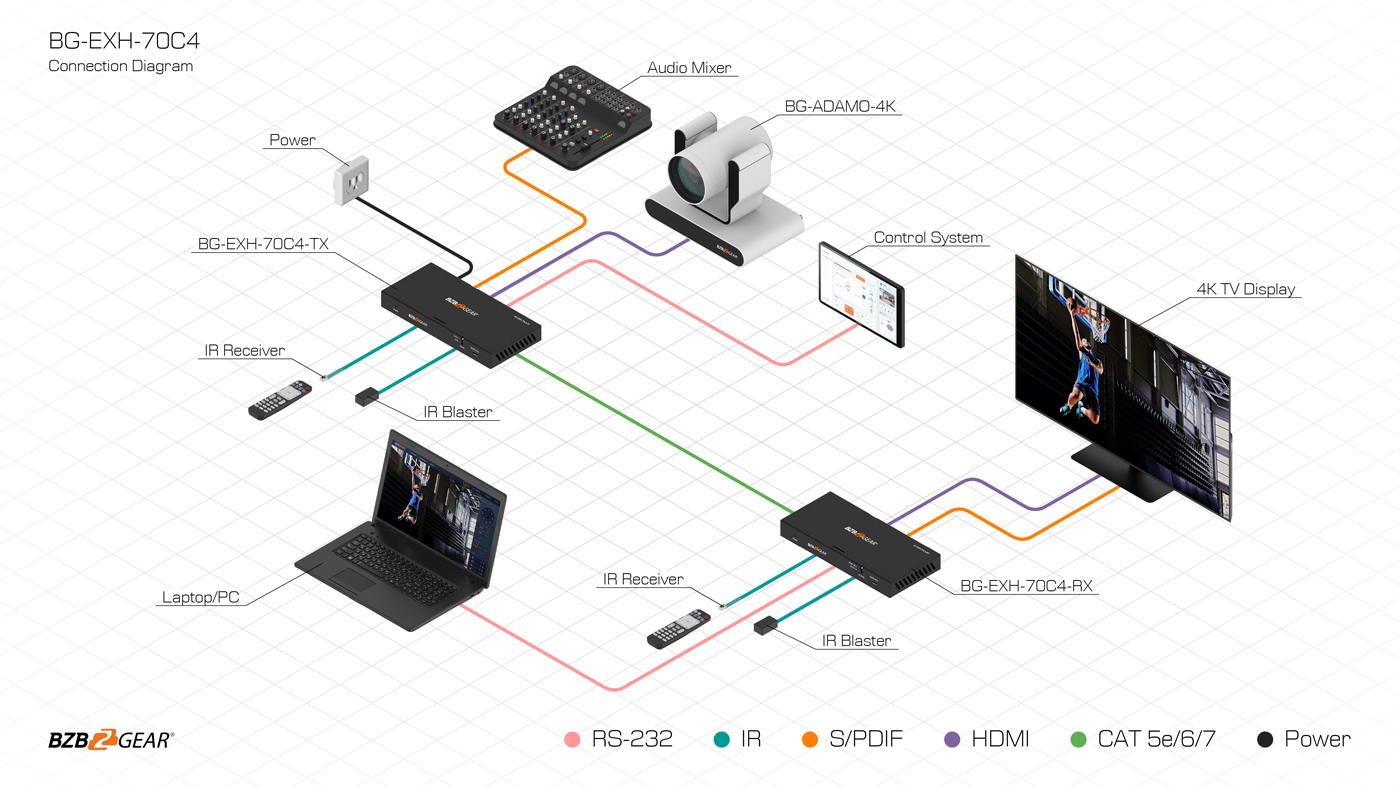

Product Diagrams

View Diagrams

Specifications

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	18Gbps
Video Resolution	Up to 4K2K @ 60Hz RGB/YCBCR 4:4:4
IR Level	5Vp-p
IR Frequency	Wideband 20K-60KHz
Transmission Distance	70m via a single CAT5e/6 cable
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth	8-bit, 10-bit, 12-bit (1080P) 8-bit (4K60) 8-bit, 10-bit, 12-bit (4K24/30)
HDR	HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats	HDMI: LPCM 7.1CH, Dolby True HD, and DTS-HD Master Optical: Dolby 5.1, DTS 5.1, PCM 2.0
Connection

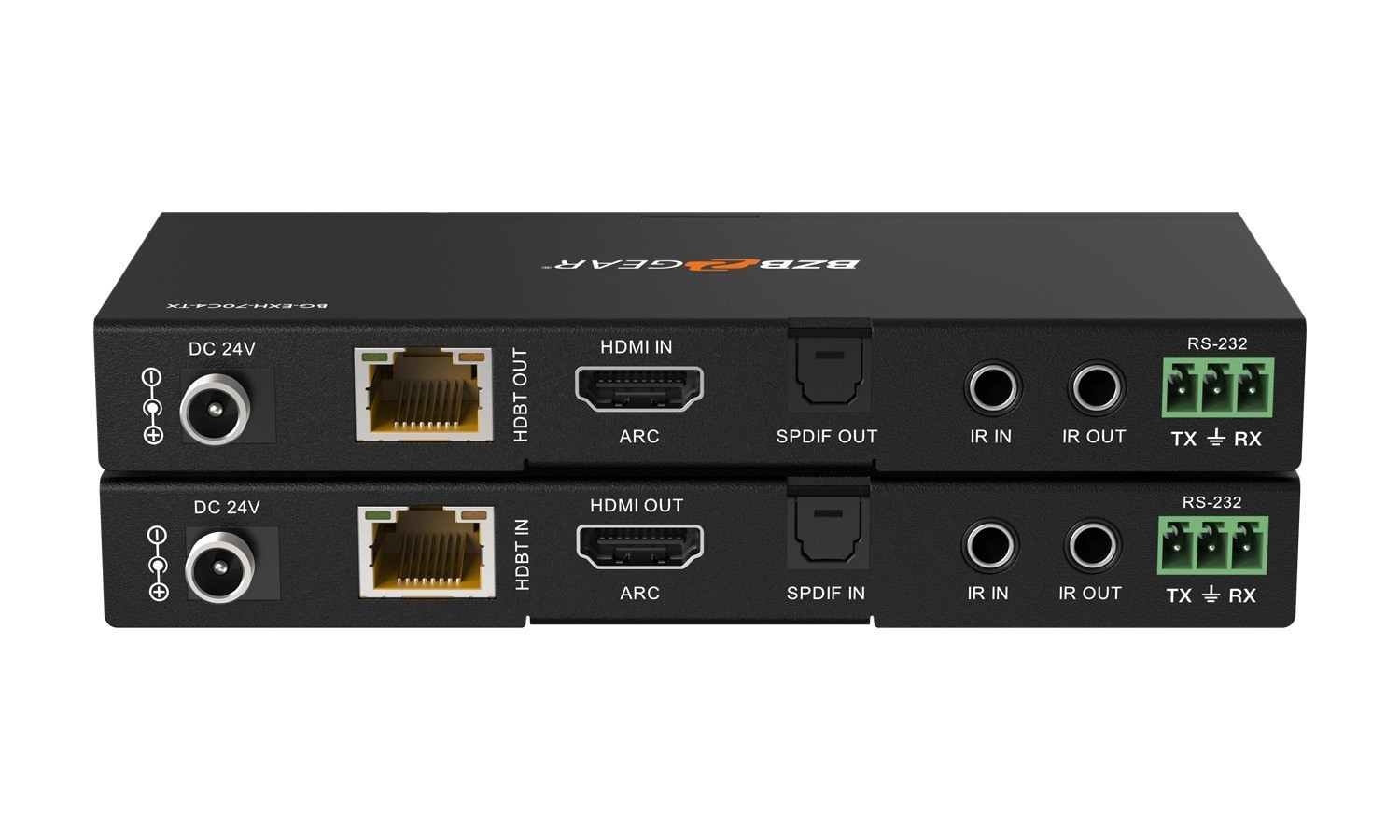

Transmitter	Input: 1× HDMI IN [Type A, 19-pin female] Output: 1× HDBT OUT [RJ45] / 1×SPDIF OUT Control: 1× RS-232 [3pin-3.81mm Phoenix connector] 1× SERVICE [Micro-USB jack] 1× IR IN [3.5mm Stereo Mini-jack] 1× IR OUT [3.5mm Stereo Mini-jack]

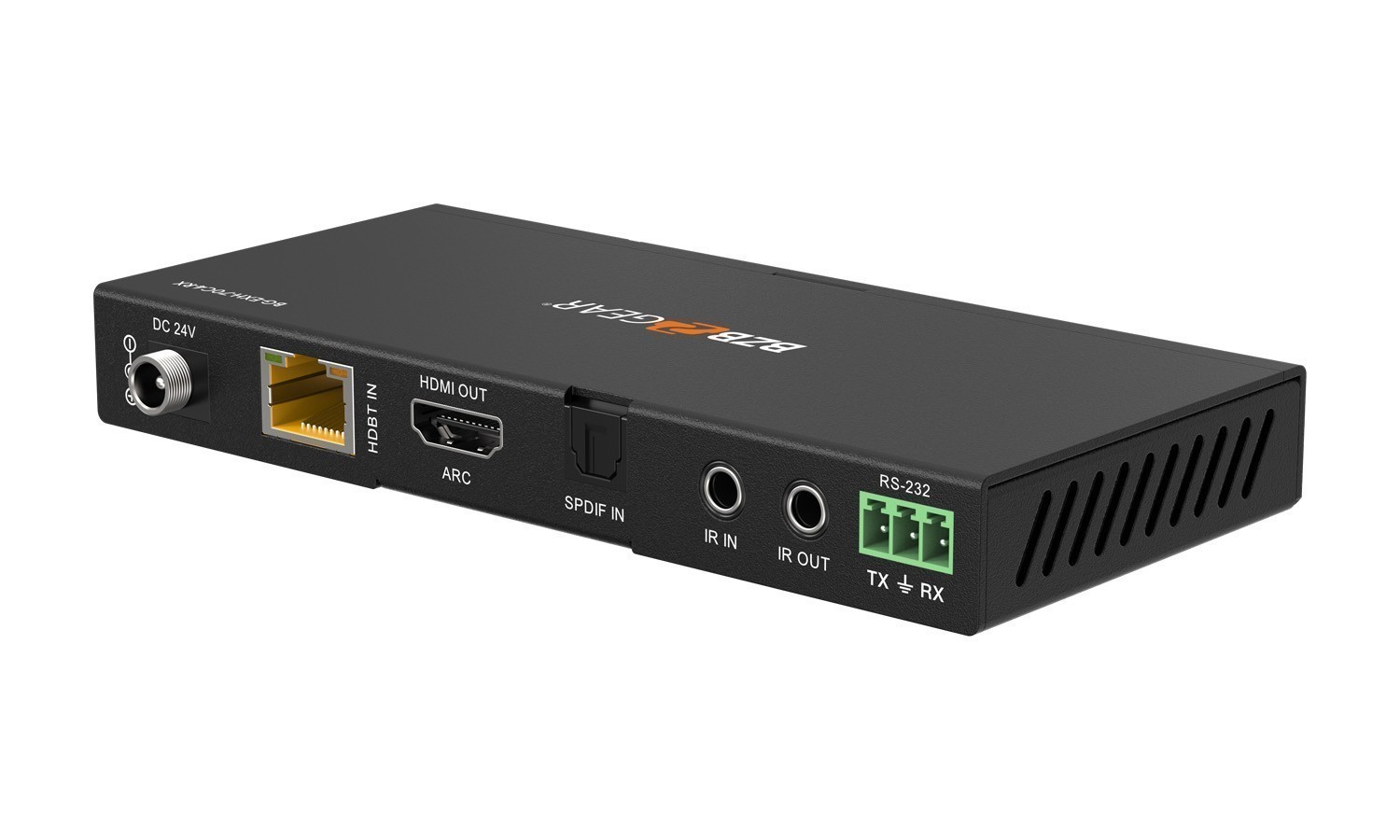

Receiver	Input: 1× HDBT IN [RJ45] / 1×SPDIF IN Output: 1× HDMI OUT [Type A, 19-pin female] Control: 1× RS-232 [3pin-3.81mm Phoenix connector] 1× SERVICE [Micro-USB jack] 1× IR IN [3.5mm Stereo Mini-jack] 1× IR OUT [3.5mm Stereo Mini-jack]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	Transmitter / Receiver:140mm (W)×65mm (D)×18mm (H)
Weight	Transmitter: 235 g, Receiver: 239 g
Power Supply	DC 24V/1A; Supports bi-directional Power over Cable (PoC) functionality
Power Consumption	9.6 W (max)
Operating Temperature	32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature	-4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity	20~90% RH (non-condensing)
