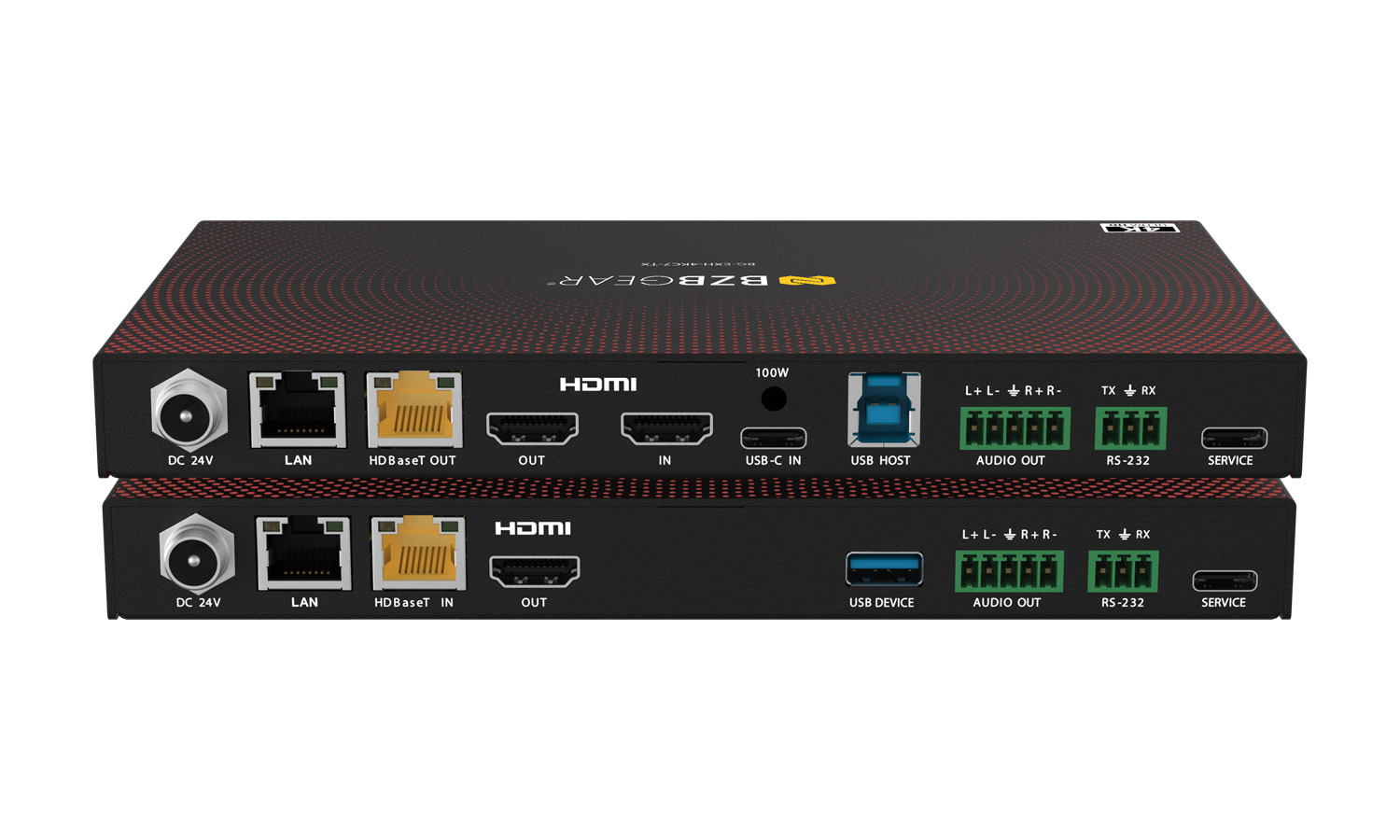

BZBGEAR BG-EXH-4KC7 4K UHD HDMI/USB-C KVM HDBaseT 3.0 Extender/Switcher with USB 3.0/Ethernet/IR/RS-232/POE

Description

The BG-EXH-4KC7 is a high-performance HDBaseT 3.0 extender designed to deliver 4K60Hz 4:4:4 HDR video and USB-C/HDMI connectivity over distances of up to 100 meters via CAT6A/7 cables. Featuring dual inputs (USB-C and HDMI) with auto/manual switching, the transmitter supports DP-ALT mode for audio/video transmission, USB 3.0, 1G Ethernet, and up to 100W power delivery. The receiver offers flexible outputs with HDMI or USB-C and includes USB 2.0 ports for peripherals. Advanced HDR formats, such as HDR10+, Dolby Vision, and HLG, ensure stunning video quality, while analog audio de-embedding on both the transmitter and receiver simplifies audio integration.

Packed with professional-grade features, the BG-EXH-4KC7 includes RS-232 and CEC control, API support, and 1G Ethernet pass-through for seamless system integration. It supports bidirectional Power over Cable (PoC) for streamlined installations and offers long-reach HDBaseT functionality, extending 1080p60 signals up to 150 meters. With robust performance and versatile applications, this extender is ideal for conference rooms, educational institutions, and professional AV environments demanding reliable, high-quality signal transmission.

Features

Advanced HDR Support – Compatible with 4K60Hz 4:4:4, HDR10+, Dolby Vision, HLG, and Low Latency Mode (LLM)
Long-Distance Transmission – Transmits 4K60Hz signals up to 100m over CAT6A/7 cables
Versatile USB-C Input – DP-ALT mode enables USB 3.0, 1G Ethernet, and up to 100W charging
Integrated Audio Extraction – Analog audio de-embedding available on both TX and RX units
Seamless Automation – RS-232 pass-through and API support for integration into control systems
Simplified Power Management – Bidirectional 24V Power over Cable (PoC) minimizes power supply needs

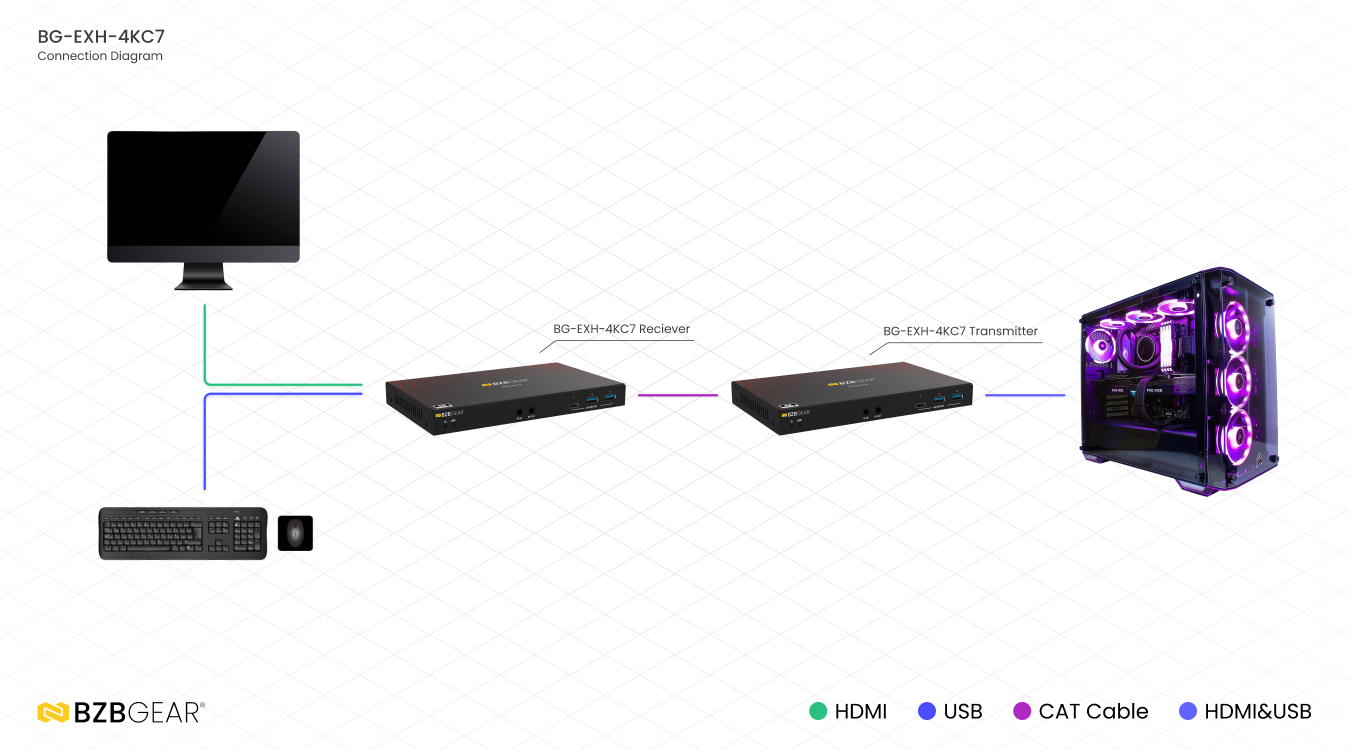

Product Diagrams

View Diagrams

Product Video

Specifications

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
DP Compliance	DisplayPort 1.4a
Video Bandwidth	18Gbps
Video Resolution	640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1440x900p60Hz, 1440x1050p60Hz, 1600x1200p60Hz, 720x480i59.94Hz(480i59), 720x480p59.94Hz(480p59), 720x576i50Hz(576i50), 720x576p50Hz(576p50), 1280x720p50Hz(720p50), 1280x720p59.94Hz(720p59), 1280x720p60Hz(720p60), 1920x1080i50Hz(1080i50), 1920x1080i59.94Hz(1080i59), 1920x1080i60Hz(1080i60), 1920x1080p23.98Hz(1080p23), 1920x1080p24Hz(1080p24), 1920x1080p25Hz(1080p25), 1920x1080p29.97Hz(1080p29), 1920x1080p30Hz(1080p30), 1920x1080p50Hz(1080p50), 1920x1080p59.94Hz(1080p59), 1920x1080p60Hz(1080p60), 3840x2160p23.98Hz(2160p23), 3840x2160p24Hz(2160p24), 3840x2160p25Hz(2160p25), 3840x2160p29.97Hz(2160p29), 3840x2160p30Hz(2160p30), 3840x2160p50Hz(2160p50), 3840x2160p59.94Hz(2160p59), 3840x2160p60Hz(2160p60), 3840x2160p100Hz(2160p100), 3840x2160p120Hz(2160p120), 4096x2160p23.98Hz, 4096x2160p24Hz, 4096x2160p25Hz, 4096x2160p29.97Hz, 4096x2160p30Hz, 4096x2160p50Hz, 4096x2160p59.94Hz, 4096x2160p60Hz
Color Space	RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
Color Depth	8/10/12bit
HDR	HDR, HDR10, HDR10+, Dolby Vision, HLG
IR Level	12Vp-p
Audio Formats	HDMI/USB-C/HDBT: LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Analog Audio: LPCM 2CH (sample rate 32~192kHz)
Audio Parameters	Output Impedance	600 Ohm balanced 300 Ohm unbalanced
	Output Level (Max)	Max 8.2dBu (2Vrms) balanced audio Max 2.2dBu (1Vrms) unbalanced audio
	Frequency Response	20Hz to 20kHz (±0.5dB)
	Dynamic Range	> 90dB@0dBu, 1kHzA-weighted
	Audio S/N Ratio	> 90dB@0dBu, 1kHzA-weighted
	Audio THD+N	< 0.01% at +4dBu, 1KHz
	Audio Output Delay	< 1ms
USB Support	TX: USB 3.2 Gen 1 5Gbps, compatible with USB 2.0 480Mbps RX: USB 2.0 350Mbps
USB Host Ports	TX: 1x USB-C 3.2 Gen 1 + 1 USB-B 3.2 Gen 1 RX: None
USB Device Ports	TX: 1x USB-C 3.2 Gen 1 + 2x USB-A 3.2 Gen 1 RX: 1x USB-C 2.0 + 3x USB-A 2.0
USB Power Supply	Host ports: TX: 1x USB-C port (100W charging) Device ports: TX: 1x USB-C port (1A) + 2x USB A port (1.5A) RX: 1x USB-C port (1A) + 3x USB A port (1A)
Transmission Distance	HDMI/USB-C passive cable: 16.4ft/5m USB 3.2 Gen 1 5Gbps passive cable: 5.9ft/1.8m CAT6A/7 cable: 328ft/100m@4K60 (HDBT Standard Mode) CAT6A/7 cable: 492ft/150m@1080P (HDBT Long Reach Mode)
ESD Protection	IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection

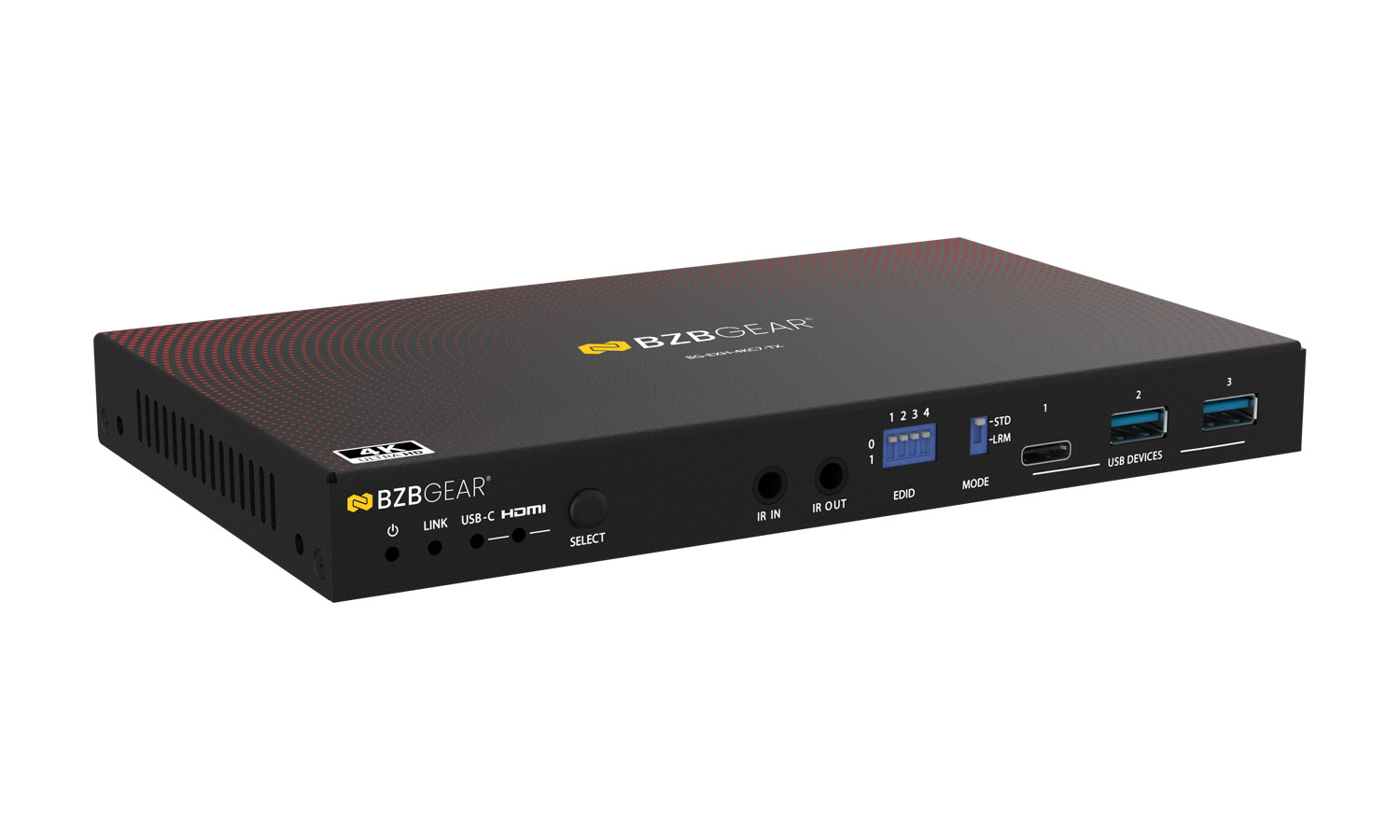

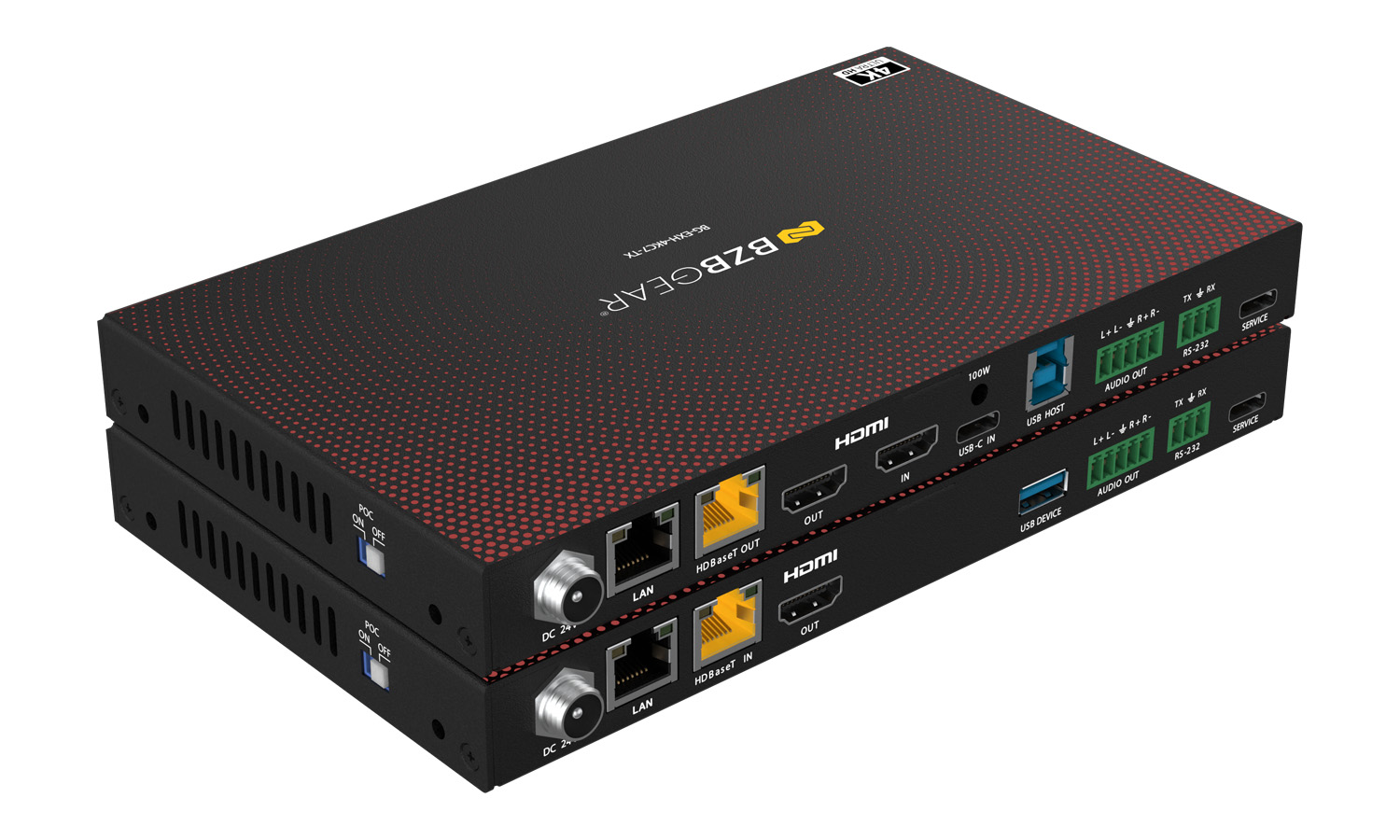

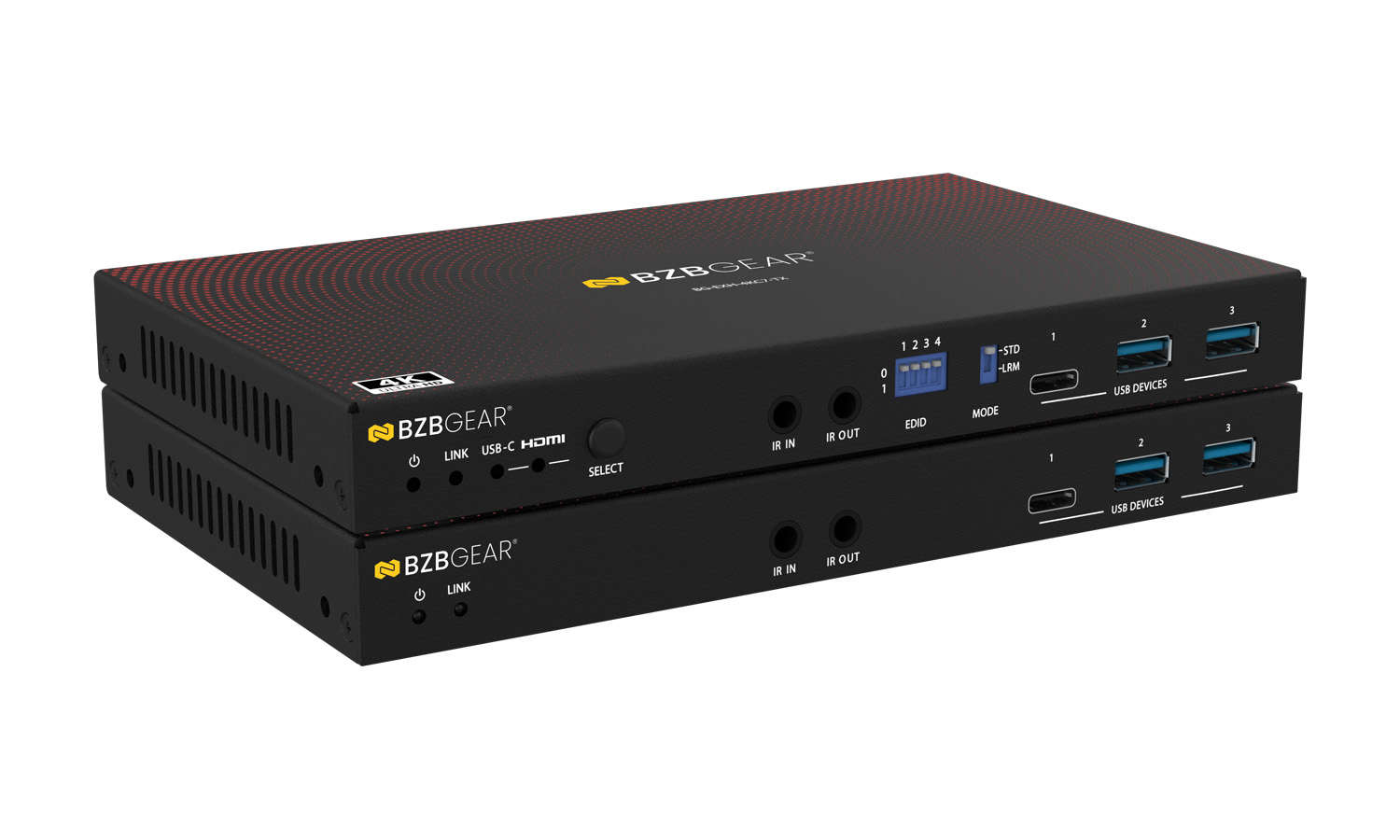

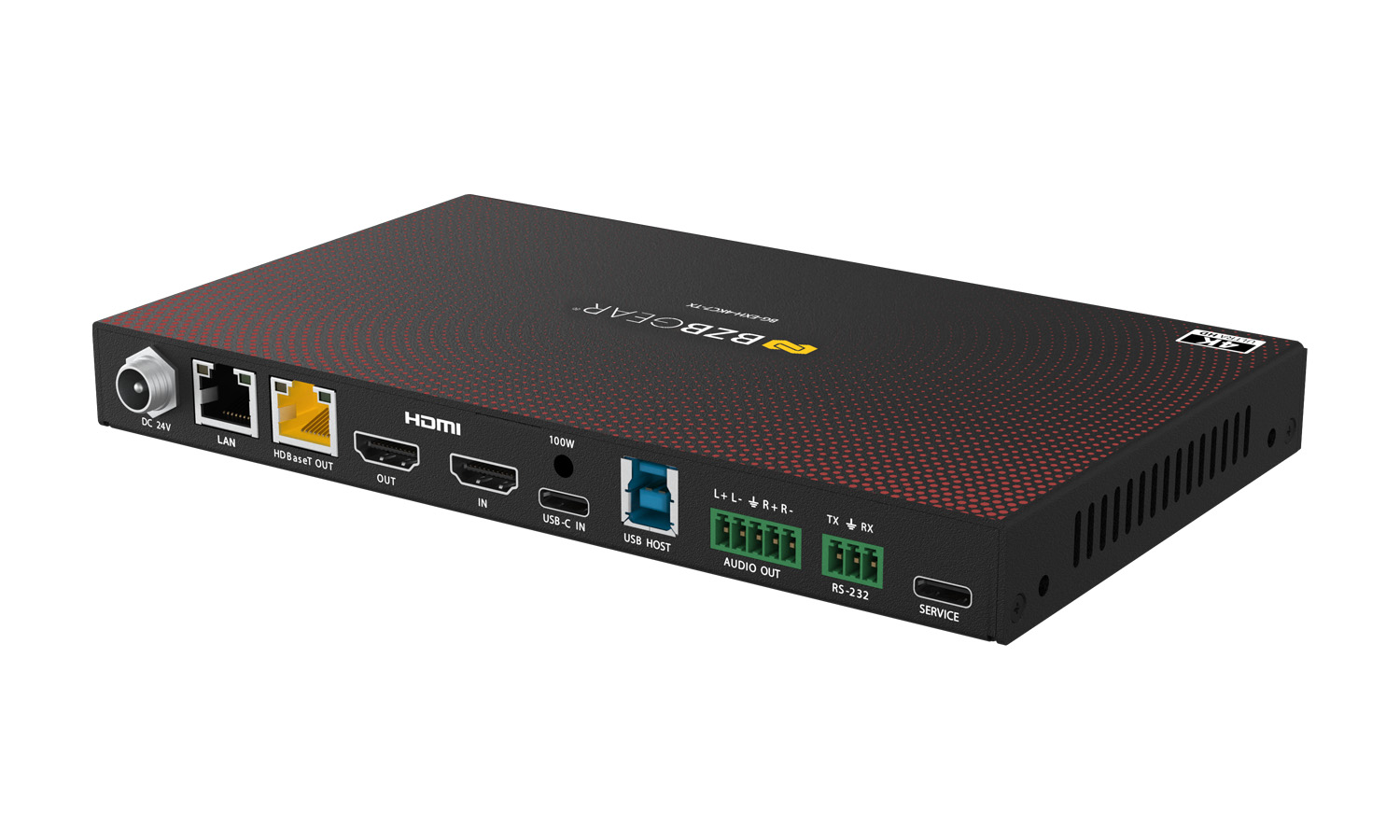

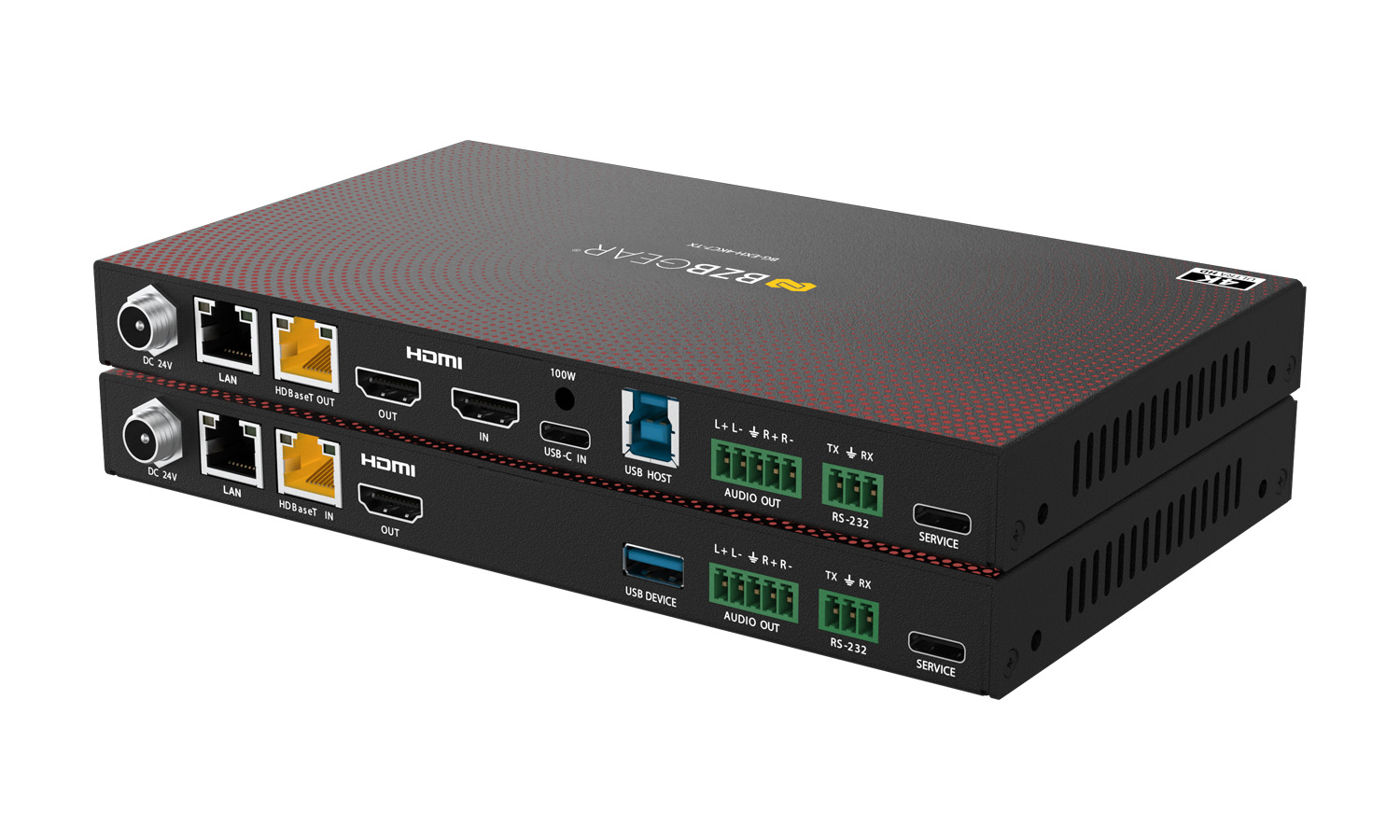

Transmitter	Input: 1x HDMI IN [Type A, 19-pin female] 1x USB-C IN [USB Type C, 24-pin female] Output: 1x HDBaseT OUT [RJ45, HDBT output with 24V PoC] 1x HDMI OUT [Type A, 19-pin female] 1x AUDIO OUT [5pin-3.5mm phoenix connector] Control: 1x LAN [RJ45 connector, 1G Ethernet pass-through] 1x RS-232 [3pin-3.5mm phoenix connector] 1x SERVICE [USB-C with USB 2.0 only, 12-pin female] 1x USB HOST [USB Type B, 9-pin female] 1x USB DEVICES [USB 3.2 Type C, 24-pin female] 2x USB DEVICES [USB 3.2 Type A, 9-pin female] 1x IR IN [3.5mm audio jack, 12V level] 1x IR OUT [3.5mm audio jack]

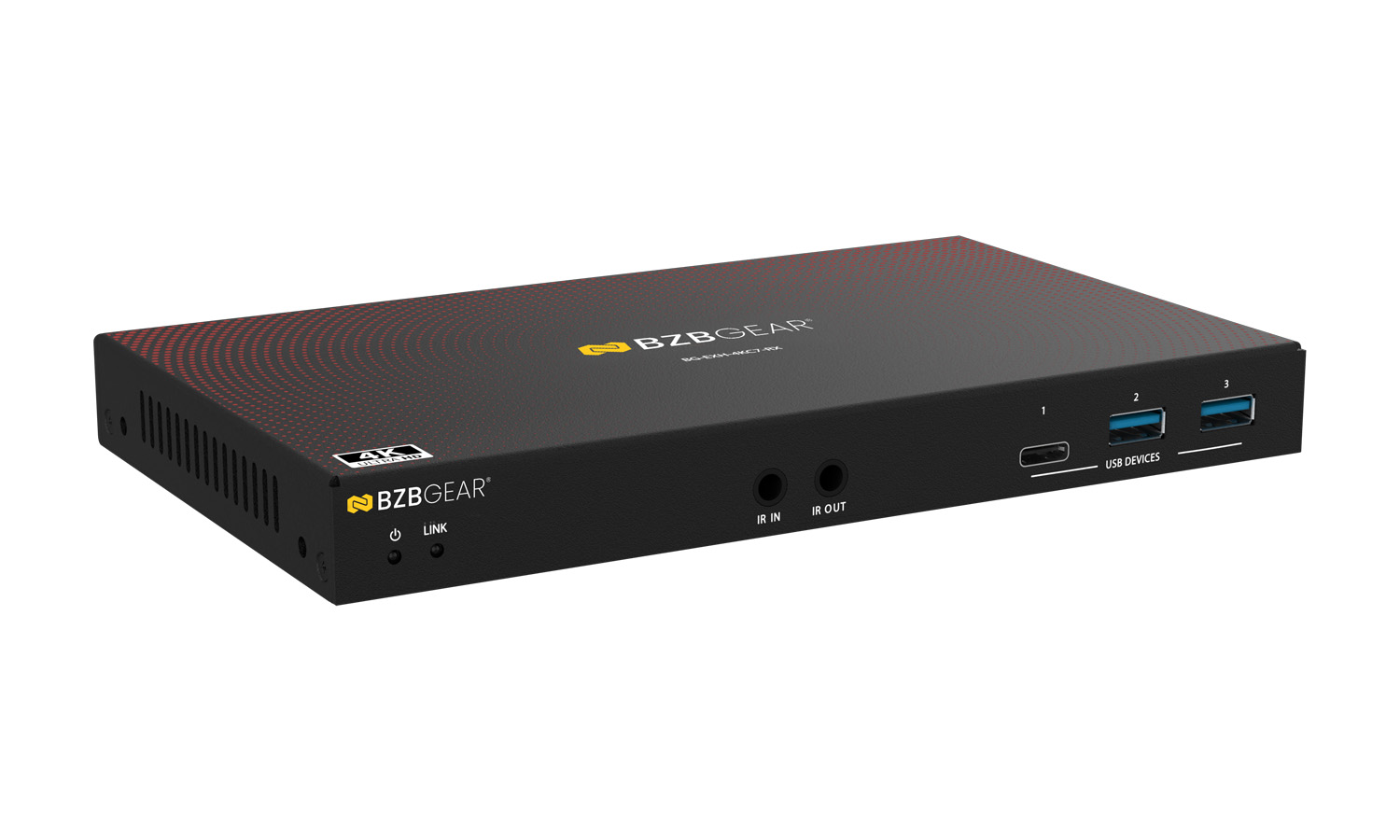

Receiver	Input: 1x HDBaseT IN [RJ45, HDBT input with 24V PoC] Output: 1x HDMI OUT [Type A, 19-pin female] 1x AUDIO OUT [5pin-3.5mm phoenix connector] Control: 1x LAN [RJ45 connector, 1G Ethernet pass-through] 1x RS-232 [3pin-3.5mm phoenix connector] 1x SERVICE [USB-C with USB 2.0 only, 12-pin female] 1x USB DEVICES [USB 2.0 Type C, 12-pin female] 3x USB DEVICES [USB 2.0 Type A, 4-pin female] 1x IR IN [3.5mm audio jack, 12V level] 1x IR OUT [3.5mm audio jack]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions (WxDxH)	Transmitter/Receiver: 8.2in x 4.8in x 0.87in [208mm x 122mm x 22mm]
Weight	Transmitter: 1.51 lbs [687g], Receiver: 1.4 lbs [636g]
Power Supply	Input: AC 100 - 240V 50/60Hz Output: DC 24V/7.5A (US/EU standard, CE/FCC/UL certified)
Power Consumption (Max)	173W (Power supply from TX, 100W USB-C charging, PoC to RX) 73W (Power supply from TX or RX, without USB-C charging)
Operating Temperature	32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature	-4°F ~ 140°F / -20°C ~ 60°C
Operating Humidity	20% ~ 80% (relative humidity, no condensation)
Storage Humidity	10% ~ 90% (relative humidity, no condensation)
Recommended HDMI Cable Length
Video Resolution	4K60	4K24	1080P60
HDMI IN / OUT	16.4ft/5m	33ft/10m	49ft/15m
The use of “Premium High Speed HDMI” cable is highly recommended.
