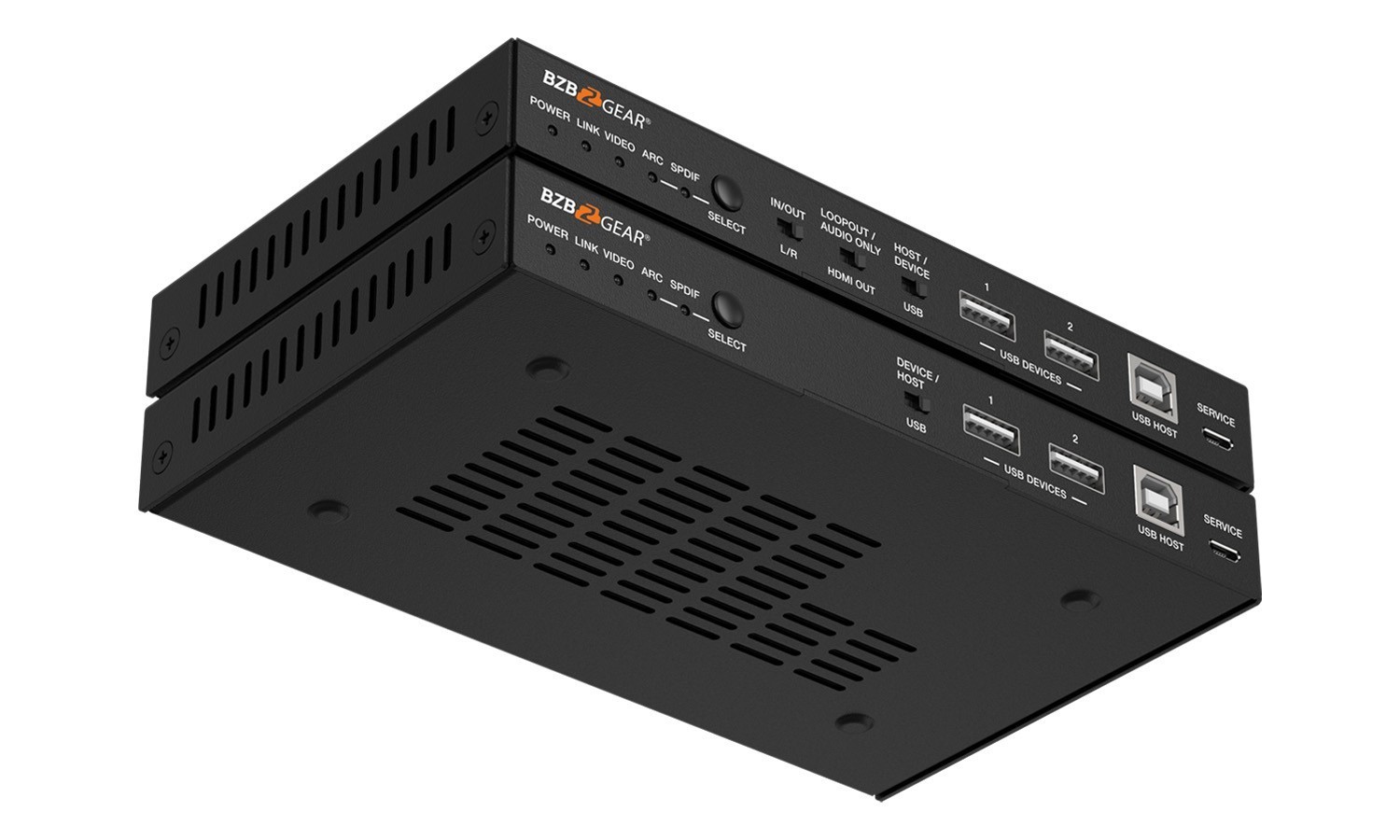

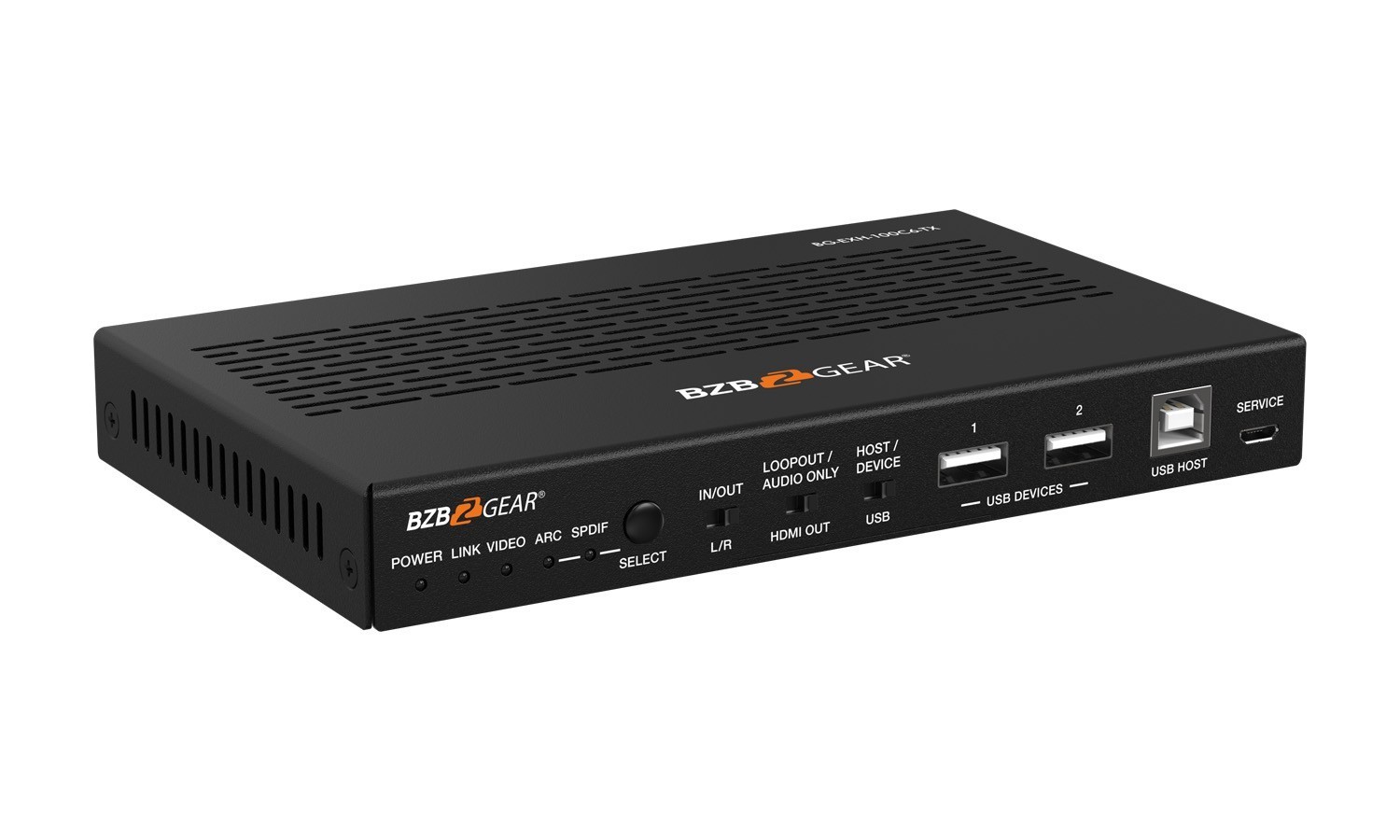

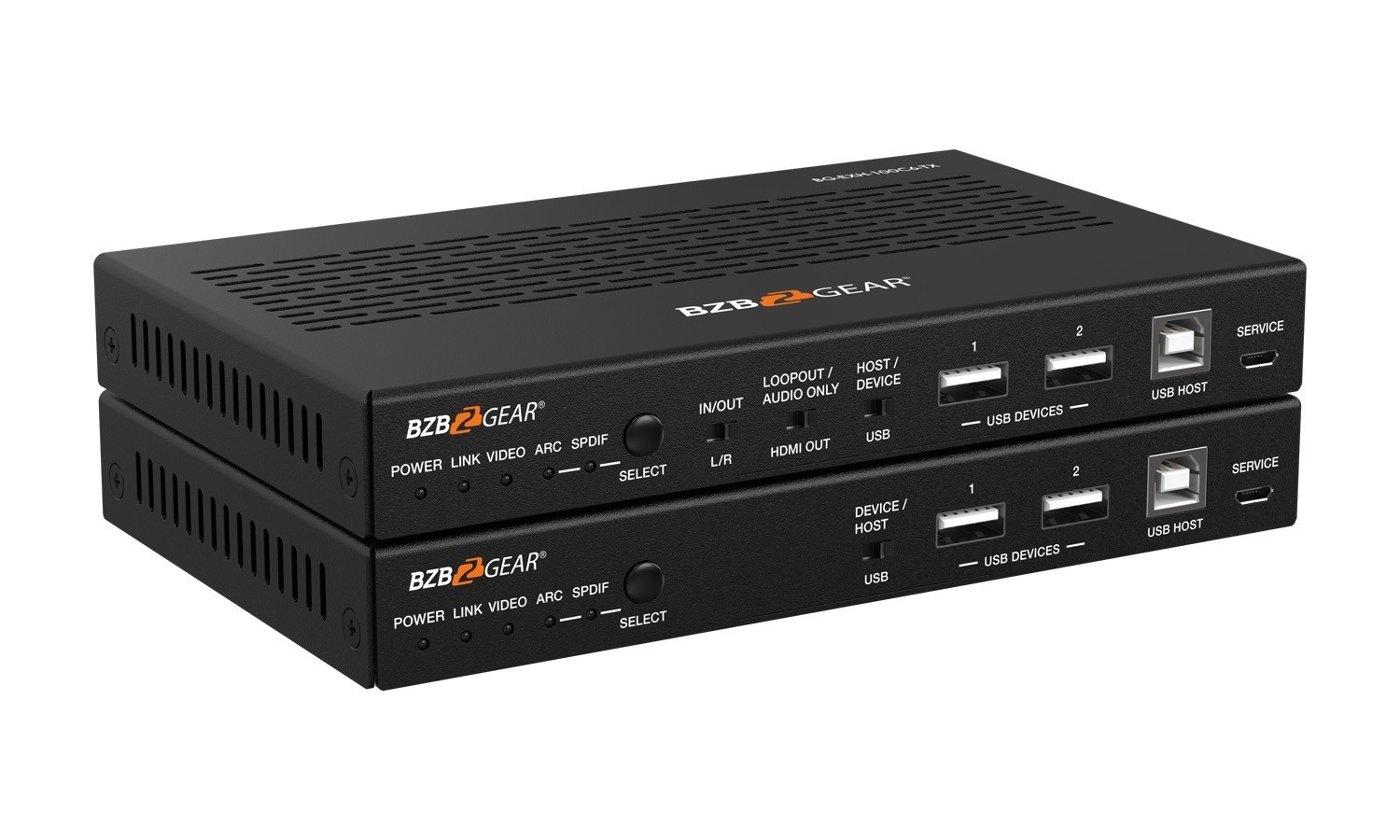

BZBGEAR BG-EXH-100C6 4K UHD HDMI/HDBaseT 3.0 Extender with IR/eARC/ARC/PoC/RS-232/Ethernet/USB 2.0 and Audio Embedding/De-embedding up to 330ft

Description

}

Experience unparalleled audio and video transmission with the BG-EXH-100C6 HDBaseT 3.0 extender by BZBGEAR. This state-of-the-art device unleashes uncompressed HD/UHD audio and video, along with eARC/ARC, RS-232, bi-directional IR, 1Gb Ethernet, and USB 2.0 signals up to an impressive distance of 328ft(100m) using just a single CAT6A/7 cable. Say goodbye to messy wires and hello to convenience.

With USB 2.0 host/device configurability, the BG-EXH-100C6 offers maximum flexibility and functionality, making it the perfect solution for a KVM setup. And, with bi-directional power over cable (PoC), there’s no need for a second power adaptor, saving you time and money.

The BG-EXH-100C6 can support resolutions up to 4K @ 60Hz 4:4:4, and boasts HDR10, HDR10+, Dolby Vision and HLG technology, ensuring unparalleled picture quality. The transmitter can also embed or de-embed audio, while the receiver supports audio de-embedding. Plus, with eARC/ARC from the receiver’s HDMI output, you can enjoy top-notch audio quality on your local audio system, or opt to use the transmitter’s HDMI audio only and SPDIF output ports.

BG-EXH-100C6 by BZBGEAR is the ultimate choice for anyone seeking top-of-the-line audio and video extender. With its advanced features and unparalleled performance, it’s sure to exceed your expectations.

HDCP Compatible:
Supports HDCP 2.2 and HDMI 2.0b

Audio Transmission:
Supports LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD pass-through

USB 2.0 Transmission:
Host/Device configurable

4K Quality:
Uncompressed 4K @ 60Hz 4:4:4

Audio Features:
eARC/ARC function, SPDIF audio reverse transmission

Enhanced Connectivity:
Bi-directional IR, RS-232, 1Gbps Ethernet signal pass-through

Transmit signals up to 328ft (100m)
HDMI ARC from receiver to transmitter
Utilize two USB 2.0 ports on both transmitter and receiver
LED lights on transmitter and receiver to verify connection status at a glance
Audio Embedding and de-embedding through S/PDIF optical port and 3.5mm stereo mini on transmitter
1Gbps LAN ports on the receiver and transmitter to connect extra devices to a network

Video

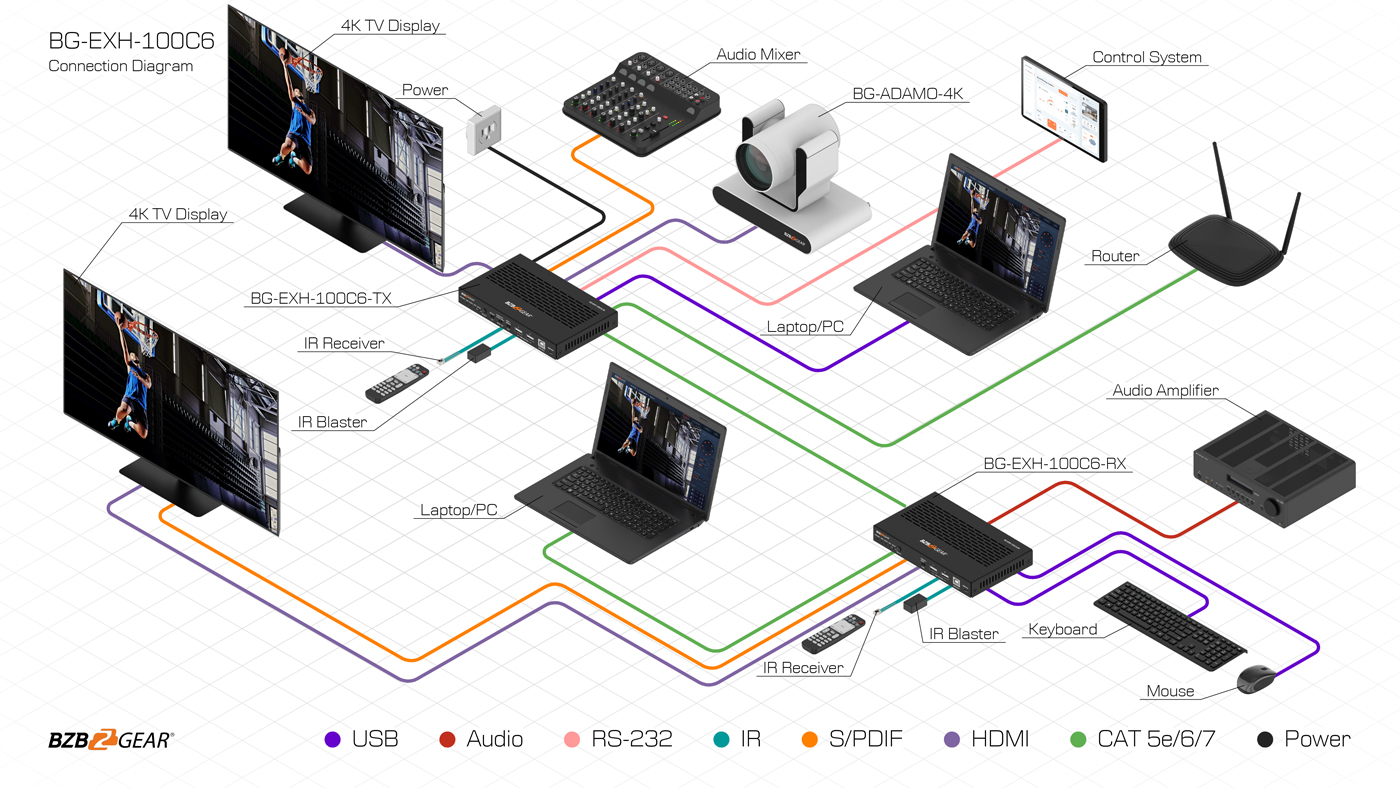

Product Diagrams

View Diagrams

Specifications

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	18Gbps
Video Resolution	Up to 4K @ 60Hz 4:4:4
HDBaseT Bandwidth	16Gbps on main and 2Gbps on return link
HDR	HDR, HDR10, HDR10+, Dolby Vision, HLG
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth	8/10/12-bit
Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD, Master Audio, DSD
L/R Audio Formats	PCM 2.0
SPDIF Audio Formats	LPCM 2.0, AC3 5.1, DTS 5.1
IR Level	12Vp-p
IR Bandwidth	20K - 60KHz
USB Bandwidth	Up to 350Mbps
Ethernet	1000Mbps
RS-232	Up to 921600bps
Transmission Distance	100m (via a single CAT 6A/7 cable)
ESD Protection	Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection

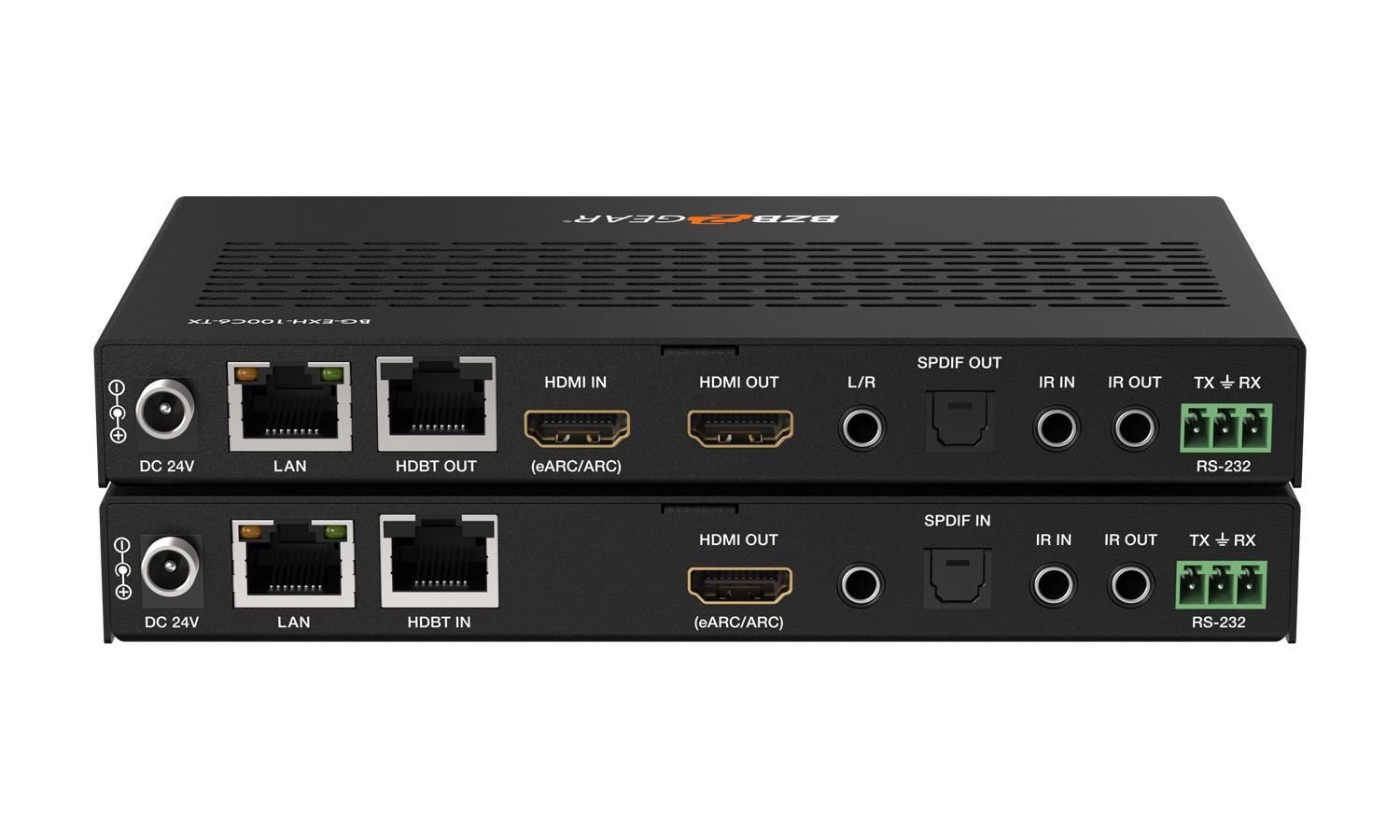

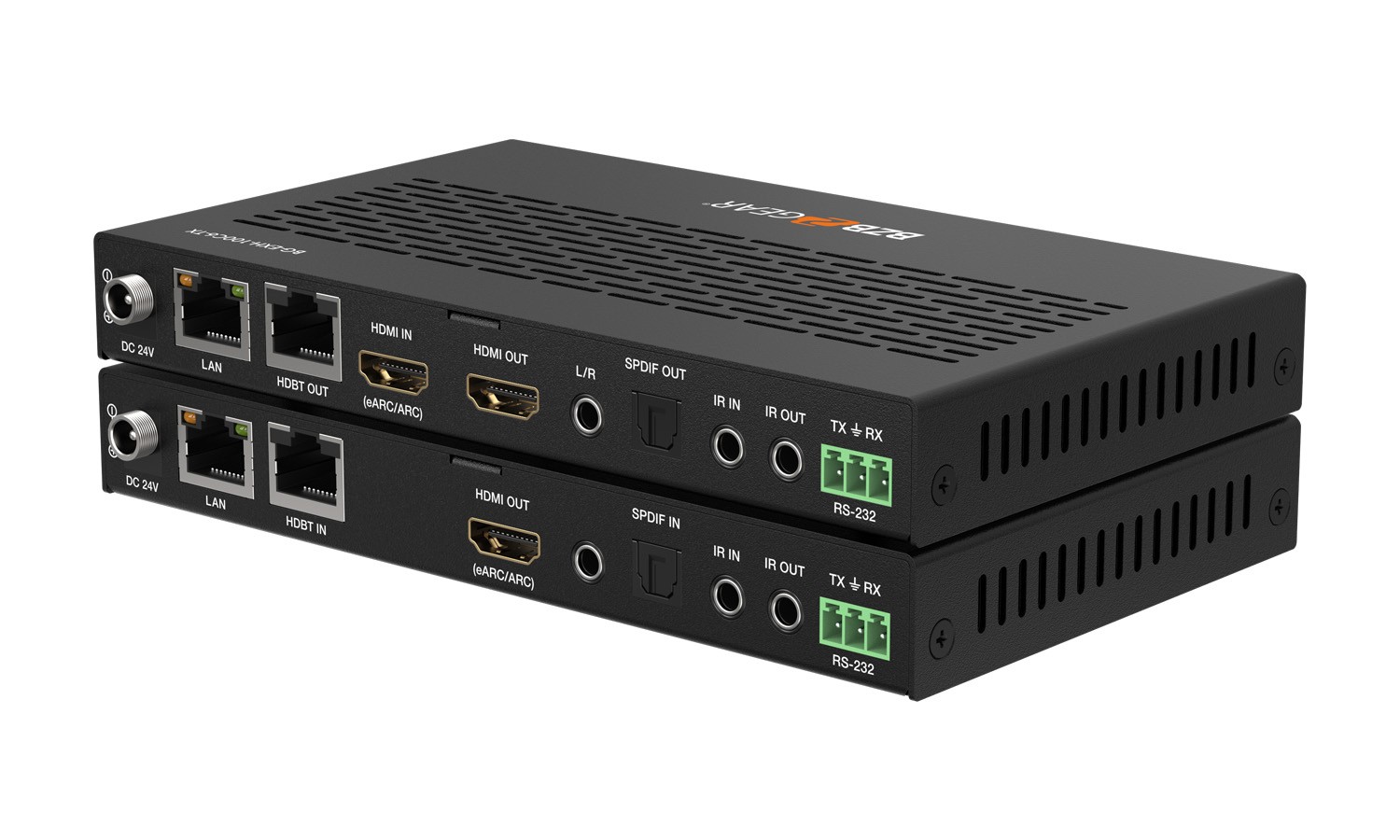

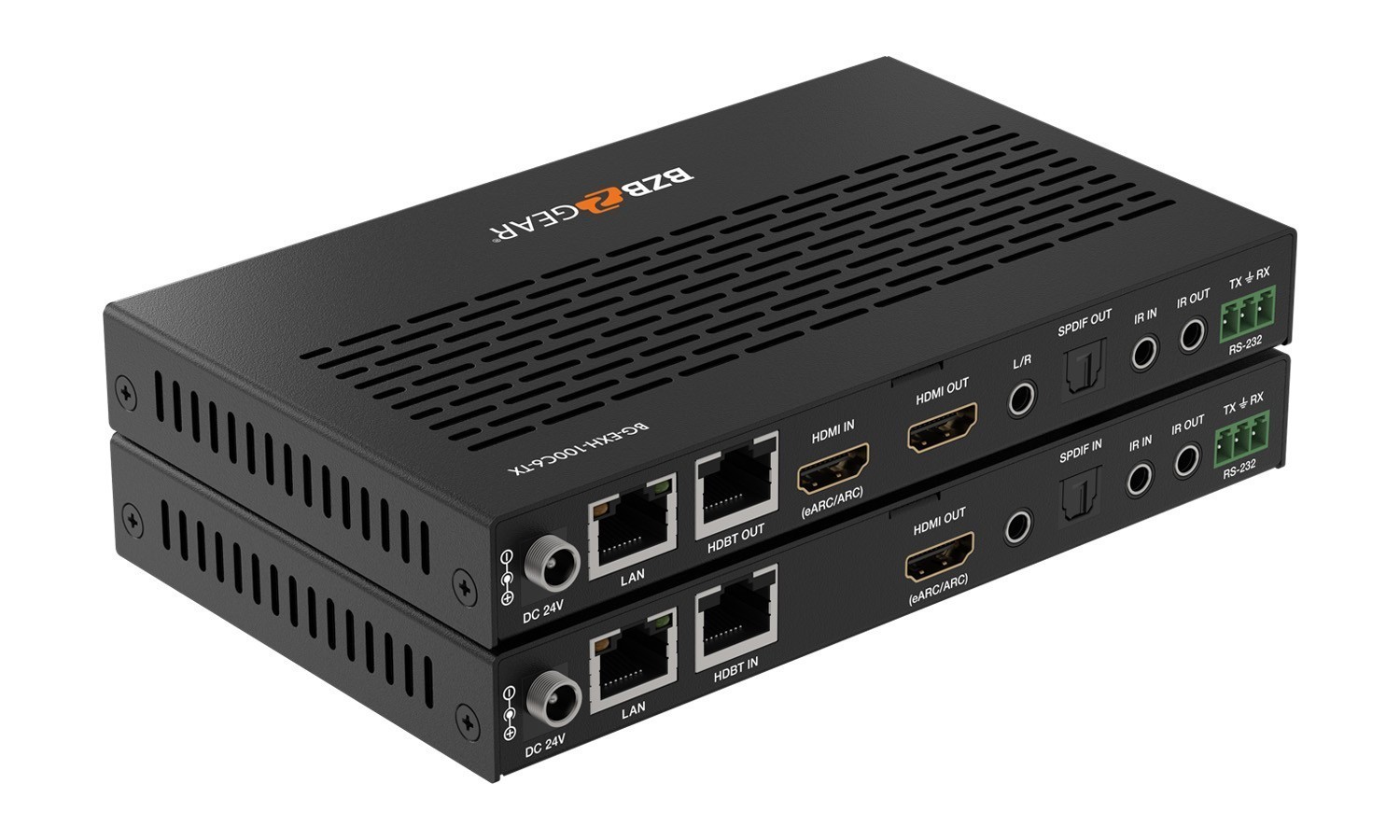

Transmitter	Input: 1 x HDMI IN [Type A, 19-pin female] Output: 1 x HDMI OUT [Type A, 19-pin female] 1 x HDBT OUT [RJ45, 8-pin female] 1 x SPDIF OUT [S/PDIF] 1 x L/R OUT [3.5mm Stereo Mini-jack] Control: 1 x IR IN [3.5mm Stereo Mini-jack] 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x RS-232 [3pin-3.81mm Phoenix jack] 1 x SERVICE [Mini-USB, Update port] 1 x USB HOST [USB Type B] 2 x USB DEVICES [USB Type A] 1 x LAN [RJ45]

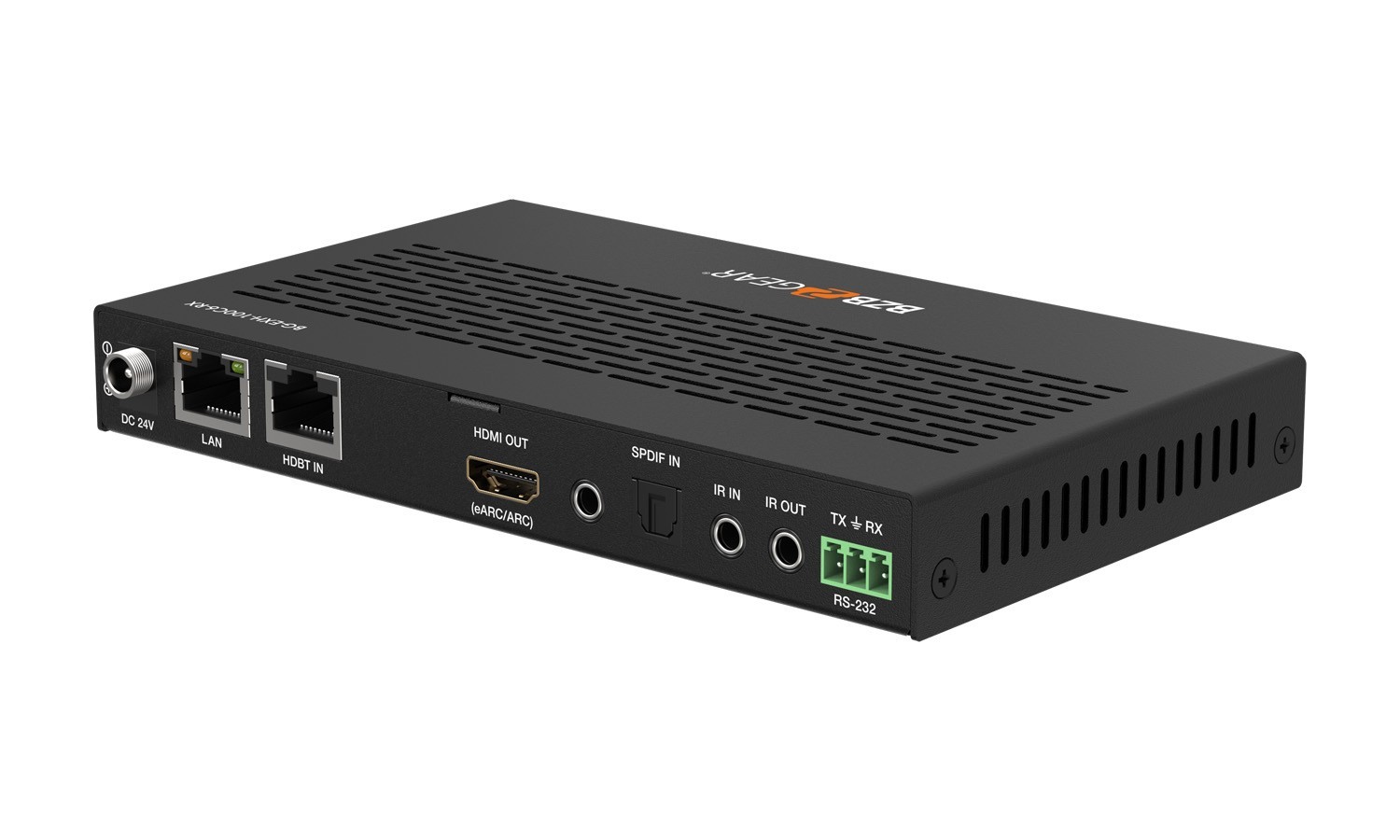

Receiver	Input: 1 x HDBT IN [RJ45, 8-pin female] / 1 x SPDIF IN [S/PDIF] Output: 1 x HDMI OUT [Type A, 19-pin female] 1 x L/R OUT [3.5mm Stereo Mini-jack] Control: 1 x IR IN [3.5mm Stereo Mini-jack] 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x RS-232 [3pin-3.81mm Phoenix jack] 1 x SERVICE [Mini-USB, Update port] 1 x USB HOST [USB Type B] 2 x USB DEVICES [USB Type A] 1 x LAN [RJ45]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	Transmitter / Receiver: 6.7"(W) x 4.0"(D) x 0.87"(H) [170mm (W) x 102mm (D) x 22mm (H)]
Weight	Transmitter: 0.94 lbs [425g], Receiver: 0.96 lbs [437g]
Power Supply	Input: AC 100 - 240V 50/60Hz Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption	15.36W (PoC)
Operating Temperature	32 - 104°F / 0 - 40°C
Storage Temperature	-4 - 140°F / -20 - 60°C
Relative Humidity	20 - 90% RH (no condensation)
Resolution/Cable Length	4K60 - Feet / Meters	4K30 - Feet / Meters	1080P60 - Feet / Meters
HDMI IN / OUT	16ft / 5M	32ft / 10M	50ft / 15M
Note: The use of “Premium High-Speed HDMI” cable is highly recommended.
