BZBGEAR BG-DA-12GS1X8 4K UHD 12G-SDI 1x8 Splitter/Distribution Amplifier

Description

}

The BG-DA-12GS1X8 is a 1×8 12G-SDI splitter and distribution amplifier. This device can split an SD, HD, 3G, 6G, or 12G-SDI video source up to eight SDI outputs simultaneously. For any situation where range, quality, consistency, and reliability are all factors, this unit is the correct choice. Whether you need to connect additional displays for video feed monitoring, distribute a 4K signal over a long distance, or daisy chain and cascade multiple units to build a large scale video distribution solution – the BG-DA-12GS1X8 will help you get the job done.

Connectivity and Features

Each output from the BG-DA-12GS1X8 is buffered independently and re-clocked eliminating signal disruption and making it possible to extend signal transmission to greater distances. With automatic input cable equalization, 12G-SDI signal can be transmitted up to 70m (230 ft), 6G up to 100m (330 ft), and up to 180m (594 ft) for 3G connections.

The device has a maximum SDI bandwidth of 11.88 Gbps to support high quality video transmission with low latency when splitting video to multiple outputs. Installers can also utilize the device’s LED indicators that show the status of signal lock and current video rate to reduce the amount of time system configuration is needed.

The device’s design is built around quality and durability. With an inter-locking power supply and SDI connectors as well as a metal housing with mounting brackets, this device is built to last while maintaining reliable video transmission.

TAA COMPLIANT PRODUCT. This product meets the standards of the Trade Agreement Act (TAA).

Rugged Design:
Durable metal structure built to withstand years of operation

LED Indicators:
Signal lock and video rate at a glance

Buffered and re-clocked outputs:
Eliminate jitter and increase transmission distance

Interlocked Power Supply:
Ensures power stays connected

Split and Amplify:
Split and extend a 4K signal up to 230ft (12G)

8 Outputs:
Split a single SDI source up to 8 different SDI displays or devices

Locking Connectors – Ensure your video cables do not accidentally come unplugged with locking SDI connectors
Long Distance – Send a 3G-SDI signal up to 594ft
Portable – Great for use in the field when you need multiple displays in different locations

Video

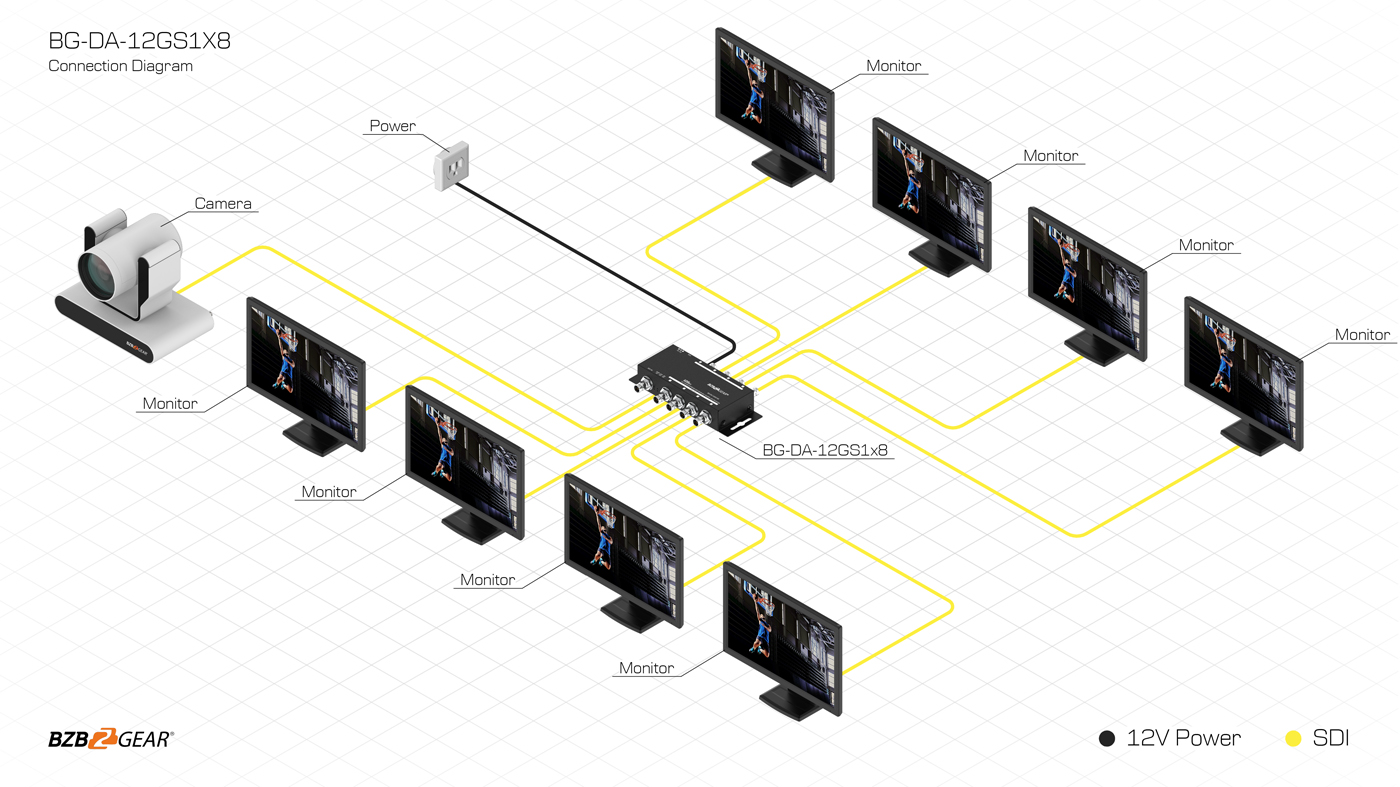

Product Diagrams

View Diagrams

Product Video

Specifications

Technical
SDI standard	SD/HD/3G/6G/12G-SDI
Multi-Rate Support	Auto detection of SD, HD, 3G, 6G or 12G Signals
SDI Compliance	SMPTE 424M, SMPTE 292M, SMPTE 344M, SMPTE 259M, DVB-ASI, ST2081(6G), ST2082(12G)
SDI Data rates	1.485 / 2.97 / 5.94 / 11.88 Gbps
Video bandwidth	11.88Gpbs & 11.88/1.001Gbps
Output impedance	75 Ohm
Reclocking	Yes
Cable equalization	[12G] up to 70m (230ft) [6G] up to 100m (330ft) [3G] up to 180m (594ft)
Audio support	Yes
RP-198 pathological patterns	Immune
PCB stack-up	4-layer board [impedance control — differential 100 Ohm; single 75 Ohm]
Input	1x BNC [SDI]
Output	8x BNC [SDI]
BNC connector	75 Ohm inter-locked socket
Eye pattern characteristics[12G]	Amplitude: Within 800mV (<10%) Rise/Fall time: Less than 35ps Timing jitter: <1.0 UI (10Hz to 1188MHz) Alignment jitter: <0.3 (100KHz to 1188MHz)
Mechanical
Housing	Metal enclosure
Dimensions [L x W x H]	Model: 5.2" x 2.1" x 1.1" [133 x 53 x 28 mm] Package: 7.8" x 5.4" x 2.9" [198 x 137 x 74 mm]
Weight	Model: 7 oz [198g] Package: 0.9 lbs [425g]
Fixedness	Wall-mounting case
Power supply	5V 2A DC
Power consumption	2.5 Watts [max]
Operation temperature	32~104°F / 0~40°C
Storage temperature	-4~140°F / -20~60°C
Relative humidity	20~90% RH [no condensation]
