BZBGEAR BG-AMPC40 2-Channel 40W 70/100V Stereo/Mono Audio Amplifier

Description

}

The BG-AMPC40 is a 40-Watt digital stereo amplifier (Class-D) with switchable output of 70V or 100V. Inputs include 2 stereo inputs (1×3.5mm port for line in, 2xRCA for L&R), 1 TOSLINK input, and 1 balanced MIC input. The 3-pin MIC input has selectable 48V phantom power, supports balanced or unbalanced signals, and features external noise suppression.

Integrated functions include ducking, EQ control, and MIC mixer. The rotary knob allows users to choose from 16 IR ID codes for easy control of multiple amplifiers. The front panel has controls for input selection, volume level for MIC and Line inputs, and bass/treble adjustment. This amplifier can be controlled with RS232 commands in addition to the front panel buttons and IR commands.

Microphone Input:
3-level Mic input with mixer function

Compact:
Small form factor ideal where full-sized amplifiers will not fit

Durable:
Metal enclosure designed to last for years

Amplify Your Sound:
Outputs 40Watts at either 70V or 100V

Multiple Control Options:
Take control using RS232, IR, or push buttons

Bass, Treble, & Volume:

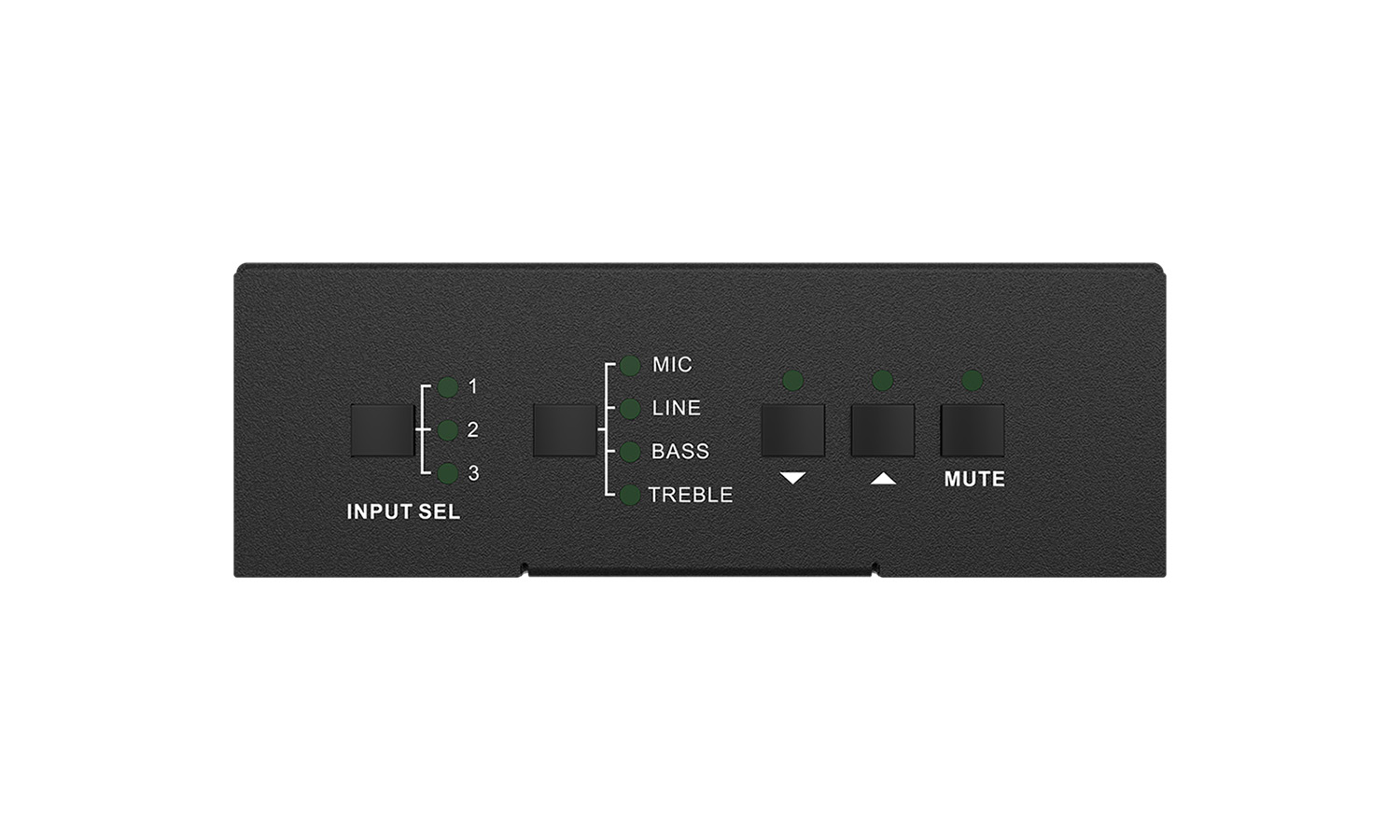

Control bass, treble and volume levels conveniently using integrated push buttons

Ducking function
16 ID codes for controlling between different amplifiers
MIC port can support balance/unbalance signal, suppress the external noise effectively
Fast switching speed for good performance
Convection cooler, fan is not needed
LED indicator, for power and working status

Video

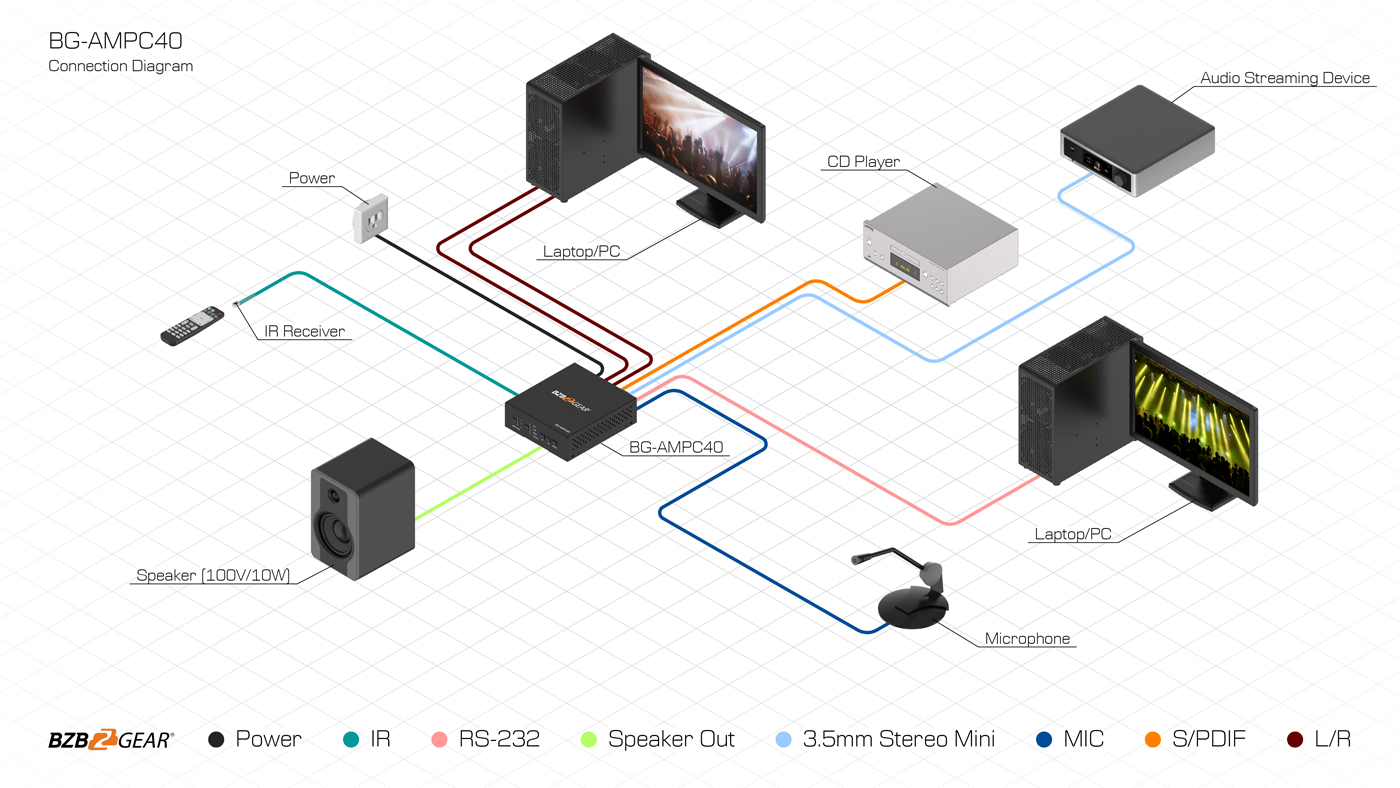

Product Diagrams

View Diagrams

Product Video

Specifications

Audio Input
Input	2x Stereo Audio, 1x MIC, 1x Digital Fiber Audio
Input Connector	2x RCA, 1x 3.5mm Jack, 1x 3-pole 3.81mm Captive Screw Connector, 1x SPF Fiber Connector
Input Impedance	>10KΩ
Audio Output
Output	1x Mono Amplifier
Output Connector	1x 3-pole 3.81mm Captive Screw Connector
Output Type	Constant voltage 70V or 100V
Audio General
Frequency Response	120Hz ~ 20KHz
CMRR	>70dB @ 20Hz ~ 20KHz
SNR	80dB (Max)
Bandwidth	120Hz ~ 20KHz
Rated Power Output	40Watt
THD + Noise	1% @ 1KHz, 0.3% @ 20KHz at nominal level
Voltage Gain	26dB
Control Function
RS232 Control	1x 3-pole 3.81mm Captive Screw Connector
Front Panel Control	Buttons
ID Code Control	16 ID Codes for control
Optional	IR Remote & TCP/IP controlled by programmable interface
General
Temperature	14 ~ 104°F / -10 ~ +40°C
Humidity	10% ~ 90%
Power Supply	DC 24V 2.71A Power Adapter
Standby Power Consumption	5W
Case Dimension (WxHxD)	5.1 x 1.7 x 5.7in [130 x 44 x 144mm] (1U high)
Product Weight	1.9 lbs [860g]
