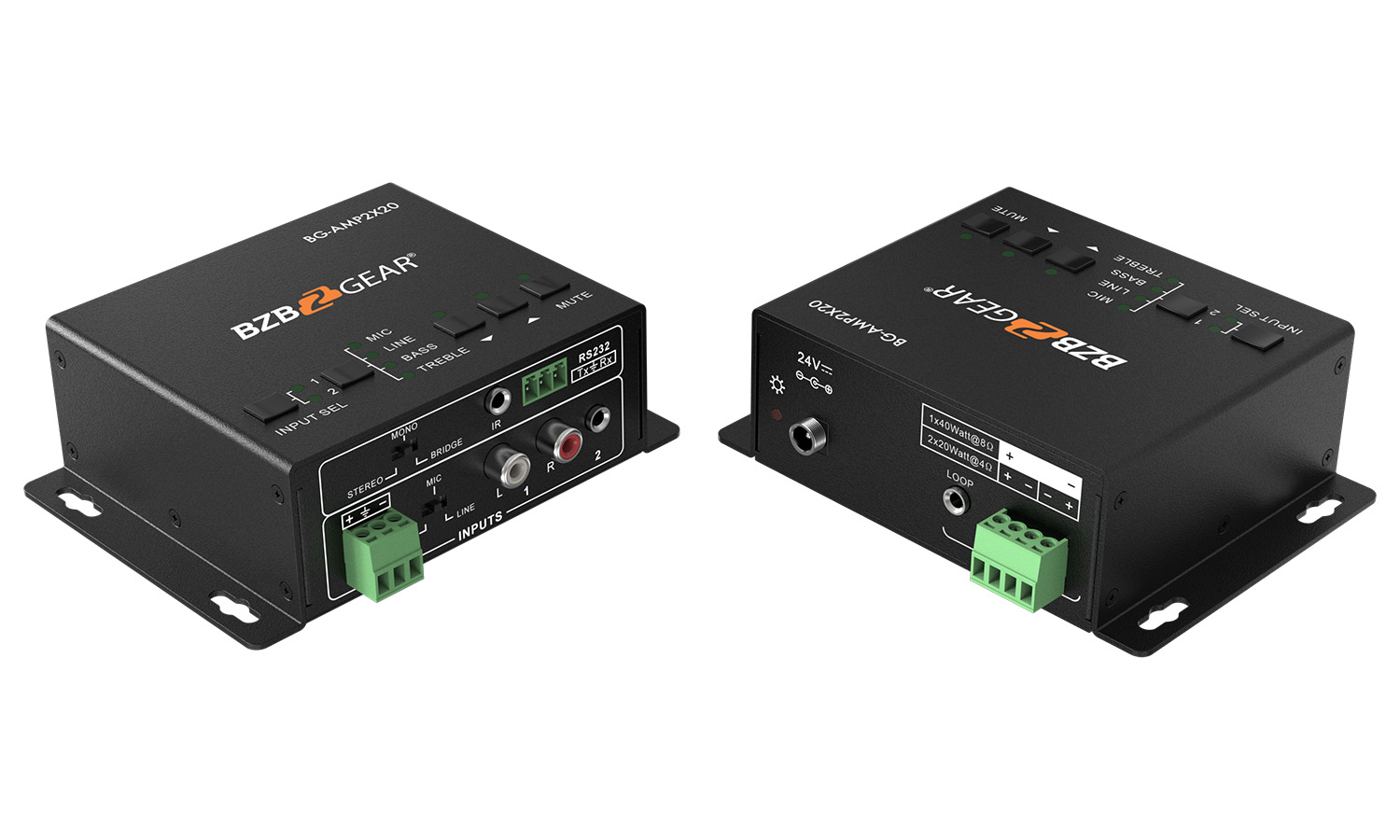

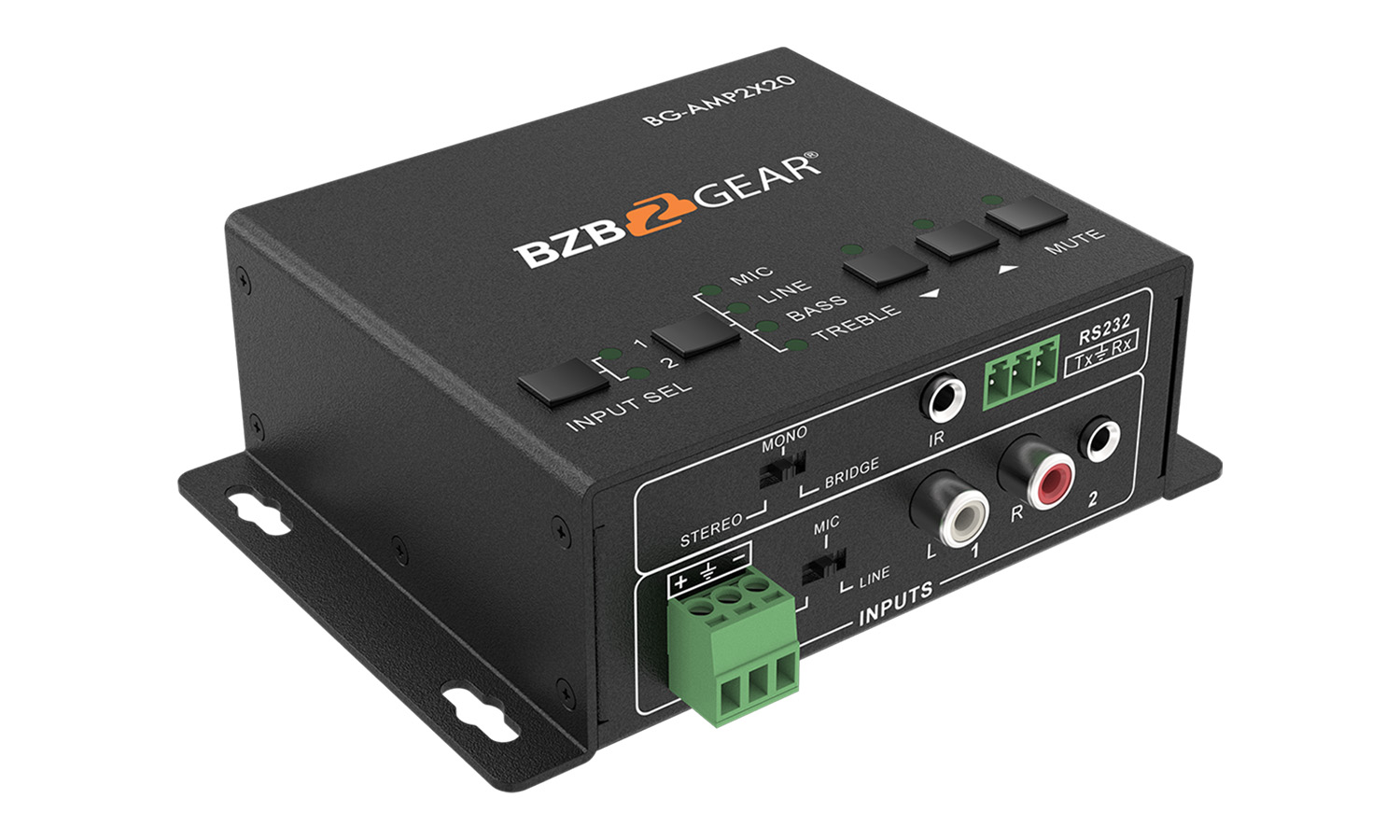

BZBGEAR BG-AMP2X20 2-Channel 40W 4/8 Ohms Stereo/Mono Audio Amplifier

Description

}

The BG-AMP2X20 is a versatile and compact bridgeable digital stereo amplifier (Class-D). Perfect for installations with limited space, it can be operated in three different configurations. In stereo configuration the amplifier outputs 2×20 watts at 4 Ohms. The selector switch also allows for dual-mono operation for distributed audio applications. In bridge-mono configuration it can double the output to 40 watts at 8 Ohms.

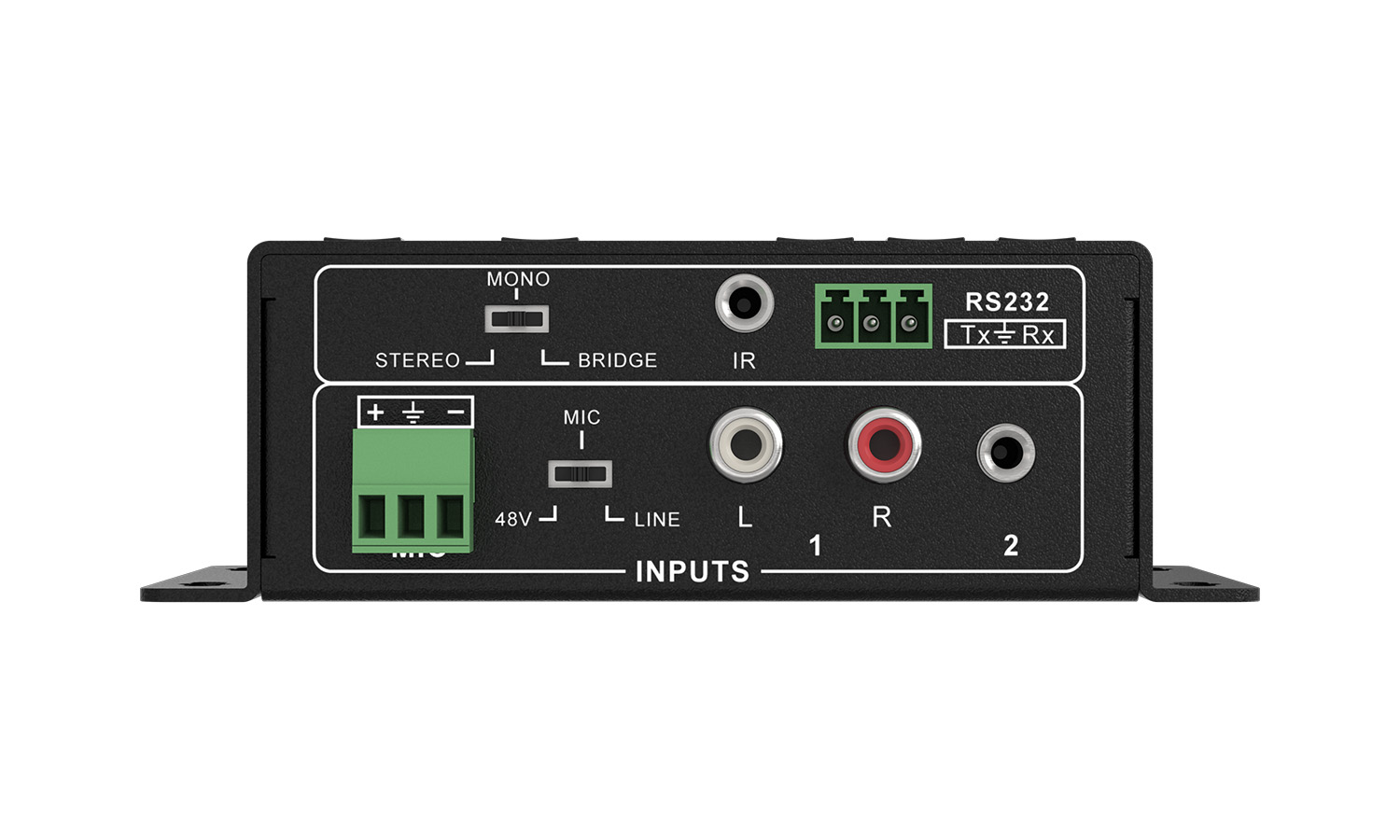

Inputs include 1 x stereo RCA, 1 x 3.5mm, and a microphone input with switchable 48v phantom power. Bass, Treble, volume level, and input selection are all controllable via the integrated buttons on the bottom panel, IR remote control, or RS-232.

The features and performance combined with its compact form factor make this amplifier the perfect solution for situations that don’t allow a full-sized amplifier.

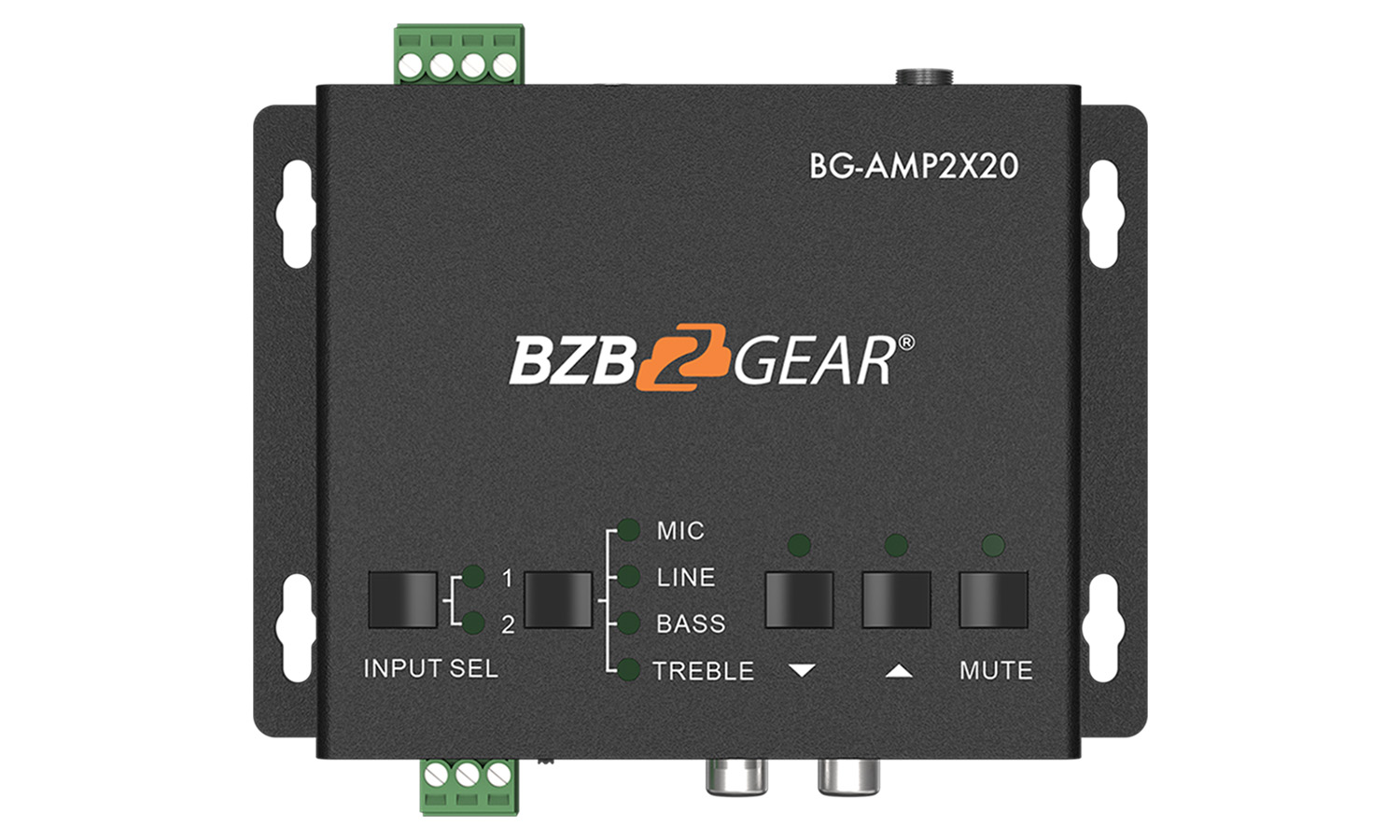

Bass, Treble, & Volume:
Control bass, treble and volume levels conveniently using integrated push buttons

Multiple Control Options:
Take control using RS232, IR, or push buttons

Amplify Your Sound:
Outputs Stereo 20Watt@4 Ohms or bridged mono 40Watt@8 Ohms

Durable:
Metal enclosure designed to last for years

Compact:
Small form factor ideal where full-sized amplifiers will not fit

Microphone Input:
3-level Mic input with mixer function

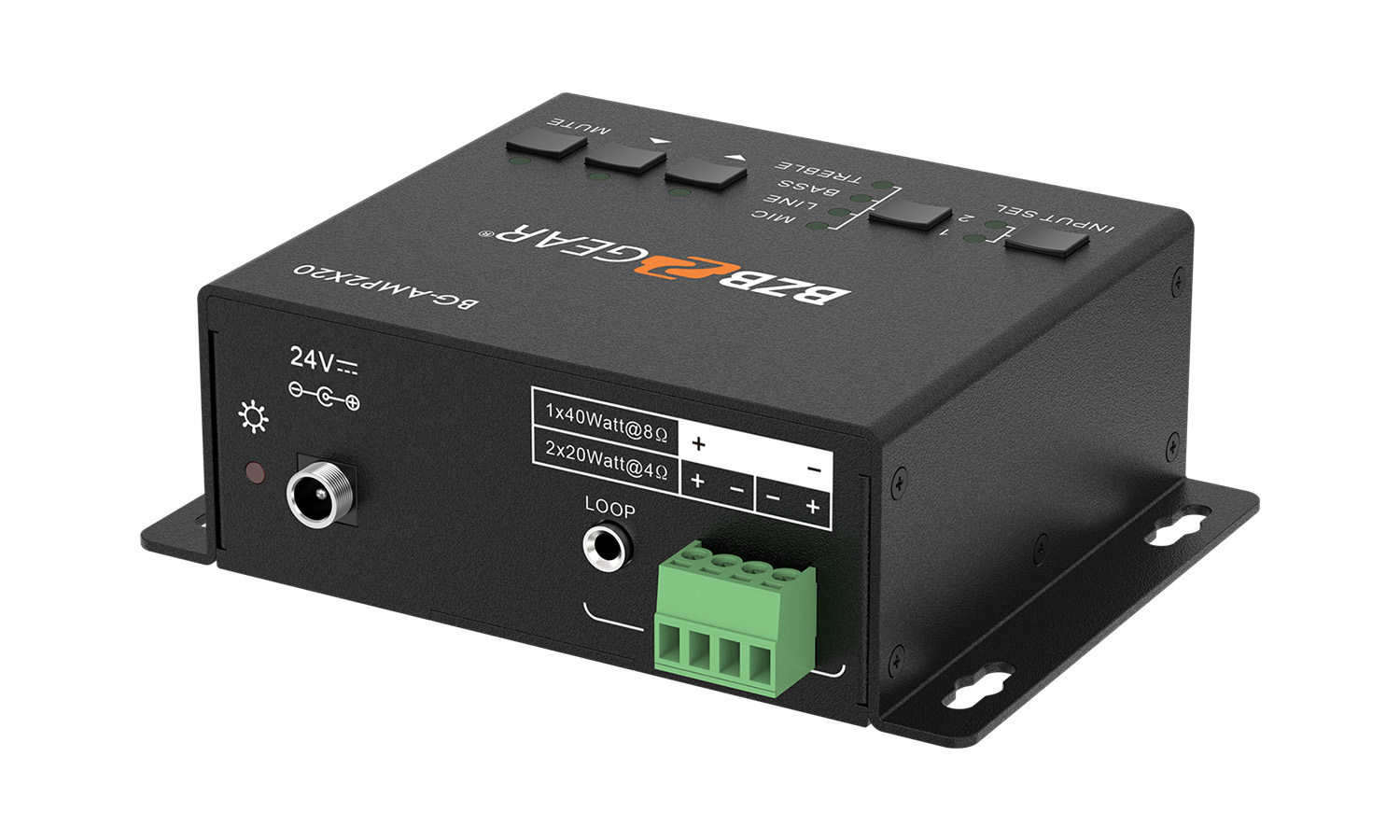

Locking power adaptor

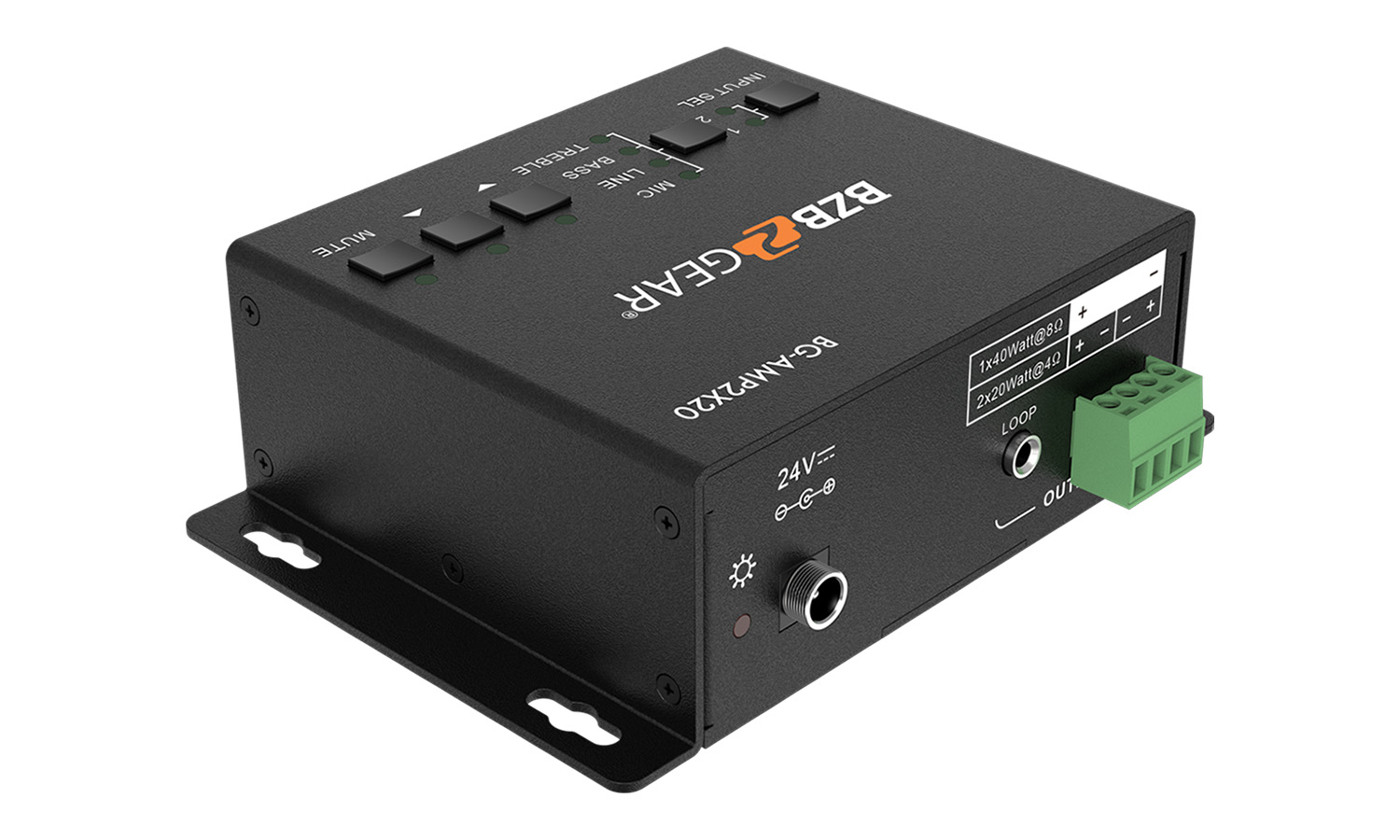

Loop output to cascade to another PA2B
2 switchable analog audio inputs

Interface

Video

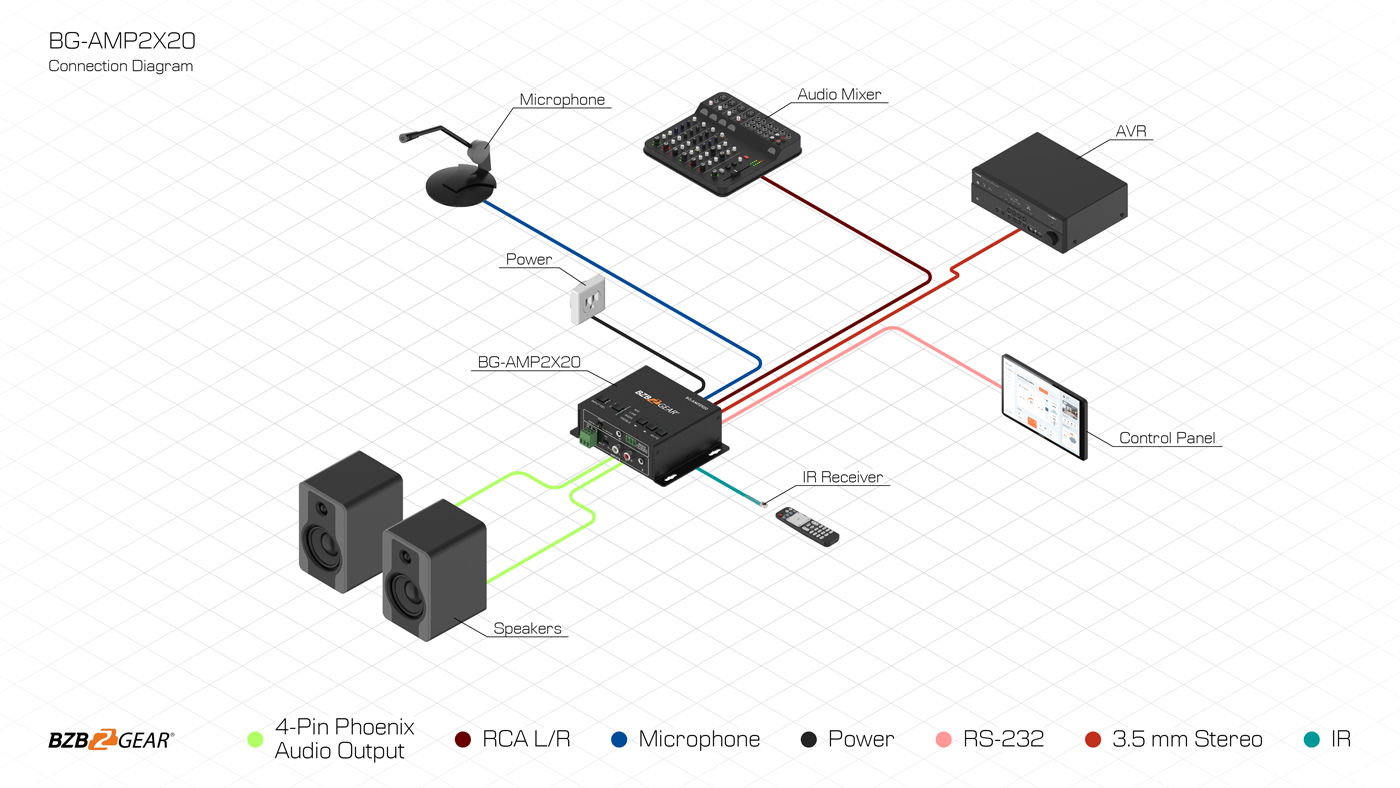

Product Diagrams

View Diagrams

Product Video

Specifications

Audio Input
Input	2x stereo audio, 1x MIC
Input Connector	2x RCA, 1x 3.5mm jack, 1x pluggable terminal block (3P, 3.81mm)
Input Impedance	>10KΩ
Audio Output
Output	1x amplifier, 1x stereo audio
Output Connector	1x 3.5mm jack, 1x pluggable terminal block (4P, 5.08mm)
Output Impedance	50Ω/stereo, 4~8Ω/Amplifier
Audio General
Frequency Response	20Hz ~ 20KHz
SNR	80dB at maximum output
Stereo Channel Separation	>75dB @ 20Hz to 20KHz
Voltage Gain	32dB
CMRR	>70dB @ 20Hz ~ 20KHz
Bandwidth	20Hz ~ 25KHz
THD + Noise	1% @ 1KHz, 0.3% @ 20KHz at nominal level
Power Output	2x20 Watts (4 Ohms)
Control Function
RS232 Control	3-hole phoenix connector
IR Remote	Optional IR remote
Panel Control	Optional button control
