BZBGEAR BG-8K-SA 8K60 HDMI 2.1 eARC Audio to Soundbar Converter/Adapter

Description

The BG-8K-SA HDMI eARC Audio to Soundbar Adapter is a high-performance solution designed to extract audio signals from HDMI sources or TVs with ARC/eARC functionality and seamlessly output them to a soundbar. Supporting data rates up to 48Gbps and fully compliant with HDMI 2.1 and HDCP 2.3 standards, this adapter ensures outstanding audio and video quality, making it a perfect addition to modern home theater systems.

It handles video resolutions up to 8K@60Hz 4:2:0 12-bit and 4K@120Hz 4:4:4 12-bit, delivering stunning visuals with support for high dynamic range (HDR) formats like HDR10, HDR10+, Dolby Vision, and HLG. Additionally, the adapter supports advanced HDMI 2.1 features, such as Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), Quick Media Switching (QMS), Quick Frame Transport (QFT), and Source-Based Tone Mapping (SBTM), ensuring smooth and responsive video playback.

Features in Depth

The HDMI eARC Audio to Soundbar Adapter is designed to enhance your home entertainment experience by delivering superior audio and video quality while maintaining seamless integration with existing devices. This adapter excels in extracting high-definition audio from HDMI sources or TVs equipped with ARC/eARC functionality, outputting it to soundbars, including popular models like SONOS ARC and Beam. Supporting HDMI 2.1 and HDCP 2.3 standards, the adapter handles video resolutions up to 8K@60Hz 4:2:0 12-bit and 4K@120Hz 4:4:4 12-bit, ensuring crystal-clear visuals with vivid colors and high dynamic range.

With data rates up to 48Gbps, the adapter supports cutting-edge HDMI 2.1 features that optimize video performance across a wide range of display technologies. These include Variable Refresh Rate (VRR) for smooth gaming, Auto Low Latency Mode (ALLM) for reduced input lag, Quick Media Switching (QMS) for instant transitions, Quick Frame Transport (QFT) for minimizing frame delay, and Source-Based Tone Mapping (SBTM) for accurate color reproduction.

The adapter also offers full audio pass-through, supporting high-definition formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS, ensuring an immersive sound experience. It facilitates the de-embedding of audio from HDMI inputs or TV eARC channels, delivering flawless audio output to connected soundbars. The inclusion of advanced EDID management ensures compatibility with a broad range of devices, while cable equalization helps maintain signal integrity over longer distances.

Additionally, the adapter supports Consumer Electronics Control (CEC), allowing users to manage their source devices and soundbars directly from their TV remote, including volume control, for a streamlined and user-friendly experience. With its robust feature set, the HDMI eARC Audio to Soundbar Adapter is an essential component for any advanced home entertainment system, offering a straightforward solution to enhance audio output while preserving high-quality video performance.

Features

HDMI 2.1 and HDCP 2.3 Compliant: Guarantees support for the latest HDMI standards and secure content transmission
Ultra-High Resolutions: Supports up to 8K@60Hz (4:2:0, 12-bit) and 4K@120Hz (4:4:4, 12-bit) for superior visual quality
High-Fidelity Audio: LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master, and DTS audio pass-through for immersive sound
Versatile Audio De-embedding: Extracts HDMI input or TV eARC audio for output to any soundbar, supporting full audio formats including Dolby Atmos/DTS
eARC Compatibility: Delivers full audio output, including Dolby Atmos and DTS, from eARC TVs to SONOS ARC & Beam or any eARC-enabled soundbar
CEC Control: Enables seamless CEC control from TV to source and soundbar, including volume adjustments
High-Bandwidth Support: Delivers 48Gbps FRL and 18Gbps TMDS video bandwidth for seamless high-definition video transfer
Advanced HDR Pass-Through: Supports HDR, HDR10, HDR10+, Dolby Vision, and HLG for vibrant color and contrast
Advanced EDID Management: Optimizes device communication and performance
Comprehensive HDMI 2.1 Protocols: Fully compatible with VRR, ALLM, QMS, QFT, and SBTM for enhanced gaming and video experiences

Specifications

Technical
HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48Gbps FRL and 18Gbps TMDS
Video Resolution	Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
Audio Latency	No Latency
Video Latency	No Latency
Color Depth	8/10/12bit
Color Space	RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Audio Formats	HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X eARC AUDIO OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
HDR	HDR, HDR10, HDR10+, Dolby Vision, HLG
ESD Protection	IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection

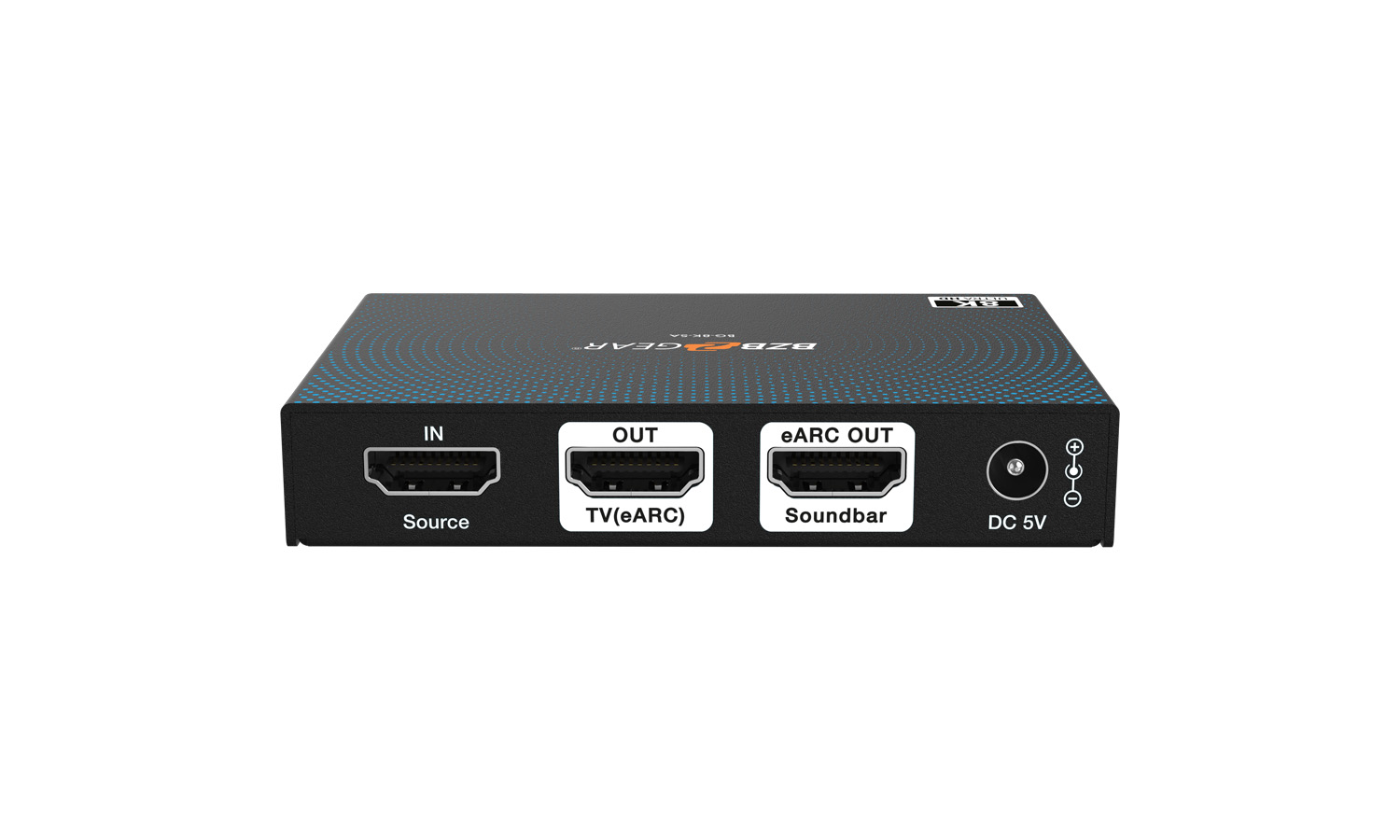

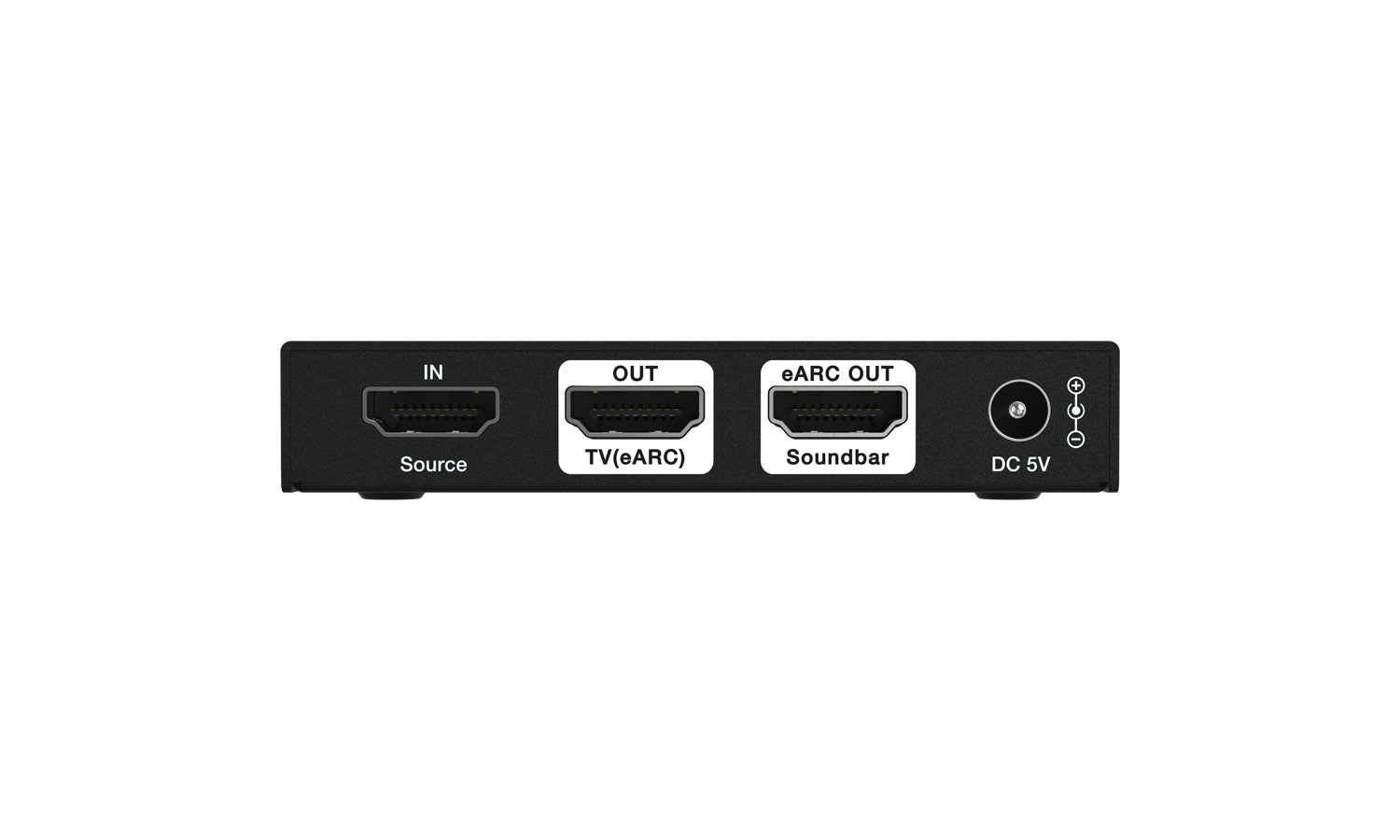

Input	1 x Source IN [HDMI Type A, 19-pin female]
Output	1 x TV(eARC) OUT [HDMI Type A, 19-pin female] 1 x Soundbar eARC OUT [HDMI Type A, 19-pin female]

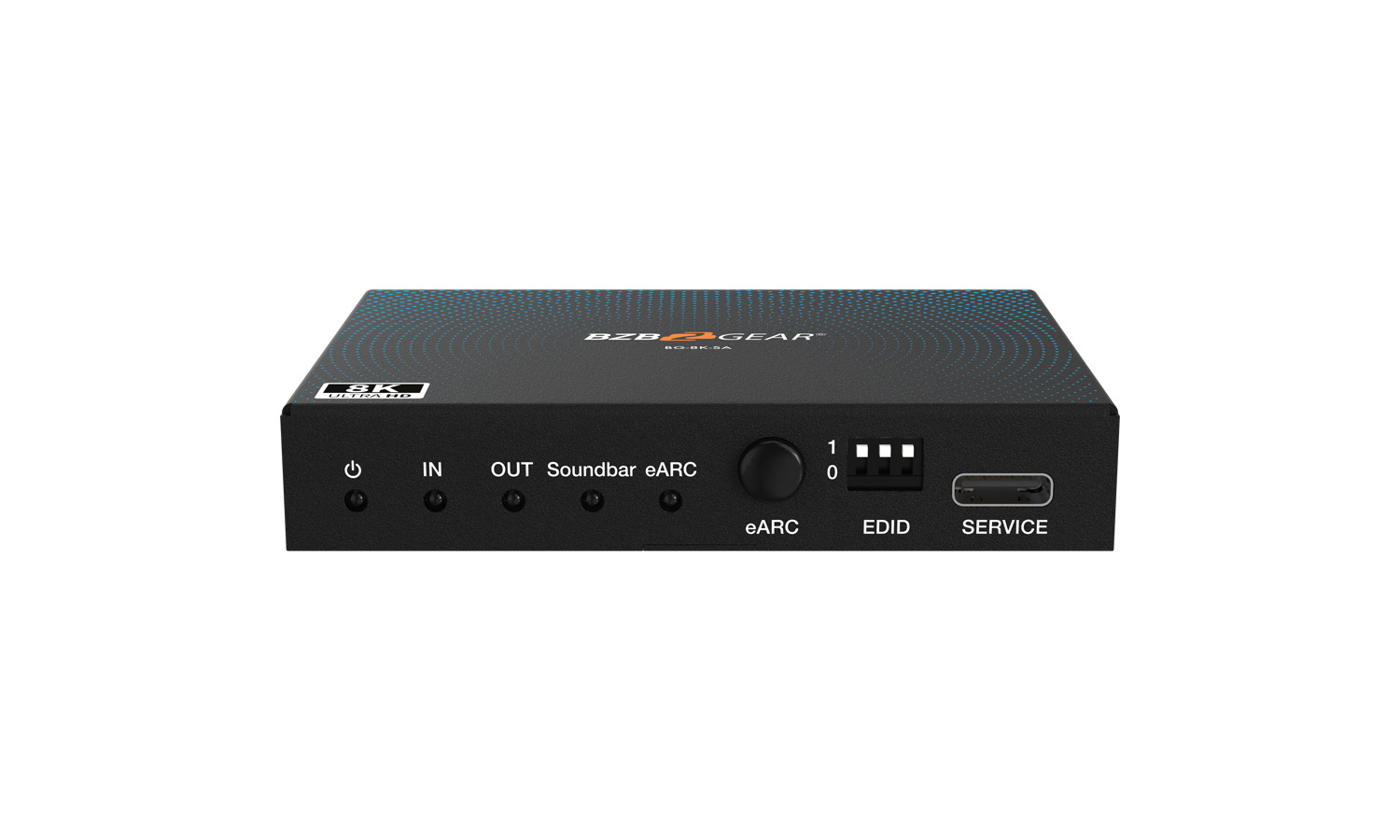

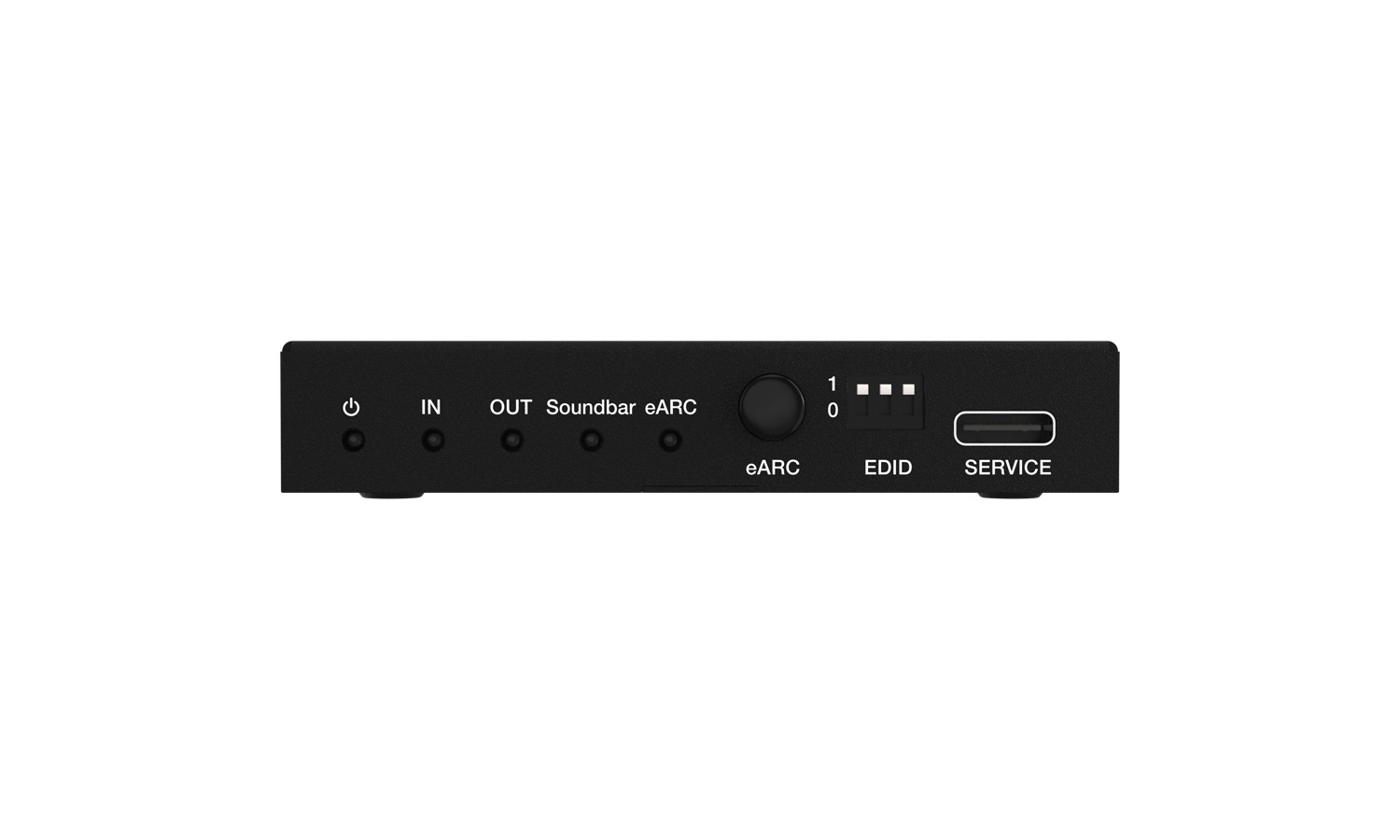

Control	1 x SERVICE [USB Type C, Update port]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions (W x D x H)	3.7in x 2.7in x 0.71in [95mm x 68mm x 18mm]
Weight	0.39 lbs [178g]
Power Supply	Input: AC 100-240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption	4.13W (Max)
Operation Temperature	32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature	-4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity	20~90% RH (non-condensing)
Recommended HDMI Cable
Video Resolution	8K60	4K60	4K30	1080P
HDMI Cable Length (HDMI in / out)	2m/6.6ft ~ 3m/10ft (Ultra HDMI 2.1)	5m/16ft	10m/33ft	15m/49ft
The use of “Premium High Speed HDMI” cables is highly recommended.
