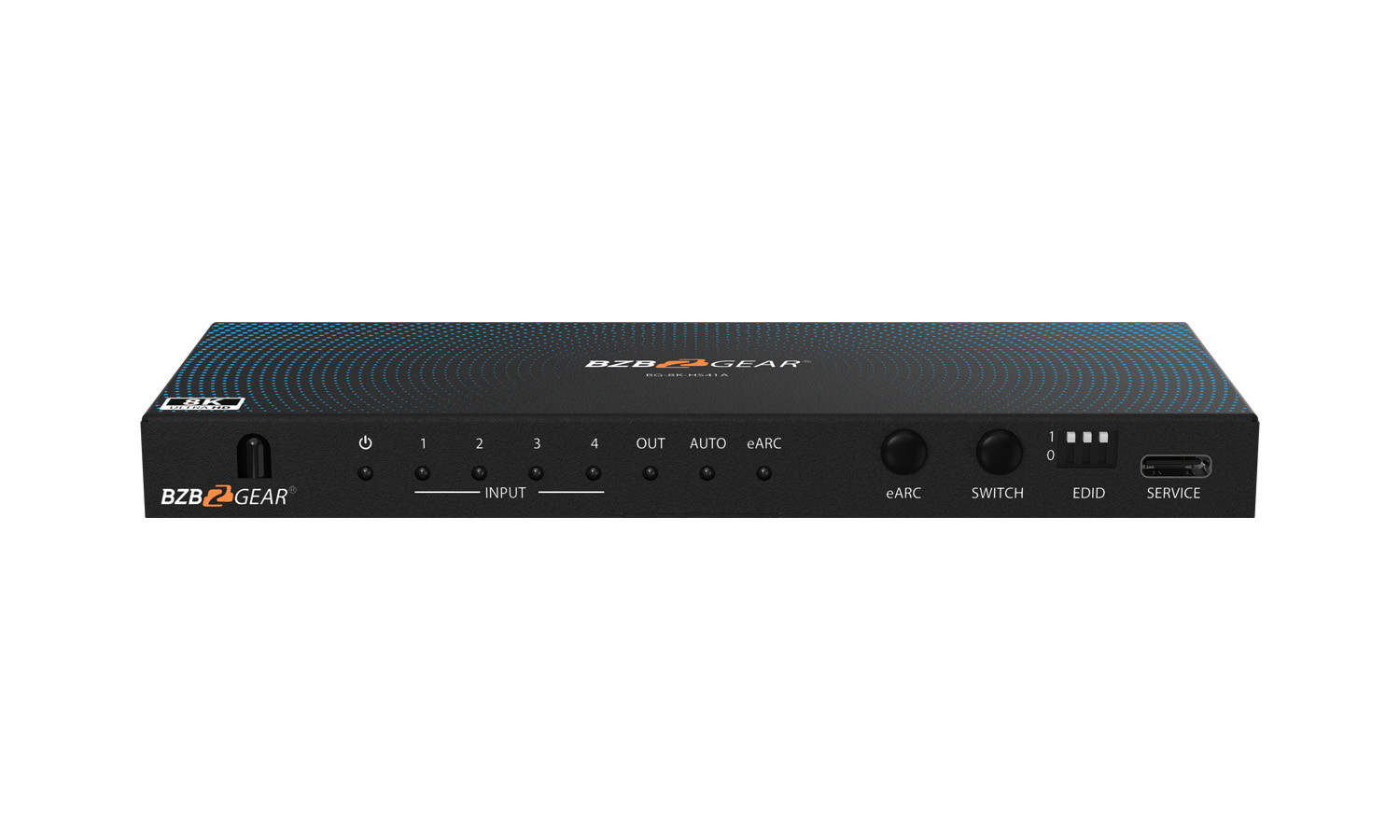

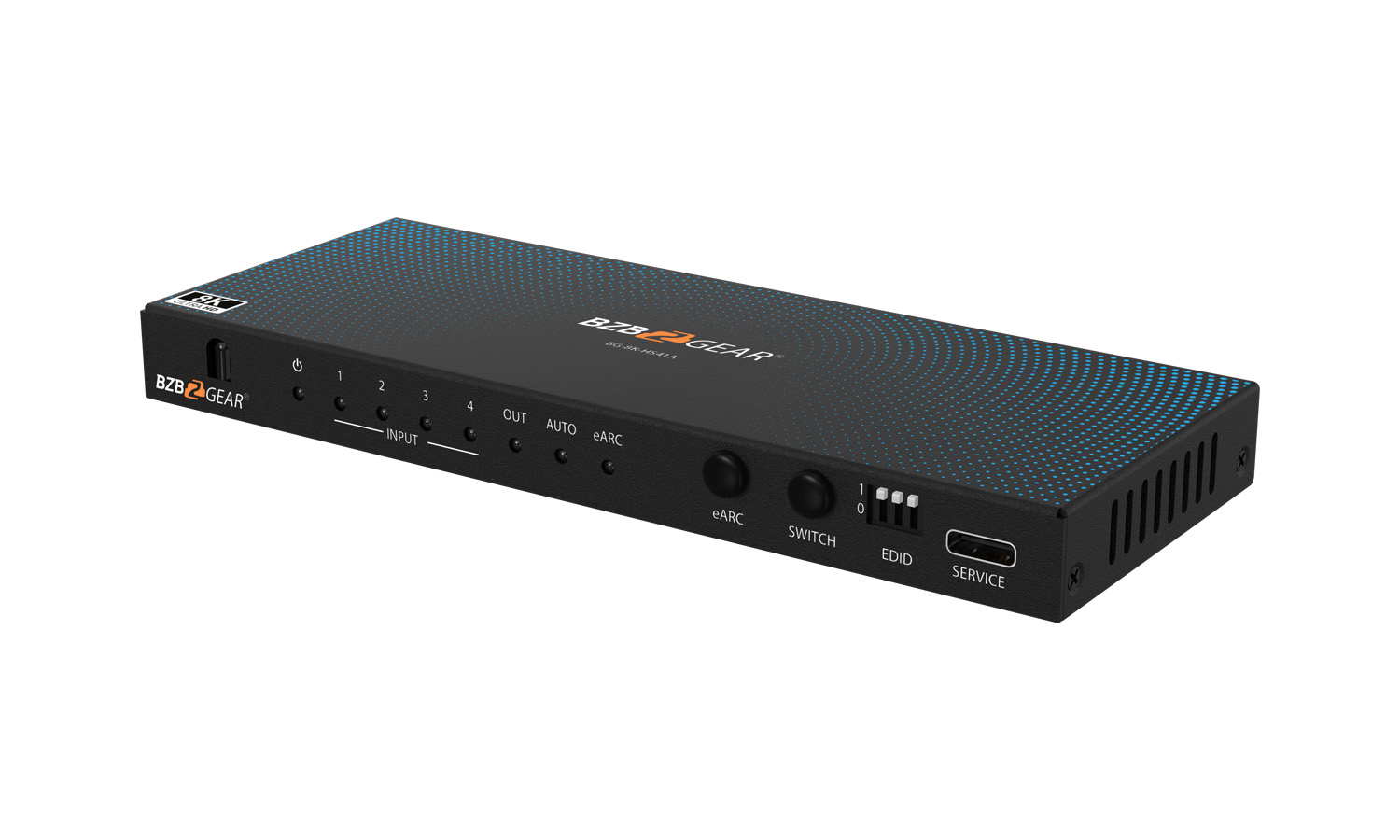

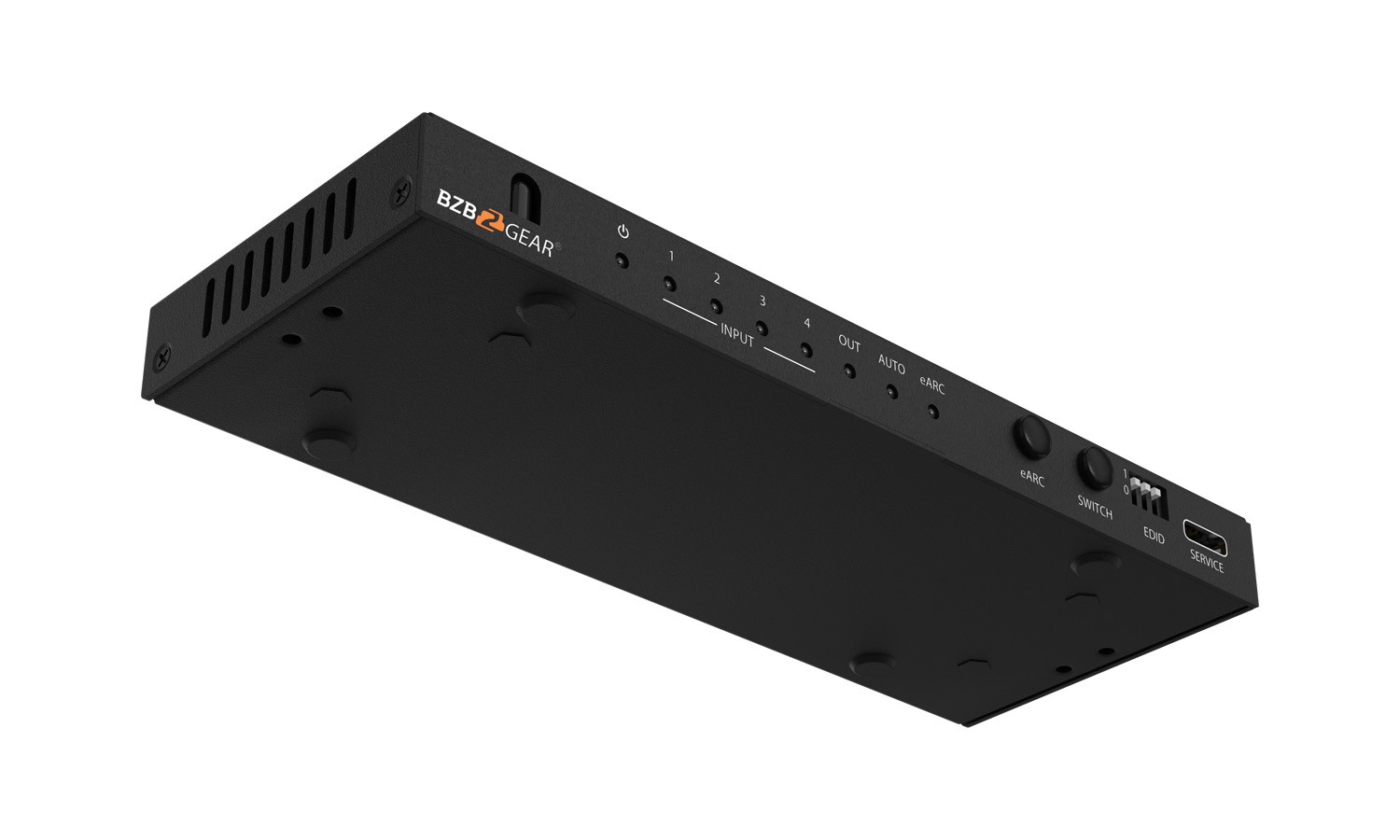

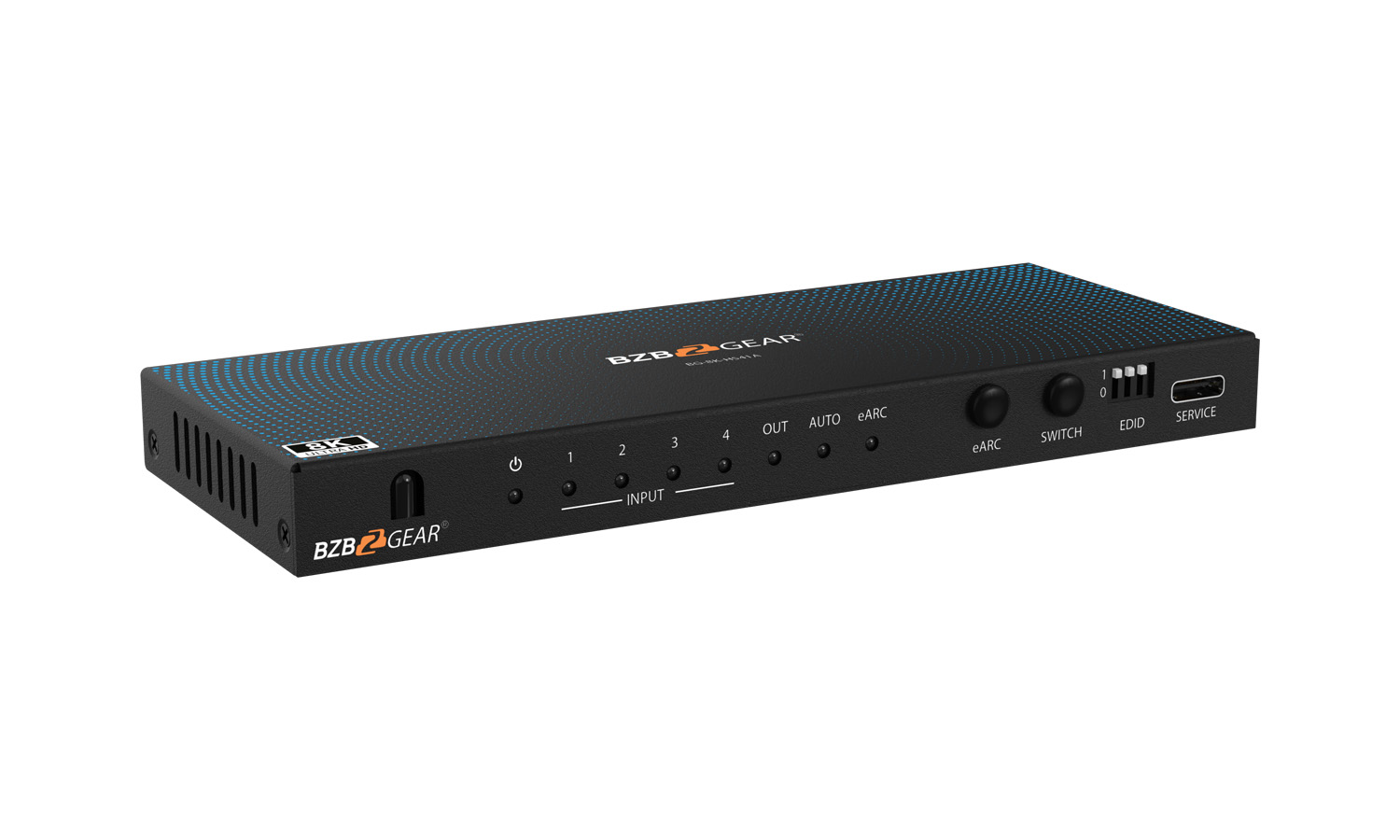

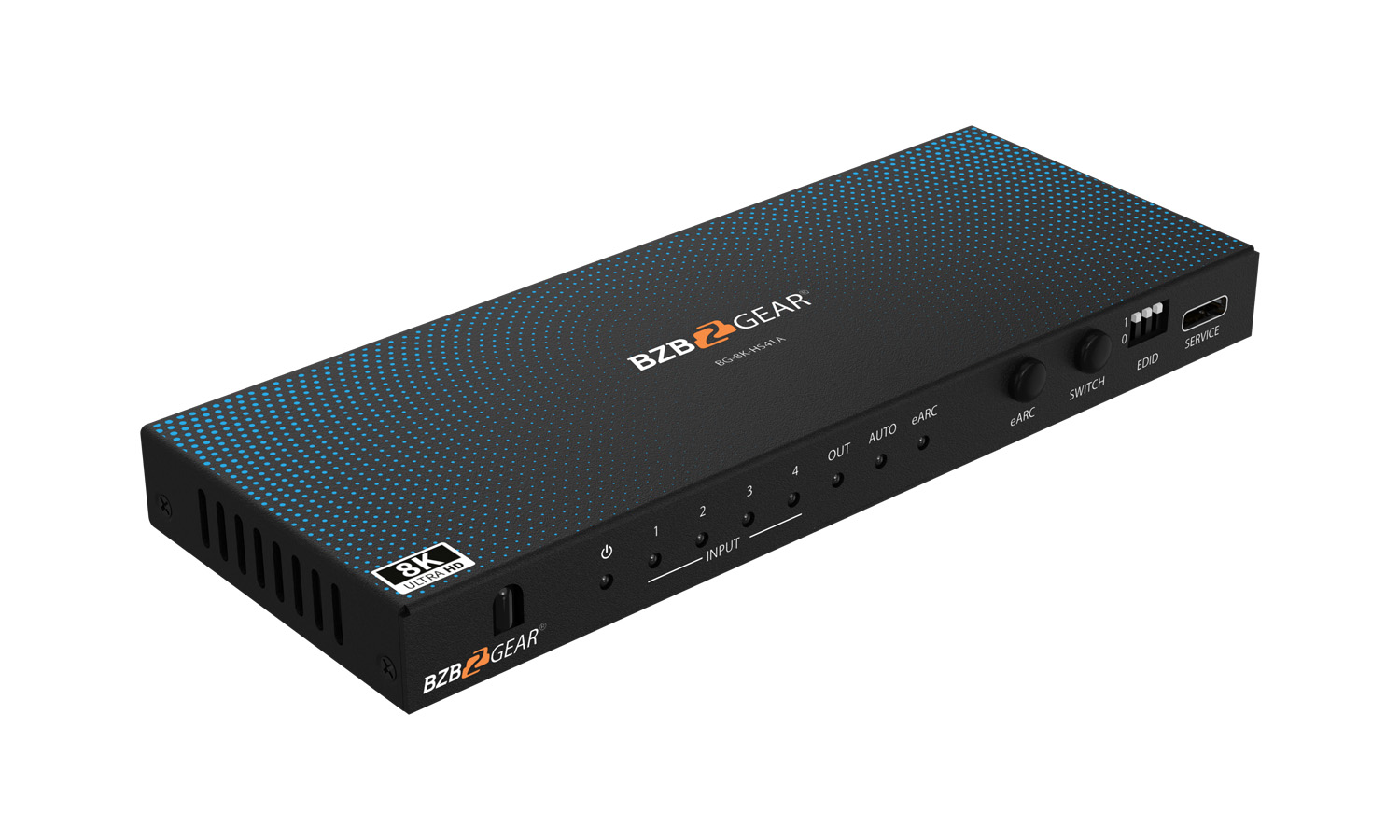

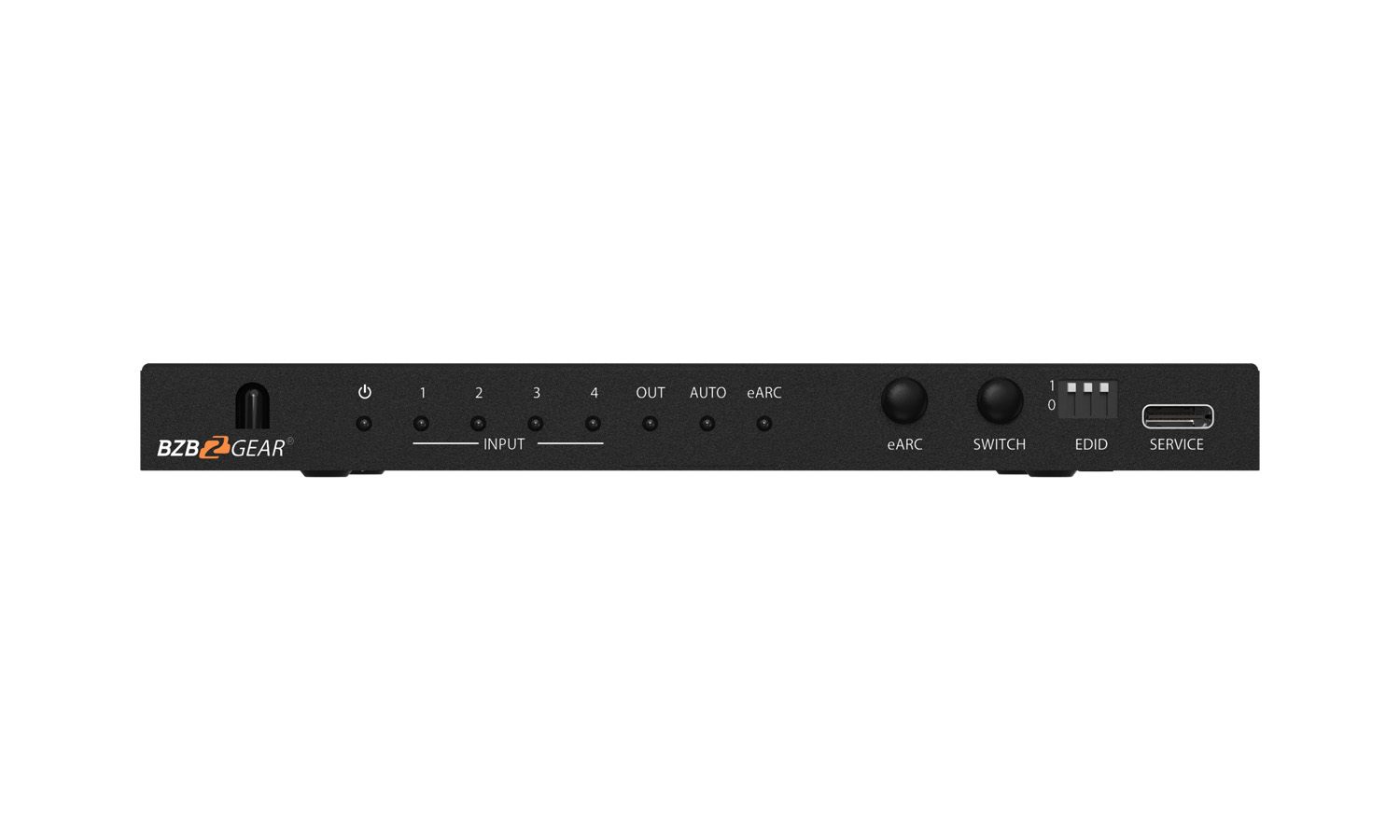

BZBGEAR BG-8K-HS41A 4x1 8K UHD HDMI 2.1 Switcher with Audio De-Embedding (8K60/4K120Hz 4:4:4 VRR/FVA/ALLM Support)

Description

The BG-8K-HS41A 48Gbps 4×1 HDMI Switcher is a high-performance solution designed to seamlessly switch between four HDMI source signals on a single HDMI display. Capable of supporting video resolutions up to 8K@60Hz 4:2:0, this switcher is equipped with cutting-edge features to enhance your audiovisual experience. Its advanced EDID management, CEC control, ARC/eARC support, and comprehensive audio de-embedding options make it an excellent choice for home entertainment, gaming, and more.

Features-in-Depth

Featuring HDCP 2.3 compliance, the BG-8K-HS41A ensures compatibility with the latest copy protection standards for secure playback. It supports high bandwidth of 48Gbps FRL and 18Gbps TMDS, accommodating resolutions up to 8K@60Hz 4:2:0 12bit, 8K@30Hz 4:4:4 12bit, and 4K@120Hz 4:4:4 12bit, adhering to HDMI 2.1 specifications. The switcher also includes HDMI 2.1 protocol support, featuring Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), Quick Media Switching (QMS), Quick Frame Transport (QFT), and Source-Based Tone Mapping (SBTM).

In terms of HDR and audio capabilities, the BG-8K-HS41A supports various formats including HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through. It also accommodates HDMI audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS. The switcher routes four HDMI inputs to a single HDMI output and supports HDMI input and TV eARC audio de-embedding to SPDIF and L/R outputs. It can also output audio to SONOS ARC & Beam or any eARC-compatible soundbar.

Additional features include CEC control, which allows for seamless control from the TV to the source device and volume adjustments from the TV to any eARC sound system. Advanced EDID management is also incorporated to ensure optimal compatibility and signal quality. For ongoing enhancements, firmware updates can be performed via the USB Type-C port. The BG-8K-HS41A is a versatile, high-performance switcher suitable for a wide range of professional and multimedia applications.

Features

HDCP 2.3 Compliance: Ensures compatibility with the latest copy protection standards for secure playback
Video Enhancements: Includes features such as Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), Quick Media Switching (QMS), Quick Frame Transport (QFT), and Source-Based Tone Mapping (SBTM)
HDR and Audio Pass-Through: Supports HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through, along with HDMI audio formats like LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS
CEC Control: Facilitates control from the TV to the source device and allows volume control from the TV to any eARC sound system
Advanced EDID Management: Offers sophisticated EDID management for optimal compatibility and signal quality
High Bandwidth Support: Handles 48Gbps FRL and 18Gbps TMDS video bandwidth, supporting resolutions up to 8K@60Hz 4:2:0 12bit, 8K@30Hz 4:4:4 12bit, and 4K@120Hz 4:4:4 12bit, in line with HDMI 2.1 specifications
Firmware Upgrades: Easily update firmware via the USB Type-C port for ongoing enhancements and functionality
Multi-Input and Output Functionality: Routes 4 HDMI inputs to a single HDMI output and supports HDMI input and TV eARC audio de-embedding to SPDIF and L/R outputs. It also accommodates audio output to SONOS ARC & Beam or any eARC-compatible soundbar

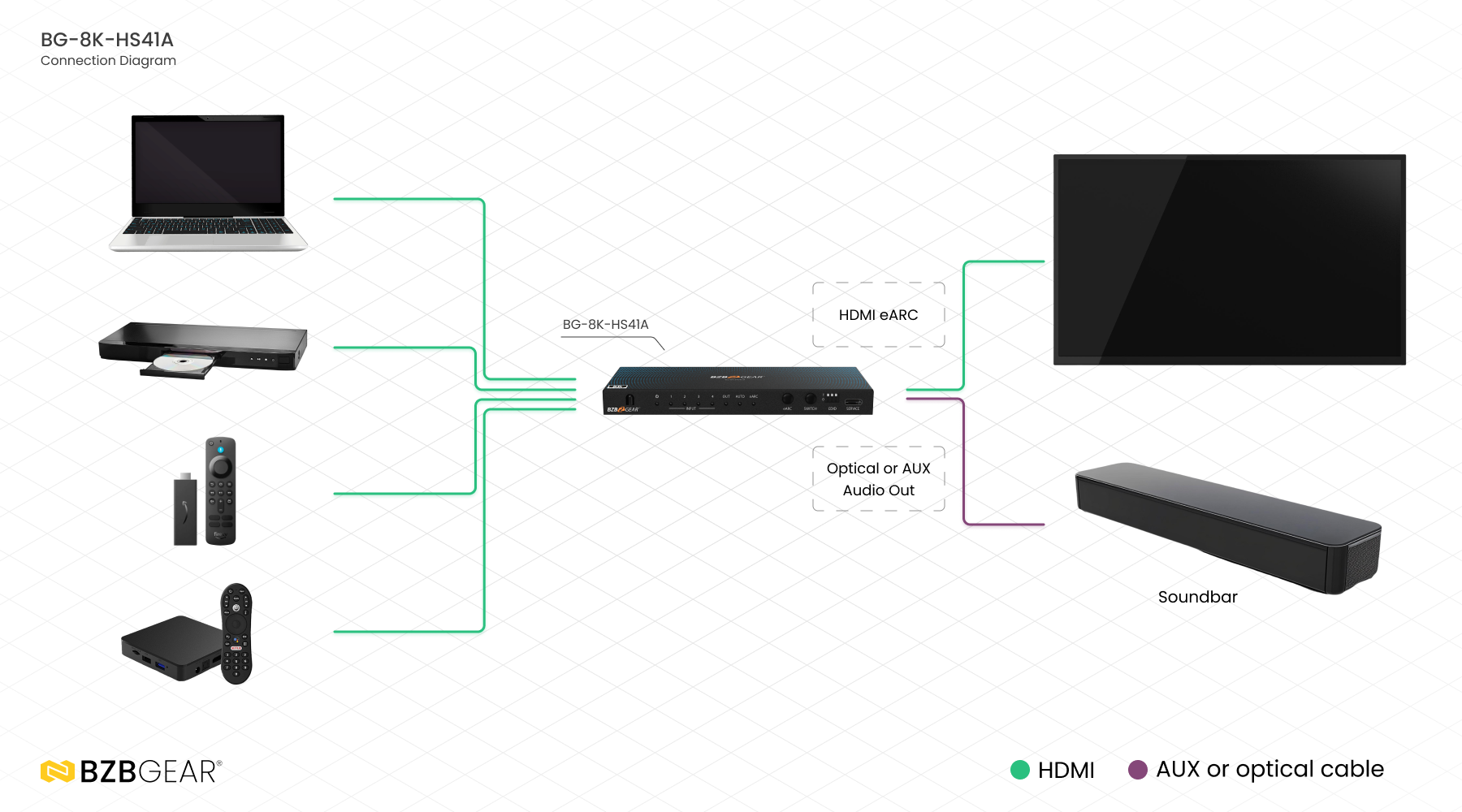

Product Diagrams

View Diagrams

Specifications

Technical
HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48Gbps FRL and 18Gbps TMDS
Video Resolution	Up to 8K@60Hz 4:2:0 12bit, 8K@30Hz 4:4:4 12bit, 4K@120Hz 4:4:4 12bit
Audio Latency	No Latency
Video Latency	No Latency
Color Depth	8/10/12bit
Color Space	RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Audio Formats	HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD eARC Audio Out: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD Audio De-embedded Output: Optical: LPCM 2.0CH/Dolby/DTS 5.1CH Analog: LPCM 2.0CH
HDR	HDR, HDR10, HDR10+, Dolby Vision, HLG
ESD Protection	IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection

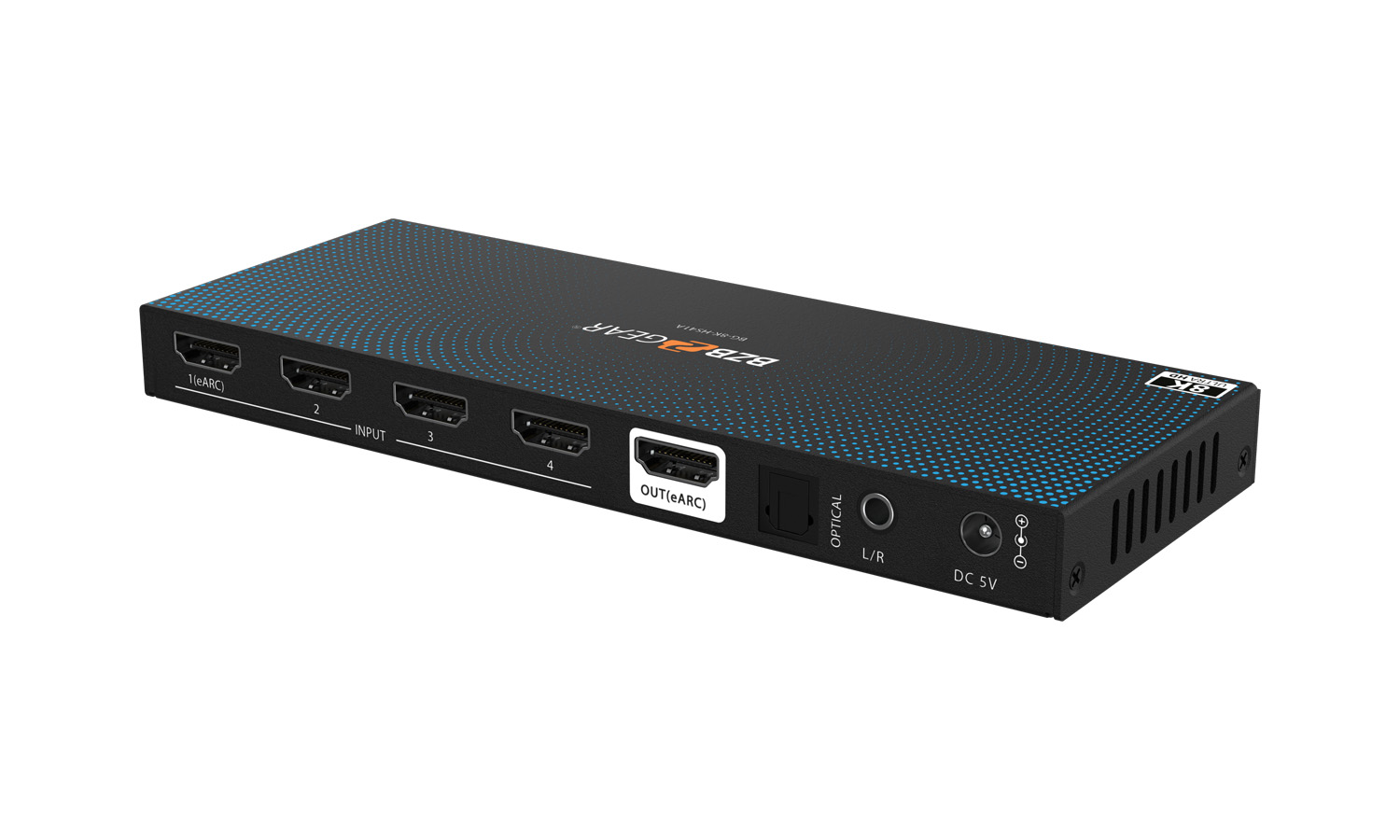

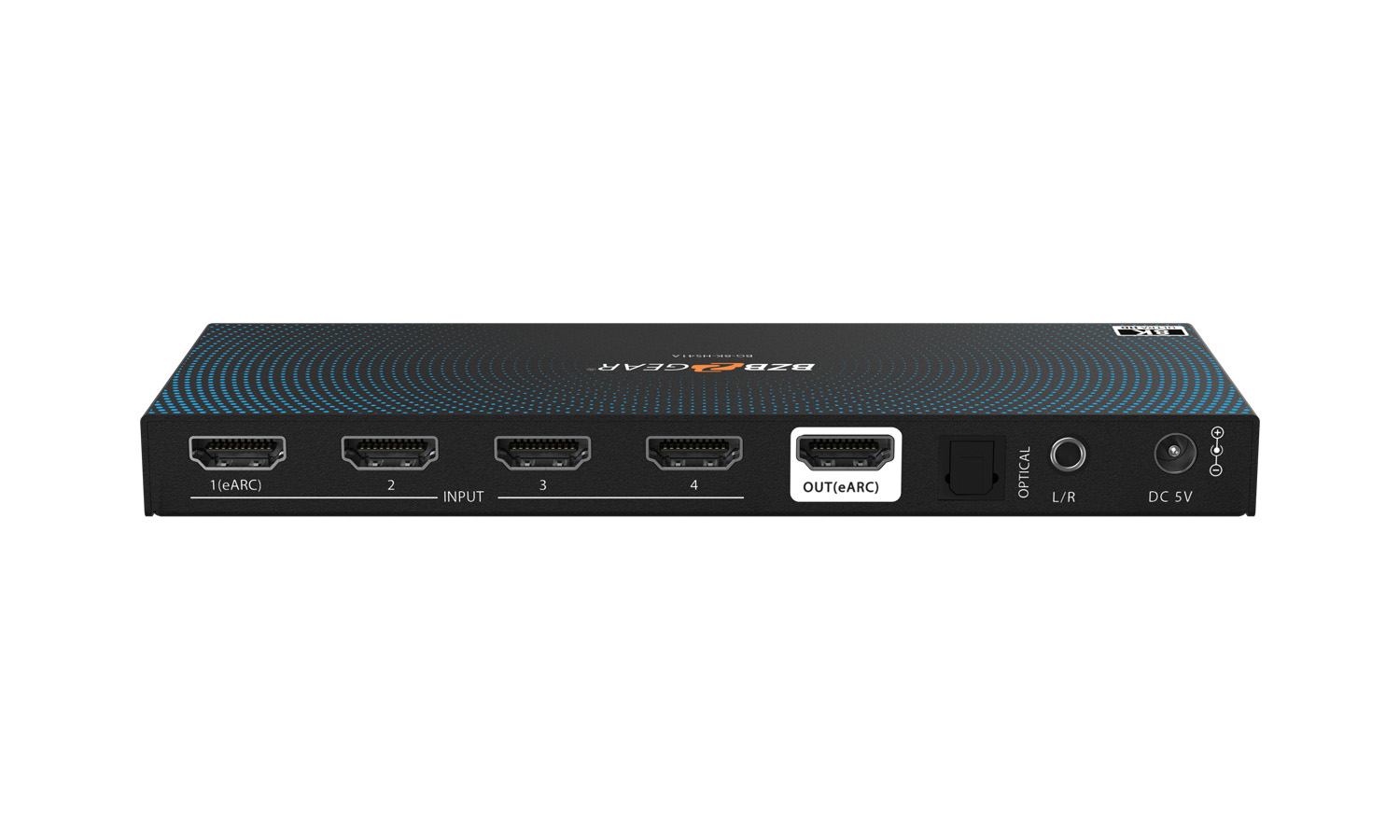

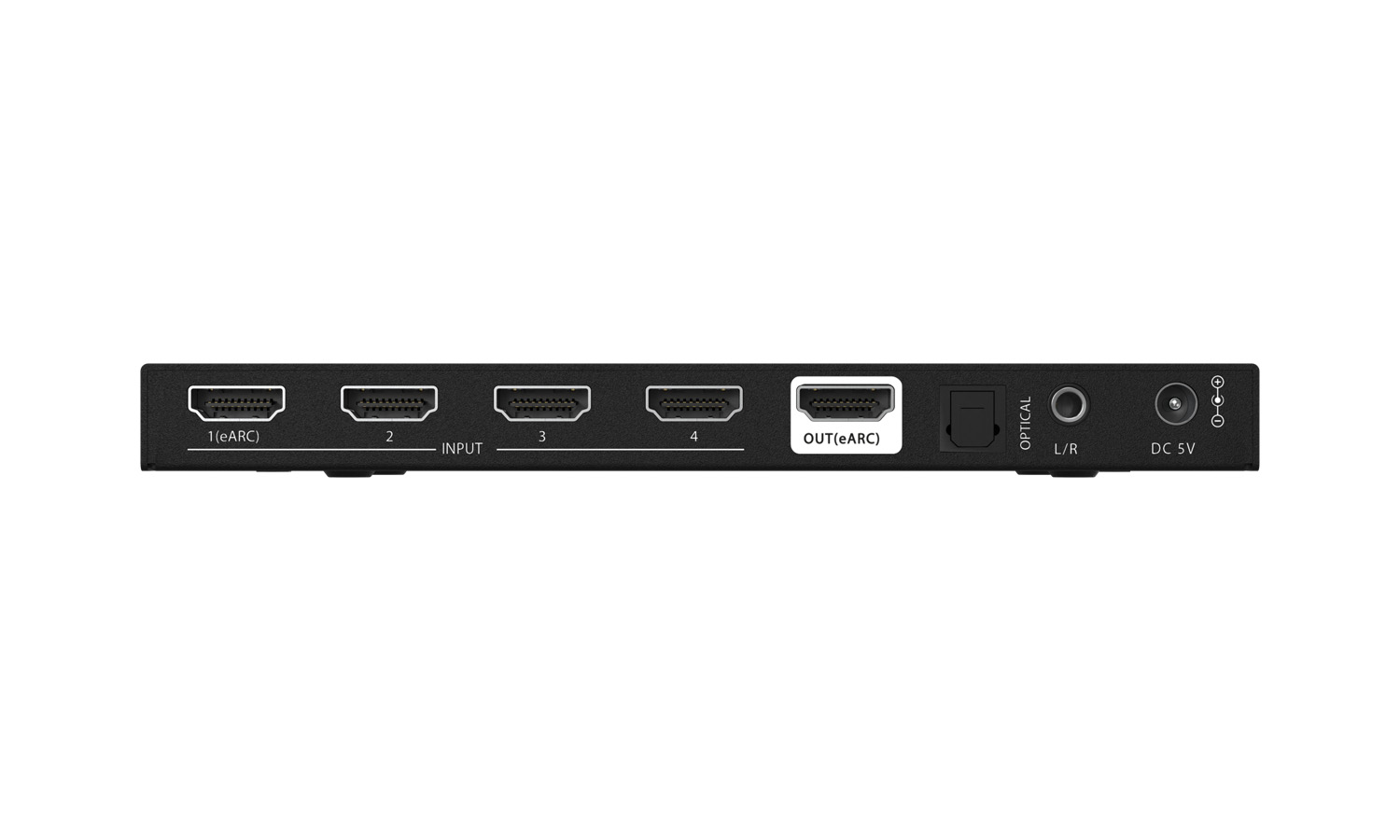

Input	4 x HDMI IN [Type A, 19-pin female]
Output	1 x HDMI OUT [Type A, 19-pin female] 1 x OPTICAL [S/PDIF] 1 x L/R [3.5mm Stereo Mini-jack]
Control	1 x SERVICE [USB Type C, Update port]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions (W x D x H)	6.9in x 2.7in x 0.71in [176mm x 68mm x 18mm]
Weight	0.69 lbs [315g]
Power Supply	Input: AC 100-240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption	2.5W (Max)
Operation Temperature	32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature	-4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity	20~90% RH (non-condensing)
Recommended HDMI Cable
Video Resolution	8K	4K60	4K24	1080P
HDMI Cable Length (HDMI in / out)	2m/6.6ft (Ultra HDMI 2.1)	8m/26ft	12m/39ft	15m/49ft
The use of “Premium High Speed HDMI” cables is highly recommended.
