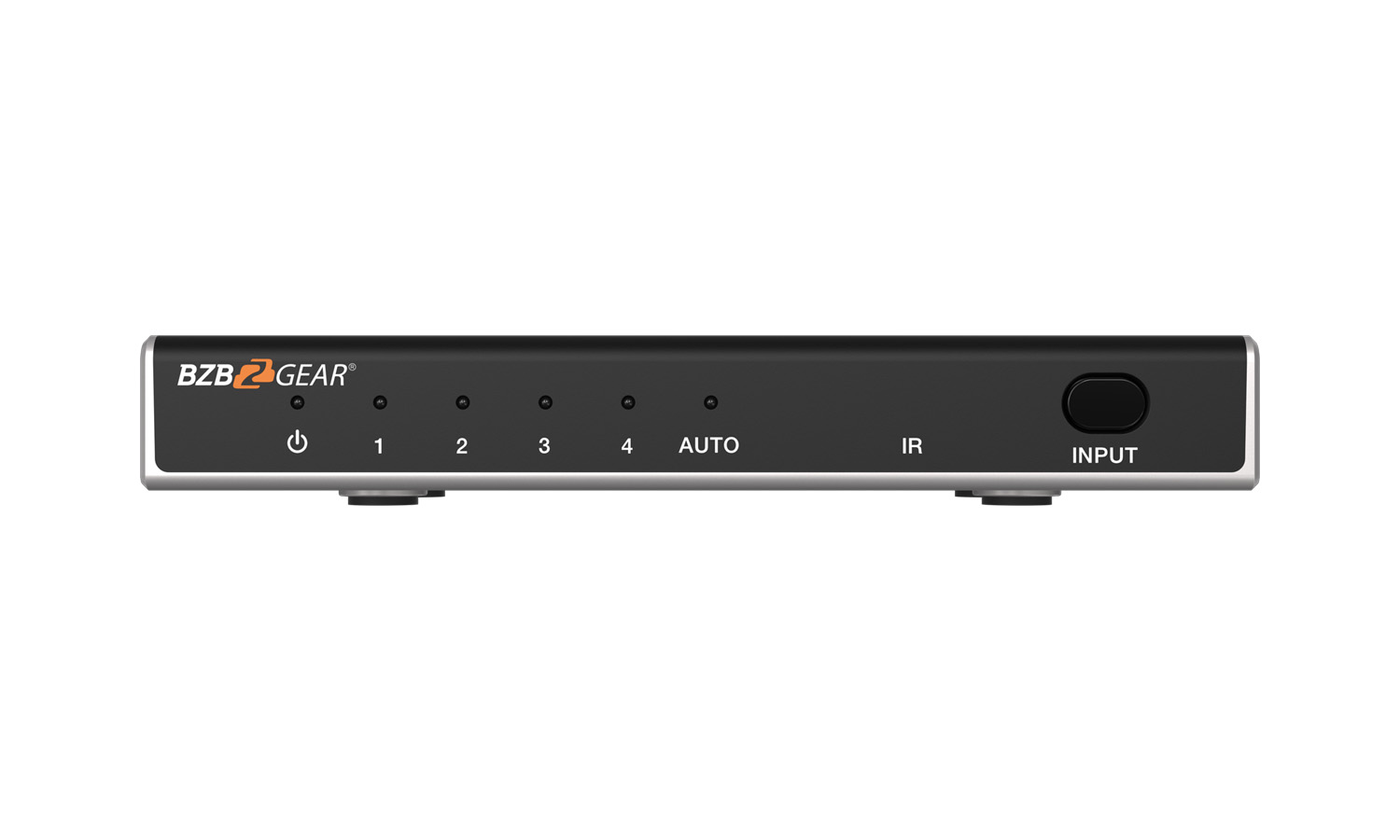

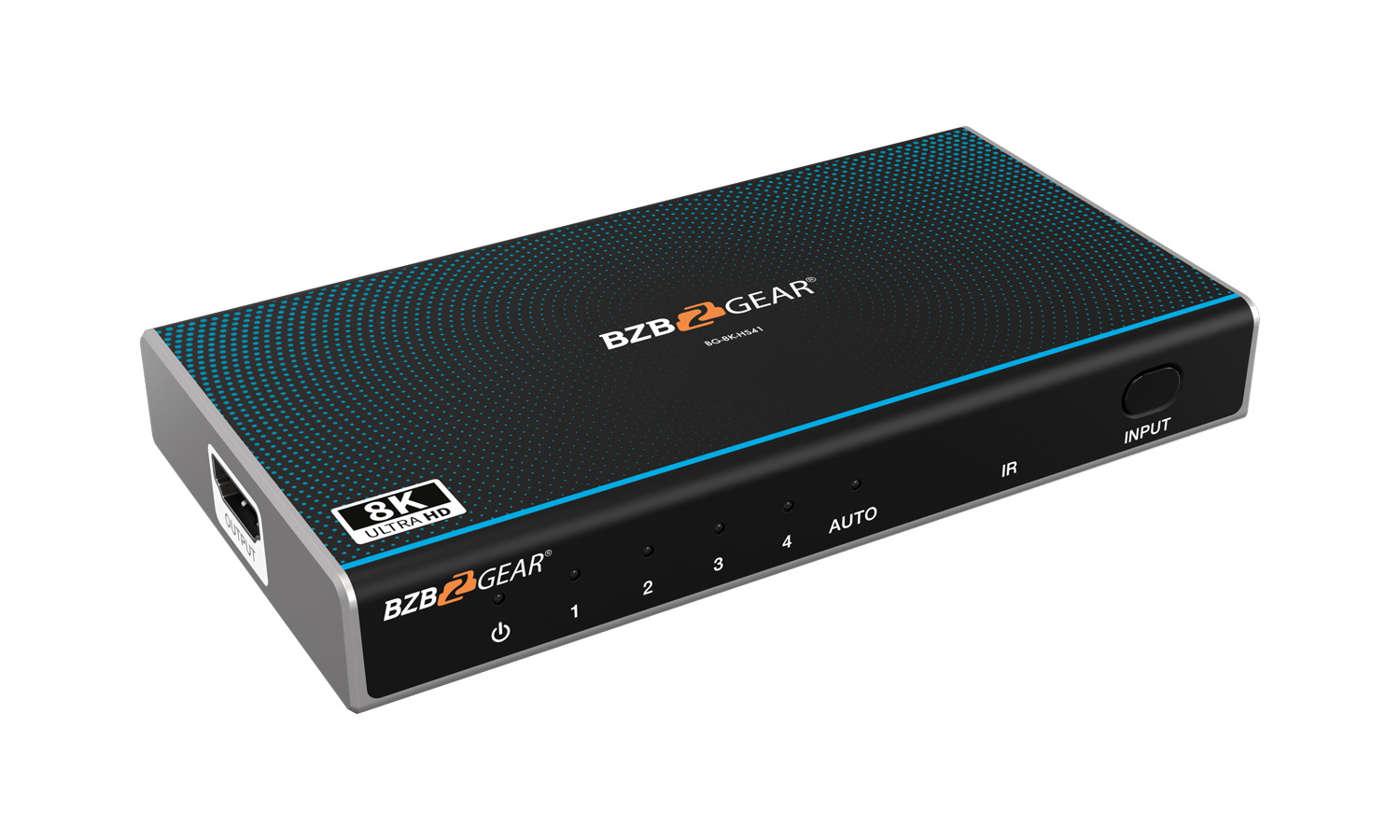

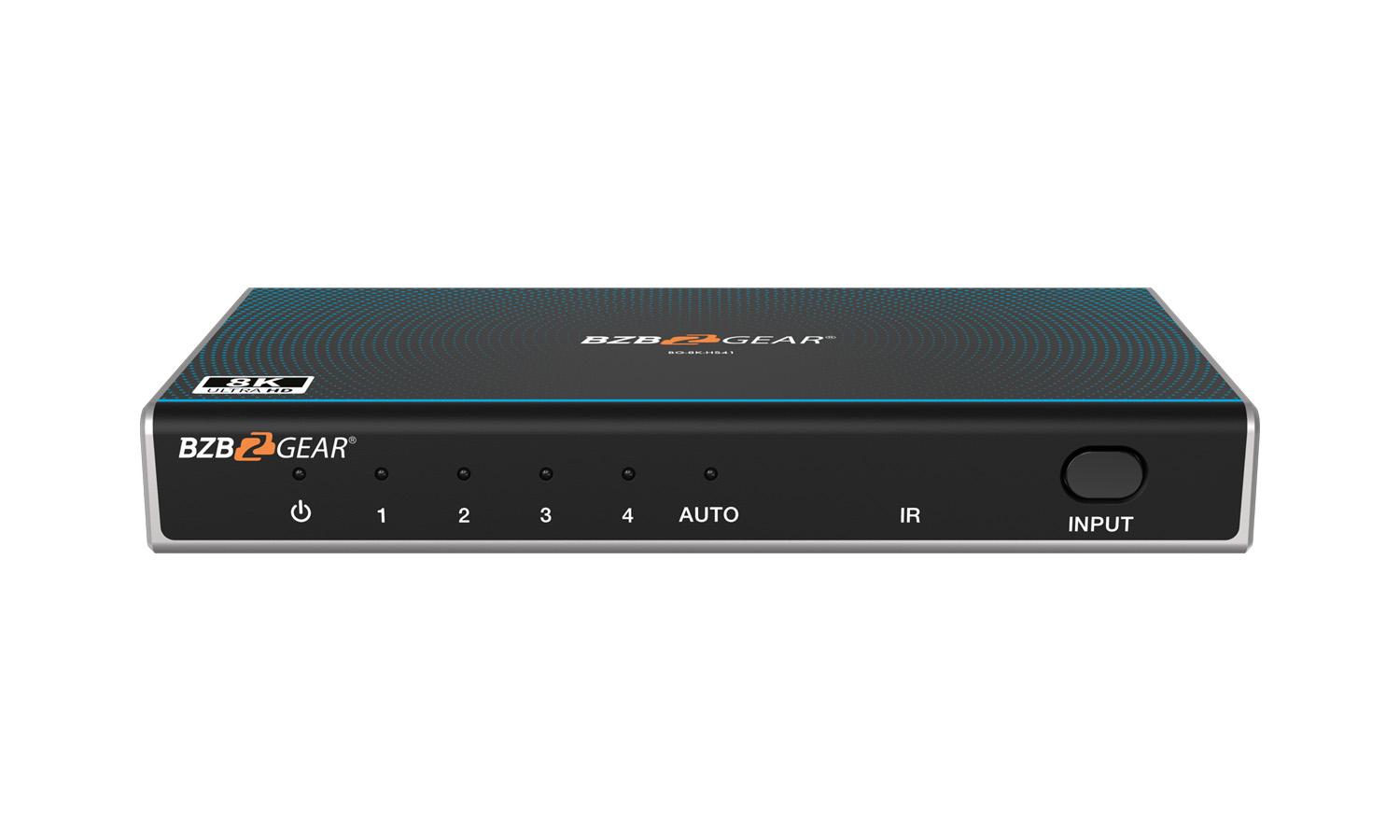

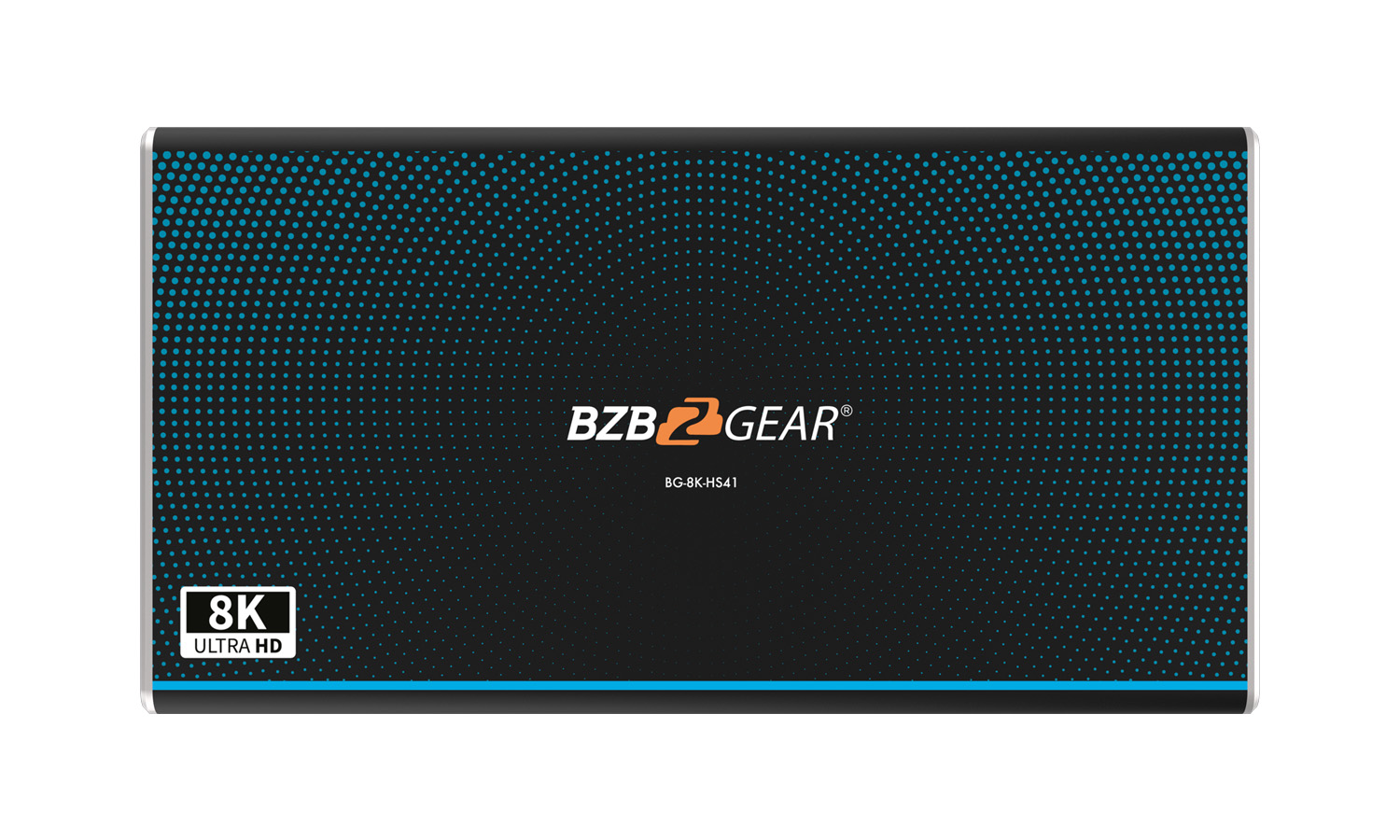

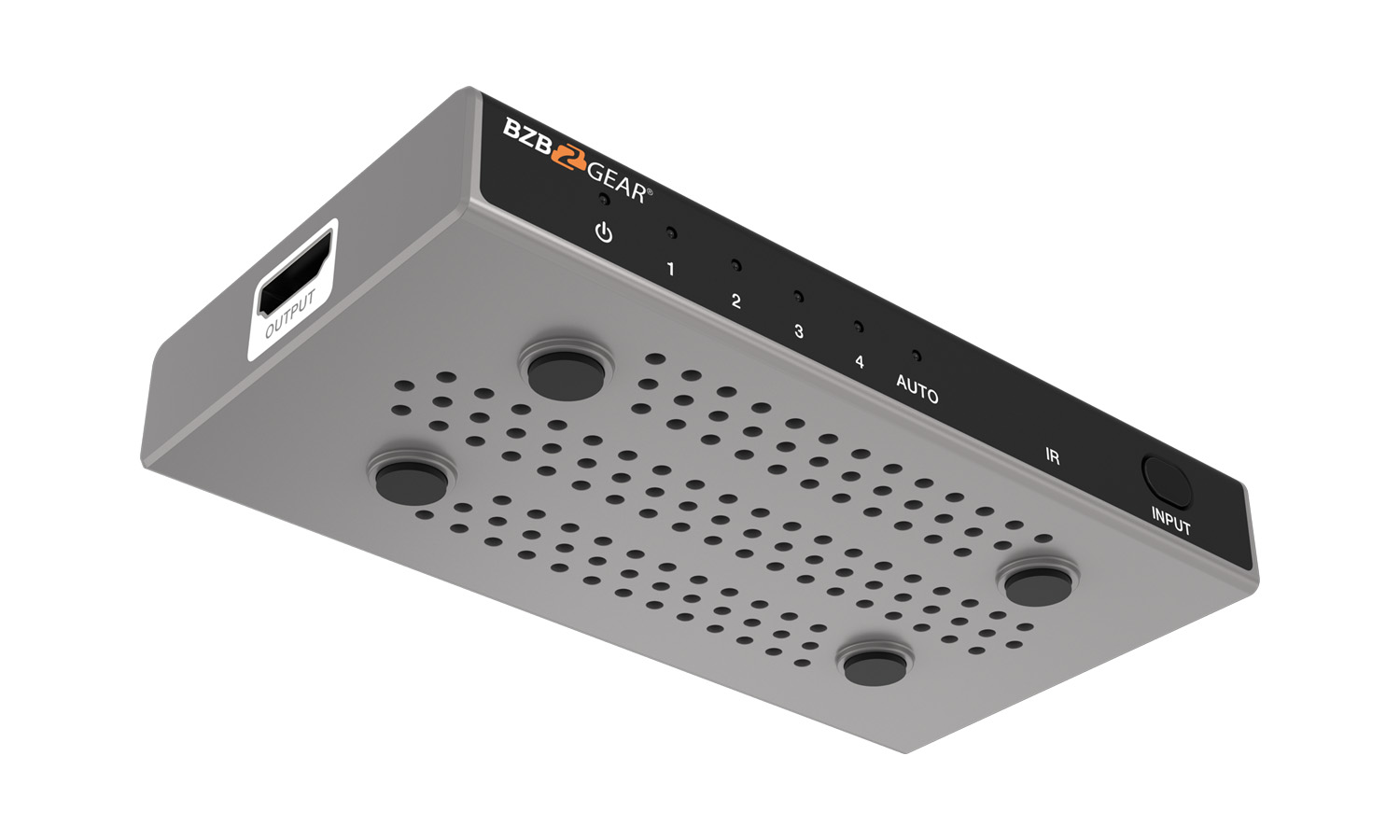

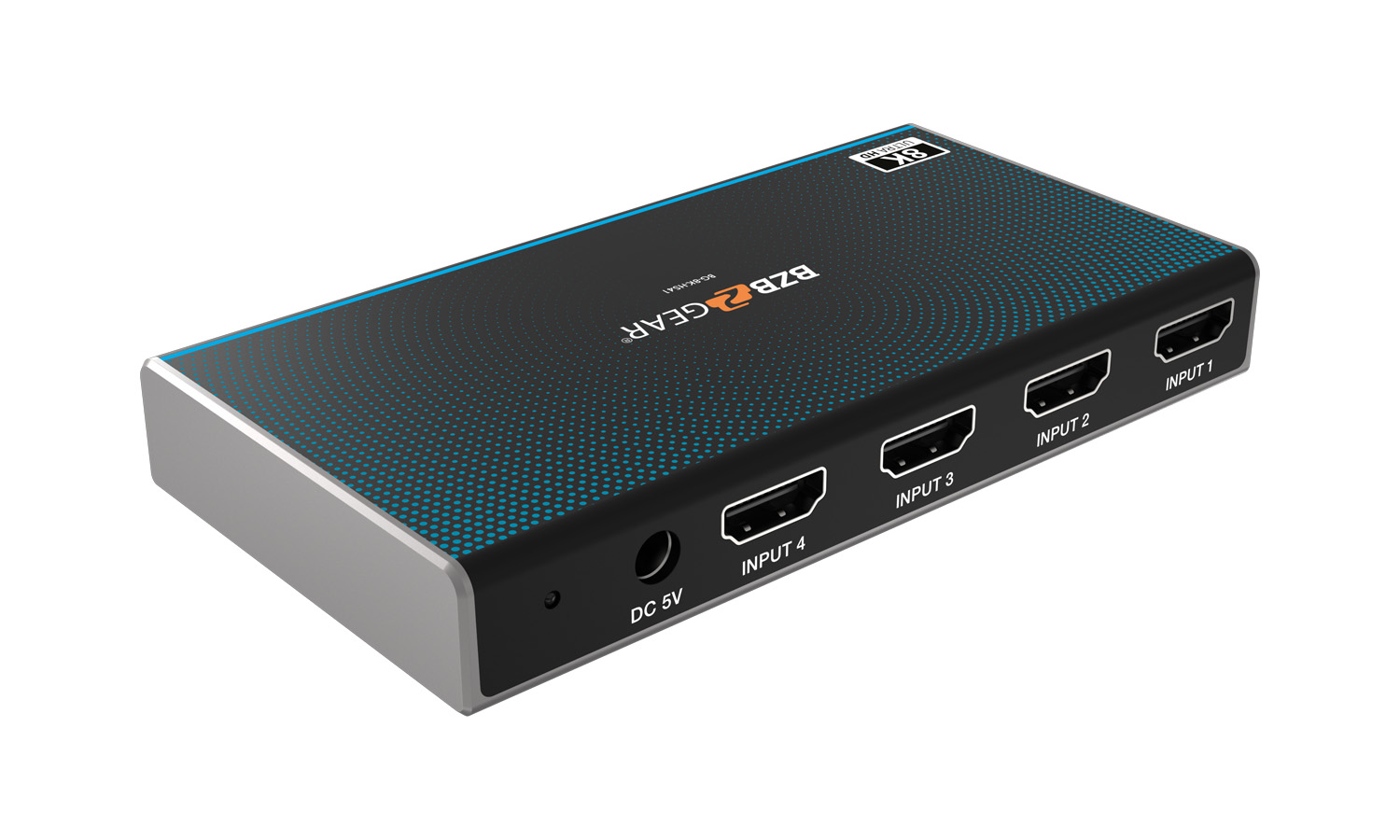

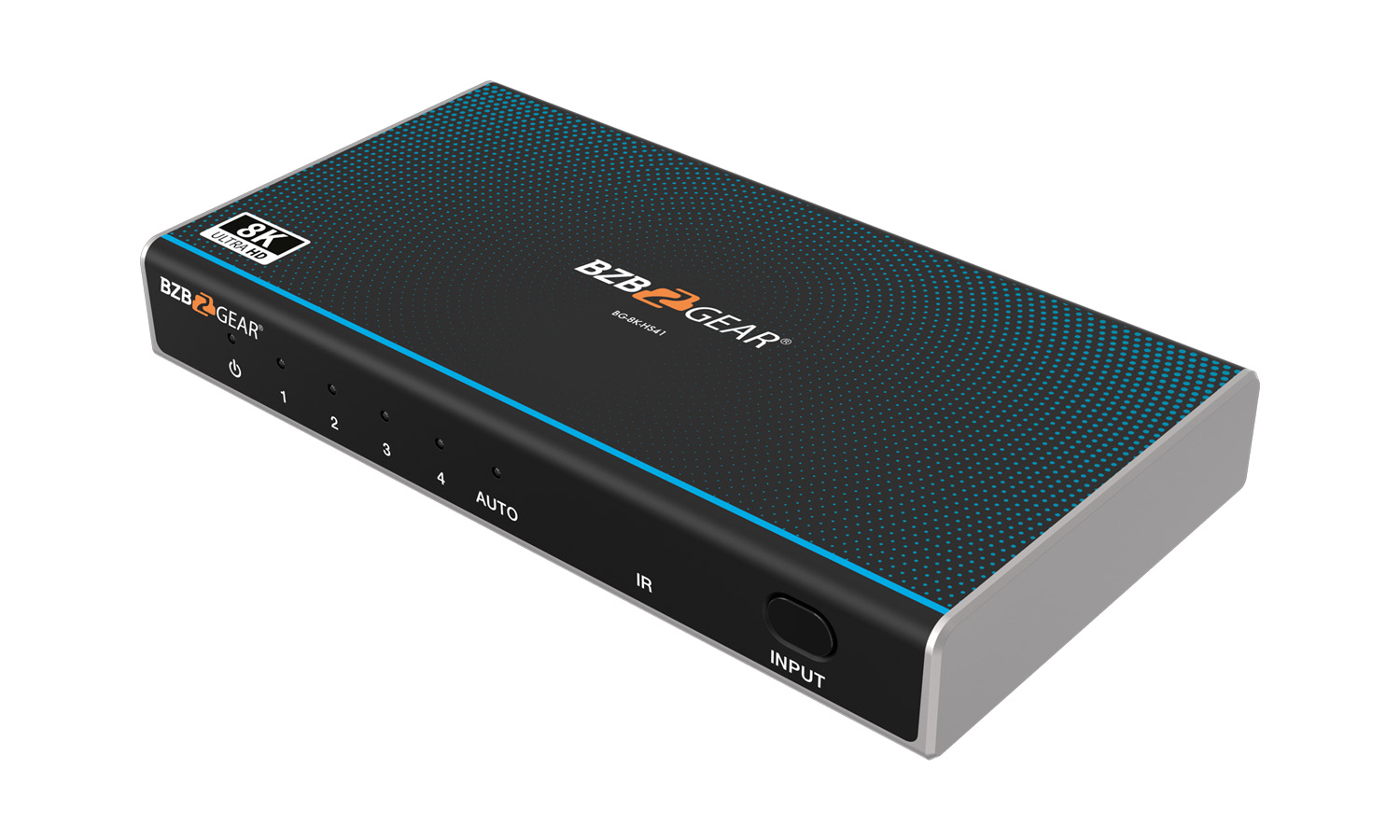

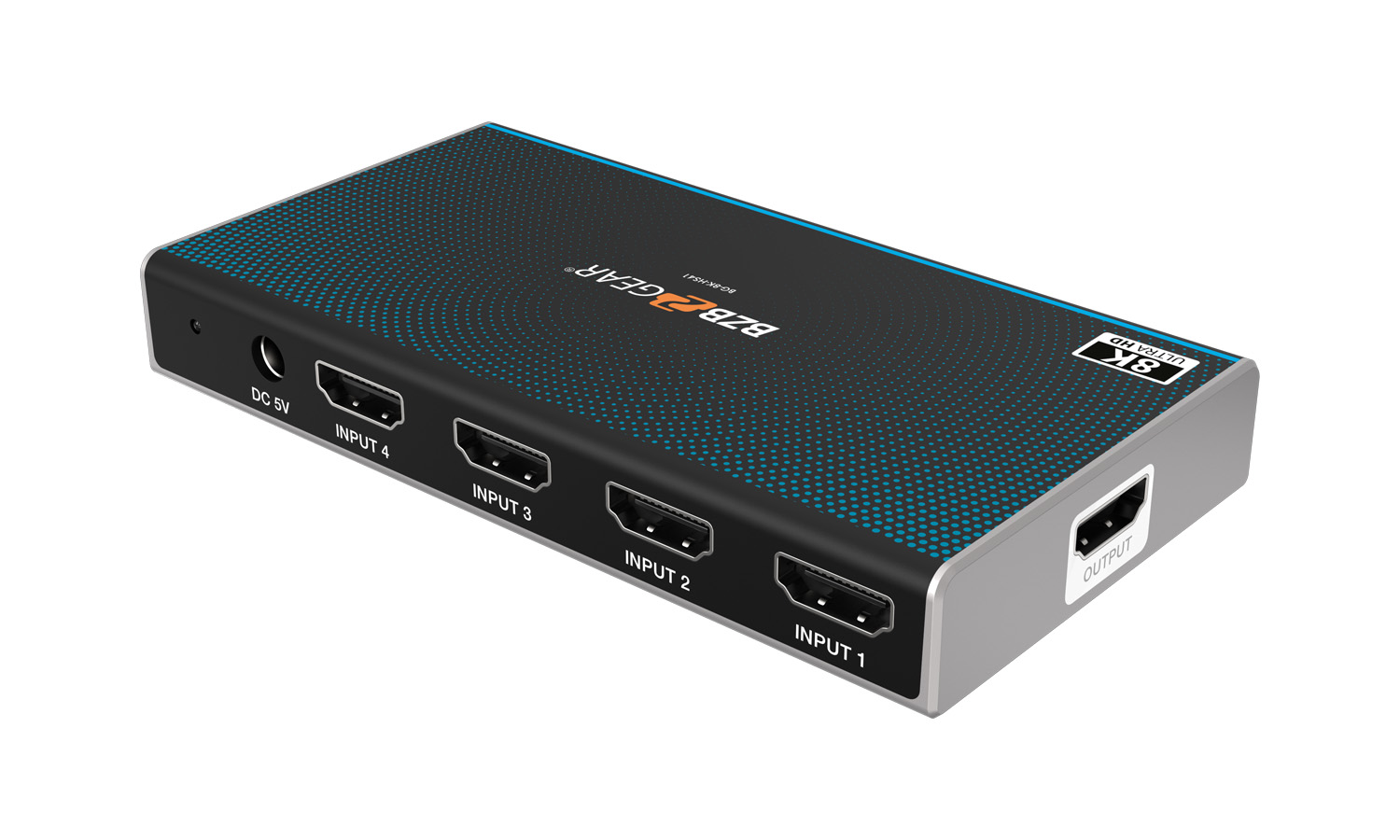

BZBGEAR BG-8K-HS41 4x1 8K UHD Ultra Slim HDMI 2.1 Switcher (8K60/4K120Hz 4:4:4 and VRR/FVA/ALLM Support)

Description

The 8K 4×1 HDMI 2.1 switcher is a versatile device that allows you to switch between four HDMI sources and display the selected input on a single HDMI display. It offers support for high-resolution video up to 8K at 60Hz with 4:4:4 chroma subsampling, providing crisp and detailed images with excellent color accuracy. Additionally, the switcher has a high video bandwidth of 48Gbps, which enables it to handle the large amounts of data required for high-quality 8K video.

This switcher is an ideal solution for those who want to be able to easily switch between multiple HDMI sources, such as a gaming console, Blu-ray player, or streaming device. Whether you’re watching movies, playing games, or simply want to be able to easily access multiple sources of content, the 8K 4×1 HDMI 2.1 switcher can help ensure that you have access to the best possible video quality.

For gamers, the ability to display high-resolution graphics at high frame rates is crucial for a smooth and immersive gaming experience. With support for 4K resolution at 120Hz, the BG-8K-HS41 can help ensure that your games are displayed with the highest level of detail and fluidity. This is particularly important for fast-paced games where a high frame rate can make a significant difference in your ability to react to in-game events. Whether you’re playing competitively or just looking for the most realistic and engaging gaming experience possible, the 8K HDMI 4×1 switcher’s support for 4K at 120Hz can help you get the most out of your favorite games.

Features:

Secure content – HDMI 2.1 and HDCP 2.3 compliant
8K and 4K@120Hz – 8K@60Hz 4:4:4 8/10/12-bit, 8K@60Hz 4:2:0 12-bit, 8K@ 30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit video support
Audio formats – LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
4×1 switching – Switch sources at the push of a button or enable automatic switching
EDID management – Seamless scaling for the best results
Compact design – For easy and flexible installation
Support 48Gbps video bandwidth
HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
VRR, FVA, ALLM
Built-in Equalizer and Driver

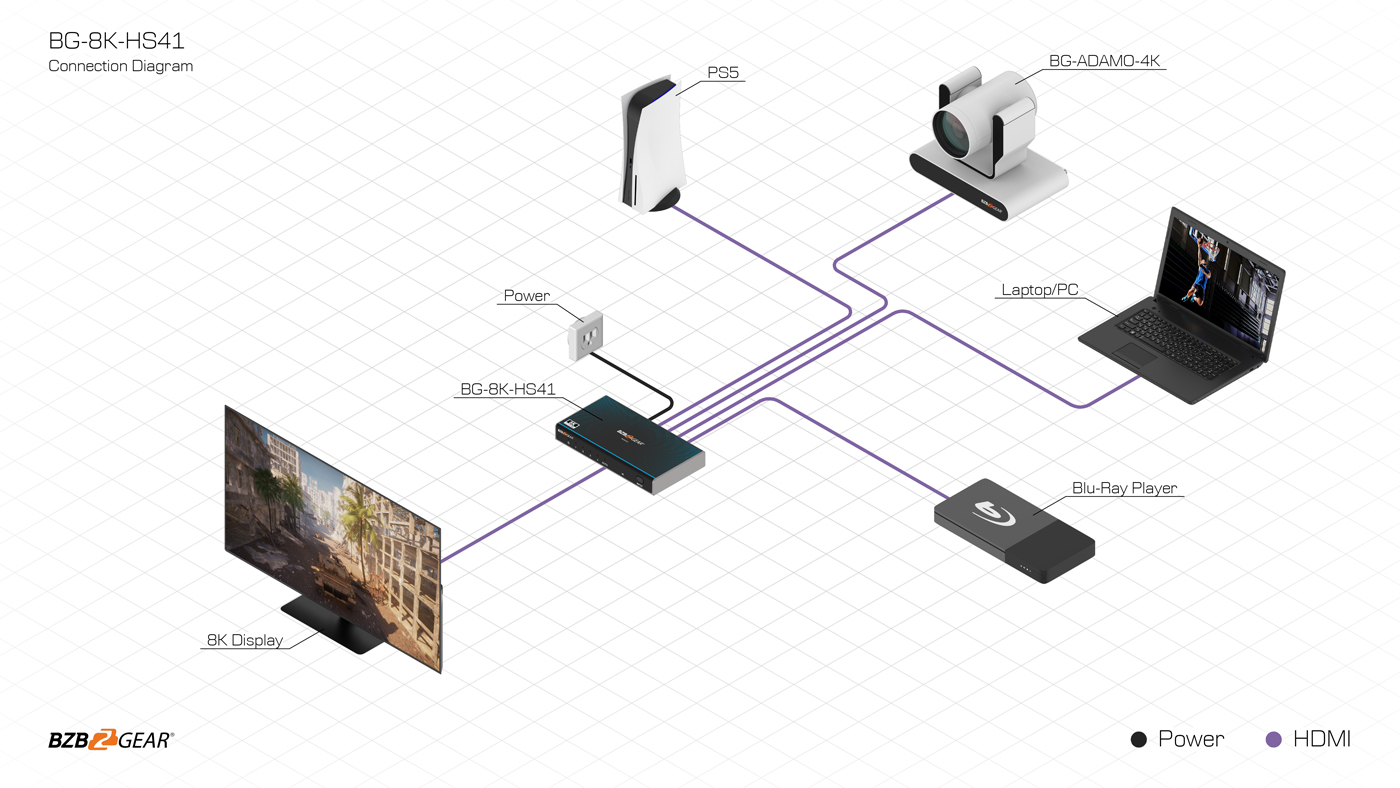

Product Diagrams

View Diagrams

Product Video

Specifications

Technical
HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48Gbps
Video Resolution	Up to 8K @ 60Hz 4:4:4 8/10/12bit, 8K @ 60Hz 4:2:0 12-bit, 8K @ 30Hz 4:4:4 10-bit, 4K @ 120Hz 4:4:4 10-bit
Color Depth	8-bit, 10-bit, 12-bit
Color Space	RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDMI Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Connection

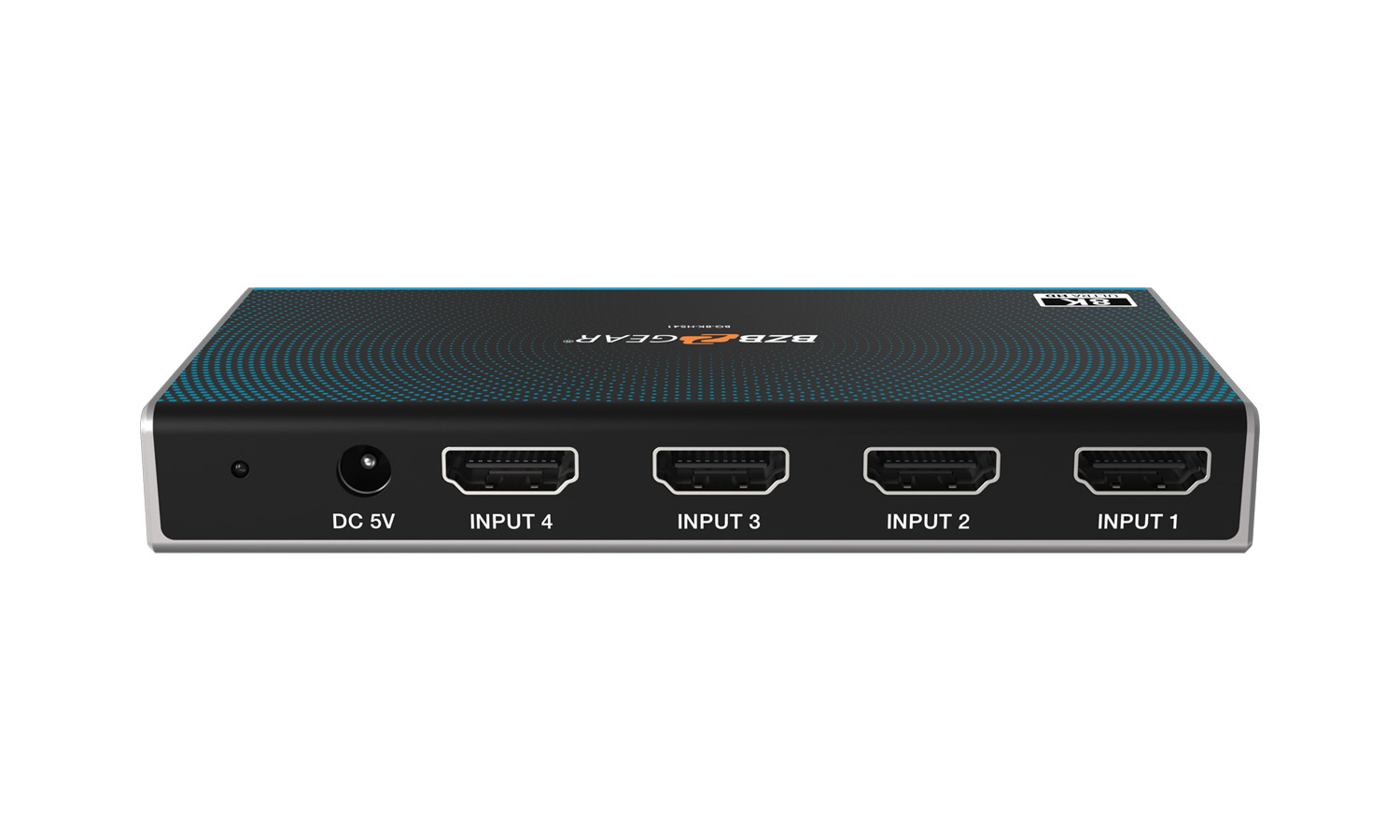

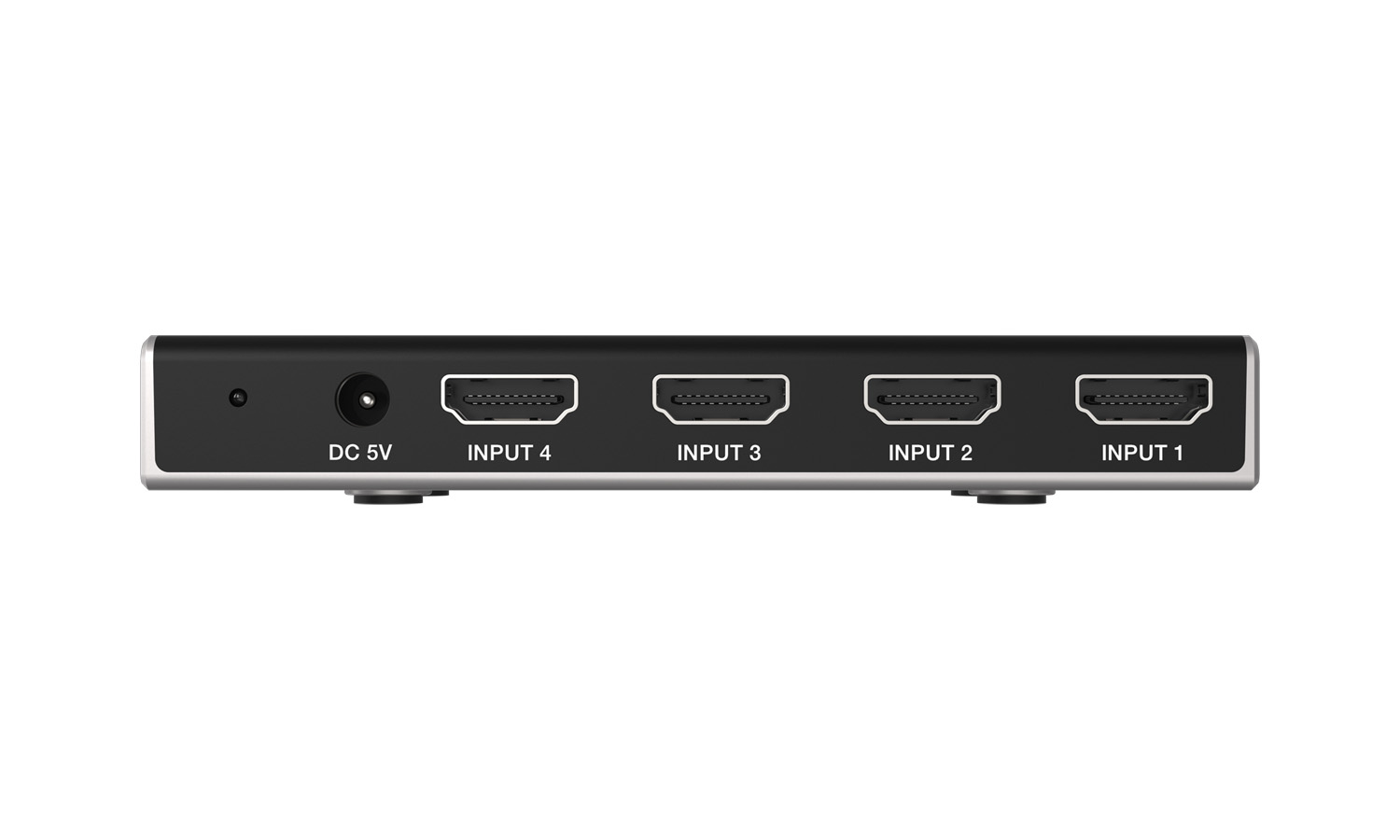

Input	4x HDMI IN [Type A, 19-pin female]
Output	1x HDMI OUT [Type A, 19-pin female]
Mechanical
Housing	Plastic Enclosure
Silkscreen Color	Black
Dimensions	4.8" (W) x 2.6" (D) x 0.75" (H) [122mm (W) x 65mm (D) x 19mm (H)]
Weight	0.19 lbs [88g]
Power Supply	Input: AC 100 - 240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption	3.4W (Max)
Operation Temperature	32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature	-4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity	20~90% RH (non-condensing)
