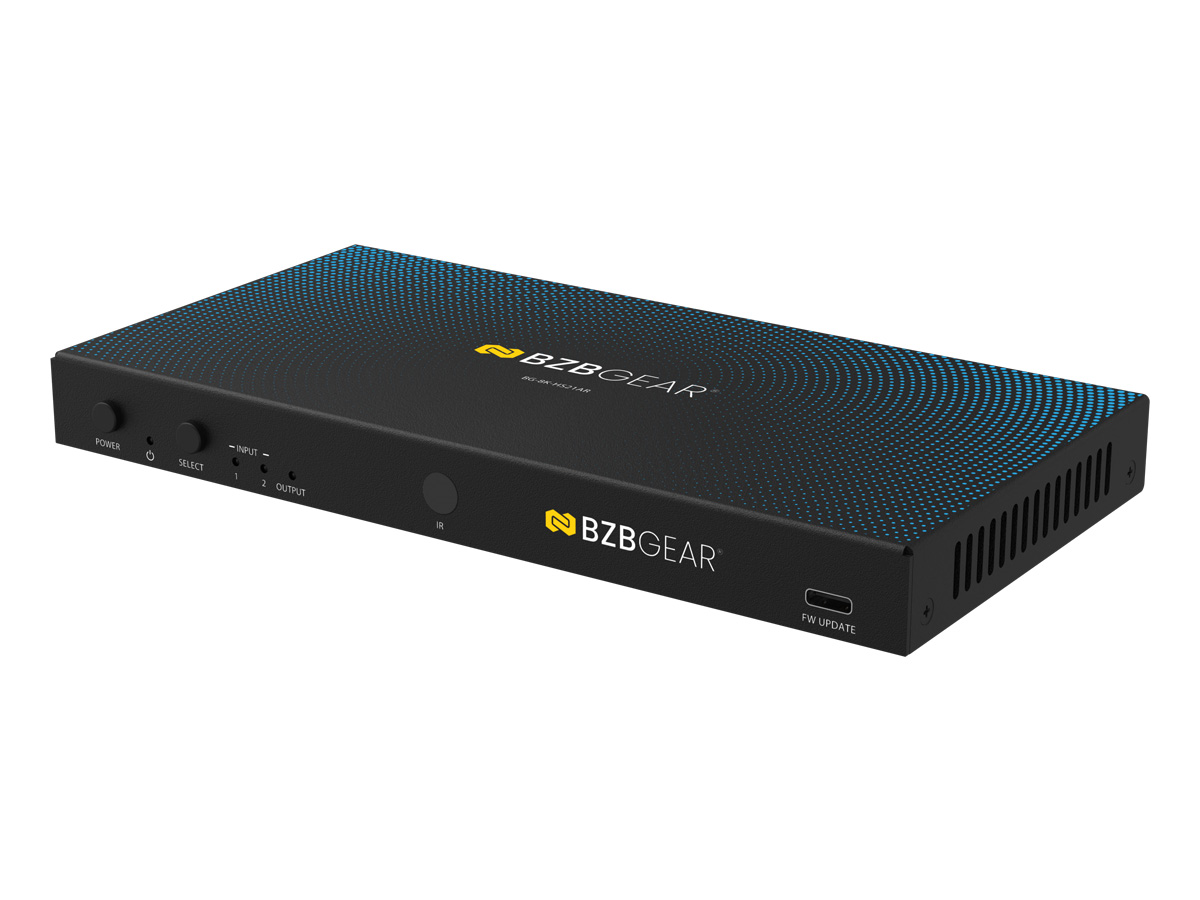

BZBGEAR BG-8K-HS21AR 2x1 8K UHD HDMI 2.1 Switcher with Digial/Analog Audio De-Embedding/EDID/RS-232 (8K60/4K120Hz 4:4:4 VRR/ALLM Support)

Description

The BG-8K-HS21AR is a high-performance 2×1 HDMI switcher designed to seamlessly switch between two 8K HDMI sources and deliver crystal-clear video to a single 8K display. Supporting resolutions up to 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 12-bit, and 4K@120Hz 4:4:4 12-bit, this device ensures stunning visual quality in compliance with the HDMI 2.1 and HDCP 2.3 standards. Full compatibility with HDR10, HDR10+, Dolby Vision, and ALLM/VRR pass-through guarantees exceptional color performance and dynamic range for a premium viewing experience.

Beyond video switching, the BG-8K-HS21AR features digital and analog audio de-embedding, offering analog audio output with gain control. A built-in HDMI signal generator simplifies troubleshooting and diagnostics, while advanced EDID management and integrated signal equalization ensure stable and reliable signal transmission. Users can operate the device through front panel buttons, an IR remote, or RS-232 API commands, with auto or manual switching modes for added flexibility.

Features

8K & 4K120 Support: Up to 8K@60Hz YCbCr 4:2:0 12-bit, 8K@30Hz RGB/YCbCr 4:4:4 12-bit, and 4K@120Hz RGB/YCbCr 4:4:4 12-bit
HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS 96/24, DTS High-Resolution Audio, DTS-HD Master Audio, and DSD
Flexible Switching Modes: Supports both automatic and manual input switching

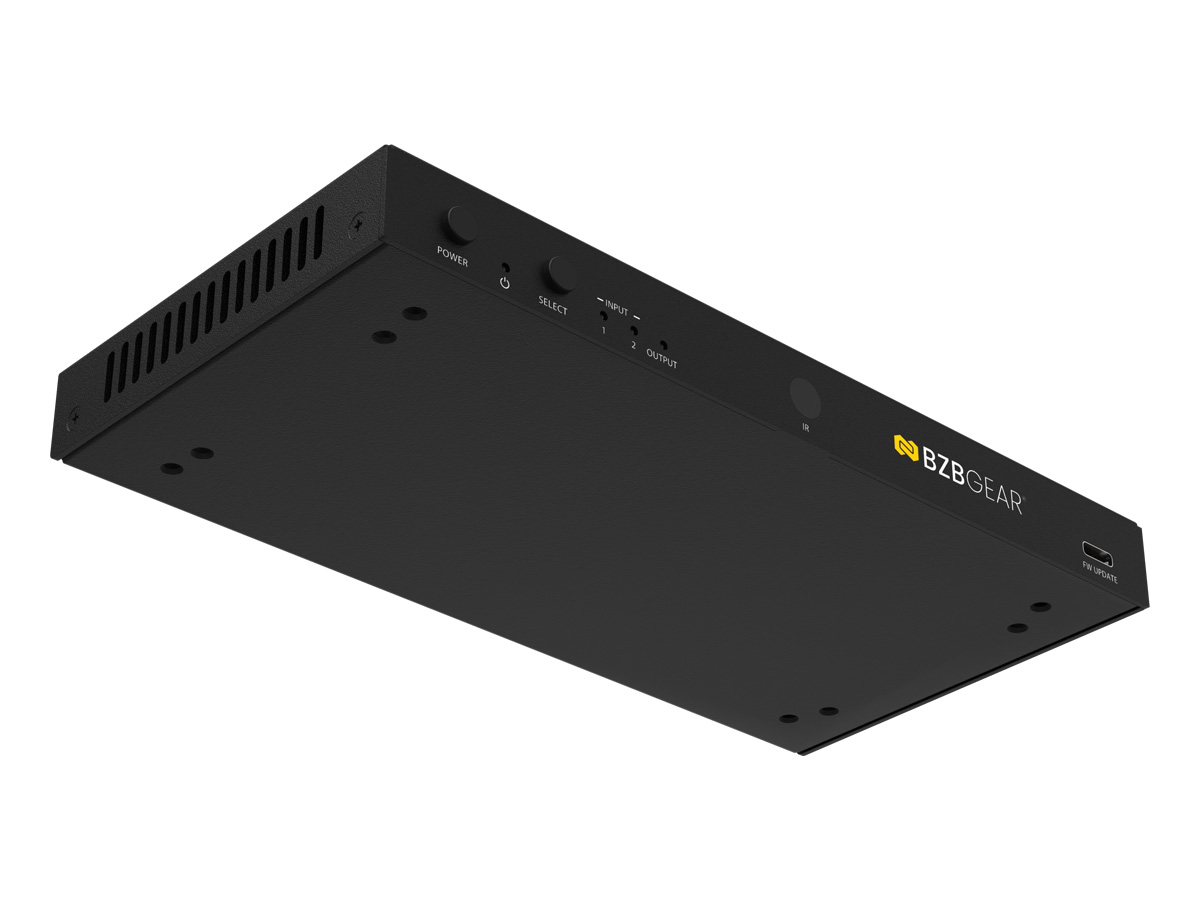

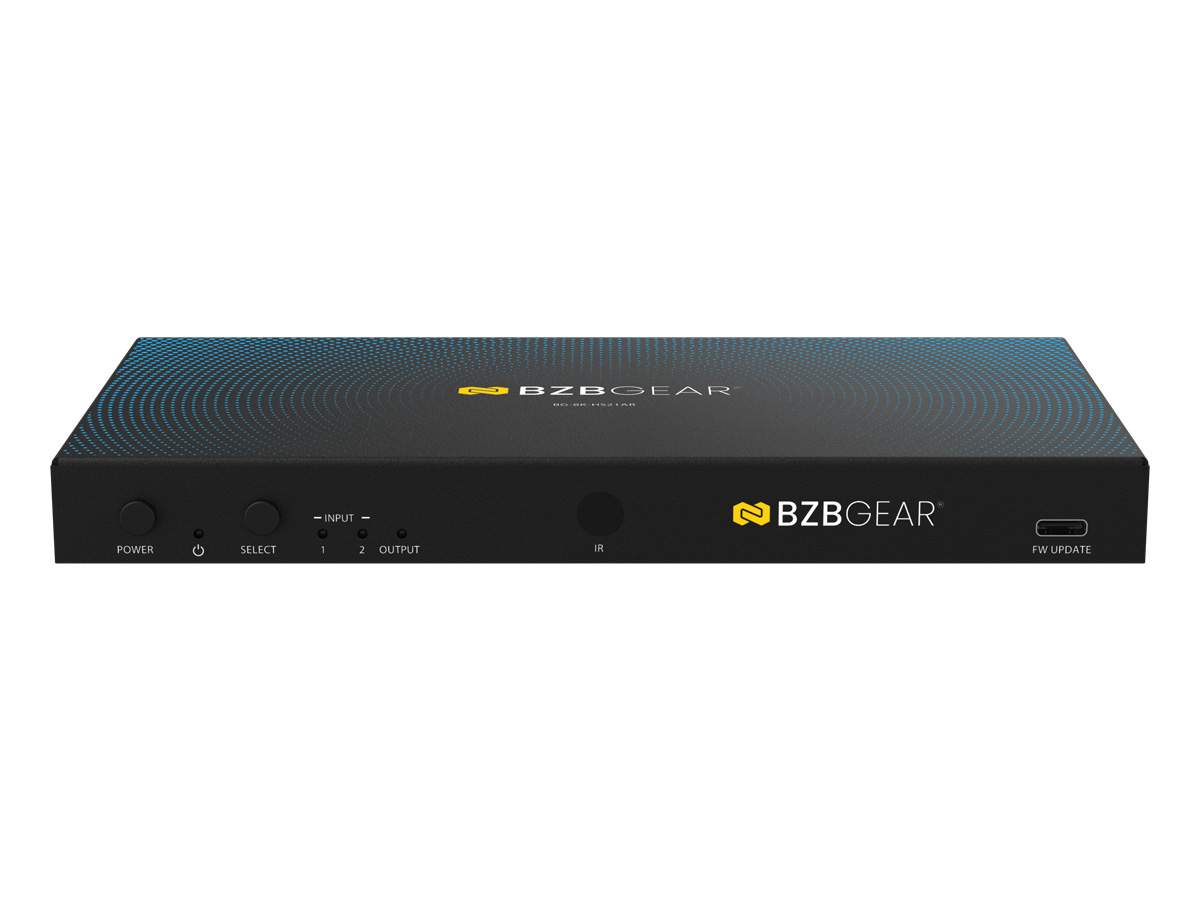

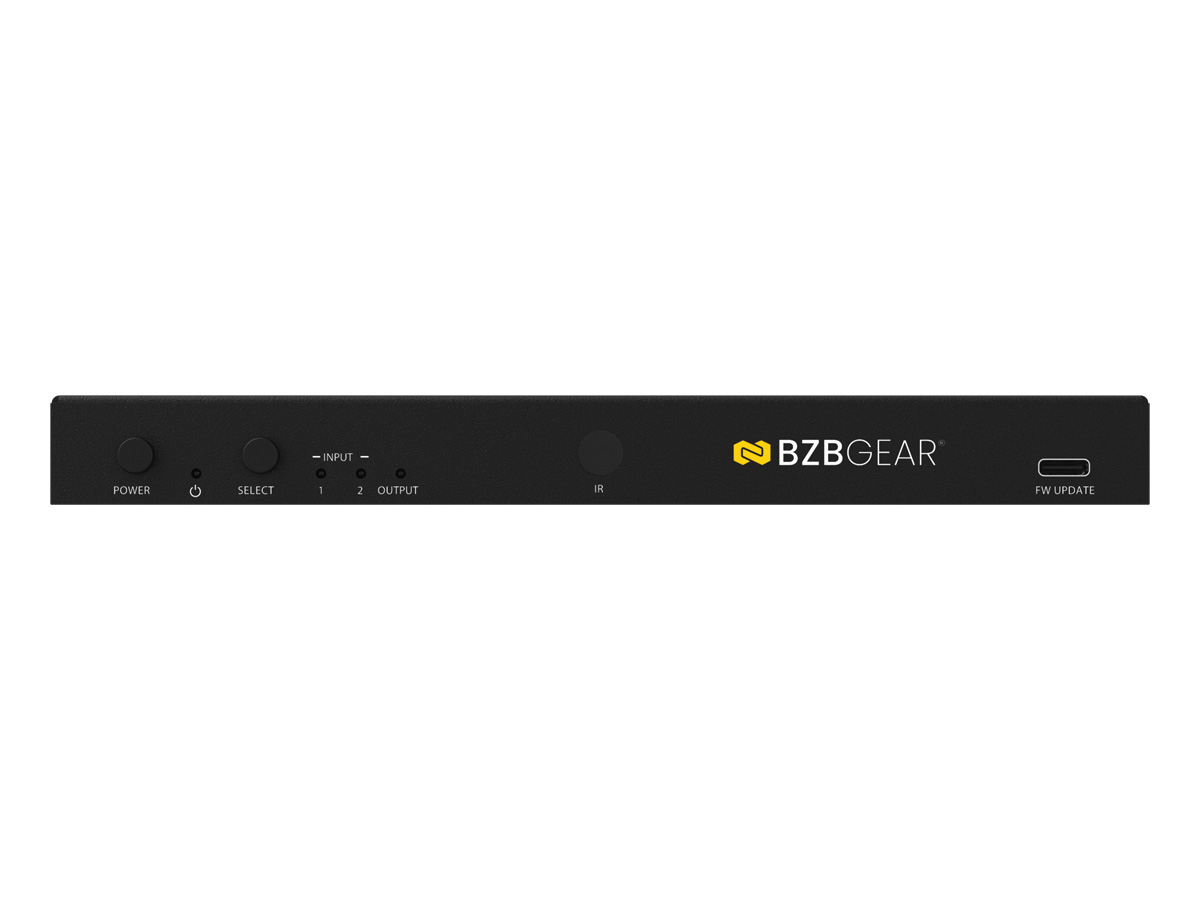

Multiple Control Options: Control via front panel buttons, IR remote, and RS-232 API commands
Versatile Audio De-Embedding: Extracts both digital and analog audio with analog output featuring adjustable gain control
HDR Pass-Through: Compatible with HDR, HDR10, HDR10+, Dolby Vision, ALLM (Auto Low Latency Mode), and VRR (Variable Refresh Rate)
HDCP 2.3 Compliant: Ensures secure transmission of protected content
Enhanced Signal Integrity: Equipped with built-in equalization, retiming, and signal driving capabilities
Advanced EDID Management: Offers flexible EDID handling for optimal device compatibility
Compact and Install-Friendly Design: Designed for easy integration into a variety of professional AV environments

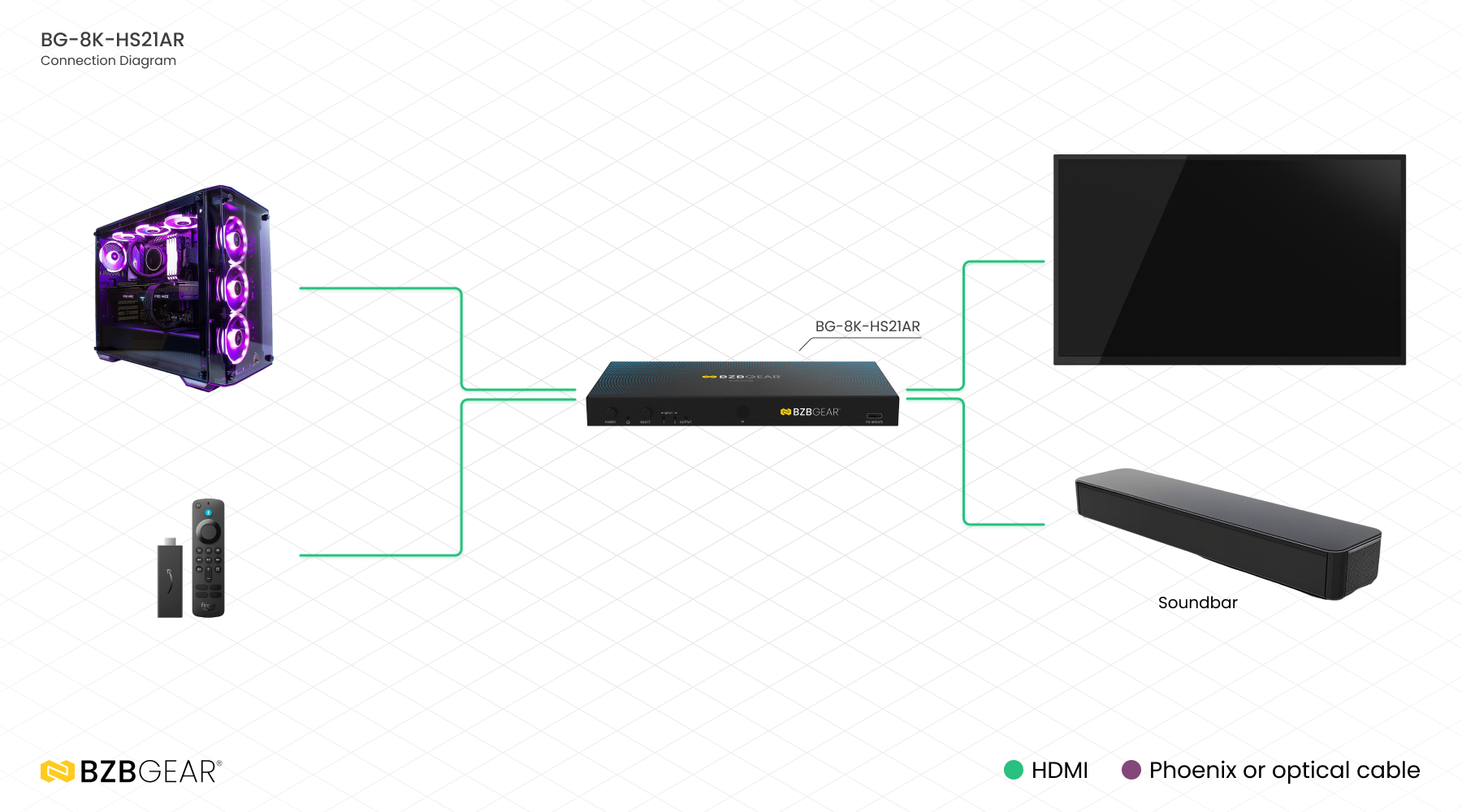

Product Diagrams

View Diagrams

Specifications

Technical
HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48Gbps
Audio Latency	No Latency
Video Latency	No Latency
Video Resolution	Up to 8K60 YCbCr 4:2:0 12bit, 8K30 RGB/YCbCr 4:4:4 12bit or 4K120 RGB/YCbCr 4:4:4 12bit
Color Depth	8/10/12-bit
Color Space	RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
HDR	HDR, HDR10, HDR10+, Dolby Vision, HLG
IR Level	12Vp-p
IR Frequency	Wideband 20K-60KHz
Audio Formats	HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Audio de-embedding output: Optical: Up to LPCM/Dolby/DTS 5.1CH Analog: Only LPCM 2CH
ESD Protection	IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection

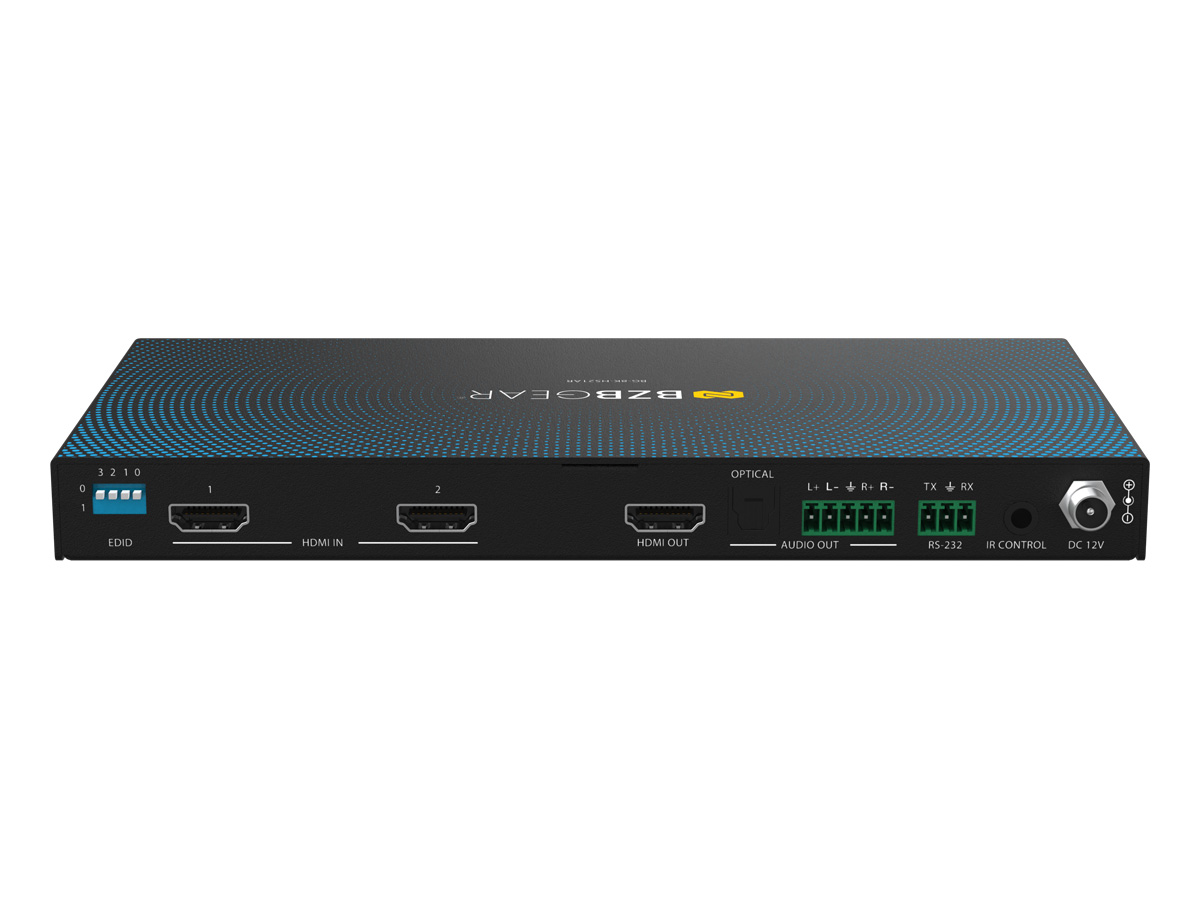

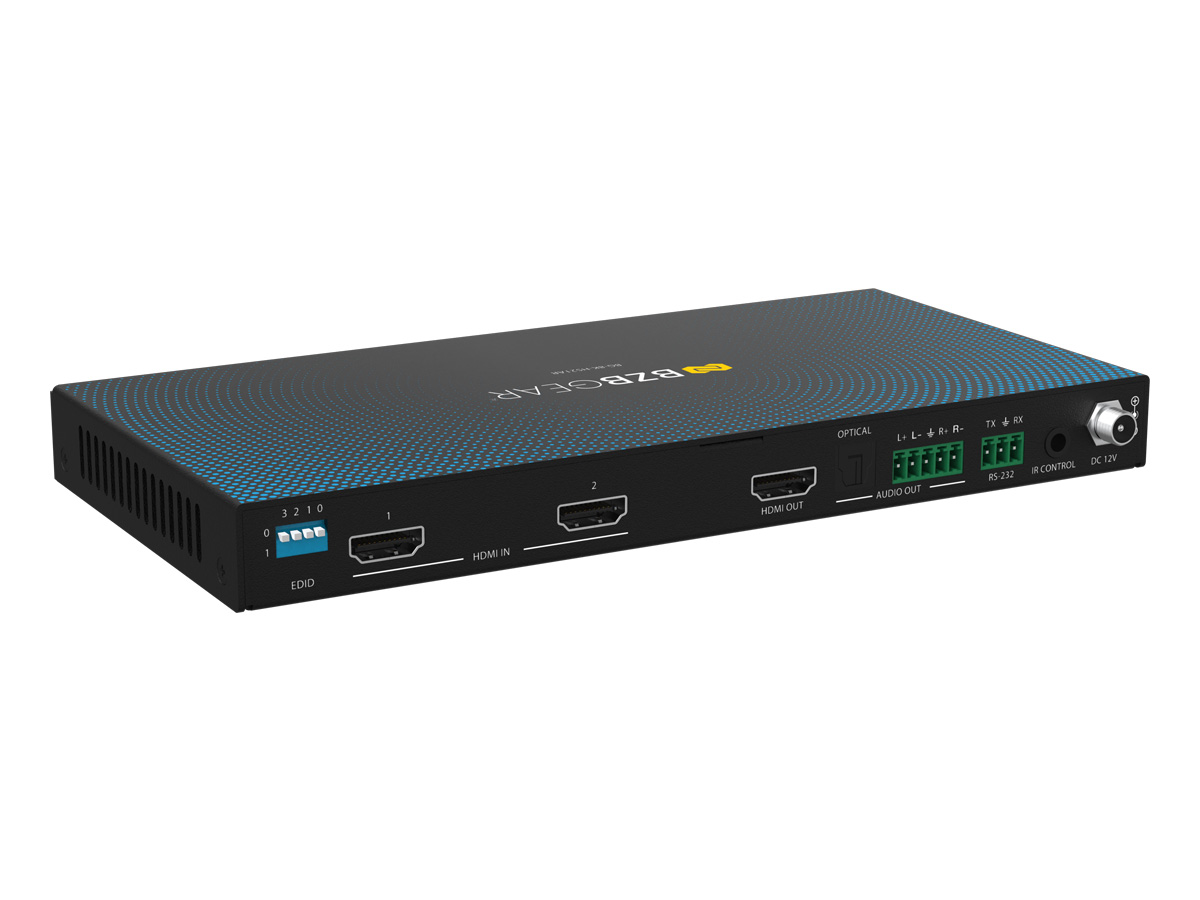

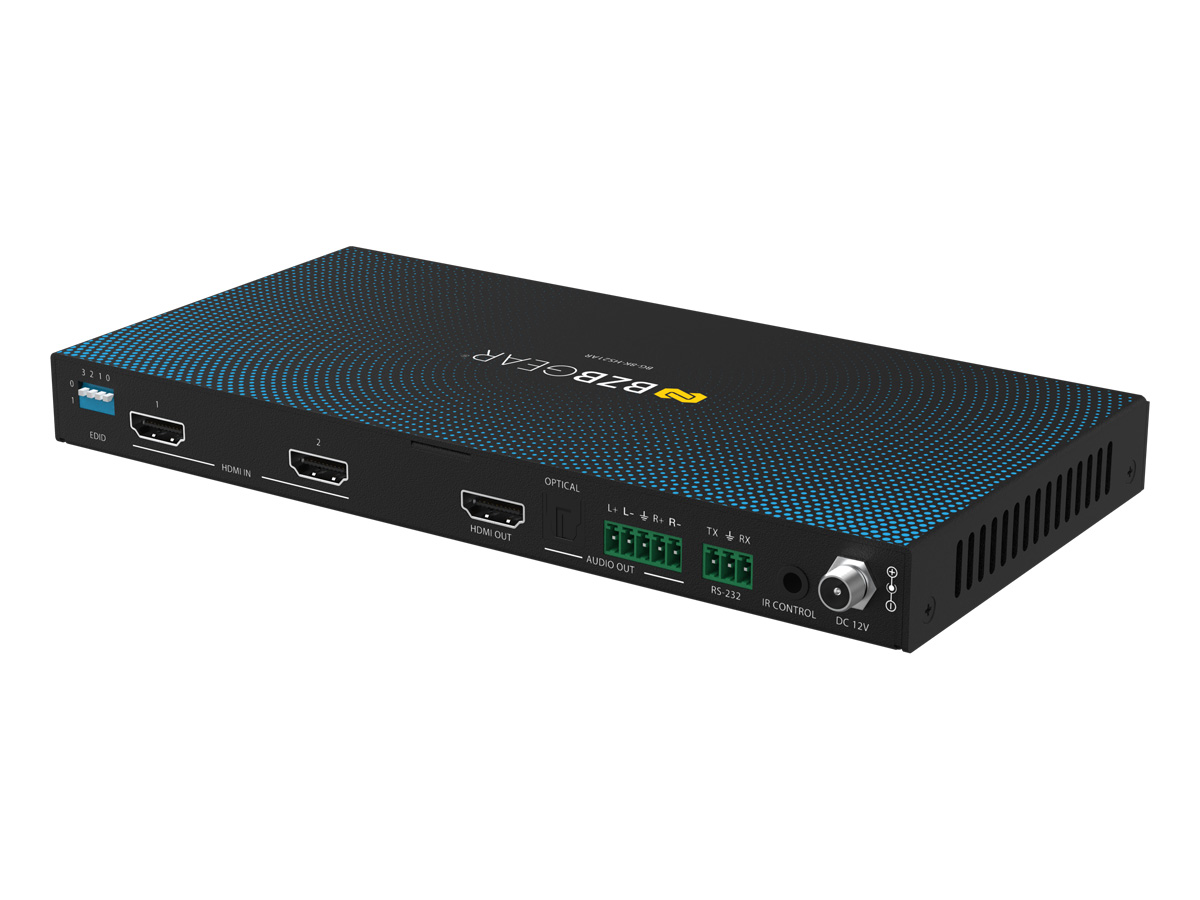

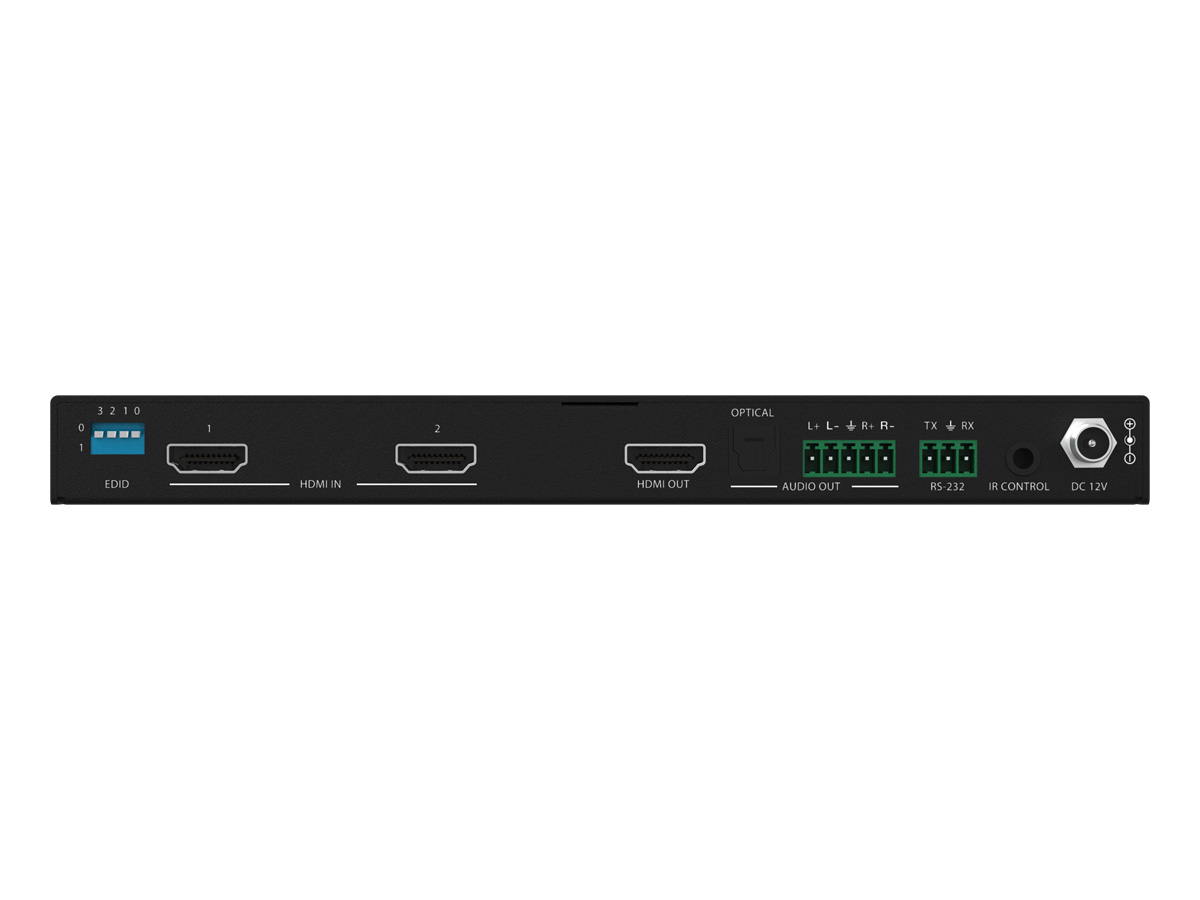

Input	2x HDMI IN [Type A, 19-pin female]
Output	1x HDMI OUT [Type A, 19-pin female] 1x OPTICAL AUDIO OUT [S/PDIF, female] 1x L/R AUDIO OUT [5pin-3.5mm Phoenix connector]
Control	1x RS-232 [3pin-3.5mm Phoenix connector] 1x IR CTL [3.5mm stereo mini-jack] 1x SERVICE [USB Type C, Update port]
Mechanical
Housing	Metal Enclosure
Silkscreen Color	Black
Dimensions (WxDxH)	8.7in x 4.3in x 0.85in [220mm x 110mm x 21.5mm]
Weight	1.3 lbs [595g]
Power Supply	Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption	5.04W (Max)
Operation Temperature	-10°C ∼ 45°C / 14°F ∼ 113°F
Storage Temperature	-20°C ∼ 60°C / -4°F ∼ 140°F
Relative Humidity	20%~90% RH (non-condensing)
Recommended HDMI Cable
Video Resolution	8K	4K60	4K24	1080P
HDMI Cable Length (HDMI IN / OUT)	2m/6.6ft (Ultra HDMI 2.1)	8m/26ft	12m/39ft	15m/49ft
The use of “Premium High Speed HDMI” cable is highly recommended.
