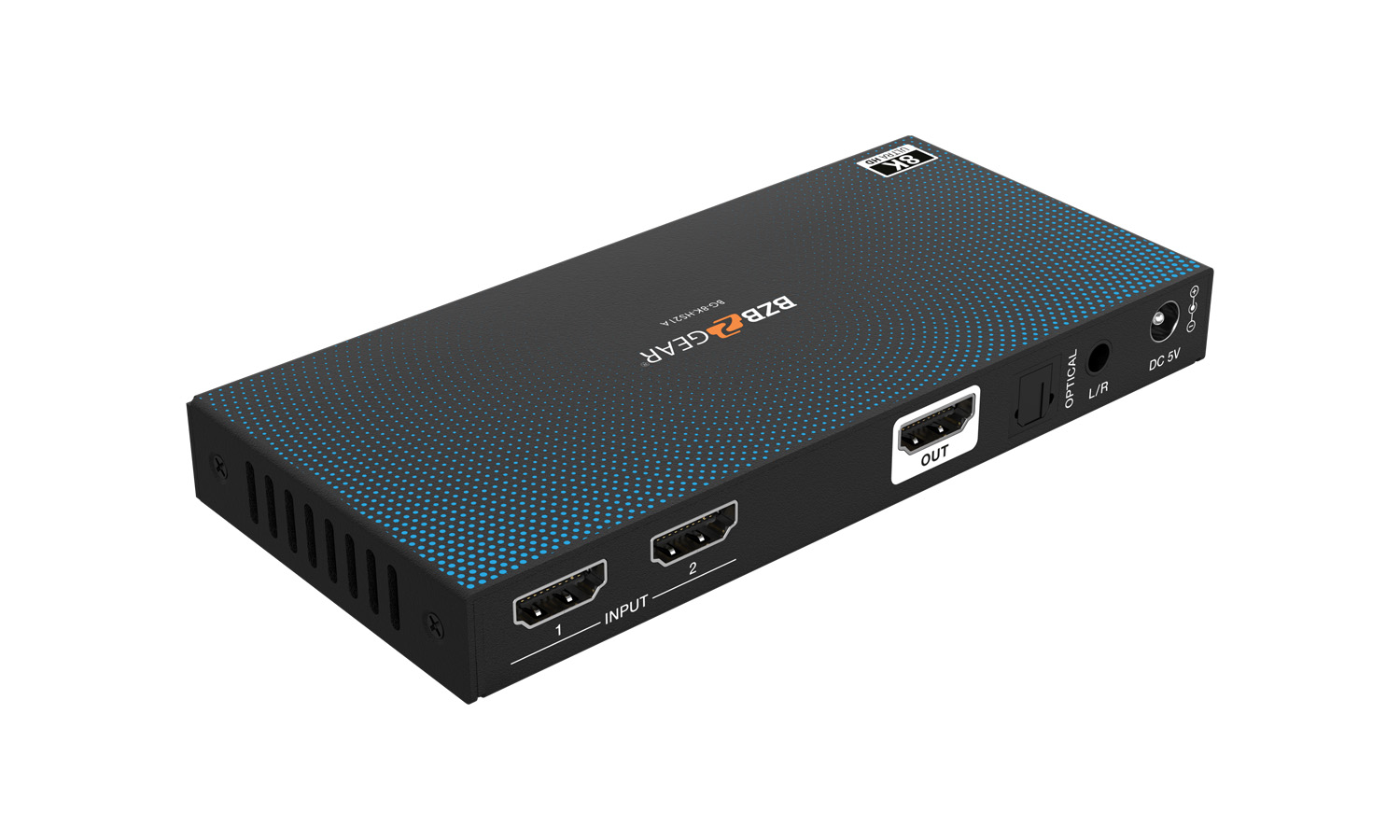

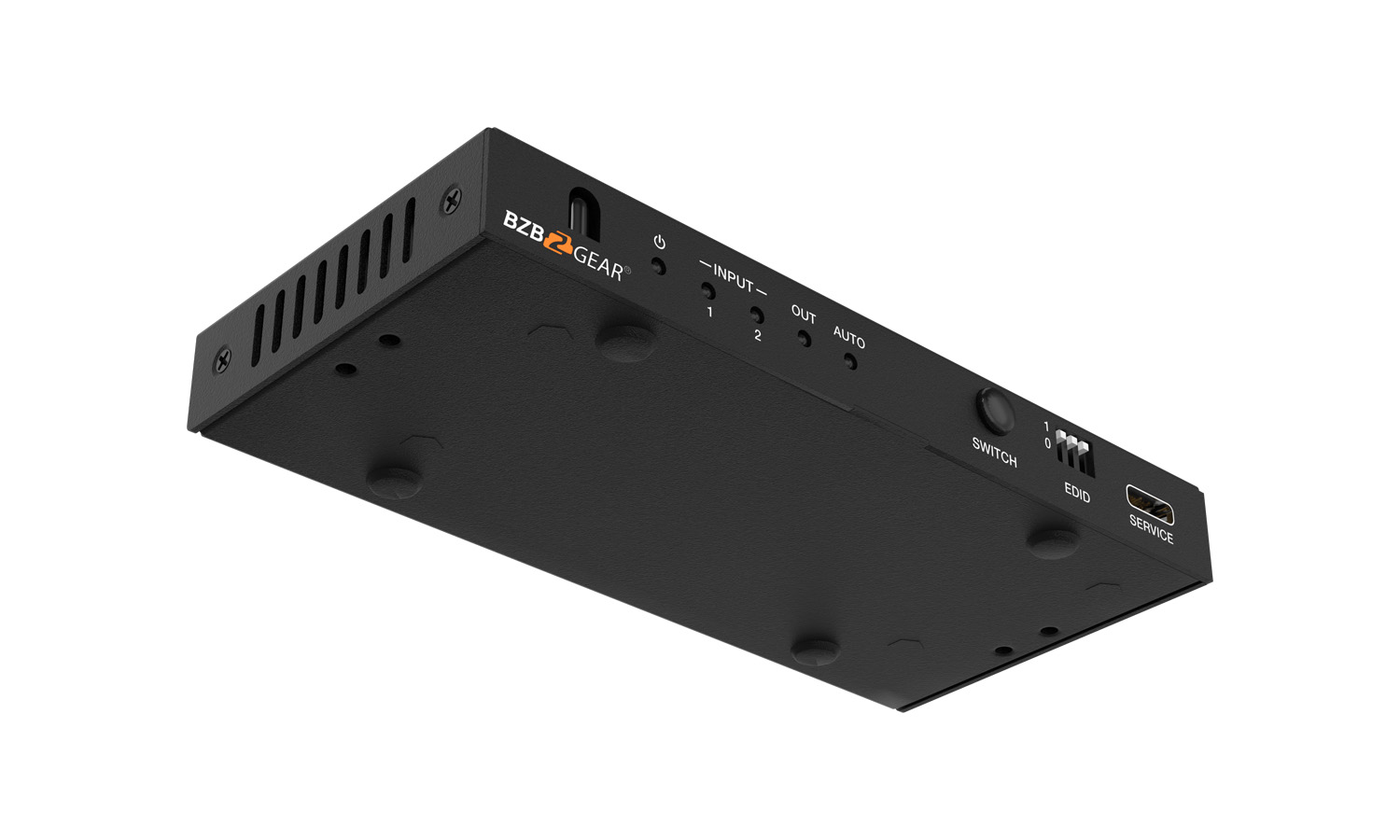

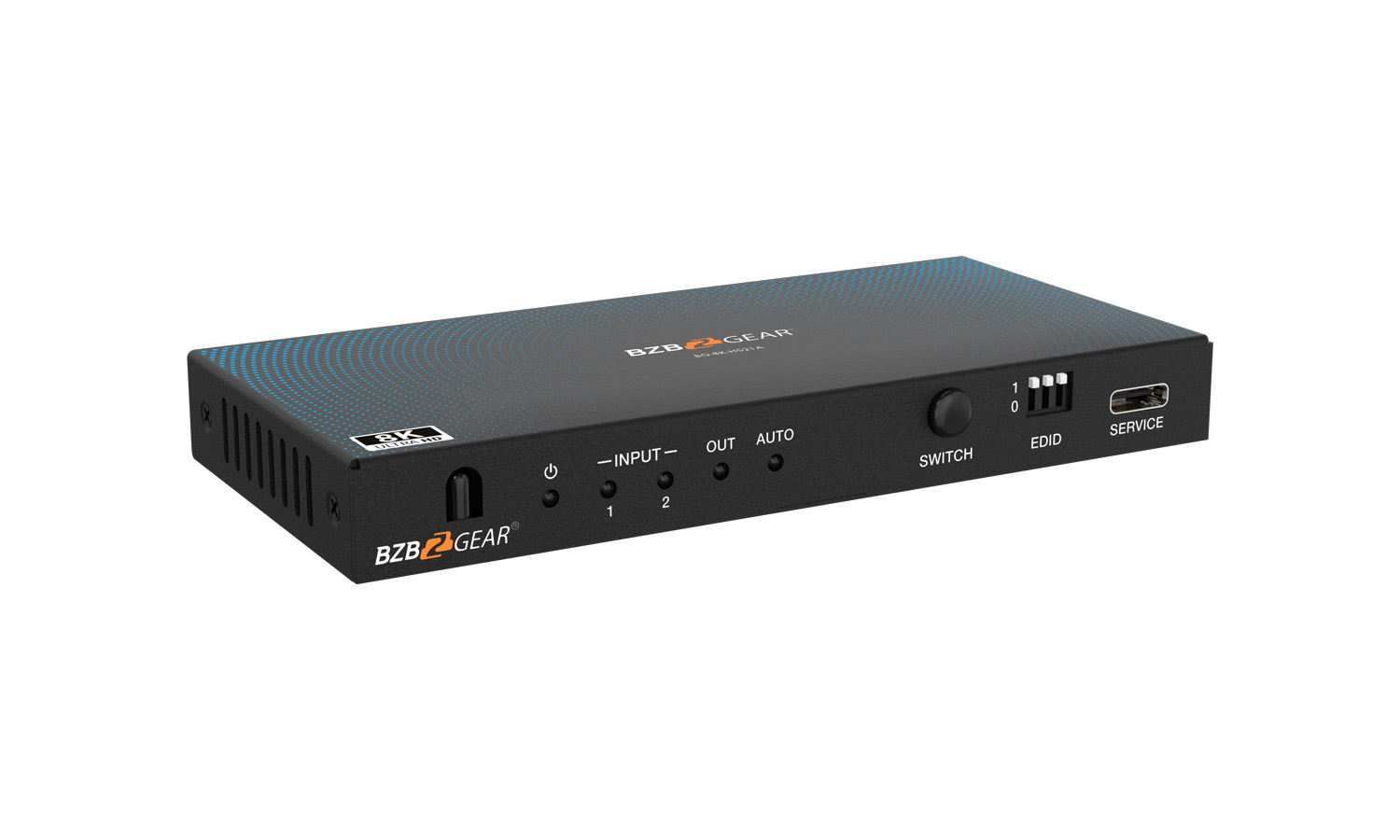

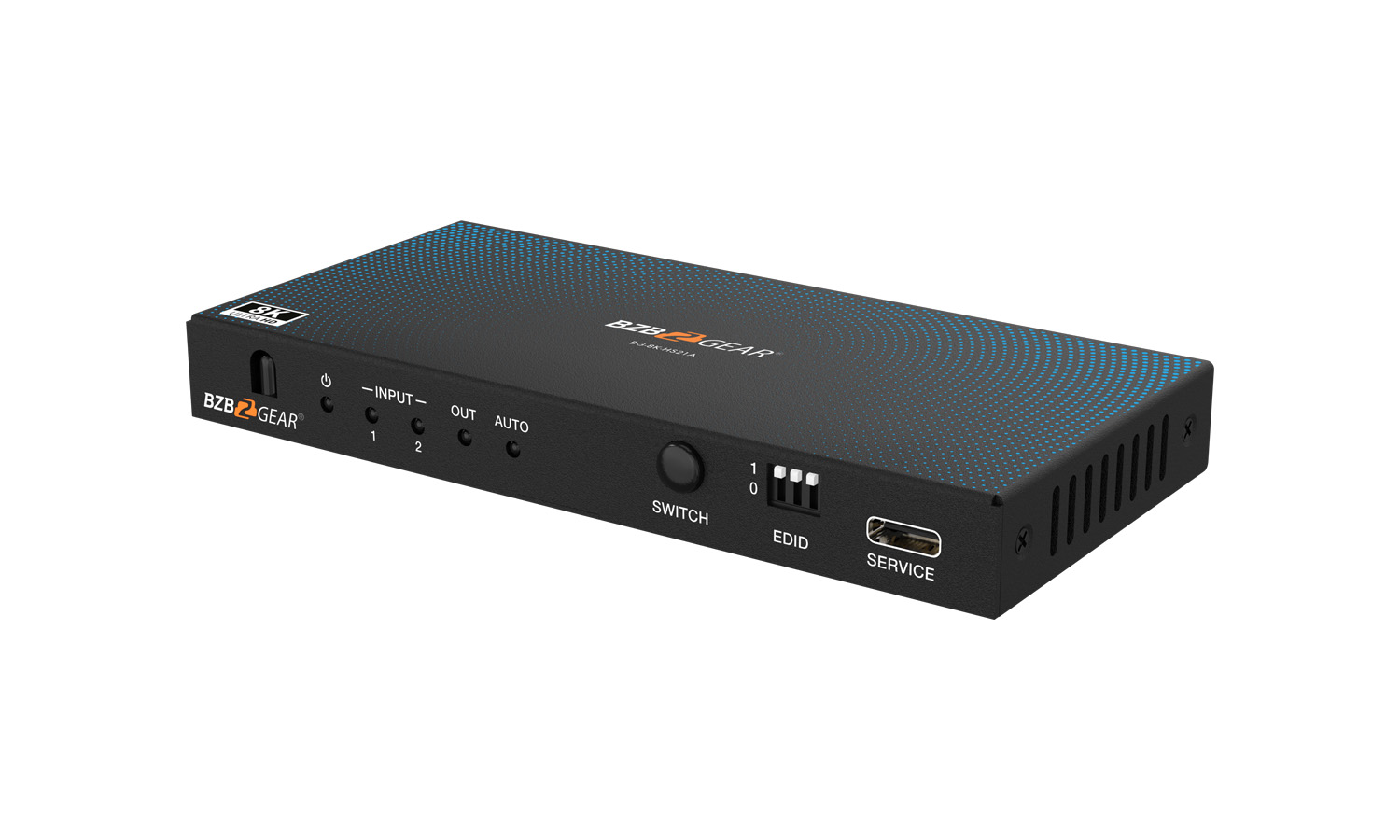

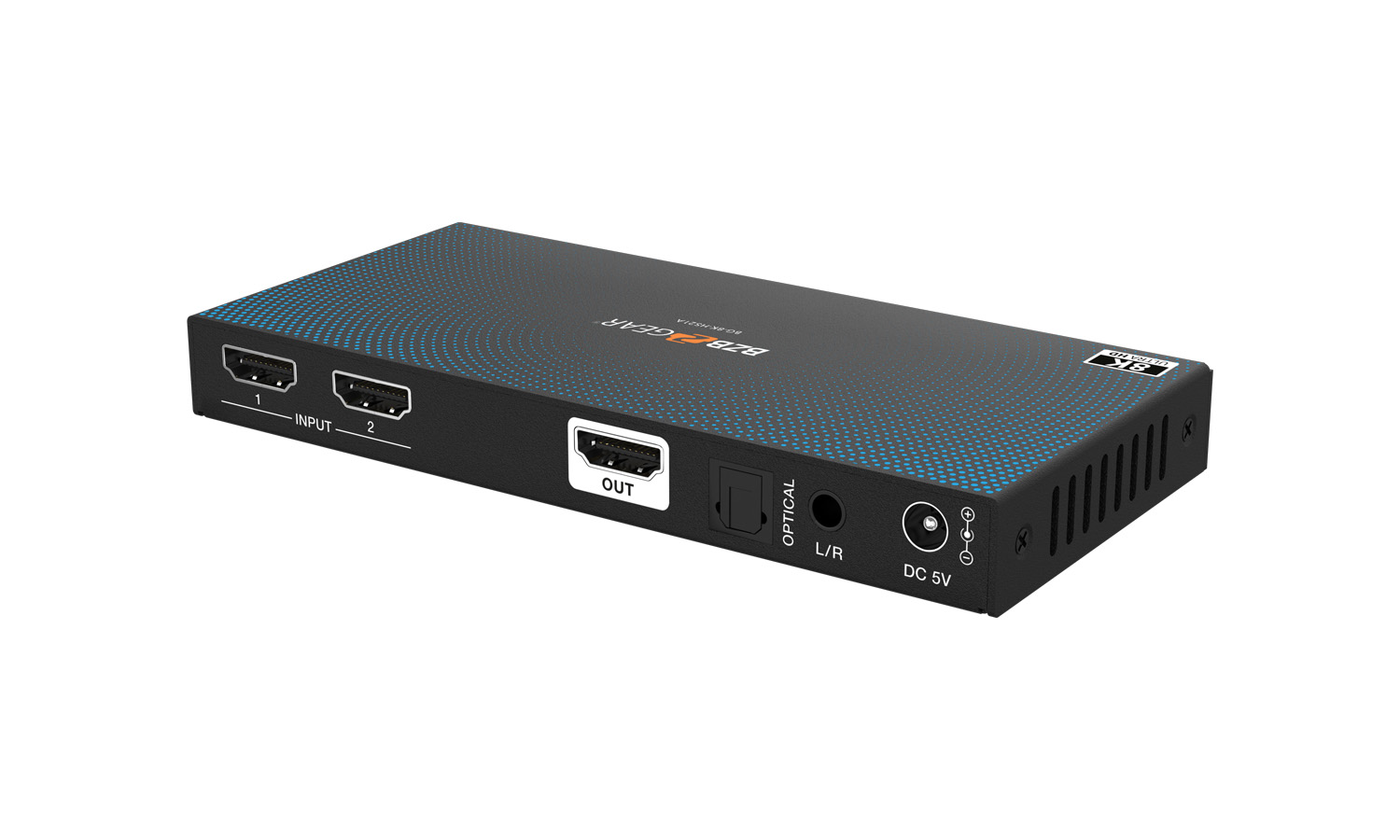

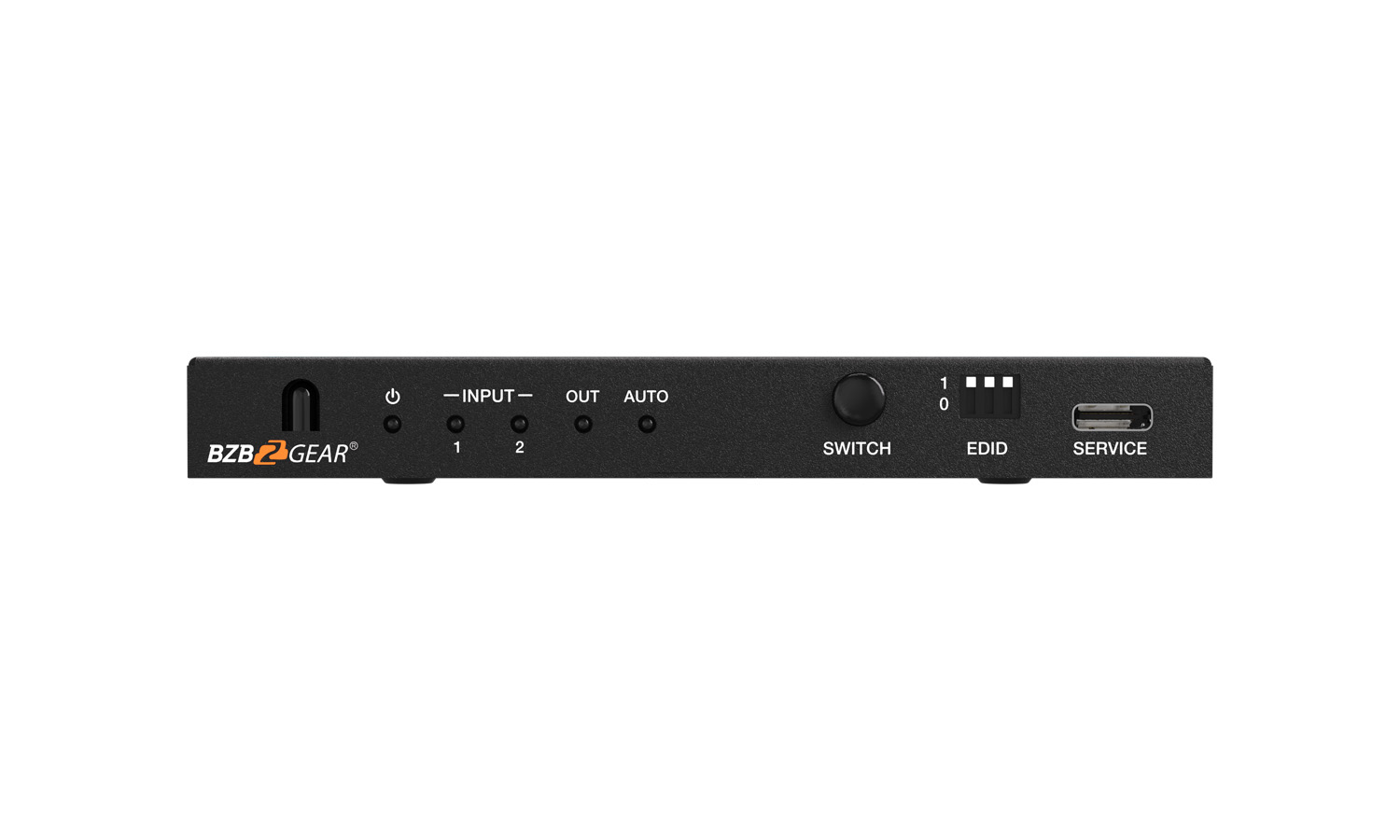

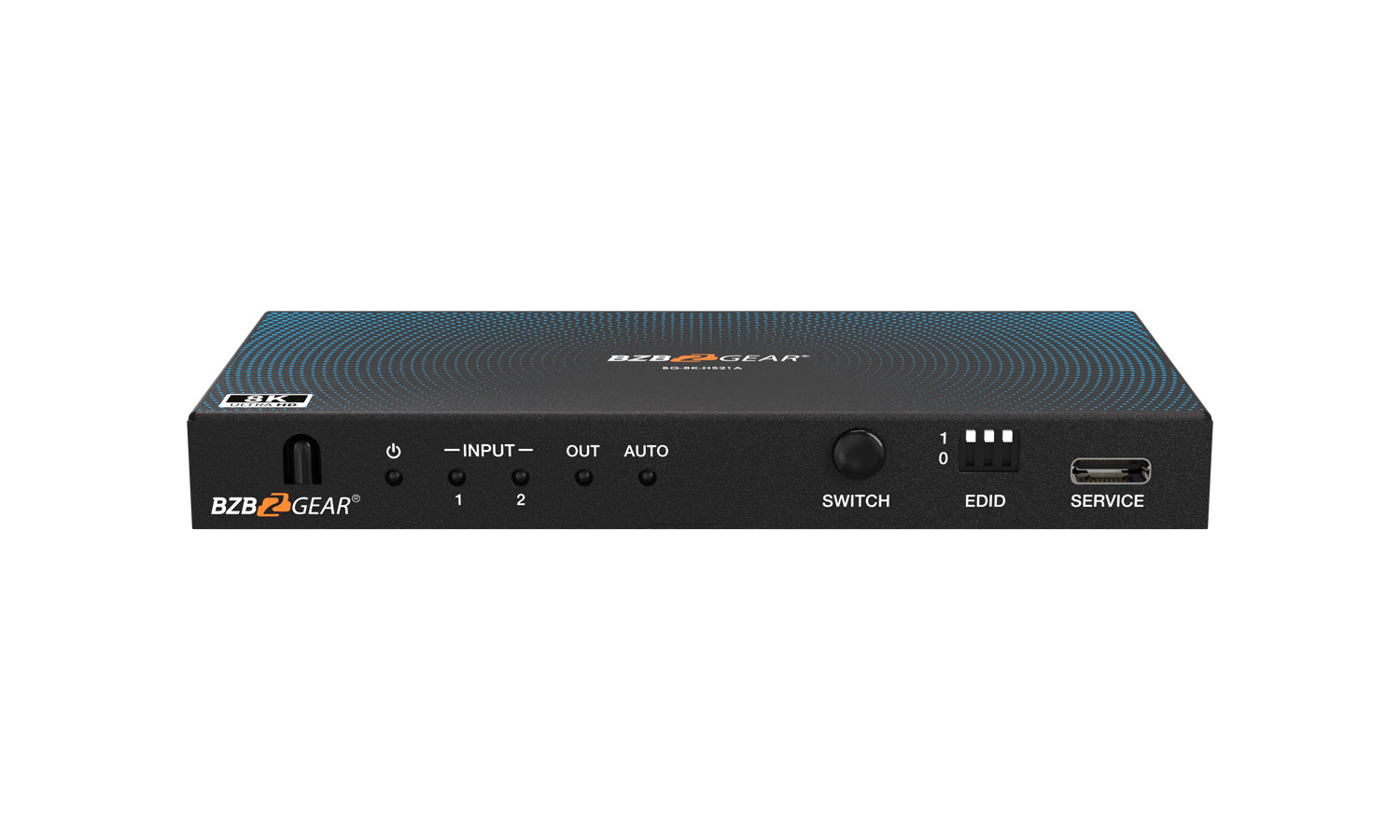

BZBGEAR BG-8K-HS21A 2x1 8K UHD HDMI 2.1 Switcher with Audio De-Embedding (8K60/4K120Hz 4:4:4 VRR/FVA/ALLM Support)

Description

Elevate your multimedia experience with the BG-8K-HS21A 48Gbps 2×1 HDMI Switcher. This high-performance device seamlessly switches between two HDMI sources to one HDMI display, supporting video resolutions up to 8K@60Hz 4:2:0. Perfect for a variety of applications including home entertainment, gaming, and multimedia, this versatile switcher features advanced EDID management and an audio de-embedding function, making it an ideal solution for any large-screen display scenario.

Features-in-Depth

This switcher is HDCP 2.3 compliant, ensuring secure and uninterrupted signal transmission. With a video bandwidth of 48Gbps, it delivers superior video quality and performance. It supports high video resolutions up to 8K@60Hz YCbCr 4:2:0 12bit, and 4K@120Hz RGB/YCbCr 4:4:4 12bit, as specified in HDMI 2.1. Dynamic video enhancements such as VRR (Variable Refresh Rate), FVA (Future Video Architecture), and ALLM (Auto Low Latency Mode) provide smooth and responsive video playback.

The BG-8K-HS21A supports HDR, HDR10, HDR10+, Dolby Vision, ALLM, and VRR pass-through for vivid and lifelike image quality. It is also compatible with a comprehensive range of HDMI audio formats including LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD. The built-in equalizer, retiming, and driver ensure optimal signal quality and stability.

Advanced EDID management simplifies setup and ensures compatibility with a wide range of display devices. The audio de-embedding function extracts audio from HDMI sources and outputs it through optical and analog ports, providing flexibility in audio configuration. User-friendly control is facilitated by the IR remote control and front panel buttons, allowing for easy source switching.

Features

HDCP 2.3 Compliant: Ensures secure and uninterrupted signal transmission
High-Resolution Support: Supports video resolutions up to 8K@60Hz YCbCr 4:2:0 12bit, 4K@120Hz RGB/YCbCr 4:4:4 12bit, as specified in HDMI 2.1
Video Enhancements: Supports VRR (Variable Refresh Rate), FVA (Future Video Architecture), and ALLM (Auto Low Latency Mode) for smooth and responsive video playback
Audio Support: Compatible with HDMI audio formats including LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD
Advanced EDID: Simplifies setup and ensures compatibility with a wide range of display devices
User-Friendly Control: Easily switch sources using the IR remote control or front panel buttons
48Gbps Video Bandwidth: Delivers superior video quality and performance
Built-In Equalizer, Retiming, and Driver: Ensures optimal signal quality and stability
Audio De-Embedding Function: Extracts audio from HDMI sources and outputs through optical and analog ports
HDR Compatibility: Supports HDR, HDR10, HDR10+, Dolby Vision, ALLM, and VRR pass-through for vivid and lifelike image quality

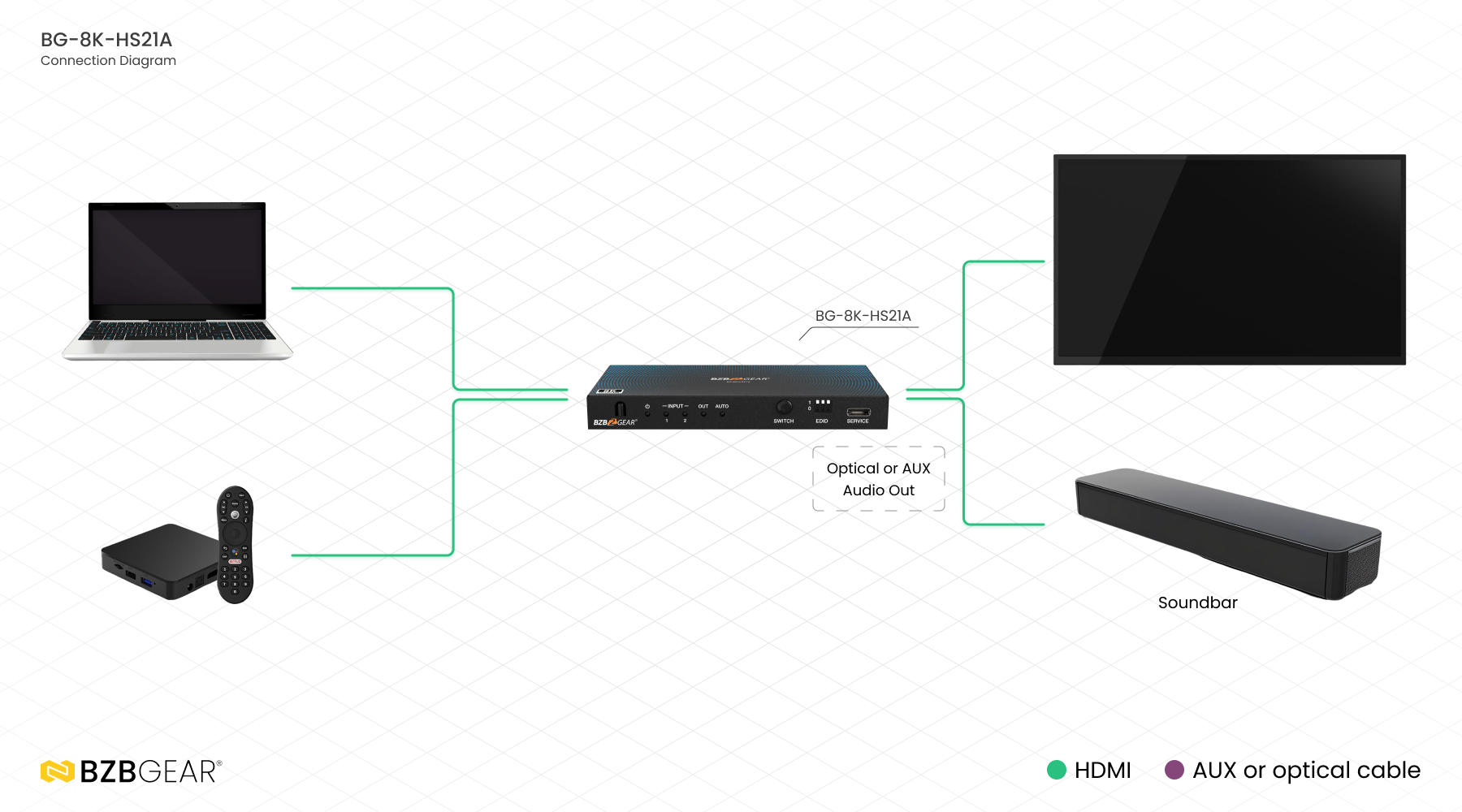

Product Diagrams

View Diagrams

Specifications

Technical
HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48Gbps
Video Resolution	Up to 8K@60Hz YCbCr 4:2:0 12bit, 4K@120Hz RGB/YCbCr 4:4:4 12bit
Color Depth	8/10/12bit
Color Space	RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Audio Formats	HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Audio De-embedding Output: Optical: LPCM/Dolby/DTS 5.1CH Analog: LPCM 2CH
ESD Protection	IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection

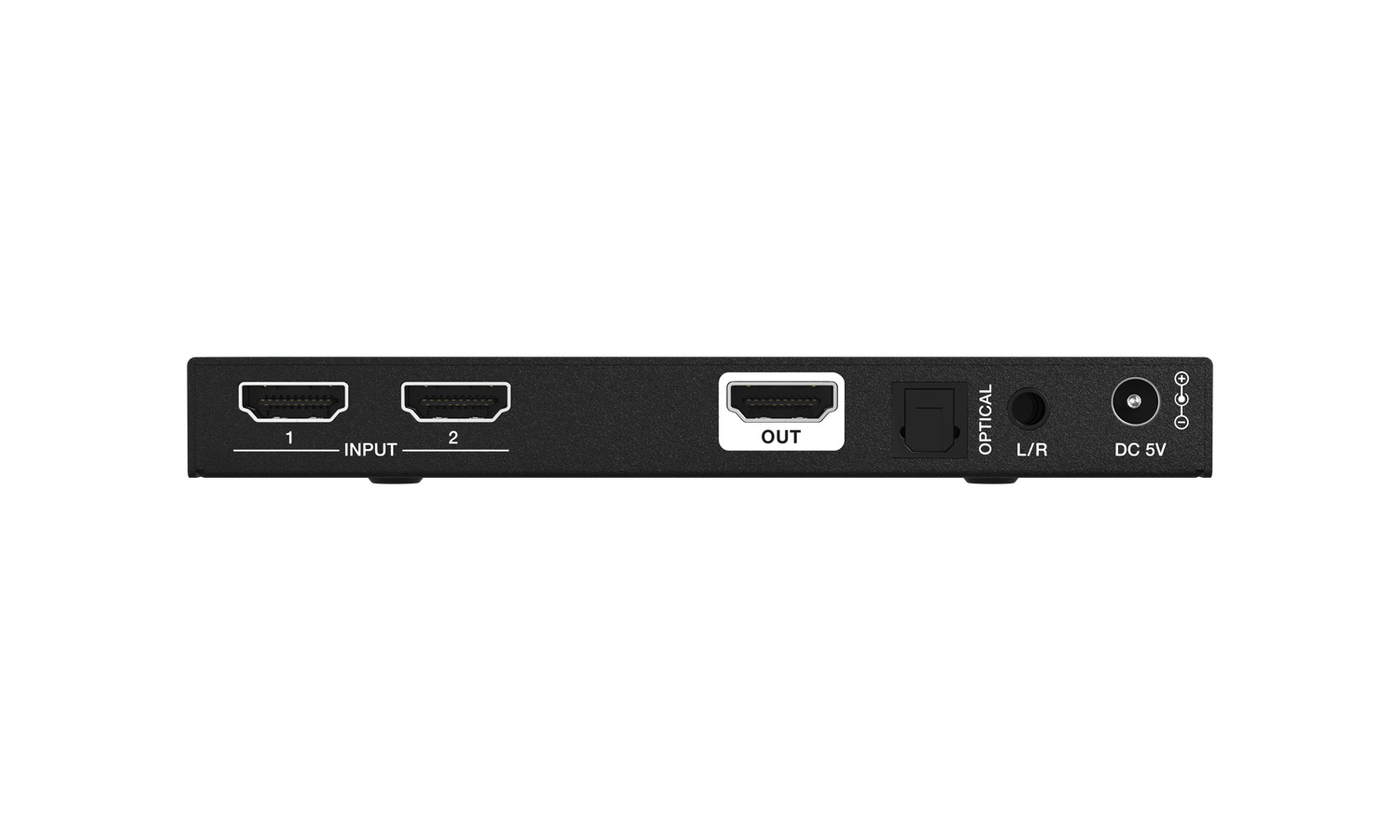

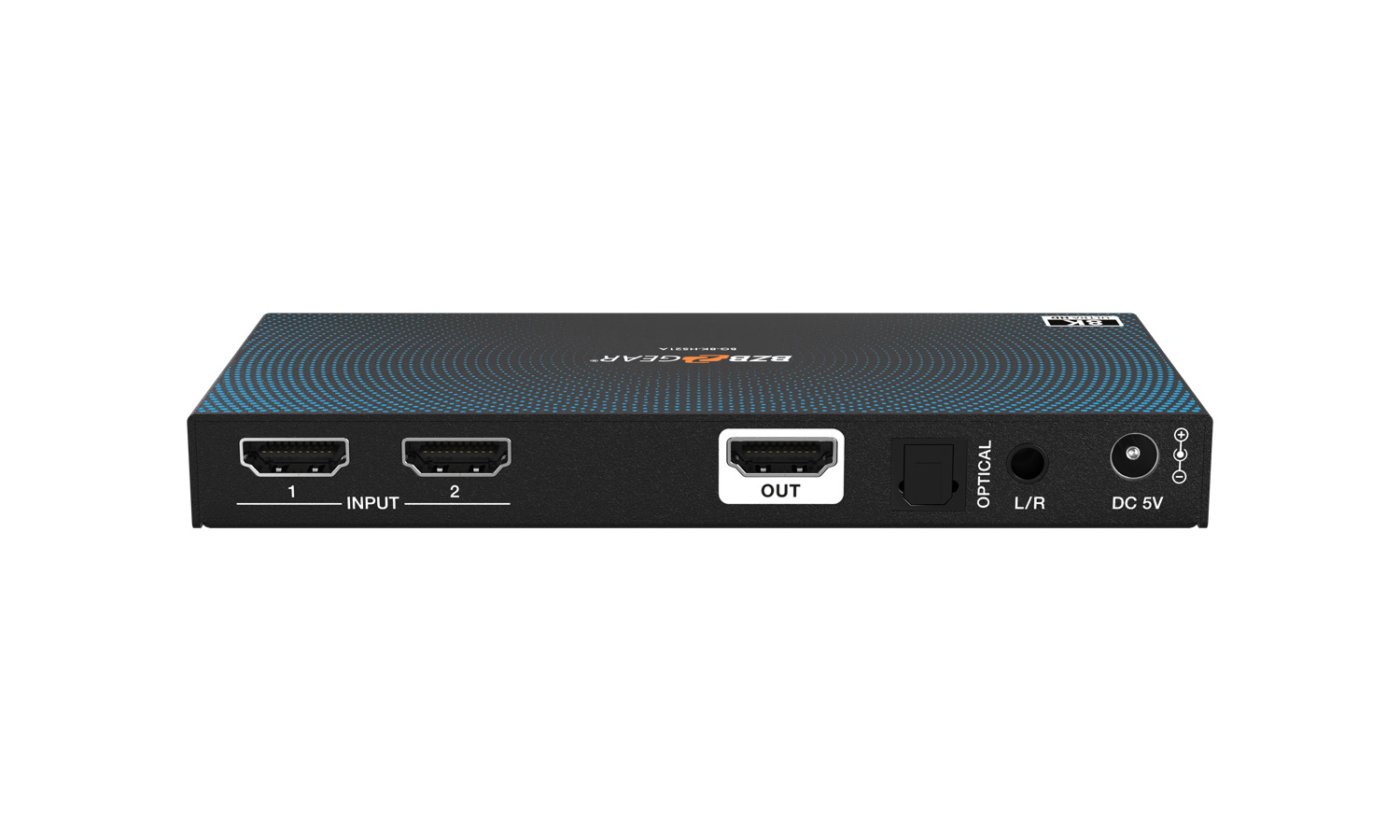

Input	2 x HDMI IN [Type A, 19-pin female]
Output	1 x HDMI OUT [Type A, 19-pin female] 1 x OPTICAL [S/PDIF] 1 x L/R [3.5mm Stereo Mini-jack]
Control	1 x SERVICE [USB Type C, Update port]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions (W x D x H)	5.7in x 2.7in x 0.71in [145mm x 68mm x 18mm]
Weight	0.57 lbs [258g]
Power Supply	Input: AC 100-240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption	3W (Max)
Operation Temperature	32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature	-4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity	20~90% RH (non-condensing)
Recommended HDMI Cable
Video Resolution	8K	4K60	4K24	1080P
HDMI Cable Length (HDMI in / out)	2m/6.6ft (Ultra HDMI 2.1)	8m/26ft	12m/39ft	15m/49ft
The use of “Premium High Speed HDMI” cables is highly recommended.
