Description

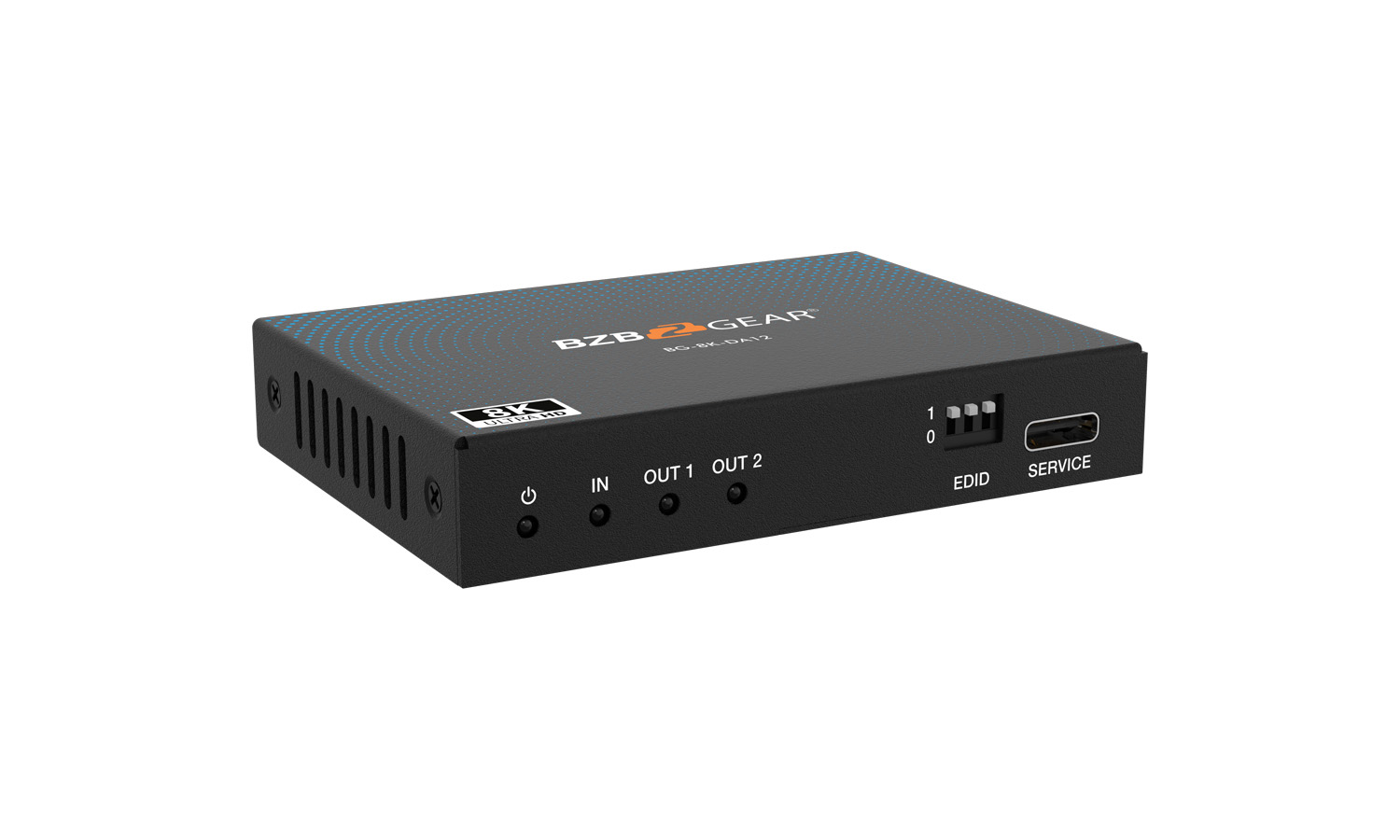

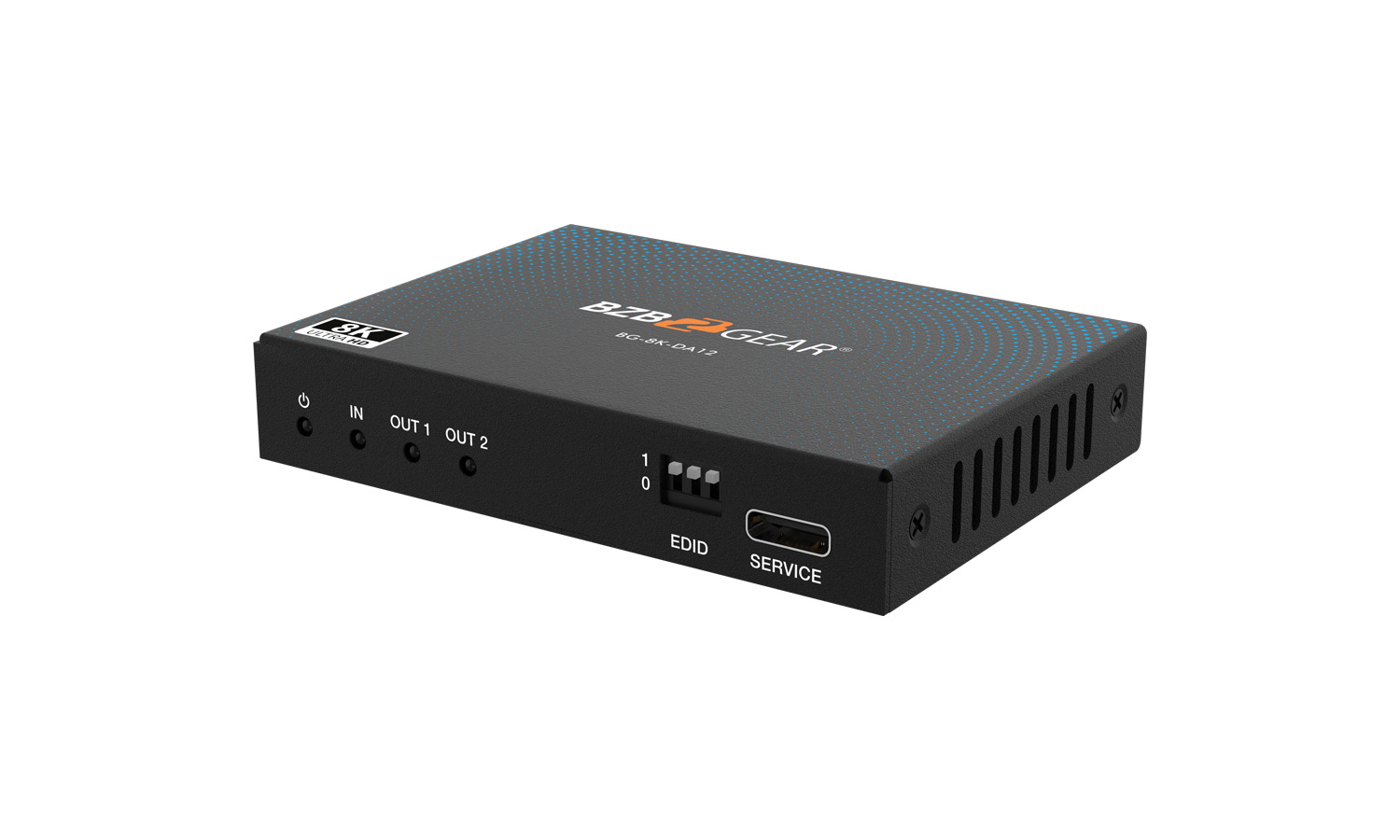

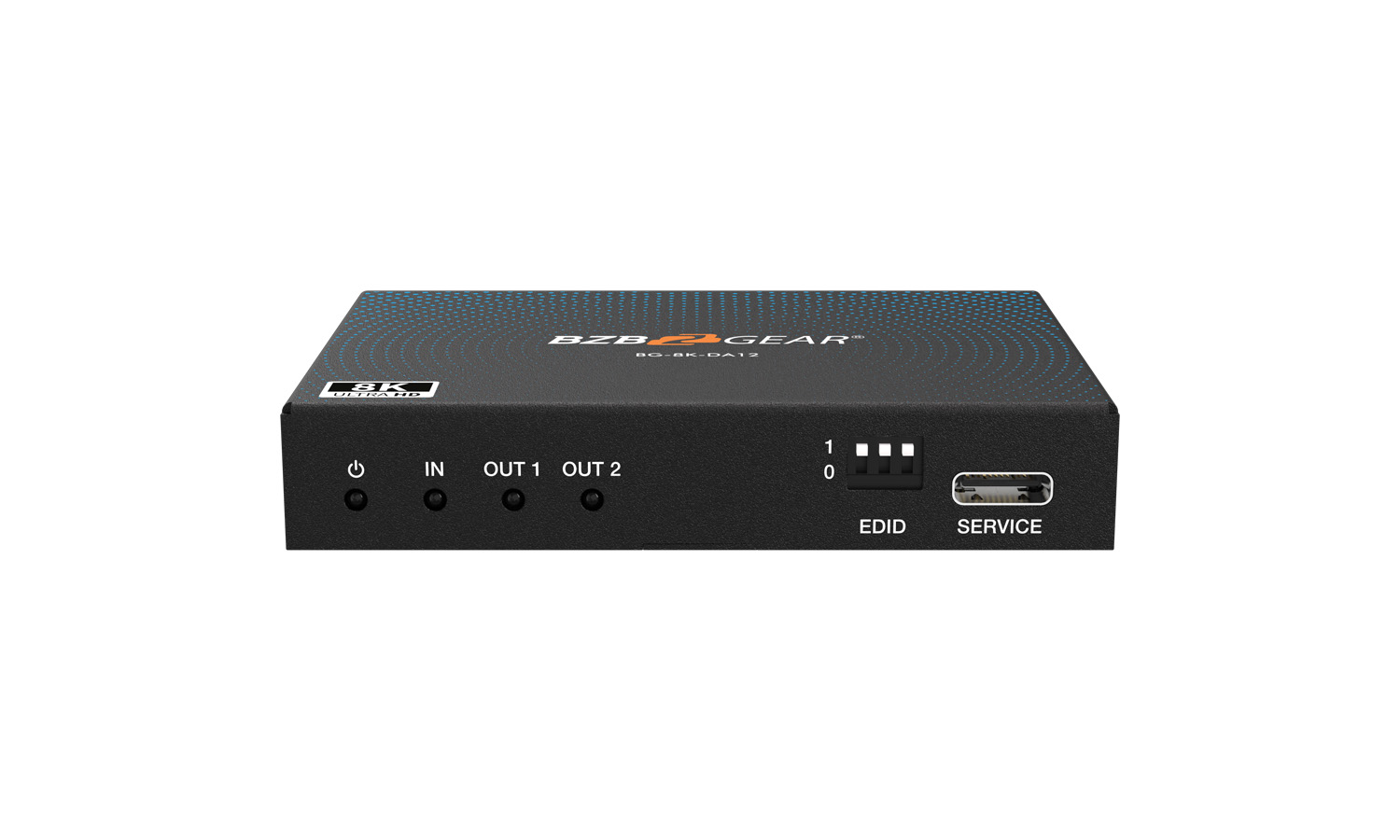

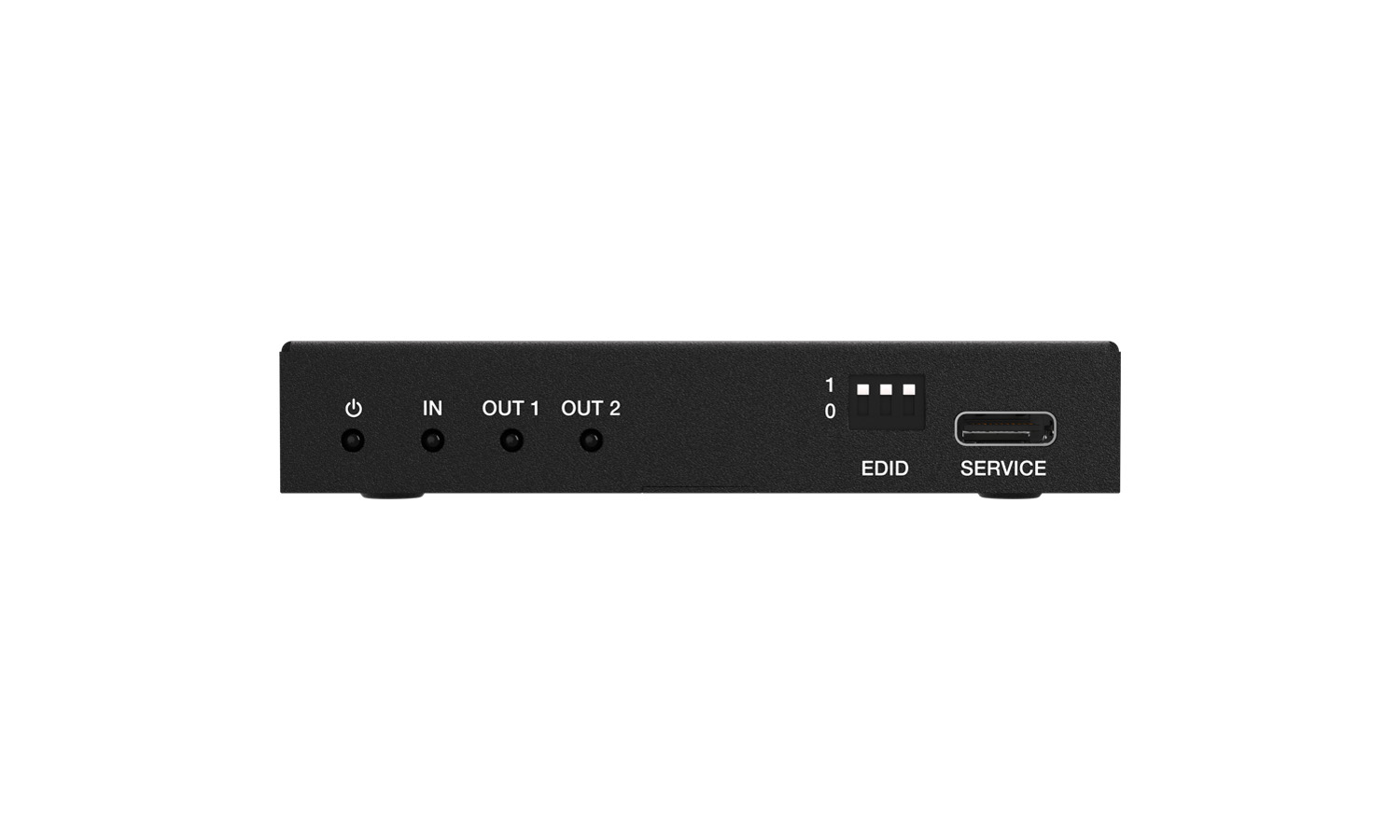

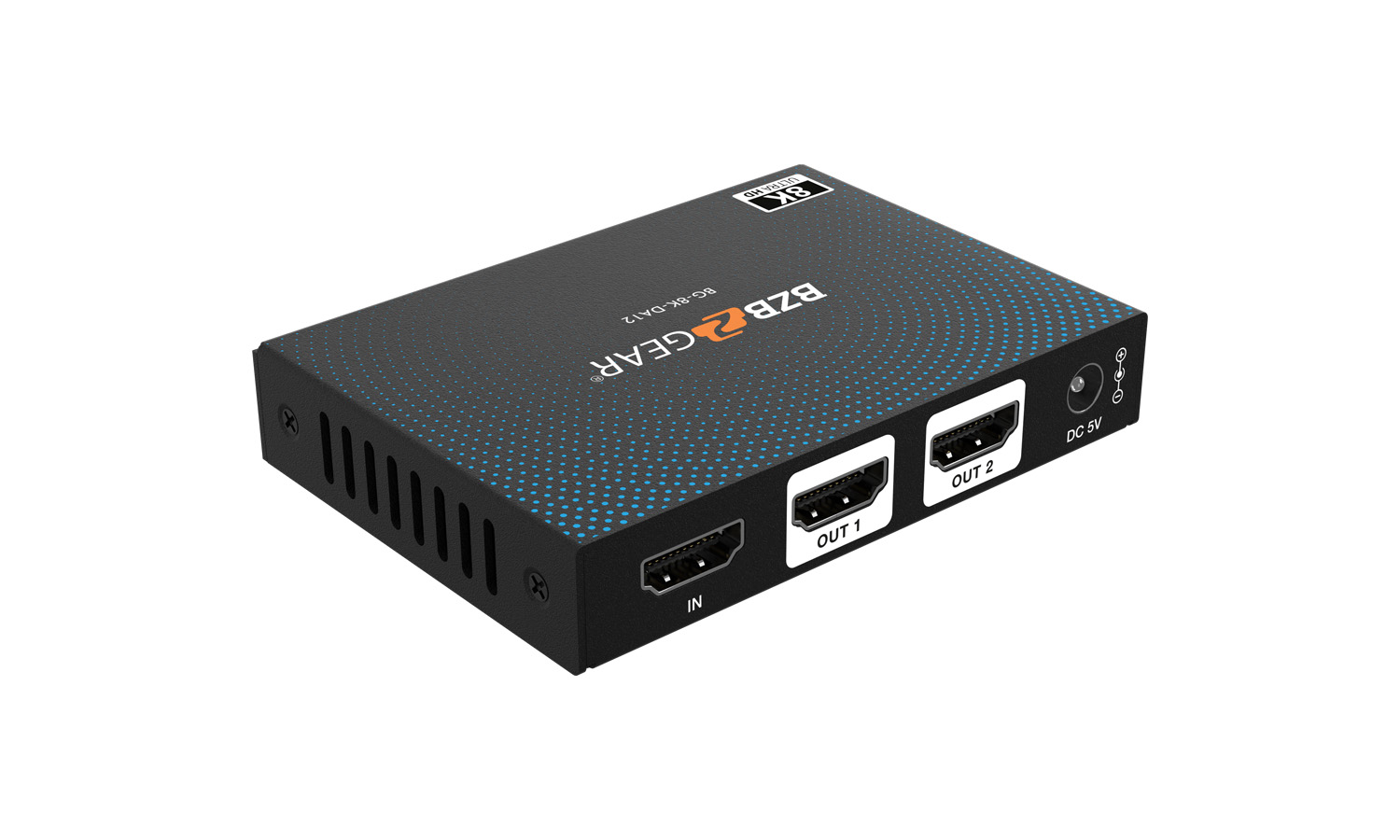

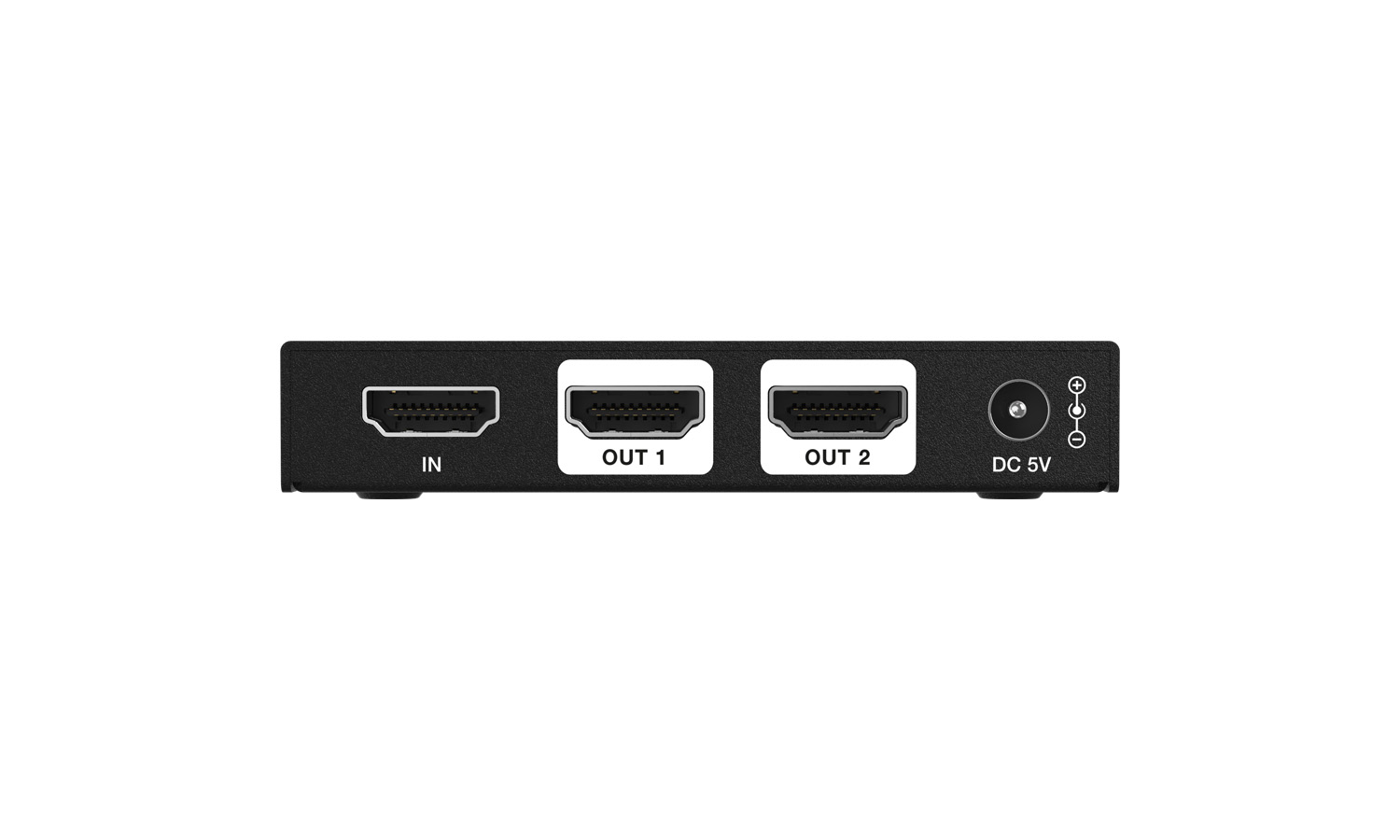

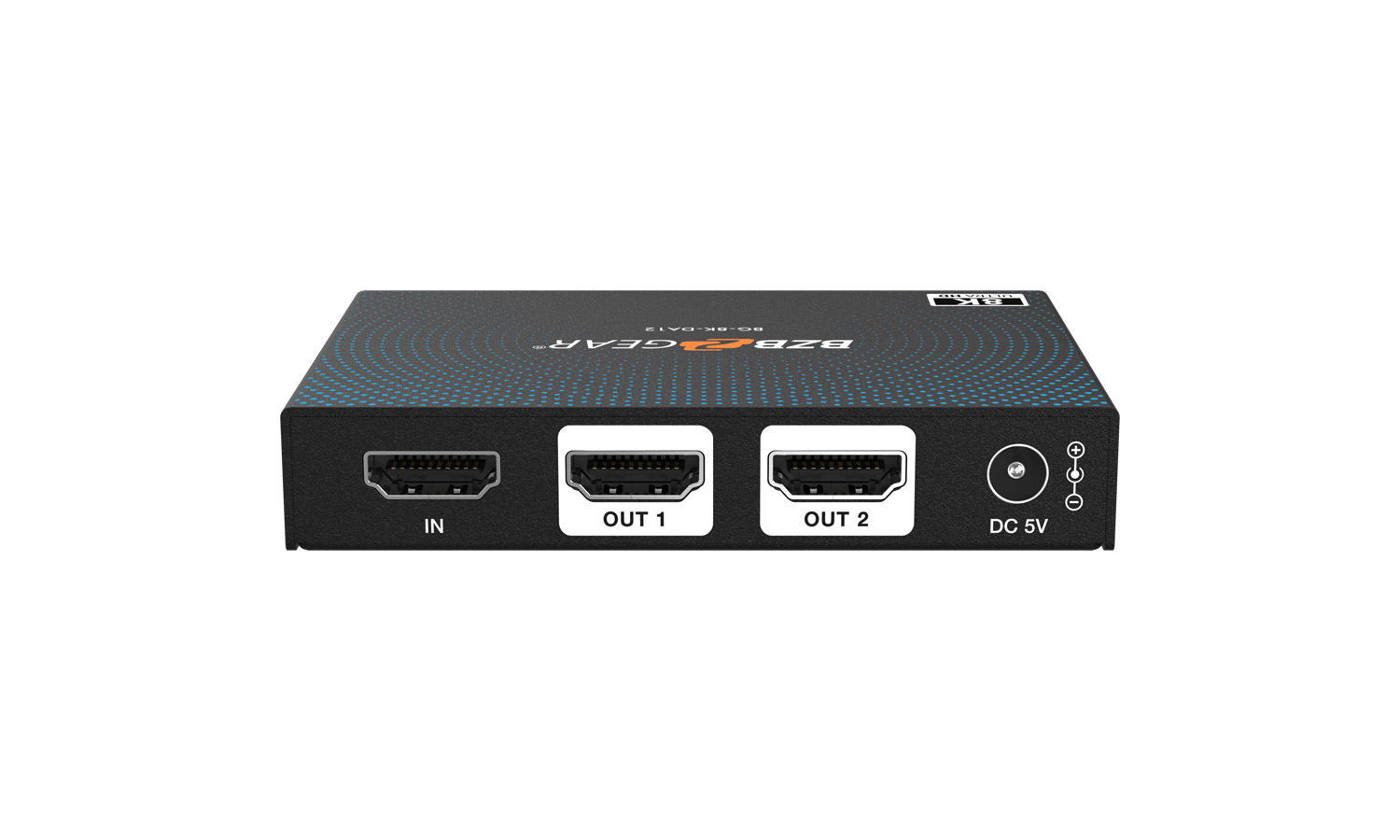

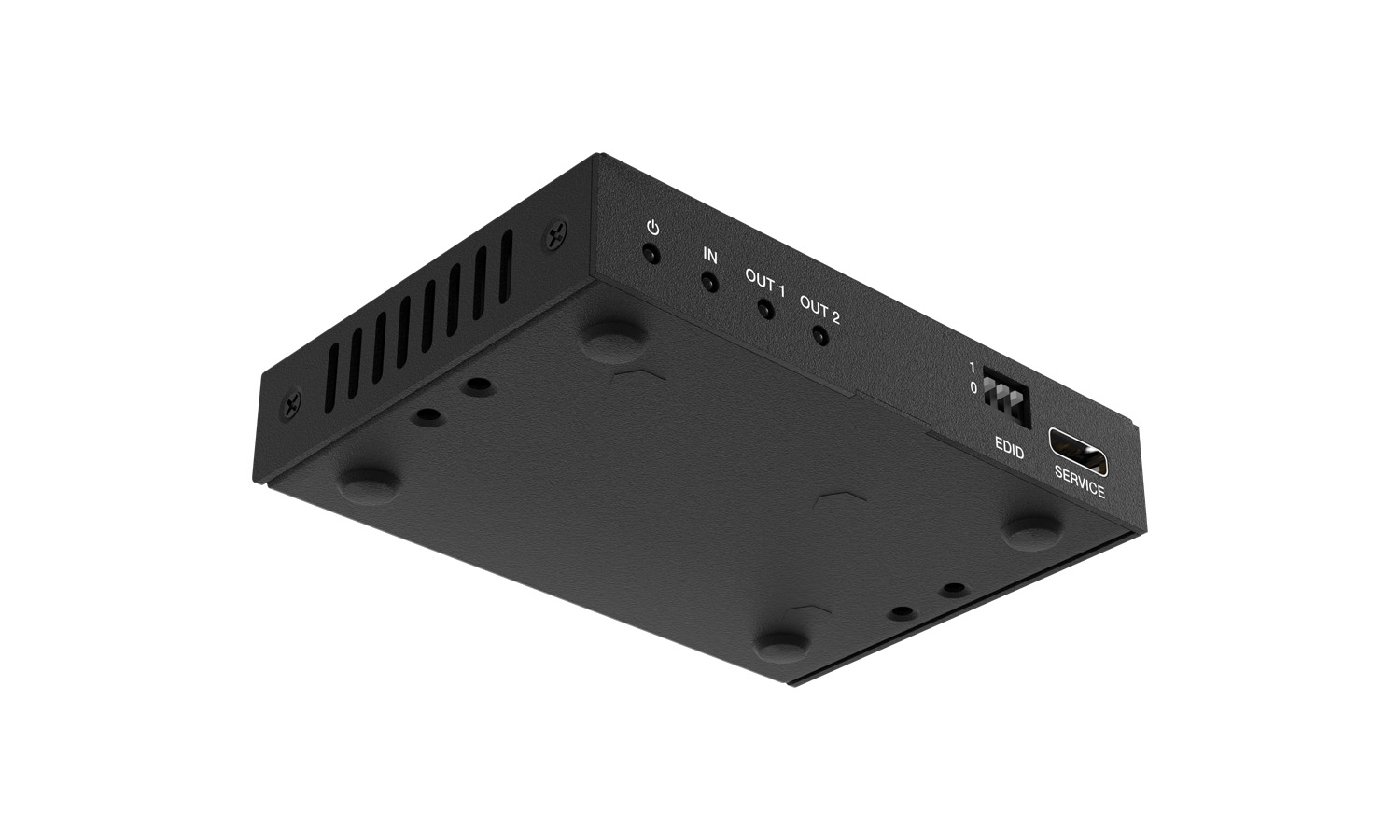

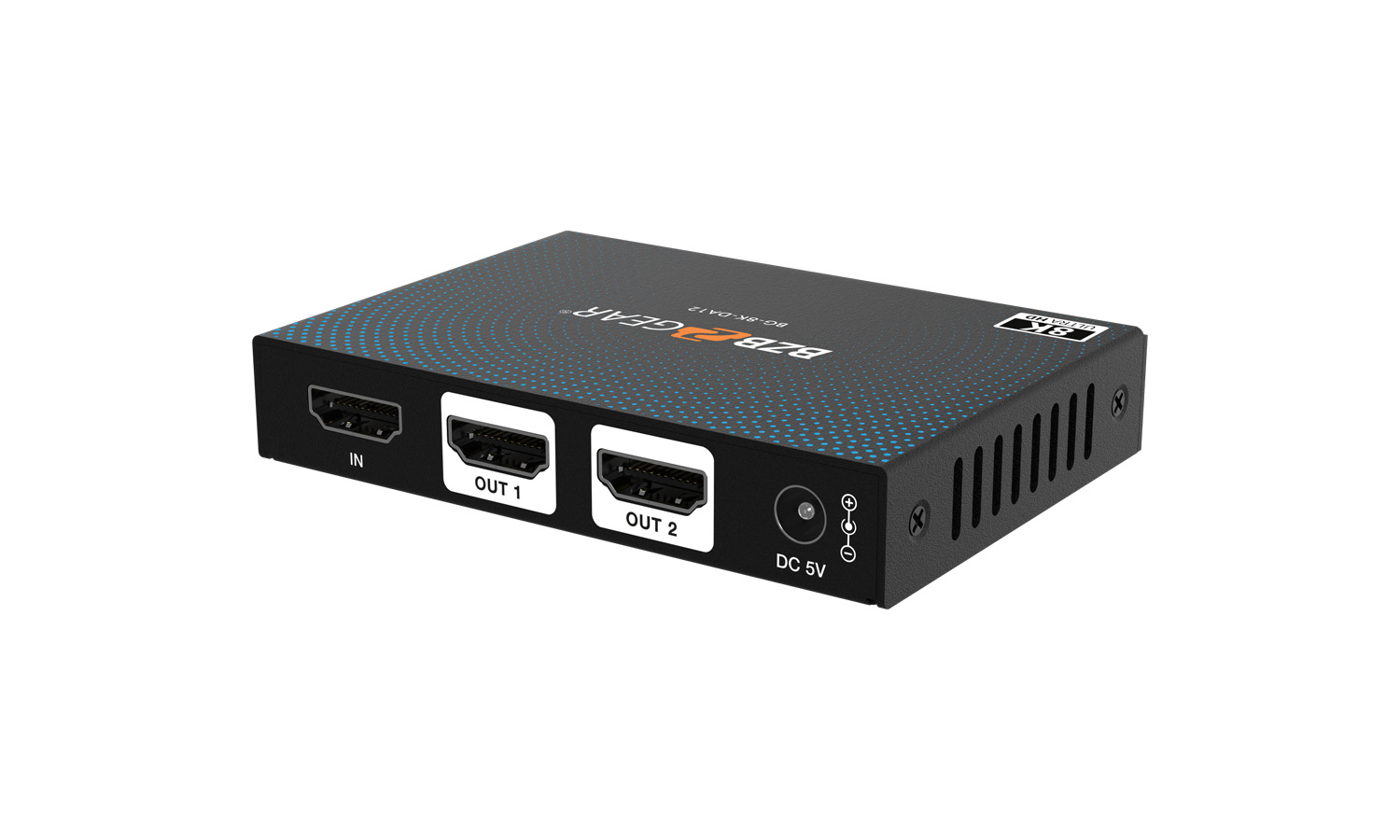

Download Manual The BG-8K-DA12 1×2 HDMI Splitter is a high-performance device designed to split a single HDMI signal into two simultaneous HDMI outputs, delivering exceptional video quality with resolutions up to 8K@60Hz 4:2:0 12-bit. Engineered for demanding applications, this splitter supports data rates up to 48Gbps and complies with the latest HDMI 2.1 and HDCP 2.3 standards, ensuring seamless integration into any setup.

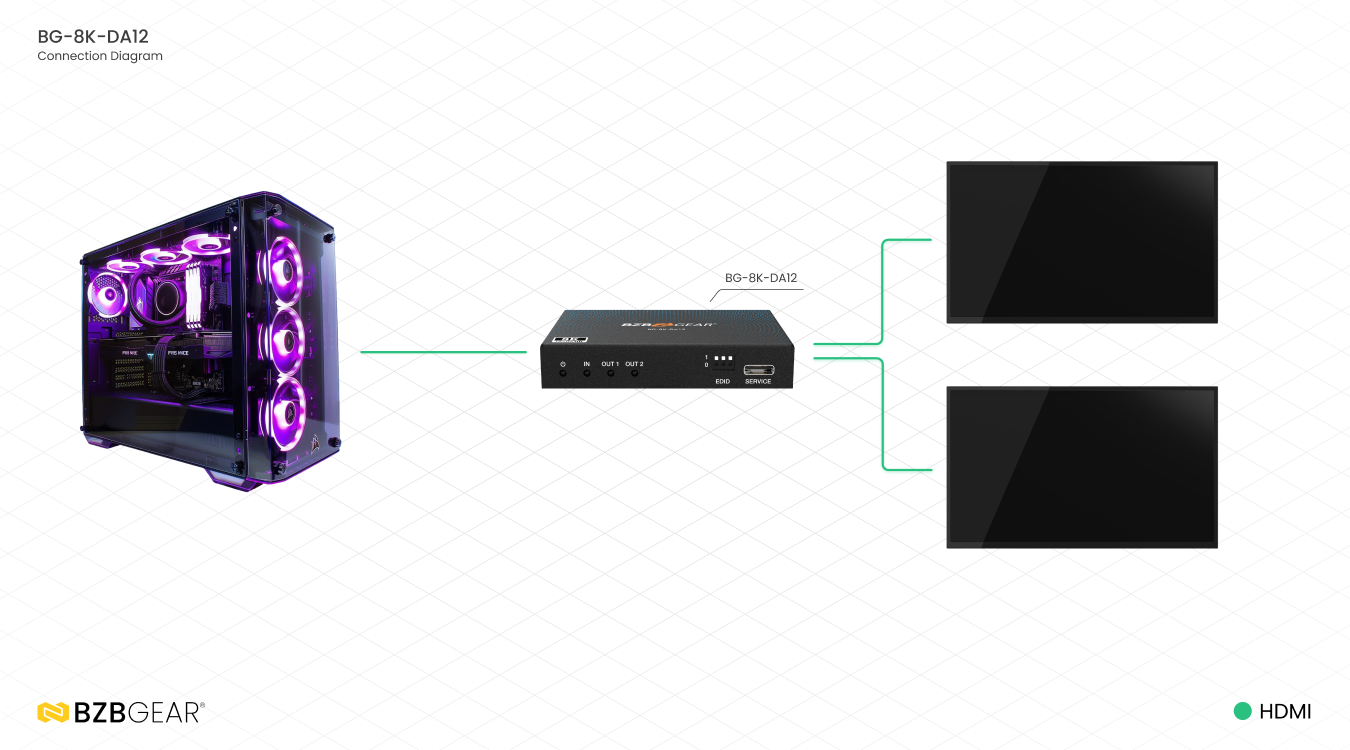

With advanced EDID management and cable equalization features, it’s the ideal solution for gaming and high-definition video environments. Whether connected to an Xbox, PS5, or any 4K/8K-capable device, this splitter allows for 4K@120Hz output on multiple TVs or monitors, offering a seamless experience for gaming and entertainment enthusiasts alike.
Features in Depth
This 1×2 HDMI Splitter is designed to deliver unparalleled performance by splitting a single HDMI source into two simultaneous outputs while preserving the highest video and audio quality. Supporting HDMI 2.1 and HDCP 2.3 standards, this splitter handles ultra-high-definition resolutions up to 8K@60Hz 4:2:0 12-bit, making it perfect for cutting-edge gaming consoles, streaming devices, and other 4K/8K-capable equipment.
With a data rate of up to 48Gbps, the splitter ensures smooth, lag-free transmission, even for the most demanding video and audio formats. It supports a comprehensive range of advanced HDMI 2.1 features, including Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), Quick Media Switching (QMS), Quick Frame Transport (QFT), and Source-Based Tone Mapping (SBTM). These features ensure optimal performance across various display technologies, providing a fluid and responsive experience in both gaming and high-definition video applications.
The splitter also supports HDR pass-through, including HDR10, HDR10+, Dolby Vision, and HLG, ensuring vibrant and dynamic visuals across compatible displays. For audio, it delivers immersive sound quality, supporting formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS pass-through.
One of the key features of this splitter is its auto downscaling capability, which allows it to convert 8K signals to 4K or 1080p across all outputs, as well as HDR to SDR conversion, making it adaptable to a wide range of display types. The advanced EDID management system ensures compatibility with various setups, while cable equalization features help maintain signal integrity over longer distances.
With its compact design and flexible installation options, the 1×2 HDMI Splitter is an essential tool for enhancing home theaters, gaming setups, or professional AV installations, delivering superior video and audio performance with maximum versatility.
Features
- HDCP 2.3 Compliant: Ensures secure content protection and compatibility with the latest HDMI standards
- Stunning Resolution Support: Handles video resolutions up to 8K@60Hz (4:2:0, 12-bit) and 4K@120Hz (4:4:4, 12-bit) as per HDMI 2.1 specifications
- HDMI 2.1 Protocols: Supports VRR, ALLM, QMS, QFT, and SBTM for enhanced gaming and dynamic video performance
- Advanced HDR Compatibility: Passes through HDR, HDR10, HDR10+, Dolby Vision, and HLG for vivid color and contrast
- Auto Downscaling: Automatically downscales 8K to 4K or 8K/4K to 1080P on all outputs for compatibility with lower-resolution displays
- Compact Design: Enables easy and flexible installation in any setup
- High-Bandwidth Support: Provides 48Gbps FRL and 18Gbps TMDS video bandwidth for smooth and reliable video transmission
- High-Quality Audio Pass-Through: Supports LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master, and DTS audio formats
- HDR to SDR Conversion: Automatically converts HDR content to SDR on all outputs for seamless viewing on non-HDR displays
- Advanced EDID Management: Ensures optimal device communication and performance
