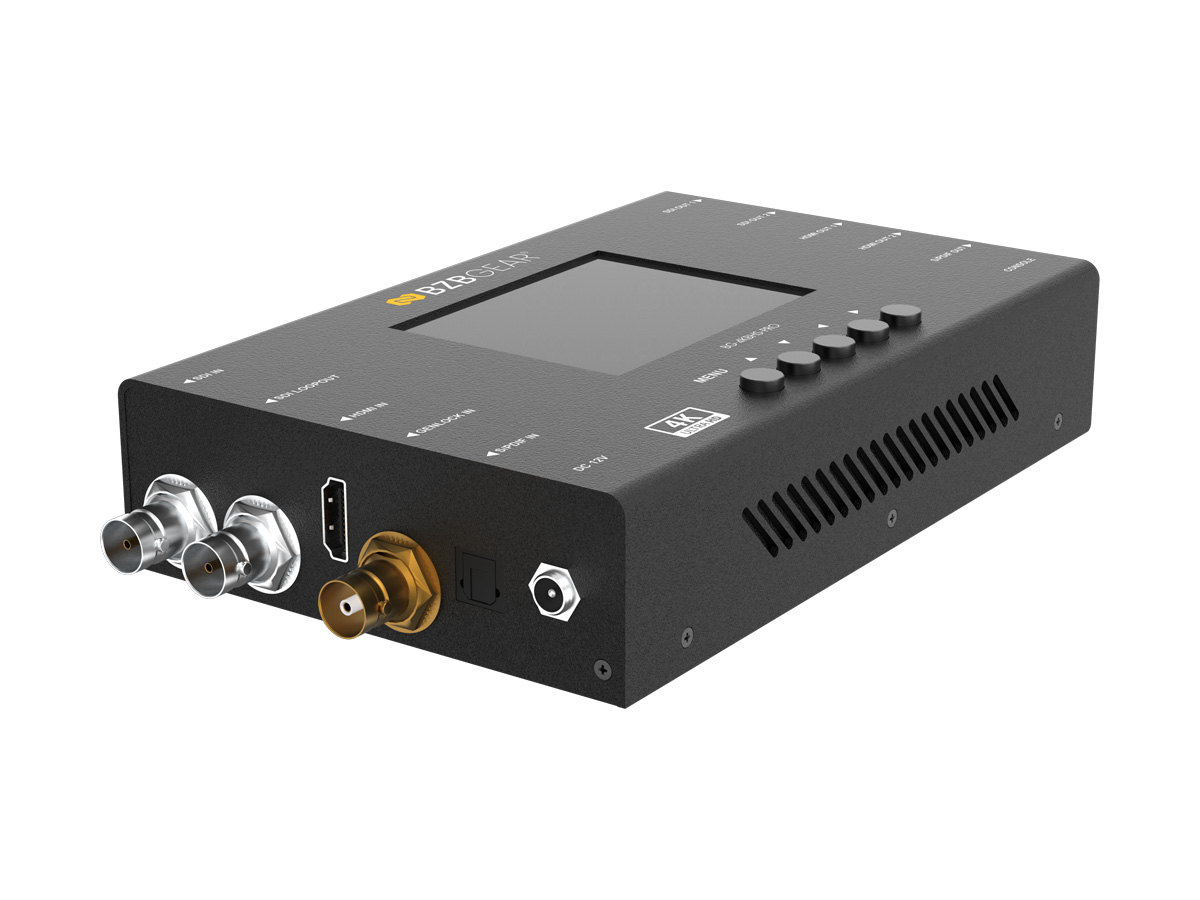

Download Manual The BG-4KBHS-PRO is a professional-grade HDMI 2.0 and 12G/6G/3G/HD-SDI cross-converter and scaler built for high-performance signal conversion, monitoring, and analysis. Designed for broadcast, production, and professional AV applications, it supports up to 12G-SDI 4K60 and HDMI 2.0 4K60 video formats for seamless interoperability across a wide range of devices. Featuring an integrated 3.5” LCD display and intuitive push-button controls, it enables real-time signal monitoring and effortless on-screen configuration of video, audio, and output parameters.
Beyond simple conversion, the BG-4KBHS-PRO is a comprehensive diagnostic and calibration tool. Its advanced waveform and audio metering functions, combined with built-in test patterns and flexible scaling capabilities, make it an indispensable device for field engineers, content creators, and AV technicians who demand precision and reliability in every workflow.
Features in DepthAt its core, the BG-4KBHS-PRO delivers unparalleled flexibility with support for both HDMI 2.0 and SDI (12G/6G/3G/HD/SD) formats. It can simultaneously convert HDMI to SDI or SDI to HDMI, allowing cross-format workflows without compromising quality. The unit supports SDI bandwidths up to 11.88 Gbps and HDMI up to 18 Gbps, enabling full 4K60 (YUV 4:4:4) transmission with accurate color reproduction and low-latency performance. Its built-in scaler and deinterlacer ensure smooth playback and optimal display compatibility across various resolution standards, including VESA output modes.
For professional video analysis, the processor provides YCbCr waveform display, RGB monitoring, and audio level metering, viewable directly via the OSD or LCD interface. Engineers can access a suite of built-in test patterns to evaluate signal integrity, perform color calibration, or verify display alignment. The noise reduction, video enhancement, horizontal/vertical mirroring, zoom, and underscan functions offer extensive image control capabilities to fine-tune visual output in any setup.
Audio flexibility is equally robust, with S/PDIF-based embedding and de-embedding, ensuring precise audio management during signal conversion. The push-button interface enables fast access to all key settings, while firmware upgradability guarantees compatibility with future standards and extended functionality over time. Compact, durable, and highly versatile, the BG-4KBHS-PRO is an all-in-one solution for modern video signal conversion and real-time quality assurance.

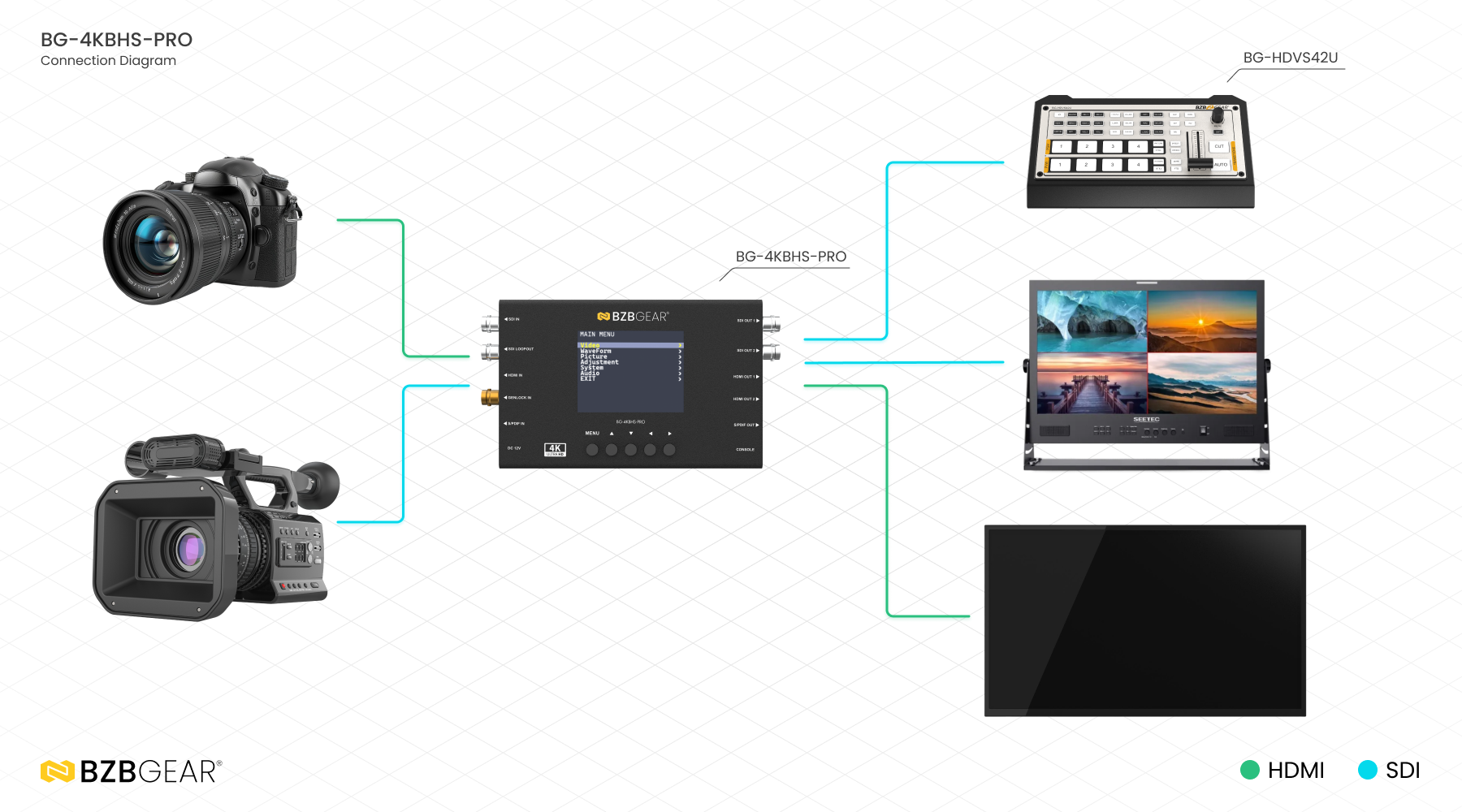

Features- Dual-Format Conversion: Supports simultaneous HDMI – SDI cross-conversion with passthrough options
- 4K60 Ultra HD Support: Handles HDMI 2.0 and 12G-SDI signals up to 4K2K @ 60Hz for superior clarity
- Integrated LCD Display: 3.5” screen provides real-time video preview and on-screen control interface
- Advanced Video Analysis: Features YCbCr waveform, RGB monitoring, and audio level meters with OSD overlay
- Built-In Test Patterns: Enables quick calibration and signal verification in professional environments
- Audio Embedding & Extraction: S/PDIF I/O allows precise audio signal routing between HDMI and SDI
- Supports 12G-SDI (4K2K @ 50/59.94/60Hz), 6G-SDI (4K2K @ 23.98–30Hz), 3G-SDI (1080p @ 50/59.94/60Hz), HD-SDI (720p/1080i), and SD-SDI (NTSC/PAL)
- Video bandwidth: SDI up to 11.88 Gbps; HDMI up to 18 Gbps
- Multiple VESA standard resolutions supported for output
- Built-in deinterlacing for smoother motion playback
- Noise reduction, image enhancement, and horizontal/vertical mirroring functions
- Zoom, underscan, and pixel-to-pixel display modes for detailed monitoring
- “Check field” mode for color and pattern verification
- Push-button control interface for quick setup and configuration
- Firmware upgradeable for future functionality and compatibility
