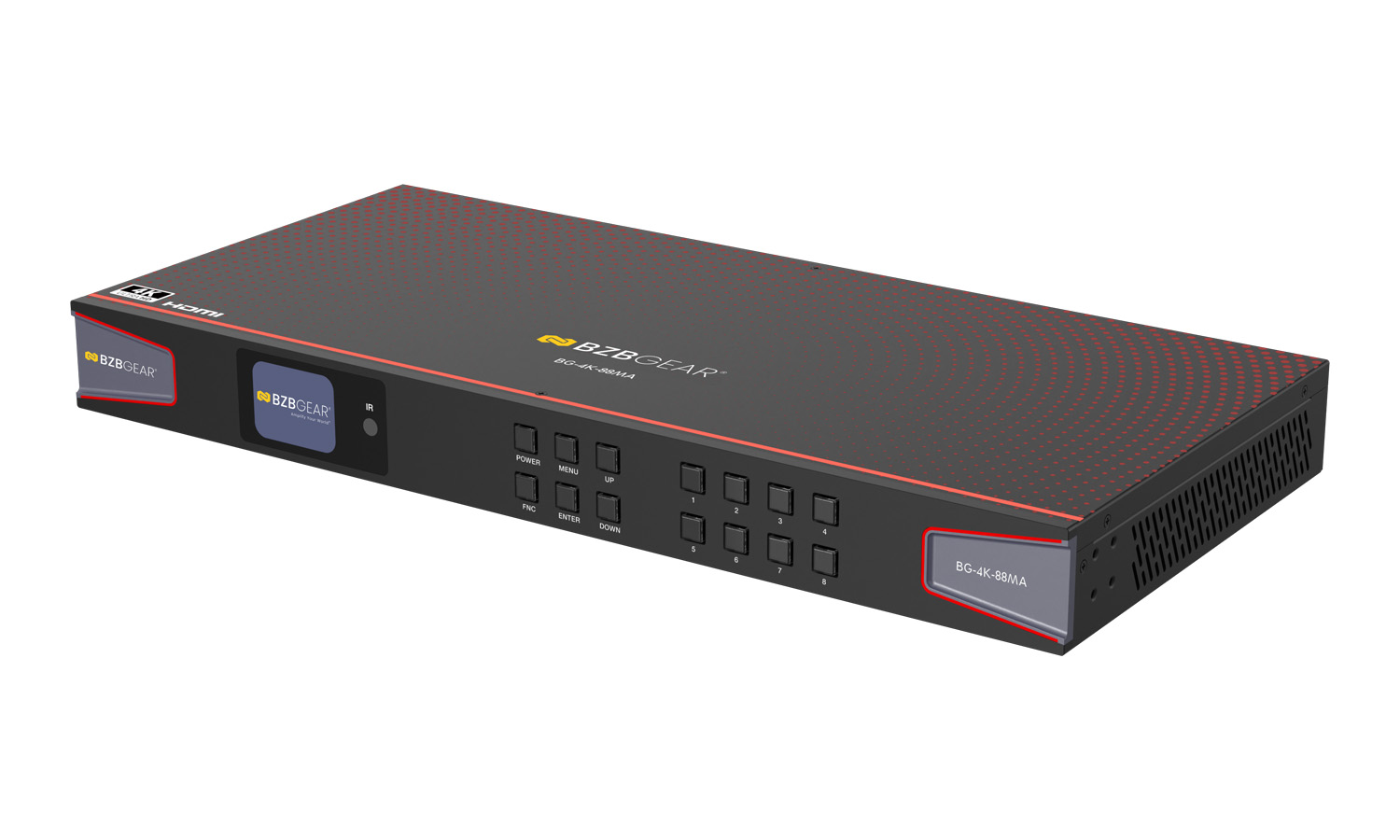

BZBGEAR BG-4K-88MA 8x8 4K UHD HDMI 2.0 Matrix Switcher with Audio De-embedding and Independent Routing (4K60 - 4:4:4 and HDR Support) - AV Pro Supply

Description

With eight HDMI 2.0 inputs and eight HDMI 2.0 outputs, the BG-4K-88MA 4K HDMI matrix switch allows users to share up to eight HDMI sources with up to eight displays. Perfect for when you need to change multiple sources to show on various displays or even select just one source to show on all displays with the press of a button. Audio can also be independently routed. Professional-grade picture and audio quality are achieved with support for 4K resolutions and various high-quality audio formats.

Features-in-Depth

Connectivity and Quality: The BG-4K-88MA supports high resolutions up to 4K@60Hz 4:4:4 with HDR. With 18 Gbps of uncompressed bandwidth, HDMI signals are routed with no loss of quality. All HDMI ports on this matrix are HDCP 2.2 compliant. This device is also equipped with auto-downscaling on all outputs, ensuring compatibility with legacy displays. Additionally, the BG-4K-88MA supports Digital S/PDIF and Balanced audio output formats.

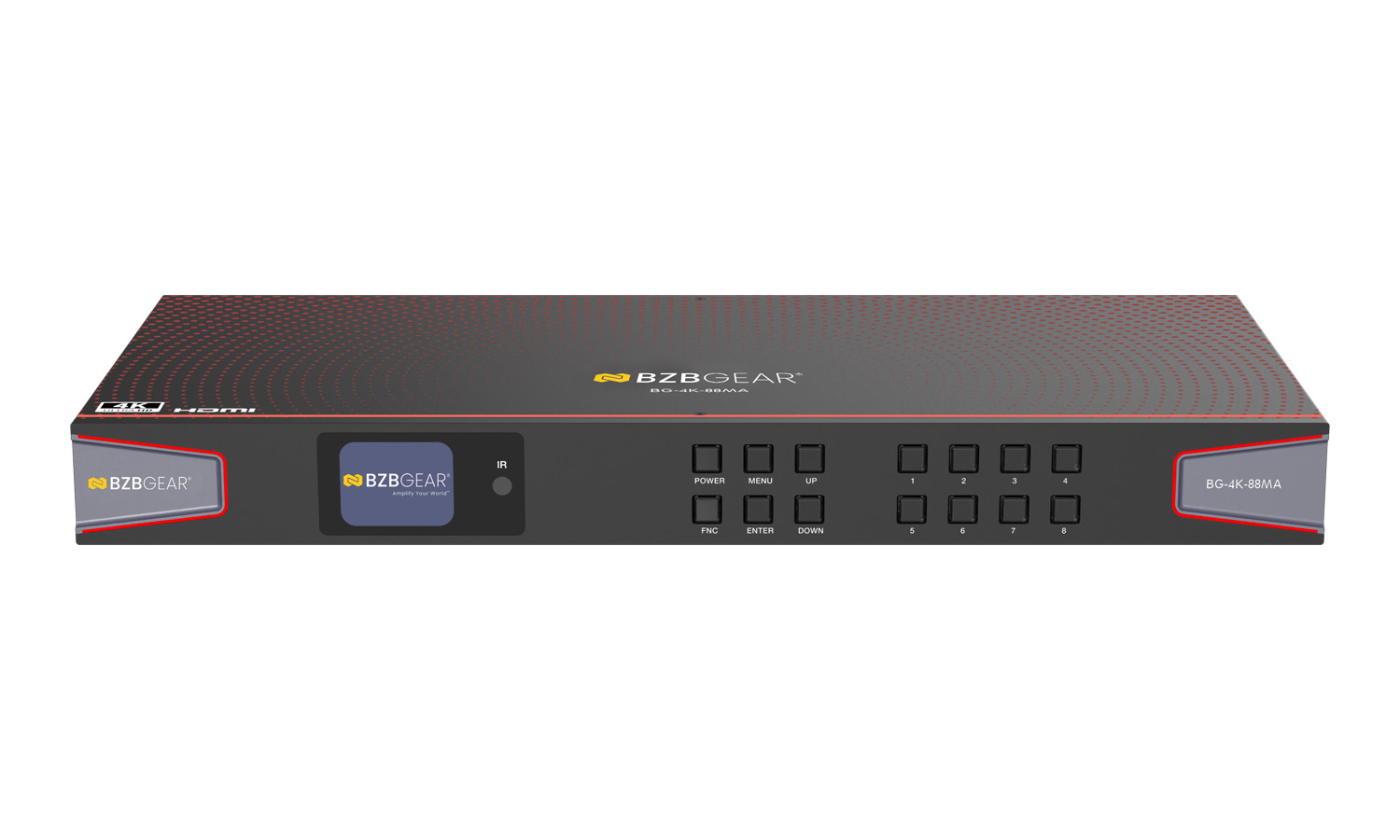

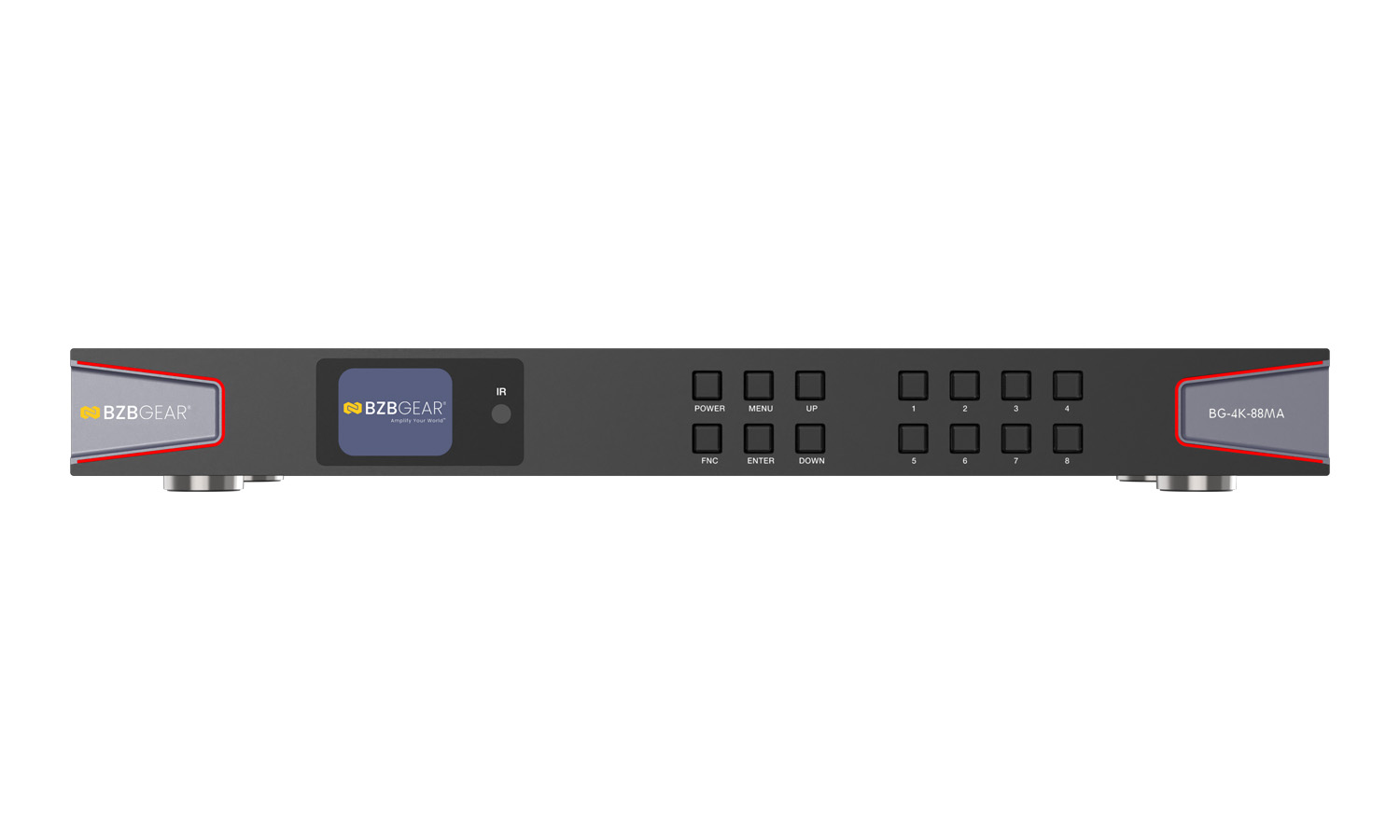

Control: The BG-4K-88MA offers multiple control methods including front panel controls, IR remote control, RS-232, or TCP/IP (Web GUI). The included IR receiver allows the unit to be controlled with the included remote while located out of sight for a clean installation. In addition to a full-featured web interface, the BG-4K-88MA includes control software that can be operated via the RS-232 connection. These interfaces allow users to adjust advanced features like EDID management, mapping, and network settings.

Audio Matrixing: This unit features advanced audio matrixing capabilities. Audio can be independently routed separately from the video signals. This feature provides flexible audio management options for a variety of installation scenarios.

Features

HDCP Compliant: HDMI 2.0 (18Gbps) HDCP 2.2 (and all earlier versions supported)
4K Resolution: Up to 4K@60Hz 4:4:4 HDR support
Audio Matrixing: The audio can be independently routed
Control Options: Control via front panel, IR, RS-232, and TCP/IP (Web GUI)
EDID Management: Seamless scaling for the best results
HDR Support: HDR, HDR10, Dolby Vision pass-through

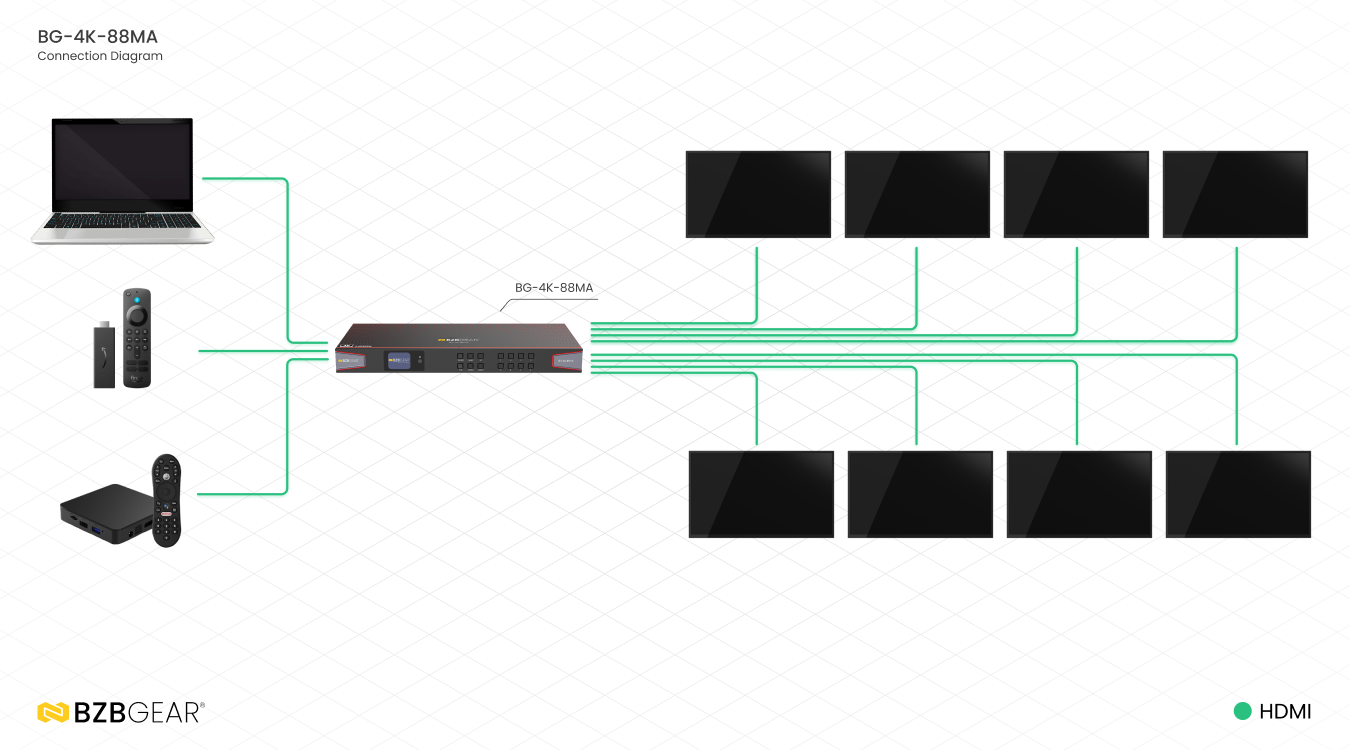

Product Diagrams

View Diagrams

Specifications

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	18Gbps
Video Resolution	Up to 4K60Hz 4:4:4 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1440x900p60Hz, 1440x1050p60Hz, 1600x1200p60Hz, 720x480i59.94Hz(480i59), 720x480p59.94Hz(480p59), 720x576i50Hz(576i50), 720x576p50Hz(576p50), 1280x720p50Hz(720p50), 1280x720p59.94Hz(720p59), 1280x720p60Hz(720p60), 1920x1080i50Hz(1080i50), 1920x1080i59.94Hz(1080i59), 1920x1080i60Hz(1080i60), 1920x1080p23.98Hz(1080p23), 1920x1080p24Hz(1080p24), 1920x1080p25Hz(1080p25), 1920x1080p29.97Hz(1080p29), 1920x1080p30Hz(1080p30), 1920x1080p50Hz(1080p50), 1920x1080p59.94Hz(1080p59), 1920x1080p60Hz(1080p60), 3840x2160p23.98Hz(2160p23), 3840x2160p24Hz(2160p24), 3840x2160p25Hz(2160p25), 3840x2160p29.97Hz(2160p29), 3840x2160p30Hz(2160p30), 3840x2160p50Hz(2160p50), 3840x2160p59.94Hz(2160p59), 3840x2160p60Hz(2160p60), 4096x2160p23.98Hz, 4096x2160p24Hz, 4096x2160p25Hz, 4096x2160p29.97Hz, 4096x2160p30Hz, 4096x2160p50Hz, 4096x2160p59.94Hz, 4096x2160p60Hz
Color Space	RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
Color Depth	8/10/12-bit
HDR Formats	HDR, HDR10, HDR10+, Dolby Vision LLM, HLG
Audio Formats	HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD AUDIO BREAKOUT: Optical outputs: Up to LPCM/Dolby/DTS 5.1CH Analog Audio Outputs: LPCM 2CH (sample rate 32~192kHz)
ESD Protection	IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection

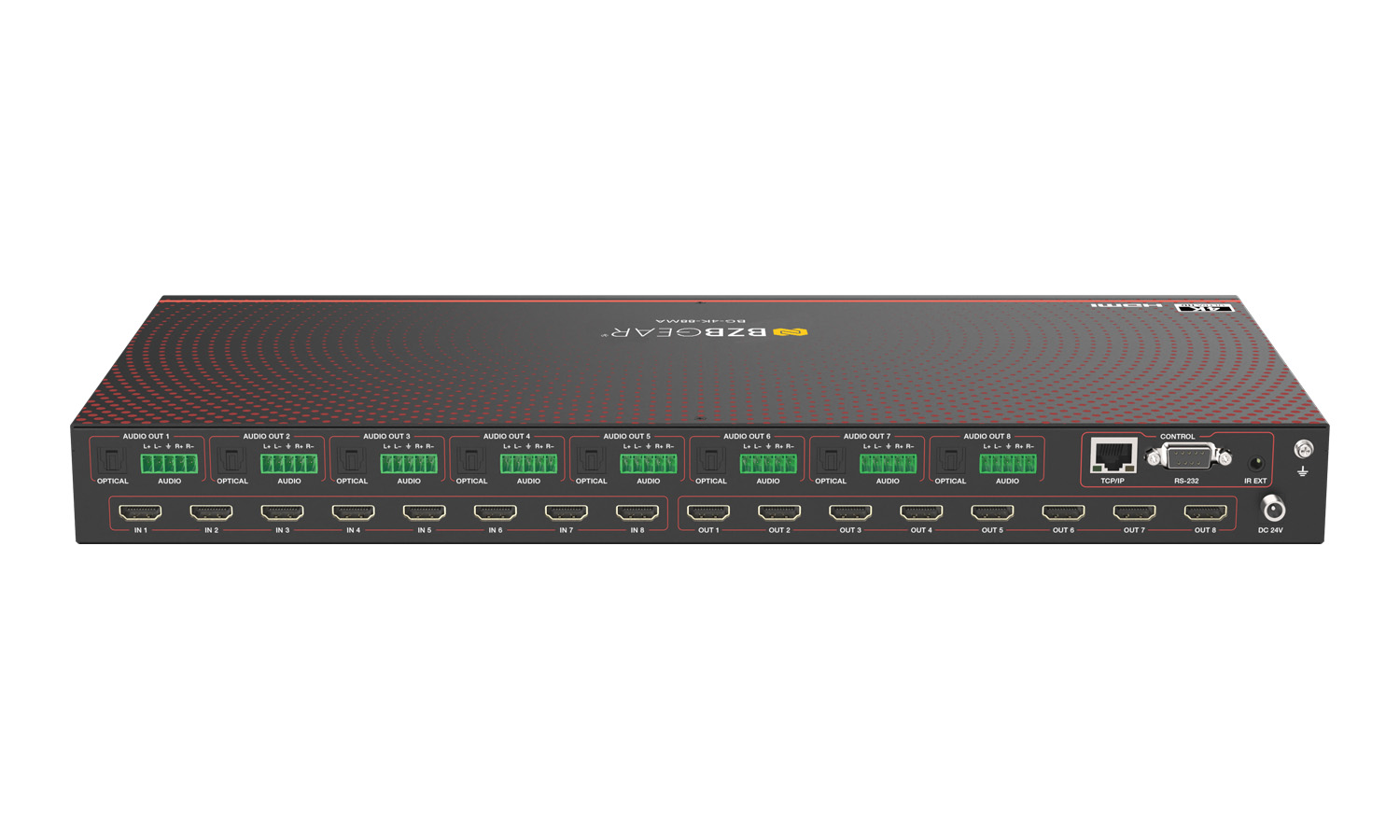

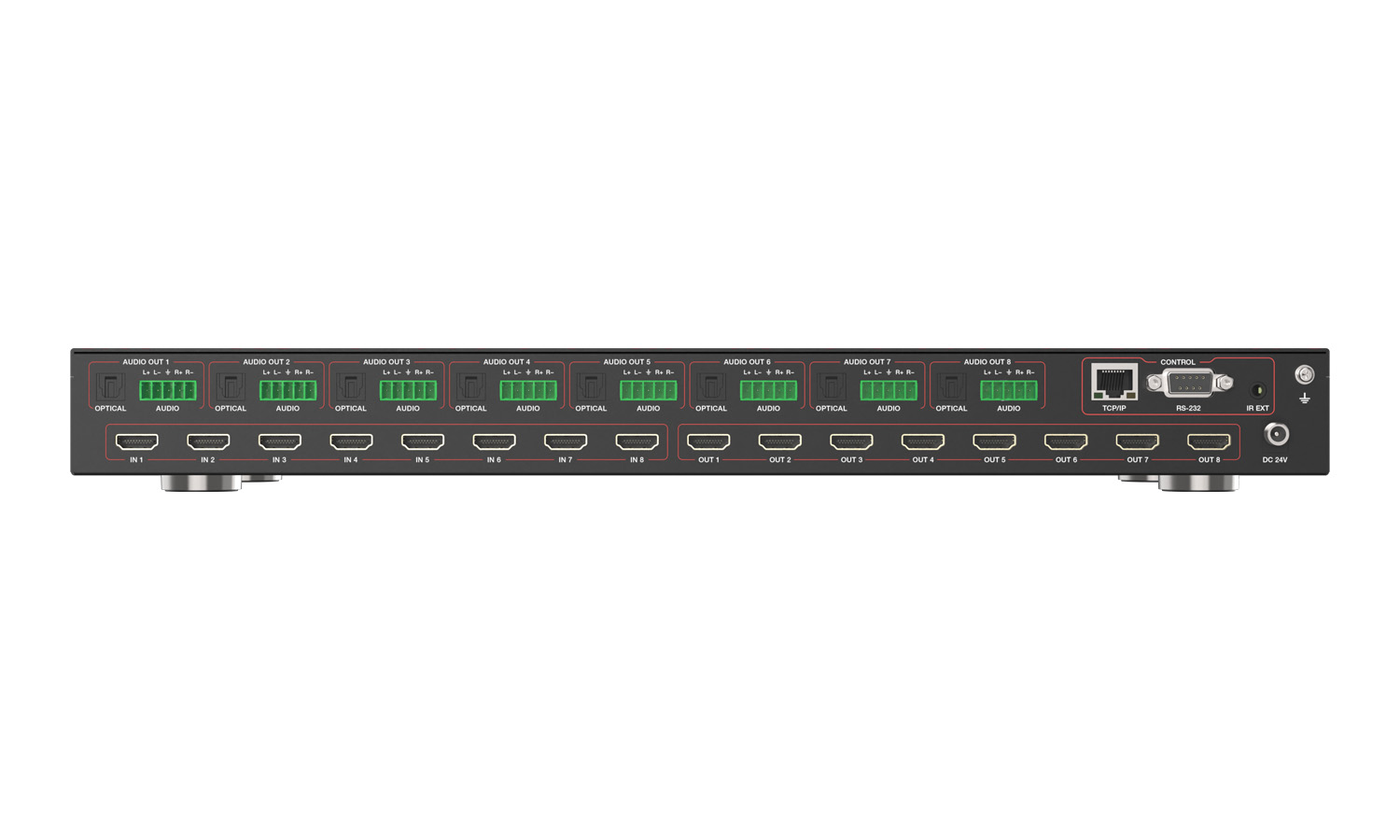

Input ports	8x INPUT [HDMI Type A, 19-pin female]
Output ports	8x OUTPUT [HDMI Type A, 19-pin female] 8x OPTICAL AUDIO OUT 8x L/R AUDIO OUT [5-pin phoenix connector]
Control ports	1x TCP/IP [RJ45] 1x RS-232 [D-Sub9] 1x IR EXT [3.5mm audio jack]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions (W x D x H)	17in x 8.1in x 1.8in [440mm x 206mm x 44.5mm]
Weight	5.25 lbs [2.38kg]
Power Supply	Input: AC 100 - 240V 50/60Hz, Output: DC 24V/3.75A (US/EU standard, CE/FCC/UL certified)
Power Consumption	Full Load: 52.3W; Stand-by: 2.6W
Operating Temperature	32 - 104°F / 0 - 40°C
Storage Temperature	-4 - 140°F / -20 - 60°C
Operating Humidity	20%~80% relative humidity, non-condensing
Storage Humidity	10%~90% relative humidity, non-condensing
Video Resolution	4K60	4K30	1080P
HDMI Cable Length (IN / OUT)	5m/16ft	10m/33ft	15m/49ft
The use of “Premium High Speed HDMI” cable is highly recommended.
