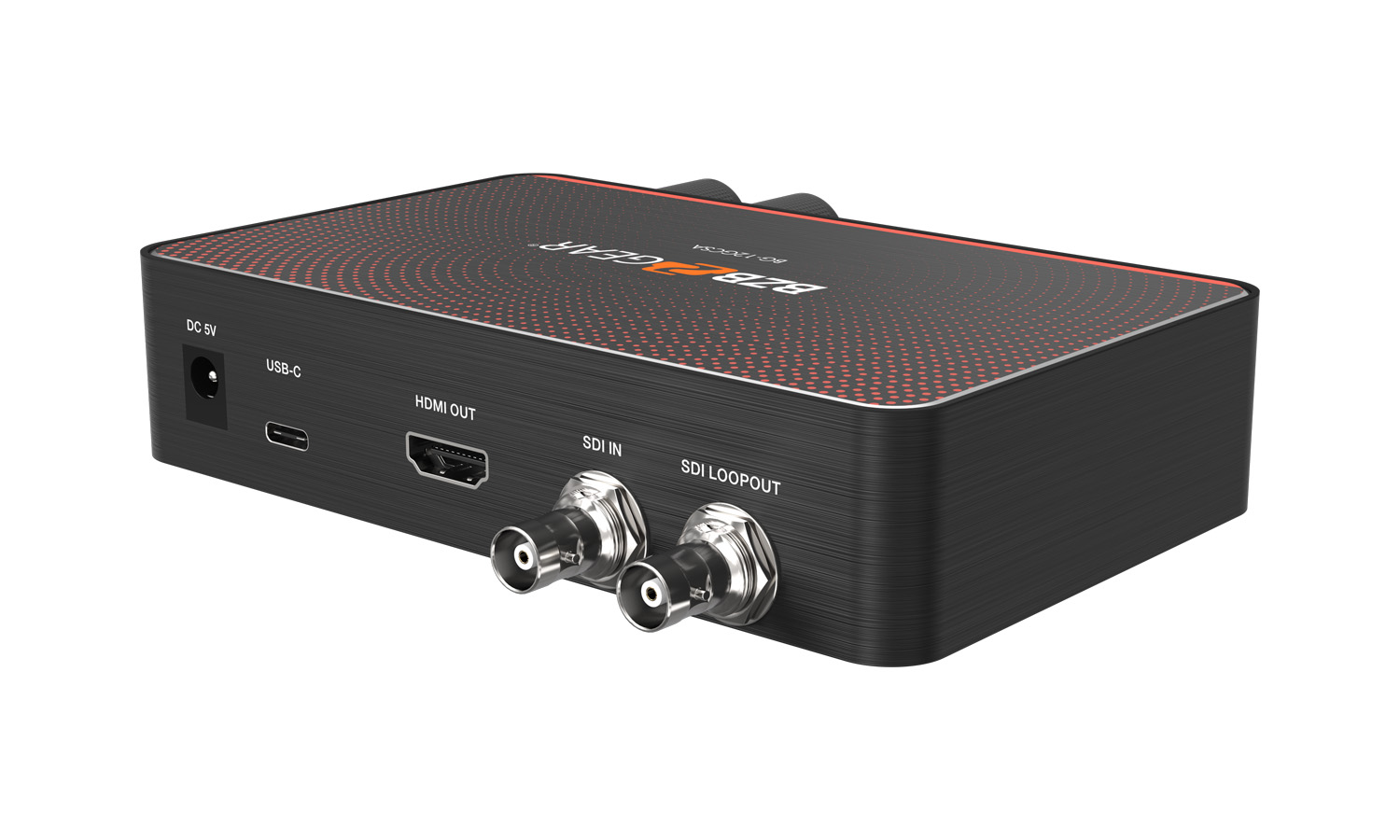

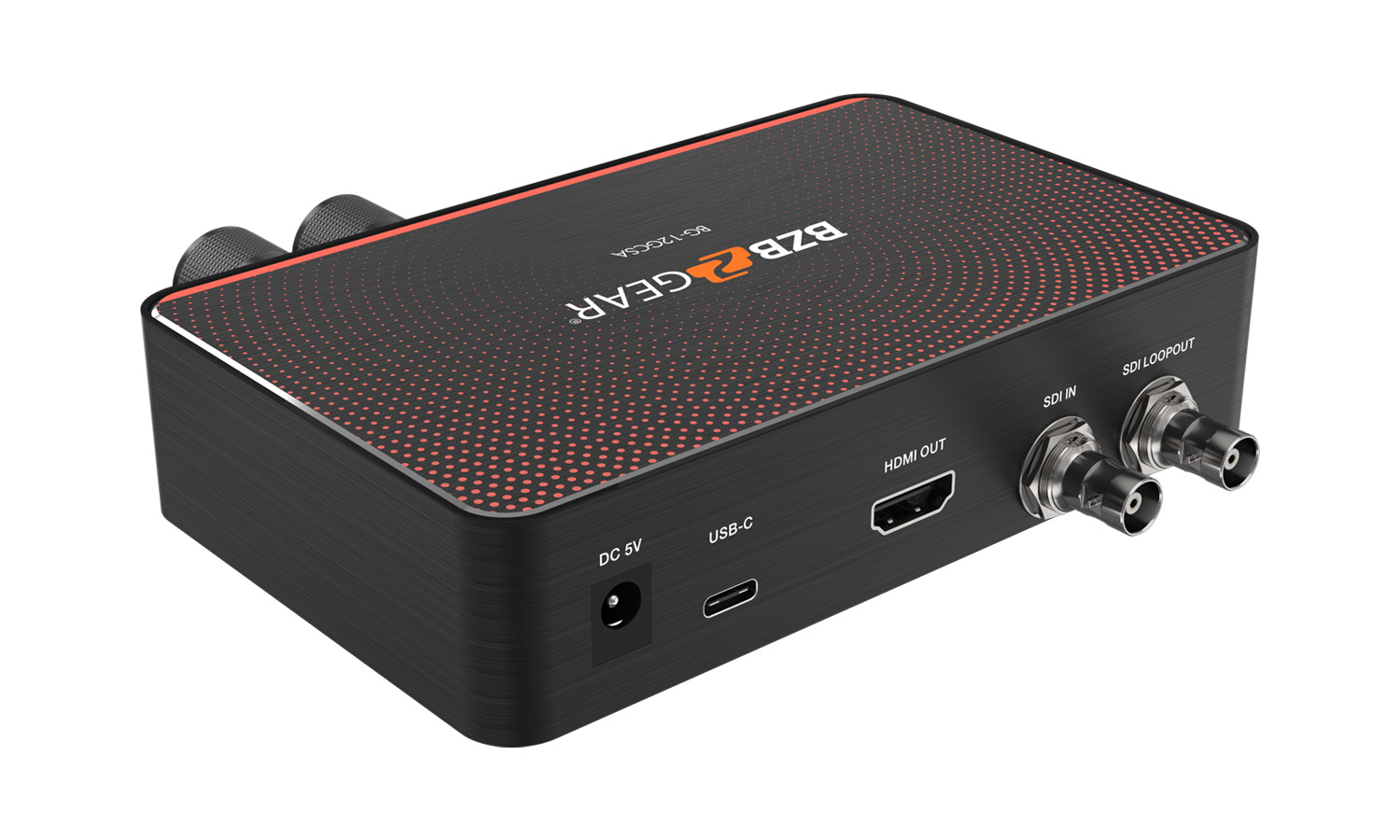

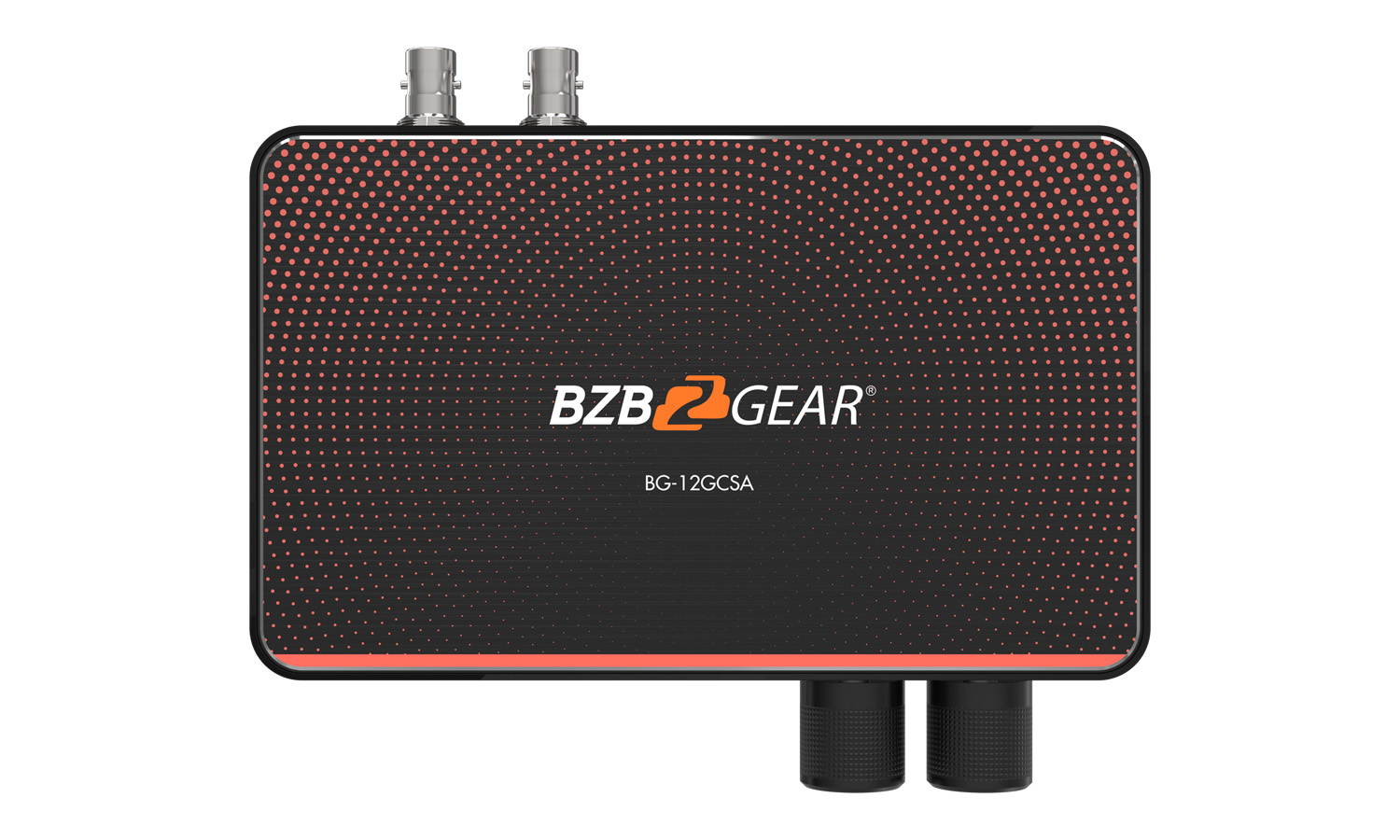

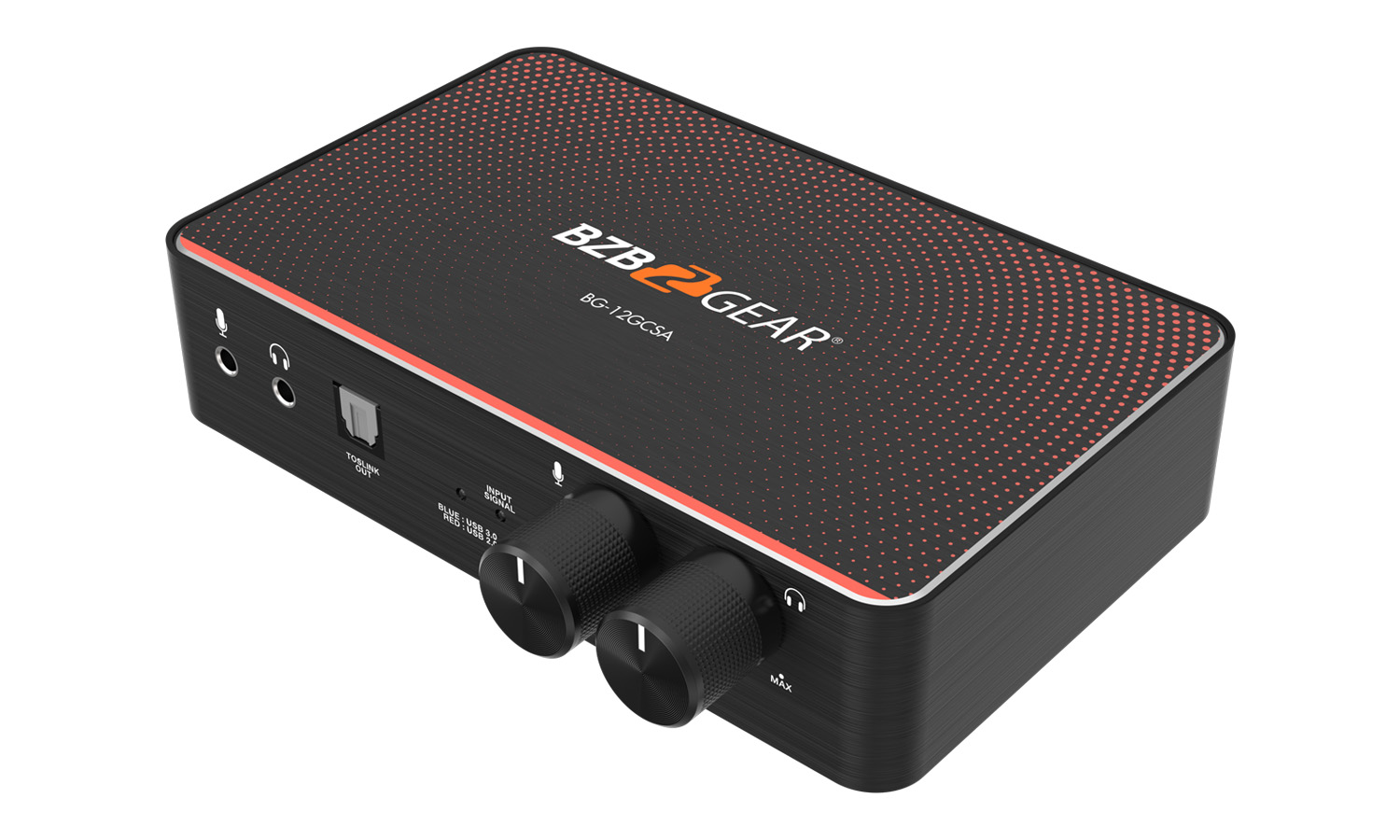

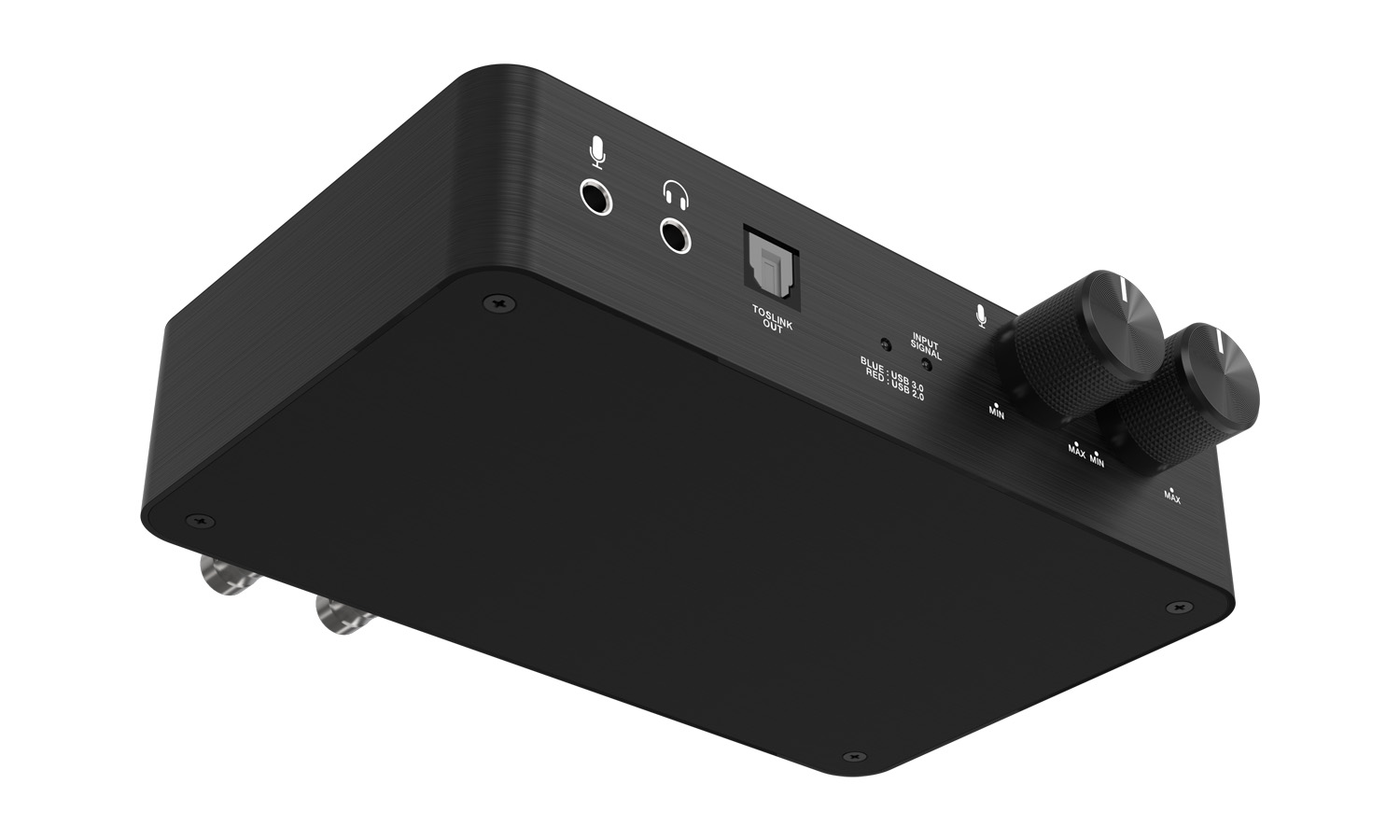

BZBGEAR BG-12GCSA-b USB-C 12G-SDI Video Capture Card Box with Scaler/HDMI 2.0/12G-SDI Loop Out and Audio

Description

Please NOTE: This listing is for B-Stock item. It means that this unit was refurbished by manufacturer and holds full manufacturer warranty, however it may have scratches, signs of wear and tear or come not in original box.

The BG-12GCSA is a USB-C 12G-SDI video capture device with a scaler, HDMI 2.0/12G-SDI loopout, and audio that provides a professional way to capture SDI video signals. It adopts a USB 3.1 Type-C Gen 1 (USB 3.0) interface, which allows for high-speed data transmission. Additionally, the SDI input and loopout can support up to 4K2K@60.

Users can connect the BG-12GCSA to a 4K2K@60 source and capture Ultra HD (4K2K@30) video. Furthermore, this unit can capture and display original, uncompressed SDI video, with a more realistic color rendition. The BG-12GCSA uses large volume image buffer technology, which effectively avoids video tearing. The high sampling rate and accuracy ensure that the captured videos have a high degree of sharpness, rich details, and fewer color edges.

Features:

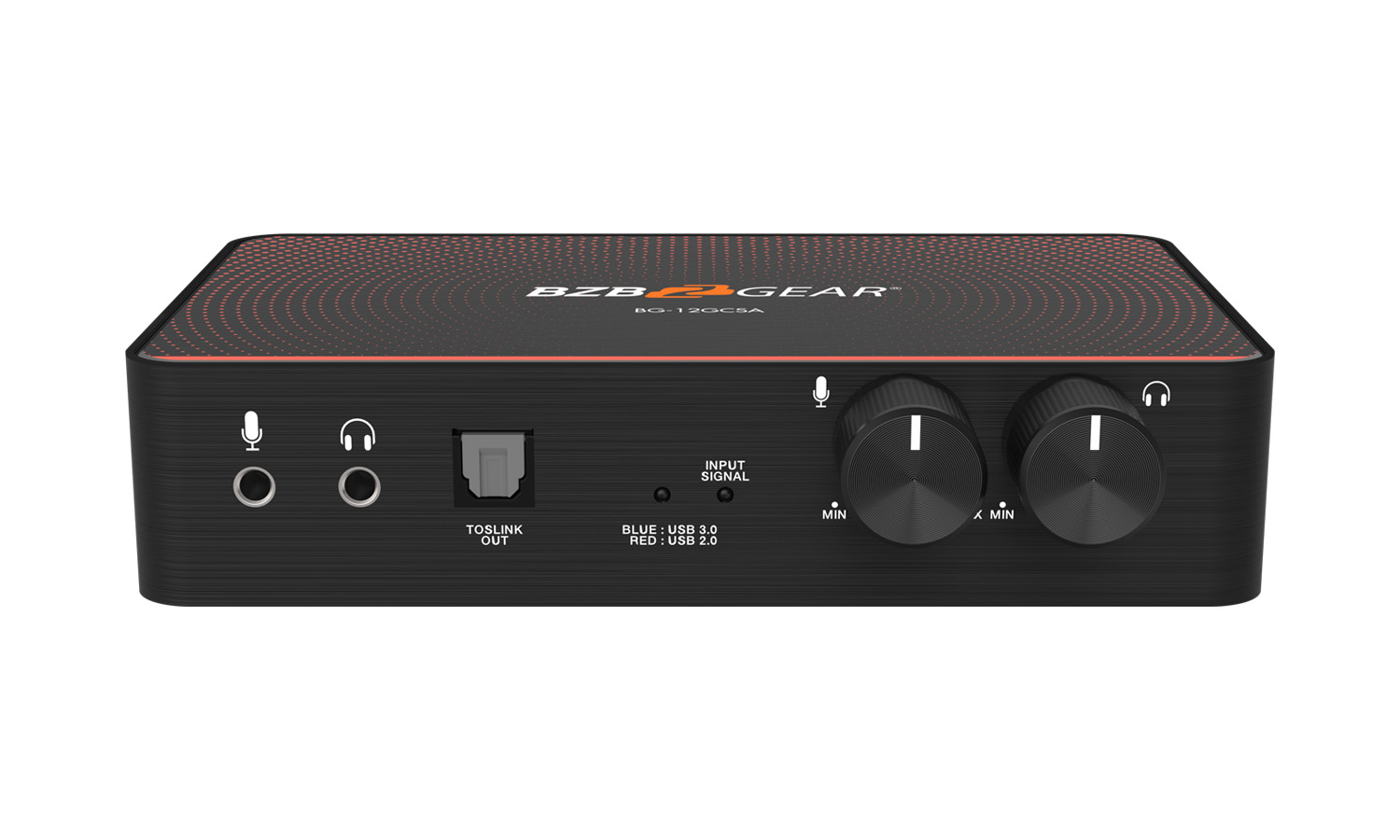

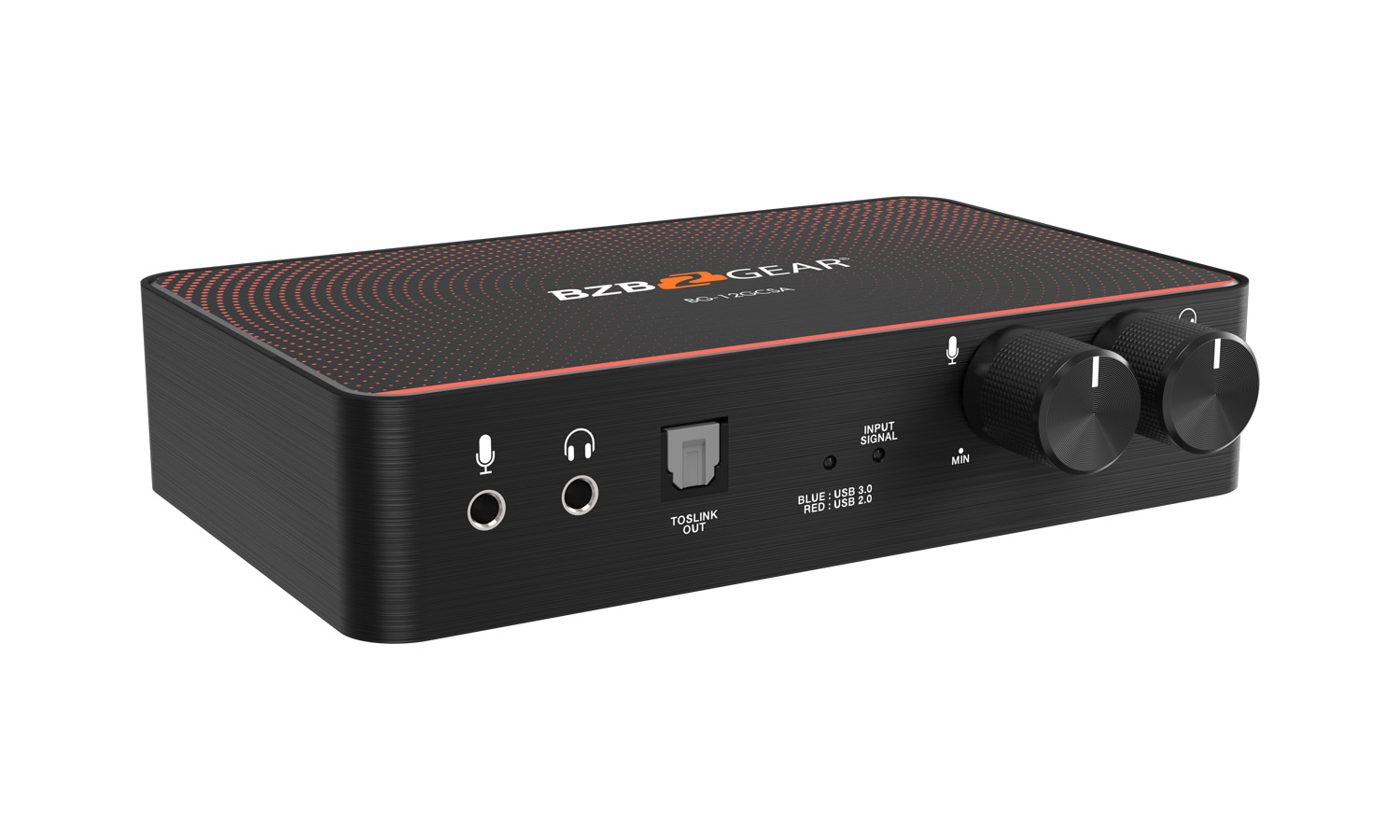

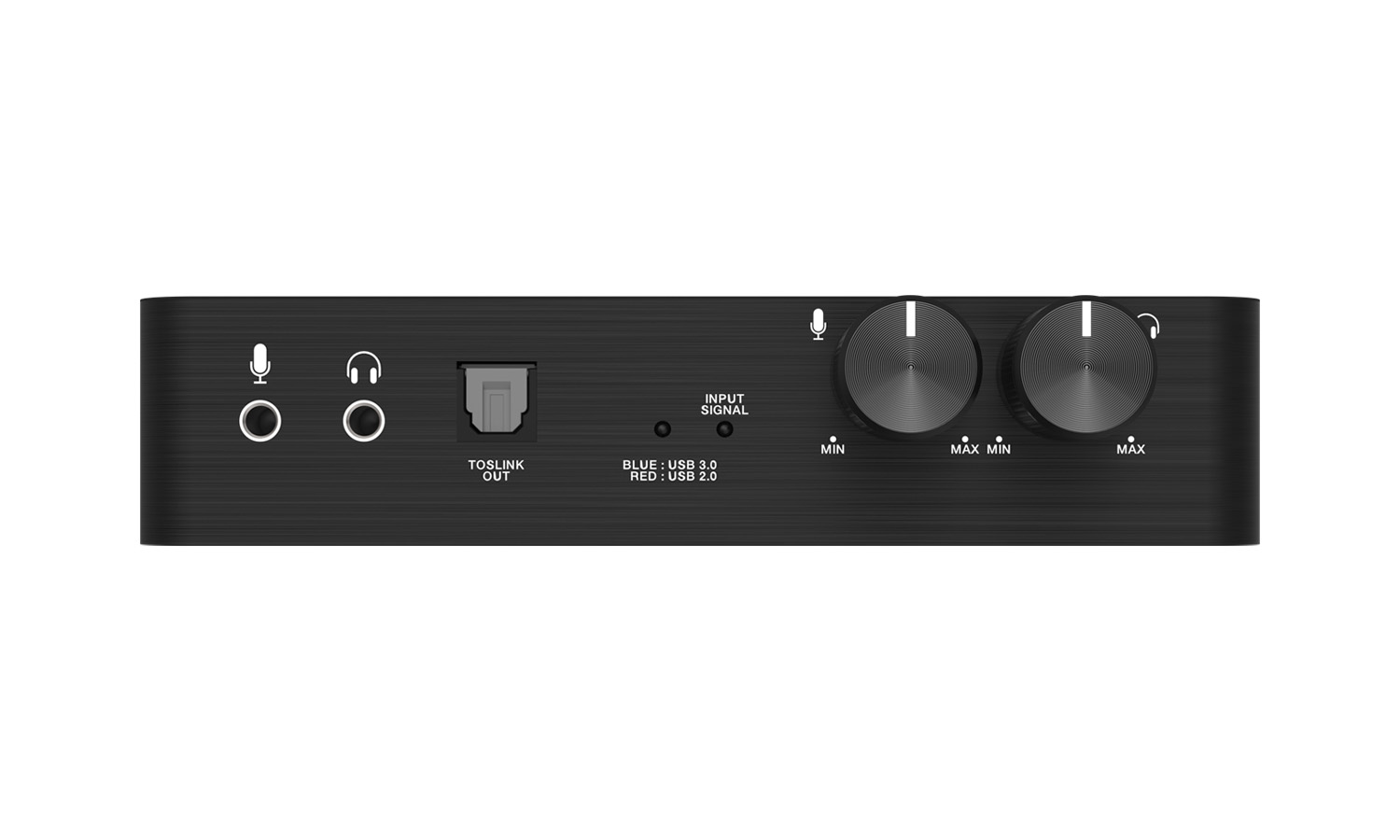

Volume control – Use the volume control knobs to adjust the MIC/Headphone volume
Plug and Play – Auto-detection of video format
Software Compatibility – Compatible with most 3rd party software such as OBS Studio and AMCap
Mic-in-mix – Allows the microphone’s audio input to be combined or mixed with the audio that is being transmitted through the SDI connection
Low Latency – 3~4ms at 1080P
Auto-Detection – Auto 12G/6G/3G/HD-SDI detection
SDI video and audio streams over USB 3.1 Type-C Gen 1
UVC1.0/1.1/1.5
Video resolutions up to 4K2K@30/1080P@120 (Video stream over USB-C)
HDMI up to 4K2K@60
SDI input & loopout resolutions: 720p@50,720p@59.94, 720p@60, 1080i@50, 1080i@59.94, 1080i@60,1080p@23.97, 1080p@24, 1080p@25, 1080p@29.97, 1080p@30, 1080p@50, 1080p@59.94, 1080p@60, 4K2K@23.98, 4K2K@24, 4K2K@25, 4K2K@29.97, 4K2K@30, 4K2K@50, 4K2K@59.94, 4K2K@60
Bit Rate: 11.88 Gbps, 11.88/1.001 Gbps, 5.94 Gbps, 5.94/1.001 Gbps, 2.97 Gbps, 2.97/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps, 270 Mbps
Deinterlacer & scaler (upscale to 1080p@120Hz)
SDI audio extraction
Supported operating systems: Windows 7/8.1/10/11, Mac, & Linux OS
USB 3.1 Gen 1 (RGB/YUY2/NV12) (capture up to 4K2K@30) and USB 2.0 (YUY2/NV12) (capture up to 1080@15)
USB-C reversible

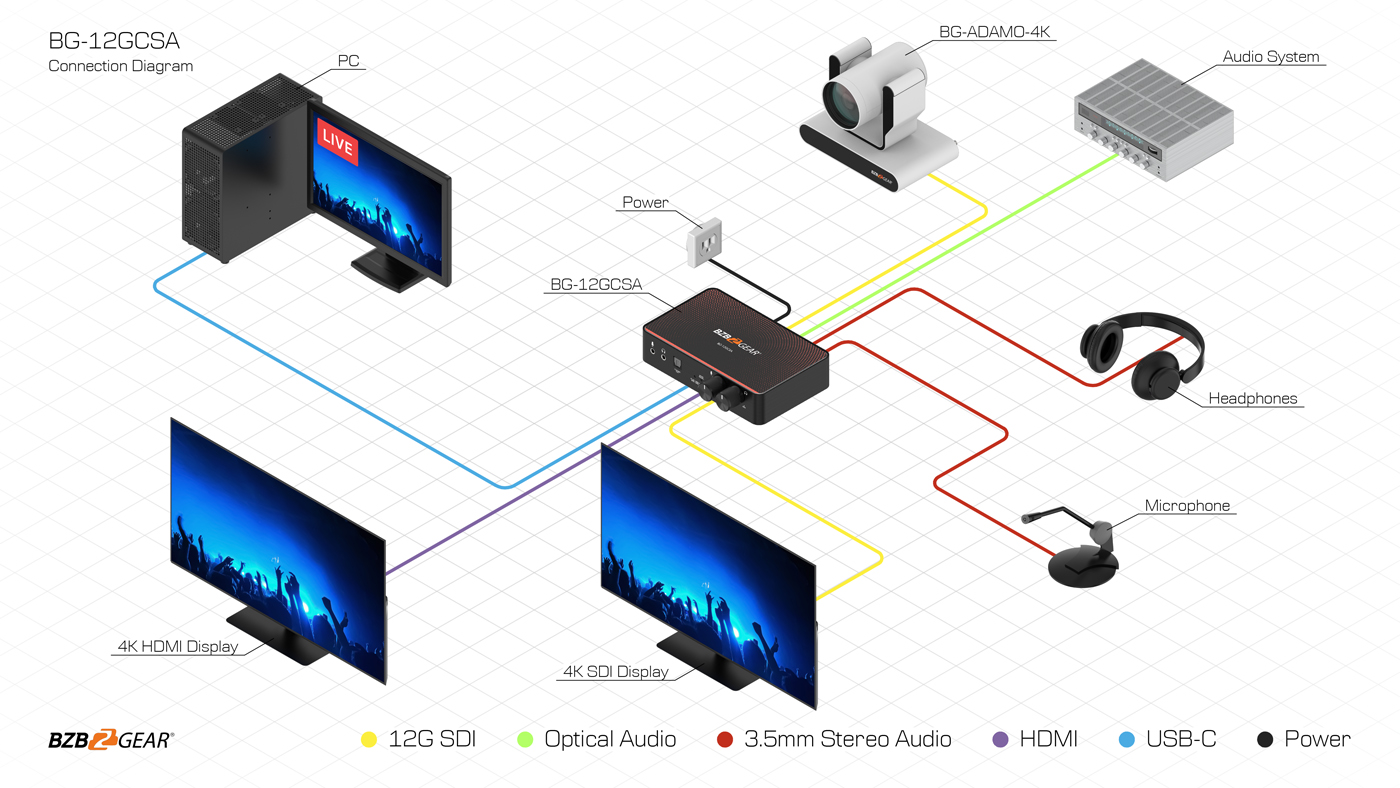

Product Diagrams

View Diagrams

Specifications

Model Name		BG-12GCSA
Technical
Role of usage		Video Capture Device
Input/loopout Video bandwidth		[SDI] 11.88 Gbps, 11.88/1.001 Gbps
Output bandwidth		Up to 5 Gbps (USB-C)
Video support (USB-C)		Up to 4K2K @ 30 / 1080P @ 120
Video support (Loopout)		Up to 4K2K @ 60
Input Video Support		[12G-SDI] 4K2K @ 50/59.94/60Hz [6G-SDI] 4K2K @ 23.98/24, 25, 29.97, 30Hz [3G-SDI] 1080p50/59.94/60Hz [HD-SDI] 720p @ 50/59.94/60Hz, 1080i @ 50/59.94/60Hz, 1080p @ 23.98/24/25/29.97/30Hz
Audio Input		SDI Embedded Audio & Stereo audio Input
Audio Support		HDMI output/ SDI loopout up to 7.1ch, Toslink up to 5.1ch, Stereo audio up to 2ch
Recording Video Format		RGB/YUY2/NV12 (USB 3.1 Gen 1), YUY2/NV12 (USB 2.0)
ESD protection		Human body model - +/-15kV [air-gap discharge] & +/-8kV [contact discharge]
PCB stack-up		4-layer board [impedance control - differential 100Ohm; single 50Ohm]
Cable equalization		[12G-SDI] Input up to 30m; Loopout up to 70m [6G-SDI] Input up to 70m; Loopout up to 120m [3G-SDI] Input up to 200m; Loopout up to 200m
Firmware update		USB-C Port

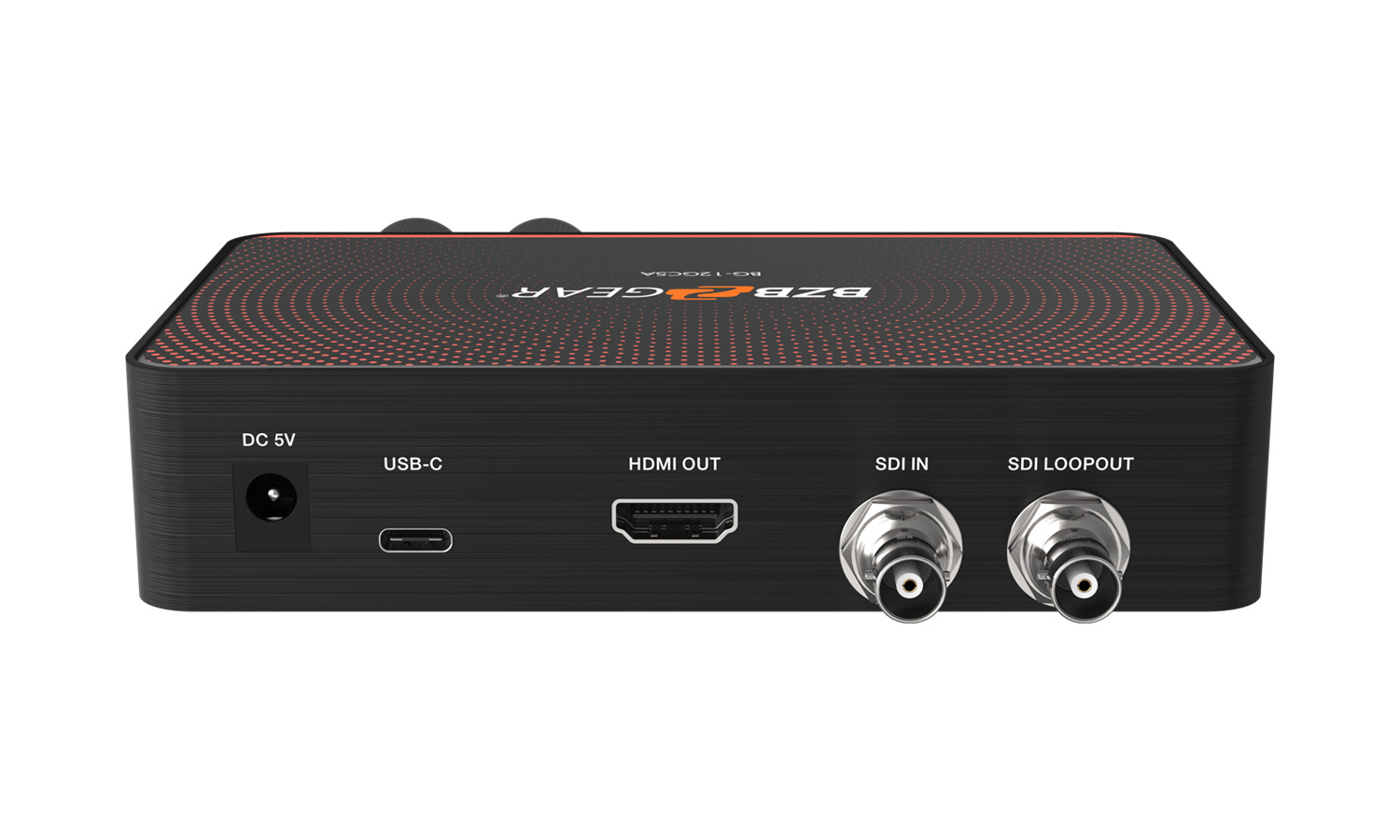

Input		1x BNC(SDI) + 1x 3.5mm

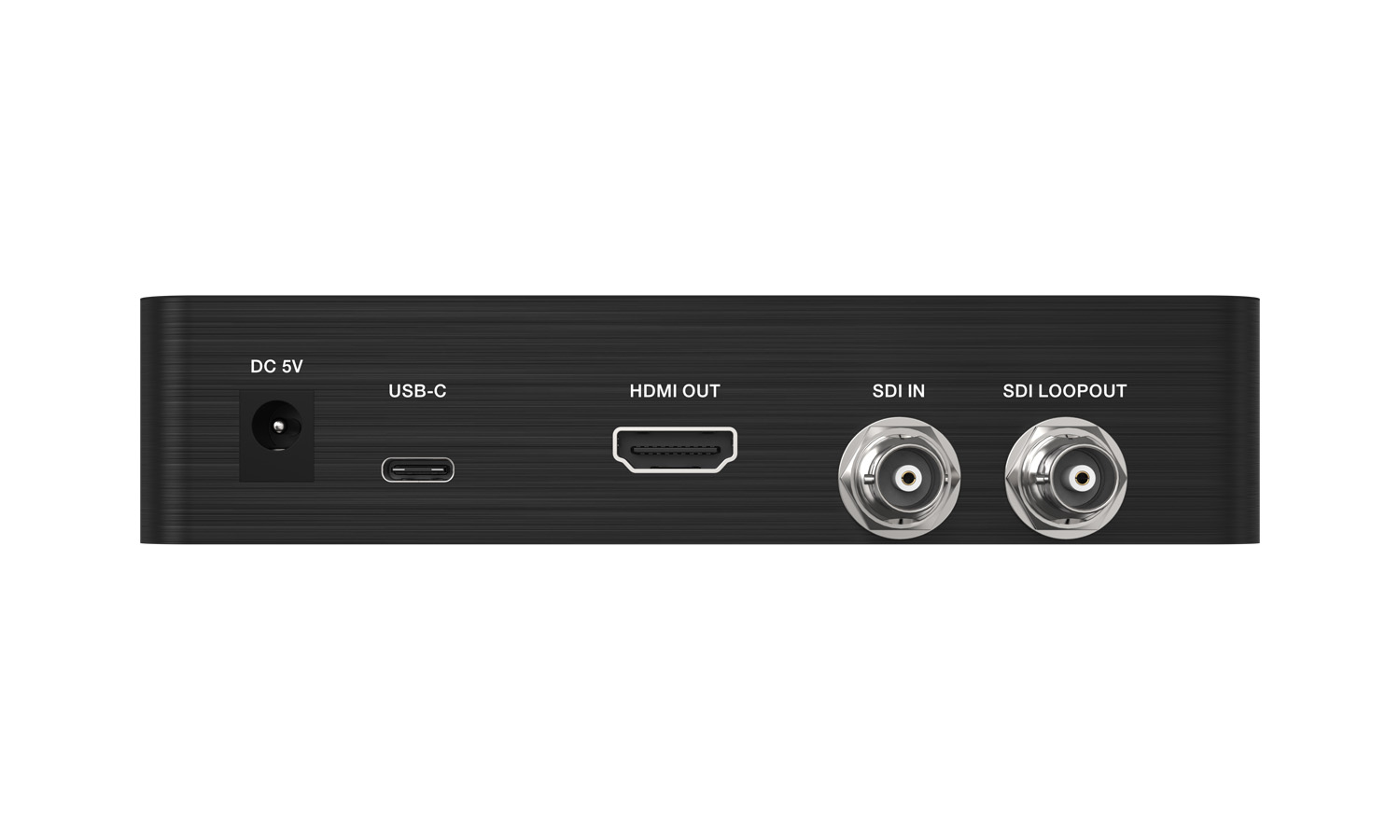

Output		1x USB-C + 1x HDMI + 1x BNC(SDI) + 1x 3.5mm + 1x Toslink
HDMI connector		Type A [19-pin female]
USB connector		USB 3.1 Type C (SuperSpeed USB)
Software compatibility (not a complete list)		OBS Studio (Windows, Linux, MAC), AMCap (Windows), Potplayer (Windows), VLC (OS X, Linux), XSplit Broadcaster (Windows), Skype (Windows, OS X), Zoom (Windows), Hangout (Windows), TeamViewer (Windows)
OS Support		Windows 7 /8.1 /10/11, Mac and Linux OS
Mechanical
Housing		Metal enclosure
Dimensions [L x W x H]	Model	5.4" x 3.2" x 1.2" [137 x 81 x 30mm]
	Package	7.8" x 5.4" x 2.9" [198 x 137 x 74mm]
Weight	Model	7.3 oz [207g]
	Package	1 lbs [492g]
Power supply		5V DC
Power consumption		8 Watts [max]
Operation temperature		32~104°F / 0~40°C
Storage temperature		-4~140°F / -20~60°C
Relative humidity		20~90% RH [no condensation]
