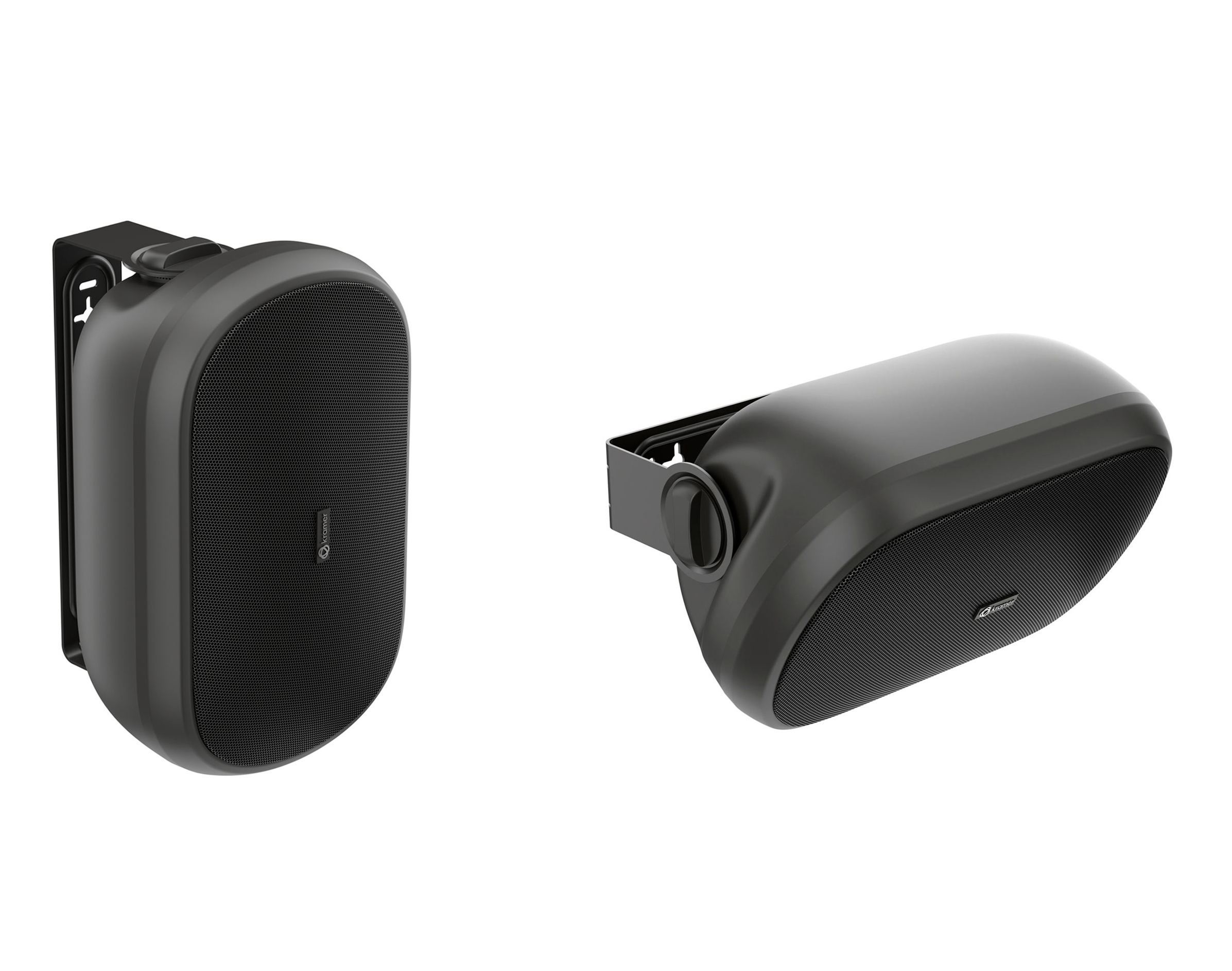

Kramer AW-8P All-weather, IP66/UL rated, 8” two–way wall mounted passive speaker

Description

Kramer’s AW Series are engineered to deliver exceptional sound performance in both indoor and outdoor environments. The AW-8P is a compact 8” high-performance all-weather passive speaker. This UL compliant/IP66-rated all-weather speaker is designed to withstand the elements while providing clear, high-quality audio, making it the perfect solution for mixed installations, in which some of the speakers are outdoor and other are indoor. The speaker supports both 8ohm low impedance as well as several 70V/100V high impedance modes. The speaker is available in both black & white colors.

Features

IP66 rated for outdoor installations
UL1480A compliant for indoor installations, made from V–0 Flame Retardant materials
Exceptional sound performance
Low–impedance (8ohm) / high–impedance (70V/100V)
Power handling: 30 W continuous / 45 W peak
Sensitivity (1W@1m, free field): 87dB SPL
Maximum SPL (@1m): Continuous: 102dB SPL / Peak: 104dB SPL
Industrial design: wall–mounted, tool–less installation, available in black & white colors, removable logo

Specifications

Audio
LF Driver	200 mm (8”) with polypropylene cone and rubber surround
HF Driver	25 mm (1”) liquid cooled soft–dome tweeter
Frequency Characteristics
Frequency Range (-10dB)	70Hz–20kHz
Frequency Response (±3dB)	87Hz–20kHz
Dispersion Angle	116° conical dispersion (1 kHz to 4 kHz)
Power Ratings
@ 8? Low Impedance	60W continuous / 90W peak
@ 100V High Impedance	60W / 30W / 15W
@ 70V High Impedance	60W / 30W / 15W / 7.5W
Sound Pressure Level (SPL)
Sensitivity (1W@1m, free field)	90dB SPL
Maximum SPL	Continuous: 108dB SPL / Peak: 110dB SPL
Mechanical
Installation Type	Surface mounted vertical or horizontal
Mounting	Mounting bracket with toolless bracket screws
Connectors	4–pin pluggable Euroblock connector, 28–12AWG
Weight (Single Speaker)	4.5kg (9.92lbs)
Dimensions
Without Bracket	251mm x 200mm x 400mm (9.88” x 7.88” x 15.75”)
With Bracket	251mm x 240mm x 400mm (9.88” x 9.45” x 15.75”)
Shipping (Single Unit)	322mm x 312mm x 467mm (12.7" x 12.3" x 18.4")
Shipping (2 Units Master Box)	630mm x 330mm x 485mm (24.8" x 13.0" x 19.1")
Shipping Weight (Single)	5.4Kg / 11.9lbs
Shipping Weight (Master Box)	8Kg / 17.6lbs
Material
Grill	Aluminum, removable logo
Baffle	V–0 Flame Retardant
Baffle & Back Enclosure	V–0 Flame Retardant
Bracket	Aluminum
Environmental
Operating Temperature	–5° to +50°C (23° to 122°F)
Storage Temperature	–10° to +55°C (14° to 131°F)
Humidity	30% to 85%, RHL non–condensing
IP Rating	IP66
Regulatory
Certification	UL1480A Certified
Environmental Compliance	RoHS, REACH, WEEE
In the Box
Speaker	1 speaker (single unit), 2 speakers packed in master box
Mounting Hardware	1 mounting bracket + 2 toolless bracket screws
Connector	4–pin pluggable Euroblock connector (28–12AWG)
Documentation	Quick Start Guide
