Adder AVS-4128 ADDERView Secure 8 Port DPHDMI Flexi-Switch

Description

Download Manual

The ADDERView™ Secure Flexi-Switch has been designed for applications that require more functionality than a standard 4-port KVM switch can provide. The Secure Flexi-Switch has eight input computer ports that can be connected to a combination of single and dual-head computers; giving the user real-time control of up to two computers simultaneously.

Features:

Uni-directional keyboard and mouse data paths: Uni-directional optical diodes ensure data paths travel in only one direction, thus preventing data leakage through shared peripherals. A uni-directional structure also protects against timing analysis or forced malfunction attacks and prevents computers influencing the operation of any common circuitry.

Keyboard locks status: Indicate status of keyboard locks (CAPS-LOCK, NUM-LOCK, SCROLL-LOCK) that are blocked by uni-directional data paths.

No shared RAM between channels: The keyboard and mouse processor is powered down and reset at each switchover to thwart shared RAM leakages. All data buffers are actively cleared once they have been used.

Automatic switching (configuration option): Free-flow KVM and audio control between ports without the need to press any buttons. Simply move the mouse between windows.

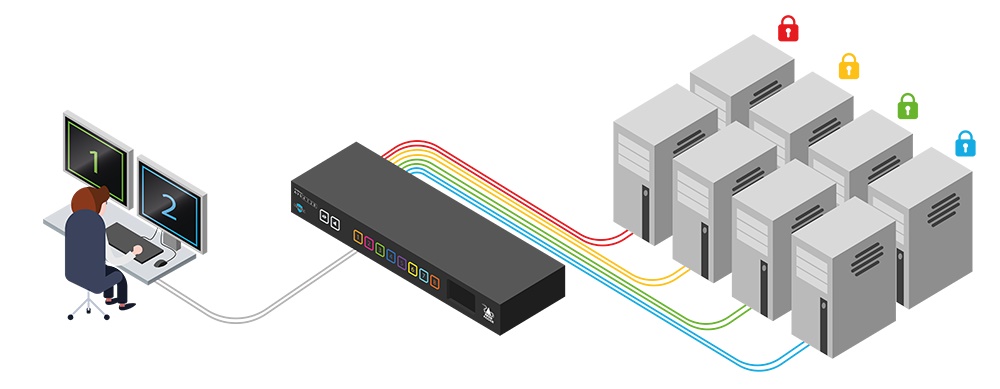

Flexible connections: The user can switch between a combination of single and dual head computers. Two single head computers can be controlled concurrently.

Hardware anti-tampering: Holographic anti-tampering labels protect the product’s enclosure, providing a clear visual indication if it has been opened or compromised.

Video Performance: Up to UHD 4K video resolution at 60 fps for graphics intensive applications requiring very high quality.

Non-reprogrammable firmware: There is no access to the product’s firmware or memory through any port. Firmware is permanently stored in non-reprogrammable Read Only Memory (ROM) to prevent modification. Firmware integrity is verified through a self-test procedure during power up. Detection of a critical failure disables the device and provides a clear visual indication to the user.

Restricted USB function: The USB ports will only accept HID (Human Interface Devices), such as keyboards and mice. Other devices, such as USB storage drives, are actively prohibited.

Channel identification: Reduce the chances of operator error by displaying a name for each channel and its security classification on the E-paper display. The color of the channel LED may also be configured to reflect the security classification.
