Adder AVM-C30-US 30-Port Matrix Switcher 26 CATX / 4 SFP / 1GbE / PoE 300W

Description

The AVM-C30-US is a 30-port ADDERView Matrix switcher engineered to provide reliable KVM matrix performance in a streamlined package. This unit combines 26 CATX RJ45 ports and 4 SFP ports to deliver 1GbE connectivity across a KVM matrix environment. It ships preconfigured for IGMP v2, snooping and supports Jumbo frames up to 9216 bytes to ease deployment and network integration.

Key features include 1GbE bandwidth, 24-port PoE support and a total PoE budget of 300W, enabling connected devices to draw power where applicable. The switcher supports spatially lossless encoding with 1:1 pixel mapping to preserve video fidelity and color accuracy. Switching operations are fast, with source selection occurring in less than one second for responsive user interaction.

Technical specifications cover link port types, power characteristics and physical design. The AVM-C30-US provides 26 x 8p8c (RJ45) and 4 x SFP link ports and operates at 1GbE bandwidth with 10/100 compatibility. Power is supplied by an internal PSU, with PoE output conforming to IEEE 802.3af and a maximum measured power draw up to 401 Watts and a typical consumption around 36 Watts.

Connectivity options are broad to support mixed copper and fiber topologies – CATX copper for standard connections and SFP ports for fiber transceivers to extend link distances beyond 100 meters. The switch is preconfigured for ADDERView Matrix operation, simplifying integration without the need for advanced switch configuration. Jumbo frame support and IGMP v2 snooping help optimize multicast video streams in multi-source environments.

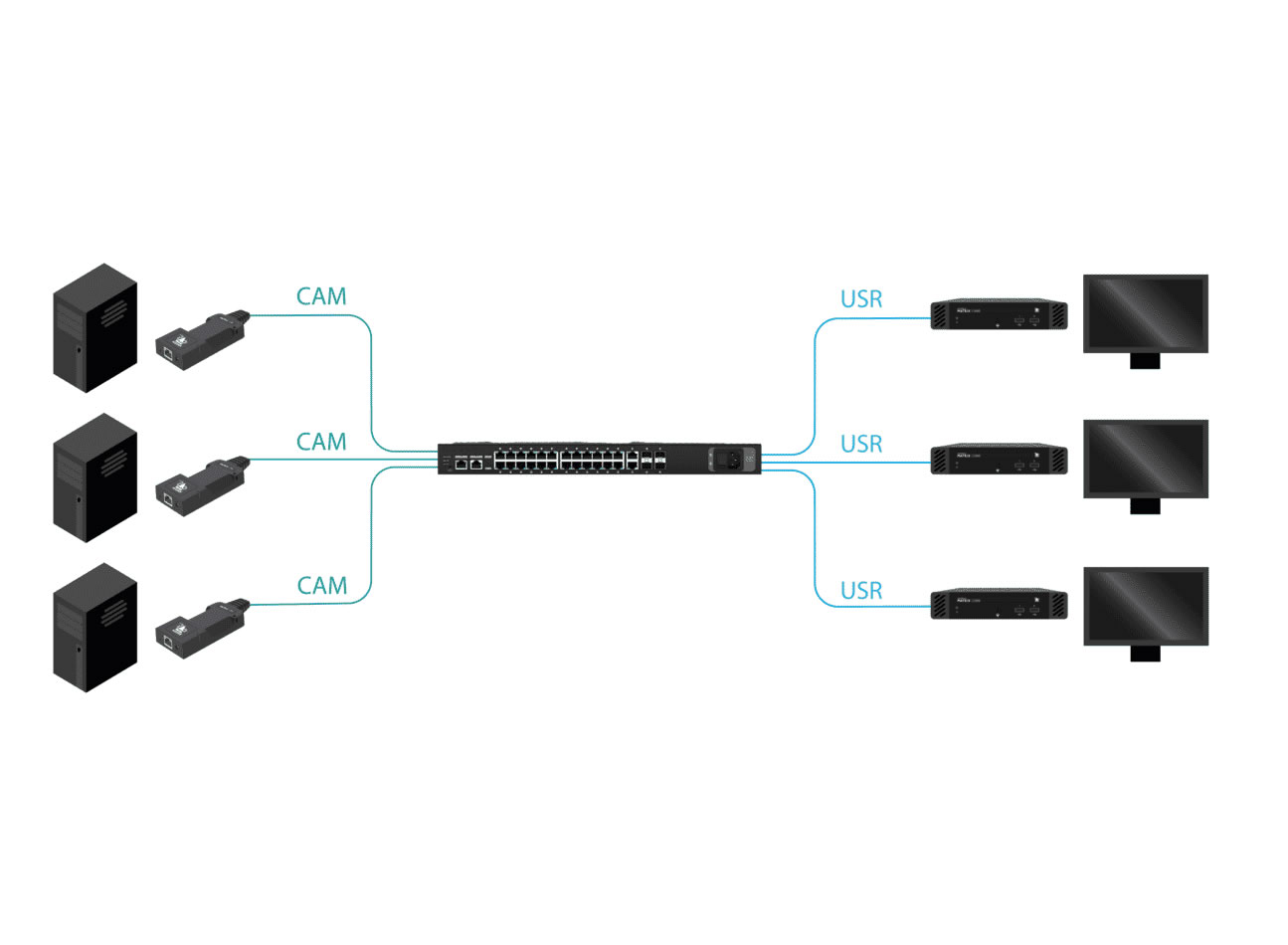

Typical use cases include control rooms, broadcast operation centers and production suites where dependable KVM switching and pixel-perfect video are essential. The AVM-C30-US suits installations that require quick, low-maintenance setup while retaining essential enterprise features like PoE and SFP expansion. It is appropriate for environments that prefer a plug-and-play KVM matrix with minimal ongoing administration.

Installation and build quality focus on ease of deployment and durability – the unit is constructed from robust metal and fits a 1U rack profile. The package includes rack-mounting hardware and alternative brackets for recessed mounting as well as rubber footpads for tabletop use. Overall the AVM-C30-US balances simple deployment with technical features needed for reliable KVM matrix operation.
