Description
The ADDERView Matrix C1100 User Station is a networked KVM user endpoint designed to provide pixel-accurate remote video and peripheral control. It delivers spatially-lossless encoding and 1:1 pixel mapping so the remote display matches the source exactly. The unit is intended for environments that require precise color fidelity and zero artifact video transmission.
Key features include DisplayPort video at up to 2560 x 1600 at 60 Hz and support for 1920 x 1200 up to 120 Hz. The user station supports USB 2.0 class control so graphics tablets, jog shuttles, joysticks, card readers and mass storage devices can be used remotely. It also provides bi-directional audio and both RJ45 and SFP link ports for flexible connectivity.
Performance is engineered for real-time interactive control with 8 bpc colour depth and spatially-lossless delivery to avoid compression artifacts. EDID management lets the user station pass true monitor characteristics or present a fixed EDID to ensure consistent output. The device operates over 1GbE bandwidth and supports CAT5e and above cabling up to 100m or 328ft.

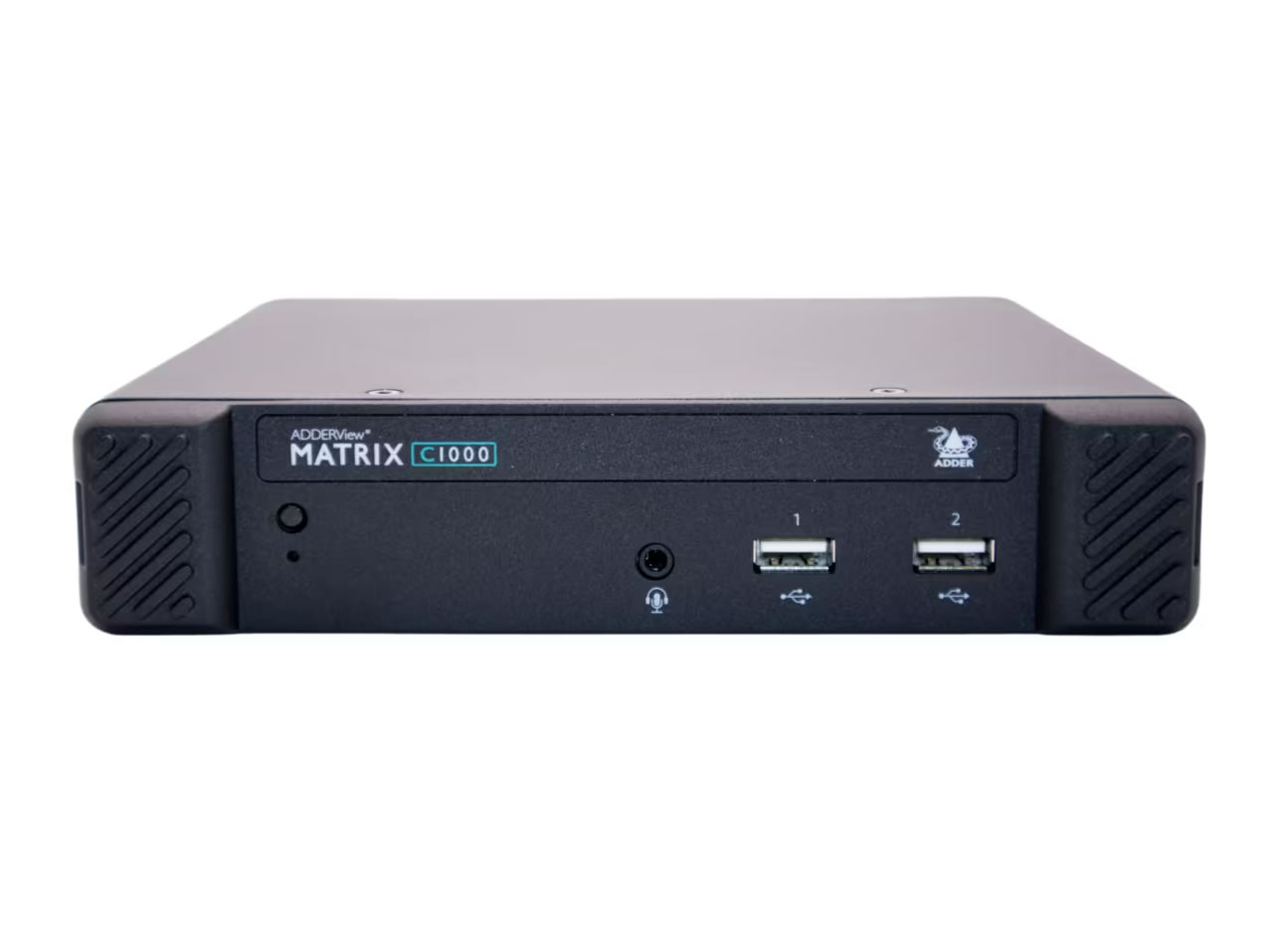

Connectivity options include one full-size DisplayPort, four USB A ports using USB 2.0 true emulation, one 8p8c RJ45 network link and one SFP socket. Audio I/O is bi-directional with one analogue/digital input and one 3.5mm output supporting 2 channel linear PCM at 48 kHz. Power is provided via a single 12V external power supply and the unit is fanless for quiet operation.
The ADDERView Matrix C1100 is built to support collaborative workflows where any user station can connect to any computer access module. The system supports RESTful API control via HTTPS conforming to OpenAPI 3.1.0 which allows integration with third-party controllers. Sharing and simultaneous access capabilities make this user station suitable for control rooms, broadcast facilities and shared workspaces.
Setup is plug-and-play with zero configuration required on most networks and no drivers needed on the host console. The metal chassis and fanless design provide durable operation and reliable thermal behaviour. EDID handling, intelligent USB class control and the choice of RJ45 or SFP links simplify deployment and long term maintenance.
