Description

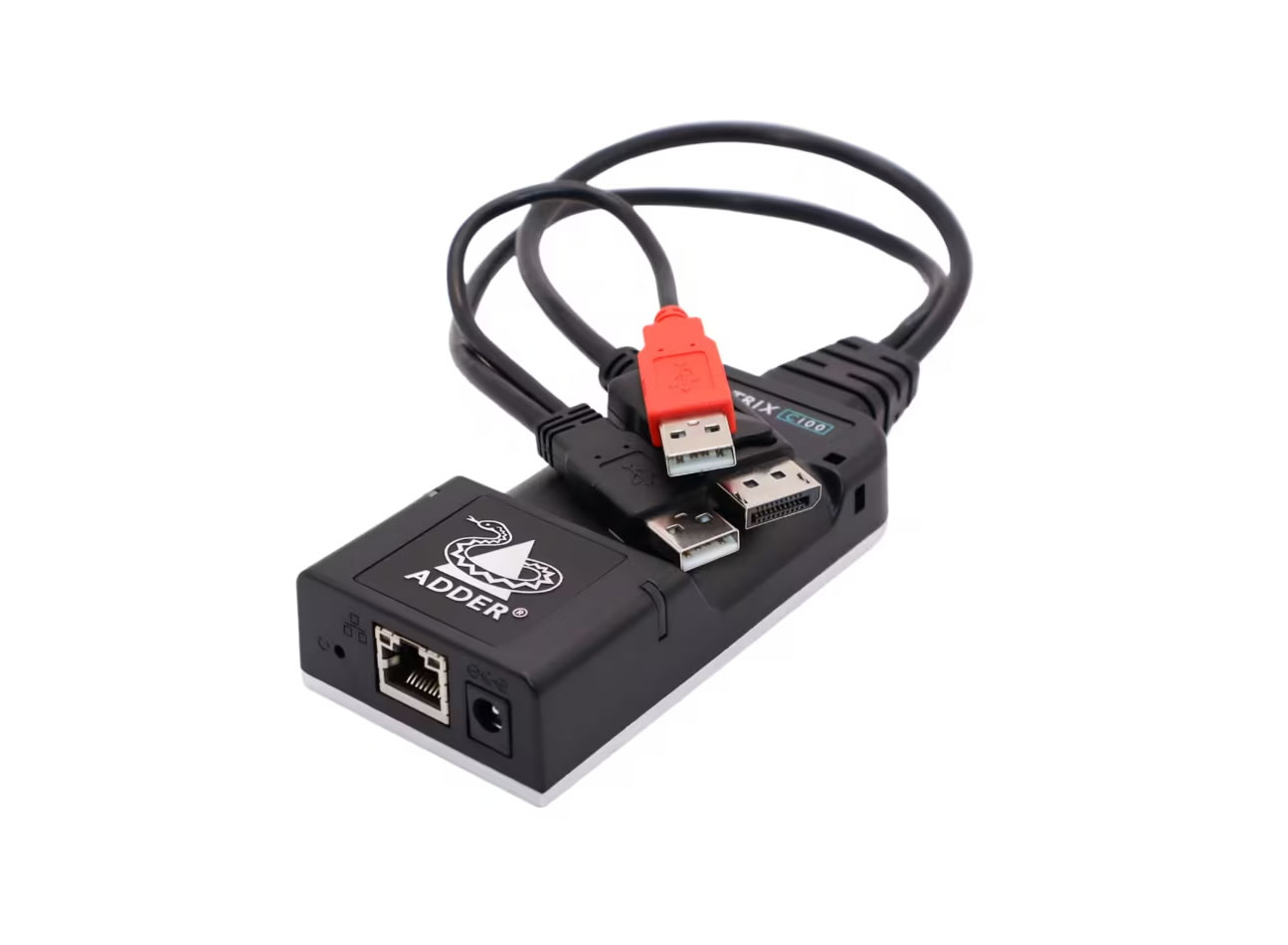

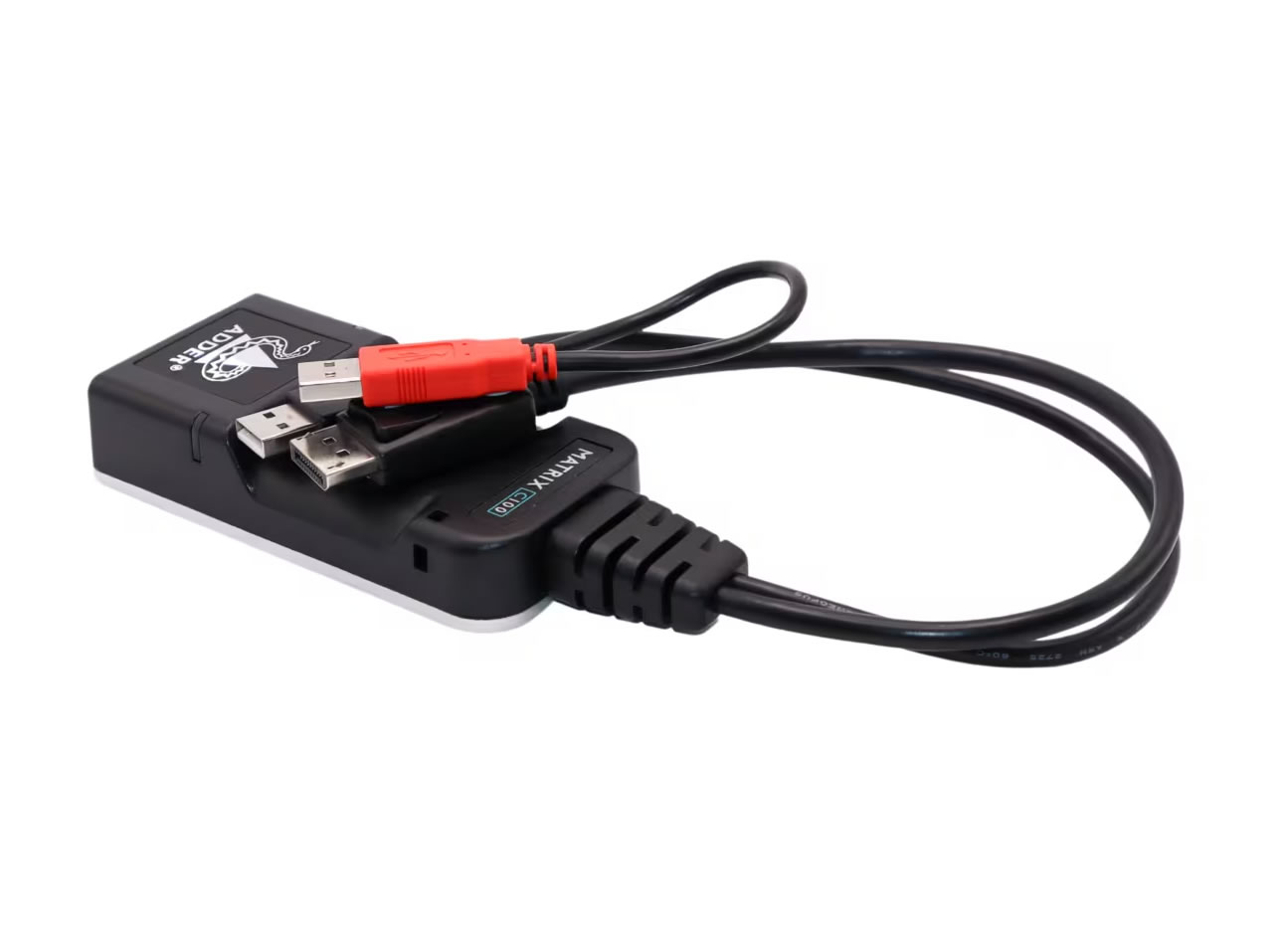

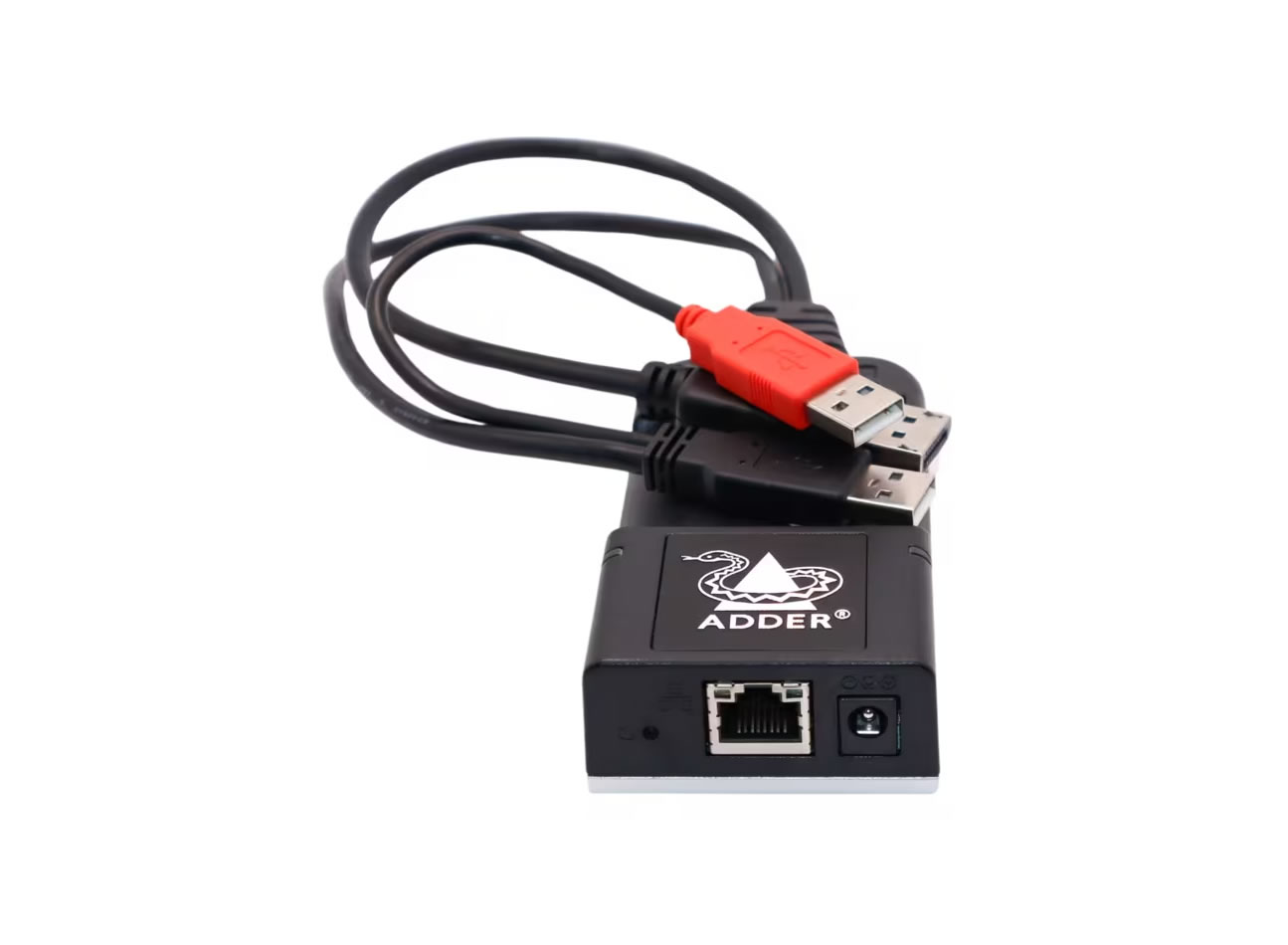

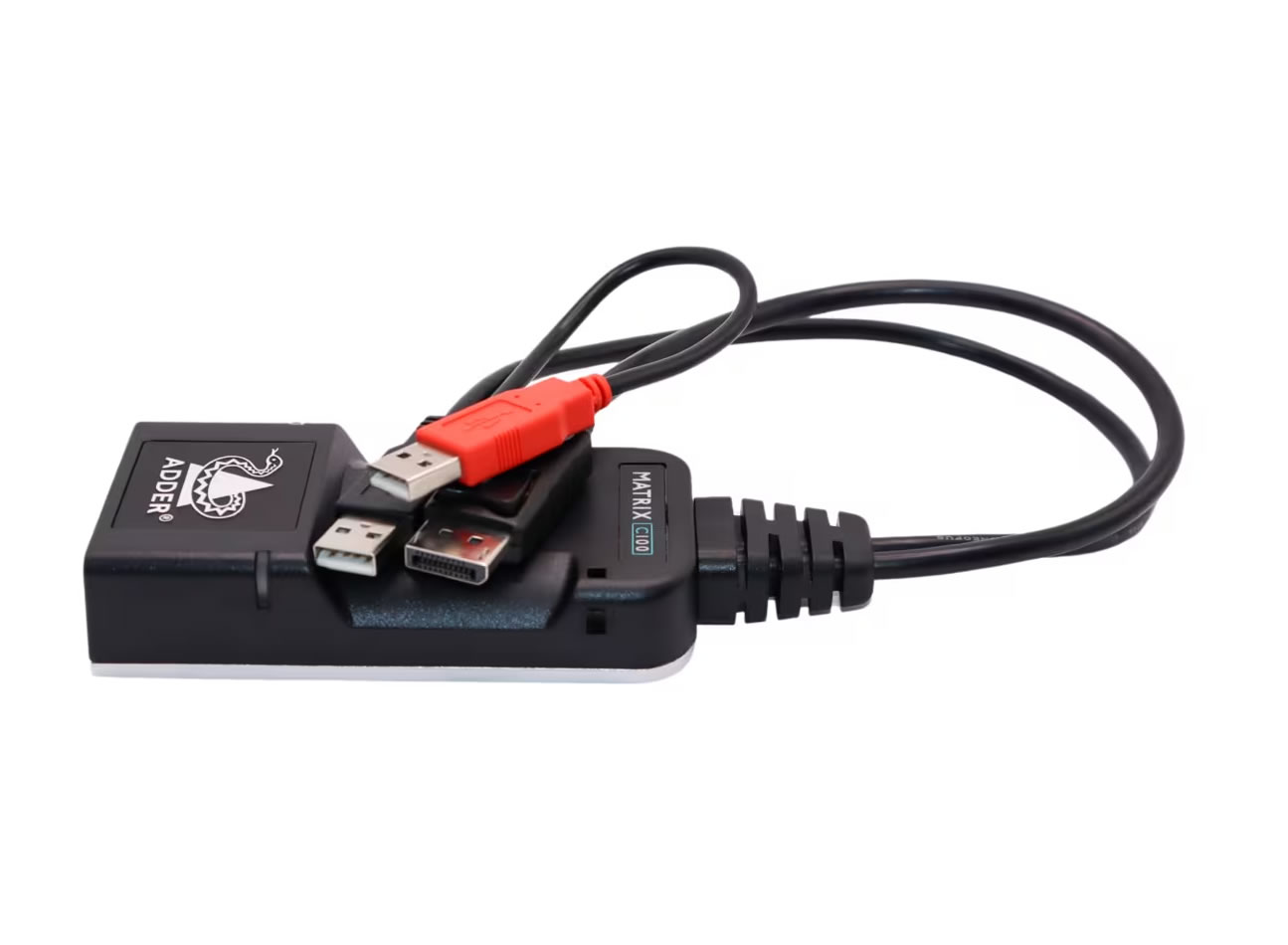

The AVM-C110 Computer Access Module is a ZeroU DisplayPort CAM designed to connect a computer to an ADDERView Matrix KVM system. It provides pixel-perfect digital video at up to 2560 x 1600 and supports 60 Hz operation. The module is USB powered and supports USB 2.0 device classes for control and peripheral connectivity.
Key features include spatially-lossless 1:1 pixel mapping for artifact-free video, intelligent EDID management, and support for dithered video sources. The unit carries bi-directional USB audio and embedded video audio options. It supports USB device class control allowing enabling or disabling device types as required.
Performance specifications include 8 bpc colour depth, 60 fps frame rate, and digital audio via USB at 16 bit / 48 kHz linear PCM. The CAM requires a DisplayPort Dual-Mode (DP++) source and uses CAT5e or better cabling for connectivity. The recommended maximum copper link length is 100m / 328ft over 1GbE network support.
Connectivity includes a full-size DisplayPort 1.1 (dual mode) input, two USB-A ports for true emulation of USB 2.0 devices, a single RJ45 link port, and USB-based audio I/O. The device is compatible with all known operating systems and provides EDID management to pass or fix display characteristics. Power options include USB powering or an optional external 5V DC supply.
Typical applications include server rooms and control rooms where space is constrained and ZeroU form factor is required. The CAM is suitable for broadcast, production, and enterprise KVM matrix environments that need pixel-accurate remote video and peripheral control. It supports a wide range of USB devices including tablets, jog shuttles, joysticks, and mass storage.
Installation is straightforward – the ZeroU design installs in the server rack area without occupying rack units and the fanless construction ensures silent operation. The ABS and aluminum construction provides a compact and robust build. The unit ships preconfigured for plug-and-play operation so no drivers or software are required to begin use.
