VoiceTRX50 Autocast Pro Kit Voice-Activated PTZ Production

Description

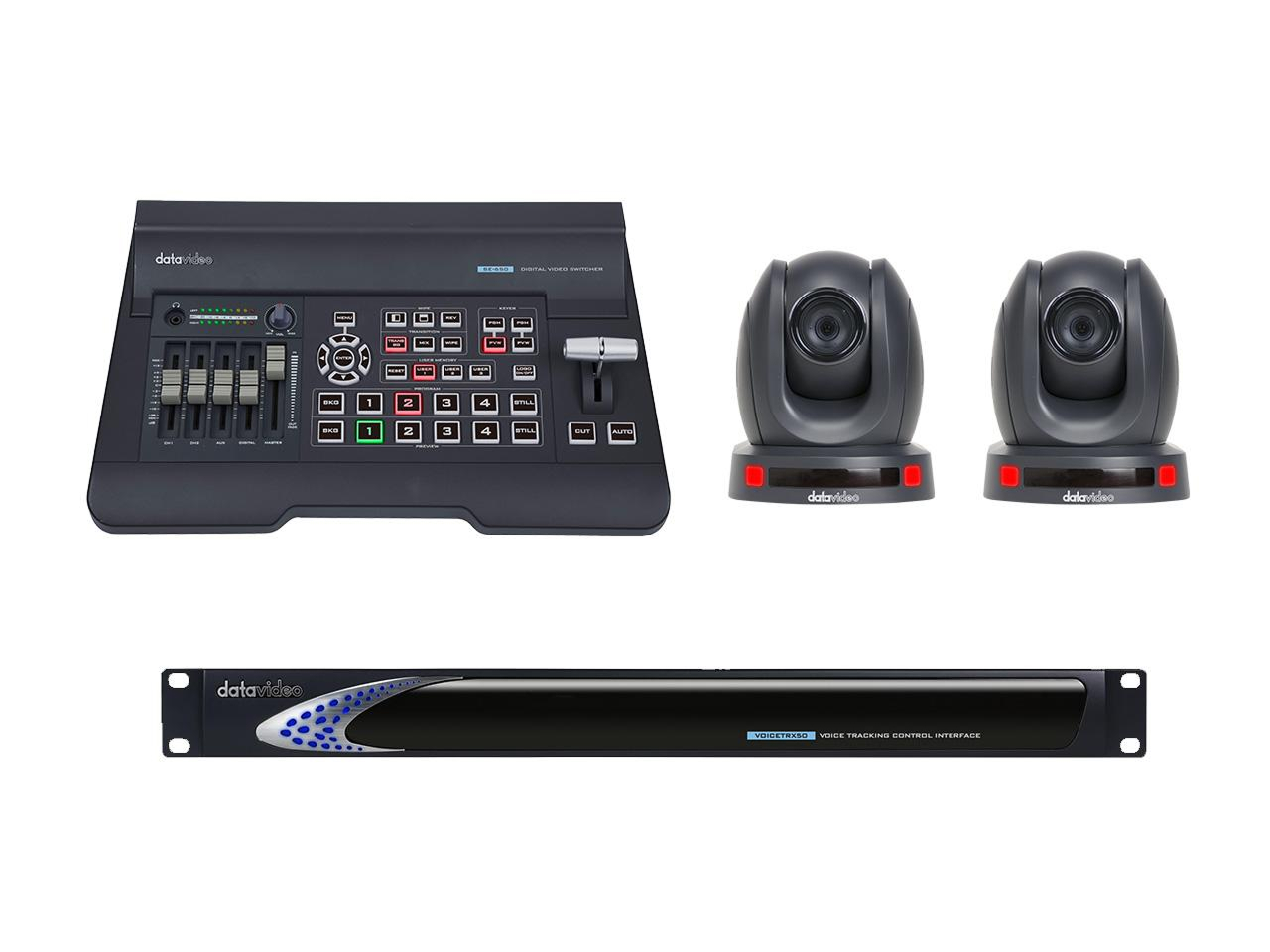

The Autocast Pro Kit is an automated voice-tracking production kit that automates camera selection based on active audio. It integrates voice-triggered camera switching, multi-input HD switching, and PTZ cameras to produce smooth speaker-centric cuts. The kit is designed to improve live and recorded talk formats by delivering broadcast-style visual flow.

Voice-activated switching selects the active speaker and performs a Home First wide shot before cutting to the speaking camera to ensure natural transitions. The included PTZ cameras offer 20x optical zoom and AI-assisted one-click tracking for sharp close-ups without a dedicated operator. The SE-650 switcher provides mixed SDI and HDMI inputs and basic CG and keying features for titles and overlays.

Video performance supports 1080i and 720p HD formats on the switcher and 1080p on the cameras, while the cameras also offer 3G-SDI, HDMI, and NDI/PoE network streaming. Audio integration accepts USB mixer feeds and standard line-level inputs so the voice-tracking engine can respond instantly to microphone activity. Firmware updates are supported via USB or web UI to keep system components current.

Connectivity includes SDI and HDMI camera connections, RJ-45 PoE for camera network power and streaming, USB audio interfaces, and HDMI program outputs for local displays. The system supports common USB mixers and audio interfaces so existing audio gear can be retained. When paired with compatible Datavideo switchers, on-screen CG name labels and subtitles can be generated in real time.

Typical applications include podcasts, talk shows, panel discussions, classrooms, and small studios where automated, speaker-led camera switching improves viewer engagement. The solution reduces the need for a dedicated camera operator and simplifies production workflows while maintaining professional visual standards. It is suitable for live streaming, hybrid productions, and recorded sessions.

Installation is straightforward using standard AV and network cabling and the web-based configuration interface for voice-tracking setup. The components are built for studio use with unibody switcher chassis and networked PTZ camera control. Technical documentation and firmware support help integrate the kit into existing AV installations.

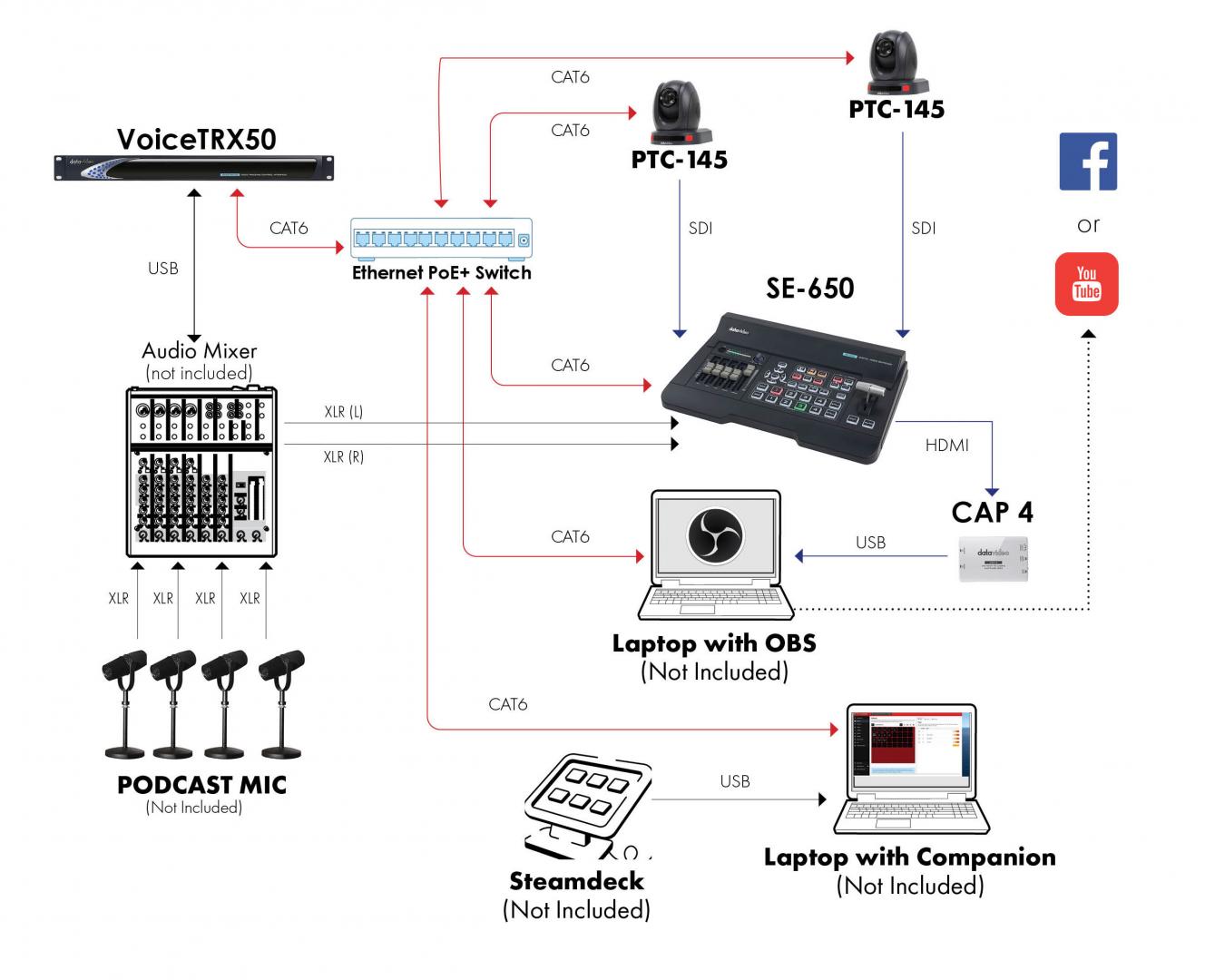

Product Diagrams

View Diagrams

Specifications

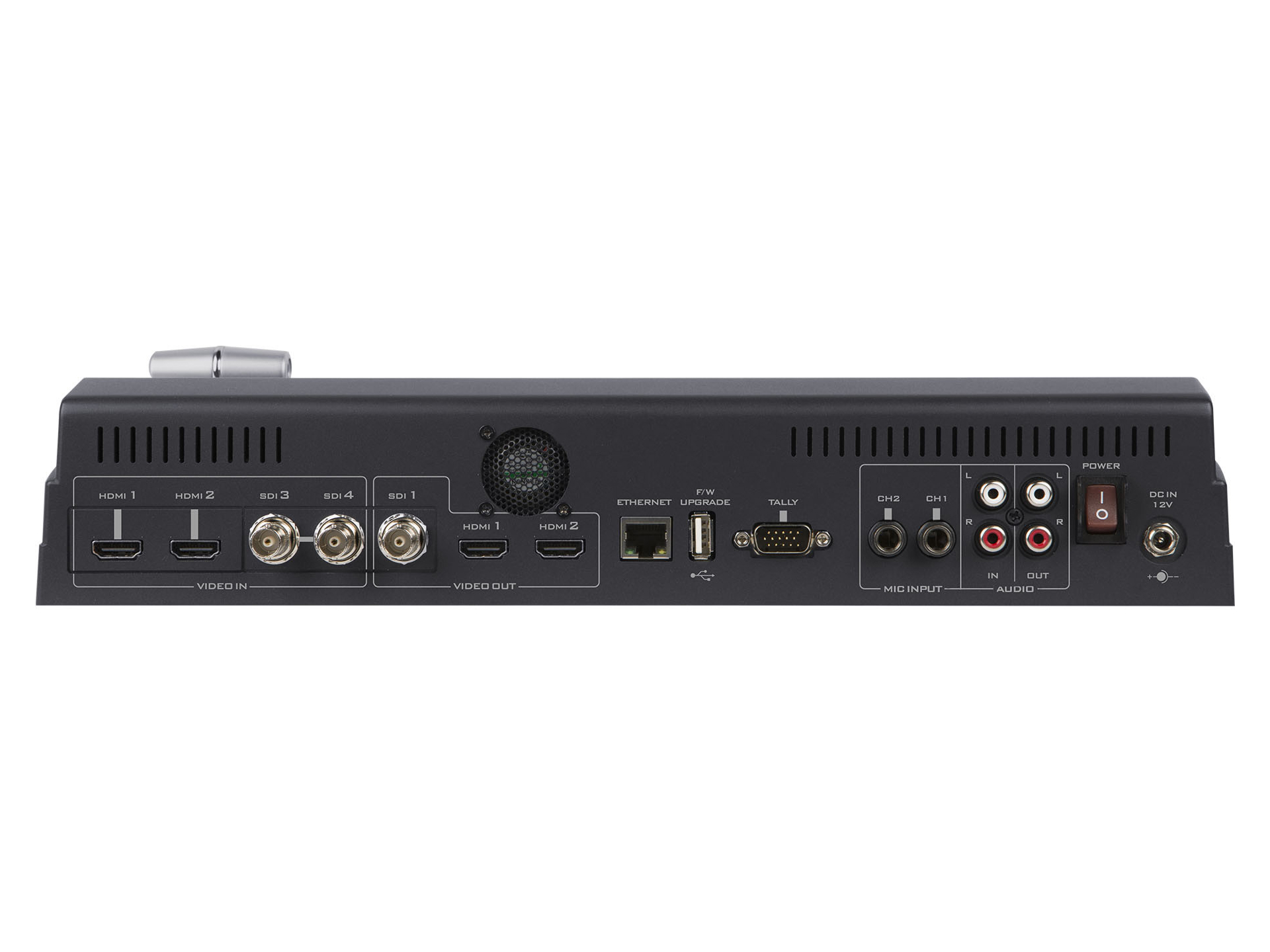

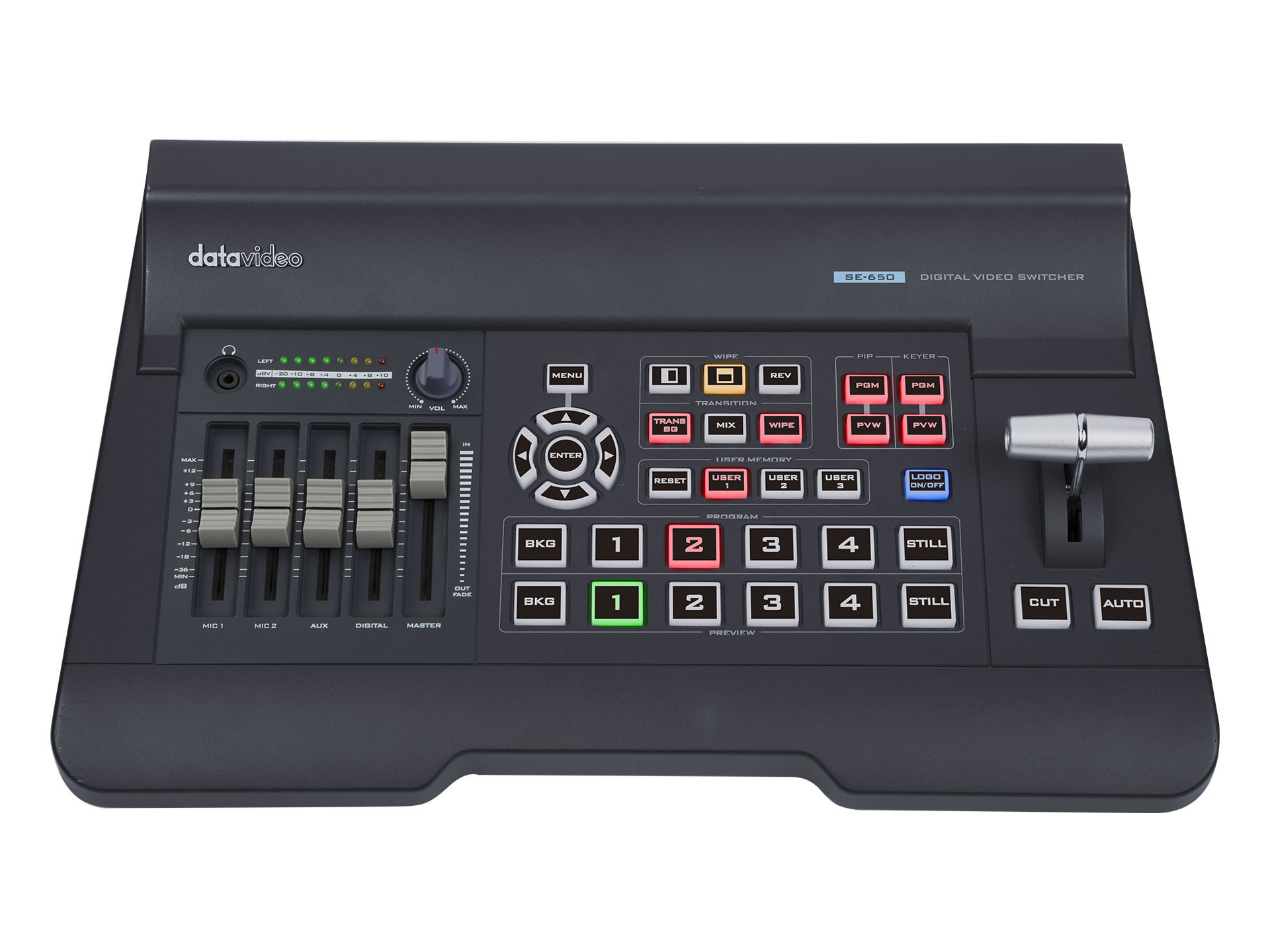

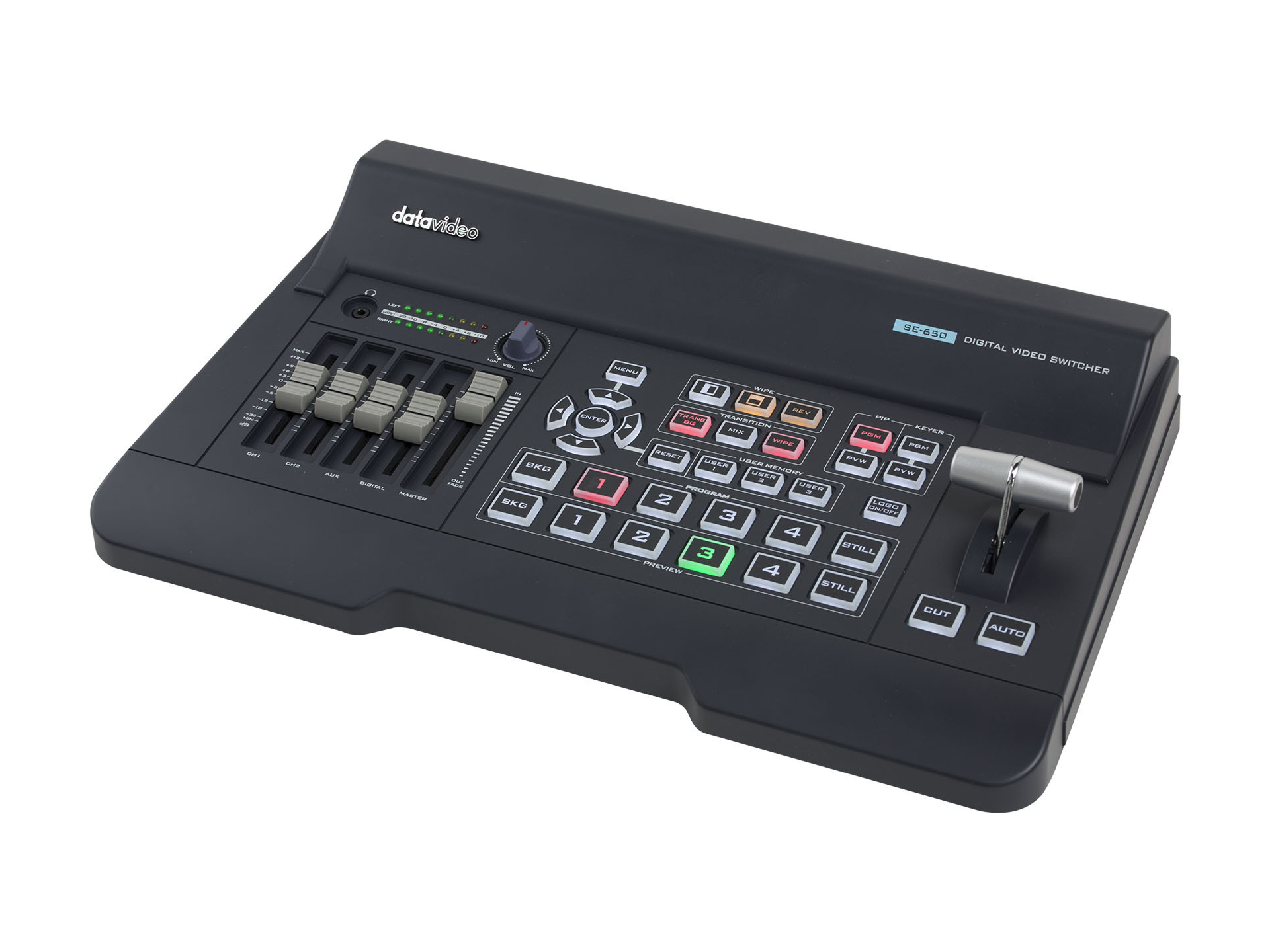

Model Number	SE-650
Video Standard	HD
Video Format	1080i 50/59.94/60Hz, 720p 50/59.94/60Hz
Video Processing	SDI 4:2:2, HDMI YUV 4:2:2 10bit, HDMI RGB 4:4:4
Input Routable / Crosspoint	All 4, repeatable
Video Input	2x HD-SDI, 2x HDMI
Mix HD & SD Source	----
Computer Graphic Interface	2 via HDMI
Video Output	2x HDMI (1 MV,1 Assignable), 1x HD-SDI Assignable
Down-converted Output	----
Built-in Multi-view Monitoring Out	HDMI & SDI assignable
Analogue Audio Input	1x Stereo RCA L/R, 2x Mono Microphone
Analogue Audio Output	1x Stereo RCA L/R, 1x Stereo headphone Mini Jack with volume control
Digital Embedded Audio Support	Input 2 channels, Output 2 channels
Audio Delay Calibration	----
A+V Switching	Yes
Chromakey	1
Title Creator	----
USK	2x Keyer Chromakey/Linear/Luma
DSK	1x DSK Lumakey/Linear (Key/Fill)
Picture in Picture	1
Logo Insertion	1
Still Store	500
Effects	FTB, Cut, 32 Wipe with border
Transition Preview	Full transitions preview
Sync / Reference In/Out	Built-in Genlock internal
Tally Output	1x D-sub 15pin dual color
PC Remote Control	DVIP (Ethernet)
Camera Control	----
Built-in Audio Mixer	Yes 4 channels
Storage	----
Recording File System	----
Recording File Format	----
Video Encode	----
Audio Encode	----
Streaming Protocol	----
Firmware Update	USB
Special Features	Free Virtual Set and Stinger transition
Chassis	Unibody
Dimension (LxWxH)	400 x 250 x 82 mm
Weight	1.9 kg
Power	DC 12V 29W
Operating Temp. Range	0~40 °C

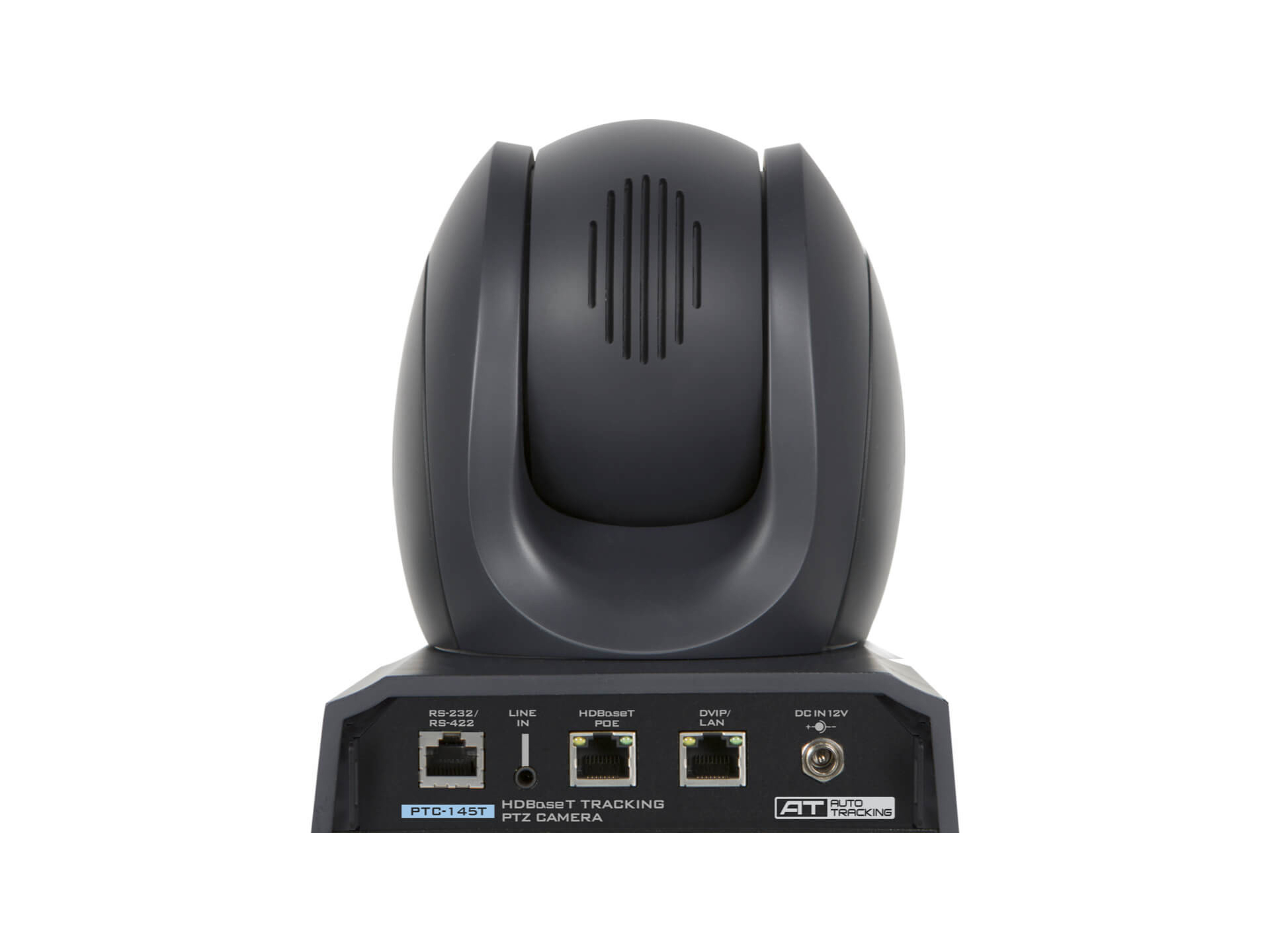

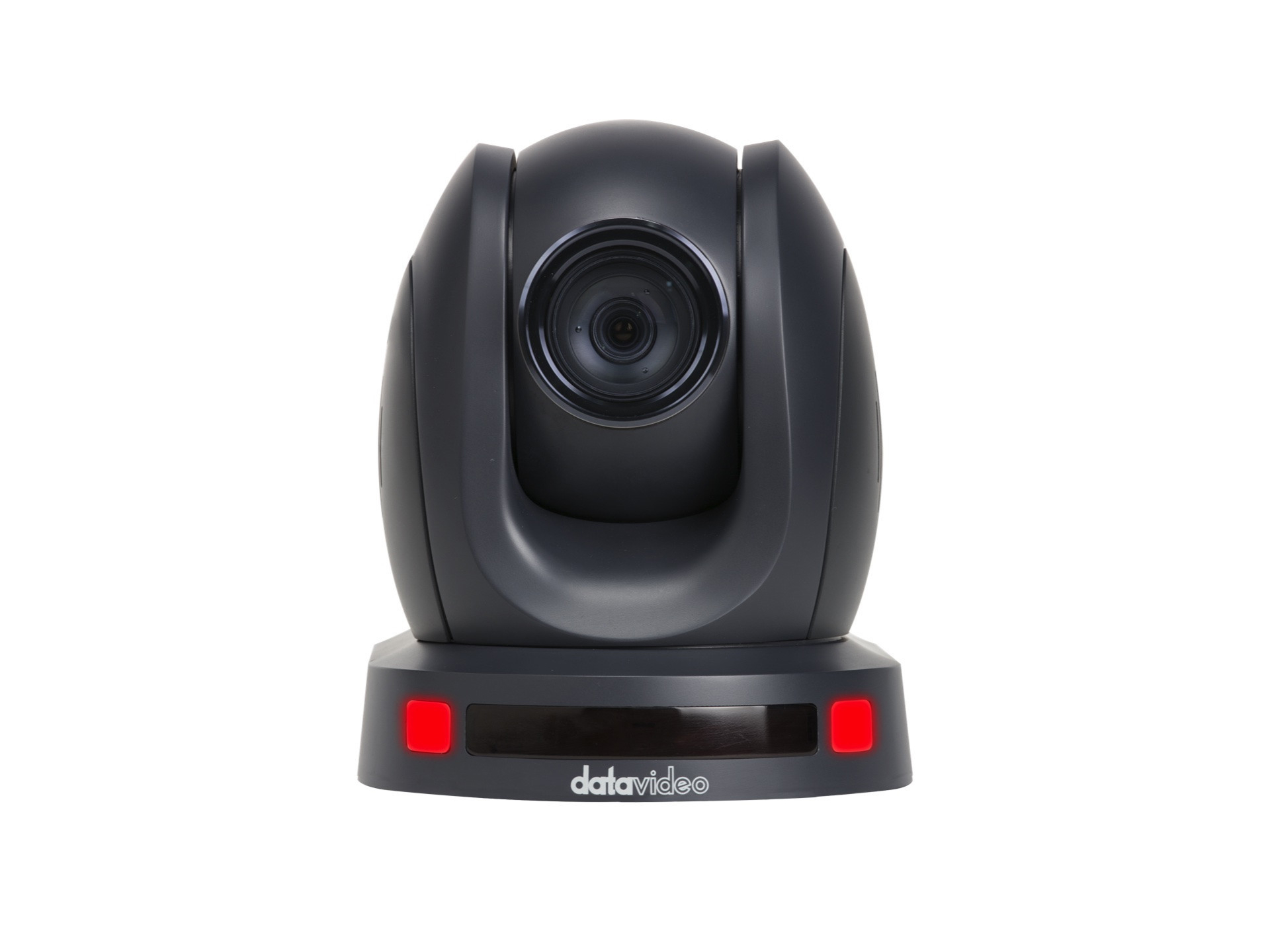

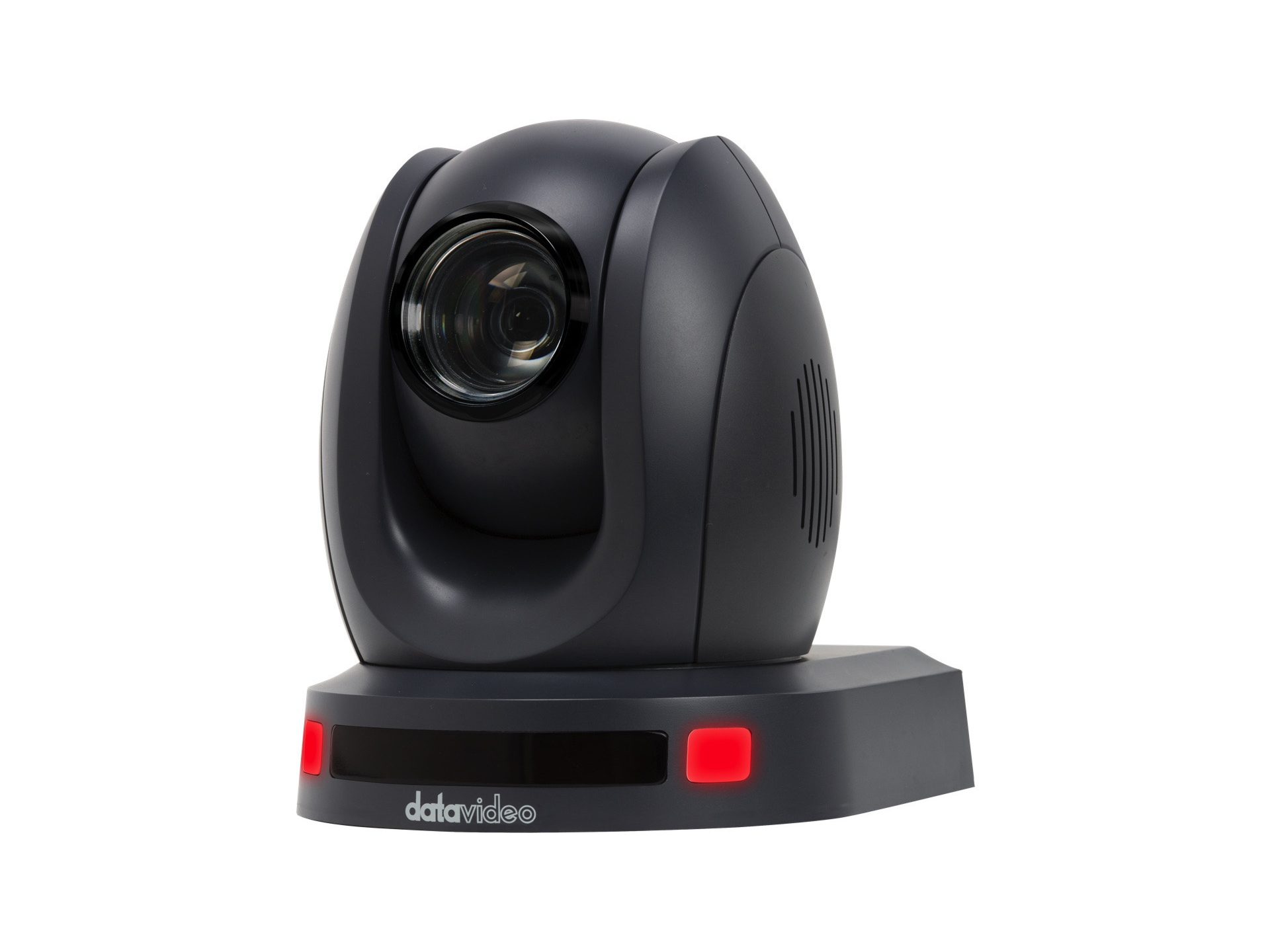

Model Number	PTC-145
Video format/Resolution	1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50
Image Sensor	Sony 1/2.8" CMOS
Effective Pixels (approx.)	2.07 Mega pixels
S/N Ratio	?50dB
Min. Illumination	0.5 Lux F1.8 AGC ON
Electronic Shutter	1/30s ~ 1/10000s
Zoom Ratio	20x Optical, 8x Digital
Effective Zoom Ratio	18.12x
Gamma Control	N/A
Iris Control	Auto/Manual
Digital Noise Reductions	3D
On-Screen Display (OSD)	English/Simplified Chinese/Traditional Chinese
White Balance	Auto, Indoor, Outdoor, Manual, One Push
AGC / Gain Control	Yes
HDR/WDR	N/A
Mirror / Flip Image	Yes
Focus Mode	Auto/Manual
Panning / Tilting Range	Pan 340°, Tilt +90° to -30°
Panning / Tilting Speed	Pan 0.1~60°/sec, Tilt 0.1~30°/sec
Preset	255 Positions
Focal Length	5.05mm-91.49mm
Aperture	F1.8(Wide) ~ F2.9(Tele)
Field of View (Horizontal, Wide)	60°
Image Compensation	Backlight Compensation
Video Output	HDMI x1, 3G-SDI x1, RJ-45 PoE x1
Audio Input	3.5mm Line in
Tally LED	Dual color Red/Green
Lens Filter	M52.0 x 0.75 thread with UV Protection
Control Protocol	Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF
Remote Control Interface	IR
Web GUI	RS-422/RS-232/RS-485 RJ45
DVIP	DVIP
Video Compression Format	H.264, H.265, MJPEG
Audio Compression Format	AAC, G711
Audio Bitrate	96Kbps, 128Kbps, 256Kbps
HD IP Interface	10/100/1000M RJ45
Streaming Protocols	RTSP, RTMP(S), ONVIF, Multicast, SRT, NDI\|Hx3(1080p)
First Stream Supported Resolution	1920x1080,1280x720,1024x576,960x540,640x480,640x360
Second Stream Supported Resolution	720x480,640x480,640x360,320x240
Video Bitrate	64Kbps ~ 50Mbps
Video Bitrate Mode	VBR, CBR
Encoding Frame rate	50Hz 1-50fps, 60Hz 1-60fps
POE	IEEE 802.3af
PoE+	----
F/W Update	Via Web UI
IR Control	Yes
Camera Control Unit	RMC-2P, RMC-180 series, RMC-300 series, PTZ View Assist APP
Tripod Mount	1/4-20 UNC
Optional Accessories	WM-1, WM-10, WM-11
Color	Black/White
Dimension (LxWxH)	156 x 184 x 186 mm
Weight	1.6 kg
Operating Temp. Range	0~40 °C
Power	DC 12V 14W

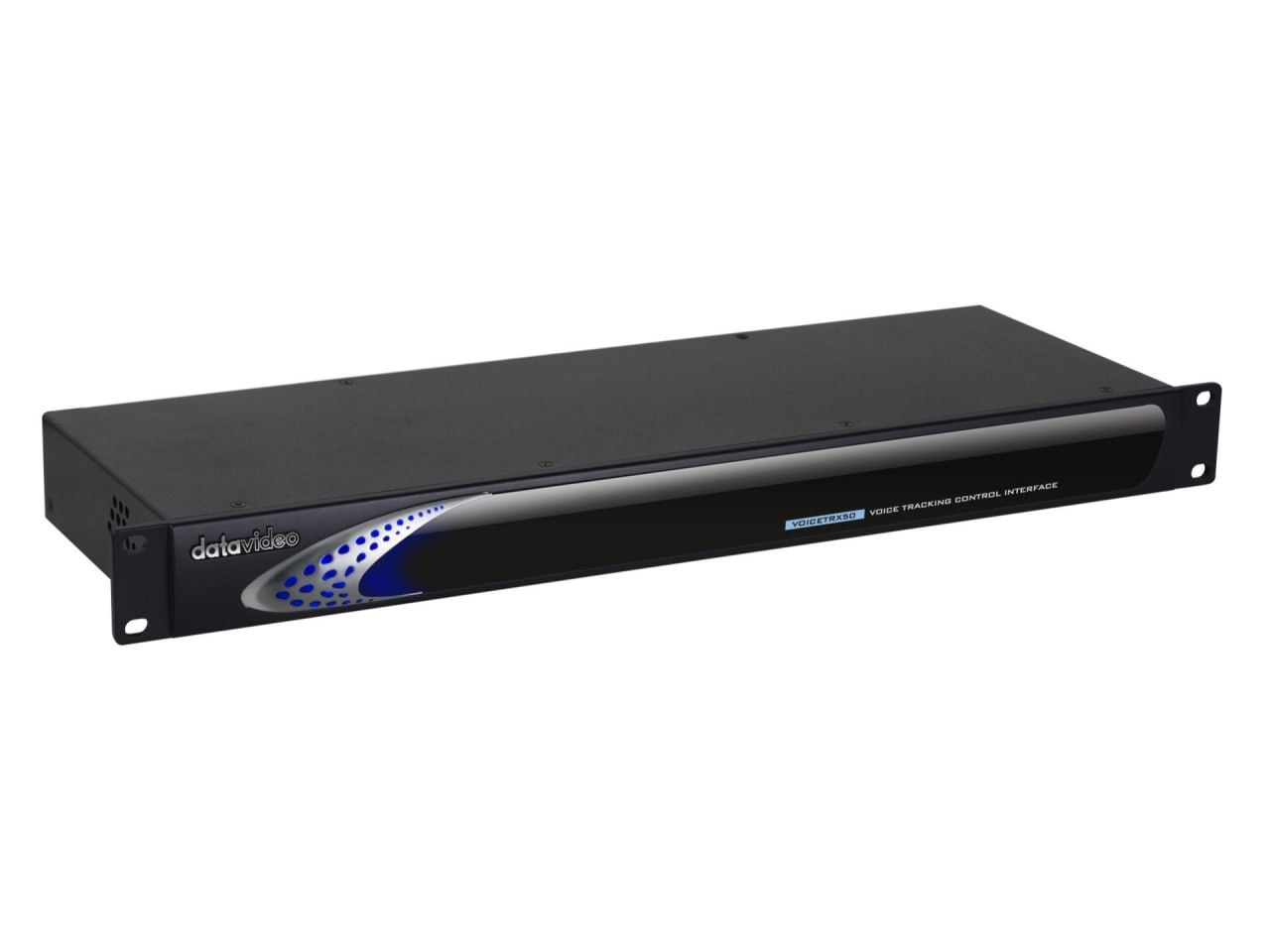

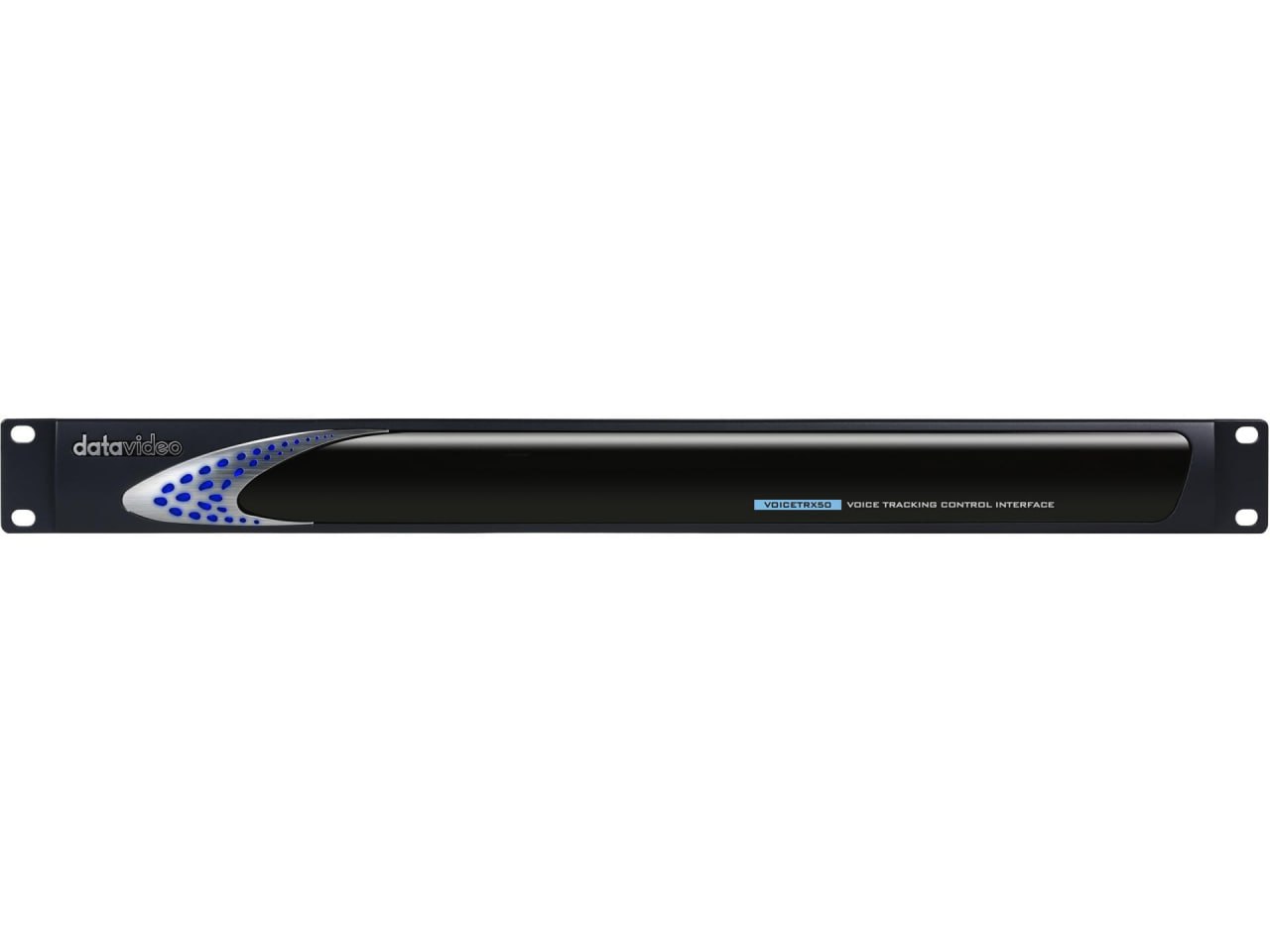

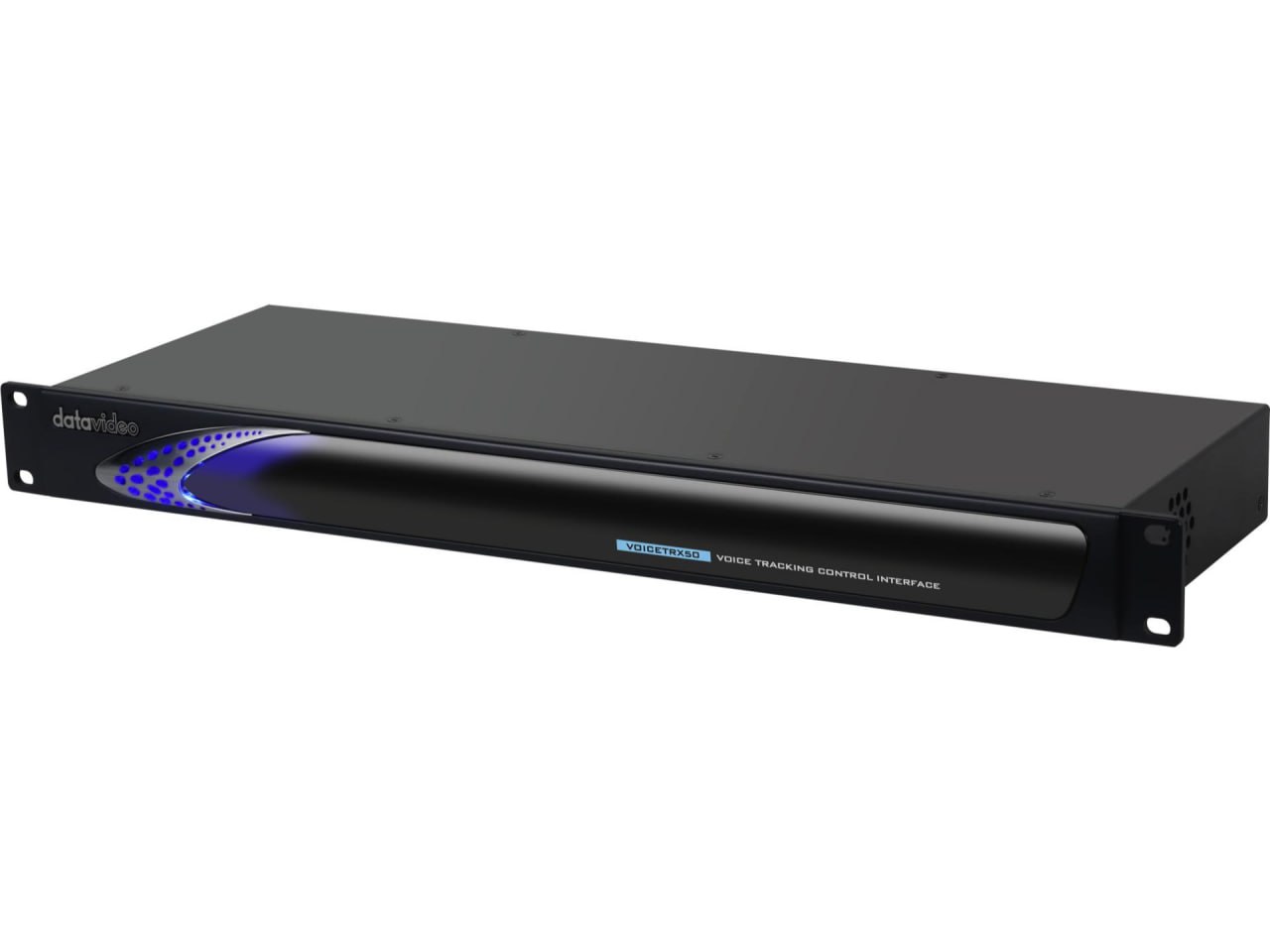

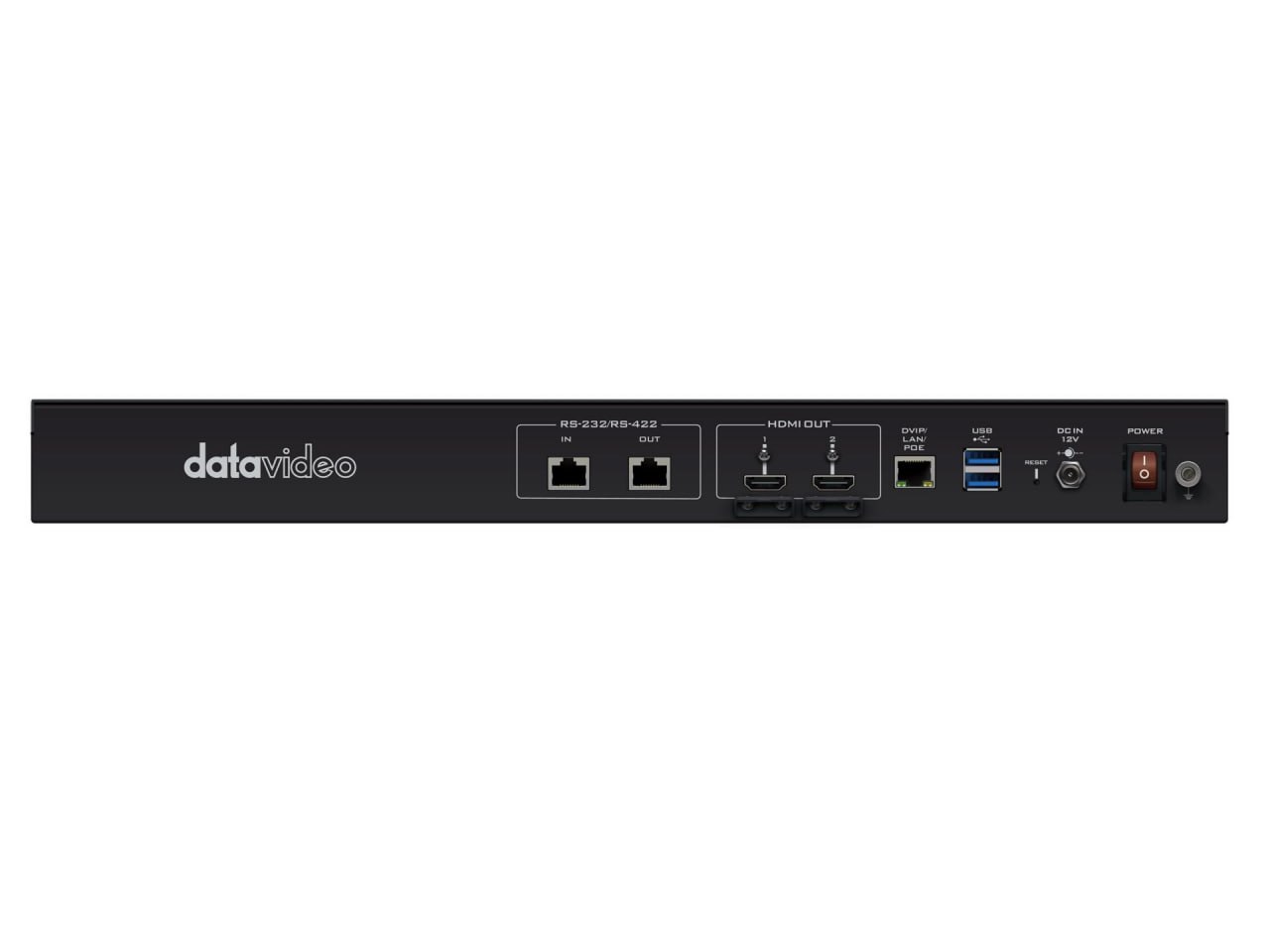

Model Number	VoiceTRX50
Control	Web browser UI for configuration and control
DVIP commands	DVIP
Protocol	DVIP
Network Feature	1x RJ-45 10/100/1000M DHCP/Static IP
POE	IEEE 802.3at
POE+	----
F/W Update	Automatic firmware upgrade
Power	Input AC 100~240V Switching Adaptor Output DC 12V/1A
Video Output	2x HDMI 2.0
Supported Video Outout Resolution	Up to 3840x2160p60
Supported Video Switchers	iCast 10NDI series, KMU-100+, SE-650, SE-1200MU, SE-2600 series, SE-3200 series, SE-4000 series
Supported Microphones	Zoom LiveTrak L6, Zoom LiveTrak L6 Max, Zoom LiveTrak L8, RodeCaster Pro II, SoundCraft UI24R, M-Audio Duo, M-Audio Air 192\|14, Tascam US-16X08, Behringer UMC404HD
