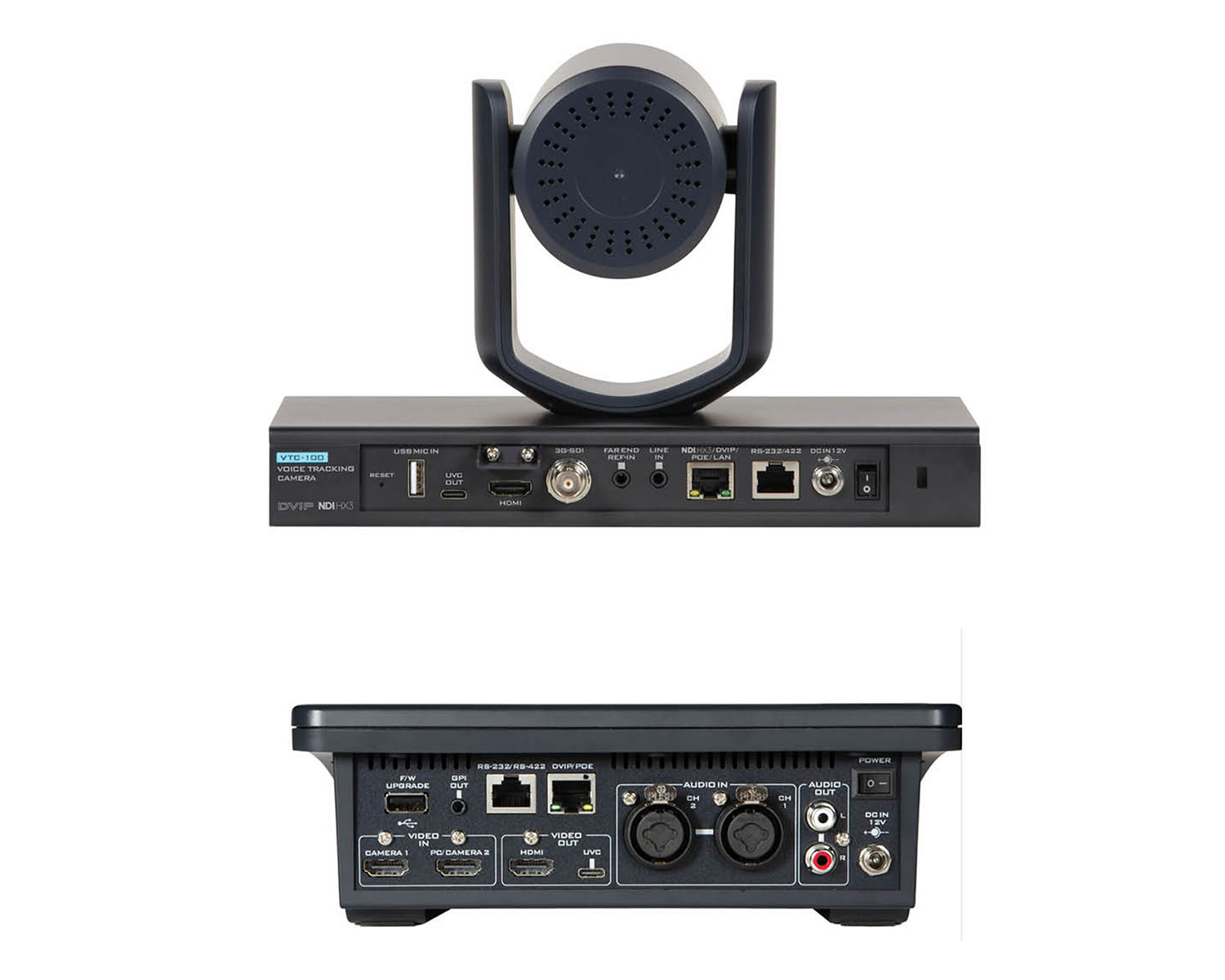

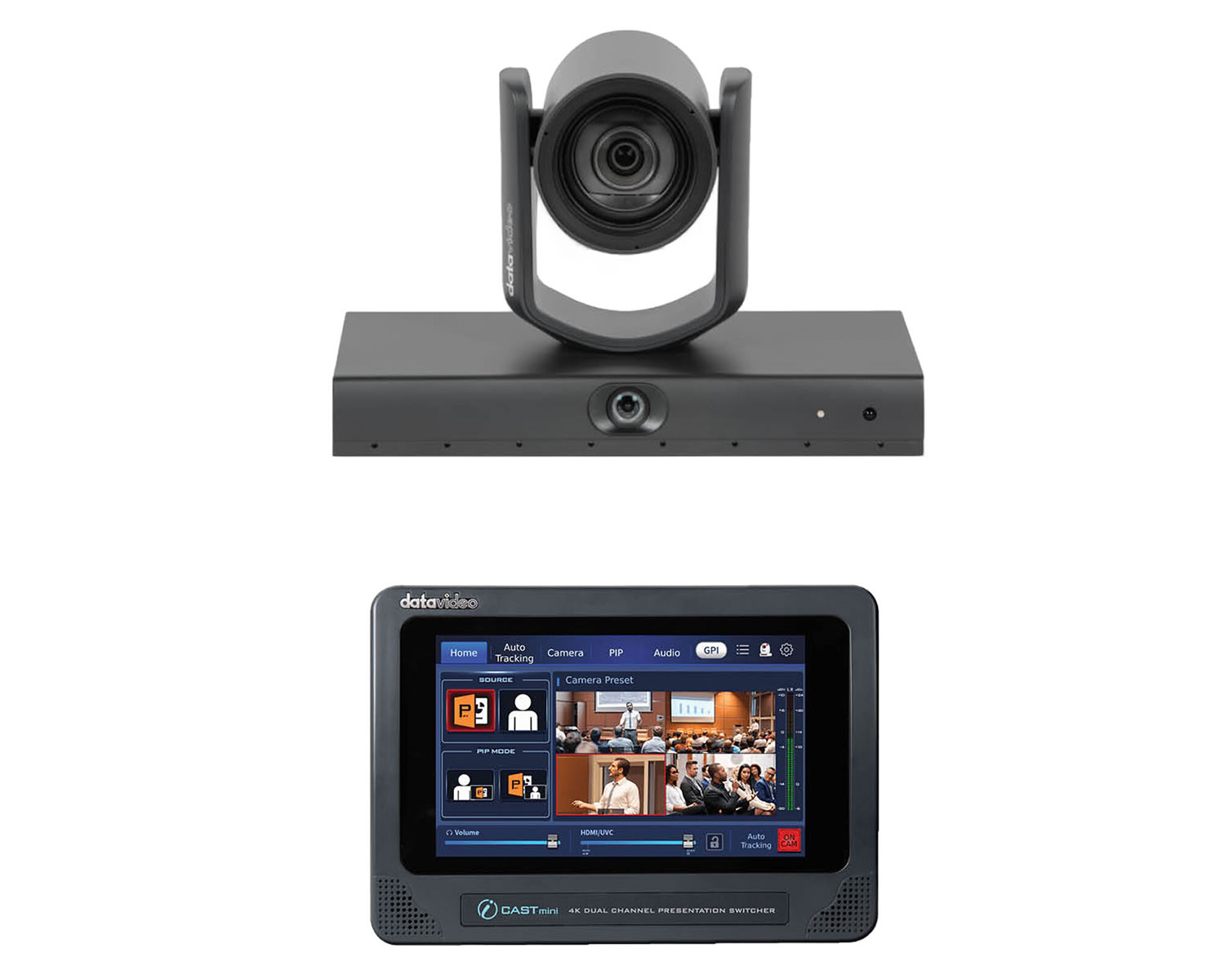

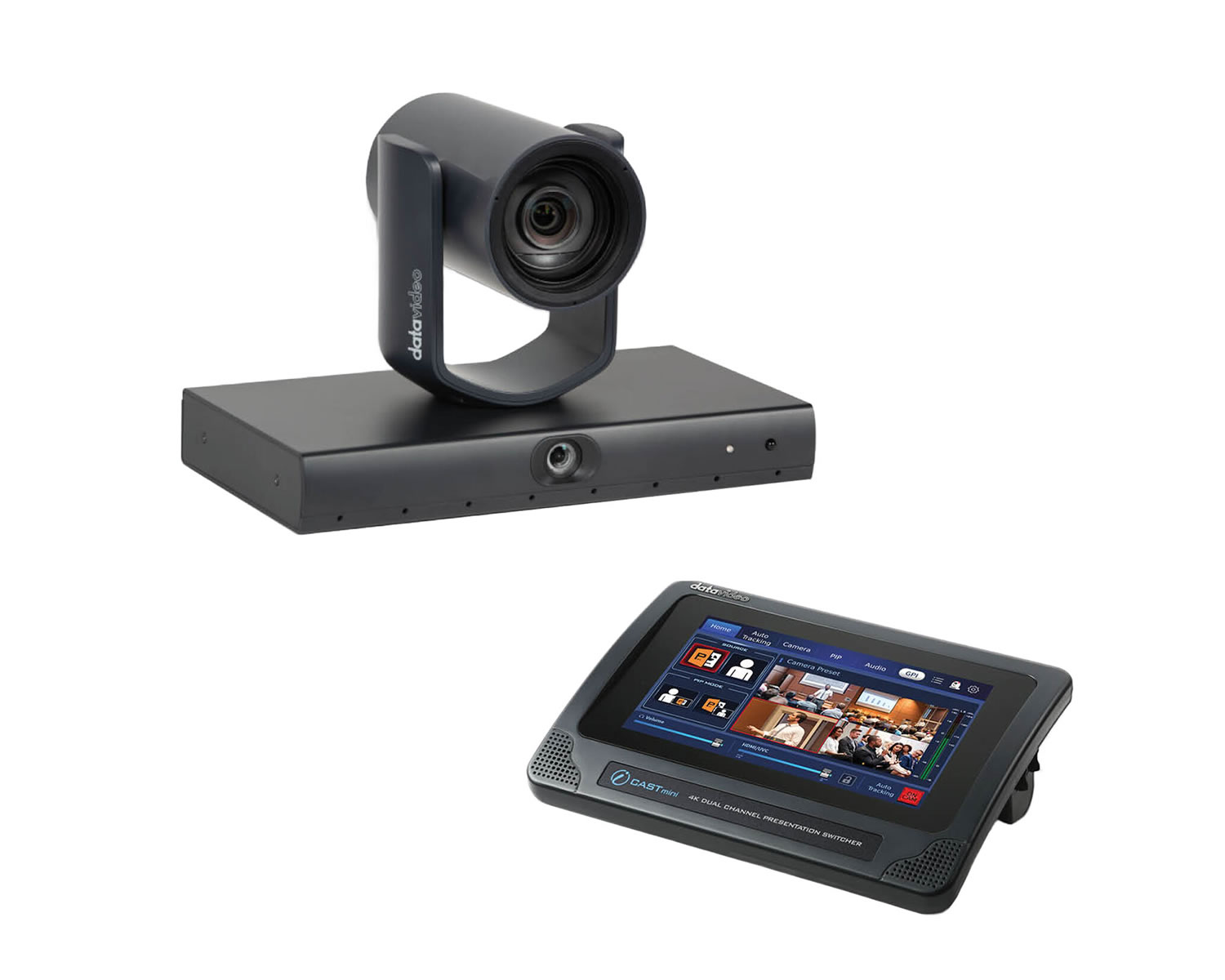

- VTC-100 AI Voice-Tracking PTZ Camera
- iCast Mini 4K Presentation Switcher
- 1080p60 Video Output, AI Voice Tracking
- Compact Switcher/Touchscreen Controller
Start typing to see results...
Product Questions? Ask Our Experts!
Product Questions? Ask Our Experts!
| Key Specs | |
|---|---|
| Image Sensor | 1/2.8"-Type CMOS |
| Sensor Resolution | Effective: 2.14 Megapixel |
| Shutter Speed | 25 to 10000 Second |
| Max Optical Zoom | 12x |
| Max Digital Zoom | 16x |
| Video Output |
HDMI / RJ45 / SDI(BNC) / USB Up to 1080p at 25/29.97/30/50/59.94/60 fps |
| Internal Recording | No |
| Broadcast Output | NTSC / PAL |
| Supported Protocols |
Video Streaming: NDI / NDI|HX3 / RTMP / RTMPS / RTSP / SRT Camera Control: DVIP / IP / IR / NDI / NDI|HX3 / ONVIF / Pelco-D / Pelco-P / UVC / VISCA |
| IP Streaming | 320 Ч 240 to 1920 Ч 1080 at 30p, 60p |
| Wireless | No |
| PoE Support | PoE 802.3af |
| Lens | |
| Focal Length | 4.1 to 49.2mm |
| Field of View | Horizontal: 70.2° |
| Maximum Aperture | f/1.6 to 2.8 |
| Focus Control | Autofocus / Manual Focus |
| Control | |
| Presets | 254 |
| Pan / Tilt | Pan: 130° / Tilt: 120° (-30° to 90°) |
| Tally Light | Yes |
| Interface | |
| Video I/O |
1Ч HDMI 1.3 1Ч BNC (3G-SDI) 1Ч USB-C 3.0 |
| Audio I/O |
1Ч 3.5mm TRS Stereo Line Input 1Ч USB-A Mic/Line Input |
| Other I/O |
1Ч RJ45 (RS-232 / RS-422 Control) 1Ч RJ45 (Ethernet / LAN / NDI) |
| Power | |
| Power Input | 12VDC (2A) / PoE 802.3af |
| Power Consumption | 18 W |
| General | |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Mounting | 1Ч 1/4"-20 Female |
| Dimensions | 245 Ч 164 Ч 154 mm (9.6 Ч 6.5 Ч 6.1") |
| Weight | 2 kg (4.4 lb, body only) |
