Description

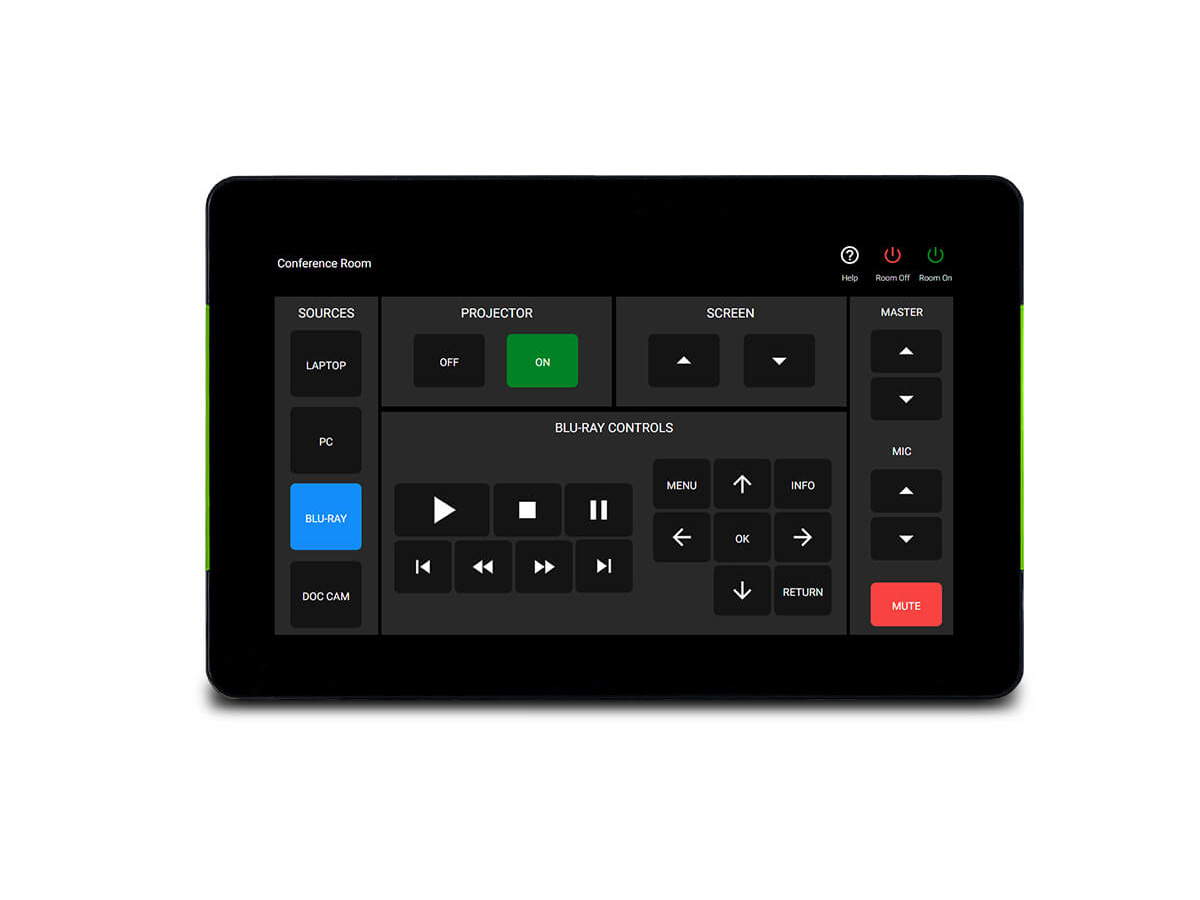

The AT-VTP-700VL is a 7 inch Velocity touch panel designed as a compact user interface for AV control and room scheduling. It provides a capacitive glass touch surface and a native 1024 x 600 resolution for clear graphics and responsive touch. The panel pairs with Velocity hardware or software server gateways to deliver preloaded GUIs and streamlined setup.

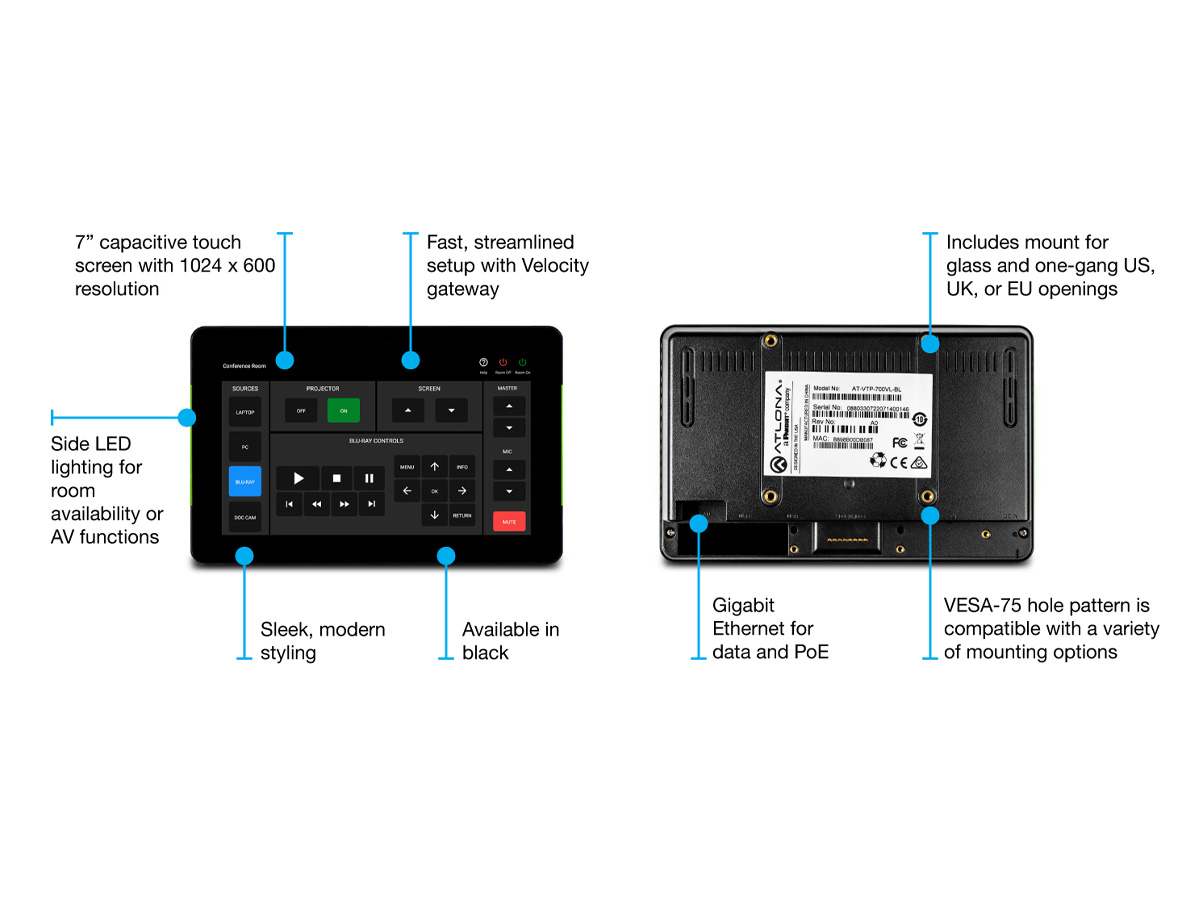

Key features include side-mounted LED bezel lighting that can be configured for room status or control emphasis, onboard audio feedback for button presses, and upgraded processing for faster page loads. The device supports PoE+ for networked power and connectivity over a single cable. The included dual-purpose glass and wall mount kit fits one-gang US UK EU openings and the VESA 75 pattern supports third-party mounts.
Technical performance highlights include a 1024 x 600 TFT LCD with projected capacitive 10-point touch input, 240 cd/m2 brightness, 600:1 contrast ratio, and wide viewing angles (H 140 degrees / V 130 degrees). Onboard speakers deliver 2 x 2 W audio for audible feedback. The unit operates between 0 to 40 degrees Celsius and stores between -10 to 55 degrees Celsius while tolerating 10% to 90% non-condensing humidity.

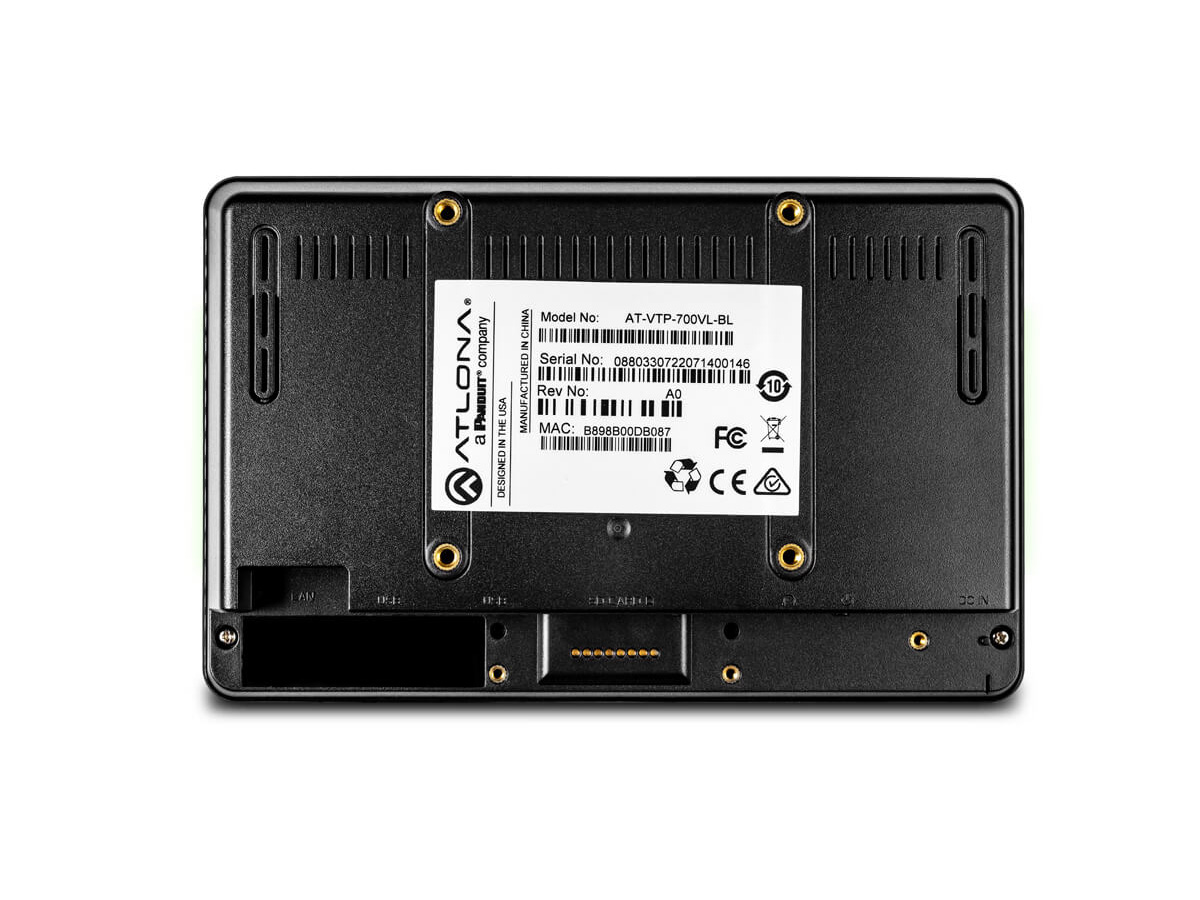

Connectivity centers on a single Gigabit Ethernet RJ45 port supporting PoE+ IEEE 802.3at for combined power and data delivery. Network protocols include DHCP HTTP HTTPS SFTP SMTP SNMP SSH TCP UDP and IEEE 802.1x with DHCP or static addressing. The VTP-700VL is compatible with the optional AT-VTP-VTM tabletop mount for freestanding placement.
Typical applications include tabletop or wall-mounted AV control in conference rooms and classrooms as well as room scheduling in corridors and lobbies where side LED indicators provide quick visual status. The 7 inch control surface offers sufficient space for custom or template-based GUIs while remaining unobtrusive in modern interiors. Its aesthetic glass front and slim profile support consistent visual design across deployments.
Installation is simplified by automatic GUI upload from a Velocity gateway and PoE+ power reduces cabling requirements. The included one-gang glass/wall mount and VESA 75 compatibility enable multiple mounting options and rapid deployment. The product carries CE FCC RCM China RoHS certifications and a 2-year limited warranty for peace of mind.
