AT-USB-EX350-WPD-KIT USB Extender 5Gbps 330ft

Description

The Atlona AT-USB-EX350-WPD-KIT is a data-only USB 3.2 extender kit. It supports simultaneous extension of 5 Gbps USB 3.2 Gen 1 data and 480 Mbps USB 2.0 data up to 330 feet (100 meters) using a single, cost-effective Category 6A U/FTP cable.

Ideal Use Cases
The USB-EX350-WPD-KIT is ideal for video conferencing or remote instruction applications where high data rate USB components including laptops, computers, cameras, microphones, and speakers are in different areas of the room.

System Components
The USB-EX350-WPD-KIT is comprised of two endpoints. The host endpoint includes a USB-C port for connection to hosts such as laptops, computers, or other AV equipment that supports USB connectivity, including many Omega™ Series products. The device endpoint is a two-gang wall plate that includes three USB Type-A ports and one USB-C port for connection to 4K cameras, conferencing bars, microphones, speakers, and other peripherals.

Power and Connectivity
Bidirectional remote power allows the kit to be powered by the included power supply connected to either the host or device endpoint.

Advanced Integration Features
A LAN connection on the host endpoint provides access to advanced integration capabilities including:
– Monitor system and port status for validation and troubleshooting
– Configure VBUS modes
– Update firmware
– IP to RS-232 translation supporting bi-directional serial control through the device endpoint

Performance Benefits
The USB-EX350-WPD-KIT is a great solution for extending USB 3.2 Gen 1 data up to 5 Gbps between components at distances greater than is possible with traditional cabling.

Applications

Education
Provides clean wall plate device connection for classroom applications where higher data rate USB peripherals such as 4K cameras are located at distances of up to 330 feet (100 meters) from the room computer or teacher laptop.

Commercial
Access higher data rate USB peripherals at distances of up to 330 feet (100 meters) from a room computer or BYOD laptop host connected to a wall plate matching the aesthetics of modern meeting room environments.

Features

Point-to-point USB extender kit for devices such as cameras, speakers, microphones and other peripherals
Extends USB data up to 330 feet (100 meters) using a single Category 6A U/FTP cable
Supports USB 3.2 Gen 1 data rates up to 5 Gbps
Supports USB 2.0 data rates up to 480 Mbps
One USB-C interface for host connection
Three USB-A and one USB-C for peripheral connections on the device wall plate
Each peripheral port provides up to 1.5 amps (3.2 amps total) allowing even energy-hungry components to be powered by the device endpoint
LAN port for configuration, monitoring, and control over the network
Configurable VBUS mode for each USB port on the device endpoint
IP to RS-232 translation for bi-directional RS-232 communications through the device wall plate
US two-gang device wall plate – interchangeable white and black trim kits
Compact enclosures can be mounted in furniture, behind a display, or above a projector
Kit includes device wall plate, white and black trim kits, host endpoint, power supply, and mounting brackets

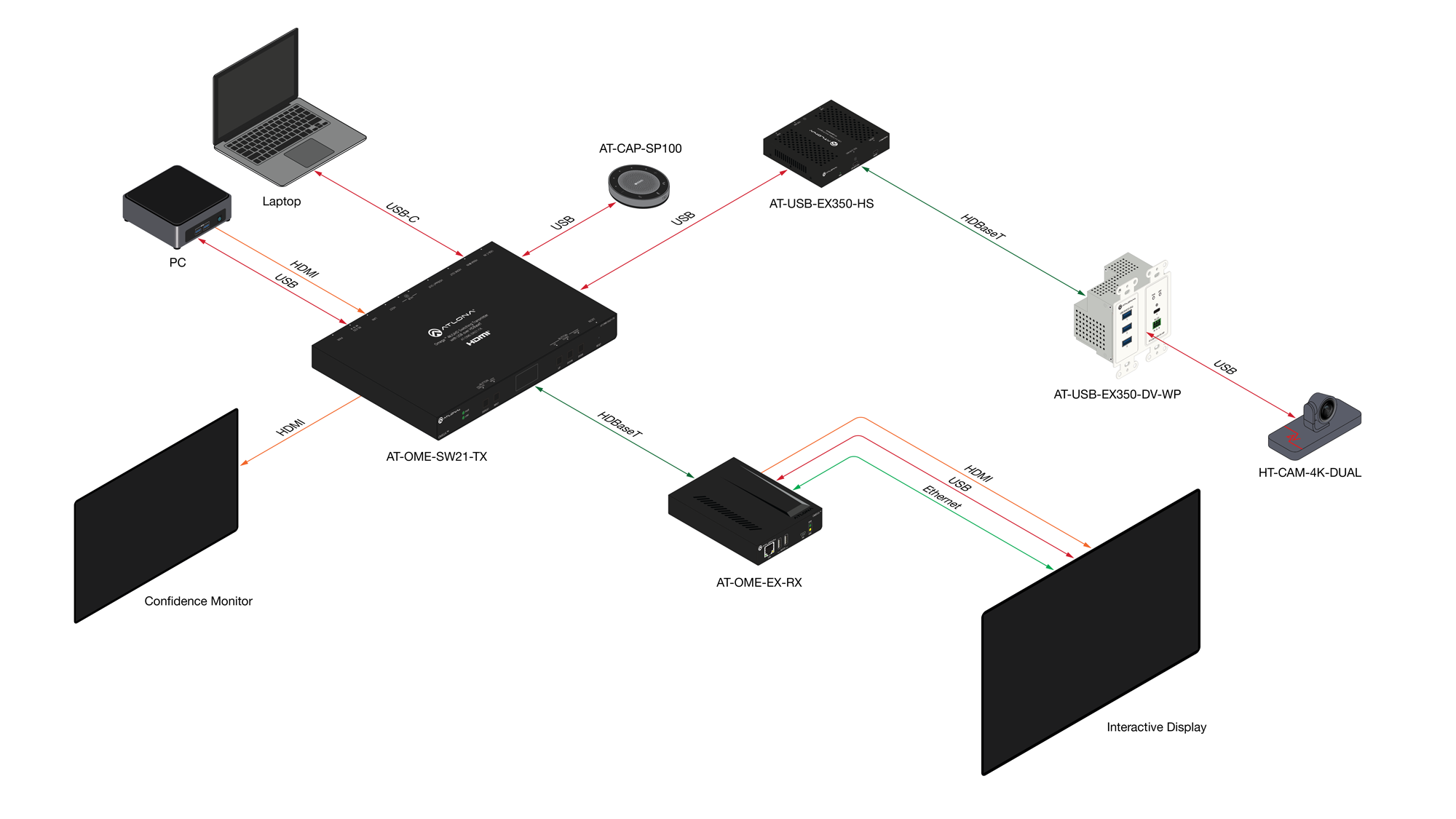

Product Diagrams

View Diagrams

Specifications

USB Capabilities
Protocol Support	USB 2.0, USB 3.2 Gen 1 (5 Gbps)
USB 2.0 Capabilities	Maximum hubs: 9 Maximum hub tiers: 5 Maximum devices: 7 Maximum endpoints: 14 (IN), 15 (OUT)
USB 3.2 Gen 1 Capabilities	Maximum hub tiers: 5 Maximum endpoints: 126
USB Transfer Types	Control, Bulk, Interrupt, Isochronous
Internal Hubs	USB 2.0: 1 Hub, 1 Tier USB 3.2 Gen 1: 2 Hubs, 2 Tiers
USB Power	Host: No Power Device: max 1.5A per port, 3.2A total across all device ports
USB Device VBUS Control	Per-port settings: Follow USB Host, Always High, Always Low
Bandwidth	USB 2.0: 480 Mbps USB 3.2 Gen 1: 5 Gbps
Ethernet
Port	1 x RJ45 on Host Endpoint
Standards and Protocols	HTTP, HTTPS, Telnet, SSH, JSON over WebSockets, TCP Proxy for RS-232, NTP
Speeds	10/100 Mbps
Addressing	DHCP, Static – selectable through built-in web server and API commands
802.1x Support	PEAP-MSCHAPv2, EAP-TLS
RS-232
Port	1 x 3-pin captive screw on Device Endpoint
Use	External device control via TCP Proxy
Baud Rates	9600, 19200, 38400, 57600, 115200
Data Flow	Bidirectional
Distance
CAT 6a U/FTP – straight run	330 ft / 100 m
CAT 6a U/FTP – through patch panel/coupler	295 ft / 90 m
CAT 6a UTP	230 ft / 70 m
CAT 5e UTP	164 ft / 50 m
Indicators
Host Endpoint	PWR – 1 x LED, green LAN – 1 x LED, green; 1 x LED, amber HDBT-USB3 – 1 x LED, green (LINK); 1 x LED, amber (FW)
Device Endpoint	PWR – 1 x LED, green LINK – 1 x LED, amber HDBT-USB3 – 1 x LED, green (LINK); 1 x LED, amber (FW)

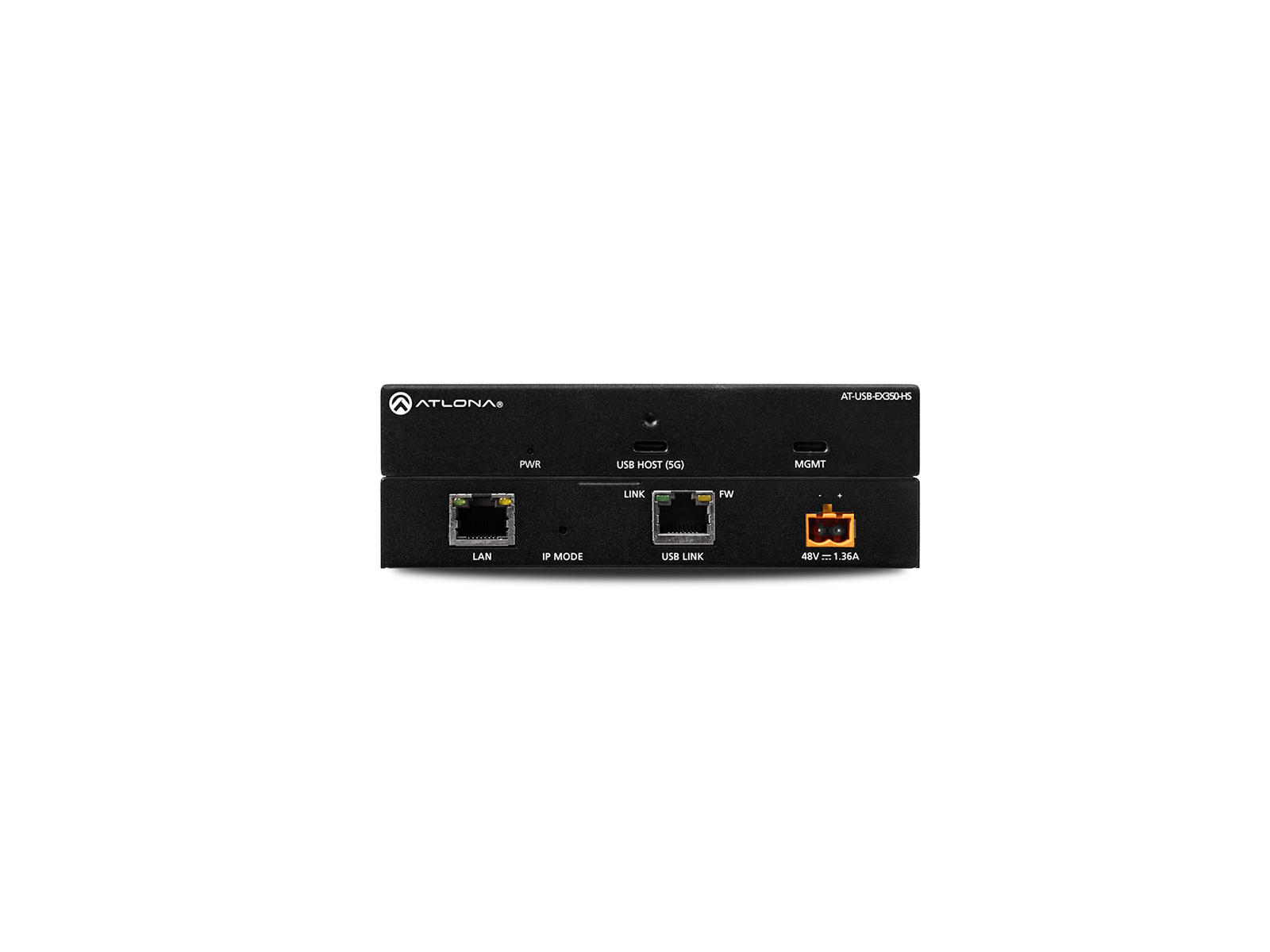

Connectors (Host Endpoint)
USB HOST (5G)	1 x USB-C, locking
LAN	1 x RJ45
HDBT-USB3	1 x RJ45
48V / 1.36A	1 x 2-pin captive screw

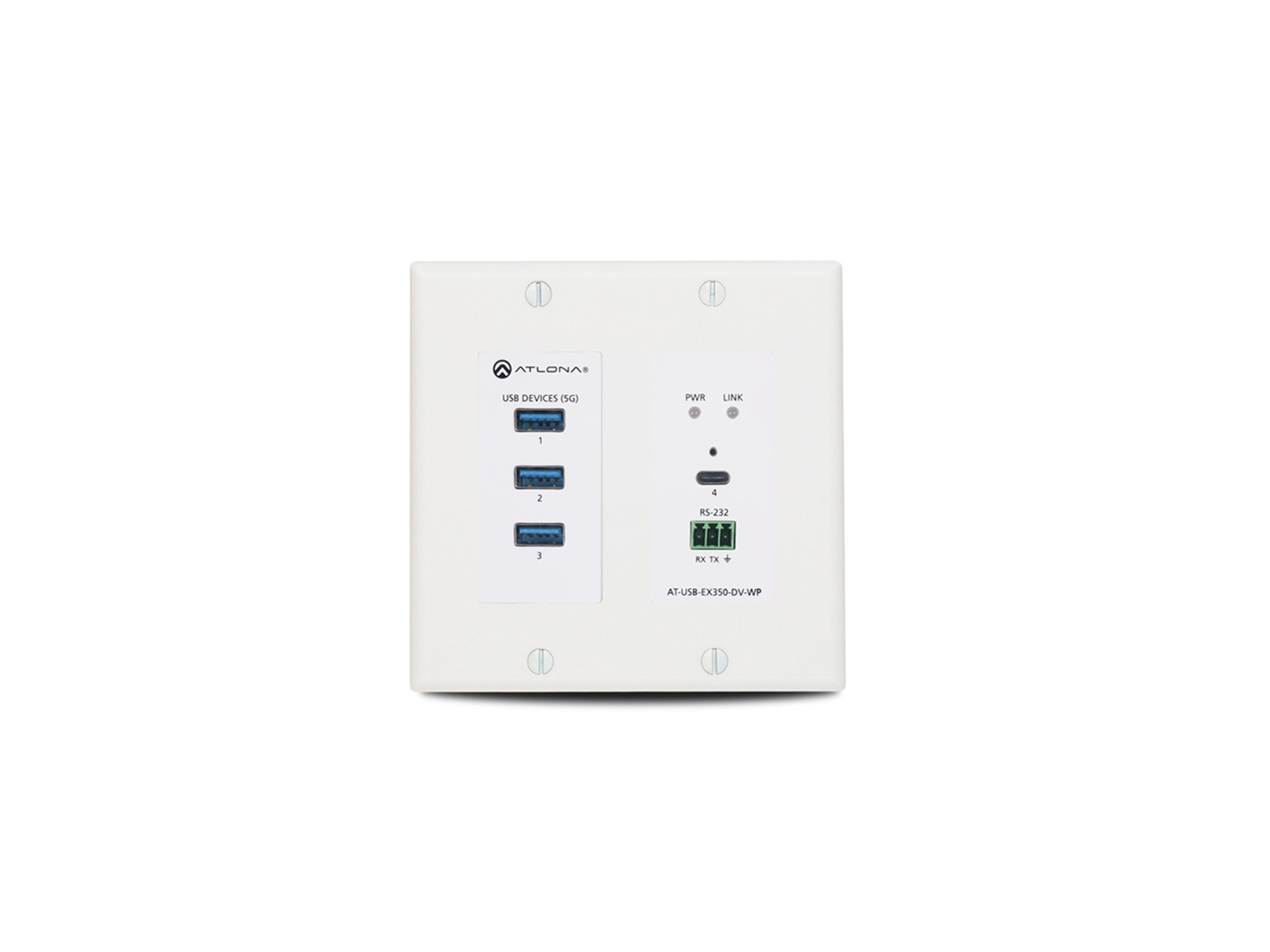

Connectors (Device Endpoint)
USB DEVICES (5G)	3 x USB-A
USB DEVICES (5G)	1 x USB-C, locking
DEBUG	1 x USB-C
RS-232	1 x 3-pin captive screw
HDBT-USB3	1 x RJ45
48V / 1.36A	1 x 2-pin captive screw
Environmental
Operating Temperature	+32 to +104°F / 0 to +40°C
Storage Temperature	-4 to +158°F / -20 to +70°C
Operating Humidity (RH)	20% to 90%, non-condensing
Power
Consumption (Host Endpoint)	33 W (max.), 25.4 BTU/h, 21 BTU/h
Consumption (Device Endpoint)	29 W (max.), 11.1 BTU/h, 25 BTU/h
External Power Supply	Input: 100–240 V AC, 50/60 Hz Output: 48 V DC / 1.36 A
Dimensions
Host Endpoint	0.91 x 5.31 x 3.94 in / 23 x 135 x 100 mm
Device Endpoint	4.17 x 3.54 x 1.81 in / 106 x 90 x 46 mm
Weight
Host Endpoint	0.71 lb / 0.32 kg
Device Endpoint	0.88 lb / 0.39 kg
Certification
Extender Kit	CE, FCC, UKCA, RCM
Power Supply	CE, FCC, UKCA, RCM, UL
Compliance
NDAA-889	Yes
