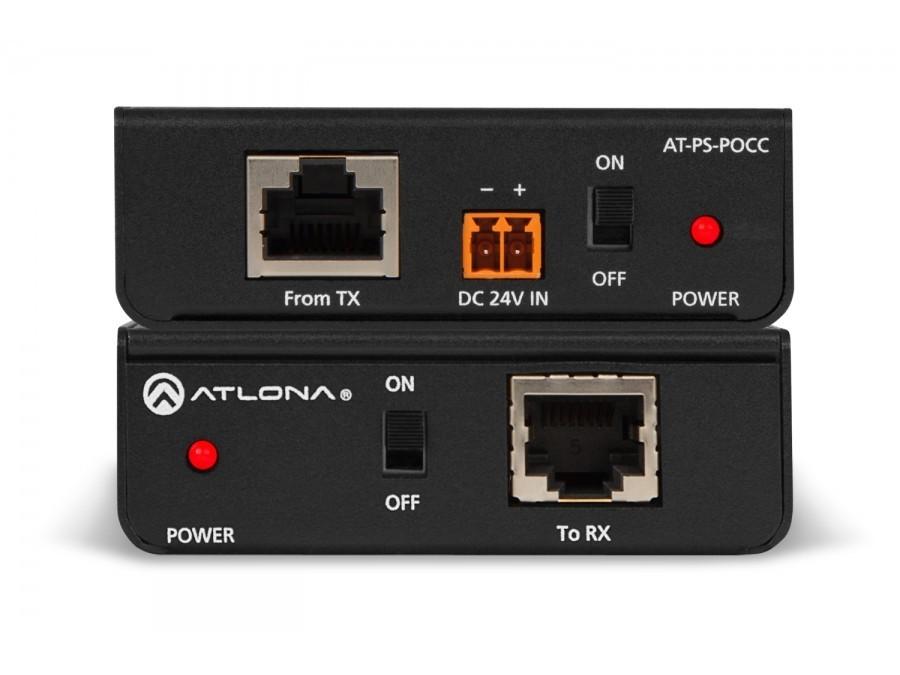

Atlona AT-PS-POCC Mid-Span Power Supply -add HDBaseT POE for supporting products

Description

The Atlona Mid-Span Power Supply enables non-PoCc products to work with other HDBaseT products that require PoCc. Connect the AT-PS-POCC between two Atlona products and ensure they all receive the power they need

Power one or both

Send power to the transmitter, the receiver, or both at once with the AT-PS-PoCc

Additional features

Supports distances up to 328 feet (100 m)
Supports resolutions up to 4Kx2K or 1920×1200
Power switches to enable and disable PoCc for easy power routing
Captive screw power for a secure and reliable connection
Passes any audio format
Full 3D pass through
HDCP compliant

Provides power to these PoCc compliant products:

Receivers
- AT-HDRX – Atlona HDBaseT Receiver over a Single Category Cable
- AT-HDRX-IR – Atlona HDBaseT Receiver over a Single Category Cable w/IR
- AT-HDRX-RSNET – Atlona HDBaseT RX Box for HDMI w/Ethernet, RS-232, and IR
- AT-PRO3HDREC – Atlona HDMI Extender over a Single Category Cable
- AT-DVIRX-RSNET – Atlona HDBaseT RX DVI Box w/Ethernet, RS-232, and IR
- AT-HDRX-ROADNET – Atlona HDBaseT RX HDMI Rental/Staging Box w/etherCON, Ethernet, RS-232, and IR
- AT-HDWP – Atlona HDBaseT RX HDMI 2-Gang US Decora Wall Plate
- AT-HDWP-IR – Atlona HDBaseT RX HDMI 2-Gang US Decora Wall Plate w/IR
- AT-HDWP-RSNET – Atlona HDBaseT RX for HDMI 2-Gang US Decora Wall Plate w/ Ethernet, RS-232, and IR
Transmitters
- AT-HDTX-WP – Atlona HDMI to HDBaseT Transmitter Wall Plate
- AT-HDVS-TX – Atlona Dual HDMI and VGA/Audio to HDBaseT switcher
- AT-HDVS-TX-WP – Atlona HDMI + VGA/Audio HDBaseT Extender Wall Plate w/Display Control (US + UK

Specifications

Bandwidth

10.2Gbps

Power Consumption

13.5W

Video

Video: up to 4Kx2K@30Hz VESA: up to 1920x1200

Dimensions (H x W x D)

0.96 x 2.89 x 2.77 (inch) 24.4 x 73.37 x 70.47 (mm)

Audio

passes through up to Dolby TrueHD or DTS-HD Master Audio

Weight

0.09lbs 0.19kg

Distance

See below

Temperature

Operating 32°F to 104°F 0°C to 40°C

Storage -4°F to 140°F -20°C to 60°C

Wall Mountable?

Yes

HDCP Compliant?

Yes

Certifications

CE, FCC, RoHS, cULus for power supplies
