Description

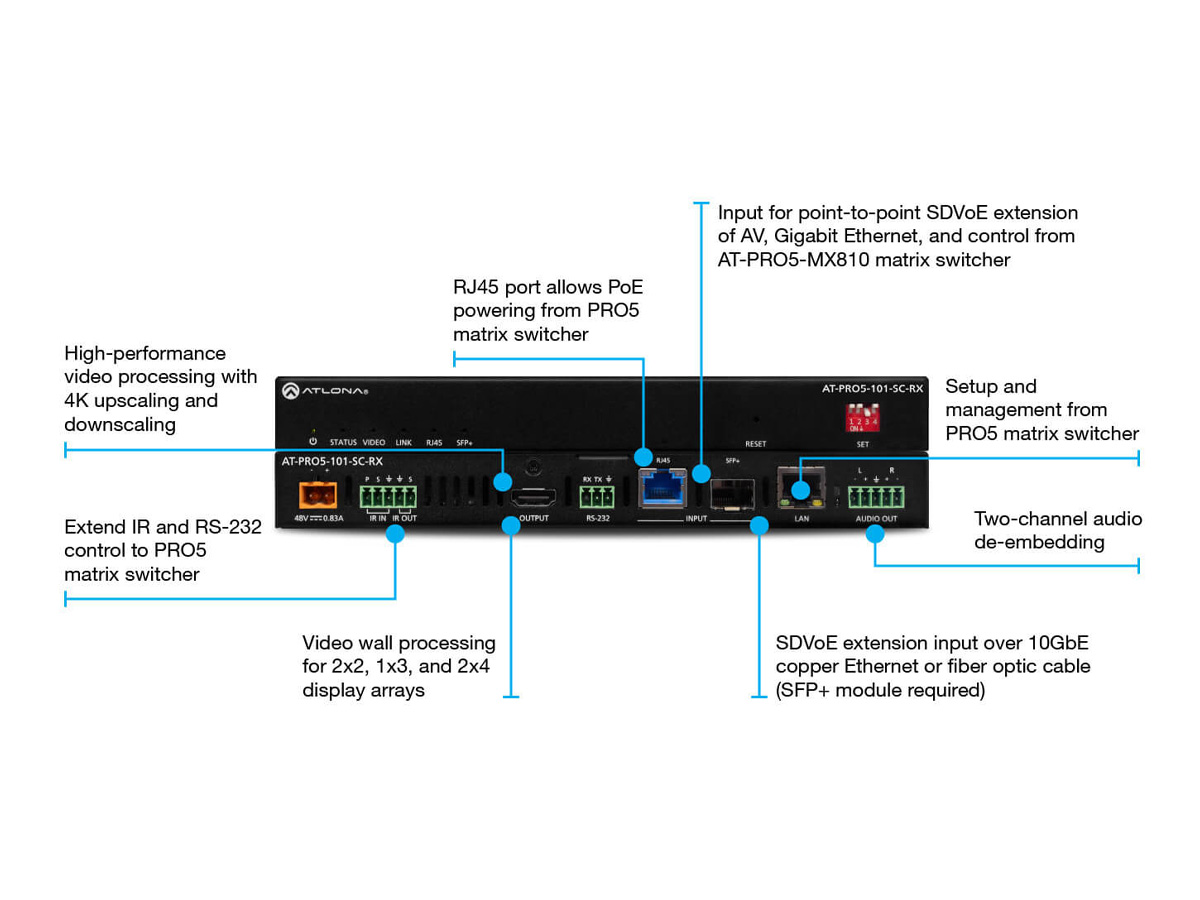

The AT-PRO5-101-SC-RX is an SDVoE receiver and integrated scaler designed to receive AV, control, and Ethernet from the AT-PRO5-MX810 matrix switcher. It delivers 4K/UHD video at 60 Hz with 4:4:4 chroma sampling and supports major HDR formats. The product is intended to provide long-distance AV extension and professional image processing at the display.
Key capabilities include SDVoE-based 10GbE video over copper or fiber, 4K upscaling and downscaling, video wall processing, and audio de-embedding. The receiver supports HDR10, HDR10+, Dolby Vision, and HLG and is HDCP 2.3 compliant. It also offers EDID and HDCP management tools to control content and compatibility.
Performance specifications include full 4K/60 4:4:4 throughput and HDMI data rates up to 18 Gbps when used with compatible sources and the PRO5-MX810. The integrated scaler provides frame rate and color space conversion, advanced motion-adaptive deinterlacing for 1080i, and a pass-through mode for 1:1 output. Video wall processing supports 2×2, 1×3, and 2×4 layouts with 10 configurable presets.
Connectivity options include an RJ45 SDVoE input for CAT6a extension up to 100 m and an SFP+ cage for fiber modules to extend from tens of meters up to 10 km. The receiver passes Gigabit Ethernet and supports bidirectional IR and RS-232 control along with TCP/IP control and Velocity Device Manager integration. Power can be supplied remotely via IEEE 802.3af PoE from the PRO5-MX810 or locally with the included AT-PS-48083-C power supply.
The PRO5-101-SC-RX is suited to multi-zone AV distribution, lecture halls, hospitality, corporate lobbies, and other commercial AV environments that require long-distance signal extension with processing. It can de-embed two-channel LPCM audio to a balanced analog output and pass multi-channel HDMI audio formats to connected AV systems. Its HDCP handling includes reporting compliance and the option to down-convert protected content to HDCP 1.4 when images are downscaled.

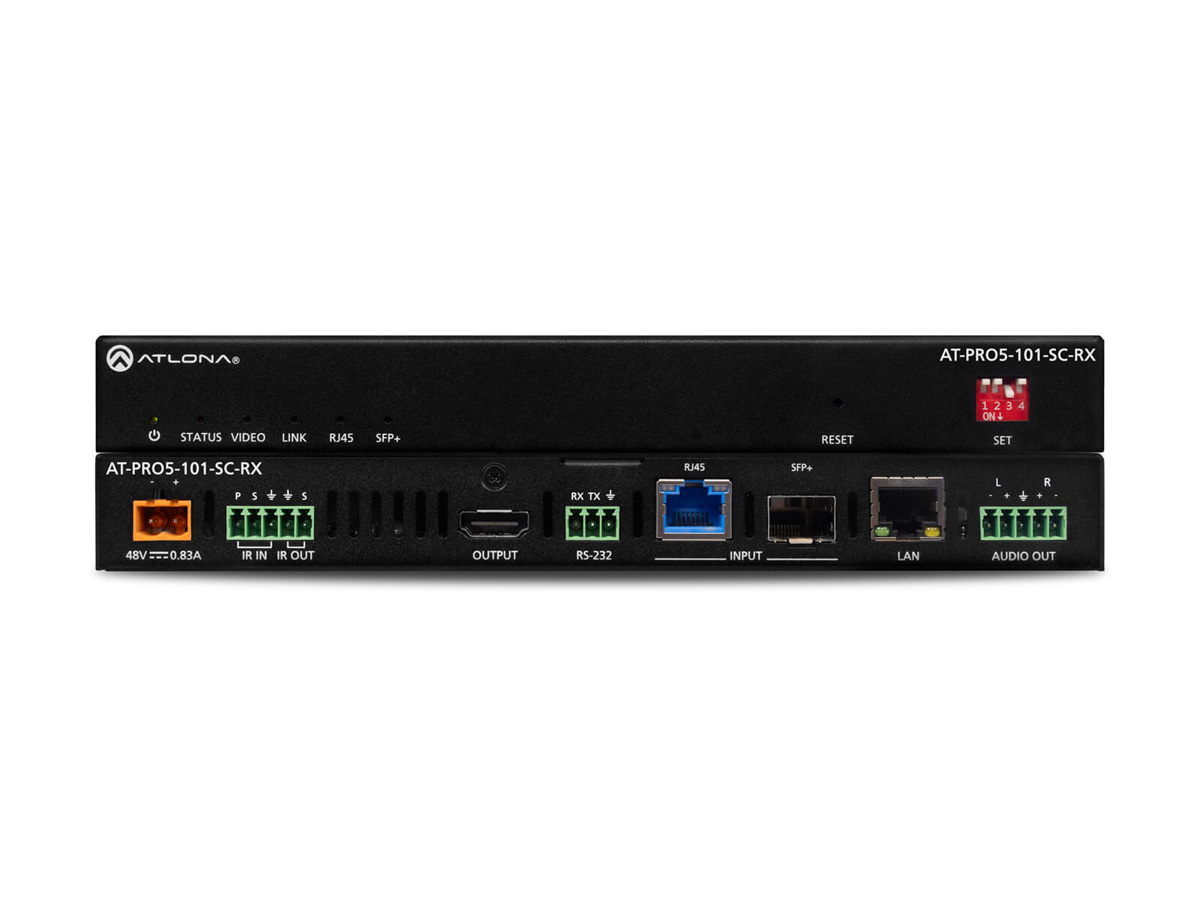

Installation is simplified by the receiver’s low-profile 1.02 inch (26 mm) enclosure and included surface-mount hardware. Front-panel LEDs indicate power, device, video signal, and SDVoE link status for local troubleshooting. Firmware updates and configuration are available via the integrated web GUI or Velocity Device Manager to support ongoing maintenance and management.
