The Atlona OME-TX11-WP is a wallplate HDBaseT transmitter designed to provide localized HDMI input access while extending video and audio signals over category cabling. It installs in a standard US one-gang opening and includes interchangeable black and white trim kits for discreet integration. The unit is HDCP 2.2 compliant and supports remote powering over HDBaseT to eliminate the need for local AC at the transmitter location.

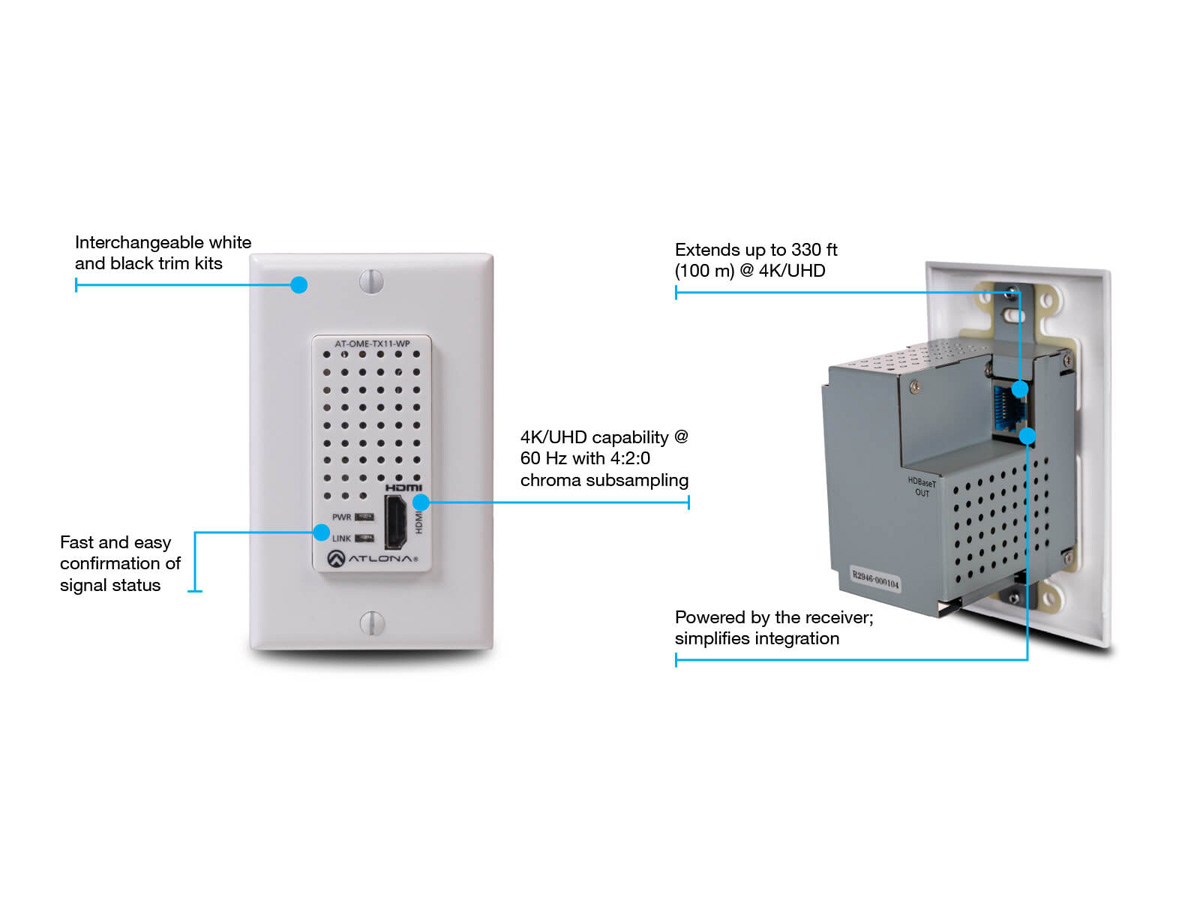

Key features include support for 4K/UHD signals at 60 Hz using 4:2:0 chroma subsampling, HDMI data rates up to 10 Gbps, and multi-channel audio passthrough. The OME-TX11-WP transmits HDMI, audio, and power over a single category cable using HDBaseT technology. Front panel LEDs report power and link status to assist in setup and troubleshooting.
Performance specifications include transmission distances up to 330 ft / 100 m over CAT6/6a/7 or up to 295 ft / 90 m over CAT5e for 4K/UHD signals. The transmitter supports a wide range of resolutions including 4096×2160 and 3840×2160 and handles color depths up to 12-bit. HDCP 2.2 compliance preserves protected content streams when paired with compliant receivers or switchers.

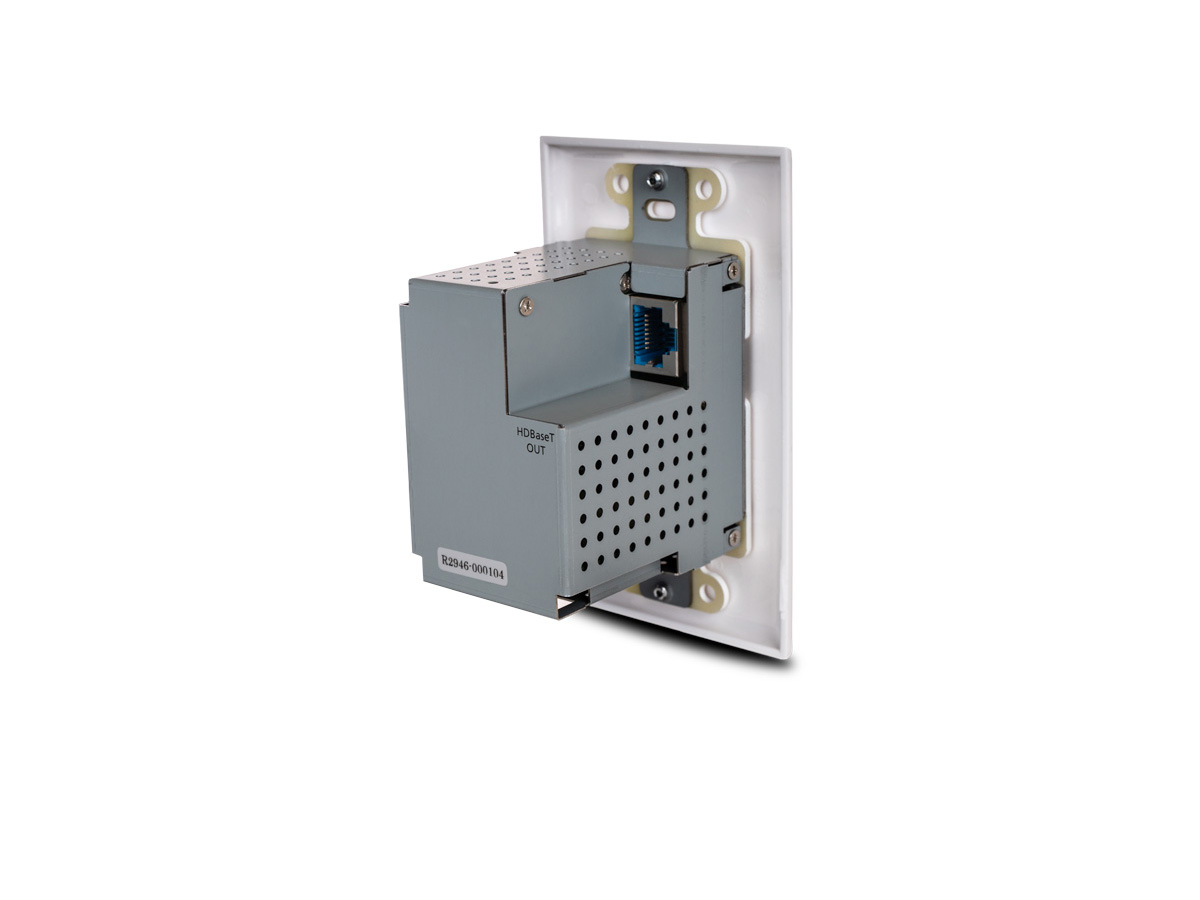

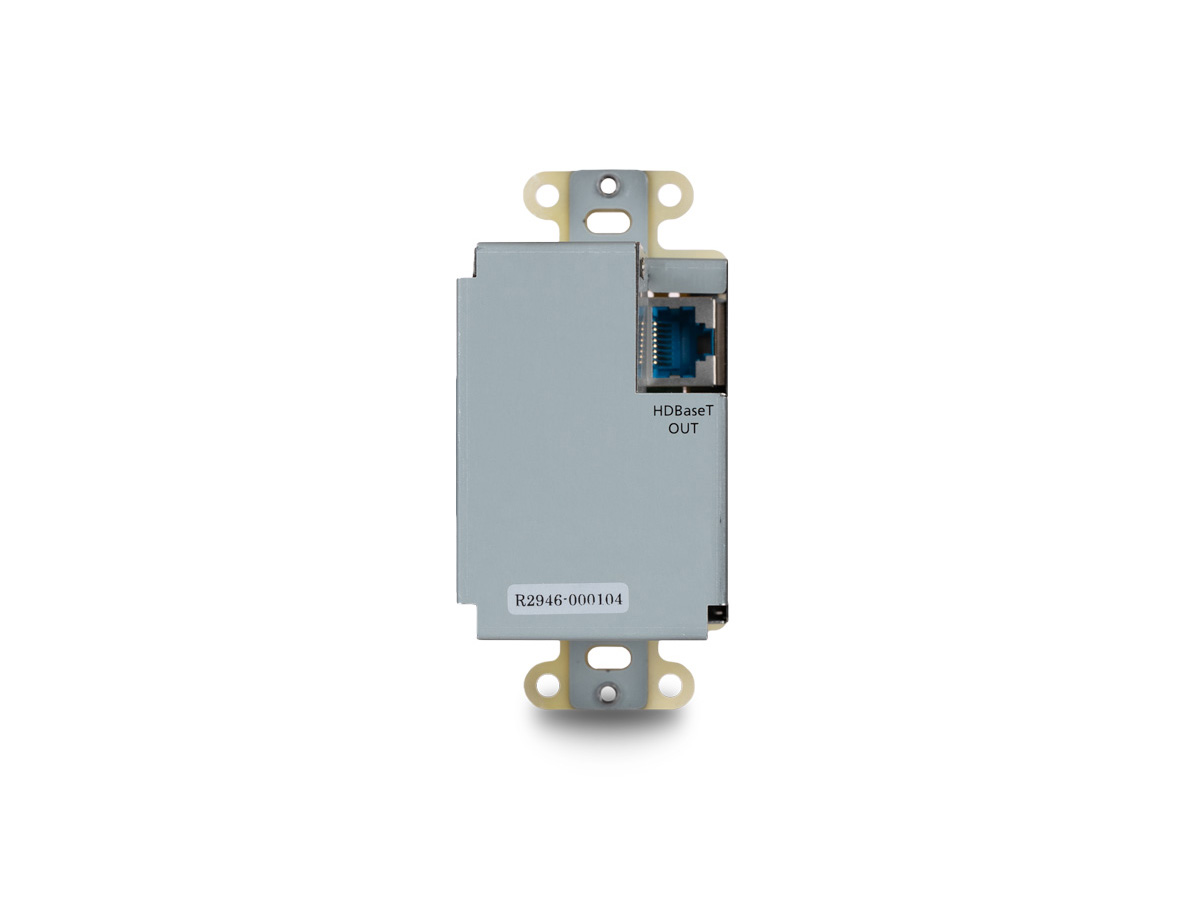

Connectivity consists of an HDMI Type A locking input and an RJ45 HDBaseT output for a single-cable link to receivers or switchers. The device accepts HDMI sources such as PCs, media players, and Ultra HD Blu-ray players and passes multi-channel audio formats including Dolby and DTS variants. Firmware updates are available via the USB-C port for future compatibility and feature updates.
Typical applications include conference rooms, classrooms, and collaboration spaces where a discreet wall or furniture-mounted HDMI input is required. The OME-TX11-WP pairs well with Omega Series receivers and presentation switchers to provide reliable AV extension and integration. It is intended for professional AV installations where convenient presenter access and long-distance signal extension are needed.

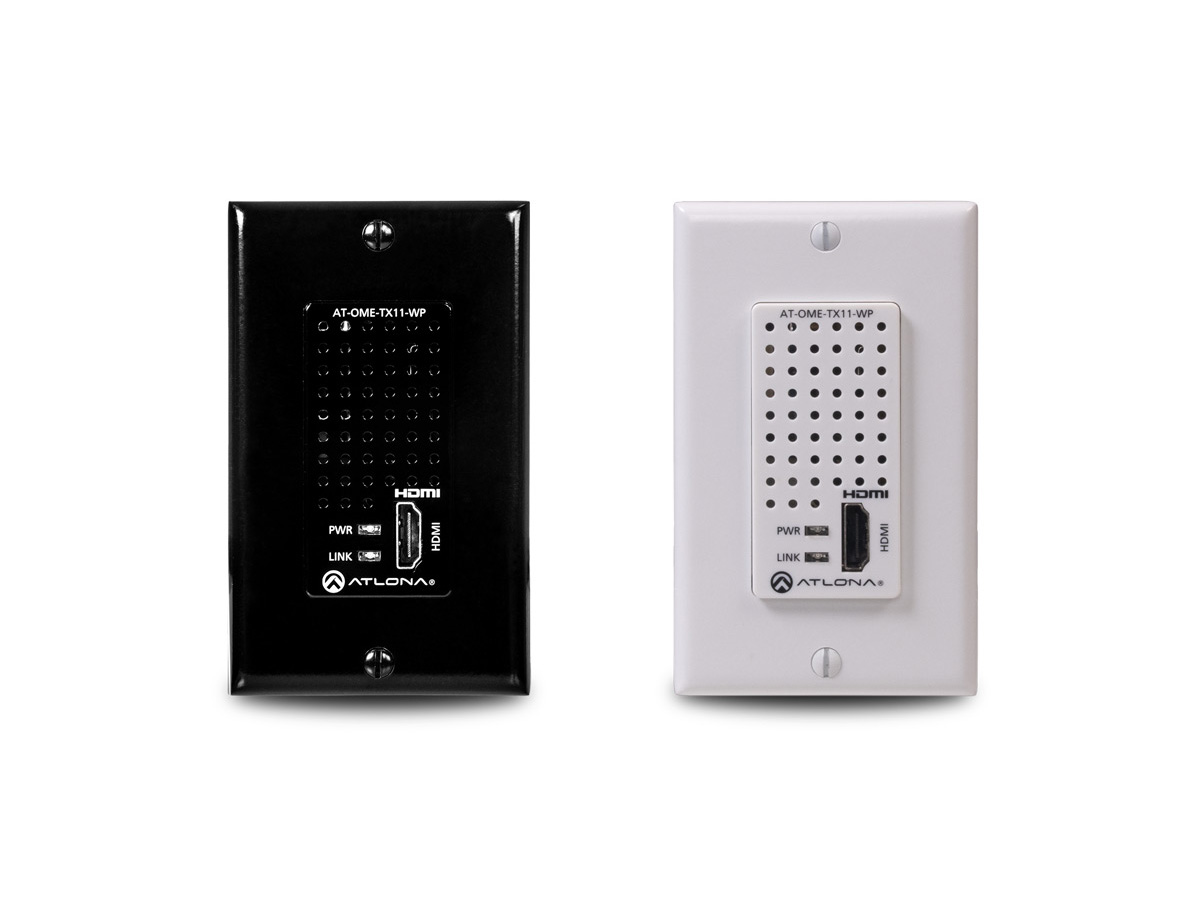

The OME-TX11-WP is built for integration ease and reliability – it fits standard wallplate openings and ships with black and white faceplates to match room decor. Remote powering reduces wiring complexity and improves installation flexibility while robust HDMI locking and status LEDs simplify troubleshooting. The unit is CE, RoHS, FCC certified and covered by a three year warranty for AV system deployments.
