Download Manual The Atlona AT-OME-EX-WP-KIT is an HDBaseT extender for video up to 4K/60 4:2:0, plus embedded audio, control, and USB over distances up to 330 feet (100 meters). The transmitter features a US one-gang, Decora-style wallplate form factor, and includes interchangeable black and white wallplates and faceplates. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-EX-WP-KIT is HDCP 2.2 compliant and extends RS-232 control signals. The integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-EX-TX-WP transmitter includes a USB 2.0 host interface for a PC, plus a peripheral device such as a speakerphone, microphone, or keyboard and mouse. The OME-EX-RX receiver provides two USB interfaces for devices such as a camera, soundbar, or display. The transmitter and receiver are available separately, for use with other Omega Series integration products.
(NOTE: The OME-EX-WP-KIT is not compatible with the Atlona HDVS-300 system for USB extension.)
The OME-EX-WP-KIT incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The OME-EX-RX remotely powers the OME-EX-TX-WP through Power over Ethernet (PoE).
Applications

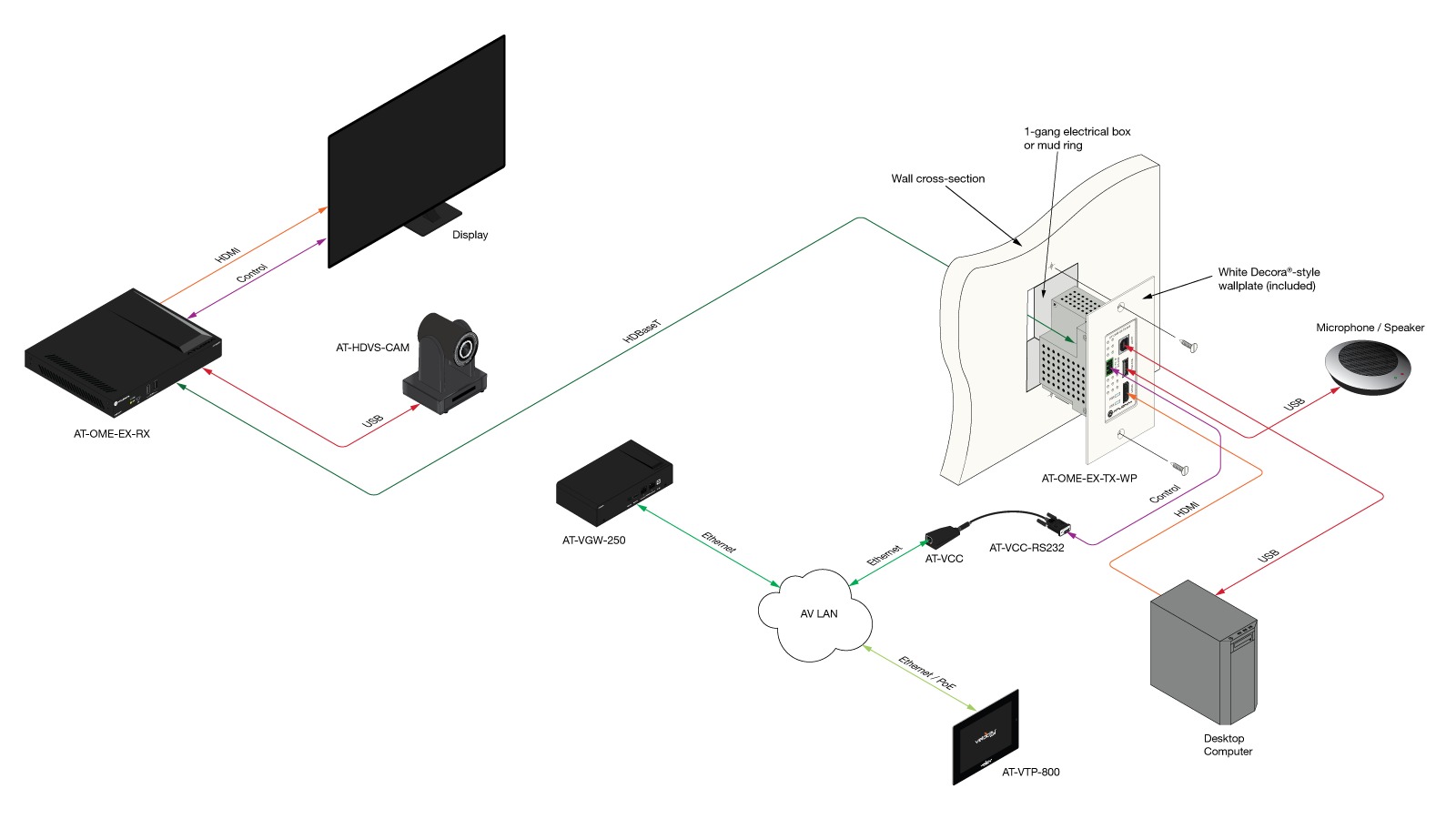

- Video conferencing – The OME-EX-WP-KIT is ideal for soft codec and web-based conferencing applications, with the ability to integrate with a PC and speakerphone or microphone near presenters, and a camera or soundbar at the wall-mounted display.
- Interactive displays – The OME-EX-WP-KIT can also provide AV and USB extension for a touch-enabled display, allowing remote PC control at a wall, lectern, or other location.
Key Benefits:
- HDBaseTTM extender kit for HDMI®, power, control, and USB up to 330 feet (100 meters)
- US one-gang enclosure for Decora®-style wallplate openings – interchangeable black or white trim kits
- USB 2.0 interfacing and extension over HDBaseT
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- Transmitter powered by receiver via PoE (Power over Ethernet)
Features:
HDBaseT extender kit for HDMI, power, control, and USB up to 330 feet (100 meters)
- Extends HDMI up to 330 feet (100 meters) @ 1080p with CAT5e/6 or 4K/UHD using CAT6a/7 cable
- Uses easy-to-integrate category cable for low-cost, reliable system installation

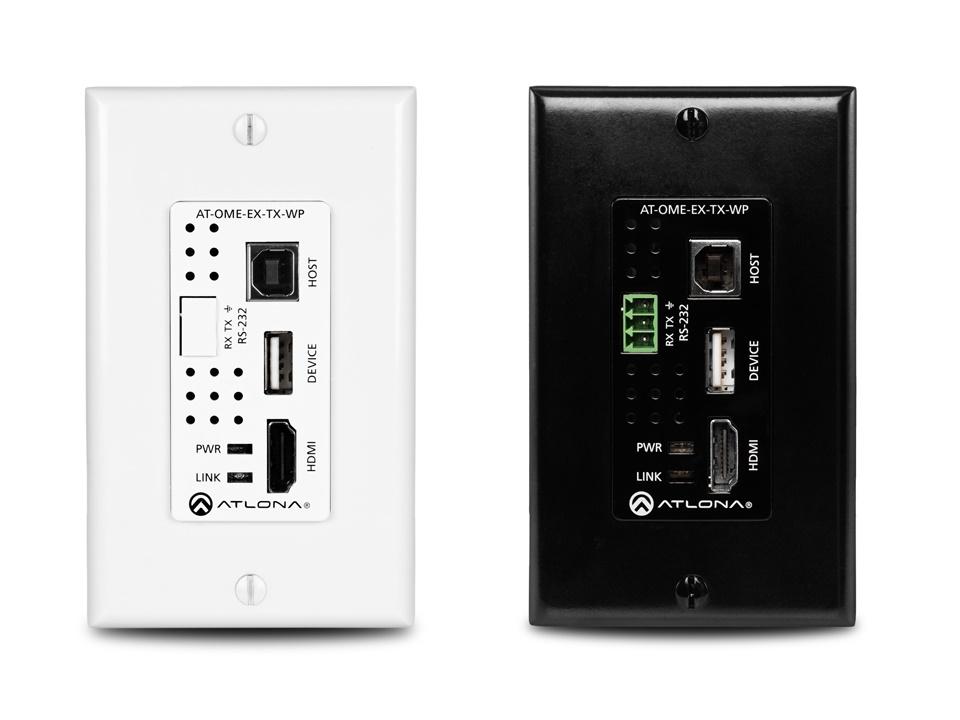

US one-gang enclosure for Decora-style wallplate openings -interchangeable black or white trim kits

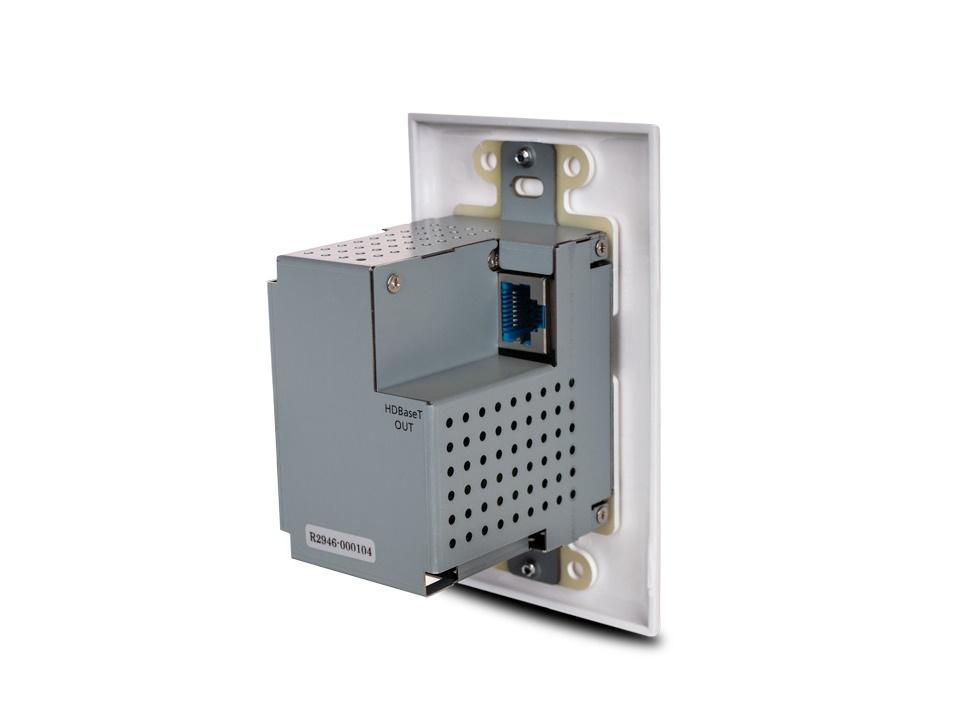

- Allows inconspicuous installation on a wall, in furniture, or in a floor box. Includes black and white wallplates and faceplates.
- Meets end user requirements for conveniently accessible yet discreet AV connectivity
USB 2.0 interfacing and extension* over HDBaseT
- Transmitter features USB type B interface for connection to a host PC, plus a USB type A port for a peripheral device such as a microphone or speakerphone

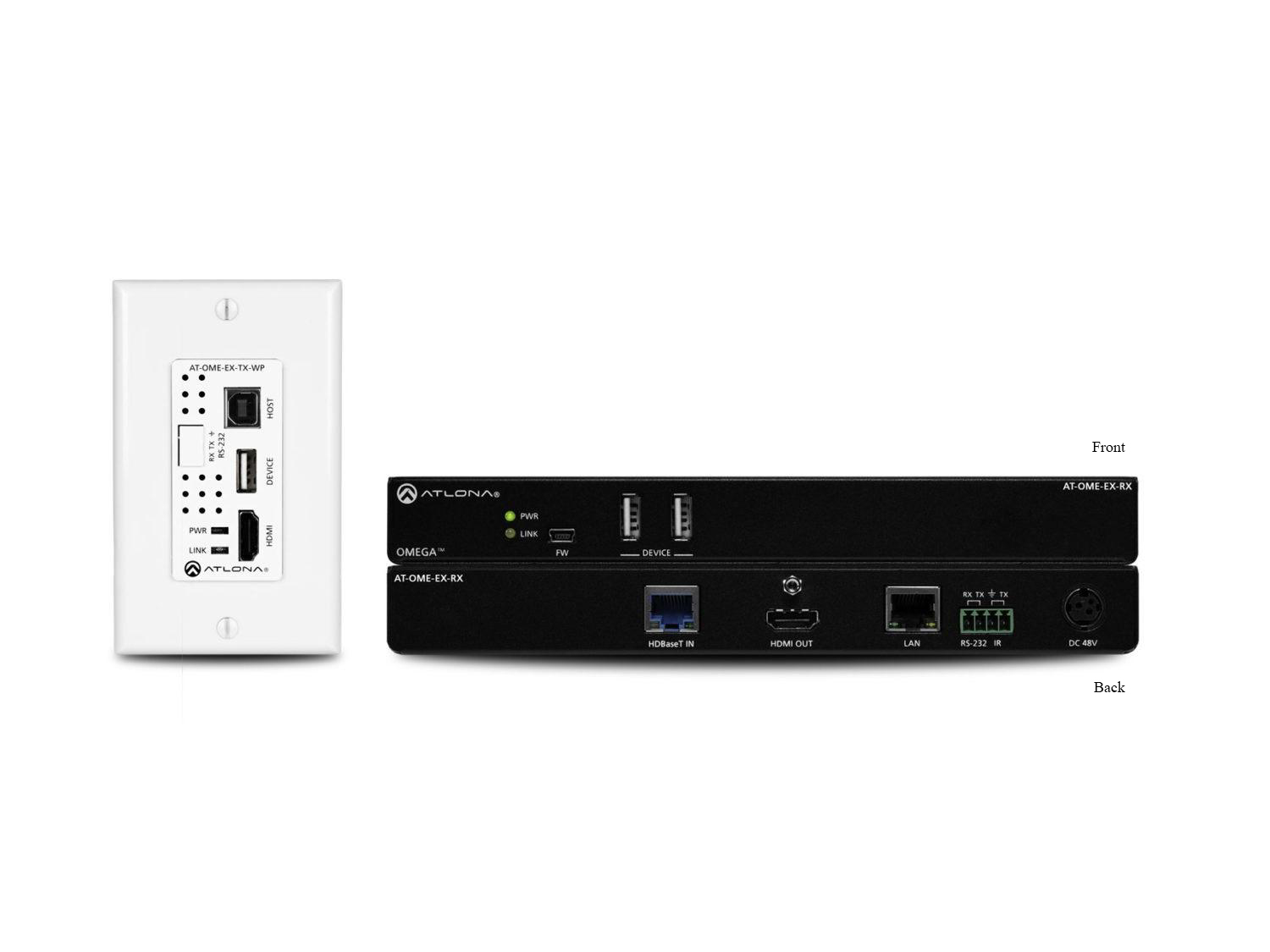

- Receiver features two USB type A ports for peripheral devices such as a camera or display
- Provides an ideal USB integration solution for software video conferencing and other applications
- * Maximum 120 Mbps data rate supported over HDBaseT
4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- Compatible with sources up to 4K/60 4:2:0 and 4K/30 4:4:4
- Supports HDMI data rates up to 10 Gbps from PCs, media players, and Ultra HD Blu-ray players
HDCP 2.2 compliant
- Adheres to latest specification for High-bandwidth Digital Content Protection
- Allows protected content stream to pass between authenticated devices
Transmitter powered by receiver via PoE (Power over Ethernet)
- Industry standard IEEE 802.3af PoE for transmitter is supplied by receiver over HDBaseT
- Allows convenient transmitter installation at a table or other remote location, without the need for local AC power
Multi-channel audio compliant
- Passes through multi-channel audio formats
- Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®
Field-updatable firmware
- Device can be updated in the field via the USB port
Front panel power and signal status LEDs
- LED indicators provide power and HDBaseT link status information
- Provides convenient setup and troubleshooting
Low-profile, 1.02 inch (26 mm) high enclosure (receiver)
- Easy installation into confined spaces below tables, in furniture, and behind or above displays
Included accessories
- Installation guide, interchangeable black and white wallplates and faceplates, surface mounting hardware, and external universal power supply
Award-winning 10 year limited product warranty
- Ensures long-term product reliability and performance in commercial and residential systems
- Specify, purchase, and install with confidence
