Atlona AT-OME-EX-TX 4K/UHD HDMI/HDBaseT Extender (Transmitter) with USB/Control/PoE up to 330ft/100m

Description

The Atlona AT-OME-EX-TX is an HDBaseT transmitter for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-EX-TX is HDCP 2.2 compliant and transmits IR, RS-232, and IP control signals.With a matching HDBaseT receiver, the integrated USB extension is ideal for software video conferencing and the use of touch or interactive displays. The OME-EX-TX includes a USB host for a PC, plus two peripheral devices such as a speakerphone, microphone, or keyboard and mouse. This transmitter is ideal for use with Omega Series receivers as well as switchers with HDBaseT inputs. Also available is the OME-EX-KIT which includes the OME-EX-TX and OME-EX-RX.*

Applications

Complete system integration: The OME-EX-TX and OME-SR21 together provide a compact, yet comprehensive and cost- effective integration solution, with 4K scaling, display control, HDBaseT link testing, and audio system interfacing provided by the receiver.
Larger system applications: This transmitter is ideal for extending AV connectivity from a central equipment rack to a meeting table or lectern, where presenters can easily access the system.
Video conferencing: The OME-EX-TX and a compatible Omega Series receiver or switcher are ideal for soft codec and web-based conferencing applications, with the ability to integrate with PCs, cameras, speakerphones, and microphones.

Features:

HDBaseT transmitter for HDMI, Ethernet, power, control, and USB up to 330 feet (100 meters)

Transmits HDMI up to 330 feet (100 meters) @ 1080p with CAT5e/6 or 4K/UHD using CAT6a/7 cable.
Uses easy-to-integrate category cable for low-cost, reliable system installation.

USB 2.0 hub and extension over HDBaseT

USB type-B interface for connection to a host PC, plus two USB type-A ports for peripheral devices such as a microphone or speakerphone.
Provides an ideal USB integration solution for software video conferencing and other applications.

4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling

Compatible with sources up to 4K/60 4:2:0 and 4K/30 4:4:4.
Supports HDMI data rates up to 10 Gbps from PCs, media players, and Ultra HD Blu-ray players.

HDCP 2.2 compliant

Adheres to latest specification for High- bandwidth Digital Content Protection.
Allows protected content stream to pass between authenticated devices.

Transmitter powered by receiver via PoE (Power over Ethernet)

Industry standard IEEE 802.3af PoE for transmitter is supplied by receiver over HDBaseT.
Allows convenient transmitter installation at a table or other remote location,without the need for local AC power.

Low-profile, 1 inch (25 millimeter) high quarter rack-width enclosure

Easy installation into racks and confined spaces.
Keeps devices out-of-sight when placed in public spaces.

Award-winning 10 year limited product warranty

Ensures long-term product reliability and performance in residential and commercial systems.
Specify, purchase, and install with confidence.

Specifications

Video
HDMI Specification	HDMI 2.0, HDCP 2.2
TMDS Clock	300 MHz
UHD/HD	4096×2160(DCI)@60/30/24 Hz, 3840×2160(UHD)@60/50/24/25/30 Hz, 1080p@23.98/24/25/ 29.97/30/50/59.94/60 Hz, 1080i@25/29.97/30 Hz, 720p@30/50/ 59.94/60 Hz
VESA	2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600, 640×480
Color Space	YUV, RGB
Chroma Subsampling	4:4:4, 4:2:2, 4:2:0
Color Depth	8-bit, 10-bit, 12-bit
Audio
Pass-through	PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby® Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos®, DTS®, DTS-HD Master Audio™, DTS:X
Sample Rate	32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Bit Depth	Up to 24-bit
Control
CEC	Pass-through
RS-232	Pass-through from control system to sink device; supports baud rates from 2400 to 115200
IR	Pass-through from control system to sink device
IP	Pass-through from control system to sink device up to 100 Mbps over HDBaseT

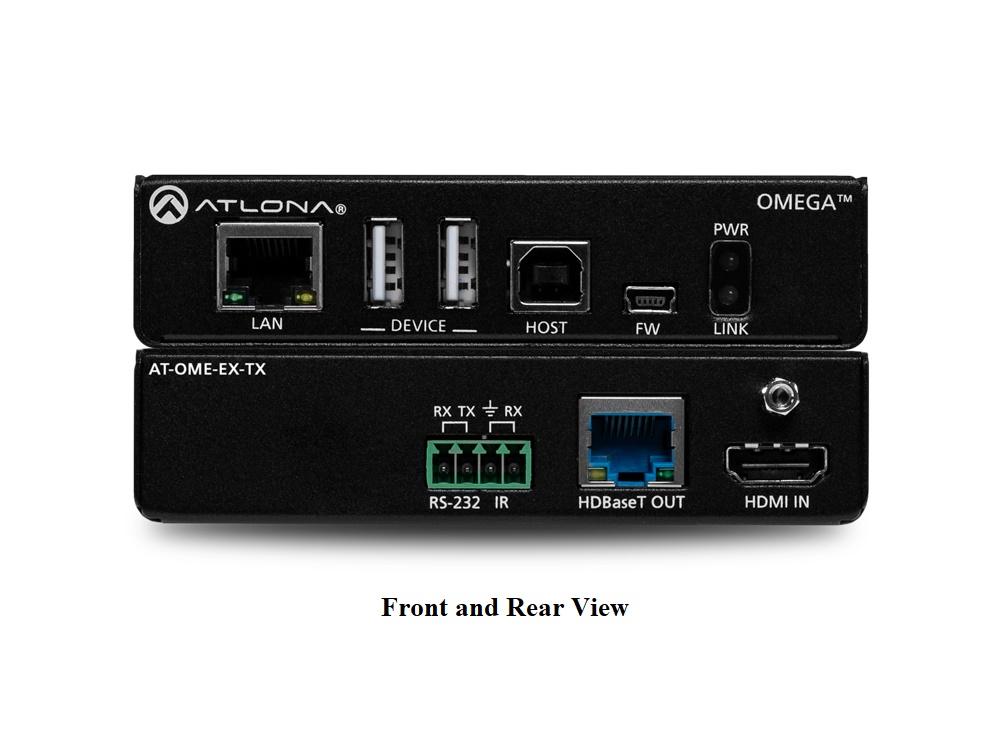

Connectors
HDMI IN	1 – Type A, 19-pin female (transmitter)
HDMI OUT	1 – Type A, 19-pin female (receiver)
FW	1 – mini-USB (transmitter / receiver)
HDBaseT IN	1 – RJ45 (transmitter)
HDBaseT OUT	1 – RJ45 (receiver)
HOST	1 – USB Type-B; USB 2.0 (transmitter)
DEVICE	2 – USB Type-A; USB 2.0 (transmitter / receiver)
LAN	1 – RJ45, 10/100/1000 Mbps (transmitter / receiver)
RS-232 / IR	1 – captive screw, 4-pin (transmitter / receiver)
DC 48V	1 – 3-pin DIN (receiver)
Indicators and Controls
PWR LED indicator	1 – LED, green
LINK LED indicator	1 – LED, yellow
Resolution / Distance	4K/UHD – Feet / Meters		1080p – Feet / Meters
HDMI IN/OUT	15	5	30	10
CAT5e/6	295	90	330	100
CAT6a/7	330	100	330	100
Power
Consumption	16.29 W
External Power Supply	Input: 100 – 240 V AC, 50/60 Hz Output: 48 V, 0.83 A DC
Safety	CE, FCC, cULus
Environmental
Operating Temperature	0° to 122° F 0° – 50° C
Storage Temperature	-4° to +140° F -20° to + 60° C
Operating Humidity (RH)	+20 to +90%, non-condensing
Chassis
Dimensions (H x W x D)	1.02 in x 4.29 in x 5 in 26 mm x 109 mm x 127 mm
Weight	0.89lb, 406g
Safety	CE, RoHS, FCC
