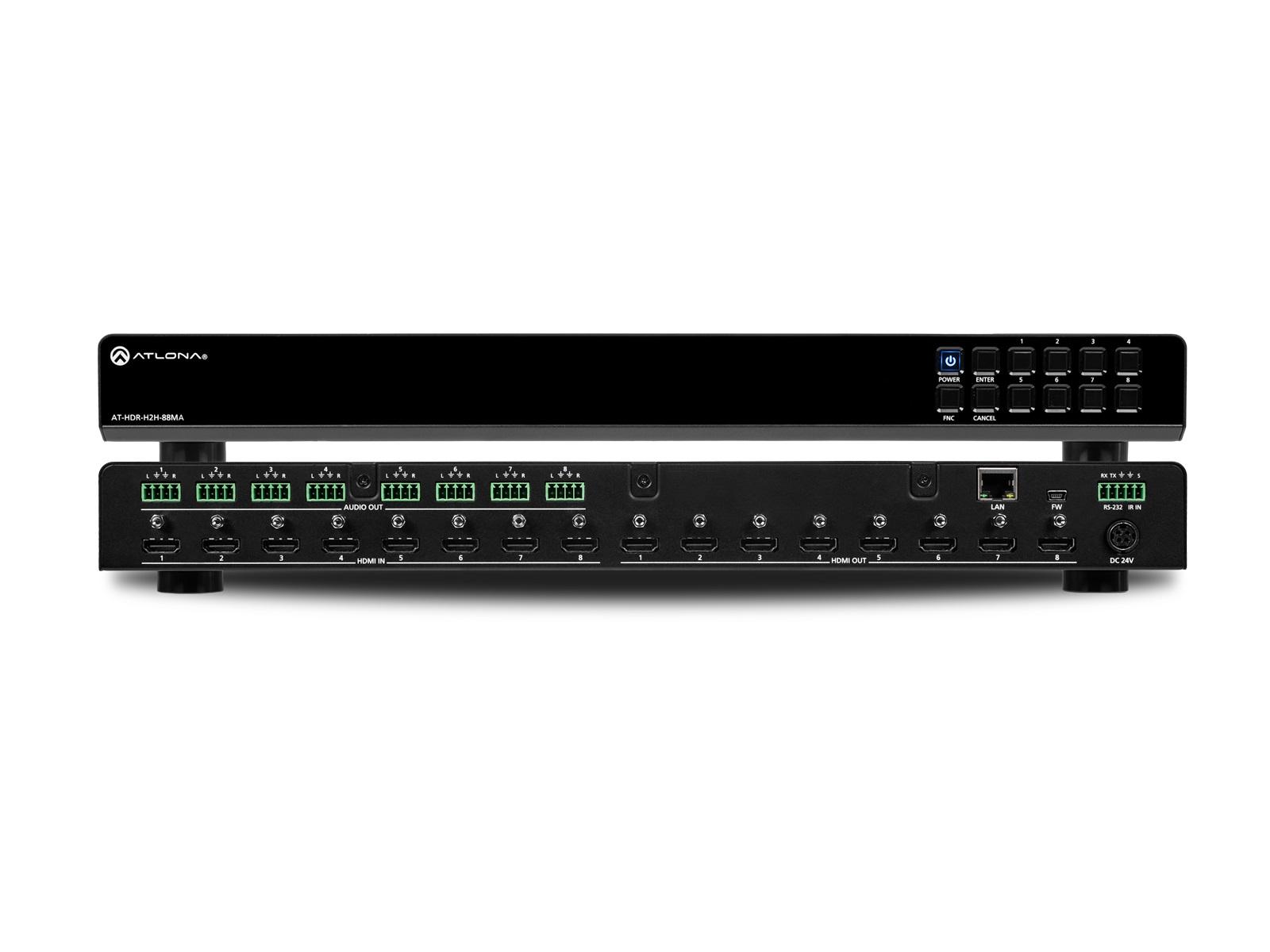

Atlona AT-HDR-H2H-88MA 4K HDR 8x8 HDMI to HDMI Matrix Switcher

Description

The Atlona AT-HDR-H2H-88MA is an 8×8 HDMI matrix switcher for high dynamic range (HDR) formats. It is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR- H2H-88MA is ideal for residential applications with the latest as well as emerging 4K/UHD and HDR sources and displays.

It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0b specification, plus the ability to pass metadata for HDR content. The HDR-H2H-88MA includes EDID and HDCP management features, and can send CEC display control independently to each output. An unbalanced analog audio output is paired with each HDMI input for sending de- embedded HDMI audio to a whole-house audio system.

The HDR-H2H-88MA can be controlled via Ethernet, RS-232, and IR. A handheld IR remote control is included.

Note: The HDR-H2H-88MA de-embeds HDMI two-channel PCM audio. For extracting and downmixing Dolby® and DTS® audio, Atlona recommends adding one or more AT-HDR-M2C audio converters.

Features:

8×8 HDMI matrix switcher

Delivers high performance, reliable HDMI signal matrix switching
Easy to install and deploy in residential and commercial applications

Fast, blink-free switching

Fast input selection switching eliminates video blinking in other zones
Eliminates long wait times caused by handshaking and HDCP key validation for an uninterrupted viewing experience in all zones

4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats

Ideal for new and emerging 4K/UHD and HDR- capable sources and displays
Compatible with 4K HDR10 and Dolby® Vision™ @ 60 Hz
Fully supports video resolutions, audio formats, and color space formats in the HDMI 2.0b specification

HDCP 2.2 compliant

Adheres to latest specification for High- bandwidth Digital Content Protection
Allows protected content stream to pass between devices

Independent CEC display control to each output

Sends display power on/off control to a specific HDMI output
Enables independent control of displays connected to the matrix switcher
CEC control can be triggered by IP or RS- 232 control commands

EDID management

Manages EDID communications with the source through a display’s EDID or internally stored EDID
Ensures desired audio formats and video resolutions are provided to the AV system

HDCP management

HDCP compliance can be disengaged through AMS or a control system
Allows non-protected material from PCs to pass to non-compliant displays, streaming devices, and teleconference systems; protected content is not transmitted

HDMI audio de-embedding* for each input

Extracts HDMI two-channel PCM audio to an unbalanced analog audio output paired with a corresponding HDMI input
Provides an additional integration option for whole-house as well as commercial audio systems
* For extracting and downmixing Dolby and DTS audio, Atlona recommends adding one or more AT-HDR-M2C audio convert
* For extracting and downmixing Dolby and DTS audio, Atlona recommends adding one or more AT-HDR-M2C audio converters.

TCP/IP, RS-232, and IR control

Flexible control options for compatibility with third-party control systems
Reduces integration time and costs
Includes a convenient handheld IR remote control

Easy, GUI-based configuration using integrated web server

Offers menu-based configuration of network settings, RS-232 settings, matrix switching, EDID and HDCP management, and audio
Allows fast configuration of internal product settings and troubleshooting from a mobile device or PC in the field

Configured and managed by AMS (Atlona Management System)

This IP-controllable product is remotely managed by the Atlona Management System software
Integrates product configuration, management, and updates to reduce installation time and enable remote support

Multi-channel audio compliant

Supports PCM, Dolby Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®
Allows any multi-channel audio stream to be used within a residential or professional audio system

Field-updatable firmware

Rear panel USB port provides an easy means for device updates
Ensures long-term system return on investment

Front panel button controls and LCD menu display

Matrix switcher can conveniently be controlled, configured, and monitored from the front panel
Provides easy setup, user operation, and troubleshooting

Rack mountable 1U, full-rack width enclosure

Installs easily in rack mounted systems with included 19″ rack mount brackets
Reduces installation time and cost

Included accessories

Installation guide, IR remote control, rack mounting brackets, and external universal power supply

Award-winning 10 year limited product warranty

Ensures long-term product reliability and performance in residential and commercial systems
Specify, purchase, and install with confidence

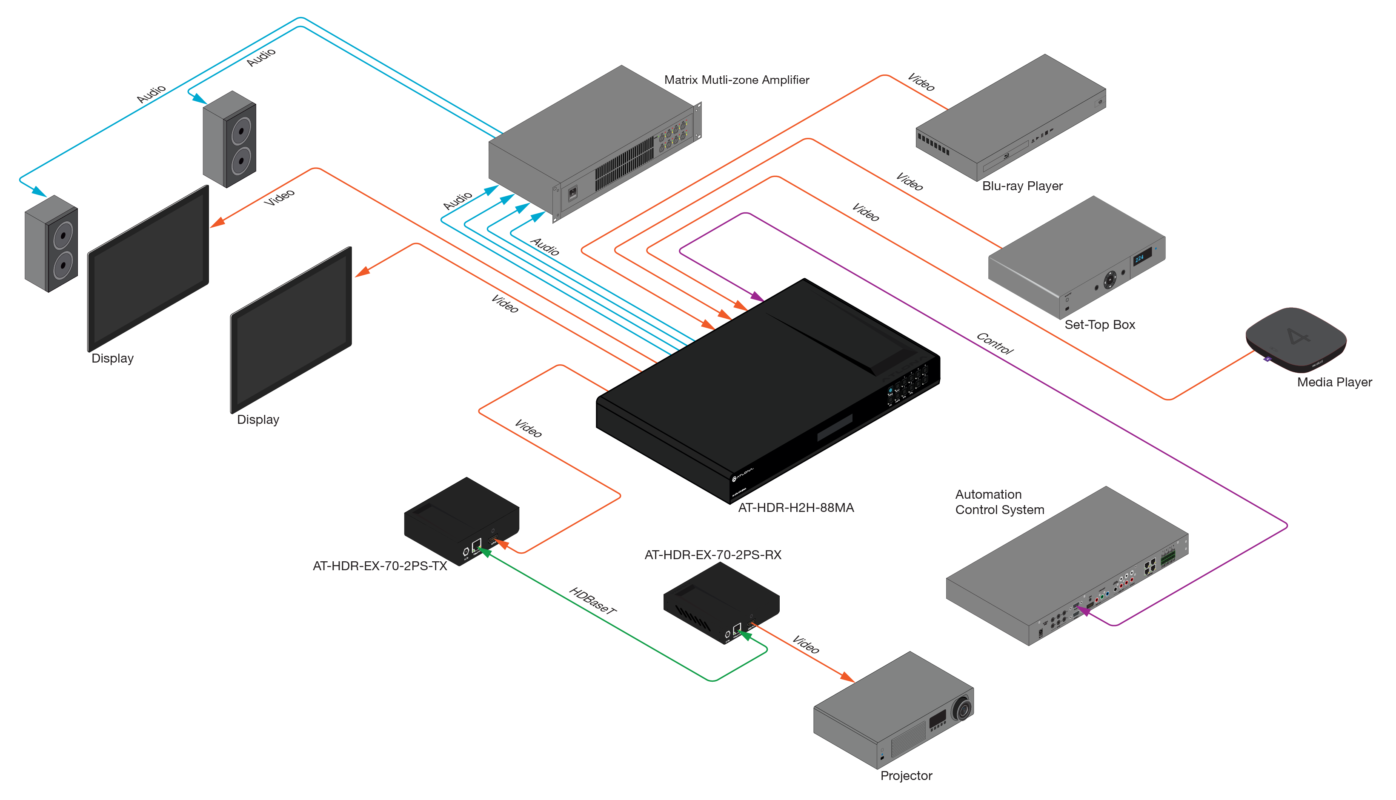

Product Diagrams

View Diagrams

Specifications

Video
UHD/HD/SD	4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 2048x1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
VESA	2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600
Color Space	YUV, RGB
Chroma Sampling	4:4:4, 4:2:2, 4:2:0
Color Depth	8-bit, 10-bit, 12-bit
HDR	HDR10 and Dolby® Vision™ @ 60Hz
Audio
HDMI IN / OUT	PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby® Digital, DTS® 5.1, Dolby Digital Plus™, Dolby TrueHD, DTS-HD Master Audio™, Dolby Atmos®, DTS:X®
Sample Rate	32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Bit Rate	up to 24-bit
Distance	Feet	Meters
HDMI IN / OUT @ 4K	15	5
HDMI IN / OUT @ 1080p	30	10
Signal
Bandwidth	18 Gbps
CEC	Yes
HDCP	2.2
Temperature	Fahrenheit	Celsius
Operating	32 to 122	0 to 50
Storage	-40 to 158	-40 to 70
Humidity (RH)	20% to 90%, non-condensing
Power
Consumption	43.3 W
Idle Consumption	21.7 W
Supply	Input: 110 – 240 VAC, 50 / 60 Hz Output: 24V DC, 2.7 A
Dimensions	Inches	Millimeters
H x W x D	1.73 x 17.24 x 10.00	44.00 x 438.00 x 254.00
H x W x D, w/feet/ears	2.18 x 18.93 x 10.23	55.50 x 481.00 x 260.00
Rack Size	1 RU
Weight	Pounds	Kilograms
Device	8.81	4
Certification
Power Supply	CE, FCC, UL, and LVD certificates Level VI compliant
Unit	CE, FCC
