Description
Download Manual Atlona Wall Plate Style HDMI Receiver over single Multi Mode Fiber with HDCP and EDID Support. Model: AT-HDFW10R

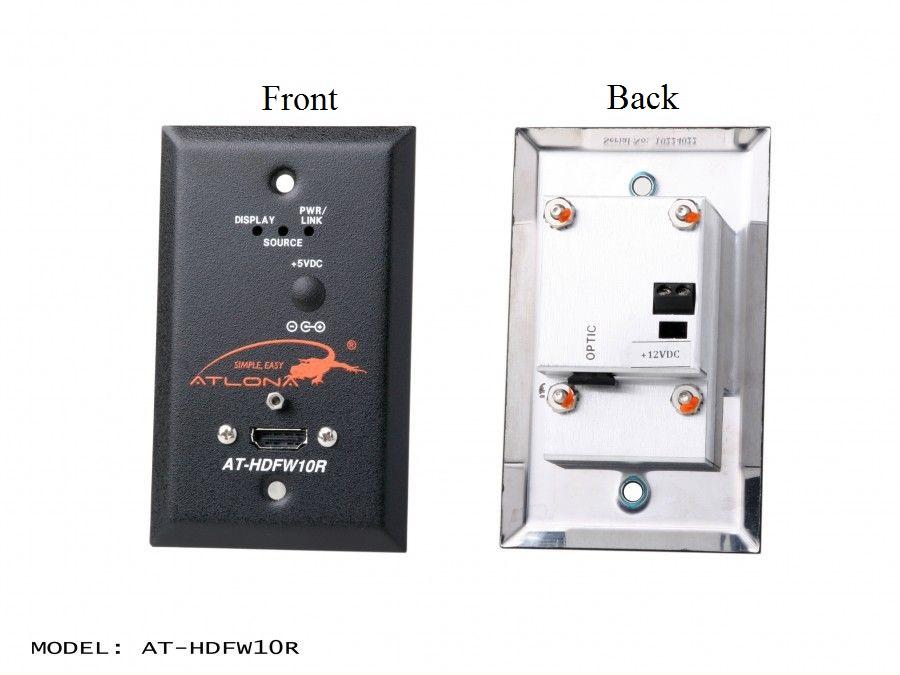

The Atlona AT-HDFW10R is a Wall Plate Style HDMI receiver module with a
single fiber optics input (multi-mode) and HDMI output. The AT-HDFW10R is designed
to work with multiple transmitter modules:
- AT- HDF20S – Miniature HDMI Transmitter module with HDMI Male input and single Fiber output
- AT-HDFW10S – Wall Plate style HDMI Transmitter module with HDMI input and single Fiber output
- AT-DVIF20S – Miniature DVI Transmitter module with DVI Male input and single Fiber output
- AT-DVIFW10S – Wall Plate style DVI Transmitter module with DVI input and single Fiber output
Features:
- Extra Long Distance Extension up to 1200ft @1080p or 1920×1200
- EDID and HDCP Support, user will not have to deal with learning EDID
- High Resolution Video, Audio, EDID and HDCP can be handled though a single fiber cable
- 3D Support, certified to pass all seven 3D formats
- Interchangeable with variety of receiver modules whether wall plate, box or miniature style (HDMI or DVI)
- UL Class A Certified, required by high class government and medical installations
- Built in Equalizer, allows user to use modules in between switchers/splitters and other equipment of that sort
- Support for Multiple Power options: In-Wall 12V or 5V external power supply
- Perfect for Commercial, Government and medical Installations or for high-end residential.
- Made in USA
