Description

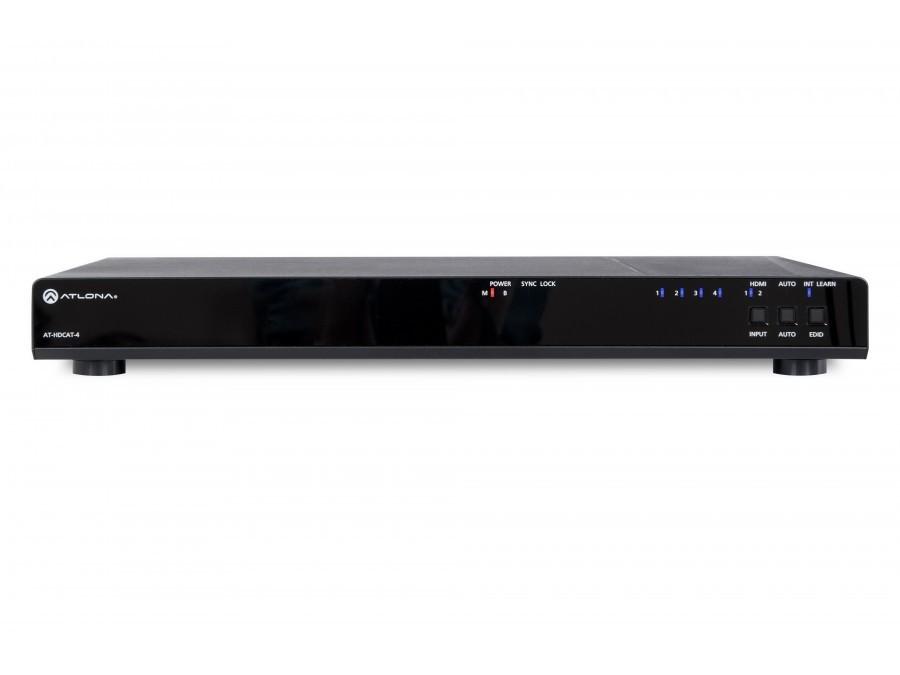

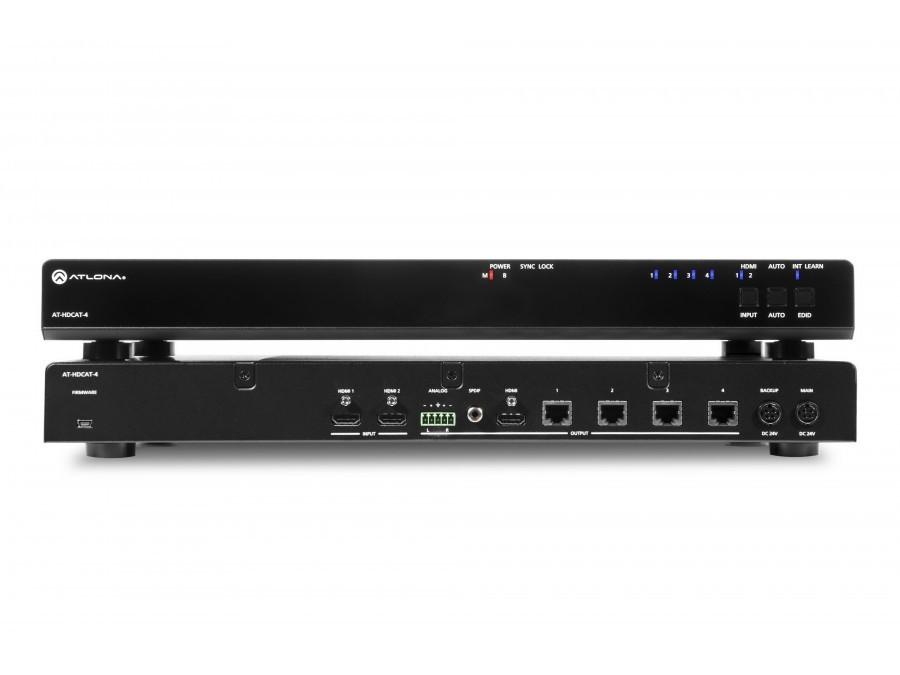

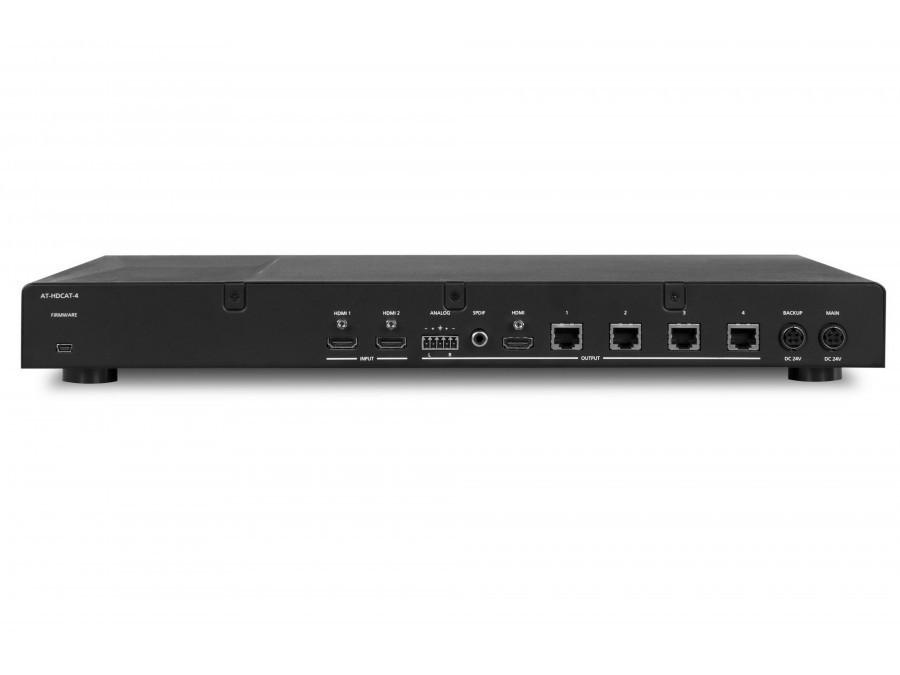

Distribution amplifiers “clone” audio and video from one source and send it to many displays in many locations. Atlona HDBaseT DAs use and power over category cable (PoCc) to reach longer distances more reliably, and Atlona’s proprietary combination of features keep installation and upgrade simple. Our AT-HDCAT-4 DA supports up to four zones and 230 feet (70 meters). Ideal for residential spaces and compact offices working within a budget.
Powerful Smart Auto-Switching
The HDCAT’s smart switching capability eliminates the need to manually change inputs. Simply power on/off a source device and the matrix conveniently switches automatically.
Go Further with More
Extend your audio/visual experience up to 230ft. HDBaseT technology allows you to send power, video (up to 1080p or 1920×1200) and audio (all Lossy and Lossless formats) signals over a single category cable.
Power of One for All
Leave behind the power cable on your receiver. With the latest feature of Power over Category cable (PoCc) the HDCAT transmits power to all the connected receivers over category cable.
Never too Many Displays
With a built in local HDMI loop out, send your source to multiple HDCATs. Supports Cascading up to 8x (@1080p).
Audio de-embedding
via 1 x S/PDIF and 1 x audio captive screw allows input to a commercial sound system in a sports bar or other hospitality or entertainment venue.
For added ease of use, purchase the Atlona Link Connect Captive Screw Ready 2Ch Audio Cable (AT-LC-CS-2CH-2M)
Additional Features
- Redundant power supply (optional)
- EDID learning mode to ensure compatibility
- Supports pass through of all 3D formats
- Pass through support of all Lossy and Lossless audio (up to Dolby TrueHD or DTS-HD Master Audio).
- Locking HDMI port
- Field serviceable firmware port
- Includes dual purpose wall/rack mount ears
- For added reliability use AT-PW24V6.25A Optional Redundant Power Supply
Suggested Receiver
- AT-HDRX – Atlona HDBaseT-Lite Receiver over a Single Category Cable
- AT-HDWP – Atlona HDBaseT RX HDMI 2-Gang US Decora Wall Plate
- AT-HDWP-UK – Atlona HDBaseT RX HDMI 1-Gang UK Wall Plate
