Description
Download Manual Atlona DVI, RS232, IR and Audio Transmitter module over a single Multi Mode Fiber with HDCP and EDID Support. Model: AT-DVIF30S-IR

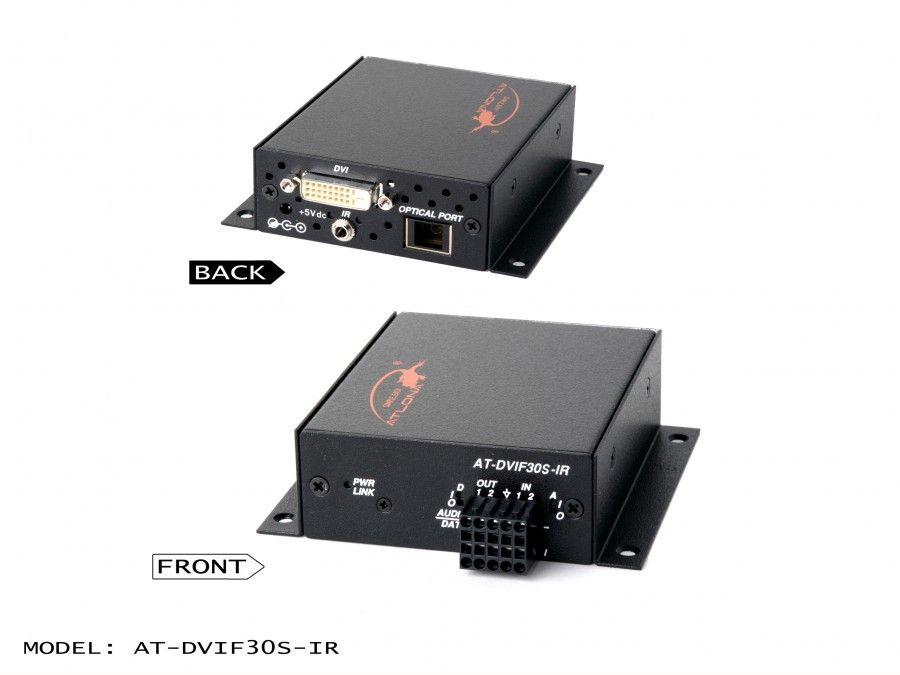

The Atlona AT-DVIF30S-IR is a DVI with RS232, IR and Audio transmitter module with
an DVI, RS232, IR and Audio female inputs and a single fiber optics output (multi-
mode). The AT-DVIF30S-IR is designed to work with multiple receiver modules:
- AT-DVIF30R-IR – Box Style DVI Receiver module with DVI, RS232, IR and Audio outputs
- AT-HDF30R-IR – Box Style HDMI Receiver module with HDMI, RS232, IR and Audio outputs
Features:
- Extra Long Distance Extension up to 1200ft @1080p or 1920×1200
- EDID and HDCP Support, user will not have to deal with learning EDID
- High Resolution Video, EDID, HDCP, RS232, IR and AUX Audio can be handled though a single fiber cable
- RS232 Compatible
- IR pass though from the receiver module to the transmitter module
- Interchangeable with variety of receiver modules whether wall plate, box or miniature style (HDMI or DVI)
- UL Class A Certified, required by high class government and medical installations
- Built in Equalizer, allows user to use modules in between switchers/splitters and other equipment of that sort
- Perfect for Commercial, Government and medical Installations or for high-end residential.
- Made in USA
Warranty:
3 years parts and labor
