Description

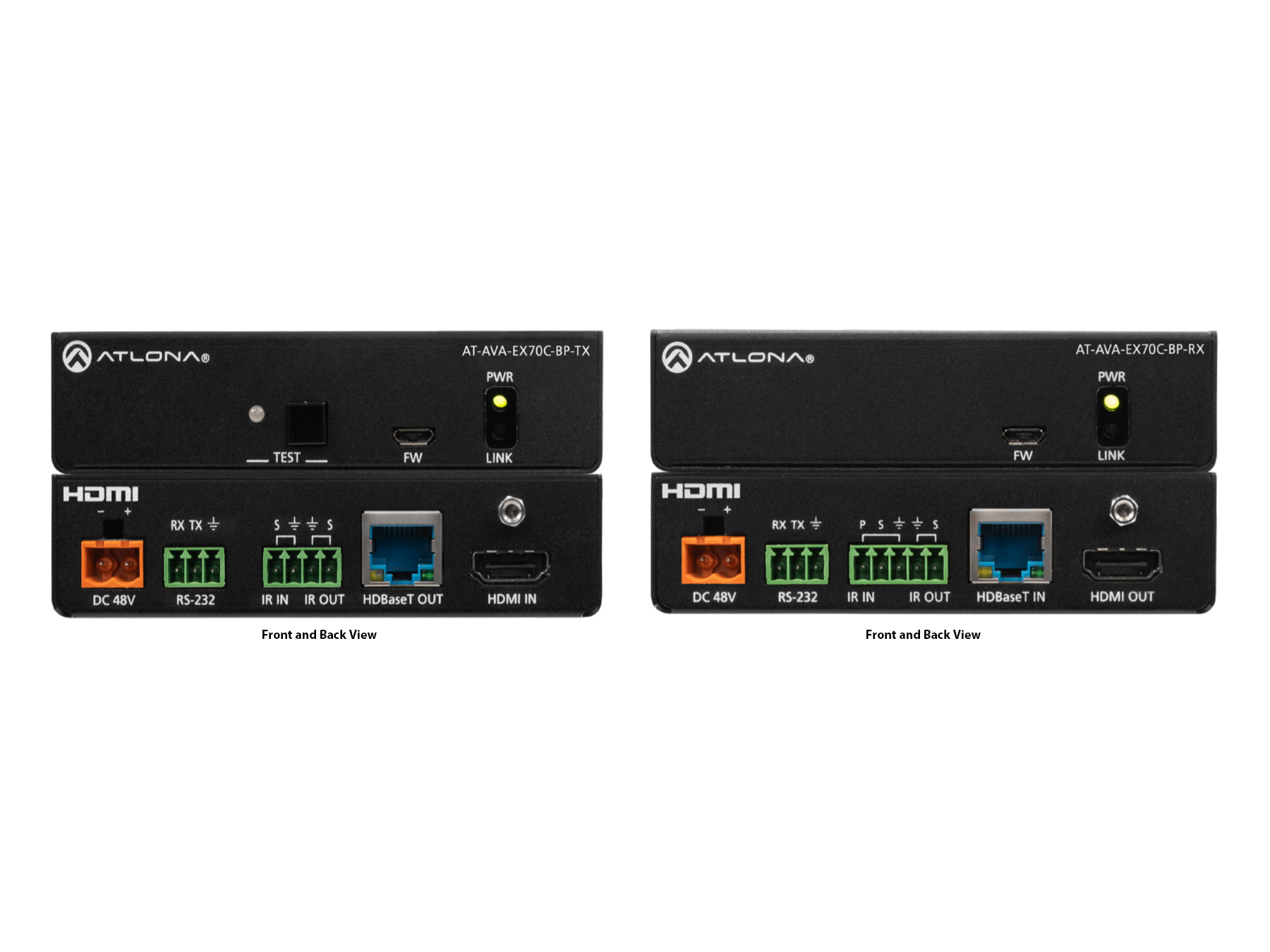

The AT-AVA-EX70C-BP-KIT is an HDBaseT transmitter and receiver kit designed to extend HDMI video, audio and control signals over a single CAT cable. It provides bidirectional remote power and control pass-through to simplify installations. This product transmits 4K/UHD and 1080P video at extended distances while maintaining signal integrity.
Key features include support for 4K/UHD video modes, embedded multi-channel audio, RS-232 and IR control pass-through, EDID filtering and HDMI clock stretching. The kit supports bidirectional remote powering so either endpoint can supply power to the other. An integrated HDBaseT link test helps verify cable and termination quality on site.
Performance supports 4K/UHD up to 130ft (40m) and 1080P up to 230ft (70m) over CAT6A/7 cabling. Supported 4K modes include 4K/UHD @30Hz 4:4:4 8 bit, 4K/UHD @60Hz 4:2:0 8 bit and 4K/UHD @30Hz 4:2:2 10 bit. The solution preserves multi-channel audio formats and includes HDMI Audio Return Channel to reduce cabling for audio return applications.
Connectivity is provided via standard HDMI plus an HDBaseT RJ45 link for a single-cable connection carrying video, audio, control and power. Control options include bidirectional RS-232 and IR over the same cable. The HDMI ports are compatible with locking HDMI connectors to secure cable connections in professional installs.
Typical applications include conference rooms, classrooms and residential AV where remote displays must receive high-resolution content and control signals. The kit is suitable for transmitting laptop or room PC sources to a display or projector while preserving audio and control functionality. The bidirectional power option increases flexibility for locating power near the source or display.
Installation is straightforward thanks to compact one inch high, quarter rack-width enclosures and included surface-mount brackets – the units can be hidden behind displays or mounted in furniture. Integrated diagnostics and EDID handling simplify integration and troubleshooting. The AT-AVA-EX70C-BP-KIT delivers a cost-effective method to extend 4K/UHD video, audio and control over twisted pair cable.
