Description
The ATEN AP212 is a dual-channel power amplifier that delivers 120W RMS per channel in a compact chassis. It combines Class-D efficiency with an integrated DSP and configurable WebGUI to provide precise tuning and reliable output. The unit supports both low-impedance 4 ohm loads and high-impedance 70/100V line operation.
Built-in DSP features include speaker EQ, a 5-band parametric EQ, delay, limiter and up to 20 user presets for system tuning and protection. The amplifier includes ground lift to eliminate hum and a customized Auto Standby mode that triggers sleep based on selectable signal thresholds and timeout intervals. Fanless cooling and thermal muting protect audio quality and connected speakers under high temperature conditions.
Performance specifications include THD+N below 0.1 percent at 1 kHz 3 dB before clipping and a frequency response of 50 to 20 kHz +/-3 dB at 4 ohm, 1W. Rated output is 120W RMS / 240W peak per channel at 4 ohm and 240W RMS / 480W peak in bridge mode for 70/100V distribution. The amplifier is ENERGY STAR qualified for improved power efficiency in continuous operation.

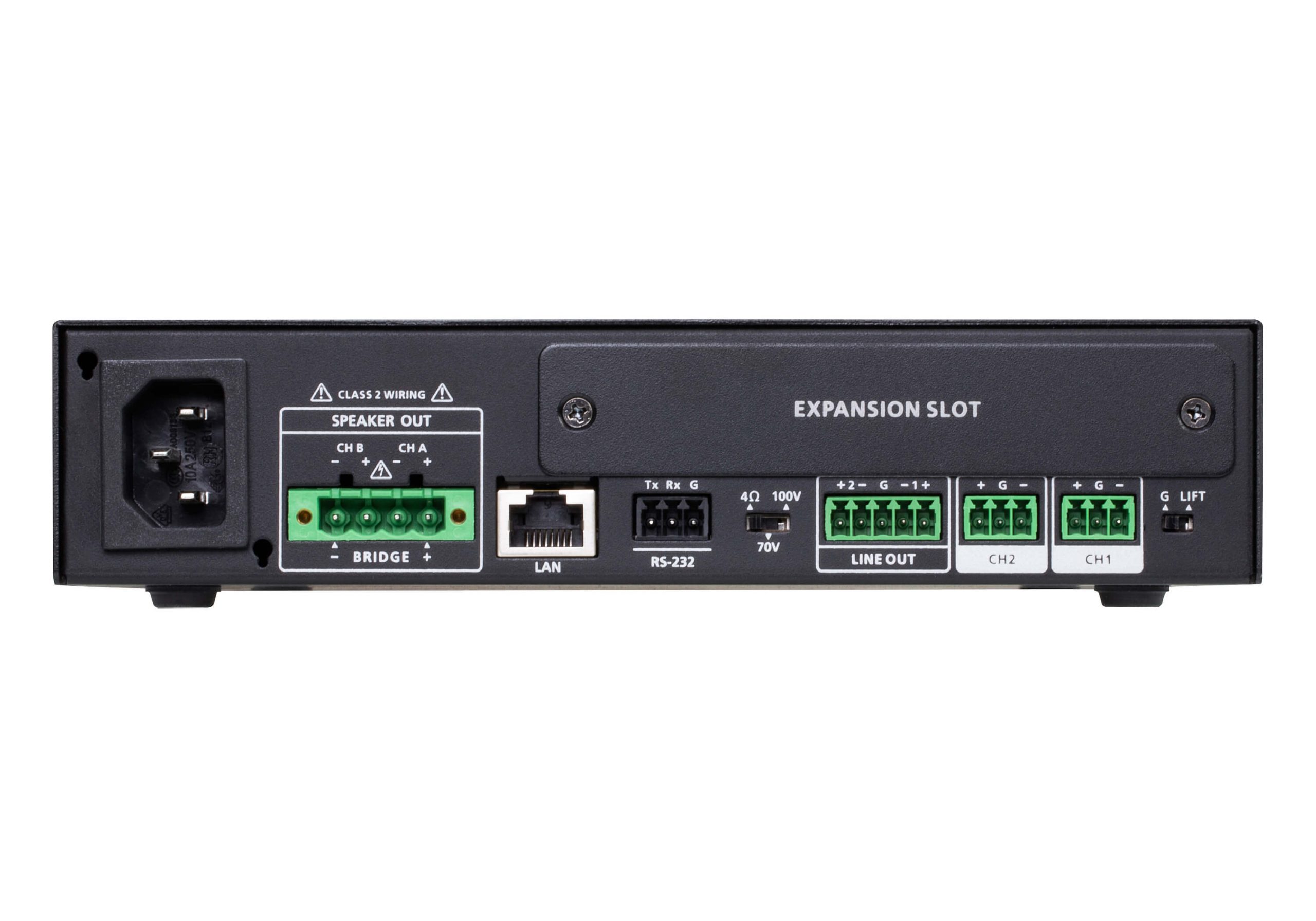

Connectivity includes two balanced/unbalanced line inputs on 3-pin 3.5 mm Euroblock connectors, a line output on a 5-pin 3.5 mm Euroblock and speaker outputs on a 4-pin 5.08 mm Euroblock. An expansion slot accepts optional AP901 Dante or AP902 mic/line preamp cards. Control and integration are provided via RS-232 and Ethernet for VK Control System compatibility and remote management through the WebGUI.
The AP212 is engineered for public address, background music and distributed audio systems that require dependable amplification and DSP control. Typical deployments include retail audio distribution, corporate audio zones, education facilities and houses of worship. Preset storage and DSP protection features simplify system commissioning and long-term operation.
Installation is flexible thanks to rack or surface mounting hardware and a compact metal housing. The fanless design reduces maintenance and the integrated protection features guard against output shorts, over/under voltage, high frequency overload and overheating. Firmware upgrades extend capability and ensure long term support.
