Description

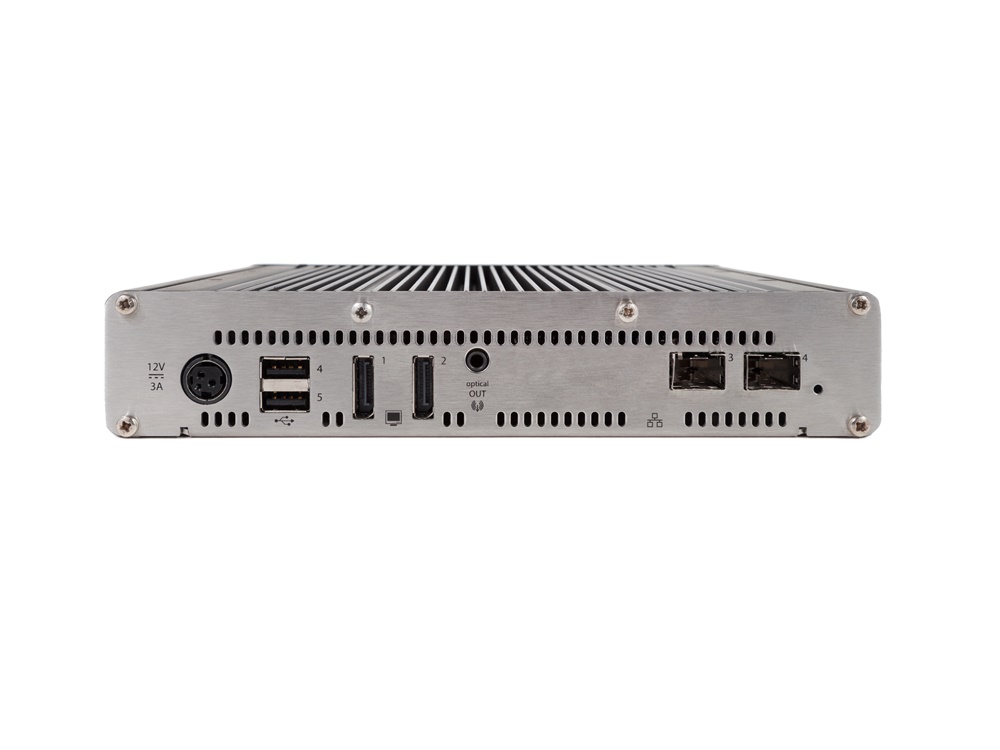

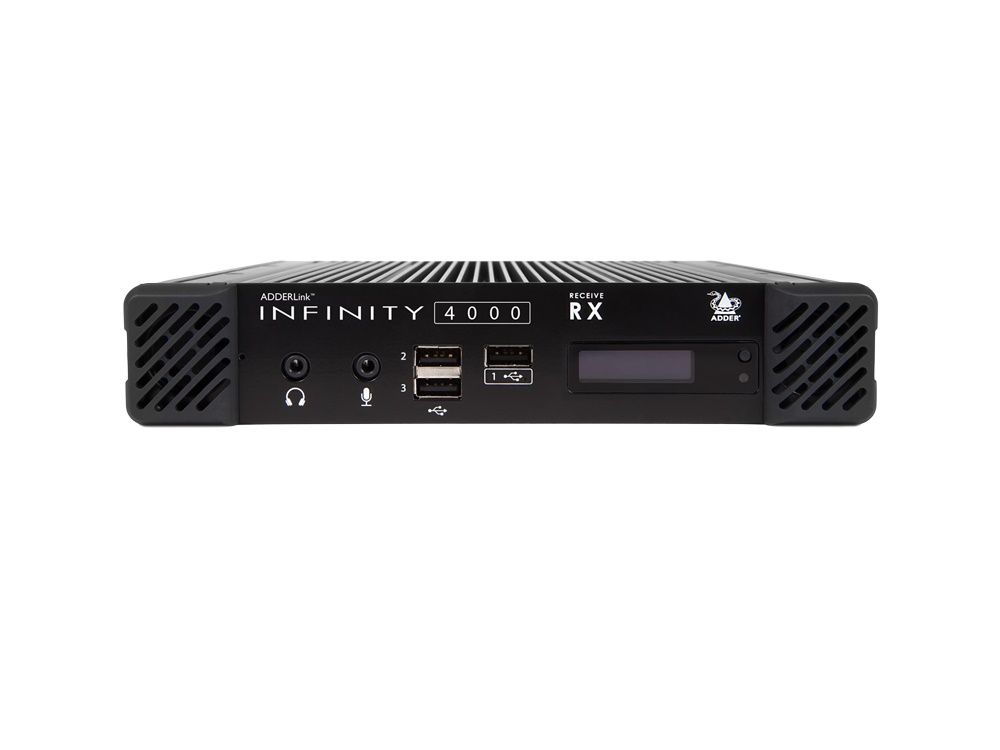

The ADDERLink INFINITY 4000 Series (ALIF4000) is the world’s first dual-head, 5K high performance IP KVM matrix over a single fiber. Fully compatible with the existing ADDERLink INFINITY (ALIF) range, and supported by the ADDERLink INFINITY Manager (AIM), the ALIF4001 can be used as a point-to-point extender or easily integrated into a wider matrix system.
Features:
Dual-head 5K screens over a single link
The ADDERLink INFINITY 4001 (ALIF4001) can deliver two 5K screens over a single link.
10-bit per colour and HDR10
Allows greater color depth, supports both SDR10 and HDR10
Multigigabit Ethernet support
Multirate (1/2.5/5/10) GbE support enables premium video performance over standard CAT6 cable up to 100m
Enhanced resiliency
Dual-multirate ports can be teamed together for enhanced resiliency or improved video capability.
Support for 5K resolutions
5K video resolutions supported for high resolution and ultra-wide video applications (5120×1440 @60Hz or 5120×2880 @30Hz).
High frame rate support
Refresh rates up to 240Hz supported for HD video resolutions.
High speed USB2.0
Supports transparent USB communication up to 480Mbps for those using mass storage devices, mouse and keyboard, graphics tablets, jog shuttles, joysticks and 3D explorers.
Perfect digital video
Using the same encoding system as the other products in the ADDERLink INFINITY (ALIF) range, the digital video is spatially lossless, with 1:1 pixel mapping, ensuring that the digital video you receive is the same as the one leaving your remote computer.
Backwards compatibility
The ALIF4001 can integrate seamlessly into your existing ADDERLink INFINITY setup, replacing or working in conjunction with your existing ALIF endpoints.
Isochronous Communication
Plug and play support for USB devices and third-party tools, such as Blackmagic® Design DaVinci Resolve® Color Grading Panels.
Audio capability
Multi-channel digital audio, via DisplayPort™, provides a high-quality immersive sound experience.
Onboard diagnostics tool
Diagnostics tool maximizes uptime and assists with technical support enquiries by allowing the customer to troubleshoot network issues directly from the unit.
Flexible and scalable

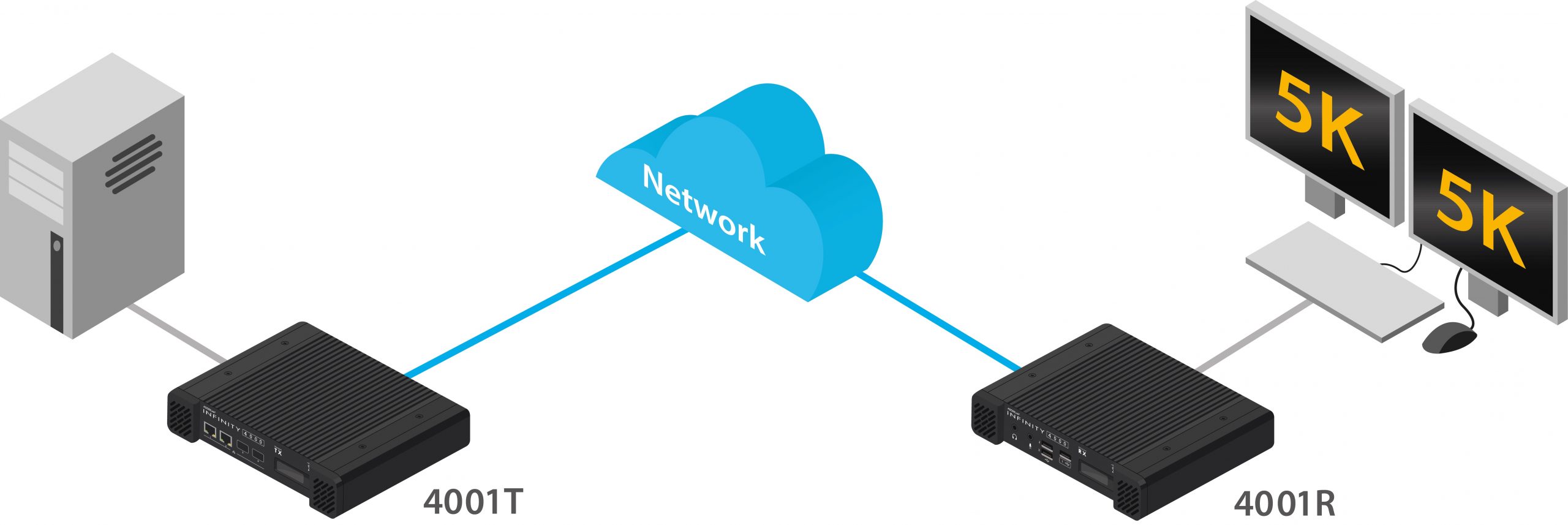

Each ALIF4001 unit can be configured as a simple extender or distributed KVM switch. Each receiver can see up to 16 sources or can be connected to the ADDERLink INFINITY Manager (AIM) to create a larger and more fully featured matrix.
