Description

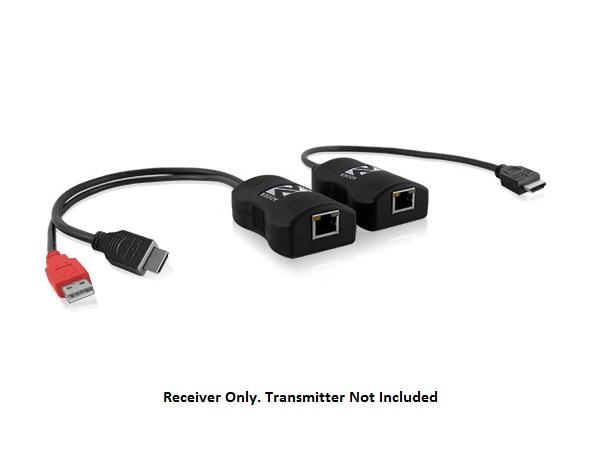

ALDV100R is a line powered HDMI receiver designed to extend uncompressed digital video and audio over a single CATx cable. The receiver accepts HDMI type A output while drawing power from a USB source to avoid external power supplies. It supports protected content and native pixel transmission to preserve image fidelity.
The unit delivers pixel perfect digital video up to 1920×1200 at 60Hz using reduced blanking where required. HDCP is supported and eight channels of HDMI audio are transmitted without compression. EDID management is provided to ensure the display’s true characteristics are passed back to the source.

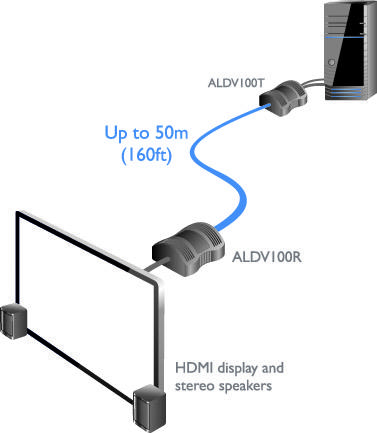

Video, audio and power travel over a single CATx link with a recommended maximum reach of 50 meters depending on cable type and patching. The receiver supports 24 bit color depth and common HDTV formats including 480p, 720p and 1080p. Audio sampling rates up to 192kHz and sample sizes of 16/20/24 bit are supported.
Connectivity includes HDMI type A output at the receiver and the system interoperates across the ADDERLink DV family for mix and match transmitter/receiver pairings. The product is USB powered to minimize infrastructure and does not require additional PSU hardware. Category 6a shielded cable or better is required to maintain RF compliance and immunity to EMI.
Typical use cases include digital signage installations and AV system designs where source equipment must be located in secure or climate controlled environments away from displays. The small ABS enclosure enables discreet installation at display locations and the plug and play design removes the need for drivers or configuration. EDID handling and uncompressed transmission preserve user experience and AV integrity.
The ALDV100R is built for durability using robust connectors and injection moulded ABS enclosures. The design focuses on low power consumption and easy installation using common USB power sources. Compliance certifications include CE and FCC and operating temperature range is suitable for typical indoor AV environments.
