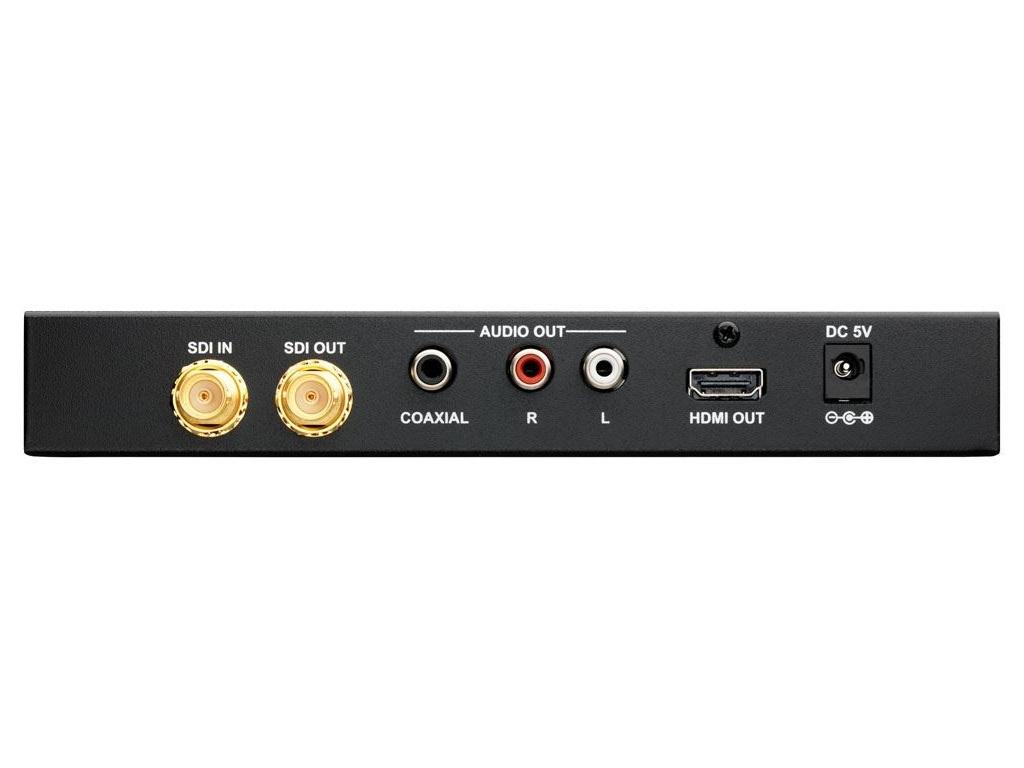

TV One 1T-VS-647 SDI to HDMI Video Converter with Audio

Description

1T-VS-647 SDI to HDMI Scaler with Audio converts a variety of SDI transmission rates and video resolutions into an HDMI signal. It also provides audio flexibility by outputting the audio embedded in the SDI signal to external connectors (both analog and digital formats) for distribution separate from the HDMI data stream. Bit rates to 2.970Gb/s allow processing of resolutions up to and including 1080p. SMPTE standards 425 A&B, 424M, 292M & 259M-C are supported and SMPTE 425M level B to level A Conversion is also standard. Automatic Input Video Format Detection and an On Screen Menu display make operation easy and intuitive. Additional capabilities include SDI loop-thru with equalization and reclocking which means the 1T-VS-647 SDI to HDMI Scaler doubles as an SDI repeater. Finally, as part of the SDI to HDMI scaling process, SDI timing is automatically converted to PC timing parameters.

Features

Bitrates to 2.970Gb/s
Resolutions up to and including 1080p
De-embedded Audio – Analog and Digital Outputs
SDI Equalized and Re-Clocked loop-thru
Automatic Detection of Input Format
SMPTE 425 A&B, 424M, 292M & 259M-C
OSD (On Screen Display)
Converts SDI HD Timing to PC Timing

Specifications

Video/Audio Input

SDI SD, HD, 3G-SDI: Via 2x BNC (Input w/Loop-Thru)

Video Output

HDMI v1.3: Via 1x HDMI Connector

Audio Outputs

Digital Audio: Via 1x RCA, 48KHz
Analog Audio: Via 2x RCA, 48KHz

Transmission Bitrates

SDI Inputs: 2.970Gbit/s & 2.970/1.001 Gbit/s

Frequency Bandwidth

MHz/Link: 165MHz

SDI Loop Thru

Signal Processing: Equalization & Re-Clocking
Cable Distance: SD=300M, HD=200M, 3G=100M

SDI Format Support

SD: 480i, 576i
HD: 720p, 1080i, 1080p 24/25/30
3G-SDI: 1080p 50/60

Signal Conversion

SMPTE Standard: 425M Level B to Level A
Max Output Resolution: 1080p 60, WUXGA

De-Embedded Audio

Output Signal Types: Digital Coaxial, Analog R&L
Channel Compliment: 4 Groups, 2 per Group

Mechanical

Size (H-W-D): 30x180x142mm (1.2x7x5.6”)
Weight (Net): 460g (16.2oz)

Warranty

Limited Warranty: 3 Years Parts and Labor

Environmental

Operating Temperature: 0 to +40C (+32 to +104F)
Operating Humidity: 20% to 90%, Non-condensing
Storage Temperature: -20 to +60 C (-4 to +140 F)
Storage Humidity: 20% to 90%, Non-condensing

Power Requirement

External Power Supply: 5VDC@2.6A

Regulatory Approvals

Converter Unit: FCC, CE, RoHS
Power Supply: UL, CUL, CE, PSE, GS, RoHS

Accessories Included

1x AC Power Adapter: US, UK or Euro
1x Operations Manual

Optional Accessories

Rack Mount Kit: RM-230
