TV One 1T-SX-654 4x1 4K60 HDMI 2.0 Switcher with HDCP 2.2

Description

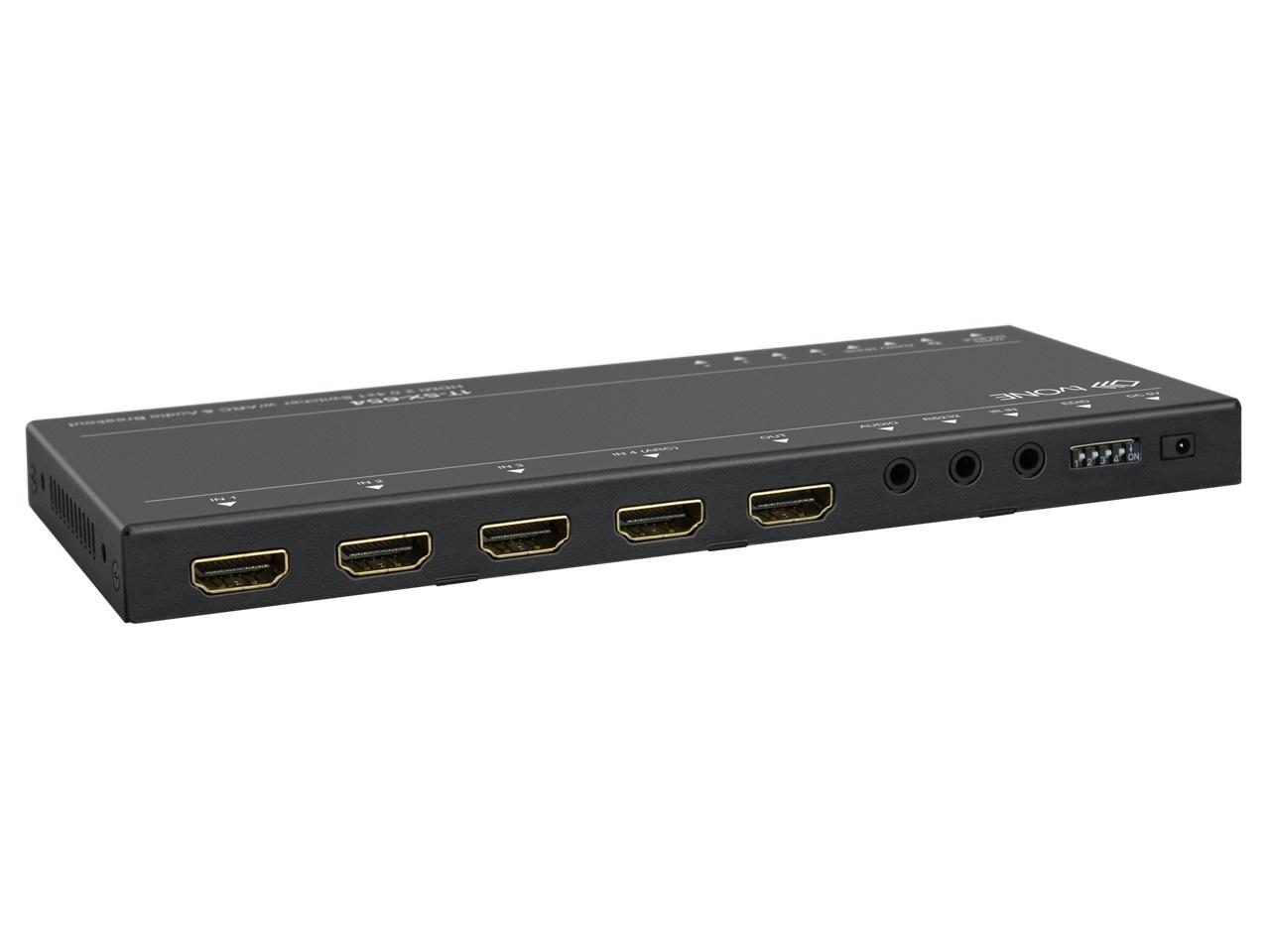

The 1T-SX-654 is an ultra-thin auto switcher with four HDMI video inputs and one HDMI output with resolution support up to 4Kx2K@60Hz 4:4:4 HDR. Control options include auto-switch mode, which automatically switches to an HDMI input as soon as a new source is connected, or control via the front panel source button, RS-232 or IR (remote control included).

Audio functionality includes multi-channel support, de-embeded digital stereo audio to provide an analog output, or an audio return channel (ARC) for transmitting audio back to the HDMI input from the connected display.

Features:

Switch any of the four HDMI inputs to a single HDMI output
Supports video resolution up to 4Kx2K@60Hz 4:4:4 HDR
18Gbps high bandwidth
HDMI 2.0 and HDCP 2.2 compliant
Audio return channel (ARC) support
Ultra-thin (12mm) design for easy install
Controllable via RS-232 and IR
Supports Consumer Electronics Control (CEC)
Advanced EDID management

Specifications

Video Input

Input (4) HDMI 2.0
HDCP compliance HDCP 2.2
HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4
HDCP Version 2.2

Video Output

Output (1) HDMI 2.0
HDMI Output Resolution Up to 4Kx2K@60Hz 4:4:4
HDCP Version 2.2

Audio

Output (1) PCM via 3.5mm mini stereo audio jack
Audio Format PCM
Audio Output Impedance 70 Ohms
Frequency Response 20Hz to 20kHz, ±3dB

Control

Control Front panel button
IR IN via 3.5mm mini jack
RS232 via 3.5mm mini jack

General

Bandwidth 18Gbps
Operation Temperature
14°F – +131°F
-10°C – +55°
Storage Temperature
-13°F – +158°F
-25°C – +70°C
Relative Humility 10% – 90%
Power Supply Input: 100V – 240V AC
Output: 5V DC 1A
Power Consumption 5W (Max)
Dimensions:
(H x W x D) 7.64" x 0.47" x 3.19"
194mm x 12mm x 81mm
Weight: (Net) 0.4 lbs (180g)
